3. Install the battery hold down retainer and bolt.

Tighten: Tighten the battery hold down retainer bolt to 25 N.m (18 lb ft).

4. Connect the positive battery cable.

Tighten: Tighten the positive battery cable bolt to 17 N.m (13 lb ft).

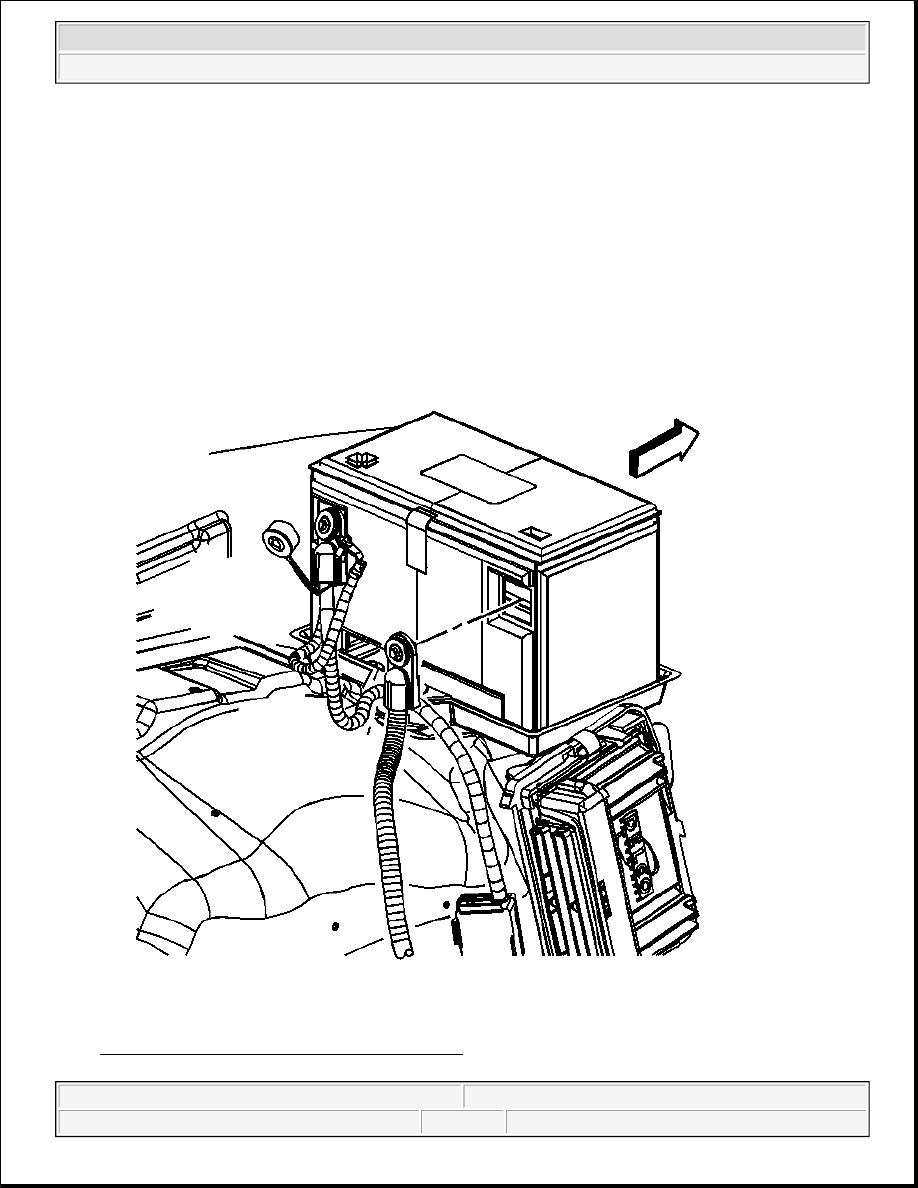

Fig. 32: Battery Ground Negative Cable & Bolt
Courtesy of GENERAL MOTORS CORP.

NOTE:

Refer to Fastener Notice in Cautions and Notices.



2004 Hummer H2

2004 ELECTRICAL Engine Electrical - Hummer H2



5. Connect the negative battery cable. Refer to Battery Negative Cable Disconnect/Connect Procedure

(Single Battery) .

BATTERY TRAY REPLACEMENT

Removal Procedure

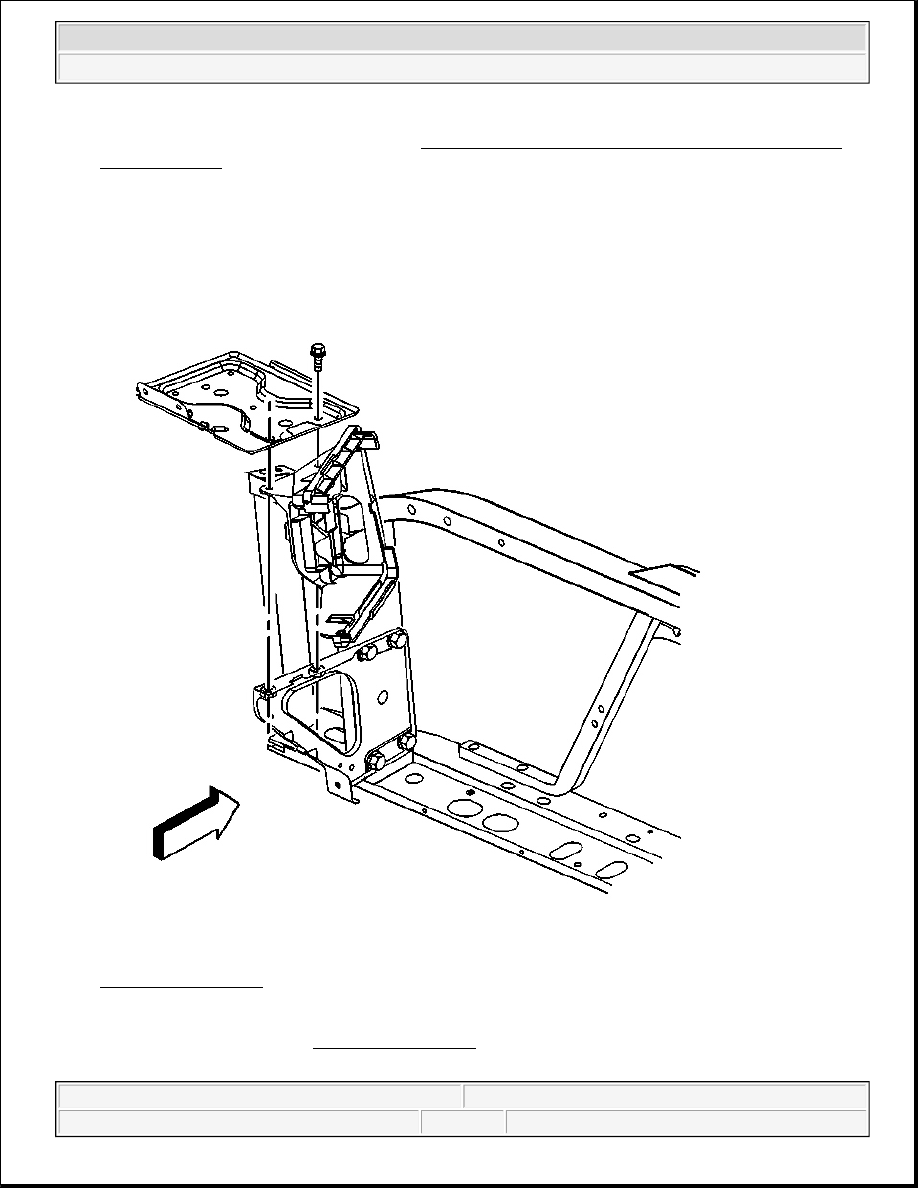

Fig. 33: Battery Tray
Courtesy of GENERAL MOTORS CORP.

1. Remove the battery. Refer to Battery Replacement .

2. Remove the bolts from the battery tray support.



2004 Hummer H2

2004 ELECTRICAL Engine Electrical - Hummer H2



3. Remove the battery tray.

Installation Procedure

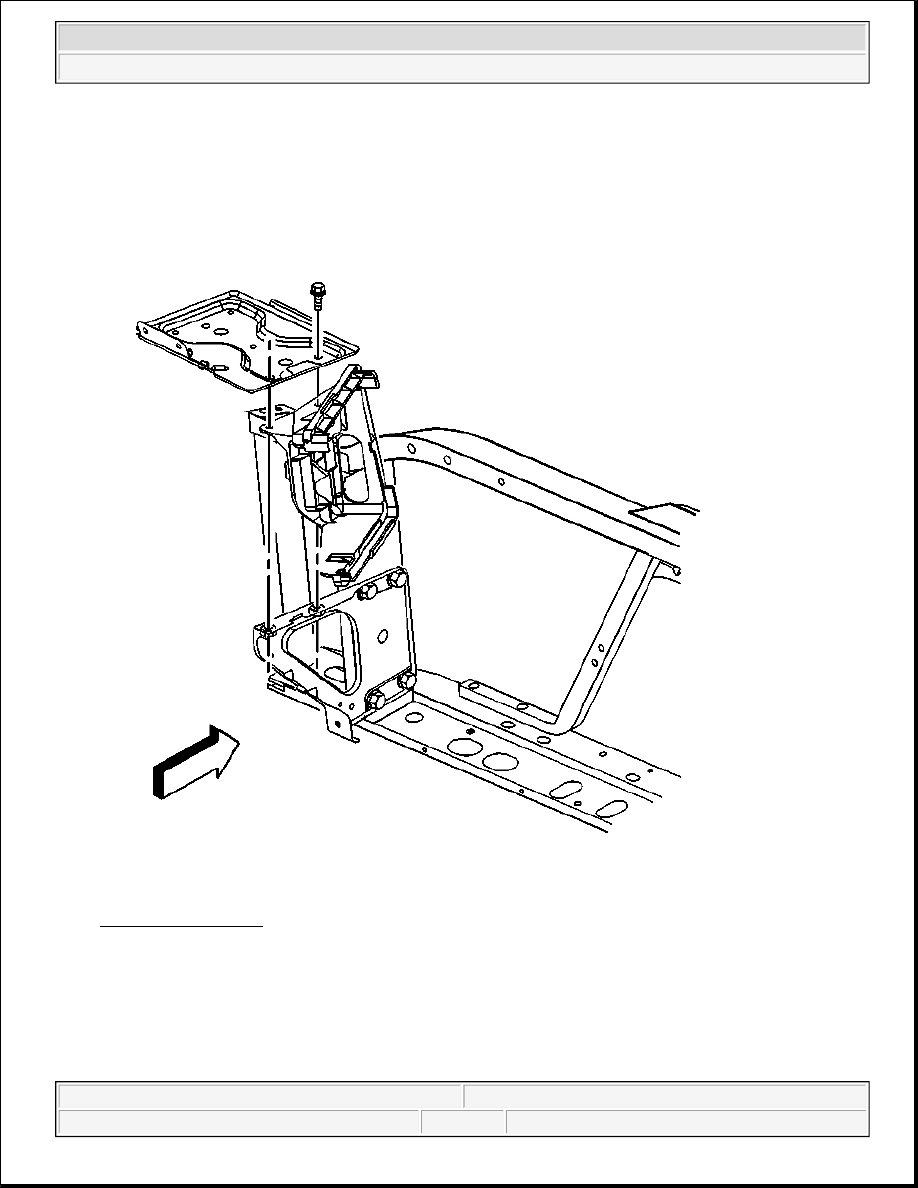

Fig. 34: Battery Tray
Courtesy of GENERAL MOTORS CORP.

1. Install the battery tray.

Install the bolts to the battery tray support until snug.

NOTE:

Refer to Fastener Notice in Cautions and Notices



2004 Hummer H2

2004 ELECTRICAL Engine Electrical - Hummer H2



2. Tighten the battery tray bolts.

Tighten: Tighten the bolts to 9 N.m (80 lb in).

3. Install the battery. Refer to Battery Replacement .

GROUND STRAP REPLACEMENT

Removal Procedure

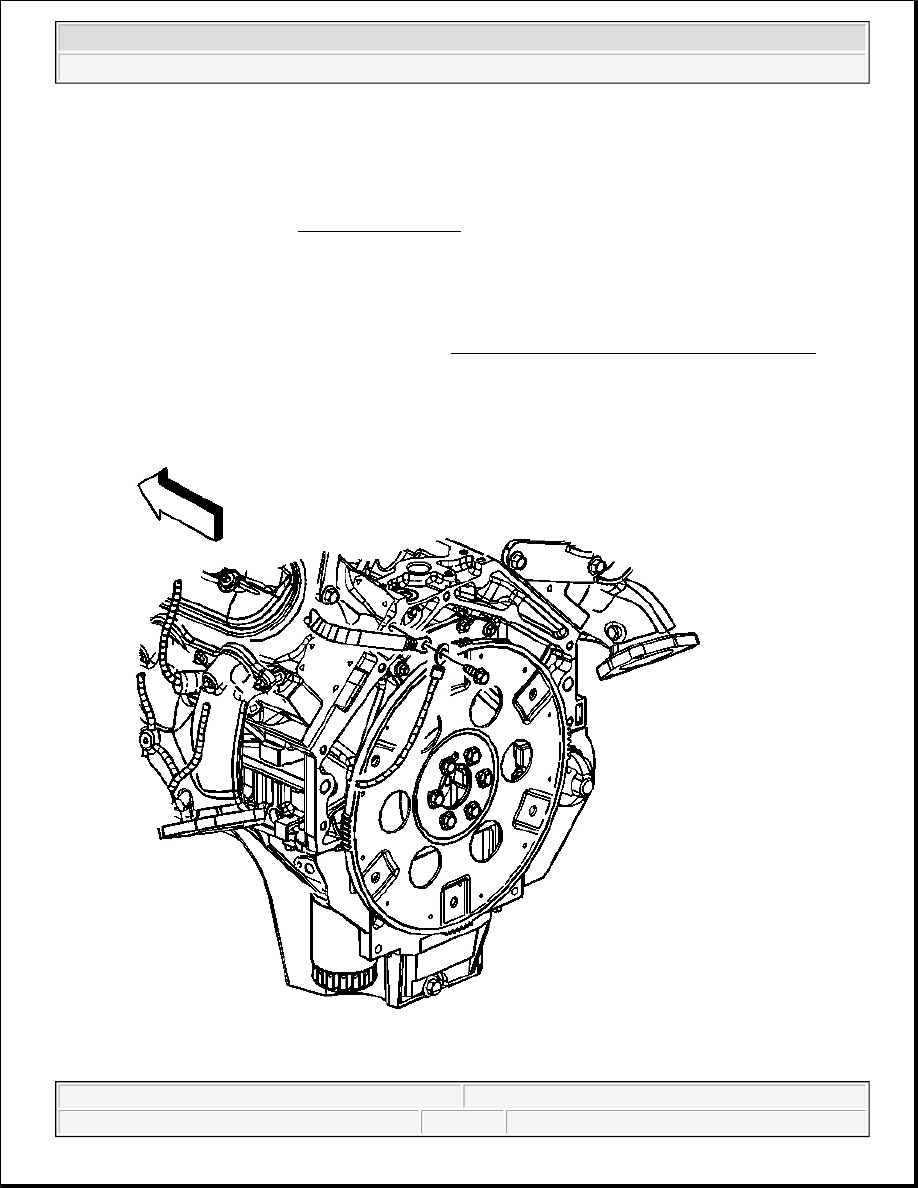

1. Remove the left hand catalytic convert. Refer to Catalytic Converter Replacement (Right Hand) in

Engine Exhaust.



2004 Hummer H2

2004 ELECTRICAL Engine Electrical - Hummer H2
