Hummer H2. Manual - part 1131

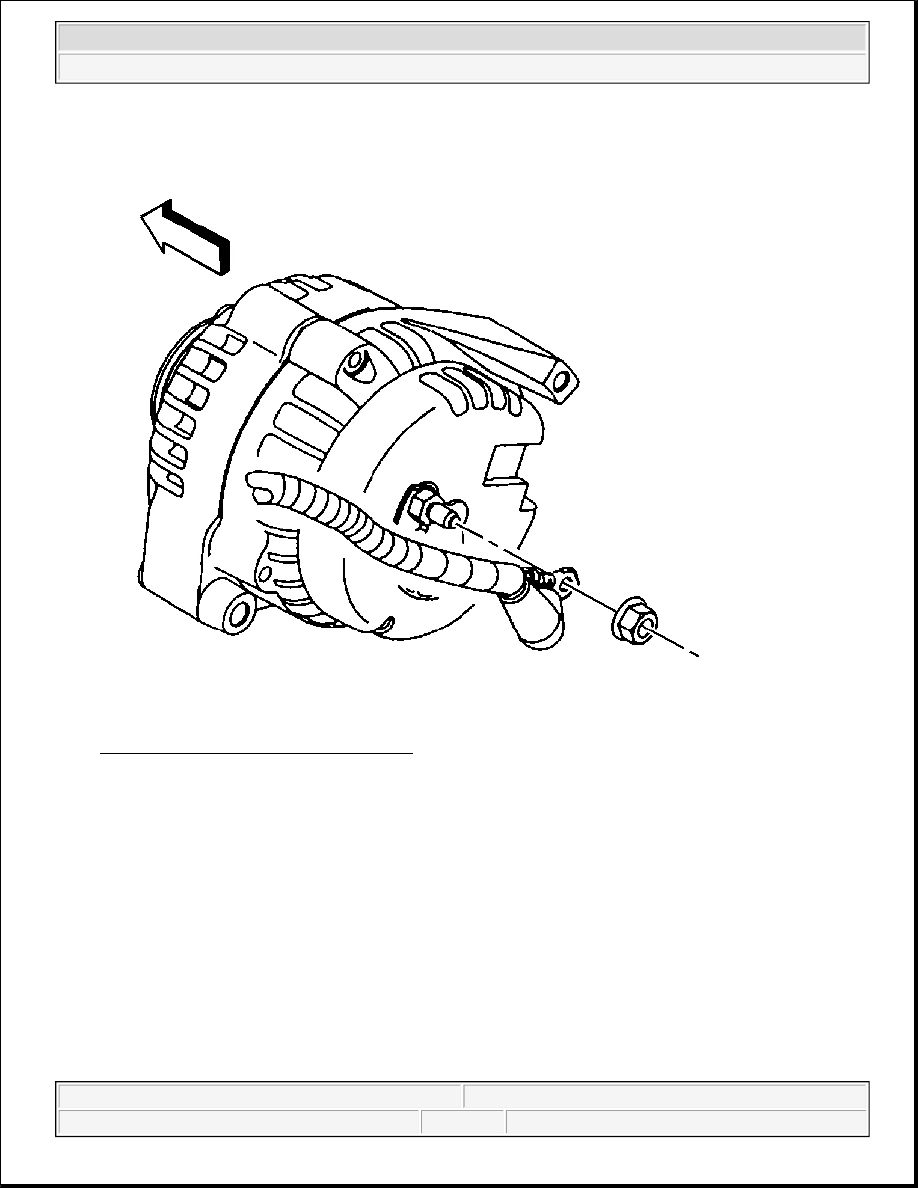

Fig. 24: View Of Generator Cable & Nut
Courtesy of GENERAL MOTORS CORP.

2. Remove the generator cable from the generator, perform the following:

1. Reposition the boot to expose the stud.

2. Remove the generator cable nut.

3. Remove the generator cable from the stud.



2004 Hummer H2

2004 ELECTRICAL Engine Electrical - Hummer H2



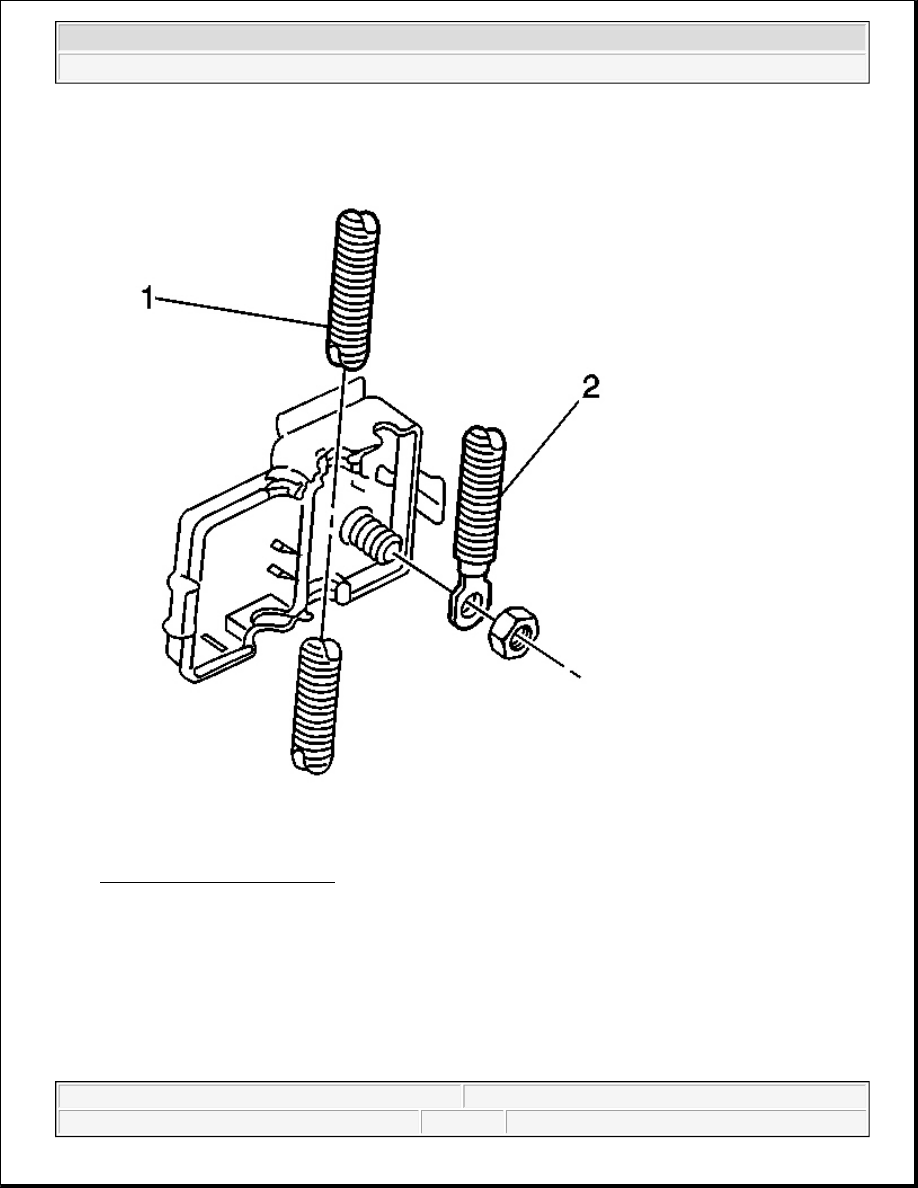

Fig. 25: Positive Battery Cable
Courtesy of GENERAL MOTORS CORP.

3. Open the positive cable junction block.

4. Remove the generator cable nut.

5. Remove the generator cable (2) from the junction block.

Installation Procedure



2004 Hummer H2

2004 ELECTRICAL Engine Electrical - Hummer H2



Fig. 26: Positive Battery Cable
Courtesy of GENERAL MOTORS CORP.

1. Install the generator cable (2) to the junction block.

2. Install the generator cable nut.

Tighten: Tighten the nut to 9 N.m (80 lb in).

NOTE:

Refer to Fastener Notice in Cautions and Notices.



2004 Hummer H2

2004 ELECTRICAL Engine Electrical - Hummer H2



3. Close the positive cable junction block.

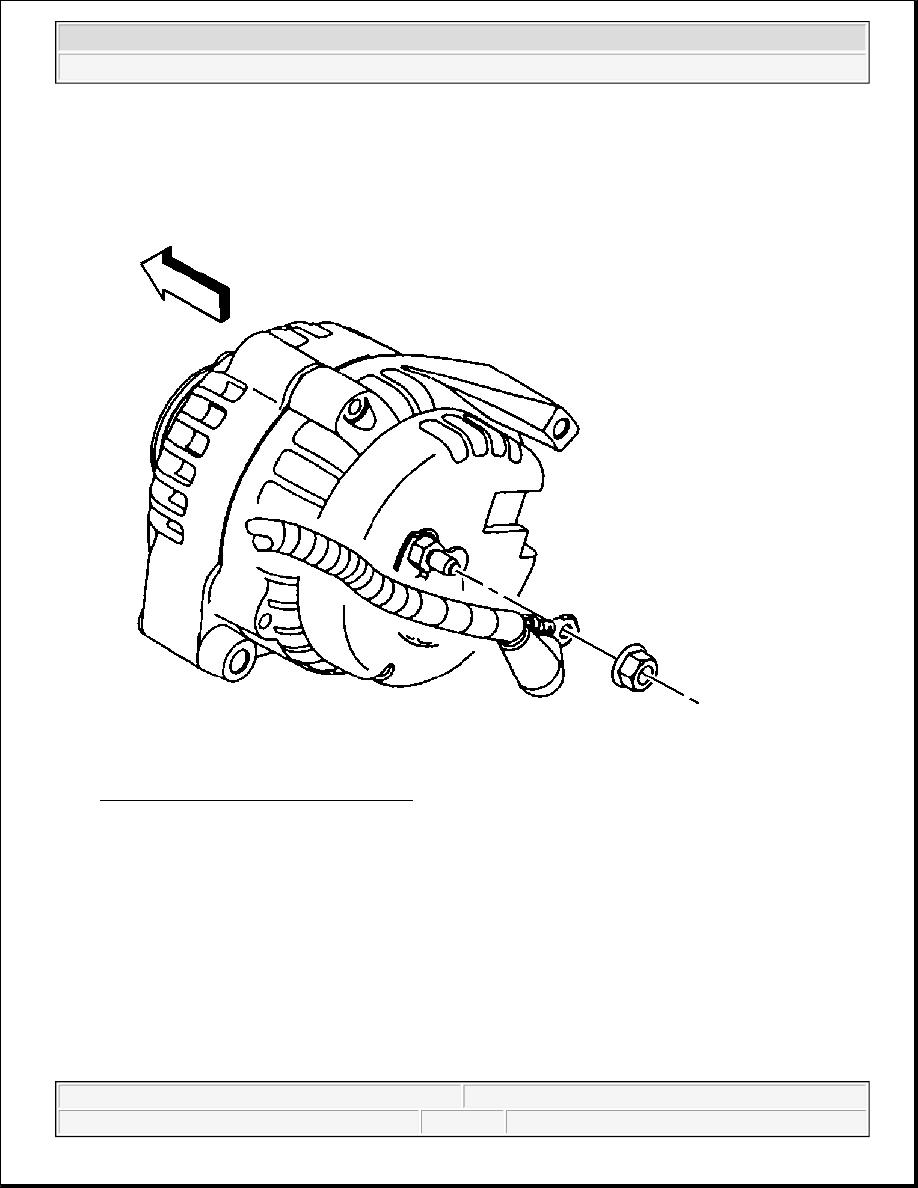

Fig. 27: View Of Generator Cable & Nut
Courtesy of GENERAL MOTORS CORP.

4. Install the generator cable to the generator, perform the following:

1. Install the generator cable to the stud.

2. Install the generator cable nut.

Tighten: Tighten the nut to 9 N.m (80 lb in).

3. Position the boot to cover the stud.
