Tighten: Tighten the bolt to 12 N.m (106 lb in).

8. Install the engine protection shield. Refer to Engine Protection Shield Replacement in Frame and

Underbody.

9. Lower the vehicle.

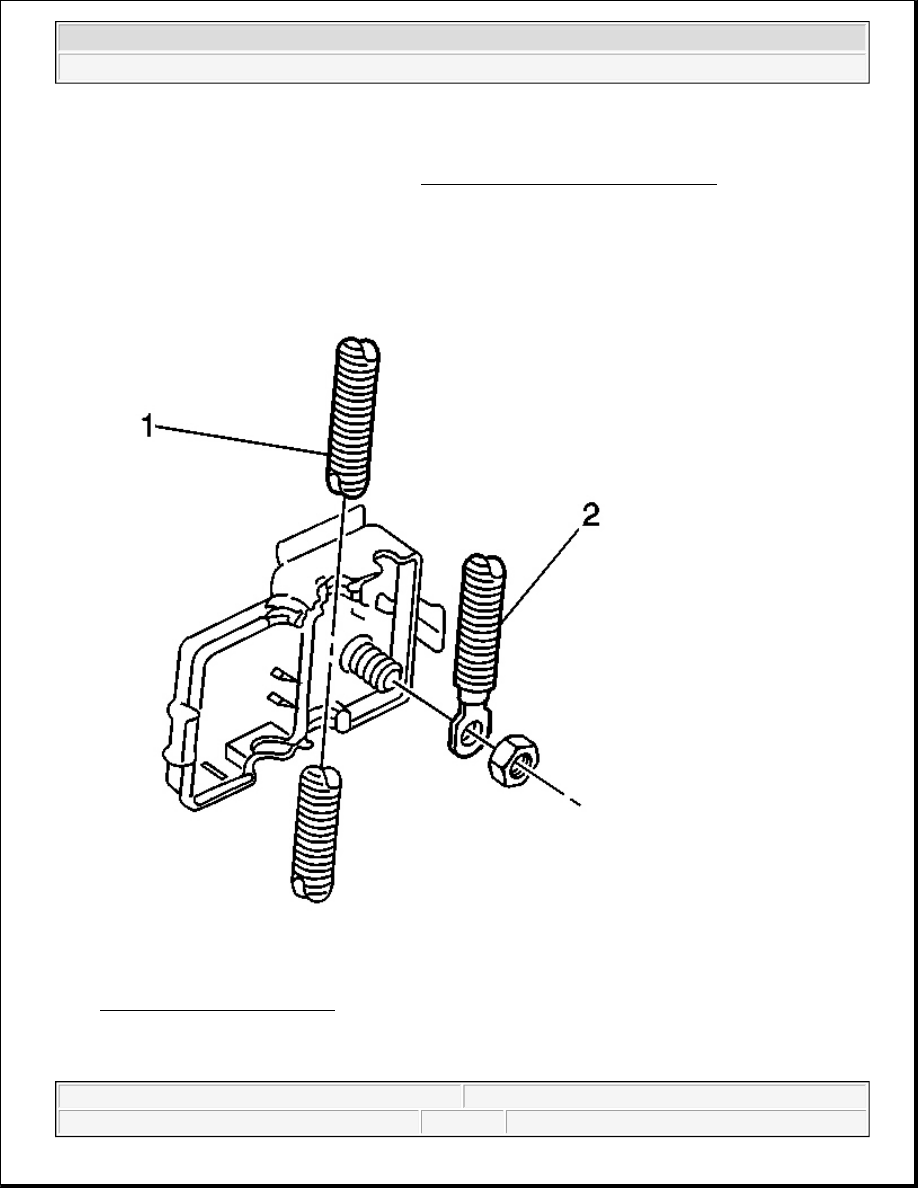

Fig. 20: Positive Battery Cable
Courtesy of GENERAL MOTORS CORP.

10. Install the positive battery cable (1) into the junction block.



2004 Hummer H2

2004 ELECTRICAL Engine Electrical - Hummer H2



Tighten: Tighten the nut to 9 N.m (80 lb in).

11. Snap the junction block cover closed.

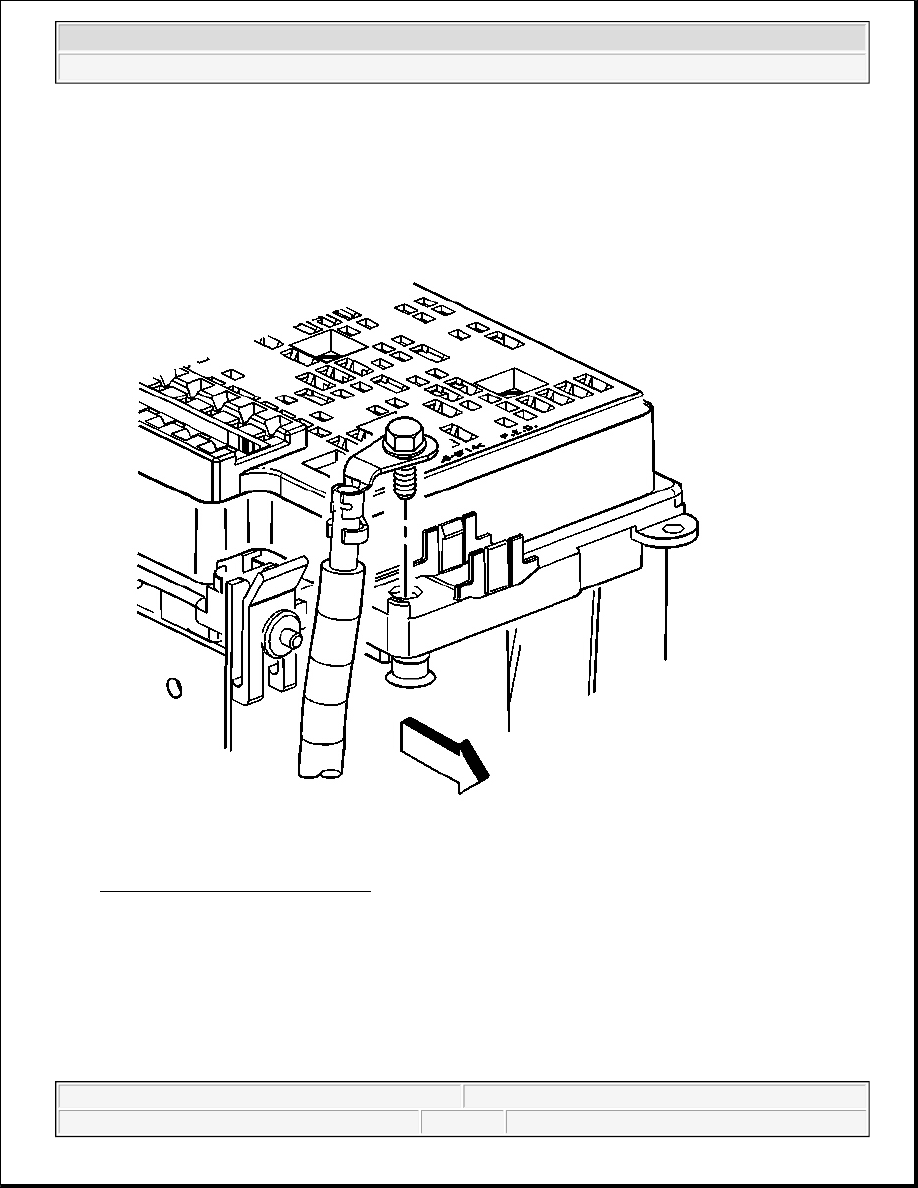

Fig. 21: Positive Battery Cable Bolt
Courtesy of GENERAL MOTORS CORP.

12. Tighten the positive cable bolt at the UBEC.

Tighten: Tighten the bolt to 9 N.m (80 lb in).

13. Position the UBEC lower cover.

14. Install the UBEC cover.



2004 Hummer H2

2004 ELECTRICAL Engine Electrical - Hummer H2



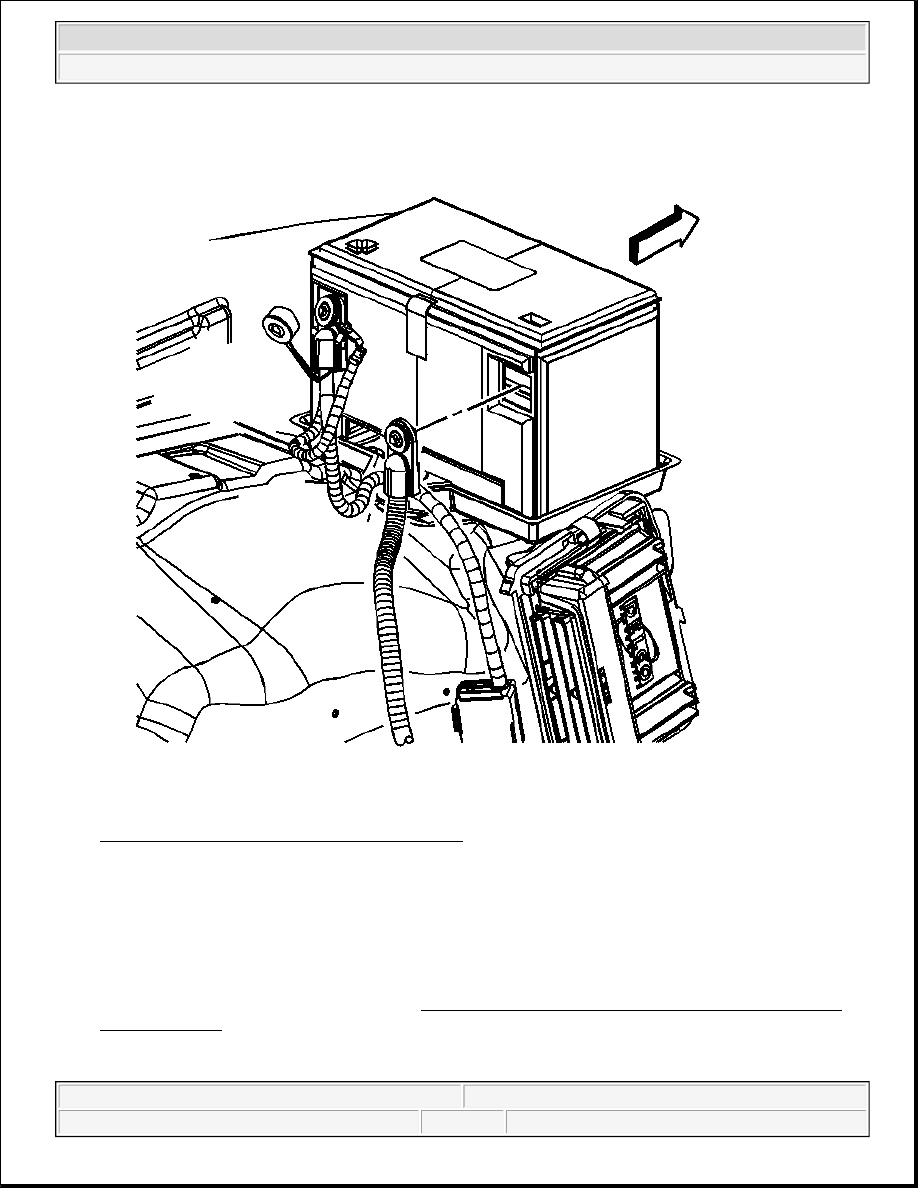

Fig. 22: Battery Ground Negative Cable & Bolt
Courtesy of GENERAL MOTORS CORP.

15. Connect the positive battery cable.

Tighten: Tighten the bolt to 17 N.m (13 lb ft).

16. Snap the positive battery cable cap closed.

17. Connect the negative battery cable. Refer to Battery Negative Cable Disconnect/Connect Procedure

(Single Battery) .

GENERATOR CABLE REPLACEMENT



2004 Hummer H2

2004 ELECTRICAL Engine Electrical - Hummer H2



Removal Procedure

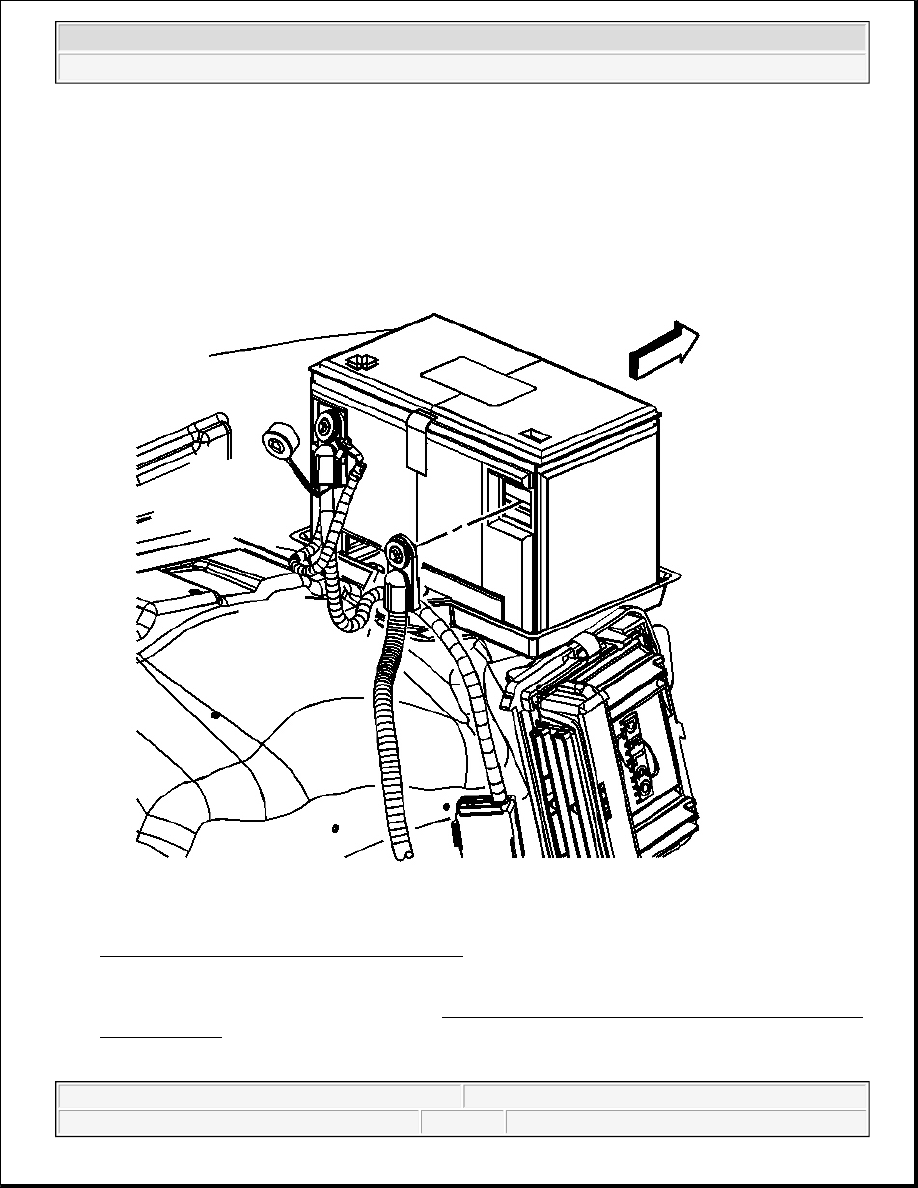

Fig. 23: Battery Ground Negative Cable & Bolt
Courtesy of GENERAL MOTORS CORP.

1. Disconnect the negative battery cable. Refer to Battery Negative Cable Disconnect/Connect Procedure

(Single Battery) .

CAUTION: Refer to Battery Disconnect Caution in Cautions and Notices.
