Fuse Block - I/P Top View

Assembly - RR

HVAC 1 Fuse

10A

HVAC Control Module, HVAC Actuators, Inside Rearview Mirror

L DOOR

-

Fuse Block - I/P C4 (Driver Door Harness)

CRUISE Fuse

10A

Cruise Control Switch

UNLOCK Relay

-

Door Lock Actuator - Liftgate, Door Latch Assembly - LR, Door Latch
Assembly - RR

RR FOG LP Relay

-

Not Used

BRAKE Fuse

10A

Stop Lamp Switch

DRIVER UNLOCK
Relay

-

Not Used

PDM Fuse

10A

Front Passenger Door Module (FPDM)

IGN O Fuse

10A

Automatic Transmission, Powertrain Control Module (PCM), Shift Lock
Control Keylock Solenoid

TBC IGN O Fuse

10A

Body Control Module (BCM)

VEH CHMSL Fuse

10A

CHMSL Stop Lamp, Trailer Wiring Provisions

LT TRLR ST/TRN
Fuse

10A

Trailer Wiring Provisions

LT TRN Fuse

10A

Instrument Panel Cluster (IPC), Side Marker Lamps - LF/LR, Turn Signal
Lamp - LR, Turn/Park Lamp - LF

VEH STOP Fuse

15A

Turn Signal/Hazard Flasher Module, VEH CHMSL Fuse

BODY

-

Relay Block - Body C3 (Body Harness)

RT TRLR ST/TRN
Fuse

10A

Trailer Wiring Provisions

RT TRN Fuse

10A

Instrument Panel Cluster (IPC), Side Marker Lamps - RF/RR, Turn Signal
Lamp - RR, Turn/Park Lamp - RF

DDM Fuse

15A

Driver Door Module (DDM)

AUX PWR 2 Fuse

20A

I/P Accessory Power Outlets, Accessory Power Outlet - Rear

LOCKS Fuse

20A

Door Lock/Unlock Relay

ECC Fuse

10A

Liftgate Door Lock Relay

TBC 2C Fuse

15A

Body Control Module (BCM)

FLASH Fuse

25A

Turn Signal/Hazard Flasher Module

LT DOORS CB

25A

Window Switch - LR, Driver Door Module (DDM)

TBC 2B Fuse

15A

Body Control Module (BCM)

TBC 2A Fuse

15A

Body Control Module (BCM)



2004 Hummer H2

2004 ACCESSORIES & EQUIPMENT Wiring Systems (Component List) - Hummer H2



Fig. 33: Fuse Block - I/P Top View
Courtesy of GENERAL MOTORS CORP.

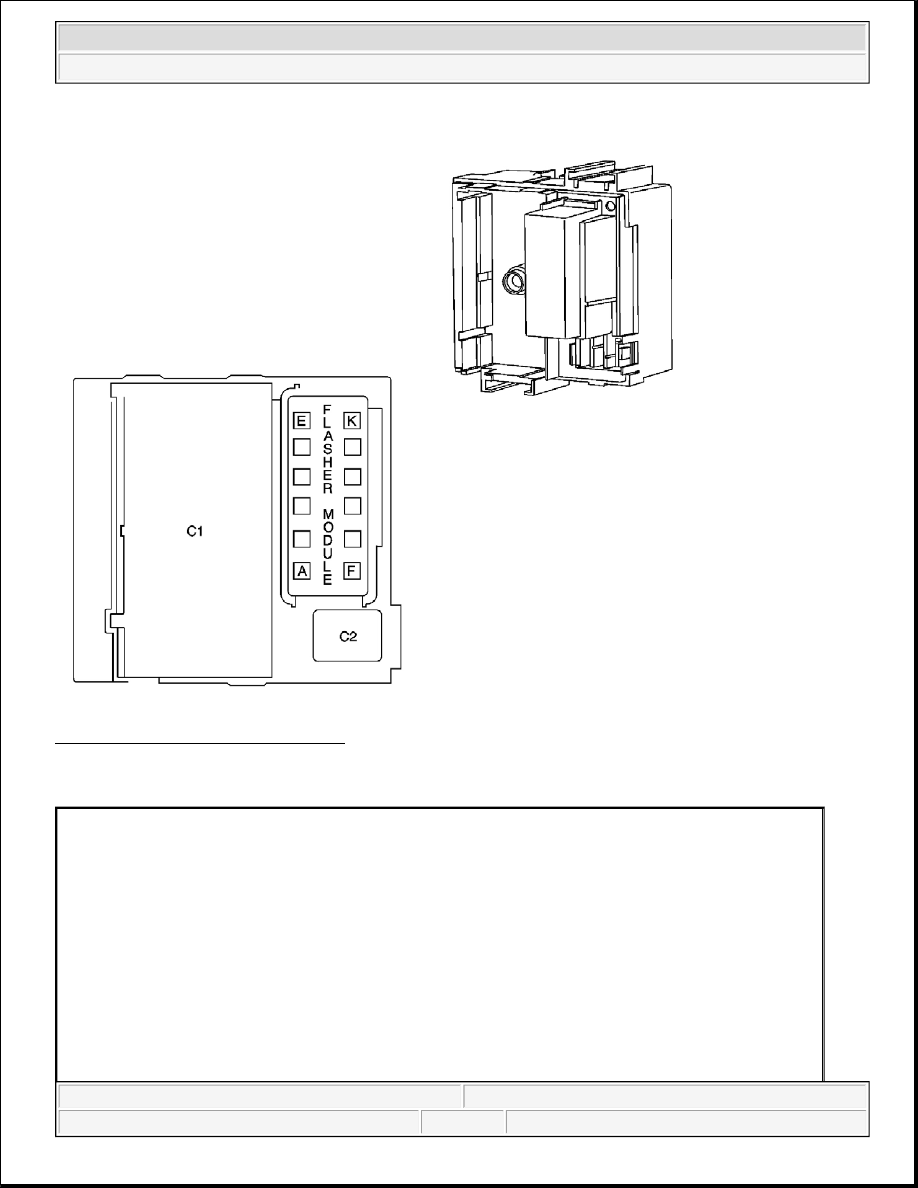

Fuse Block - I/P Bottom View



2004 Hummer H2

2004 ACCESSORIES & EQUIPMENT Wiring Systems (Component List) - Hummer H2



Fig. 34: Fuse Block - I/P Bottom View
Courtesy of GENERAL MOTORS CORP.

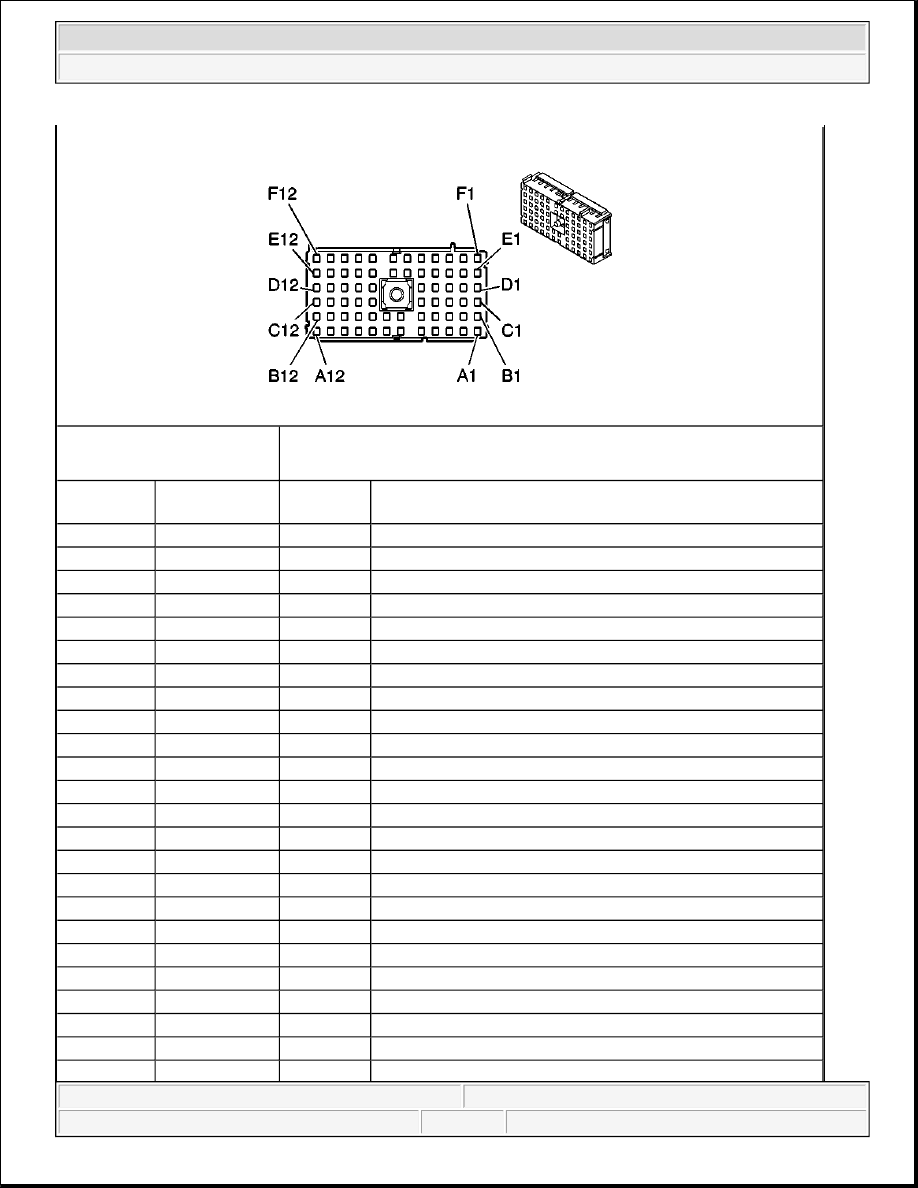

Fuse Block Terminal Identification - I/P C1



2004 Hummer H2

2004 ACCESSORIES & EQUIPMENT Wiring Systems (Component List) - Hummer H2



Connector Part

Information

z

12193906

z

68-Way F Metri-Pack 280 Series (BK)

Pin

Wire Color

Circuit

No.

Function

A1

-

-

Not Used

A2

GY/BK

255

Power Door Lock Fuse Supply Voltage

A3

-

-

Not Used

A4

TN/BK

254

Power Door Unlock Fuse Supply Voltage

A5-A6

-

-

Not Used

A7

OG

4240

Battery Positive Voltage

A8

YE

1618

Trailer Left Rear Turn/Stop Lamp Supply Voltage

A9

D-GN

1619

Trailer Right Rear Turn/Stop Lamp Supply Voltage

A10

OG

3040

Battery Positive Voltage

A11

D-BU

2115

Right Turn Signal Lamps Supply Voltage

A12

RD

42

Battery Positive Voltage

B1

YE

143

Accessory Voltage

B2

YE

43

Accessory Voltage

B3-B7

-

-

Not Used

B8

WH

17

Stop Lamp Switch Signal

B9-B11

-

-

Not Used

B12

OG

2140

Battery Positive Voltage

C1-C3

-

-

Not Used

C4

BN

41

Ignition 3 Voltage

C5

-

-

Not Used

C8

L-BU

1620

Trailer CHMSL Supply Voltage

D1

YE

243

Accessory Voltage

D2

-

-

Not Used

D3

BN

341

Ignition 3 Voltage
