Hummer H2. Manual - part 1069

Fuse Block Terminal Identification - Underhood C2

D4

OG

340

Battery Positive Voltage - Radio

OG

340

Battery Positive Voltage - RSA Controller

D5

OG

640

Battery Positive Voltage - Cigar Lighter

OG

640

Battery Positive Voltage - DLC Connector

D8-D9

-

-

Not Used

D10

PK

639

Ignition 1 Voltage - Traction Control Switch

PK

639

Ignition 1 Voltage - Turn Hazard Switch

D11

-

-

Not Used

D12

OG

1140

Battery Positive Voltage

E1-E2

-

-

Not Used

E3

L-GN/BK

592

DRL Relay Control

E4

OG

4540

Battery Positive Voltage

E5-E6

-

-

Not Used

E7

L-BU

1320

CHMSL Supply Voltage/Stop Lamp Supply Voltage

E8-E9

-

-

Not Used

E10

D-BU

2115

Right Turn Signal Lamps Supply Voltage

E11

OG

2340

Battery Positive Voltage

E12

-

-

Not Used

F1

-

-

Not Used

F2

OG

3740

Battery Positive Voltage

F3

L-BU

2114

Left Turn Signal Lamps Supply Voltage

F4

-

-

Not Used

F5

PK

739

Ignition 1 Voltage

F6

PK

639

Ignition 1 Voltage

F7

OG

2840

Battery Positive Voltage

F8-F9

-

-

Not Used

F10

GY

1524

Backup Lamp Supply Voltage

F11

WH

1080

Park Lamp Relay Control

F12

OG

1540

Battery Positive Voltage



2004 Hummer H2

2004 ACCESSORIES & EQUIPMENT Wiring Systems (Component List) - Hummer H2



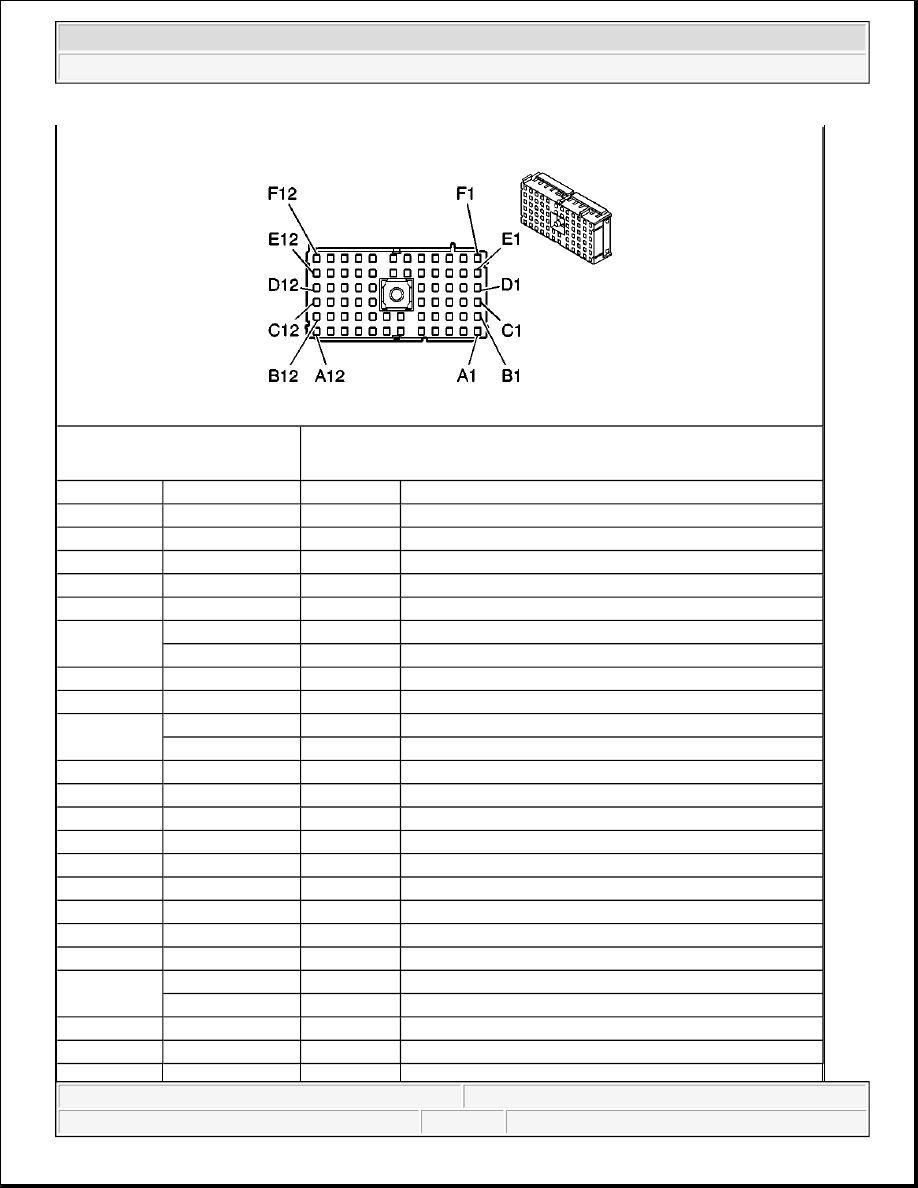

Connector Part Information

z

12193906

z

68-Way F Metri-Pack 280 Series (BK)

Pin

Wire Color

Circuit No.

Function

A1-A2

-

-

Not Used

A3

D-GN

59

A/C Compressor Clutch Supply Voltage

A4-A6

-

-

Not Used

A7

D-GN/WH

465

Fuel Pump Relay Control - Primary

A8

OG

440

Battery Positive Voltage

A9

PK

1339

Ignition 1 Voltage - TAC Assembly

PK

1339

Ignition 1 Voltage - EBCM Module

A10

L-BU

1320

CHMSL Supply Voltage/Stop Lamp Supply Voltage

A11

GY

1524

Trailer Backup Lamp Supply Voltage

A12

PK

439

Ignition 1 Voltage - EVAP Purge Solenoid

PK

439

Ignition 1 Voltage - PCM Module

B1-B6

-

-

Not Used

B7

BK

550

Ground

B8

OG

440

Battery Positive Voltage

B9

PK

1039

Ignition 1 Voltage

B10

PK

439

Ignition 1 Voltage

B11-B12

-

-

Not Used

C1-C2

-

-

Not Used

C3

D-GN/WH

459

A/C Compressor Clutch Relay Control

C4-C9

-

-

Not Used

C10

PK

1039

Ignition 1 Voltage - Fuel Injector 1

PK

1039

Ignition 1 Voltage - Fuel Injector 3

C11

-

-

Not Used

C12

PU

420

TCC Brake Switch/Cruise Control Release Signal



2004 Hummer H2

2004 ACCESSORIES & EQUIPMENT Wiring Systems (Component List) - Hummer H2



Fuse Block Terminal Identification - Underhood C3

D1-D2

-

-

Not Used

D3

L-GN

275

Park Neutral Position Switch Park Signal

D4-D5

-

-

Not Used

D8

PK

539

Ignition 1 Voltage - HO2S Bank 1 Sensor 2

PK

539

Ignition 1 Voltage - HO2S Bank 2 Sensor 2

D9

PK

1239

Ignition 1 Voltage - Fuel Injector 2

PK

1239

Ignition 1 Voltage - Fuel Injector 4

D10

PK

1039

Ignition 1 Voltage - Fuel Injector 5

PK

1039

Ignition 1 Voltage - Fuel Injector 7

D11

PU

6

Starter Solenoid Crank Voltage

D12

YE/BK

625

Starter Enable Relay Control

E1-E5

-

-

Not Used

E6

PK

1239

Ignition 1 Voltage - Fuel Injector 6

PK

1239

Ignition 1 Voltage - Fuel Injector 8

E7

PK

1539

Ignition 1 Voltage - HO2S Bank 1 Sensor 1

PK

1539

Ignition 1 Voltage - HO2S Bank 2 Sensor 1

E8-E9

-

-

Not Used

E10

PK

1239

Ignition 1 Voltage

E11-E12

-

-

Not Used

F1-F2

-

-

Not Used

F3

PU

806

Crank Voltage

F4-F7

-

-

Not Used

F8

PK

839

Ignition 1 Voltage

F9

PK

639

Ignition 1 Voltage

F10

PK

1020

Off/Run/Crank Voltage - PCM Module

PK

1020

Off/Run/Crank Voltage - Automatic Transmission

F11

D-GN

1433

Park/Neutral Start Switch Signal

F12

-

-

Not Used



2004 Hummer H2

2004 ACCESSORIES & EQUIPMENT Wiring Systems (Component List) - Hummer H2



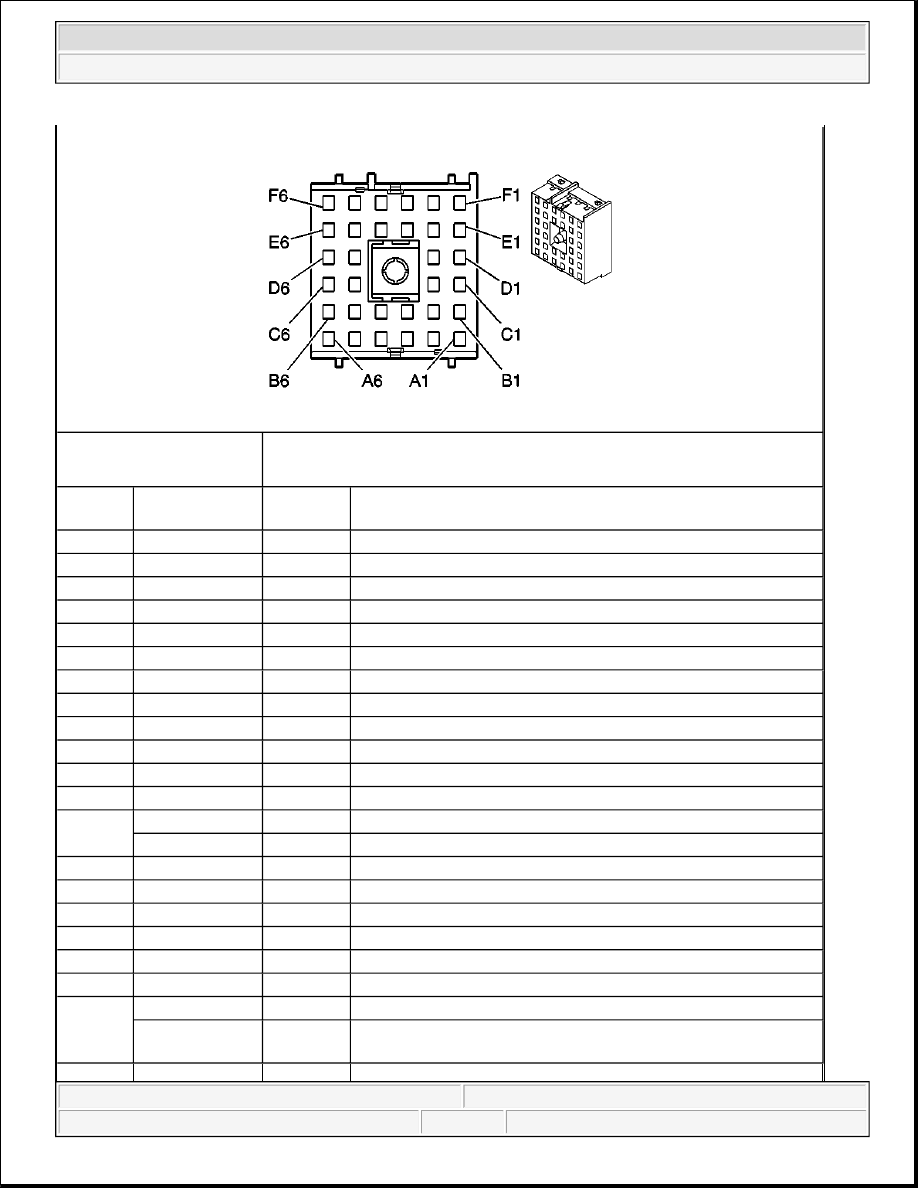

Connector Part

Information

z

12193916

z

32-Way F Metri-Pack 280 Series (RD)

Pin

Wire Color

Circuit

No.

Function

A1-A2

-

-

Not Used

A3

D-BU

2115

Right Turn Signal Lamps Supply Voltage

A4

OG

2640

Battery Positive Voltage

A5-A6

-

-

Not Used

B1-B2

-

-

Not Used

B3

L-BU

2114

Left Turn Signal Lamps Supply Voltage

B4

-

-

Not Used

B5

BK

-

Vent Tube

B6

BN

2109

Trailer Park Lamps Supply Voltage

C1

-

-

Not Used

C2

L-GN

1624

Trailer Backup Lamps Supply Voltage

C3-C5

-

-

Not Used

C6

BN/WH

2609

Right Rear Tail Lamp Supply Voltage

BN/WH

2609

Right License/Side Marker Lamps Supply Voltage

D1-D6

-

-

Not Used

E1-E3

-

-

Not Used

E4

BK

550

Ground

E5-E6

-

-

Not Used

F1

GY

120

Fuel Pump Supply Voltage

F2-F3

-

-

Not Used

F4

L-BU

1320

CHMSL Supply Voltage/Stop Lamp Supply Voltage - EBCM

L-BU

1320

CHMSL Supply Voltage/Stop Lamp Supply Voltage - Tail/Stop
Lamps



2004 Hummer H2

2004 ACCESSORIES & EQUIPMENT Wiring Systems (Component List) - Hummer H2
