Hummer H2. Manual - part 1070

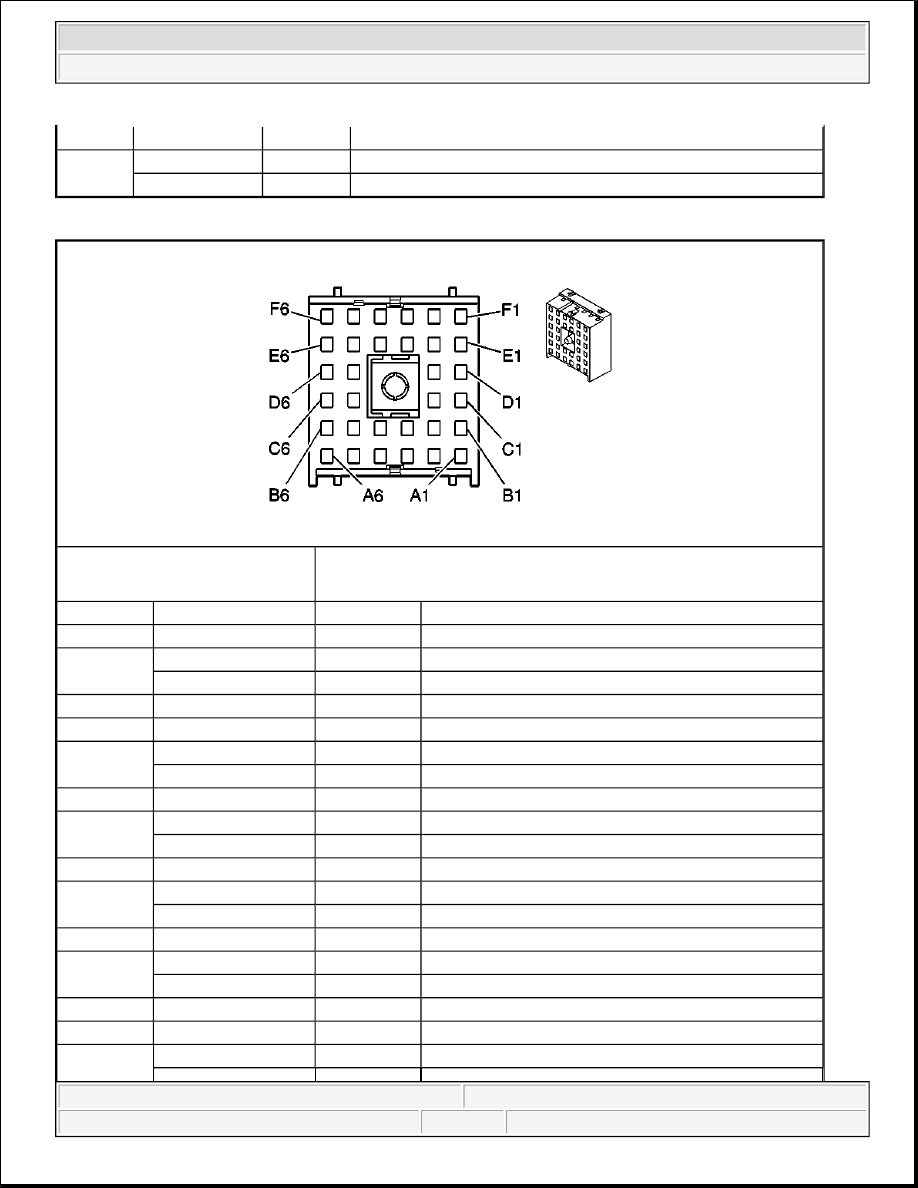

Fuse Block Terminal Identification - Underhood C4

F5

-

-

Not Used

F6

BN

2509

Left Rear Tail Lamp Supply Voltage

BN

2509

Left Rear License/Side Marker Lamps Supply Voltage

Connector Part Information

z

12193914

z

32-Way F Metri-Pack 280 Series (GN)

Pin

Wire Color

Circuit No.

Function

A1-A2

-

-

Not Used

A3

D-BU

2115

Right Turn Signal Lamps Supply Voltage

D-BU

2115

Right Front Marker Lamp Supply Voltage

A4

BK

550

Ground

A5

-

-

Not Used

A6

D-GN

1329

Left Horn Fuse Supply Voltage

D-GN

1329

Right Horn Fuse Supply Voltage

B1

-

-

Not Used

B2

D-BU

545

DRL Supply Voltage - Left Lamp

D-BU

545

DRL Supply Voltage - Right Lamp

B3-B6

-

-

Not Used

C1

BN

2309

Right Front Park Lamps Supply Voltage

BN

2309

Right Front Side Marker Lamp Supply Voltage

C2

-

-

Not Used

C5

BN

2309

Left Front Park Lamp Supply Voltage

BN

2309

Left Front Side Marker Lamp Supply Voltage

C6

D-GN/WH

266

Rear Window Washer Pump Supply Voltage

D1-D6

-

-

Not Used

E1

L-BU

2114

Left Turn Signal Lamps Supply Voltage



2004 Hummer H2

2004 ACCESSORIES & EQUIPMENT Wiring Systems (Component List) - Hummer H2



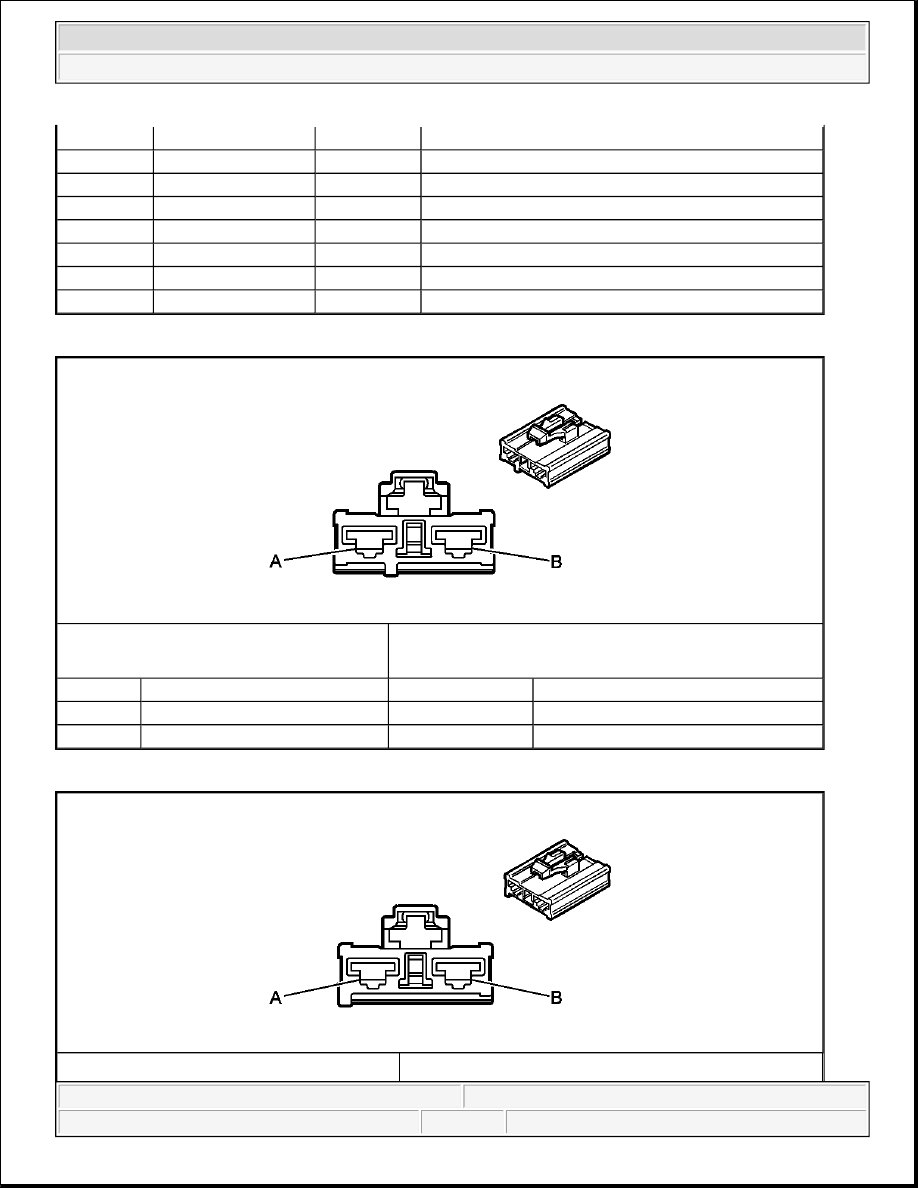

Fuse Block Terminal Identification - Underhood C5

Fuse Block Terminal Identification - Underhood C6

L-BU

2114

Left Front Marker Lamp Supply Voltage

E2

D-GN/WH

711

Left Headlamp High Beam Supply Voltage

E3

L-GN/BK

311

Right Headlamp High Beam Supply Voltage

E4-E6

-

-

Not Used

F1-F3

-

-

Not Used

F4

YE

712

Left Headlamp Low Beam Supply Voltage

F5

TN/WH

312

Right Headlamp Low Beam Supply Voltage

F6

-

-

Not Used

Connector Part Information

z

15393171

z

2-Way F J-Type (MD GY)

Pin

Wire Color

Circuit No.

Function

A

RD

842

Battery Positive Voltage

B

RD

542

Battery Positive Voltage

z

15393172



2004 Hummer H2

2004 ACCESSORIES & EQUIPMENT Wiring Systems (Component List) - Hummer H2



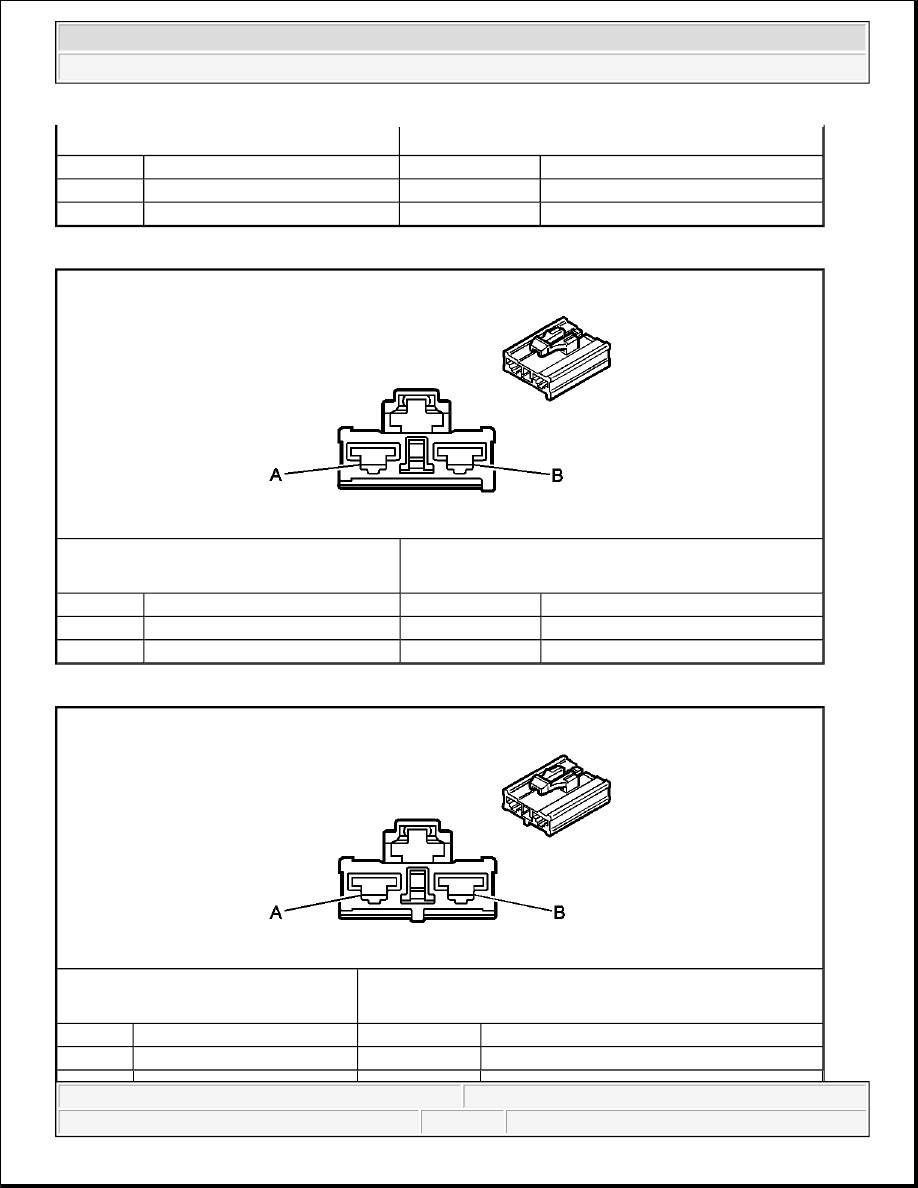

Fuse Block Terminal Identification - Underhood C7

Fuse Block Terminal Identification - Underhood C9

Connector Part Information

z

2-Way F J-Type (L-GN)

Pin

Wire Color

Circuit No.

Function

A

RD

642

Battery Positive Voltage

B

-

-

Not Used

Connector Part Information

z

15393168

z

2-Way F J-Type (BK)

Pin

Wire Color

Circuit No.

Function

A

RD

342

Battery Positive Voltage

B

RD

42

Battery Positive Voltage

Connector Part Information

z

15393170

z

2-Way F J-Type (WH)

Pin

Wire Color

Circuit No.

Function

A

RD

442

Battery Positive Voltage



2004 Hummer H2

2004 ACCESSORIES & EQUIPMENT Wiring Systems (Component List) - Hummer H2



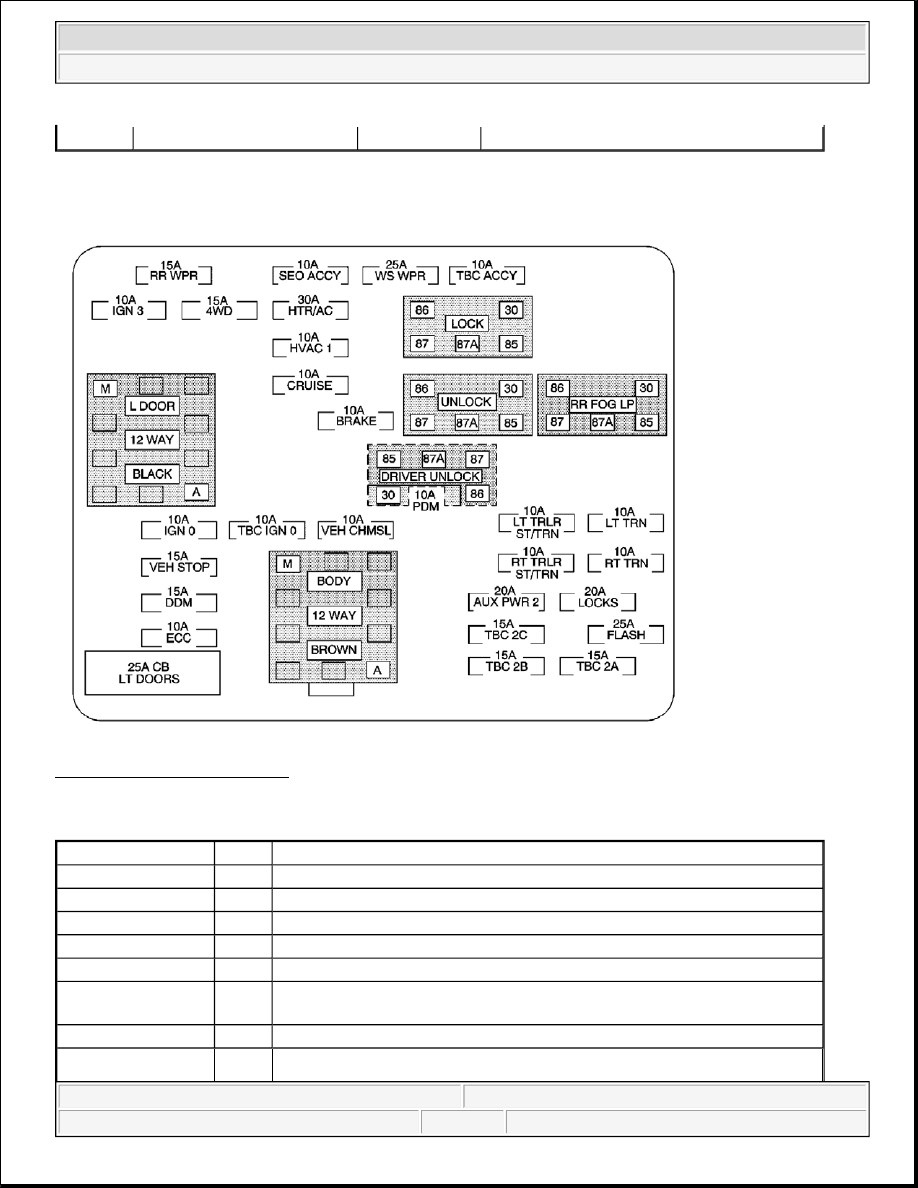

Fuse Block - I/P Label

Fig. 32: Fuse Block - I/P Label
Courtesy of GENERAL MOTORS CORP.

Fuse Block - I/P Identification

B

RD

4042

Battery Positive Voltage (w/ZM6)

Fuse

Rating

Description

RR WPR Fuse

15A

Rear Window Wiper/Washer Switch

SEO ACCY Fuse

10A

Body Builder Provision

WS WPR Fuse

25A

Windshield Wiper Motor and Module

TBC ACCY Fuse

10A

Body Control Module (BCM)

IGN 3 Fuse

10A

Heated Seat Module - LR/RR

4WD Fuse

15A

Air Suspension Module, Ride Height Switch, Transfer Case Shift Control
Switch

HTR A/C Fuse

30A

Not Used

LOCK Relay

-

Door Lock Actuator - Liftgate, Door Latch Assembly - LR, Door Latch
