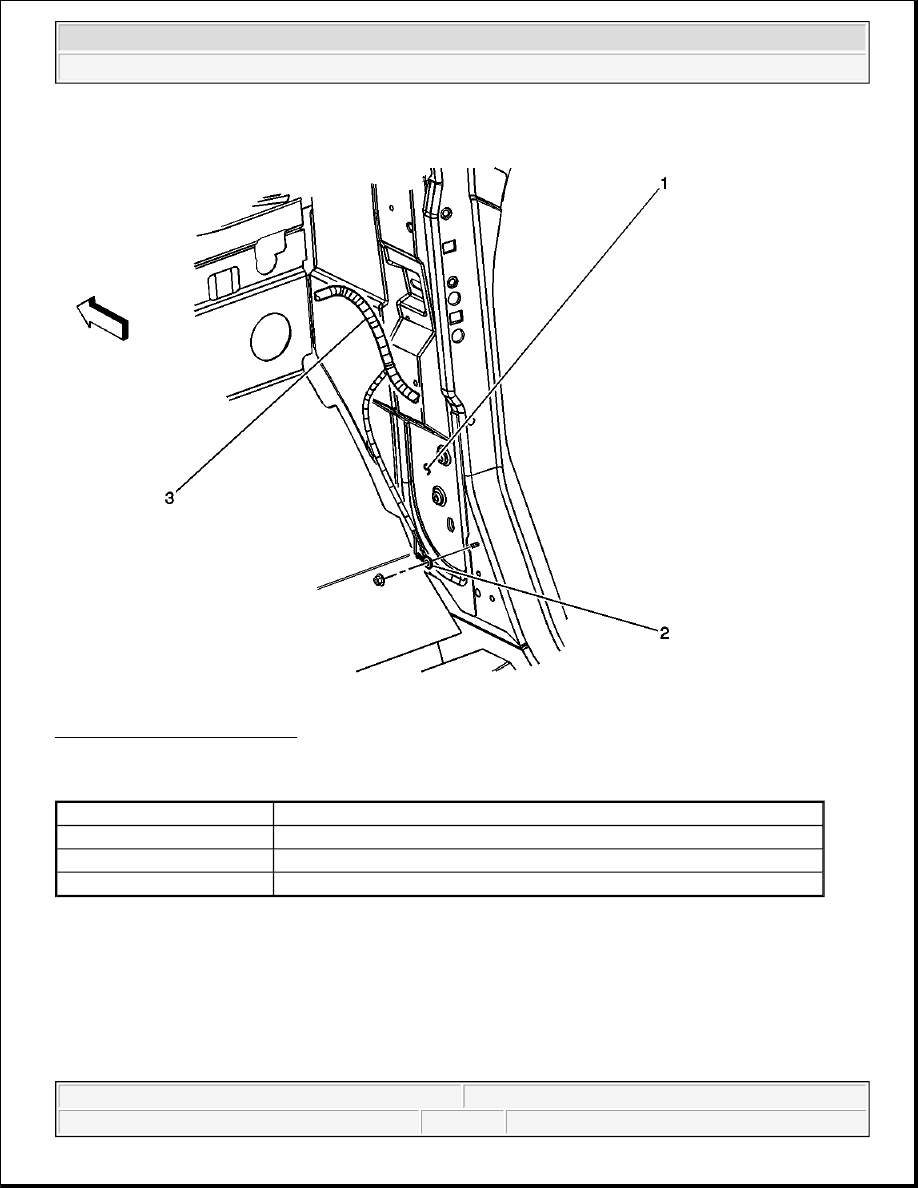

Fig. 15: G203 Component View
Courtesy of GENERAL MOTORS CORP.

Callouts For Fig. 15

Callout

Component Name

1

Cowl Panel Insulator

2

G203

3

HVAC Harness



2004 Hummer H2

2004 ACCESSORIES & EQUIPMENT Wiring Systems (Component List) - Hummer H2



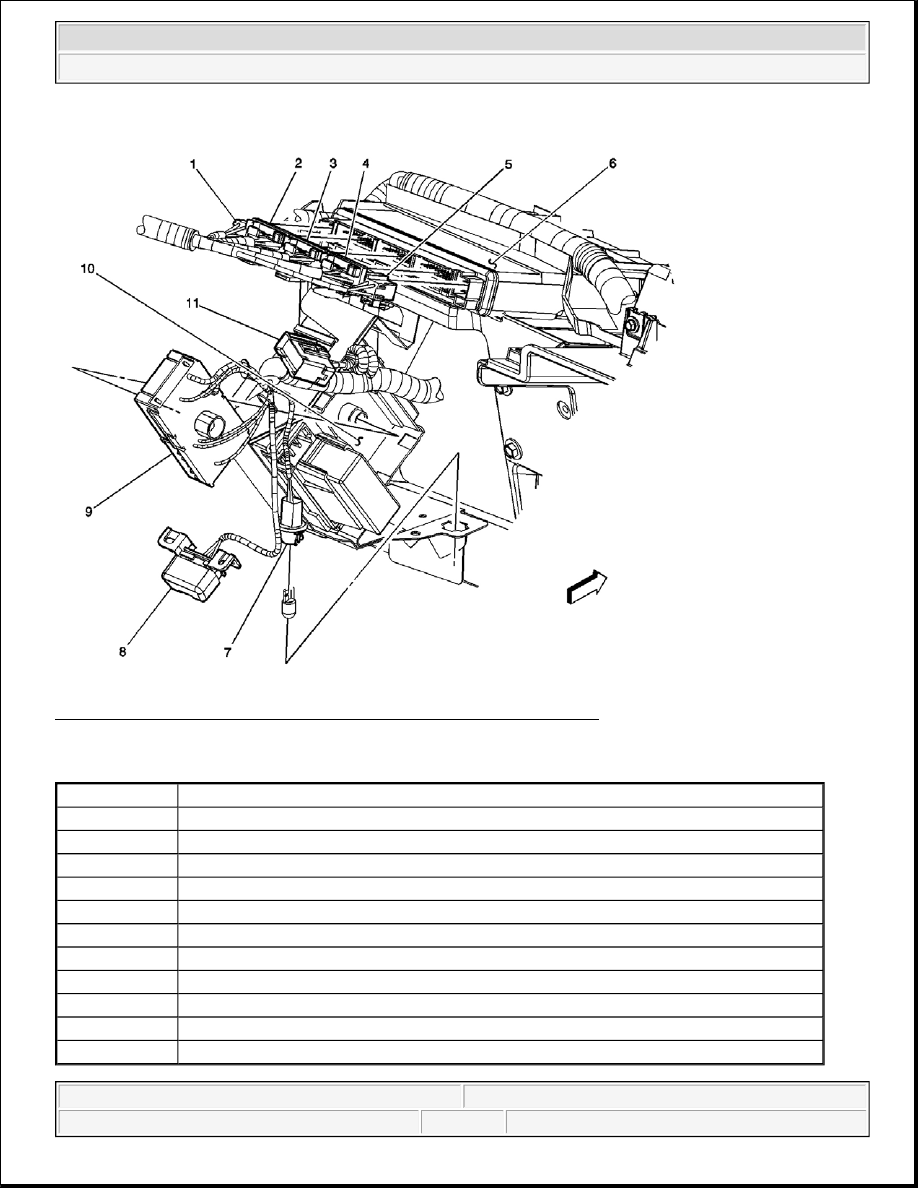

Fig. 16: Data Link Connector and Splice Pack SP205 Component View
Courtesy of GENERAL MOTORS CORP.

Callouts For Fig. 16

Callout

Component Name

1

BCM - C1

2

BCM - C2

3

BCM - C3

4

BCM - C4

5

BCM - C5

6

Body Control Module (BCM)

7

Footwell Courtesy Lamp - Left (If Equipped)

8

Data Link Connector (DLC)

9

Fuse Block - IP - C1

10

Fuse Block - IP Center Block

11

Splice Pack SP205



2004 Hummer H2

2004 ACCESSORIES & EQUIPMENT Wiring Systems (Component List) - Hummer H2



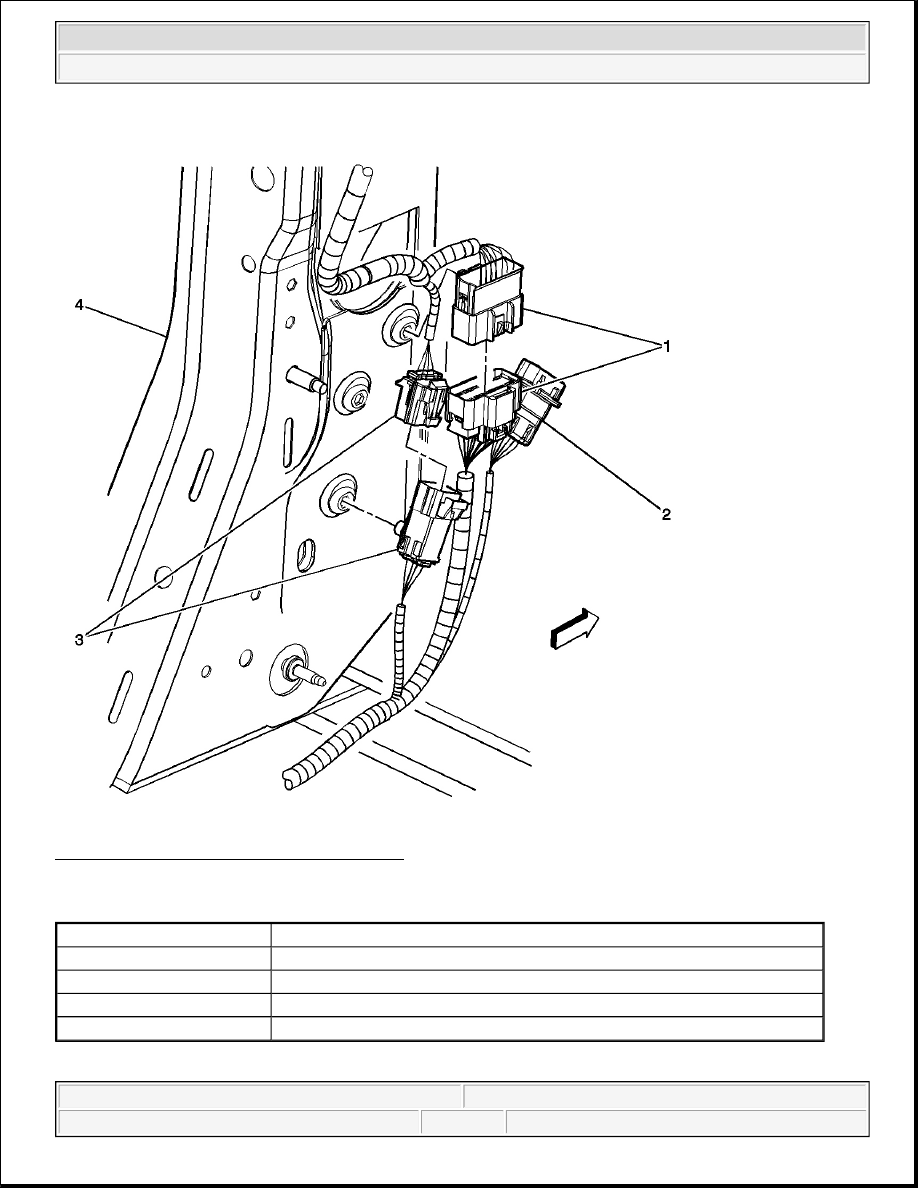

Fig. 17: Splice Pack SP206 Component Views
Courtesy of GENERAL MOTORS CORP.

Callouts For Fig. 17

Callout

Component Name

1

Steering Column

2

Transfer Case Shift Control Module

3

Splice Pack SP206

4

Steering Wheel Controls Backlight Fuse



2004 Hummer H2

2004 ACCESSORIES & EQUIPMENT Wiring Systems (Component List) - Hummer H2



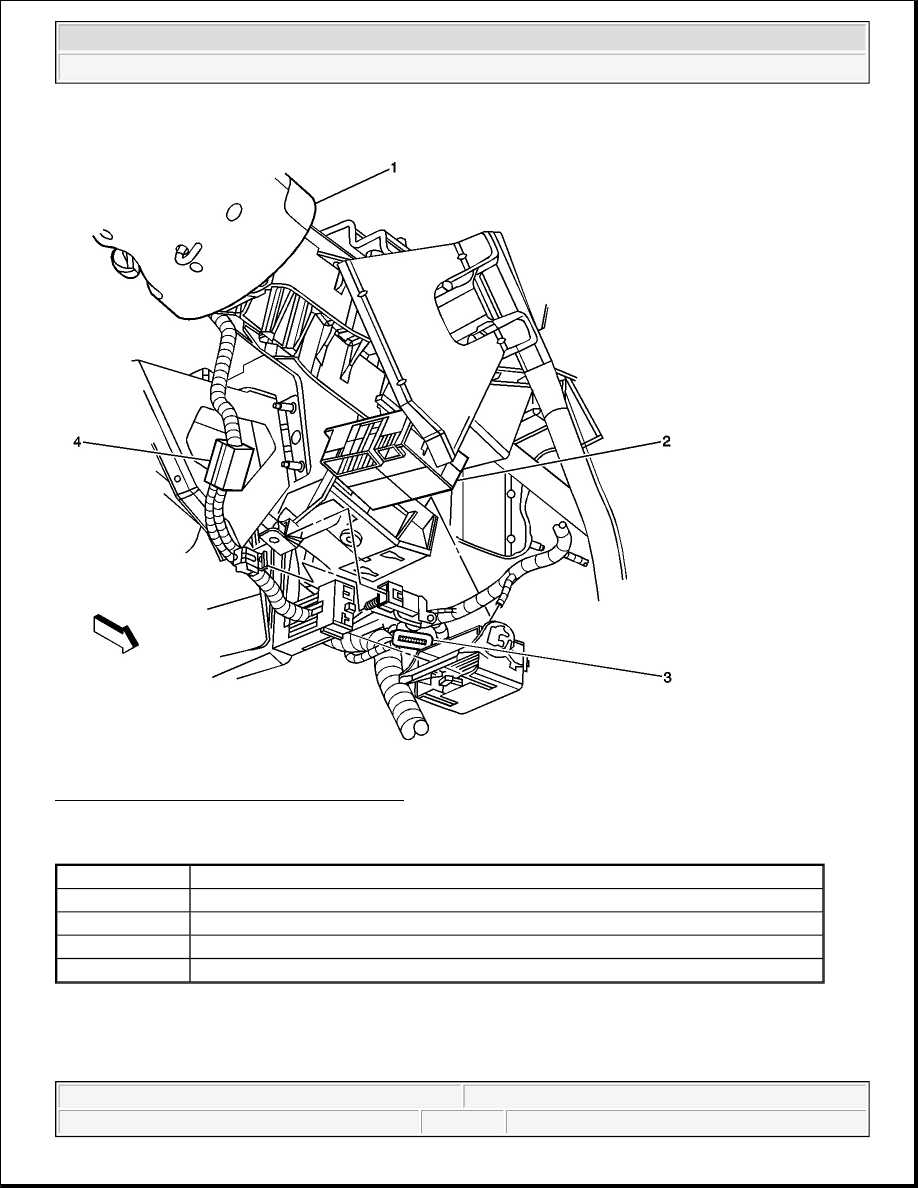

Fig. 18: Splice Pack SP207 Component Views
Courtesy of GENERAL MOTORS CORP.

Callouts For Fig. 18

Callout

Component Name

1

C200

2

Splice Pack SP207

3

C201

4

Left Side Cowl Panel



2004 Hummer H2
