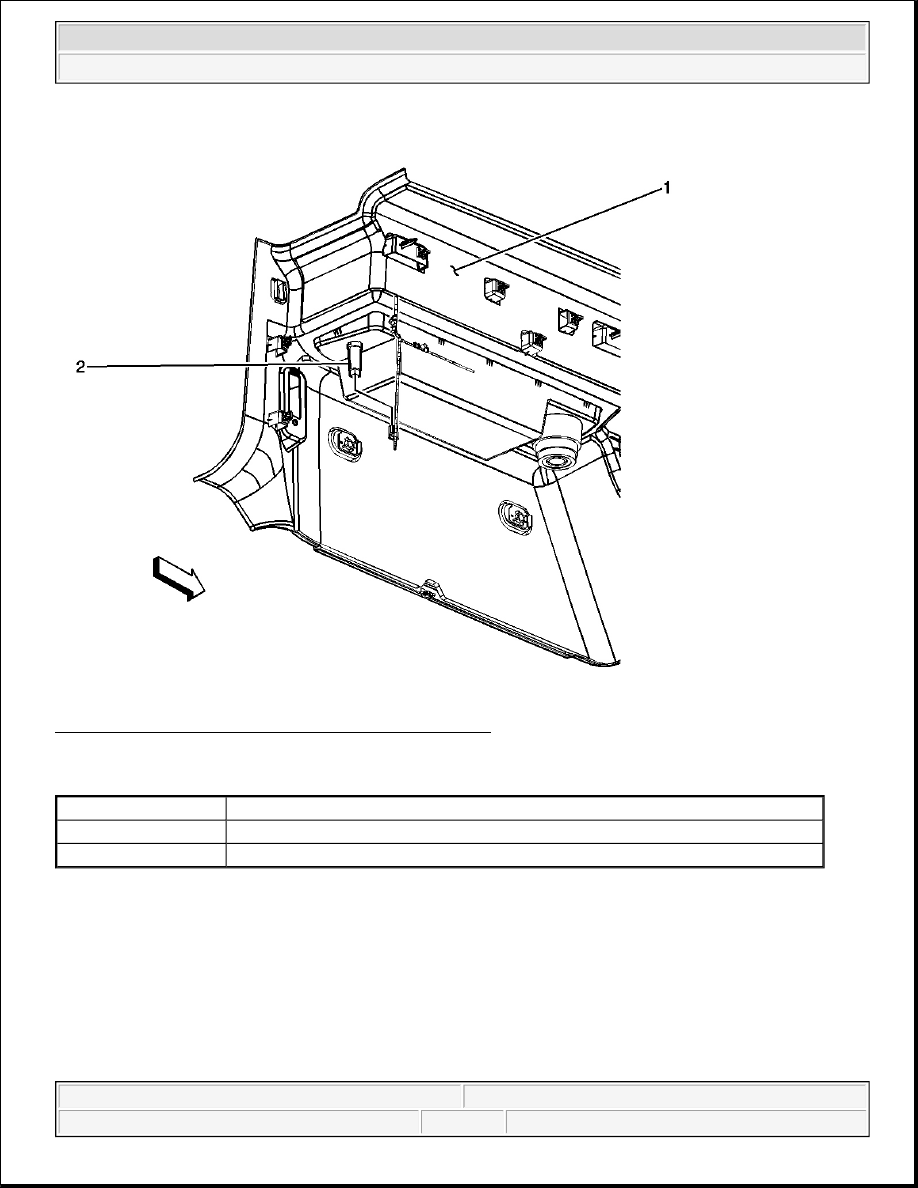

Fig. 7: Accessory Power Outlet - Rear Component Views
Courtesy of GENERAL MOTORS CORP.

Callouts For Fig. 7

Callout

Component Name

1

Rear Cargo Storage Bin

2

Accessory Power Outlet - RR



2004 Hummer H2

2004 ACCESSORIES & EQUIPMENT Wiring Systems (Component List) - Hummer H2



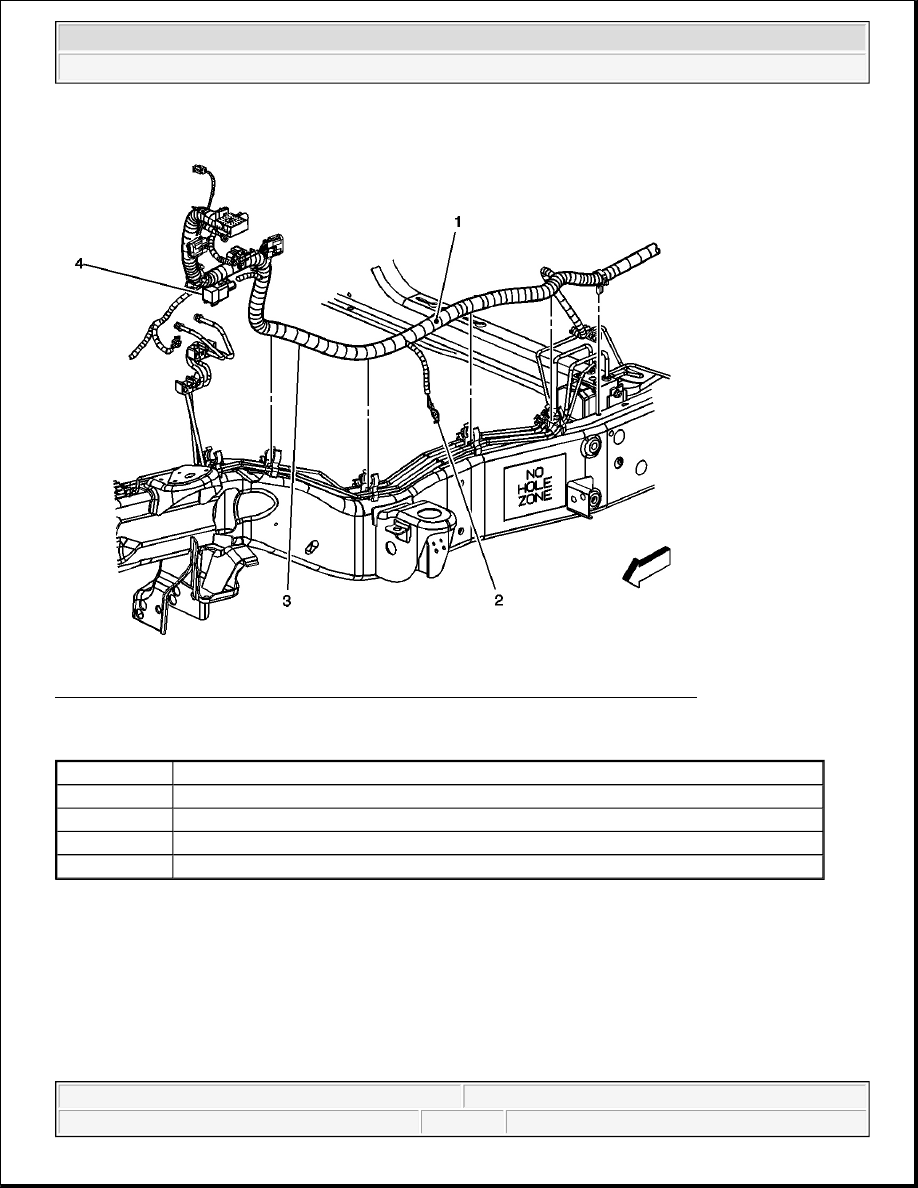

Fig. 8: Electronically Controlled Air Suspension Relay and G300 Component Views
Courtesy of GENERAL MOTORS CORP.

Callouts For Fig. 8

Callout

Component Name

1

S304

2

G300

3

Chassis Harness

4

Electronically Controlled Air Suspension Relay



2004 Hummer H2

2004 ACCESSORIES & EQUIPMENT Wiring Systems (Component List) - Hummer H2



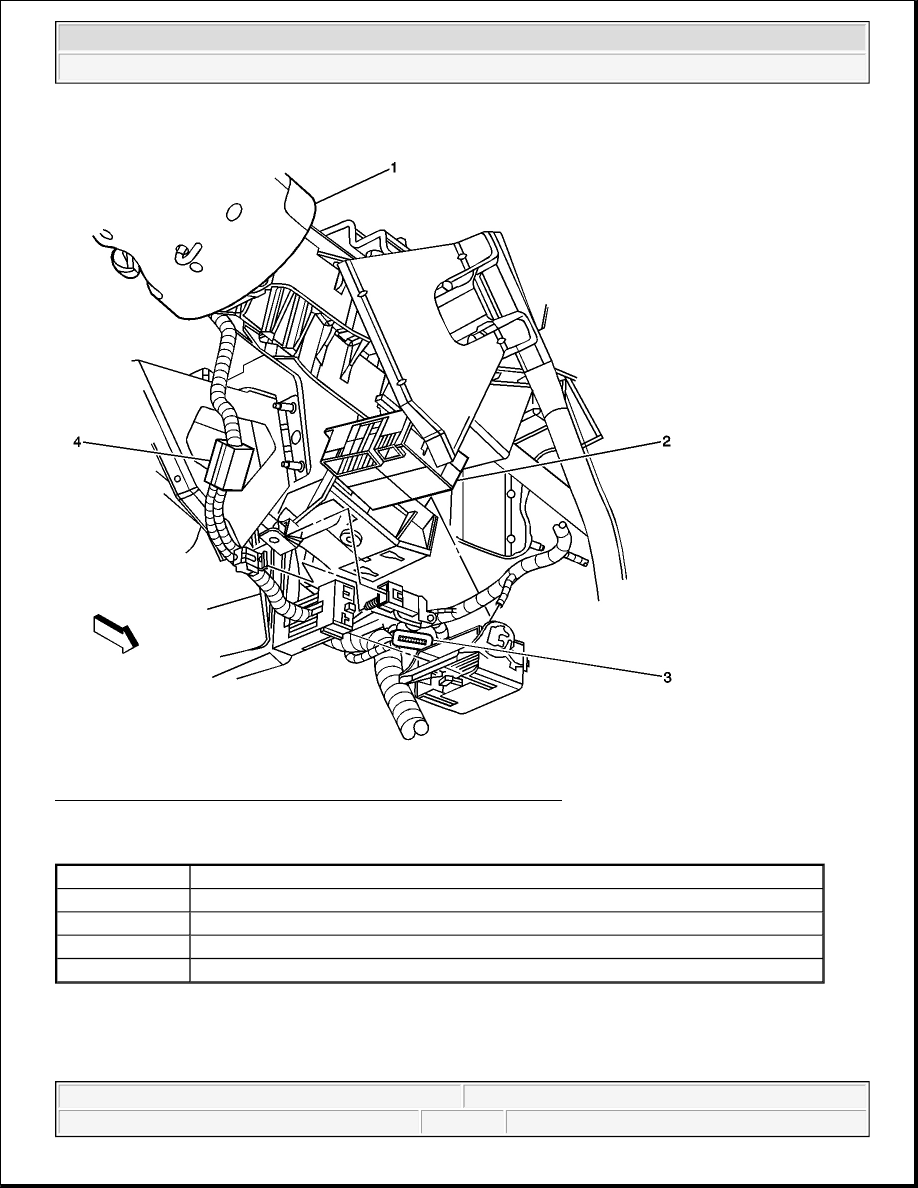

Fig. 9: Steering Wheel Controls Backlight Fuse Component Views
Courtesy of GENERAL MOTORS CORP.

Callouts For Fig. 9

Callout

Component Name

1

Steering Column

2

Transfer Case Shift Control Module

3

Splice Pack SP206

4

Steering Wheel Controls Backlight Fuse



2004 Hummer H2

2004 ACCESSORIES & EQUIPMENT Wiring Systems (Component List) - Hummer H2



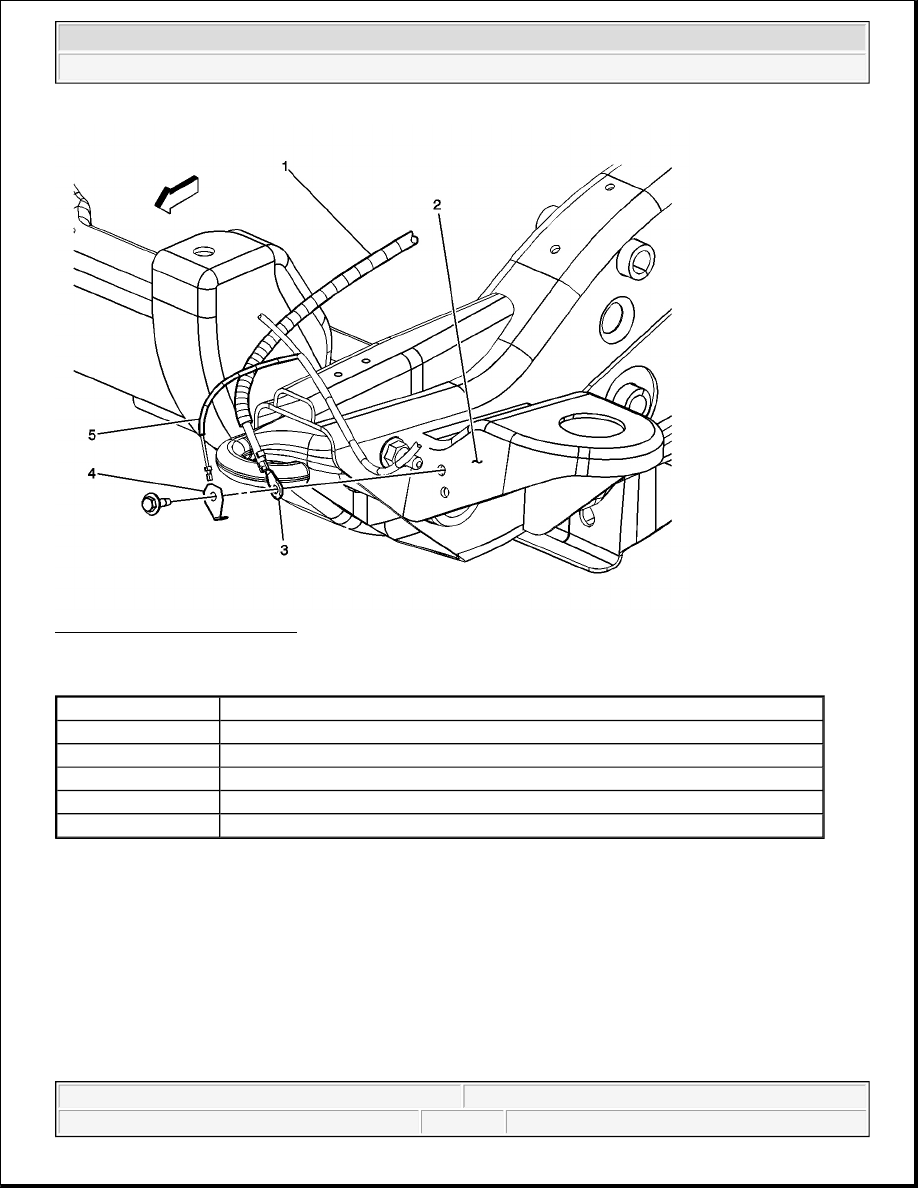

Fig. 10: G100 Component View
Courtesy of GENERAL MOTORS CORP.

Callouts For Fig. 10

Callout

Component Name

1

Negative Battery Cable

2

Left Front Frame Rail

3

G100 - Negative Battery cable

4

G100 - Forward Lamp Harness

5

Forward Lamp Harness



2004 Hummer H2

2004 ACCESSORIES & EQUIPMENT Wiring Systems (Component List) - Hummer H2
