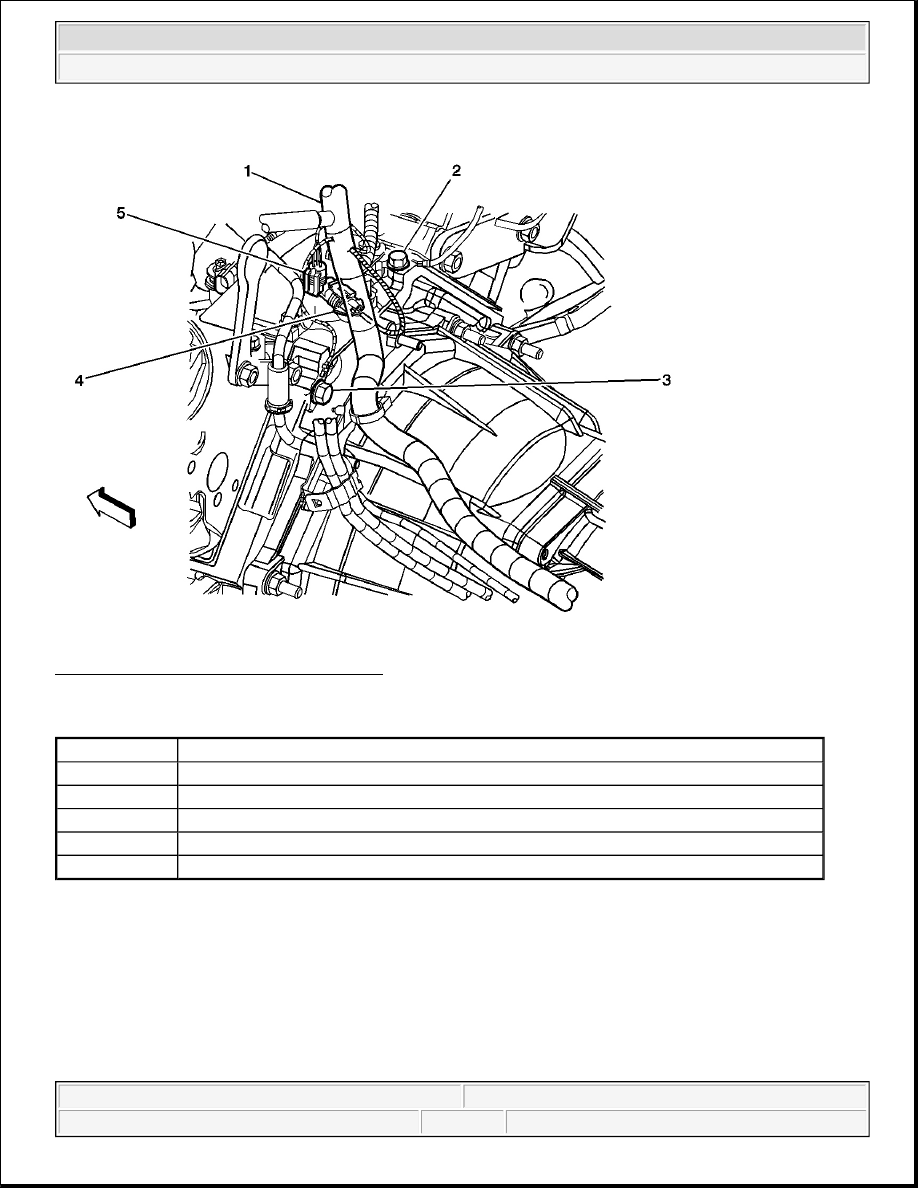

Fig. 11: G103 and G104 Component Views
Courtesy of GENERAL MOTORS CORP.

Callouts For Fig. 11

Callout

Component Name

1

Engine Harness

2

G103 - Engine Harness Ground

3

G104

4

Camshaft Position (CMP) Sensor Connector

5

Engine Oil Pressure (EOP) Sensor Connector



2004 Hummer H2

2004 ACCESSORIES & EQUIPMENT Wiring Systems (Component List) - Hummer H2



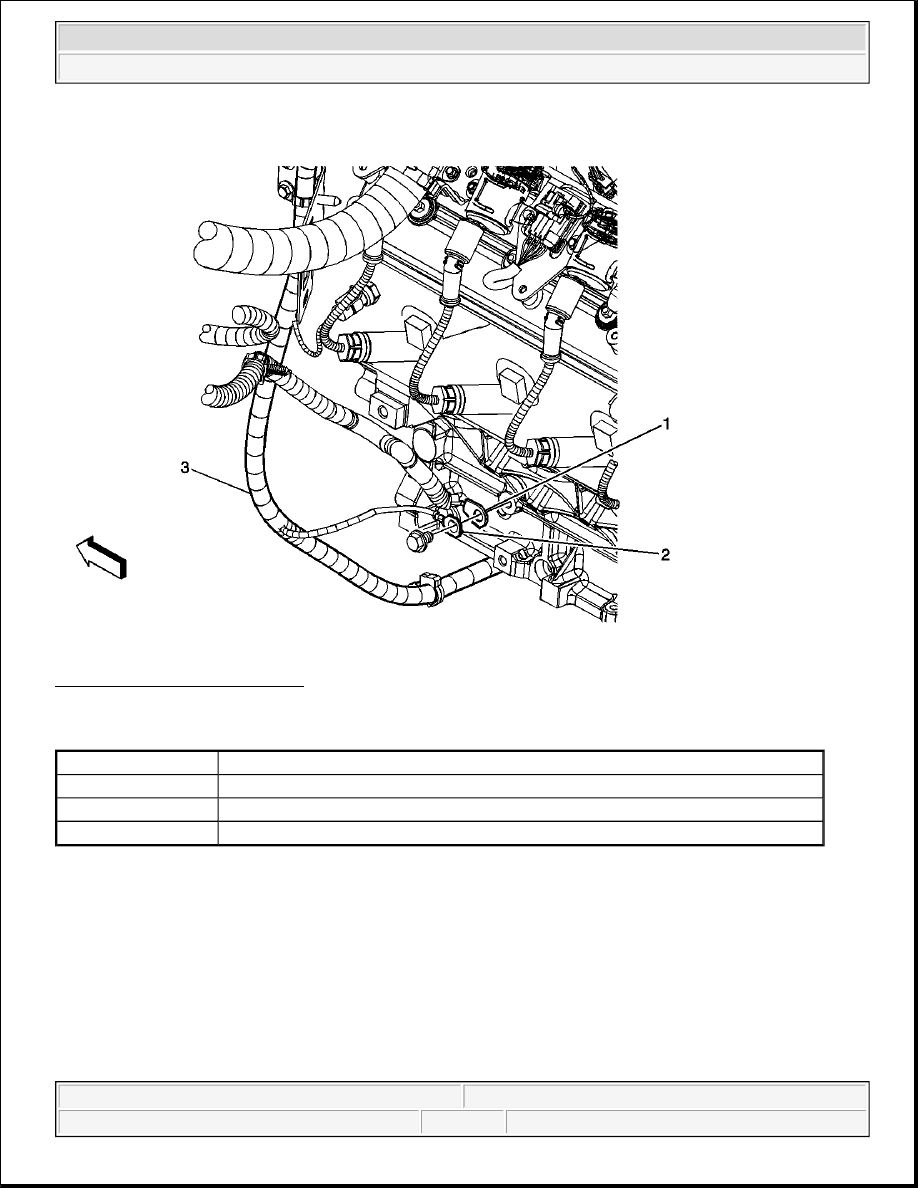

Fig. 12: G102 Component Views
Courtesy of GENERAL MOTORS CORP.

Callouts For Fig. 12

Callout

Component Name

1

G102 - Negative Battery Cable

2

G102 - Engine Harness Ground

3

Engine Harness



2004 Hummer H2

2004 ACCESSORIES & EQUIPMENT Wiring Systems (Component List) - Hummer H2



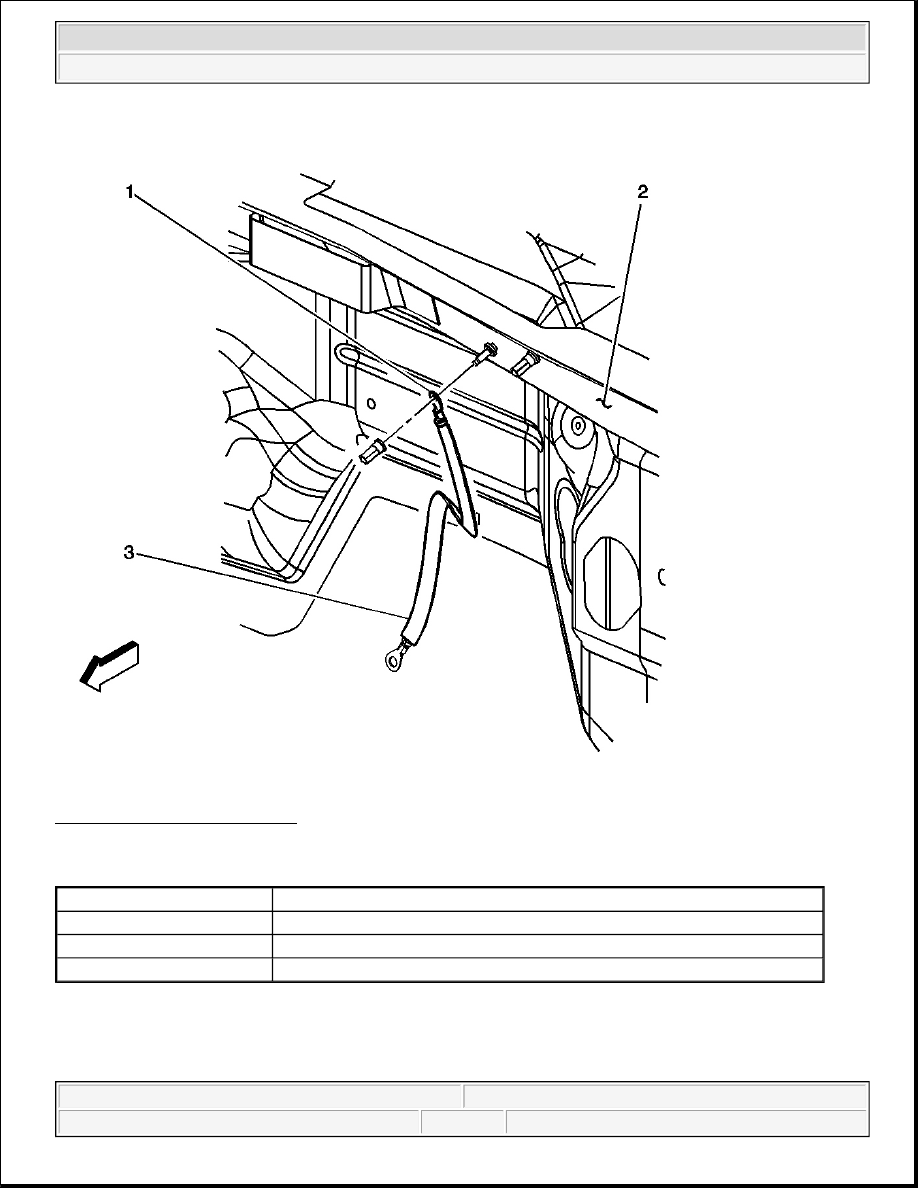

Fig. 13: G106 Component View
Courtesy of GENERAL MOTORS CORP.

Callouts For Fig. 13

Callout

Component Name

1

G106

2

Dash Panel

3

Engine Ground Strap



2004 Hummer H2

2004 ACCESSORIES & EQUIPMENT Wiring Systems (Component List) - Hummer H2



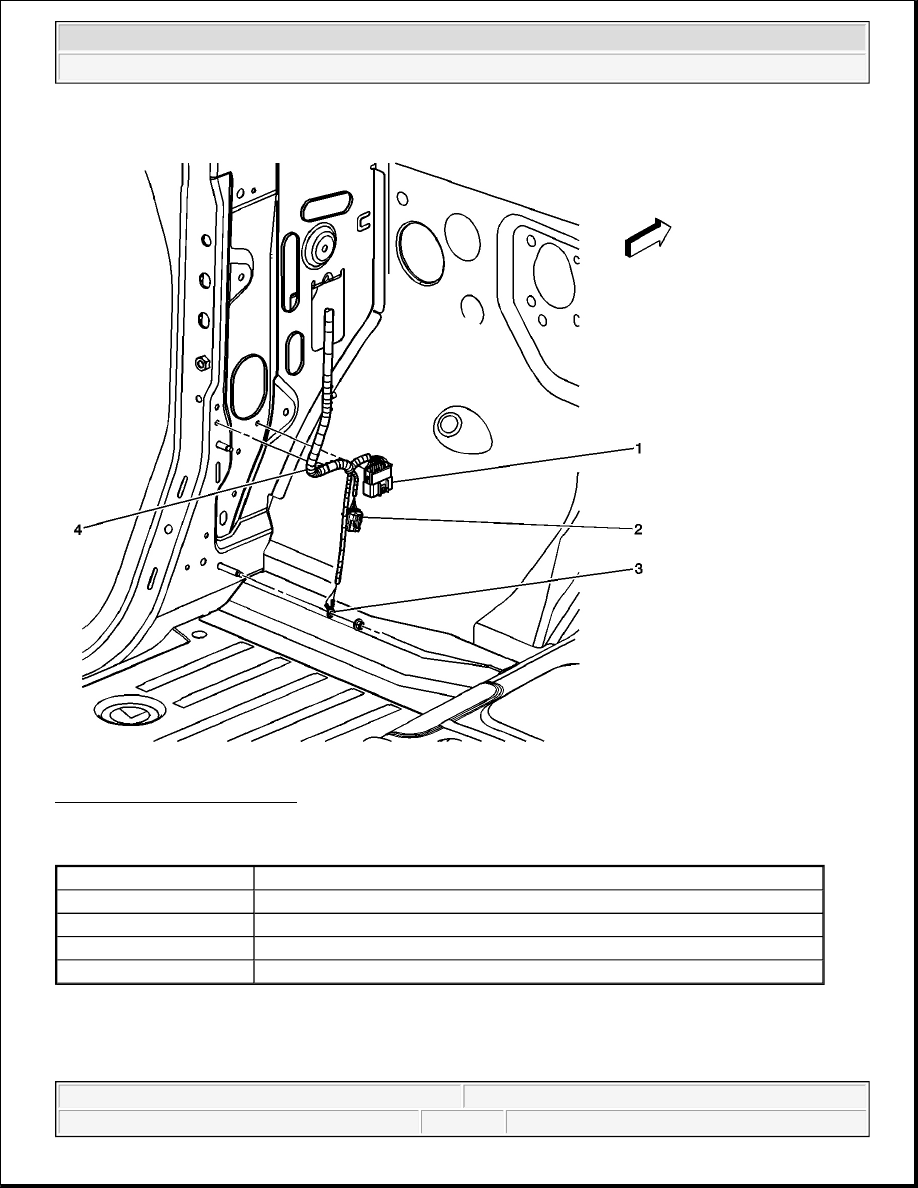

Fig. 14: G200 Component View
Courtesy of GENERAL MOTORS CORP.

Callouts For Fig. 14

Callout

Component Name

1

C200 - I/P Harness Side

2

C201 - I/P Harness Side

3

G200

4

I/P Harness



2004 Hummer H2
