connector C380
S411
In the body harness,
towards the left rear D-
pillar speaker connector,
approximately 15.2 cm (6
in) from the junction of the
left rear marker lamp to the
body harness

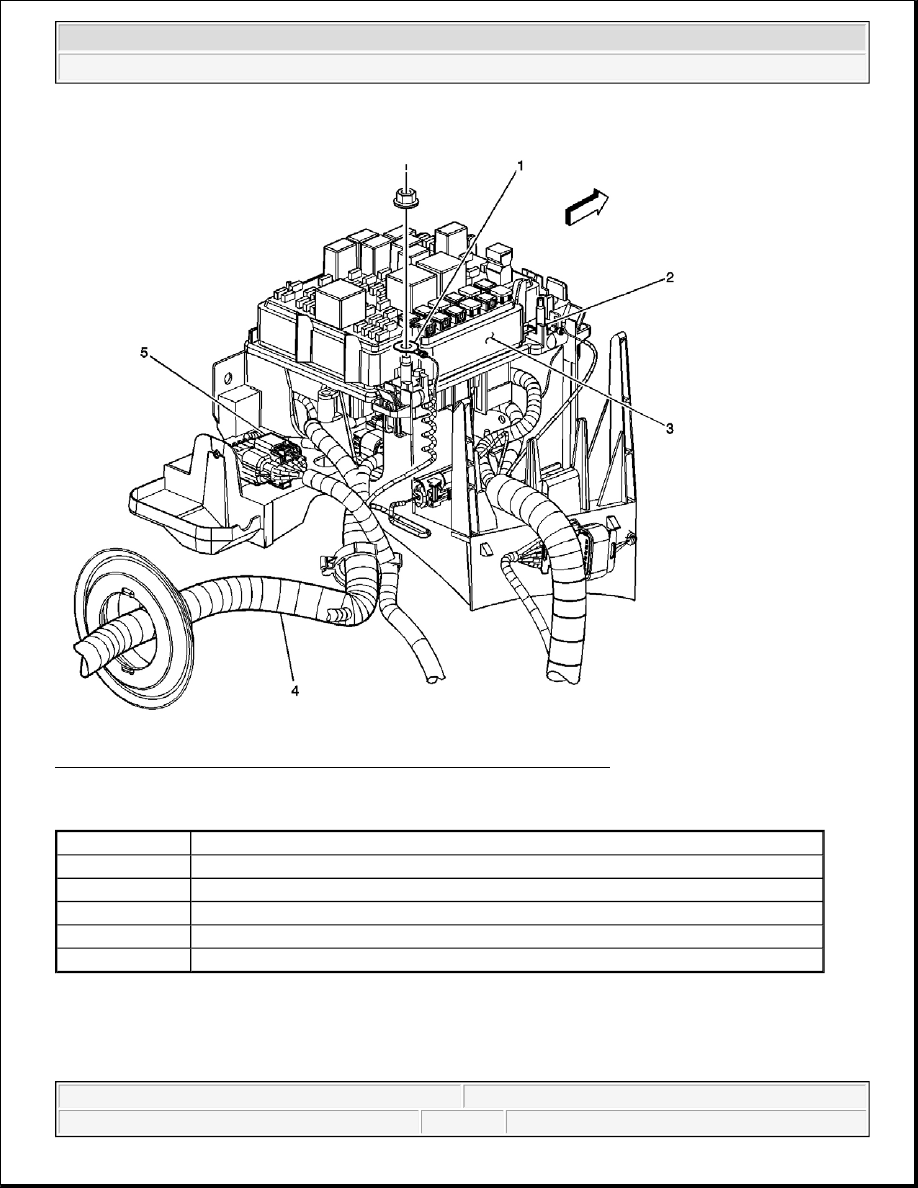

Harness Routing
Views
-
S412
In the body harness, along
the top left rear of vehicle,
approximately 27.5 cm (10
in) from the junction of the
left rear side marker lamp
to the body harness

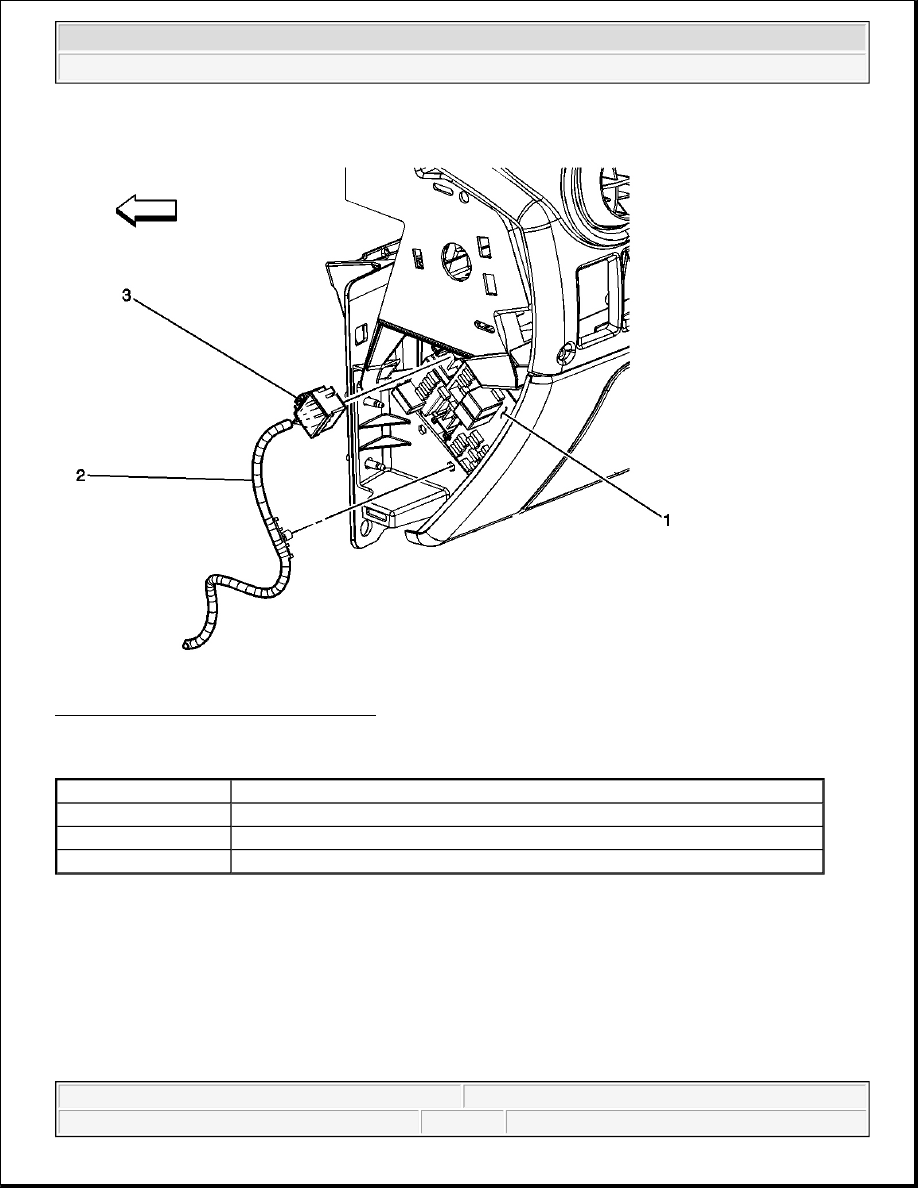

Harness Routing
Views
-
S413
In the air suspension
harness at the rear
underside of the vehicle
-
-
S414
In the air suspension
harness at the rear
underside of the vehicle
-
-
S480
In the body harness, along
the top right rear of vehicle,
approximately 28 cm (11
in) from the junction of
inline C420
Harness Routing
Views
-
S720
In the right rear door
harness, approximately 12
cm (4 in) from the junction
of the speaker connector
harness to the door harness
-
-
S820
Approximately 11.5 cm (4
in) from the junction of the
door courtesy lamp
connector harness to the
door harness
-
-
S900
At the left side of the
liftgate near the junction of
the right rear defogger
connector to the liftgate
harness
Harness Routing
Views
-
S901
At the lower right side of
the liftgate, approximately
10 cm (4 in) from the
junction of the rear wiper
motor connector to the
liftgate harness
Harness Routing
Views
-
