Connector Part

Information

z

12193906

z

68-Way F Metri-Pack 280 Series (BK)

Pin

Wire Color

Circuit

No.

Function

A1

-

-

Not Used

A2

GY/BK

255

Power Door Lock Fuse Supply Voltage

A3

-

-

Not Used

A4

TN/BK

254

Power Door Unlock Fuse Supply Voltage

A5-A6

-

-

Not Used

A7

OG

4240

Battery Positive Voltage

A8

YE

1618

Trailer Left Rear Turn/Stop Lamp Supply Voltage

A9

D-GN

1619

Trailer Right Rear Turn/Stop Lamp Supply Voltage

A10

OG

3040

Battery Positive Voltage

A11

D-BU

2115

Right Turn Signal Lamps Supply Voltage

A12

RD

42

Battery Positive Voltage

B1

YE

143

Accessory Voltage

B2

YE

43

Accessory Voltage

B3-B7

-

-

Not Used

B8

WH

17

Stop Lamp Switch Signal

B9-B11

-

-

Not Used

B12

OG

2140

Battery Positive Voltage

C1-C3

-

-

Not Used

C4

BN

41

Ignition 3 Voltage

C5

-

-

Not Used

C8

L-BU

1620

Trailer CHMSL Supply Voltage

D1

YE

243

Accessory Voltage

D2

-

-

Not Used

D3

BN

341

Ignition 3 Voltage



2004 Hummer H2

2004 ACCESSORIES & EQUIPMENT Wiring Systems (Component List) - Hummer H2



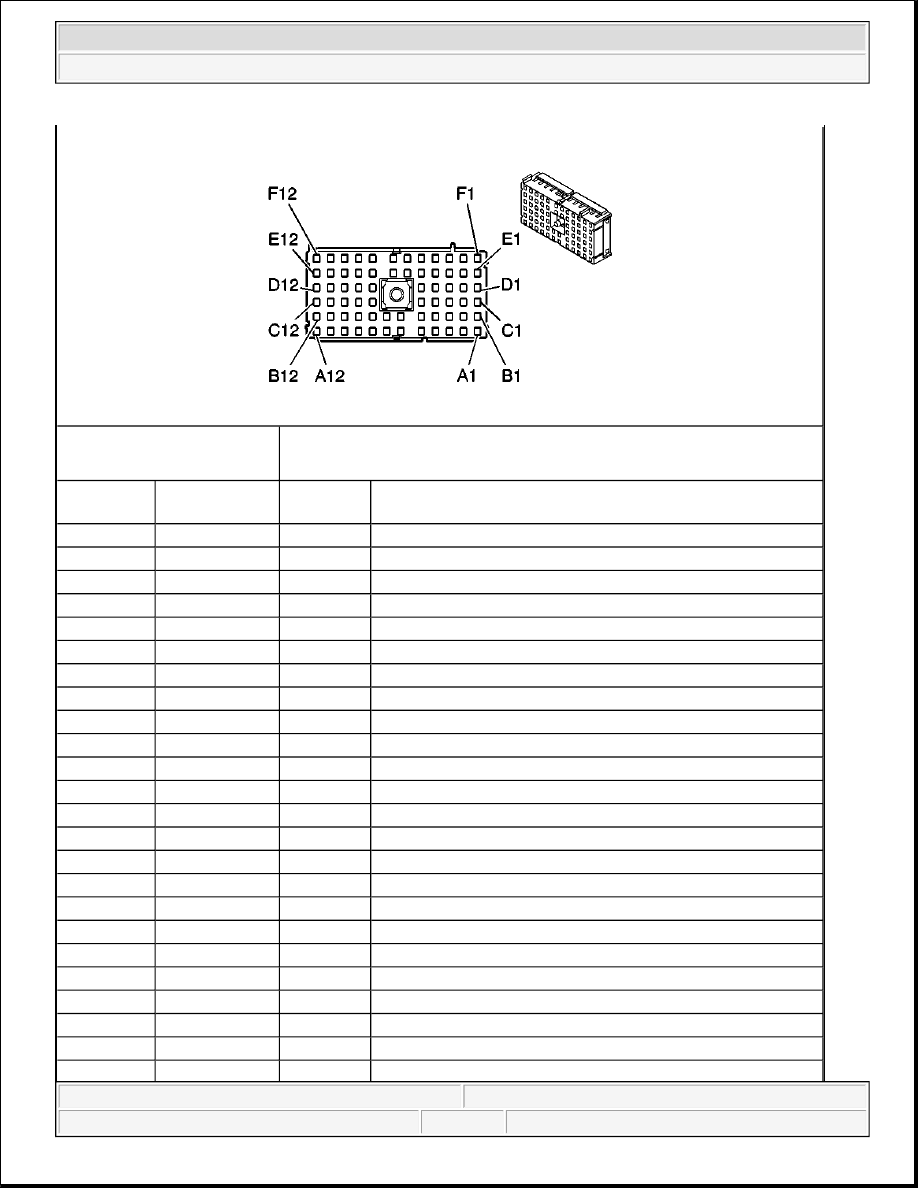

Fuse Block Terminal Identification - I/P C2

D5

BN

441

Ignition 3 Voltage

D8-D9

-

-

Not Used

D10

BK/WH

1851

Ground

D11-D12

-

-

Not Used

E1

BN

241

Ignition 3 Voltage - Air Suspension Control Switch (w/ZM6)

BN

241

Ignition 3 Voltage - Air Suspension Control Module
(w/ZM6)

E2

BN

241

Ignition 3 Voltage

E3

-

-

Not Used

E4

GY

118

Left Front Door Speaker Output (-)

GY

118

Left Front Tweeter Speaker Output (-)

E5

BN

1046

DDM Class 2 Serial Data

E6

-

-

Not Used

E7

PK

1691

Automatic Day/Night Mirror Low Reference

E8

WH

530

Off/Run/Crank Voltage

E9

-

-

Not Used

E10

RD

842

Battery Positive Voltage

E11

OG

4040

Battery Positive Voltage

E12

OG

2240

Battery Positive Voltage

F1

YE

343

Accessory Voltage

F2

-

-

Not Used

F3

L-BU

2114

Left Turn Signal Lamps Supply Voltage

F4

GY

1690

Automatic Day/Night Mirror Signal

F5

TN

201

Left Front Door Speaker Output (+)

TN

201

Left Front Tweeter Speaker Output (+)

F6

BK

1050

Ground

F7

-

-

Not Used

F8

PK

1020

Off/Run/Crank Voltage

F9

L-BU

1320

CHMSL Supply Voltage/Stop Lamp Supply Voltage

F10-F12

-

-

Not Used



2004 Hummer H2

2004 ACCESSORIES & EQUIPMENT Wiring Systems (Component List) - Hummer H2



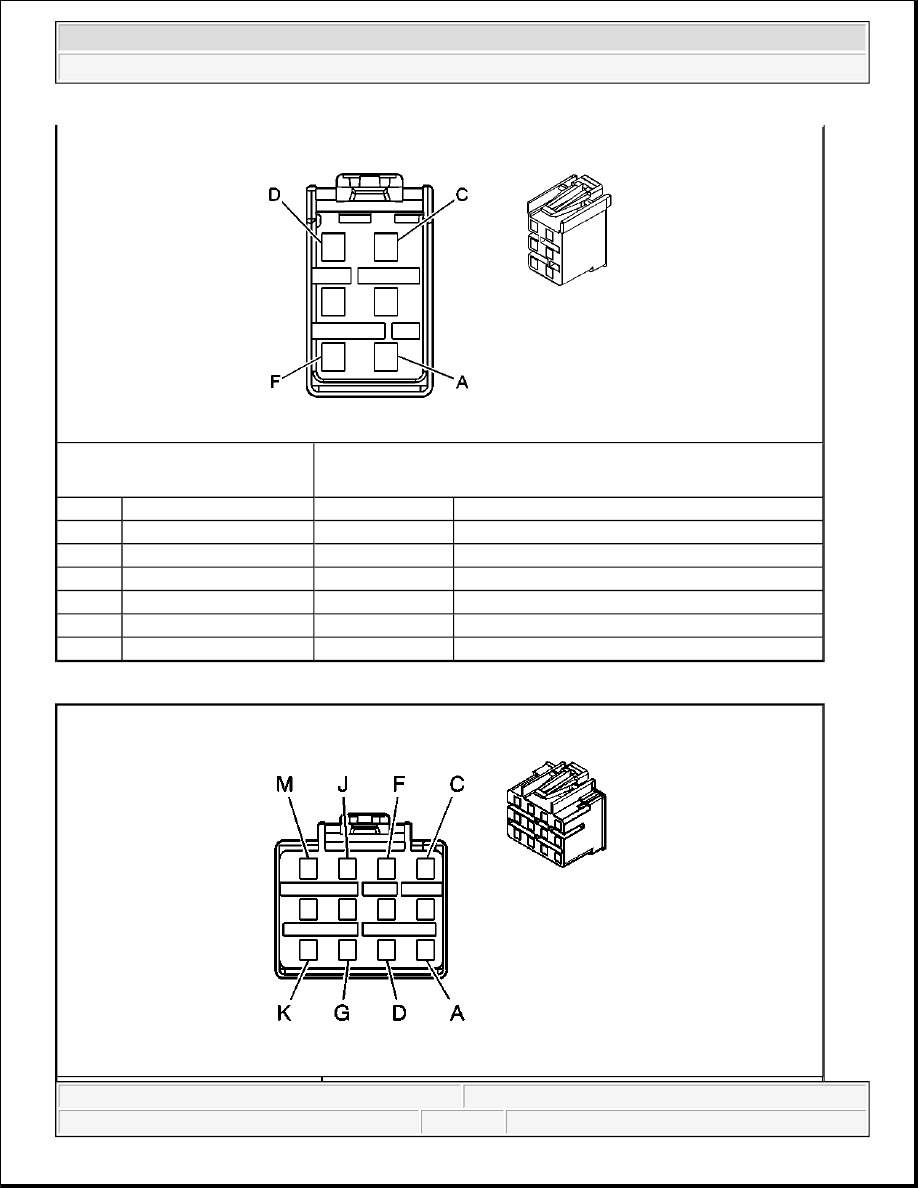

Fuse Block Terminal Identification - I/P C3

Connector Part Information

z

12193930

z

6-Way F Metri-Pack 280 Series Flexlock (BK)

Pin

Wire Color

Circuit No.

Function

A

OG

300

Ignition 3 Voltage

B

L-GN

1427

Right Turn Signal Switch Signal

C

D-GN

1428

Left Turn Signal Switch Signal

D

WH

111

Hazard Switch Signal

E

WH

1390

Off/Run/Crank Voltage

F

BN

4

Accessory Voltage



2004 Hummer H2

2004 ACCESSORIES & EQUIPMENT Wiring Systems (Component List) - Hummer H2



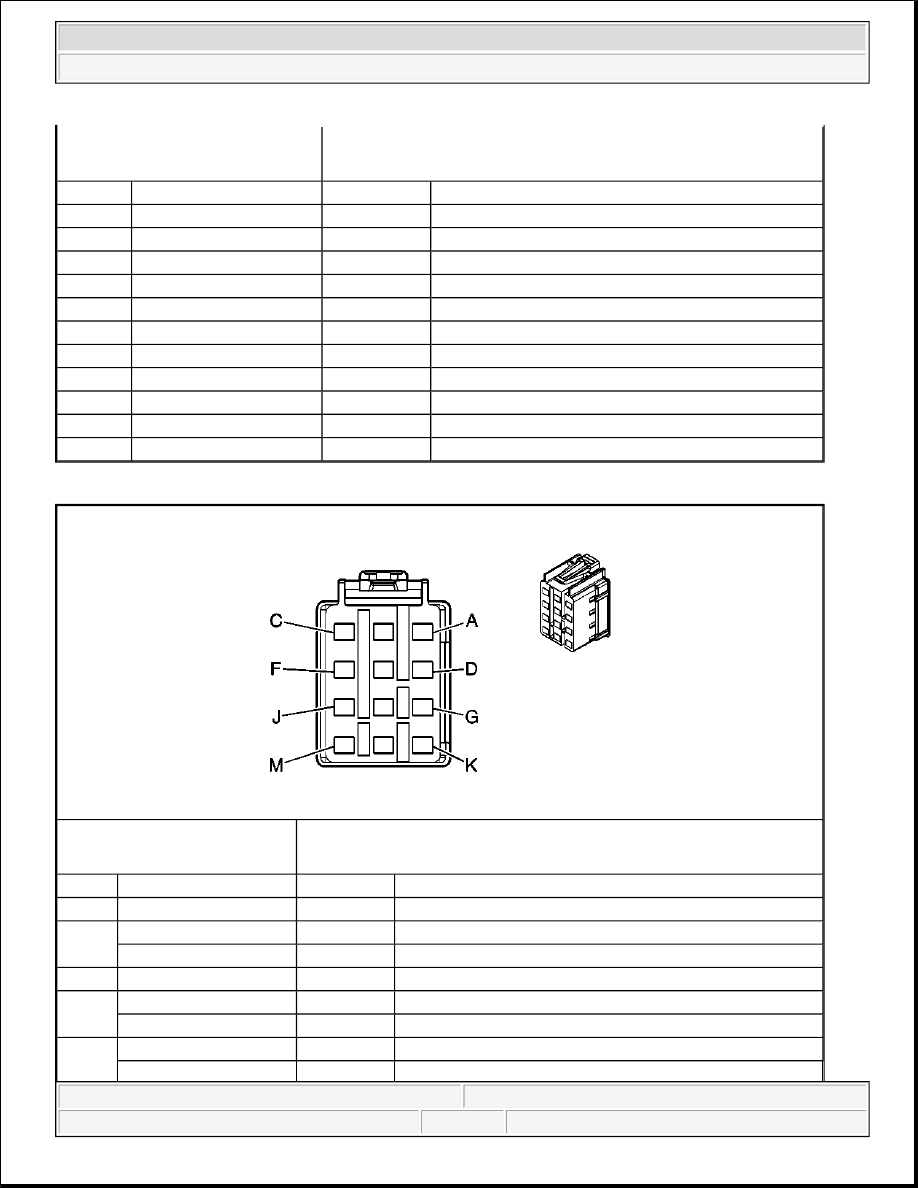

Fuse Block Terminal Identification - I/P C4

Connector Part Information

z

12194035

z

12-Way F Metri-Pack 280 Series (BK)

Pin

Wire Color

Circuit No.

Function

A-B

-

-

Not Used

C

OG

1240

Battery Positive Voltage

D

BK

1050

Ground

E

-

-

Not Used

F

OG

4140

Battery Positive Voltage

G

TN

201

Left Front Speaker Output (+)

H

PK

1691

Automatic Day/Night Mirror Low Reference

J

BN

1046

DDM Class 2 Serial Data

K

GY

1690

Automatic Day/Night Mirror Signal

L

GY

118

Left Front Speaker Output (-)

M

-

-

Not Used

Connector Part Information

z

15328768

z

12-Way F Metri-Pack 280 Series Flexlock (BN)

Pin

Wire Color

Circuit No.

Function

A

-

-

Not Used

B

BN

541

Ignition 3 Voltage - Left Rear Heated Seats (w/KA7)

BN

541

Ignition 3 Voltage - Right Rear Heated Seats (w/KA7)

C

-

-

Not Used

D

OG

3140

Battery Positive Voltage- - Lift Gate Door Lock Relay

OG

3140

Battery Positive Voltage - Lift Gate Door Lock Relay

E

TN

294

Left Rear Door Lock Actuator Unlock Control
