Fuse Block - I/P Label

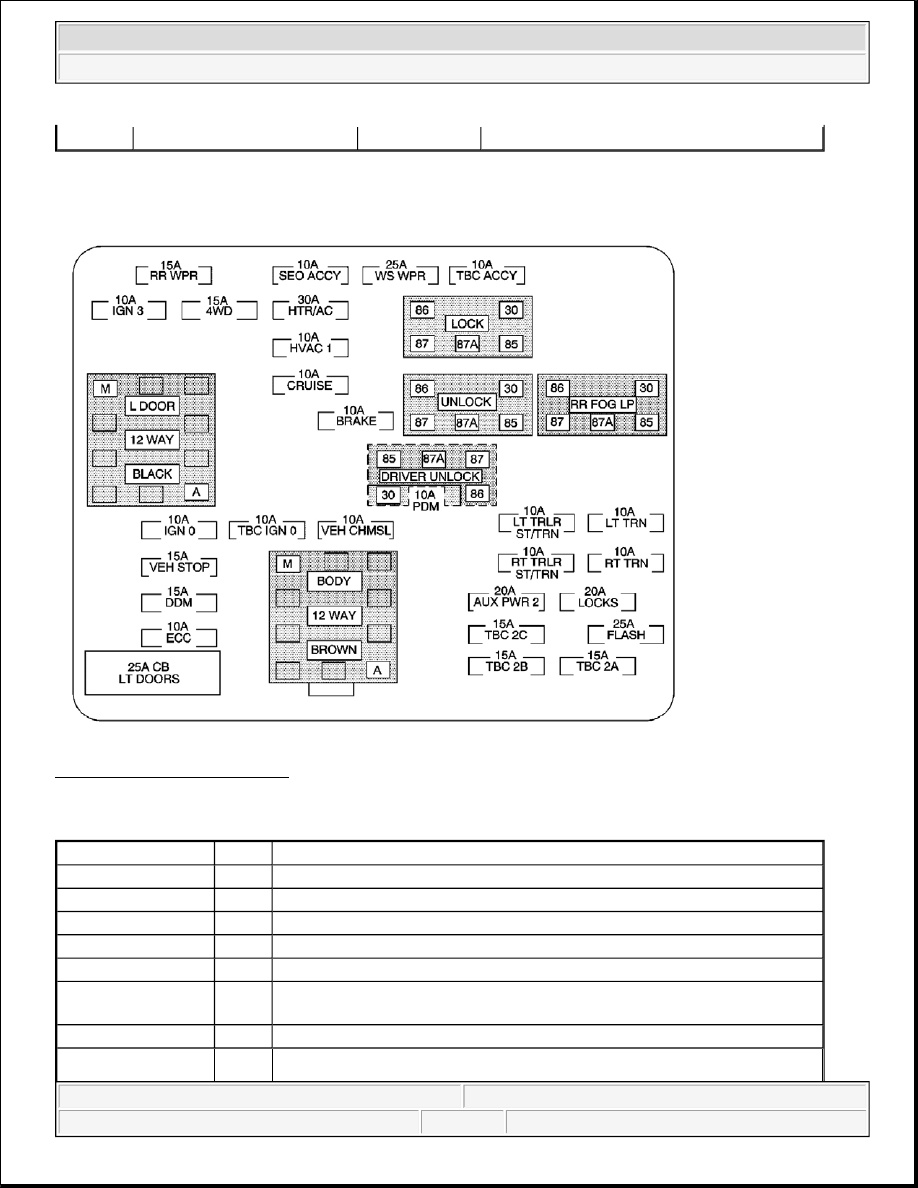

Fig. 32: Fuse Block - I/P Label
Courtesy of GENERAL MOTORS CORP.

Fuse Block - I/P Identification

B

RD

4042

Battery Positive Voltage (w/ZM6)

Fuse

Rating

Description

RR WPR Fuse

15A

Rear Window Wiper/Washer Switch

SEO ACCY Fuse

10A

Body Builder Provision

WS WPR Fuse

25A

Windshield Wiper Motor and Module

TBC ACCY Fuse

10A

Body Control Module (BCM)

IGN 3 Fuse

10A

Heated Seat Module - LR/RR

4WD Fuse

15A

Air Suspension Module, Ride Height Switch, Transfer Case Shift Control
Switch

HTR A/C Fuse

30A

Not Used

LOCK Relay

-

Door Lock Actuator - Liftgate, Door Latch Assembly - LR, Door Latch



2004 Hummer H2

2004 ACCESSORIES & EQUIPMENT Wiring Systems (Component List) - Hummer H2



Fuse Block - I/P Top View

Assembly - RR

HVAC 1 Fuse

10A

HVAC Control Module, HVAC Actuators, Inside Rearview Mirror

L DOOR

-

Fuse Block - I/P C4 (Driver Door Harness)

CRUISE Fuse

10A

Cruise Control Switch

UNLOCK Relay

-

Door Lock Actuator - Liftgate, Door Latch Assembly - LR, Door Latch
Assembly - RR

RR FOG LP Relay

-

Not Used

BRAKE Fuse

10A

Stop Lamp Switch

DRIVER UNLOCK
Relay

-

Not Used

PDM Fuse

10A

Front Passenger Door Module (FPDM)

IGN O Fuse

10A

Automatic Transmission, Powertrain Control Module (PCM), Shift Lock
Control Keylock Solenoid

TBC IGN O Fuse

10A

Body Control Module (BCM)

VEH CHMSL Fuse

10A

CHMSL Stop Lamp, Trailer Wiring Provisions

LT TRLR ST/TRN
Fuse

10A

Trailer Wiring Provisions

LT TRN Fuse

10A

Instrument Panel Cluster (IPC), Side Marker Lamps - LF/LR, Turn Signal
Lamp - LR, Turn/Park Lamp - LF

VEH STOP Fuse

15A

Turn Signal/Hazard Flasher Module, VEH CHMSL Fuse

BODY

-

Relay Block - Body C3 (Body Harness)

RT TRLR ST/TRN
Fuse

10A

Trailer Wiring Provisions

RT TRN Fuse

10A

Instrument Panel Cluster (IPC), Side Marker Lamps - RF/RR, Turn Signal
Lamp - RR, Turn/Park Lamp - RF

DDM Fuse

15A

Driver Door Module (DDM)

AUX PWR 2 Fuse

20A

I/P Accessory Power Outlets, Accessory Power Outlet - Rear

LOCKS Fuse

20A

Door Lock/Unlock Relay

ECC Fuse

10A

Liftgate Door Lock Relay

TBC 2C Fuse

15A

Body Control Module (BCM)

FLASH Fuse

25A

Turn Signal/Hazard Flasher Module

LT DOORS CB

25A

Window Switch - LR, Driver Door Module (DDM)

TBC 2B Fuse

15A

Body Control Module (BCM)

TBC 2A Fuse

15A

Body Control Module (BCM)



2004 Hummer H2

2004 ACCESSORIES & EQUIPMENT Wiring Systems (Component List) - Hummer H2



Fig. 33: Fuse Block - I/P Top View
Courtesy of GENERAL MOTORS CORP.

Fuse Block - I/P Bottom View



2004 Hummer H2

2004 ACCESSORIES & EQUIPMENT Wiring Systems (Component List) - Hummer H2



Fig. 34: Fuse Block - I/P Bottom View
Courtesy of GENERAL MOTORS CORP.

Fuse Block Terminal Identification - I/P C1
