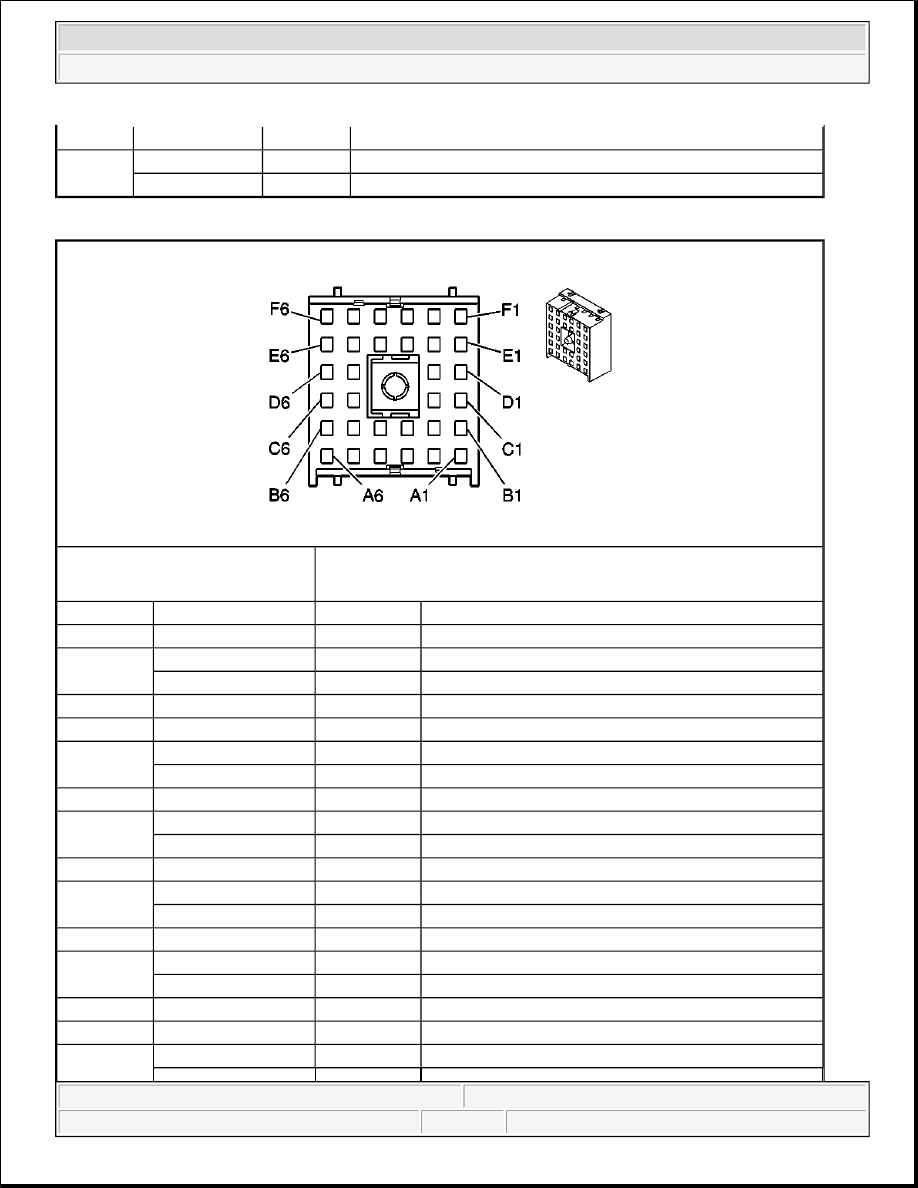

Connector Part

Information

z

12193916

z

32-Way F Metri-Pack 280 Series (RD)

Pin

Wire Color

Circuit

No.

Function

A1-A2

-

-

Not Used

A3

D-BU

2115

Right Turn Signal Lamps Supply Voltage

A4

OG

2640

Battery Positive Voltage

A5-A6

-

-

Not Used

B1-B2

-

-

Not Used

B3

L-BU

2114

Left Turn Signal Lamps Supply Voltage

B4

-

-

Not Used

B5

BK

-

Vent Tube

B6

BN

2109

Trailer Park Lamps Supply Voltage

C1

-

-

Not Used

C2

L-GN

1624

Trailer Backup Lamps Supply Voltage

C3-C5

-

-

Not Used

C6

BN/WH

2609

Right Rear Tail Lamp Supply Voltage

BN/WH

2609

Right License/Side Marker Lamps Supply Voltage

D1-D6

-

-

Not Used

E1-E3

-

-

Not Used

E4

BK

550

Ground

E5-E6

-

-

Not Used

F1

GY

120

Fuel Pump Supply Voltage

F2-F3

-

-

Not Used

F4

L-BU

1320

CHMSL Supply Voltage/Stop Lamp Supply Voltage - EBCM

L-BU

1320

CHMSL Supply Voltage/Stop Lamp Supply Voltage - Tail/Stop
Lamps



2004 Hummer H2

2004 ACCESSORIES & EQUIPMENT Wiring Systems (Component List) - Hummer H2



Fuse Block Terminal Identification - Underhood C4

F5

-

-

Not Used

F6

BN

2509

Left Rear Tail Lamp Supply Voltage

BN

2509

Left Rear License/Side Marker Lamps Supply Voltage

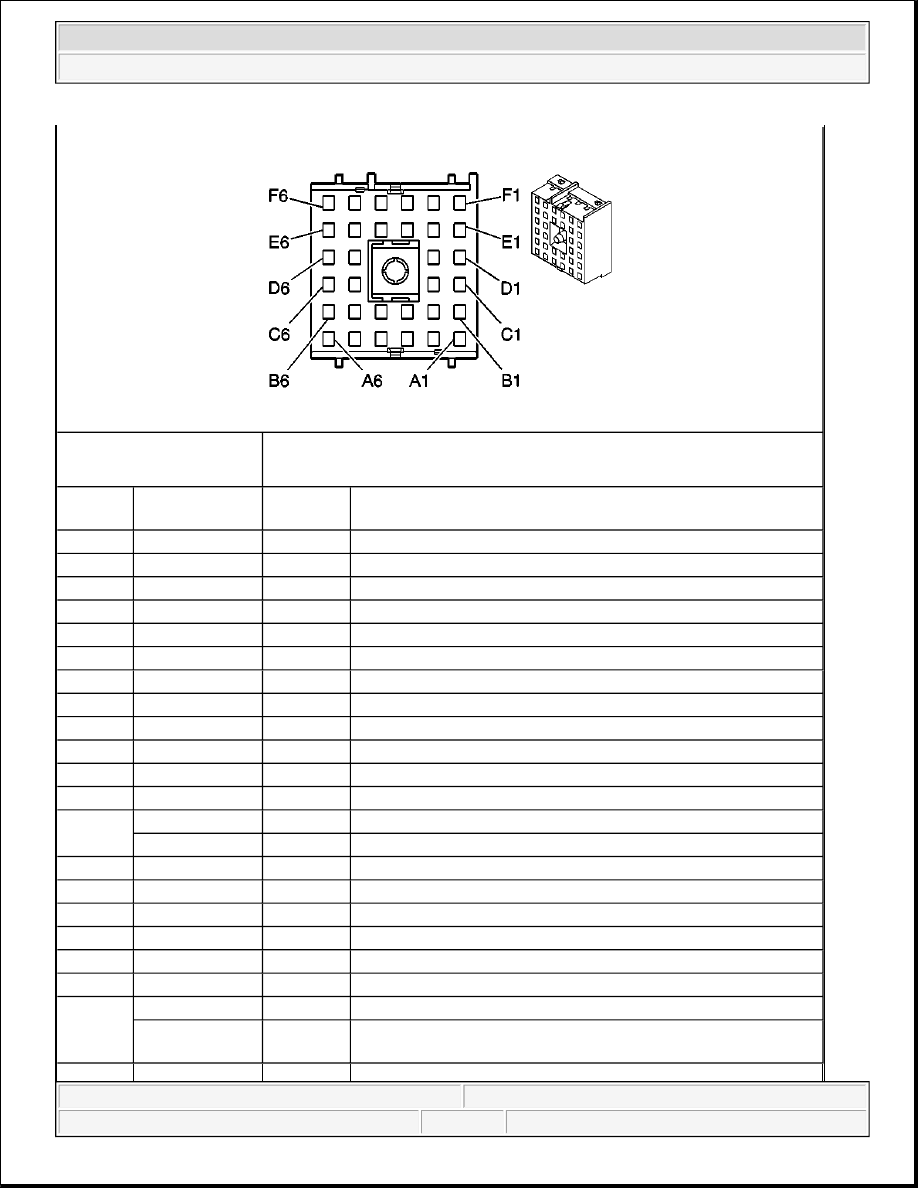

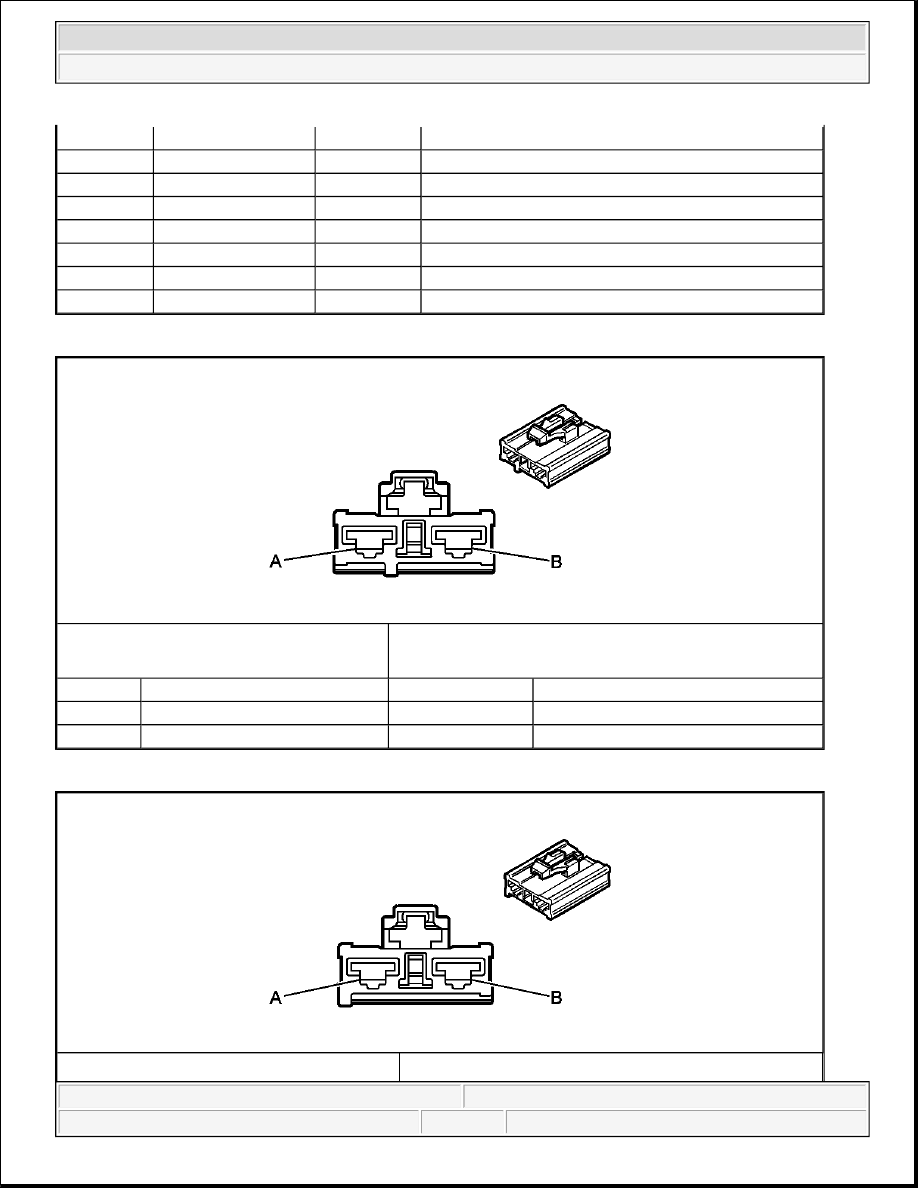

Connector Part Information

z

12193914

z

32-Way F Metri-Pack 280 Series (GN)

Pin

Wire Color

Circuit No.

Function

A1-A2

-

-

Not Used

A3

D-BU

2115

Right Turn Signal Lamps Supply Voltage

D-BU

2115

Right Front Marker Lamp Supply Voltage

A4

BK

550

Ground

A5

-

-

Not Used

A6

D-GN

1329

Left Horn Fuse Supply Voltage

D-GN

1329

Right Horn Fuse Supply Voltage

B1

-

-

Not Used

B2

D-BU

545

DRL Supply Voltage - Left Lamp

D-BU

545

DRL Supply Voltage - Right Lamp

B3-B6

-

-

Not Used

C1

BN

2309

Right Front Park Lamps Supply Voltage

BN

2309

Right Front Side Marker Lamp Supply Voltage

C2

-

-

Not Used

C5

BN

2309

Left Front Park Lamp Supply Voltage

BN

2309

Left Front Side Marker Lamp Supply Voltage

C6

D-GN/WH

266

Rear Window Washer Pump Supply Voltage

D1-D6

-

-

Not Used

E1

L-BU

2114

Left Turn Signal Lamps Supply Voltage



2004 Hummer H2

2004 ACCESSORIES & EQUIPMENT Wiring Systems (Component List) - Hummer H2



Fuse Block Terminal Identification - Underhood C5

Fuse Block Terminal Identification - Underhood C6

L-BU

2114

Left Front Marker Lamp Supply Voltage

E2

D-GN/WH

711

Left Headlamp High Beam Supply Voltage

E3

L-GN/BK

311

Right Headlamp High Beam Supply Voltage

E4-E6

-

-

Not Used

F1-F3

-

-

Not Used

F4

YE

712

Left Headlamp Low Beam Supply Voltage

F5

TN/WH

312

Right Headlamp Low Beam Supply Voltage

F6

-

-

Not Used

Connector Part Information

z

15393171

z

2-Way F J-Type (MD GY)

Pin

Wire Color

Circuit No.

Function

A

RD

842

Battery Positive Voltage

B

RD

542

Battery Positive Voltage

z

15393172



2004 Hummer H2

2004 ACCESSORIES & EQUIPMENT Wiring Systems (Component List) - Hummer H2



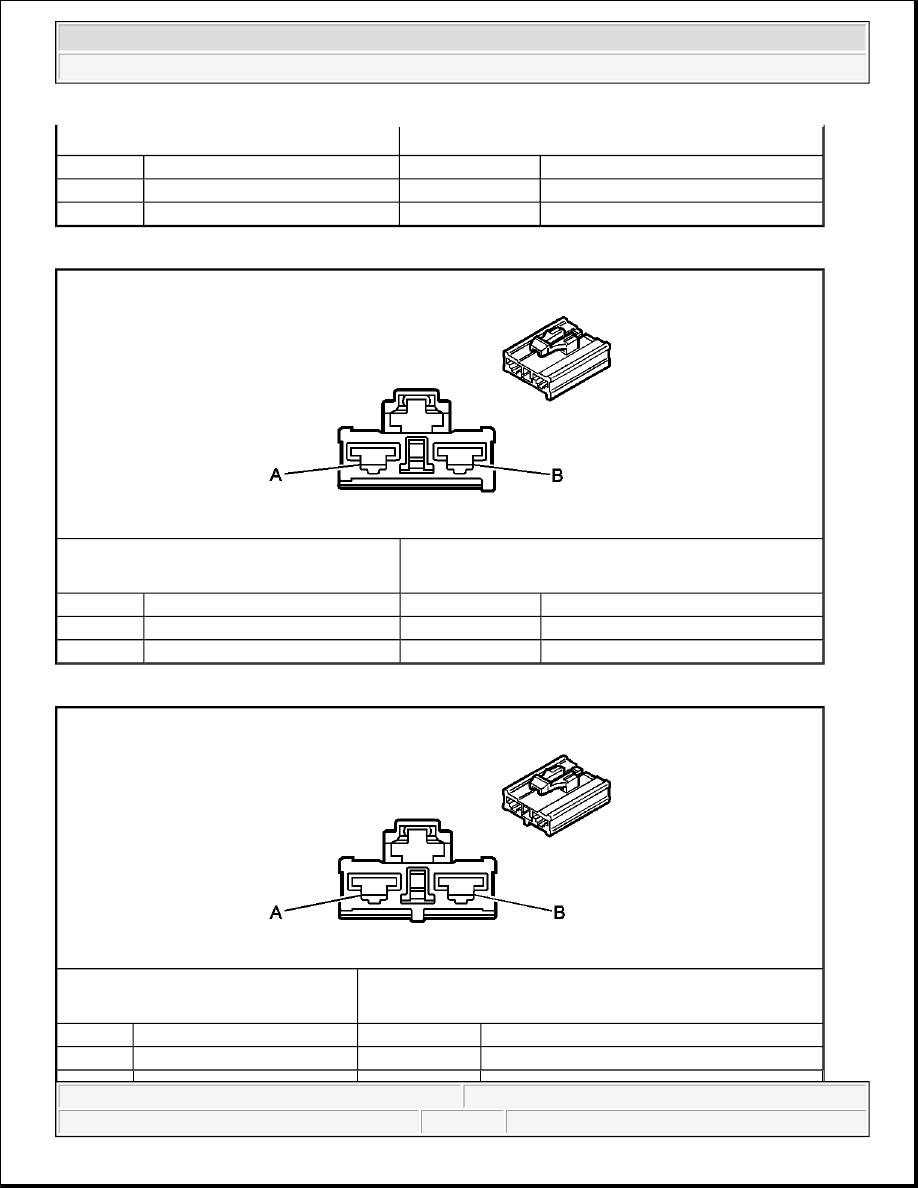

Fuse Block Terminal Identification - Underhood C7

Fuse Block Terminal Identification - Underhood C9

Connector Part Information

z

2-Way F J-Type (L-GN)

Pin

Wire Color

Circuit No.

Function

A

RD

642

Battery Positive Voltage

B

-

-

Not Used

Connector Part Information

z

15393168

z

2-Way F J-Type (BK)

Pin

Wire Color

Circuit No.

Function

A

RD

342

Battery Positive Voltage

B

RD

42

Battery Positive Voltage

Connector Part Information

z

15393170

z

2-Way F J-Type (WH)

Pin

Wire Color

Circuit No.

Function

A

RD

442

Battery Positive Voltage
