Hummer H1 (2006+). Manual - part 402

12-284

Electrical System

______________________________________________________

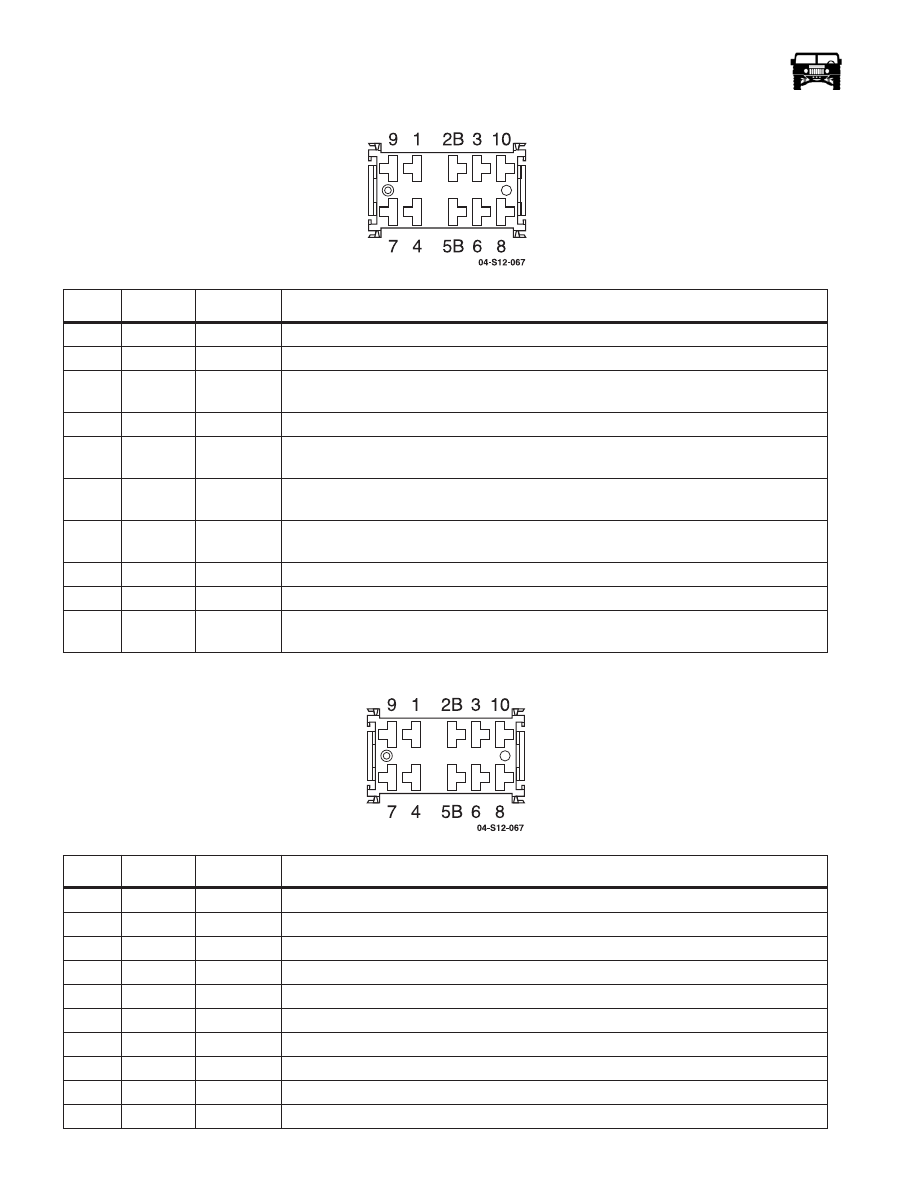

C122/ 10 WAY LEFT REAR WINDOW SWITCH CONNECTOR LOCATION: REAR CONSOLE

PIN

CKT

COLOR

DESCRIPTION

1

316

TN

Up Input From Master Switch

2B

227

RD

Up Output To Power Window Motor

3

170

PP

12-Volt Power From Power Window Lock Switch

3

170

PP

12-Volt Power From Power Window Lock Switch

4

170

PP

12-Volt Power From Power Window Lock Switch

5B

226

YL

Down Out Put

6

317

LG

Down In Put

7

17

PP

Illumination

7

17

PP

Illumination

8

17

PP

Illumination

8

17

PP

Illumination

9

59

BK

Ground

9

59

BK

Ground

10

59

BK

Ground

10

59

BK

Ground

_____________________________________________________

 Electrical System  12-285

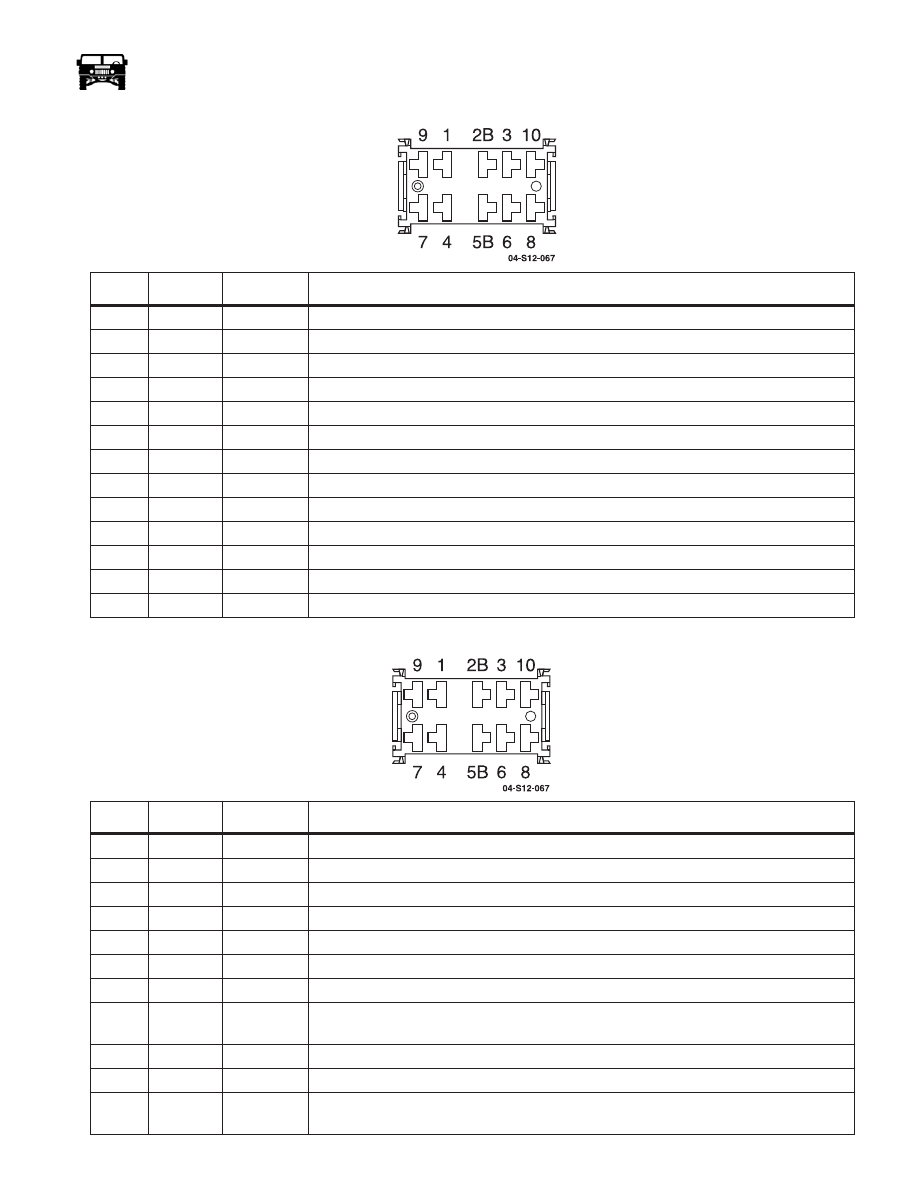

C123/ 10 WAY RIGHT REAR WINDOW SWITCH CONNECTOR LOCATION: REAR CONSOLE

C124/ 10 WAY C.T.I.S. TIRE SELECTOR SWITCH CONNECTOR

PIN

CKT

COLOR

DESCRIPTION

1

319

BR

Up Input

2B

227

RD

Up Output

3

170

PP

12 Volt From Window Lock Switch

3

170

PP

12 Volt From Window Lock Switch

4

170

PP

12 Volt From Window Lock Switch

5B

226

YL

Down Output

6

320

LB

Down Input

7

17

PP

Illumination

8

17

PP

Illumination

8

17

PP

Illumination

9

59

BK

Ground

10

59

BK

Ground

10

59

BK

Ground

PIN

CKT

COLOR

DESCRIPTION

1

--

--

--

2B

144

YL

12 Volt Ignition

3

91

TN

To Front Solenoid

4

92

GY

To Rear Solenoid

5B

144

YL

12 Volt Ignition

5B

144

YL

12 Volt Ignition

6

--

--

--

7

59
59

BK
BK

Ground
Ground

8

59

BK

Ground

9

17

PP

Illumination

10

17
17

PP
PP

Illumination
Illumination

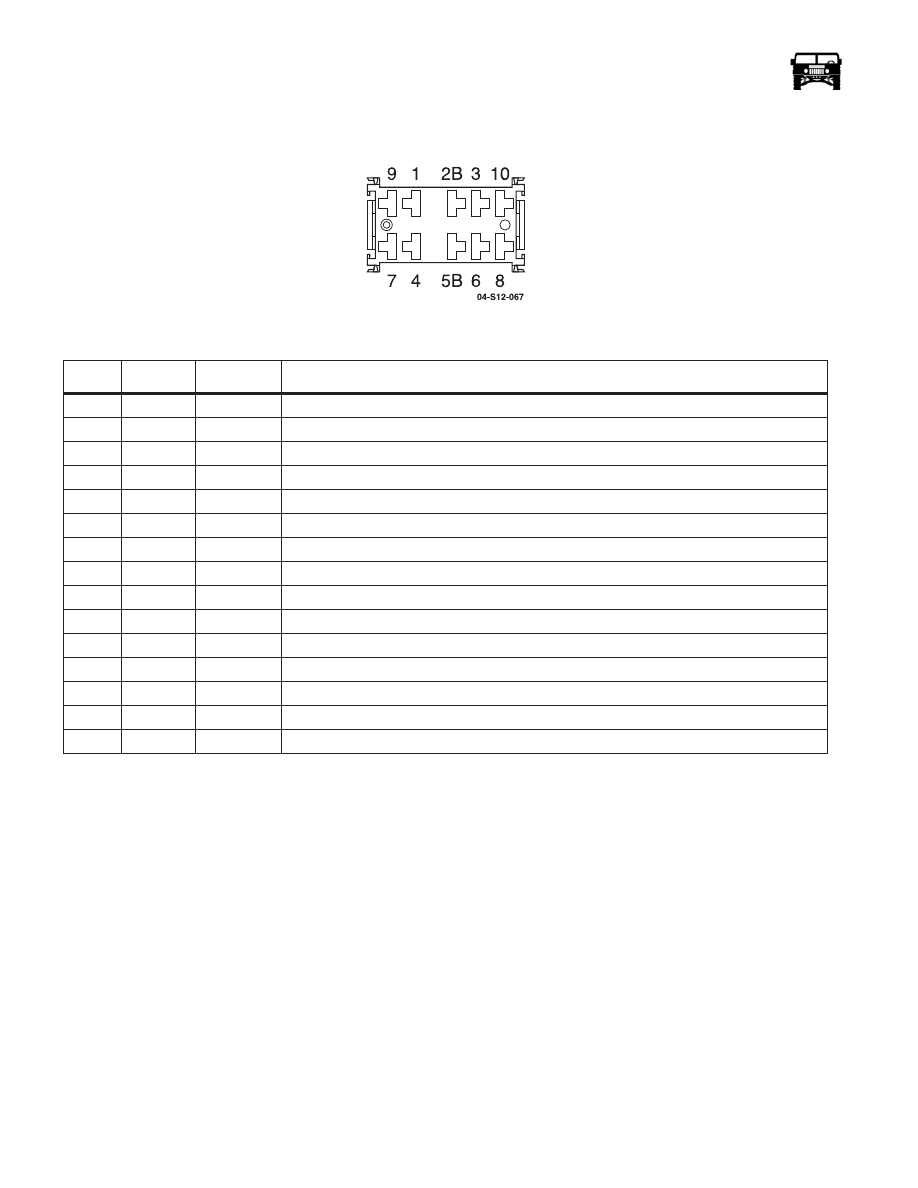

12-286

Electrical System

______________________________________________________

C125/ 10 WAY C.T.I.S. INFLATE/ DEFLATE SWITCH CONNECTOR

C126/ 10 WAY AUXILIARY BLOWER SWITCH CONNECTOR

PIN

CKT

COLOR

DESCRIPTION

1

47

LG

CTIS Deflate

2B

640

OR

12 Volt Ignition

3

46
46

WH
WH

CTIS Inflate
CTIS Inflate

4

144

YL

Switched Ignition Voltage

5B

640
640

OR
OR

Ignition Voltage
Ignition Voltage

6

144
144

YL
YL

Switched Ignition Voltage
Switched Ignition Voltage

7

59
59

BK
BK

Ground
Ground

8

59

BK

Ground

9

17

PP

Illumination

10

17
17

PP
PP

Illumination
Illumination

PIN

CKT

COLOR

DESCRIPTION

1

404

YL

Low Out Put

2B

346

PK

12 Volt Ignition

3

405

OR

High Out Put

4

--

--

--

5B

--

--

--

6

--

--

--

7

--

--

--

8

59

BK

Ground

9

--

--

--

10

17

PP

Illumination[

_____________________________________________________

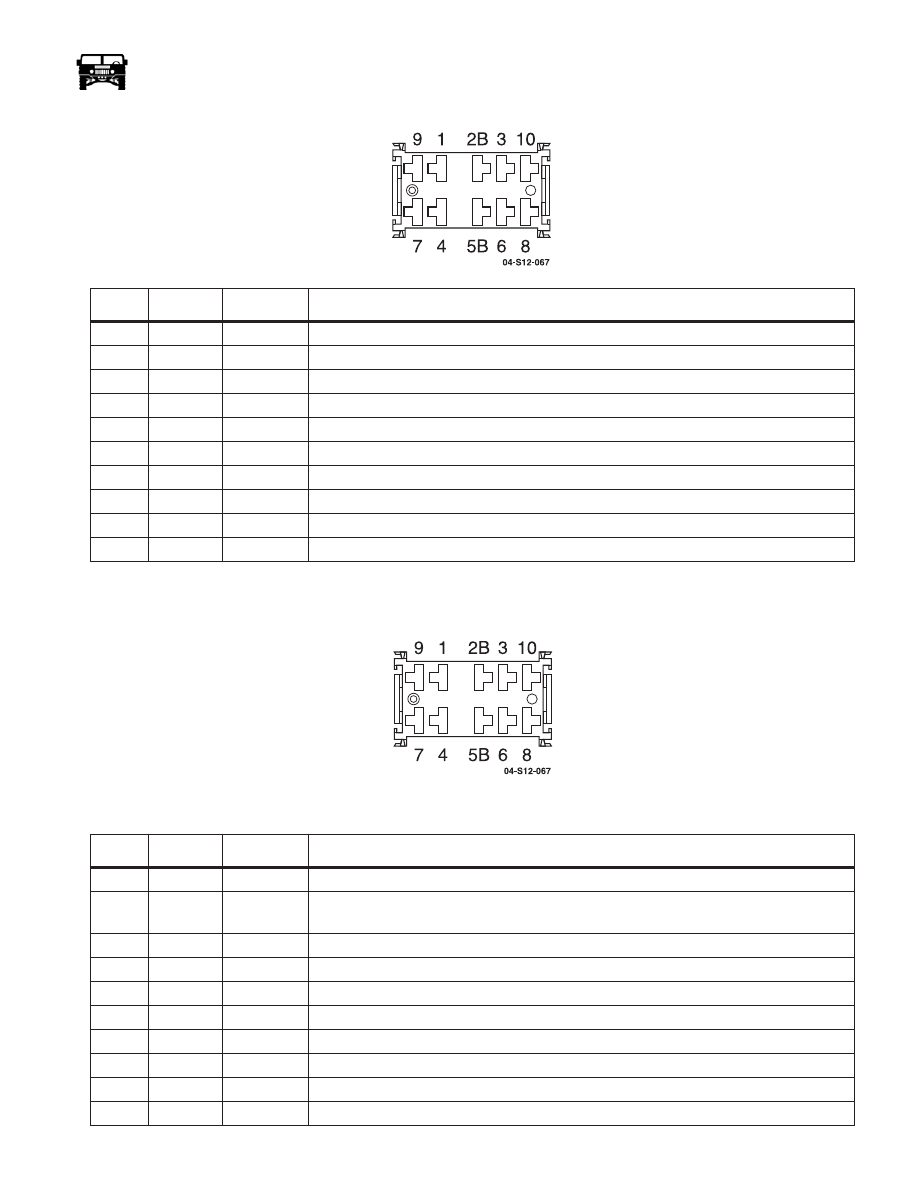

 Electrical System  12-287

C127/ 10 WAY MASTER LIGHT SWITCH CONNECTOR

C128/ 10 WAY DOME LIGHT SWITCH CONNECTOR

PIN

CKT

COLOR

DESCRIPTION

1

--

--

--

2B

38

RD

12 Volt Power

3

14

LB

Output To Buss L1

4

--

--

--

5B

195

YL

12 Volt Power

6

15

WH

Output To Head lamp Dimmer Switch

7

--

--

--

8

17

PP

Illumination

9

--

--

--

10

59

BK

Ground

PIN

CKT

COLOR

DESCRIPTION

1

--

--

--

2B

54
54

DG
DG

12 Volt Power
12 Volt Power

3

53

DB

Output To Dome Lamp

4

--

--

--

5B

54

DG

12 Volt Power

6

55

OR

Output To Cargo Lamp

7

--

--

--

8

17

PP

Illumination

9

--

--

--

10

59

BK

Ground
