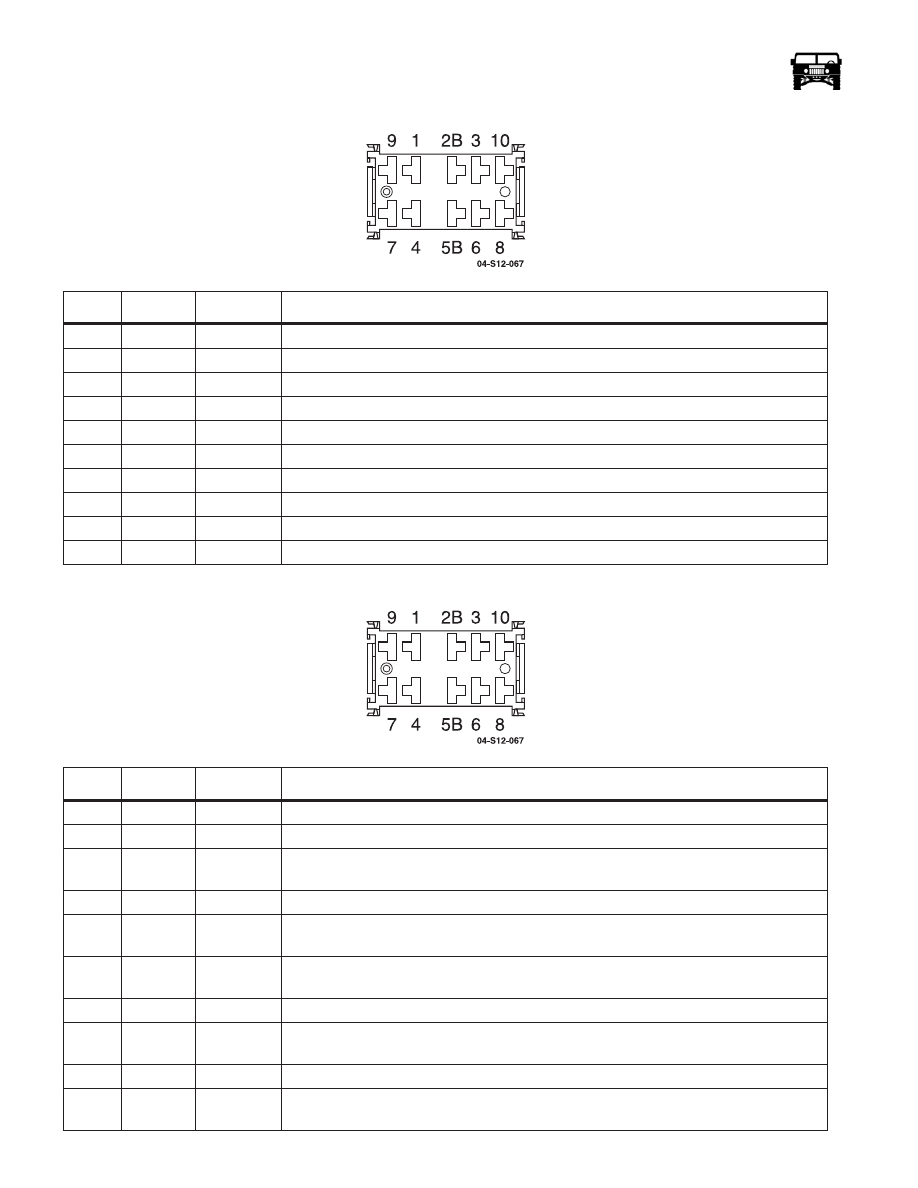

C129/ 10 WAY WIPER SWITCH CONNECTOR
C130/ 10 WAY FUEL TANK SELECTOR SWITCH
PIN
CKT
COLOR
DESCRIPTION
1
27
OR
Relay Input
2B
63
DG
Low Output
3
60
DB
Low Speed Jumper
4
60
DB
Low Speed Jumper
5B
65
YL
Ignition
6
61
RD
High Output
7
--
--
--
8
17
PP
Illumination
9
--
--
--
10
59
BK
Ground
PIN
CKT
COLOR
DESCRIPTION
1
789
BR
Oscillating Power/ Ground Circuit
2B
785
GY
12 Volt Ignition
3
786
786
RD
RD
Oscillating Power/ Ground Circuit
Oscillating Power/ Ground Circuit
4
786
RD
Oscillating Power/ Ground Circuit
5B
59
59
BK
BK
Ground
Ground
6
789
789
BR
BR
Oscillating Power/ Ground Circuit
Oscillating Power/ Ground Circuit
7
17
PP
Illumination
8
17
17
PP
PP
Illumination
Illumination
9
59
BK
Ground
10
59
59
BK
BK
Ground
Ground
