Hummer H1 (2006+). Manual - part 314

10-118 Body

____________________________________________________________________

Identi cation Light Replacement

NOTE: All identification lights are replaced the same. The bulb is not removable from the lens. The light is replaced as an assem-
bly.

Removal

1.

Carefully pry the tabbed sides of the identification light from the light bracket (Figure  10-143).

2.

Disconnect the light from the wiring harness.

Installation

1.

Connect the identification light to the wiring harness (Figure  10-143).

2.

Snap the light into the light bracket.

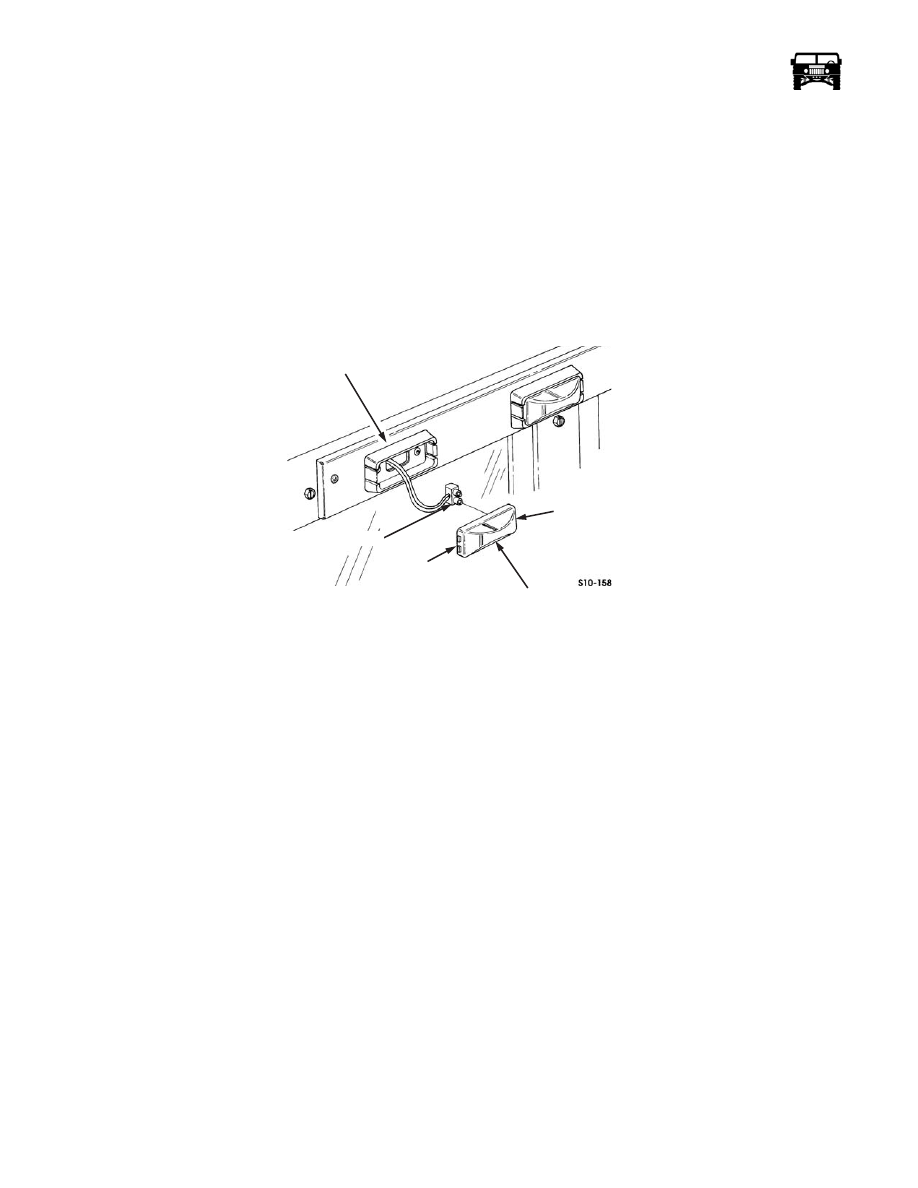

Figure 10-143:   Identification Light Replacement

Side Marker Light Assembly Replacement

NOTE: Replacement of the front and the rear light assemblies is basically the same. This procedure covers the front left side
marker.

Removal

1.

Remove the four screws, washers and the close-off cover from the hood (Figure  10-144).

2.

Disconnect the harness lead from the marker light harness (Figure  10-145).

3.

Remove the two screws, the side marker light, gasket and the bezel.

LIGHT BRACKET

IDENTIFICATION

LIGHT

WIRING HARNESS

TABBED

SIDE

TABBED

SIDE

___________________________________________________________________

 Body  10-119

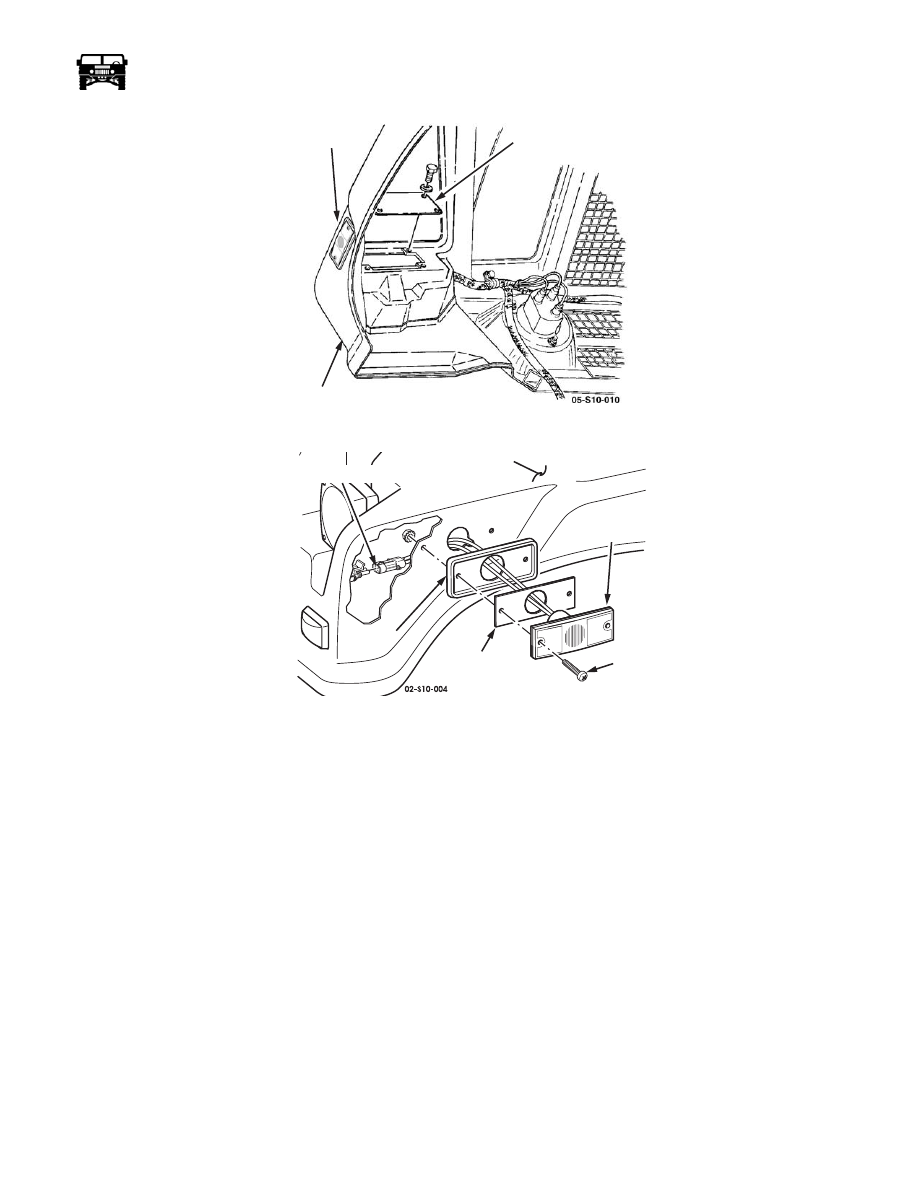

Figure 10-144:   Close-Out Cover Location

Figure 10-145:   Side Marker Light Assembly

Installation

1.

Feed the side marker light through the gasket and the bezel (Figure  10-144).

2.

Connect the side marker light harness to the underbody harness.

3.

Align the side marker light, gasket and the bezel with the mounting holes on the body and secure with the retaining screws.

4.

Secure the close-out cover to the hood with the four washers and the screws (Figure  10-145)

5.

Ensure the side marker light operates properly.

Front Turn Signal Light Replacement

Removal

NOTE: To remove the lamp only, perform steps 1 and 2.

1.

Remove the four screws, lens and the gasket from the turn signal light (Figure  10-146).

2.

Remove the lamp from the socket.

CLOSE-OUT COVER

HOOD

MARKER

LIGHT

HOOD

MARKER

GASKET

LIGHT HARNESS

LIGHT

SCREW

BEZEL

10-120 Body

____________________________________________________________________

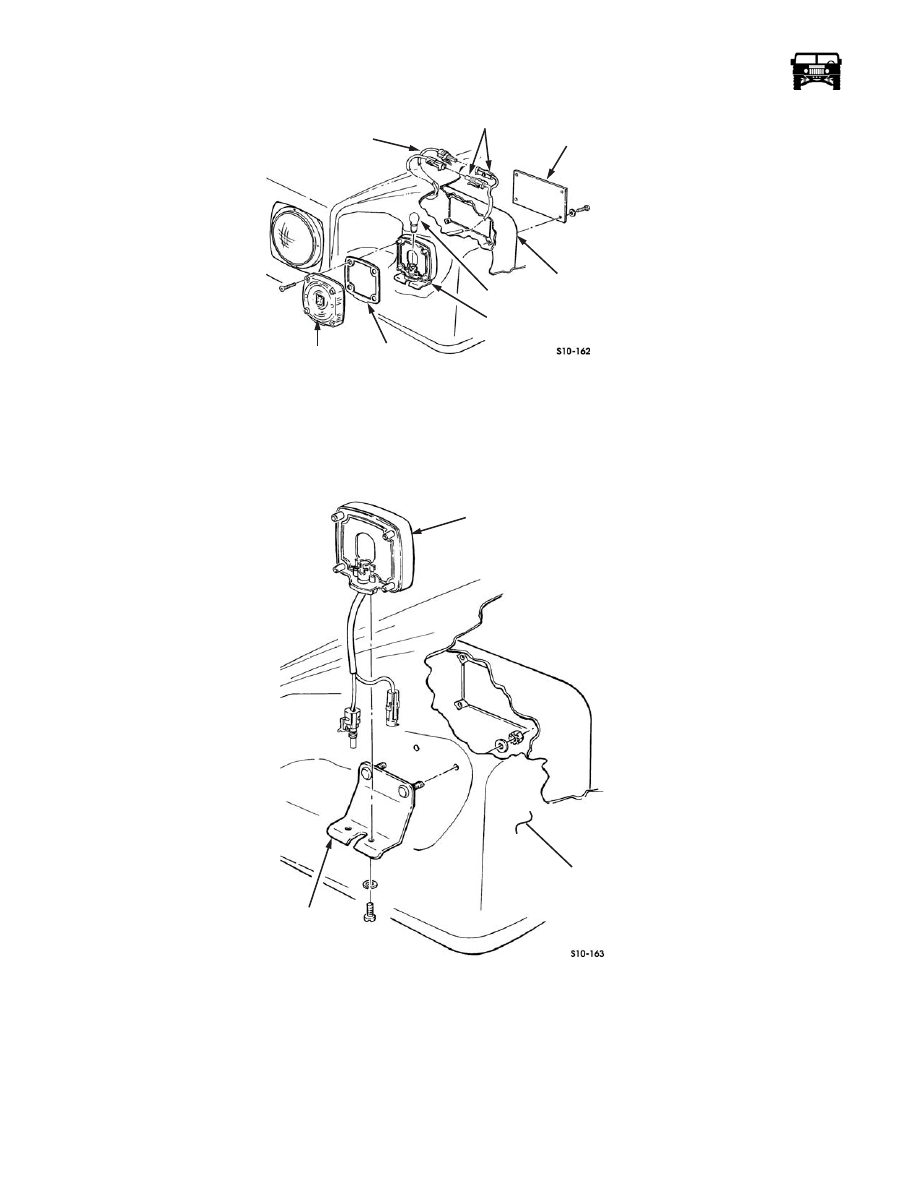

Figure 10-146:   Front Turn Signal Assembly Breakdown

3.

Remove the four screws, washers and the close-out cover from the hood.

4.

Disconnect the two connectors from the wiring harness.

5.

Remove the two nuts and the lockwasher assemblies, washers, bracket and the light from the hood (Figure  10-147).

6.

Remove the two screws, lockwashers and the light from the bracket.

Figure 10-147:   Front Turn Signal Bracket

Installation

NOTE: To install the lamp only, perform steps 5 and 6.

1.

Secure the light to the bracket with the two lockwashers and the screws (Figure  10-147).

2.

Secure the bracket and the light to the hood with the two washers and the nuts and the lockwasher assemblies.

3.

Connect the two connectors to the wiring harness (Figure  10-146).

WIRING

CONNECTORS

CLOSE-OUT

HOOD

LAMP

LIGHT AND

GASKET

LENS

COVER

BRACKET

HARNESS

LIGHT

HOOD

BRACKET

___________________________________________________________________

 Body  10-121

4.

Secure the close-out cover to the hood with the four screws and the washers.

5.

Install the lamp in the socket.

6.

Secure the gasket and the lens to the light with the four screws.

7.

Ensure the turn signal works properly.

Rear Turn Signal Light Replacement

Removal

NOTE: To remove the lamps only, perform steps 1 and 2.

1.

Remove the four screws, lens and the gasket from the turn signal light (Figure  10-148).

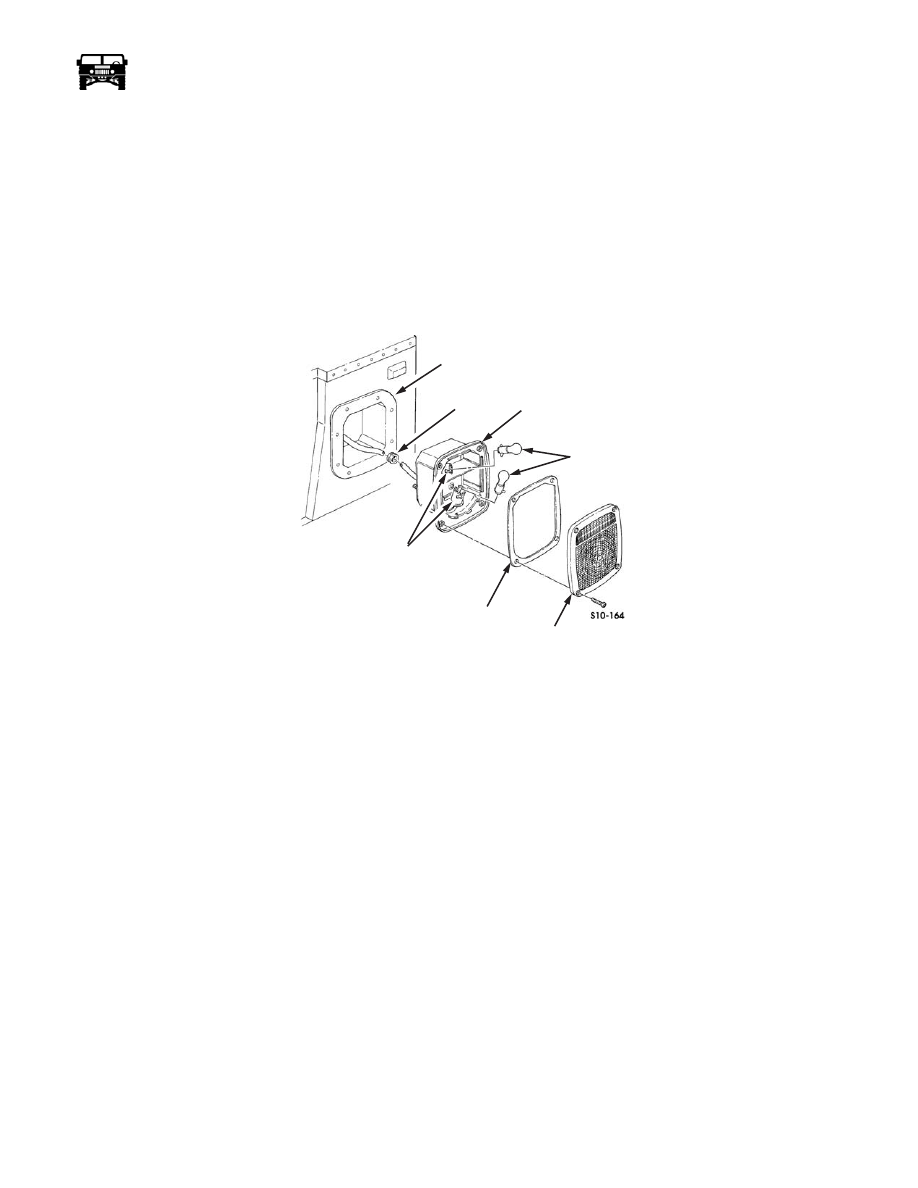

Figure 10-148:   Rear Turn Signal Light Assembly

2.

Remove the two lamps from the sockets.

3.

From behind the light, remove the three nuts, lockwashers, four leads and the three washers securing the light to the light
housing (Figures 10-148 and 10-149).

4.

Remove the two nuts, clamps and the screws securing the harness to the shield (Figure  10-149).

5.

Remove the two screws, lockwashers and the shield from the beam.

6.

Disconnect the two connectors from the wiring harness.

7.

Remove the light and the grommet from the housing (Figure  10-148).

Installation

NOTE: To install the lamps only, perform steps 6 and 7.

1.

Install the light and the grommet in the housing (Figure  10-148).

2.

Connect the two connectors to the wiring harness (Figure  10-149).

3.

Secure the harness to the shield with the two screws, clamps and the nuts.

4.

Secure the shield to the beam with the two lockwashers and the screws.

5.

Secure the light to the light housing with the three washers, four leads, three lockwashers and the nuts (Figures 10-148
and 10-149).

6.

Install the two lamps in the sockets (Figure  10-148).

7.

Secure the gasket and the lens to the light with the four screws.

8.

Ensure the turn signal and the backup lights work properly.

HOUSING

GROMMET

LIGHT

LAMPS

GASKET

LENS

SOCKETS
