10-122 Body

____________________________________________________________________

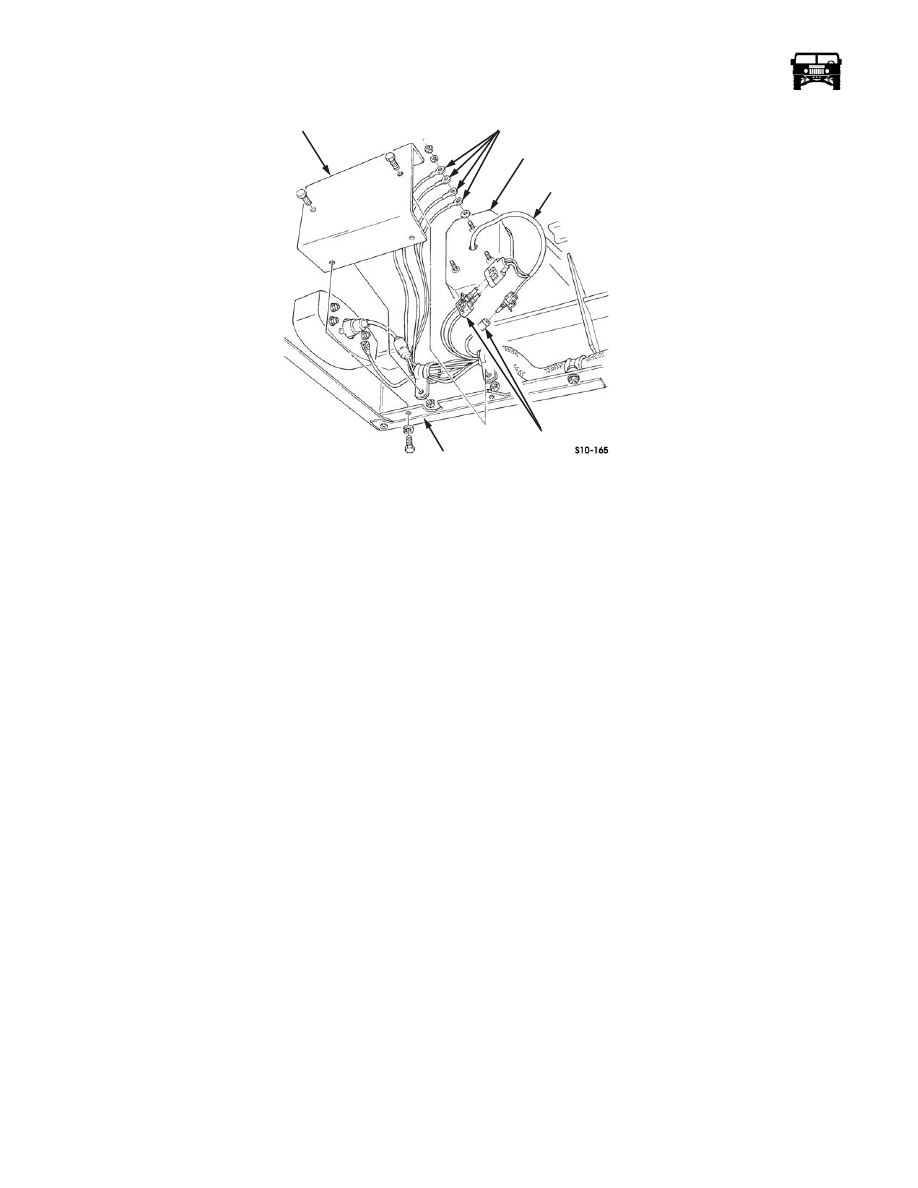

Figure 10-149:   Shield and Wiring Location

Domelight/Cargo Light Replacement Removal

1.

Remove the domelight lens  (Figures 10-150, 10-151, and 10-152).

2.

Remove the lamp from the domelight.

3.

Remove the screws securing the domelight to the ground lead and the connector.

4.

Remove the screw and the domelight from the roof bracket.

Installation

1.

Secure the domelight, connector and the ground lead to the roof bracket with the screws (Figures 10-150, 10-151, and 10-152).

2.

Install the lamp in the domelight.

3.

Install the domelight lens.

SHIELD

LEADS

HOUSING

WIRING

CONNECTORS

BEAM

HARNESS

___________________________________________________________________

 Body  10-123

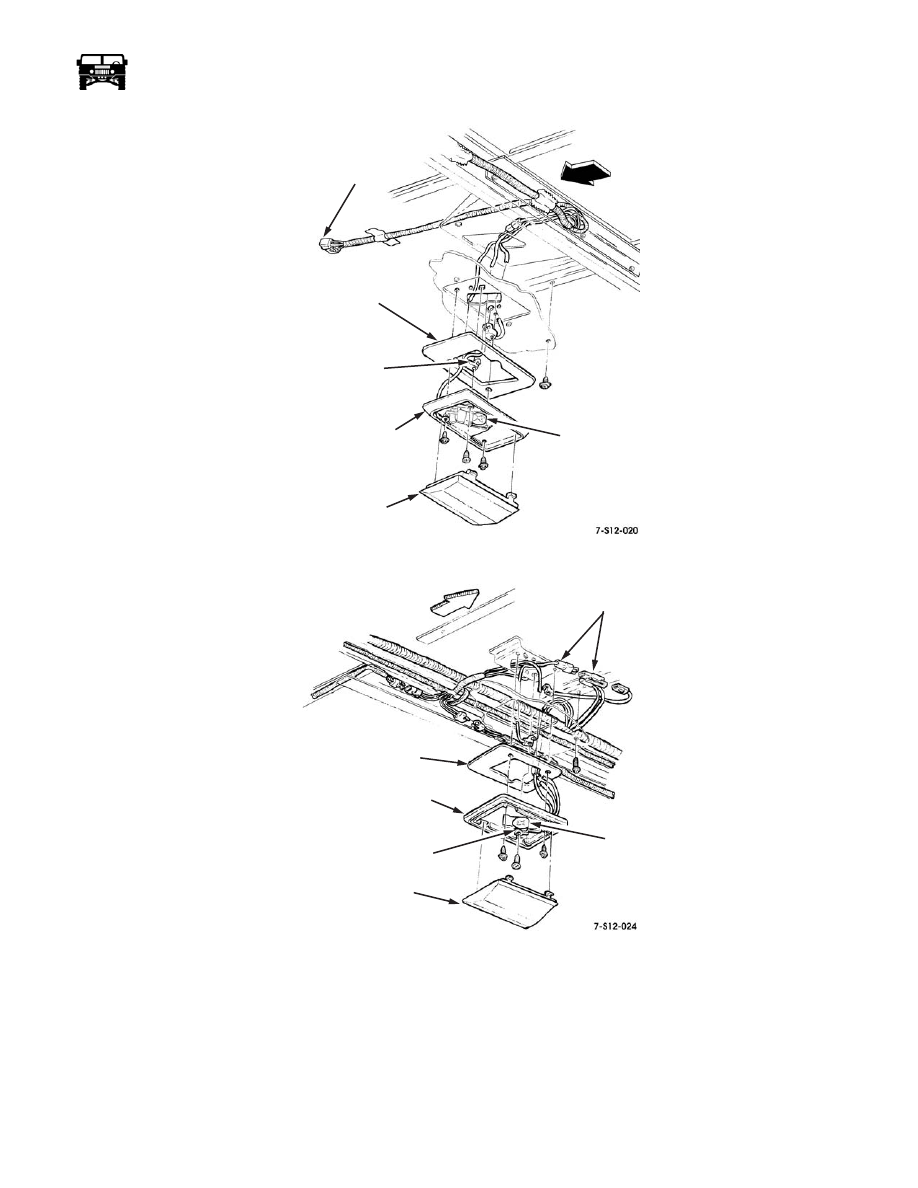

Figure 10-150:   Standard Domelight Replacement

Figure 10-151:   Rear Domelight (HMCS)

ROOF BRACKET

GROUND LEAD

DOMELIGHT

LENS

LAMP

CONNECTOR

FRONT OF

VEHICLE

ROOF BRACKET

GROUND LEAD

DOMELIGHT

LENS

LAMP

CONNECTORS

FRONT OF

VEHICLE

10-124 Body

____________________________________________________________________

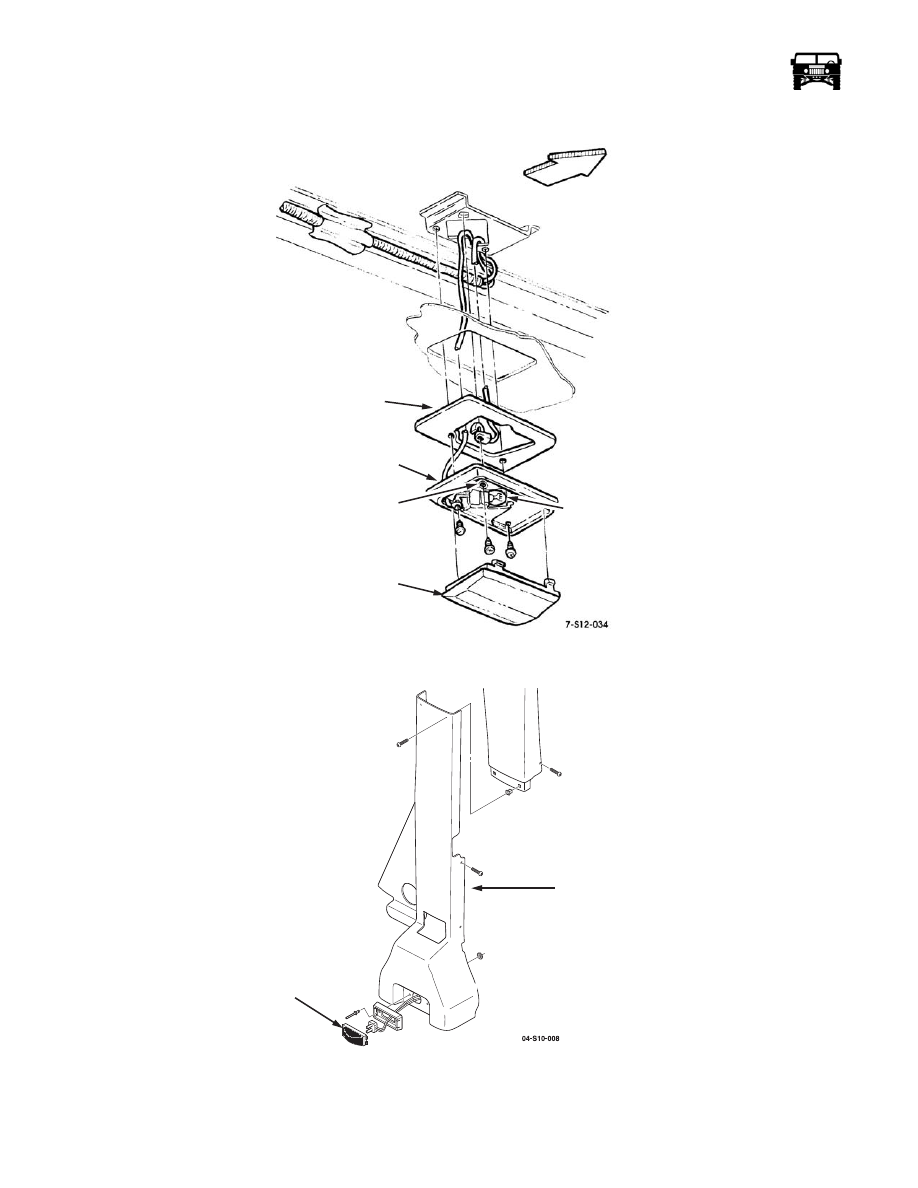

Figure 10-152:   Cargo Light (HMCS)

Figure 10-153:   Rear Seat Courtesy Light Replacement

ROOF BRACKET

GROUND LEAD

DOMELIGHT

LENS

LAMP

FRONT OF

VEHICLE

COURTESY

LOWER

B-PILLAR

 TRIM

 LIGHT

___________________________________________________________________

 Body  10-125

Underhood Light Replacement

Removal

1.

Disconnect the two connectors from the wiring harness (Figure  10-154).

2.

Remove the two screws, washers, ground lead, bracket and the light from the hood.

3.

Remove the lamp from the light.

Installation

1.

Install the lamp in the light (Figure  10-154).

2.

Secure the light, bracket and the ground lead to the hood with the two washers and the capscrews.

3.

Connect the two connectors to the wiring harness.

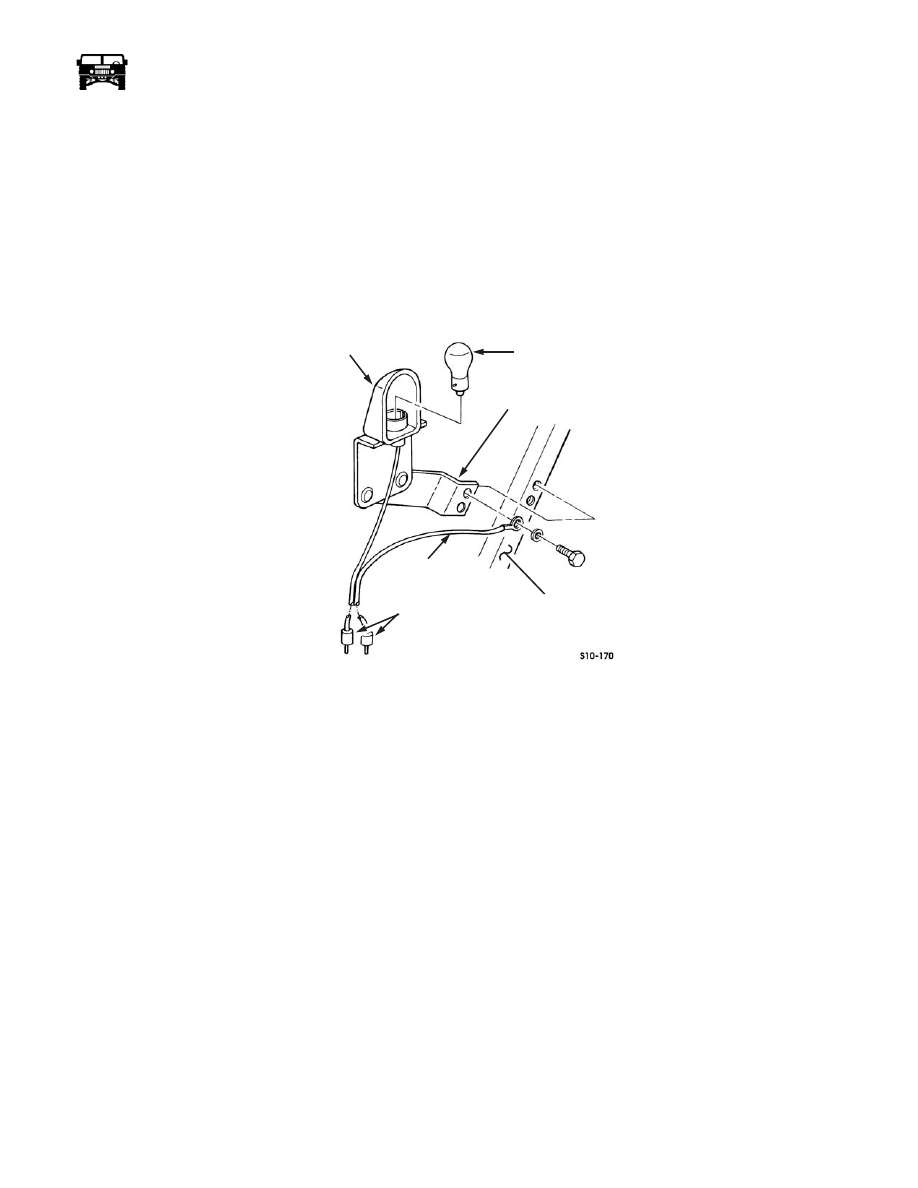

Figure 10-154:   Underhood Light Replacement

Daytime Running Lights (DRL) Module Replacement (Canada Only)

Removal

1.

Disconnect the Daytime Running Lights (DRL) connector from the harness assembly (Figure  10-155).

2.

Remove the two screws, washers, nuts and the DRL module from the kick panel.

Installation

1.

Secure the DRL module to the kick panel with the two screws, washers and the nuts (Figure  10-155).

2.

Connect the DRL connector to the harness assembly.

LIGHT

LAMP

BRACKET

HOOD

GROUND LEAD

CONNECTORS
