10-98 Body

______________________________________________________________________

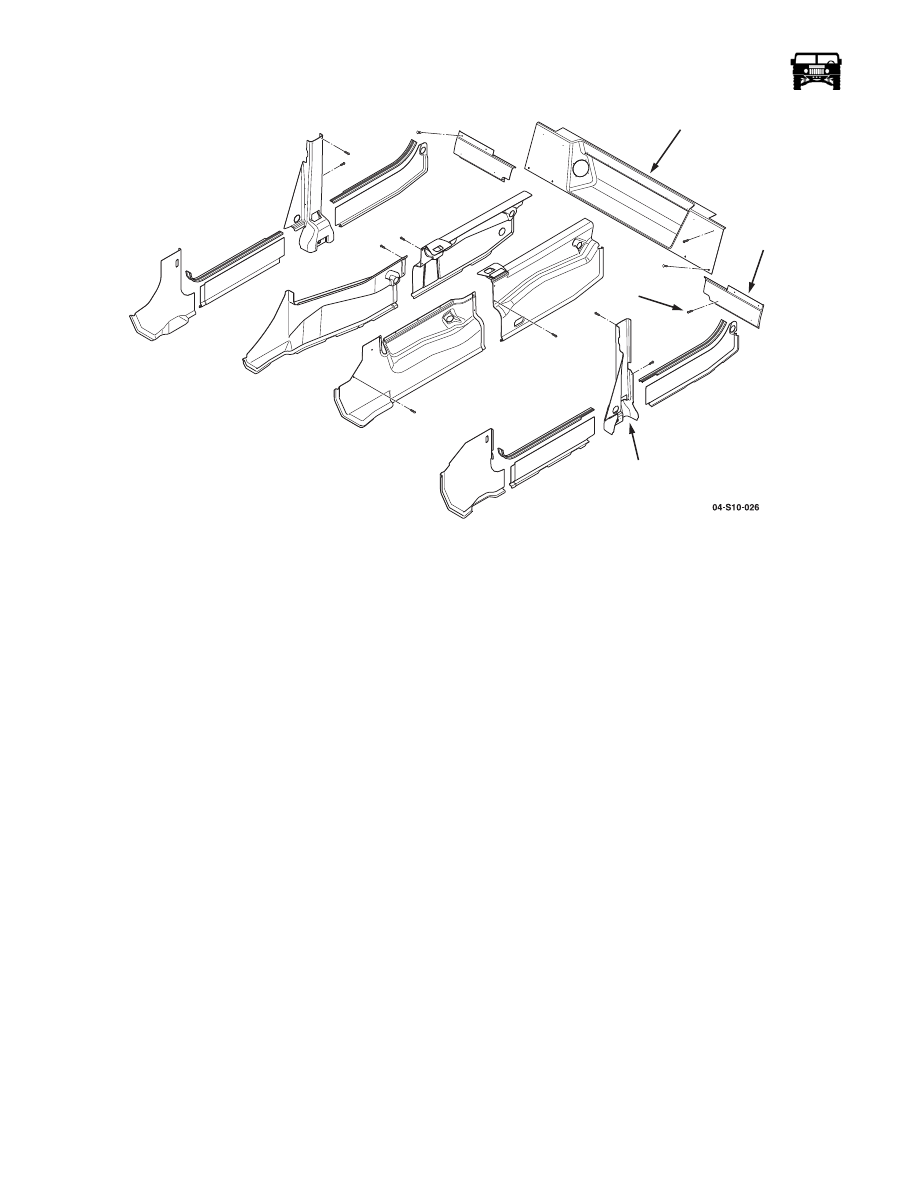

Figure 10-117:   Rear Wall Compartment Location

Installation

1.

Secure the center trim to the rear compartment wall with the screw and the washer assembly (Figure  10-117).

2.

Secure the lower trim and the trim to the rear compartment wall with the two panel fasteners and the four screw and the washer
assemblies.

3.

Secure the trim to the rear compartment wall with the four screw and the washer assemblies.

4.

Connect the courtesy light electrical connector, and secure the courtesy light to the trim with the two washers and the rivets
(Figure  10-117).

5.

Secure the courtesy light lens to the courtesy light bracket.

6.

Fasten the lower B-pillar trim with the three screws.

7.

Secure the windshield center trim to the windshield frame with the two screw.

8.

Install the speakers on the rear wall (Section 12).

9.

Install the center console.

10. Install the front and the rear seats.

Soft Top Mounting Components Replacement

NOTE: The following removal and installation instructions include replacement of all soft top mounting components and accesso-
ries. Use only the applicable steps for replacing specific components.

Removal

1.

Remove the four-passenger soft top, tonneau cover or station wagon soft top, if applicable. Refer to the owner’s manual for
proper procedure.

2.

Remove the tonneau cover wood bow from the two retainer brackets (Figure  10-118).

3.

Remove the four screws and the two bow retainer brackets from the wheelhouses.

CENTER TRIM

PANEL

TRIM

FASTENER

LOWER

LOWER

B-PILLAR

TRIM

_____________________________________________________________________

 Body  10-99

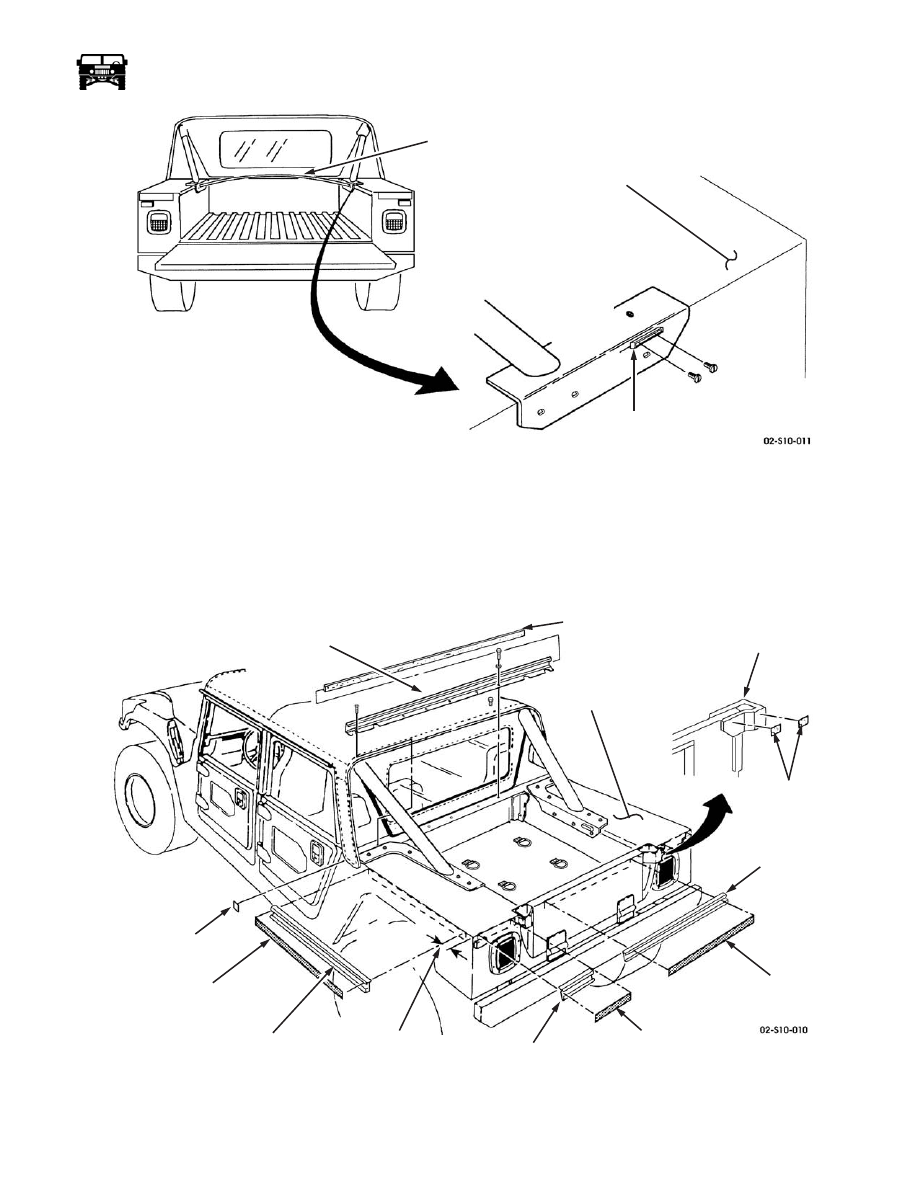

Figure 10-118:   Tonneau Cover Wood Bow Removal

4.

Remove the velcro strips and the patches from the tonneau area (Figure  10-119).

NOTE: Perform steps five and six for both sides of the vehicle. The left side is shown.

5.

Remove the 41 in. (104 cm) tonneau extrusion from the side of the wheelhouse.

6.

Remove the 9 in. (23 cm) tonneau extrusion from the rear of the wheelhouse.

7.

Remove the 43 in. (109 cm) tonneau extrusion from the tailgate.

Figure 10-119:   Velcro Strip and Patch Removal

8.

Remove the five screws, lockwashers, four self-tapping screws and the tonneau/rear curtain extrusion from the body.

TONNEAU COVER

WHEELHOUSE

BOW RETAINER

WOOD BOW

 BRACKET

TONNEAU/REAR CURTAIN EXTRUSION

VELCRO STRIP

TAILGATE CHAIN

VELCRO PATCH

43 IN. (109 cm)

TONNEAU EXTRUSION

43 IN. (109 CM)

9 IN. (23 CM)

9 IN. (23 CM)

41 IN. (104 CM)

41 IN. (104 CM)

VELCRO PATCH

ATTACHMENT CHANNEL

VELCRO STRIP

2 IN. (5 CM)

FROM EDGE

VELCRO STRIP

VELCRO STRIP

TONNEAU EXTRUSION

TONNEAU EXTRUSION

WHEEL HOUSE

10-100 Body

____________________________________________________________________

9.

Remove the front and the rear inner door seals (Figure  10-120).

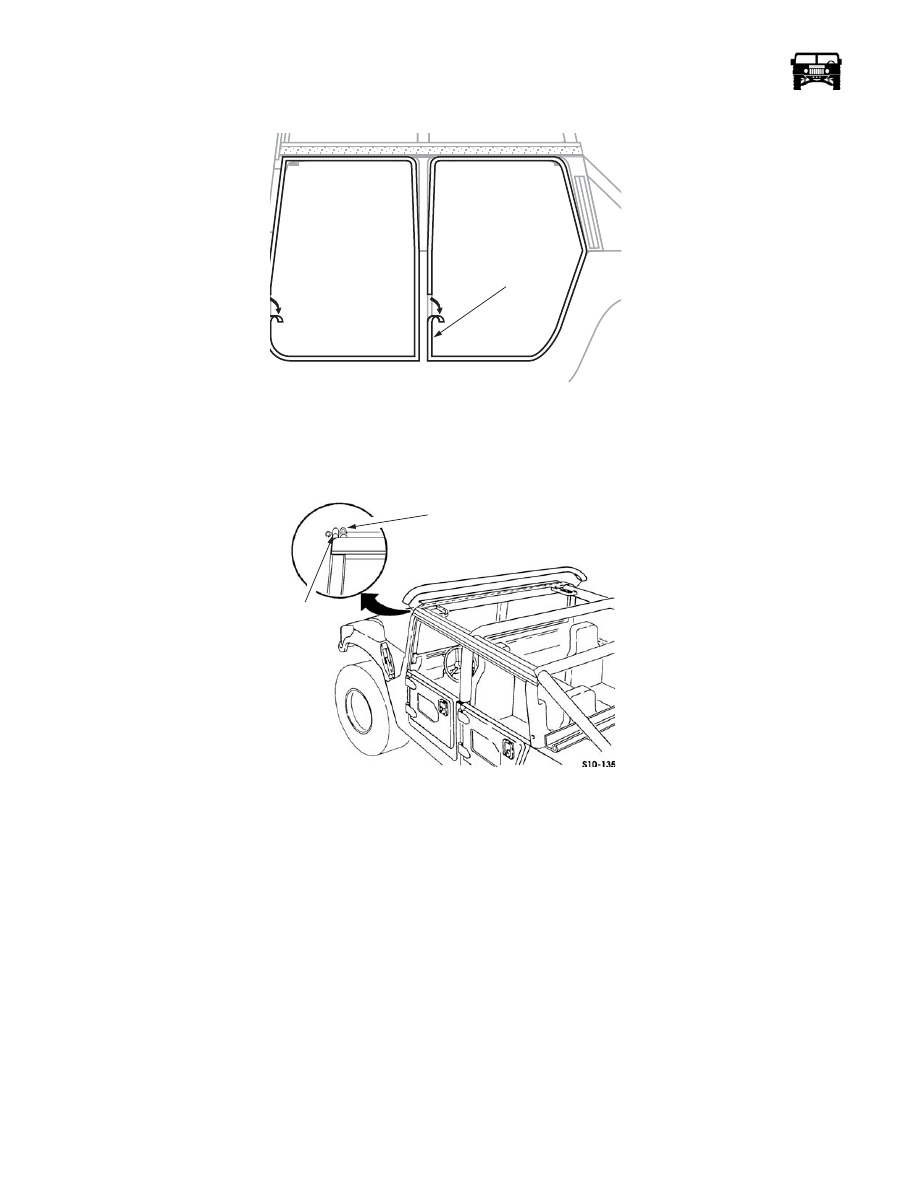

Figure 10-120:   Door Seal Removal

NOTE: This procedure is written for the left side of the vehicle only. Duplicate steps are necessary to service the right hand side.

10. Remove the soft top from the vehicle.

11. Remove the D-strip seal from the windshield frame. Do not remove the P-strip seal (Figure  10-121).

Figure 10-121:   D-Strip Seal Removal

12. Remove the 12 screws securing the front attachment rail to the top of the windshield frame and remove the rail.

13. Slide the velcro strips in the two side rails, rearward to remove and set aside.

14. Remove the four screws securing the B-pillar cover to the bottom of the H-rail.

INNER DOOR SEAL

8-S10-002

P-STRIP SEAL

D-STRIP SEAL

___________________________________________________________________

 Body  10-101

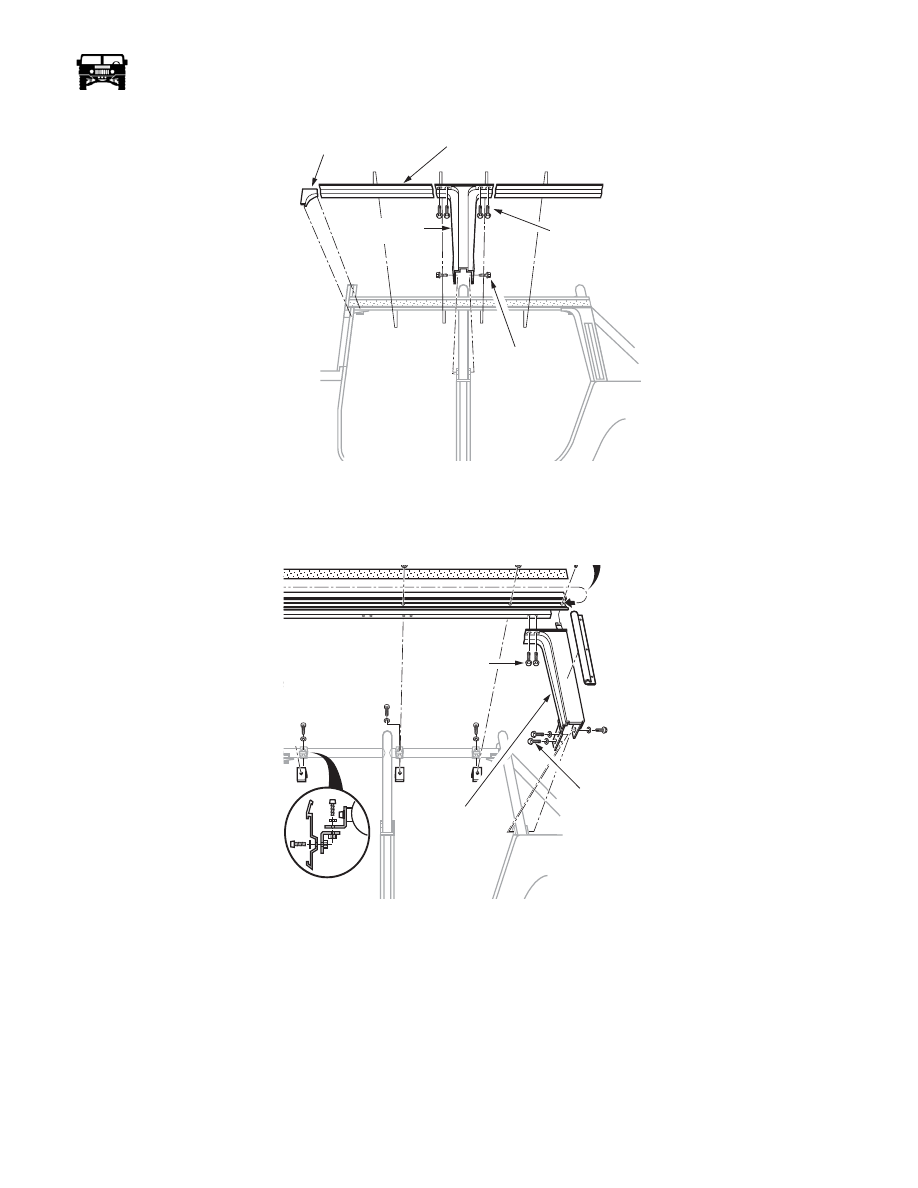

Figure 10-122:   B-Pillar Cover Removal

15. Remove the two bolts securing the B-pillar cover to the B-pillar. Remove the B-pillar cover (Figure  10-122).

16. Remove the three screws securing the C-pillar cover to the H-rail (Figure  10-123).

17. Remove the four bolts securing the lower inner and outer bracket on the C-pillar cover. Remove the cover.

Figure 10-123:   C-Pillar Cover Removal

18. Remove the three screws securing the H-Rail to the vehicle safety cage. Leave the L-brackets on the safety cage unless the

cage is going to be replaced, remove the H-rail (Figure  10-124).

UPPER

LOWER

H-RAIL

FILLER PIECE

B-PILLAR

COVER

RETAINING

SCREWS

RETAINING

SCREWS

8-S10-003

     C-PILLAR

UPPER

LOWER

RETAINING

SCREWS

COVER

RETAINING

SCREWS

8-S10-004
