Hummer H1 (2006+). Manual - part 308

10-94 Body

______________________________________________________________________

Rear License Plate Bracket Replacement

Removal

1.

Remove the four screws securing the lamp guard to the license plate bracket/lamp assembly and the bumper.

2.

Remove the two screws and the lockwashers securing the bracket/lamp assembly to the bumper (Figure  10-112).

3.

Disconnect the two leads from the light bracket and remove the bracket.

Installation

1.

Connect the two leads to the light bracket.

2.

Secure the bracket/lamp assembly to the bumper with the two lock washers and screws.

3.

Install the lamp guard with the four screws and the washers.

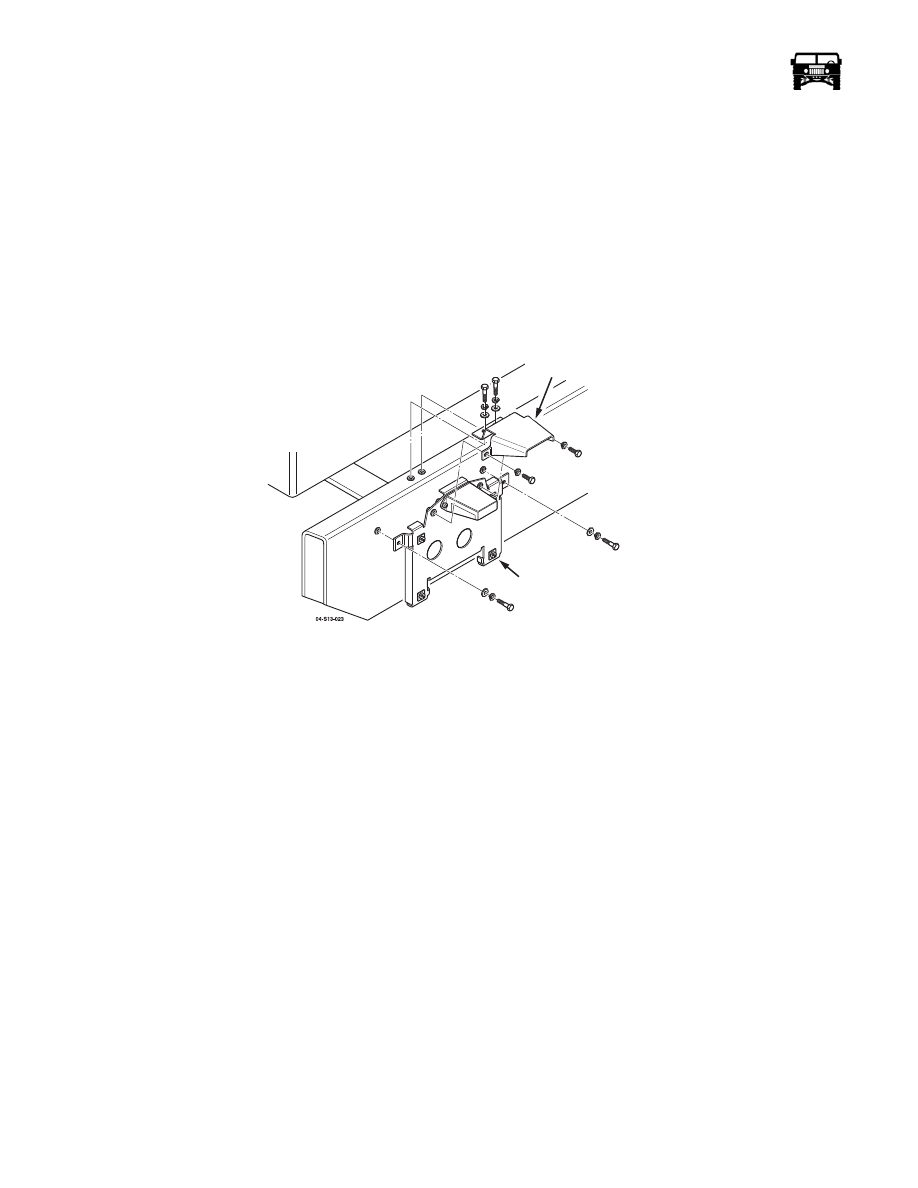

Figure 10-112:   Rear License Plate Bracket

Front License Plate Bracket Replacement

Removal

1.

Remove the two capscrews, lockwashers, license plate and the two grommets from the bracket. Discard the lockwashers (Fig-
ure  10-113).

2.

Remove the two screws, lockwashers and the bracket from the bumper. Discard the lockwashers.

Installation

1.

Install the bracket on the bumper with the two lockwashers and the screws (Figure  10-113).

2.

Install the license plate on the bracket with the two grommets, lockwashers and the capscrews.

LAMP

GUARD

BRACKET/LAMP

ASSEMBLY

_____________________________________________________________________

 Body  10-95

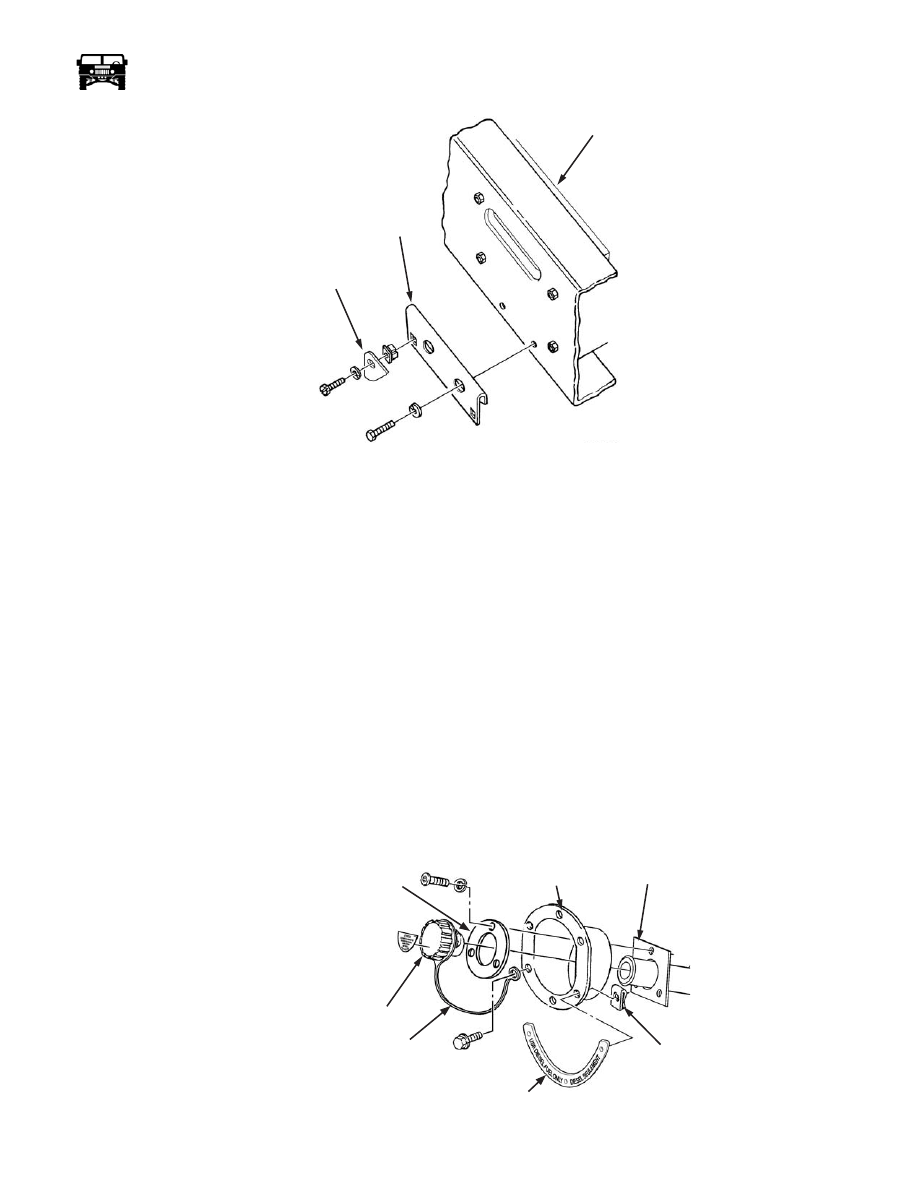

Figure 10-113:   Front License Plate Bracket

FUEL FILLER HOUSING REPLACEMENT
Main Fuel Tank

Removal

1.

Remove the filler cap from the filler spout (Figure  10-114).

2.

Remove the screw securing the cap tether to the fuel filler housing, mark the location for reassembly

3.

Remove the three socket head capscrews, washers and the reinforcement ring securing the fuel filler housing to the filler spout.

4.

Remove the five screws securing the fuel filler housing and the warning label to the right outer wheelhouse panel.

5.

Push the filler cap through the filler housing and remove the fuel filler housing.

6.

Inspect the six speednuts for damage. Replace if defective or missing.

Installation

1.

Pull the filler spout through the fuel filler housing and install the housing on the right outer wheelhouse panel with the five
screws and the warning label. Tighten the screws to 18 lb in. (2 N•m) (Figure  10-114).

2.

Using the sixth screw, install the fuel cap tether (not shown) to the fuel filler housing at the sixth screw position.

3.

Secure the fuel filler housing to the filler spout with the three socket head capscrews, washers and the reinforcement ring.

4.

Install the filler cap on the filler spout.

Figure 10-114:   Fuel Filler Housing - Main Tank

BUMPER

BRACKET

LICENSE

 PLATE

S10-069

FUEL FILLER

FILLER SPOUT

SPEEDNUT

FILLER CAP

HOUSING

TETHER

REINFORCEMENT RING

WARNING LABEL

10-96 Body

______________________________________________________________________

Auxiliary Fuel Tank

Removal

1.

Remove the filler cap from the filler spout (Figure  10-115).

2.

Remove the screw securing the cap tether to the fuel filler housing, mark the location for reassembly

3.

Remove the three socket head capscrews, washers and the reinforcement ring securing the fuel filler tube to the housing.

4.

Remove the three screws, warning label and the fuel filler housing from the body.

Installation

1.

Secure the fuel filler housing and the warning label to the body with the three screws.

2.

Using the forth screw, install the cap tether to the fuel filler housing at the forth screw position.

3.

Secure the fuel filler tube to the housing with the reinforcement ring, three socket head capscrews and the washers.

4.

Screw the filler cap into the filler spout.

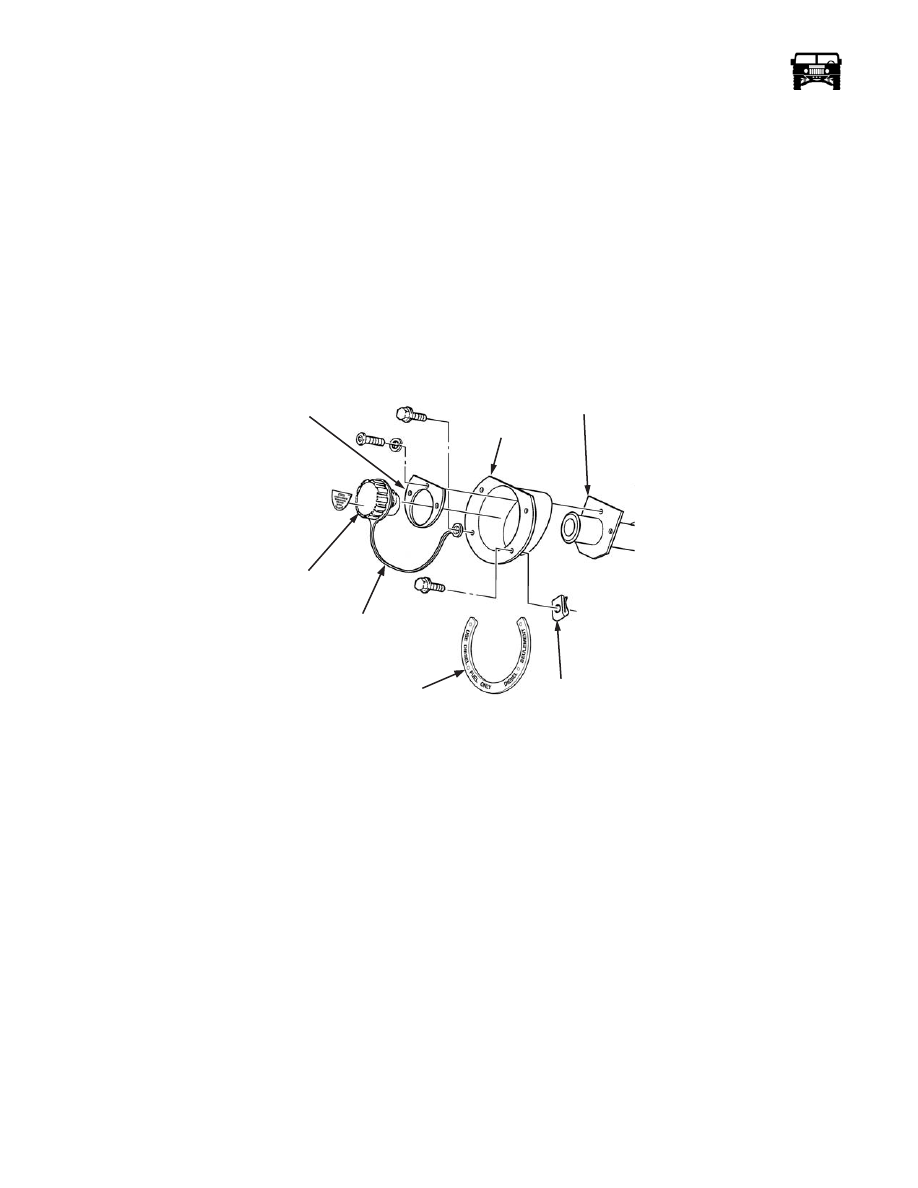

Figure 10-115:   Fuel Filler Housing Auxiliary Fuel Tank

Tire Jack and Optional Triangle Warning Kit Hold-Down Replacement

Station Wagon and Open Top

Removal

1.

Remove the triangle warning kit and the tire jack from the under the right rear seat.

2.

Remove the two wing nuts, washers, screws, clamp bracket and the hold-down bracket from the seat support (Figure  10-116).

3.

Remove the nut, washer, screw, washer and the strap bracket from the seat support.

4.

Remove the nut, washer, screw, washer and the strap from the strap bracket.

Installation

1.

Secure the strap to the strap bracket with the screw, two washers and the nut (Figure  10-116).

2.

Secure the strap bracket to the seat support with the screw, two washers and the nut.

3.

Secure the hold-down bracket and the clamp bracket to the seat support with the two screws, washers and the wing nuts.

4.

Position the tire jack and the triangle warning kit in place and secure with the strap.

SPEEDNUT

FILLER

CAP

REINFORCEMENT

RING

FUEL FILLER

HOUSING

FILLER

SPOUT

TETHER

WARNING LABEL

_____________________________________________________________________

 Body  10-97

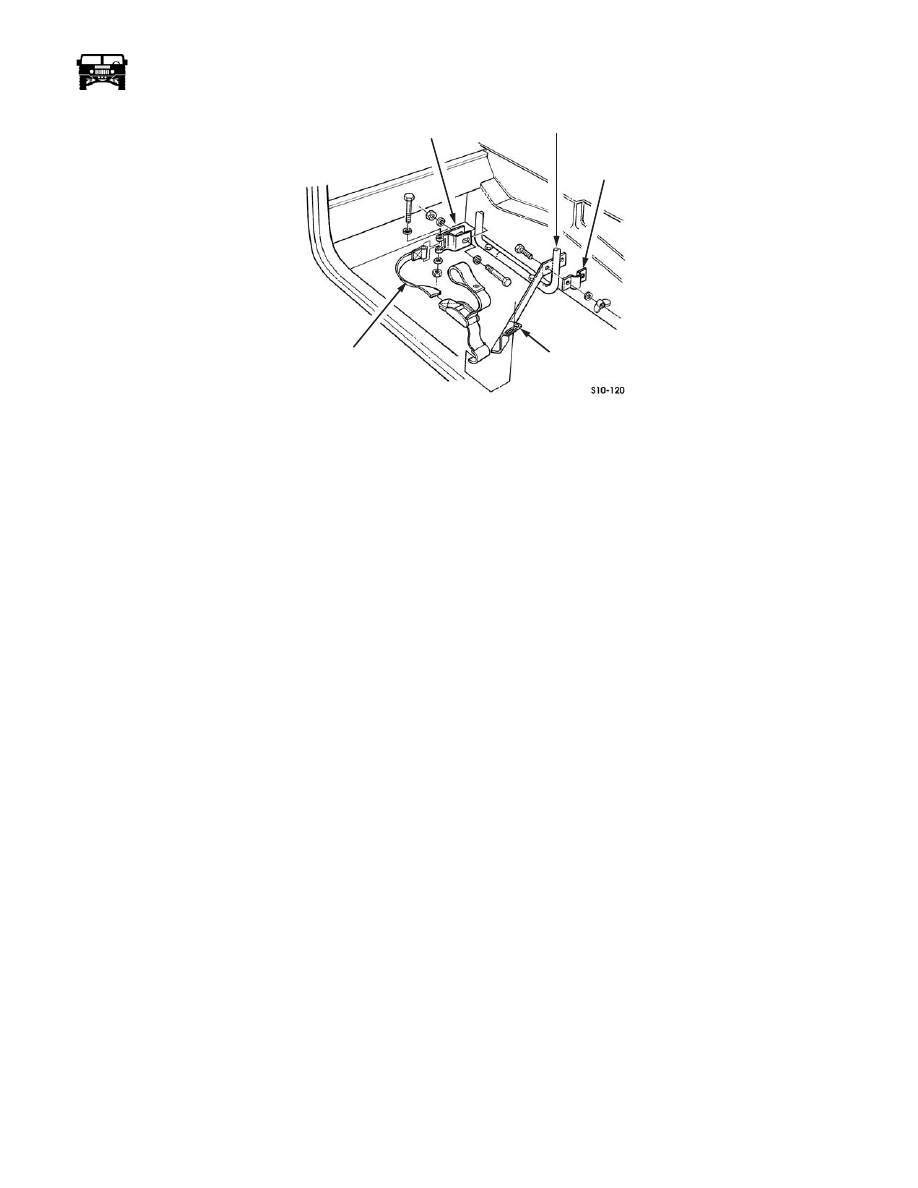

Figure 10-116:   Emergency Equipment Hold-Down Bracket Replacement

FOUR-PASSENGER SOFT TOP

Interior Trim Replacement

Removal

1.

Remove the center console.

2.

Remove the speakers from the rear wall (Refer to section 12).

3.

Remove the screws from the windshield frame center trim.

4.

Remove the four screw and washer assemblies and the trim from the side of the rear compartment wall (Figure  10-117).

5.

Remove the three screws and the lower B-pillar trim from the B-pillar (Figure  10-117).

6.

Disconnect the courtesy light electrical connector and remove the courtesy light lens, two rivets, washers and the courtesy
light from the trim.

7.

Remove the four screws, two panel fasteners, lower trim and the trim from rear compartment wall (Figure  10-117).

8.

Remove the screw and the washer assembly and the center trim from the rear compartment.

STRAP BRACKET

STRAP

SEAT SUPPORT

CLAMP

HOLD-DOWN

BRACKET

 BRACKET
