Hummer H1 (2006+). Manual - part 303

10-74 Body

______________________________________________________________________

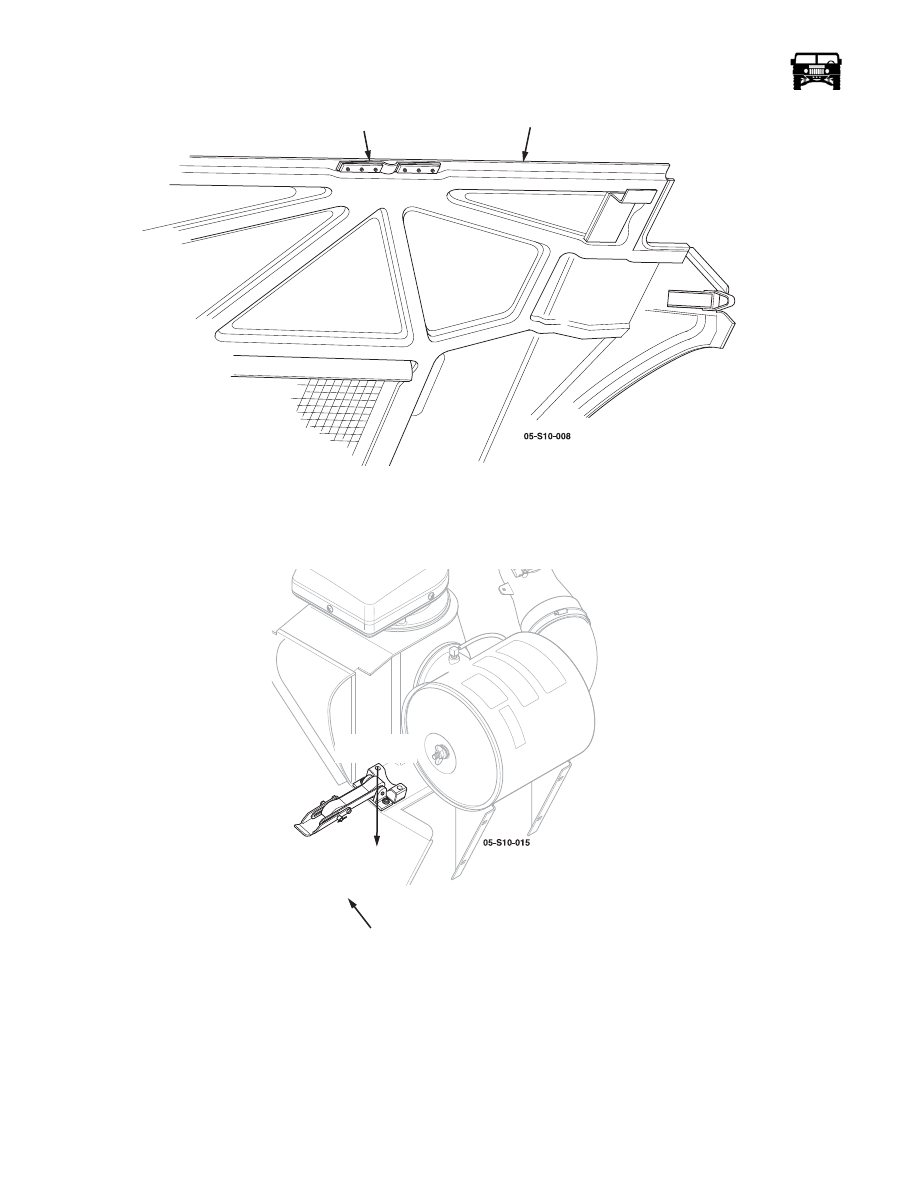

Figure 10-85:   Guide Bracket Assembly Location

8.

Lubricate all the hood stops, hinges and the guide brackets. Latch the hood.

9.

Test drive to ensure proper alignment (no squeaks).

10. Check the headlight aim and adjust it if necessary.

Figure 10-86:   Hood Latch and Stop Location

Side Hood Stop Replacement

Removal

Remove the two bolts, washers and the side hood stop from the body (Figure  10-86).

Installation

Apply a silicone sealer to the bottom and secure the side hood stop to the body with the two washers and bolts. Tighten the bolts to
6 lb-ft (8 N•m) (Figure  10-86).

HOOD

GUIDE BRACKET ASSEMBLY

HOOD LATCH

SIDE HOOD

STOP

_____________________________________________________________________

 Body  10-75

Grille and Screen Replacement

Removal

1.

Remove the six locknuts, washers, bolts, washers and the grille from the hood (Figure  10-87).

2.

Remove the six locknuts, washers, screws, washers and the screen from grille.

Installation

1.

Secure the screen to the grille with the six washers, screws, washers and the locknuts. Tighten the locknuts to 6 lb-ft (8 N•m)
(Figure  10-87).

2.

Secure the grille to the hood with the six washers, screws, washers and the locknuts. Tighten the locknuts to 7 lb-ft (9 N•m).

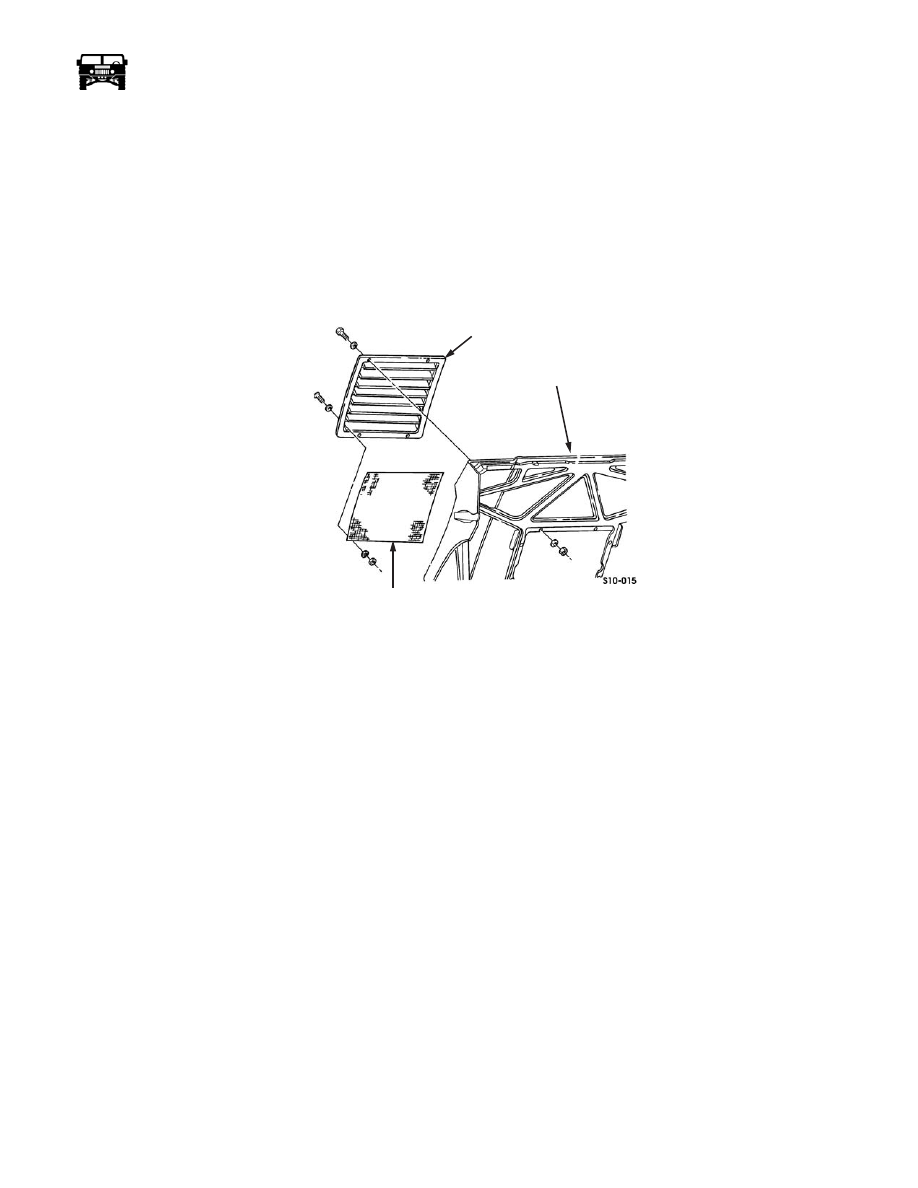

Figure 10-87:   Grille and Screen Replacement

Center Hood Stop Replacement

Removal

Remove the two bolts, washers, center hood stop and the plate from the A-beam (Figure  10-88).

Installation

Secure the center hood stop and the plate to the A-beam with the two washers and the bolts. Tighten the bolts to 12 lb-ft (16 N•m)
(Figure  10-88).

GRILLE

HOOD

SCREEN

10-76 Body

______________________________________________________________________

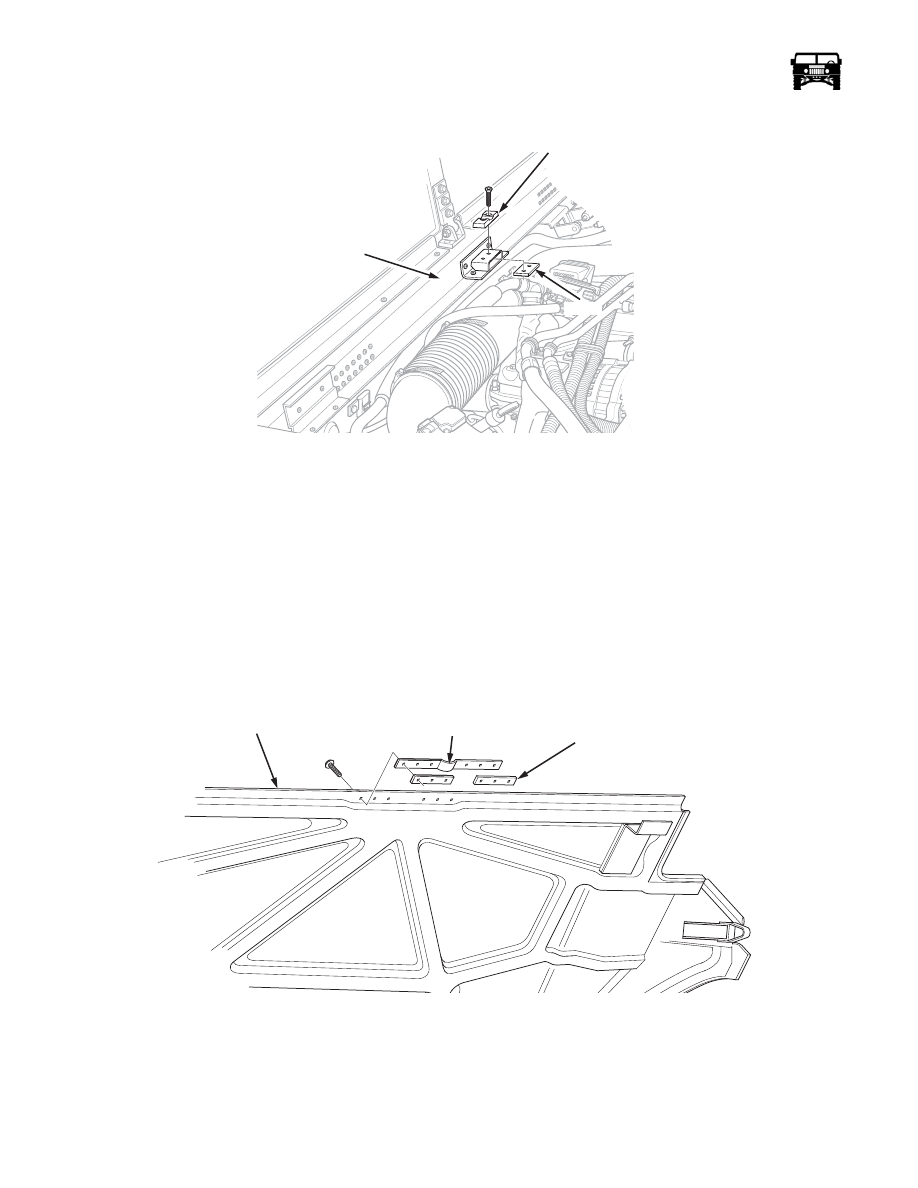

Figure 10-88:   Center Hood Stop Replacement

Guide Bracket Assembly Replacement

Removal

Remove the six locknuts, twelve washers, guide bracket assembly, two guide plates and the six bolts from the hood (Figure
 10-89).

Installation

1.

Loosely attach the guide plate and the guide bracket assembly to the hood with the six bolts, twelve washers and the six lock-
nuts. Tighten the locknuts to 10 lb-ft (14 N•m) (Figure  10-89).

2.

Lower the hood and align the guide bracket assembly with the center hood stop on the A-beam (Figure  10-88).

3.

Mark the guide bracket assembly position, raise the hood and tighten the locknuts to 10 lb-ft (14 N•m) (Figure  10-89).

Figure 10-89:   Bracket Assembly Replacement

Front Hood Screen Replacement

Removal

1.

Remove the three locknuts, washers and the carriage bolts securing the front hood screen to the hood (Figure  10-90).

2.

Remove the three bolts, harness clamps, washers and the front hood screen from the hood.

A-BEAM

CENTER

HOOD

STOP

PLATE

GUIDE PLATE

HOOD

GUIDE

ASSEMBLY

 BRACKET

_____________________________________________________________________

 Body  10-77

Installation

1.

Secure the front hood screen to the hood with the three washers, harness clamps and the bolts. Tighten the bolts to 20-30 lb in.
(2-3 N•m) (Figure  10-90).

2.

Secure the front hood screen to the hood with the three carriage bolts, washers and the locknuts. Tighten the locknuts to 21 lb-
ft (29 N•m).

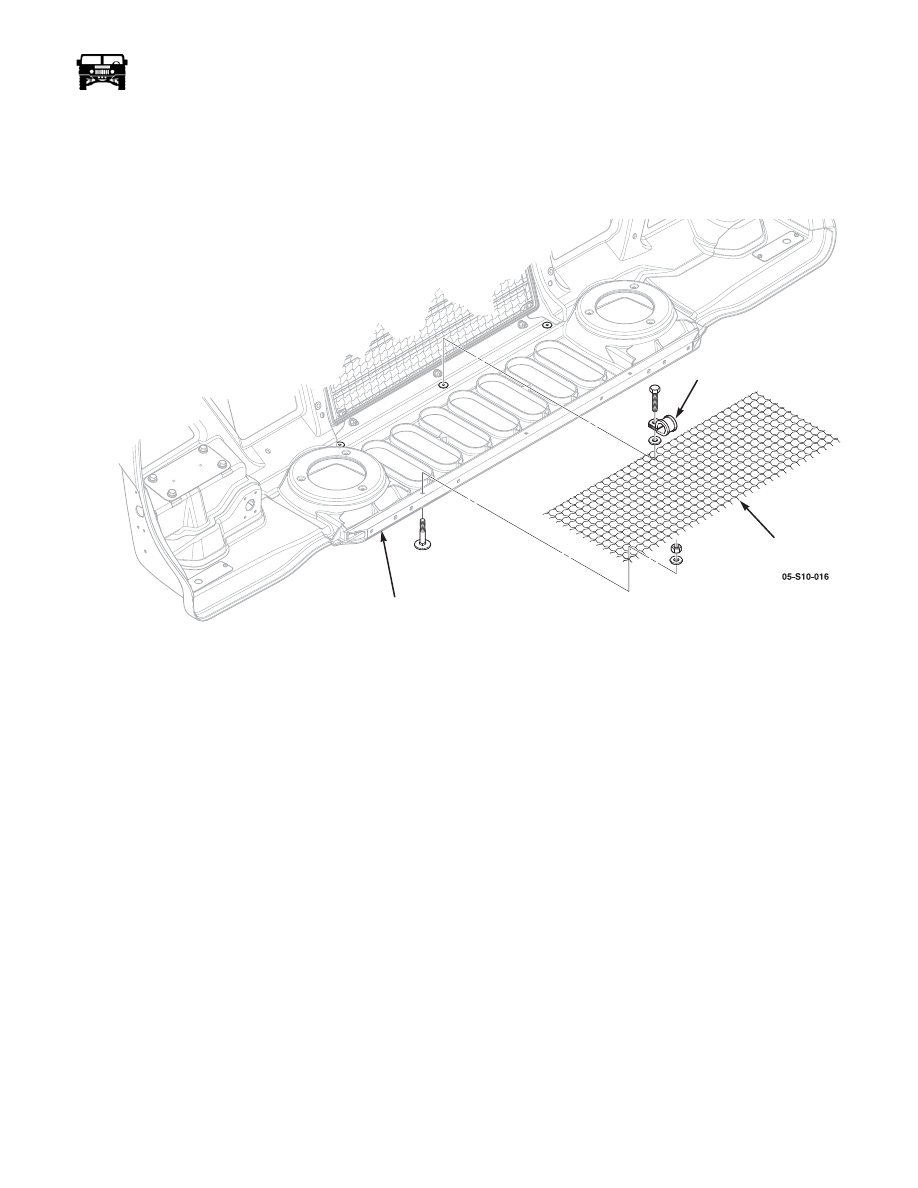

Figure 10-90:   Front Hood Screen Replacement

HOOD

HARNESS

CLAMP

FRONT HOOD SCREEN
