full turn on the adjusting screw as a start point and squeeze the seal in the areas that measured loose with the paper check.
Recheck the interface with the paper (Figure  10-73) and continue to squeeze, if necessary, until the desired interface is
obtained.

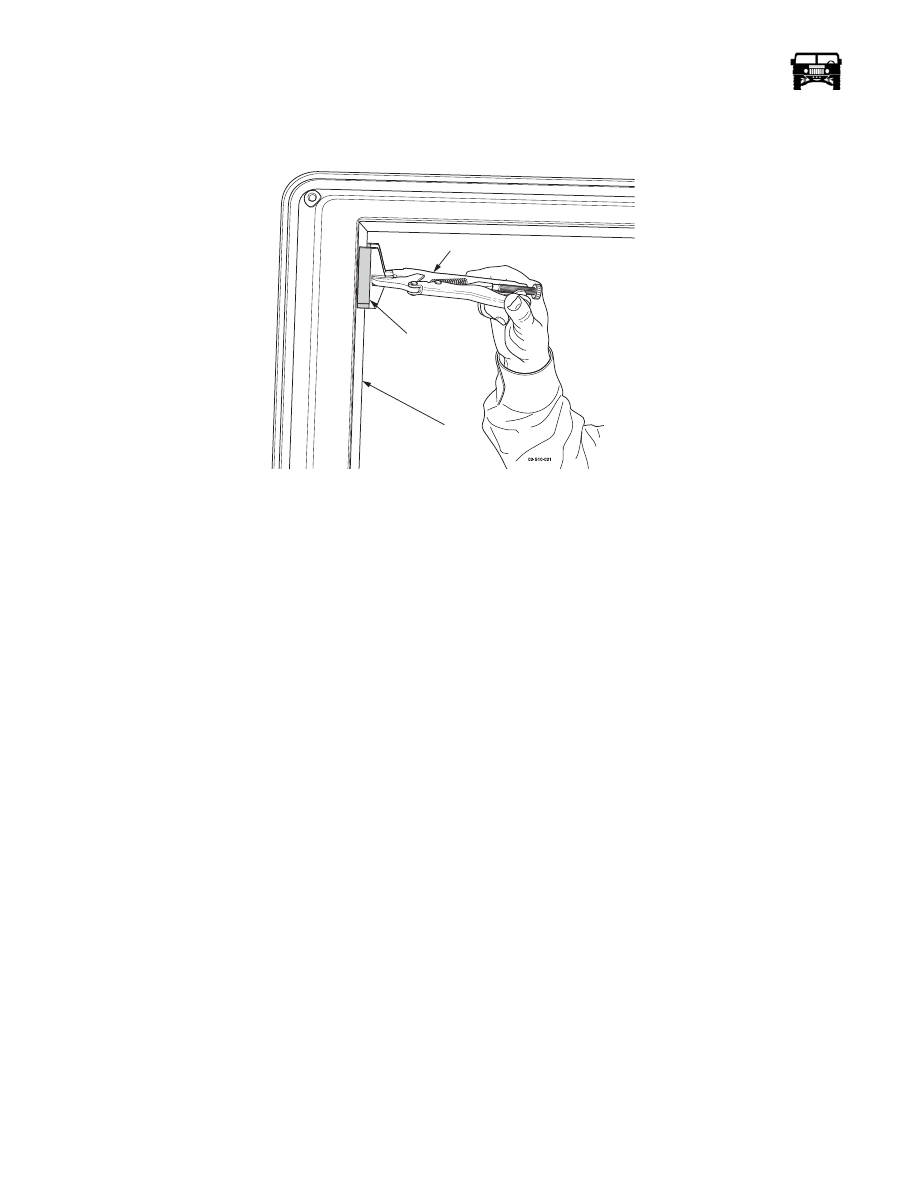

Figure 10-74:   Adjusting Fixed Seal Channels

8.

Install the armrest mount plate, the vapor barrier, the door trim panel, the door strap and the armrest.

Door Glass “Wind Noise” Diagnosis and Repair/Side Window Alignment

Wind noise or whistle generating from the side windows at highway speeds is the result of inadequate sealing of the glass at the up-
per seal. The glass must be properly aligned in the window opening, adjust door glass as follows:.

1.

Loosen, but do not remove, the lift channel bracket mounting bolts.

2.

Place a block of wood (or equivalent symmetrical object) across the upper seal of the window opening.

3.

Roll the window up so that the glass contacts the block of wood and squares itself on the window opening.

4.

Tighten the lift channel bracket mounting bolts.

5.

Verify proper window operation

HOOD, HOOD LATCH AND PROP ROD

Hood Latch and Bracket Replacement

Removal

NOTE: If only the rubber latch is to be replaced, the spring pin does not have to be completely out of the base.

1.

Remove the spring pin, limiter straps and the rubber isolator from the base (Figure  10-75).

2.

Remove the two bolts and the base from the body.

3.

Remove the four bolts, latch bracket, latch plate, hood latch stop bracket and the bolt tapping plate from the hood. (Figure
 10-75).

Disassembly

Remove the cotter pin, latch pin, spring pin, two rollers, two limiter straps and the hood latch from the rubber isolator (Figure
 10-75).

Assembly

Secure the hood latch and the limiter straps to the rubber isolator with the two rollers, latch pin and the cotter pin (Figure  10-75).

WIDE JAW PLIERS

MASKING

TAPE

WINDOW

SEAL

_____________________________________________________________________

 Body  10-67

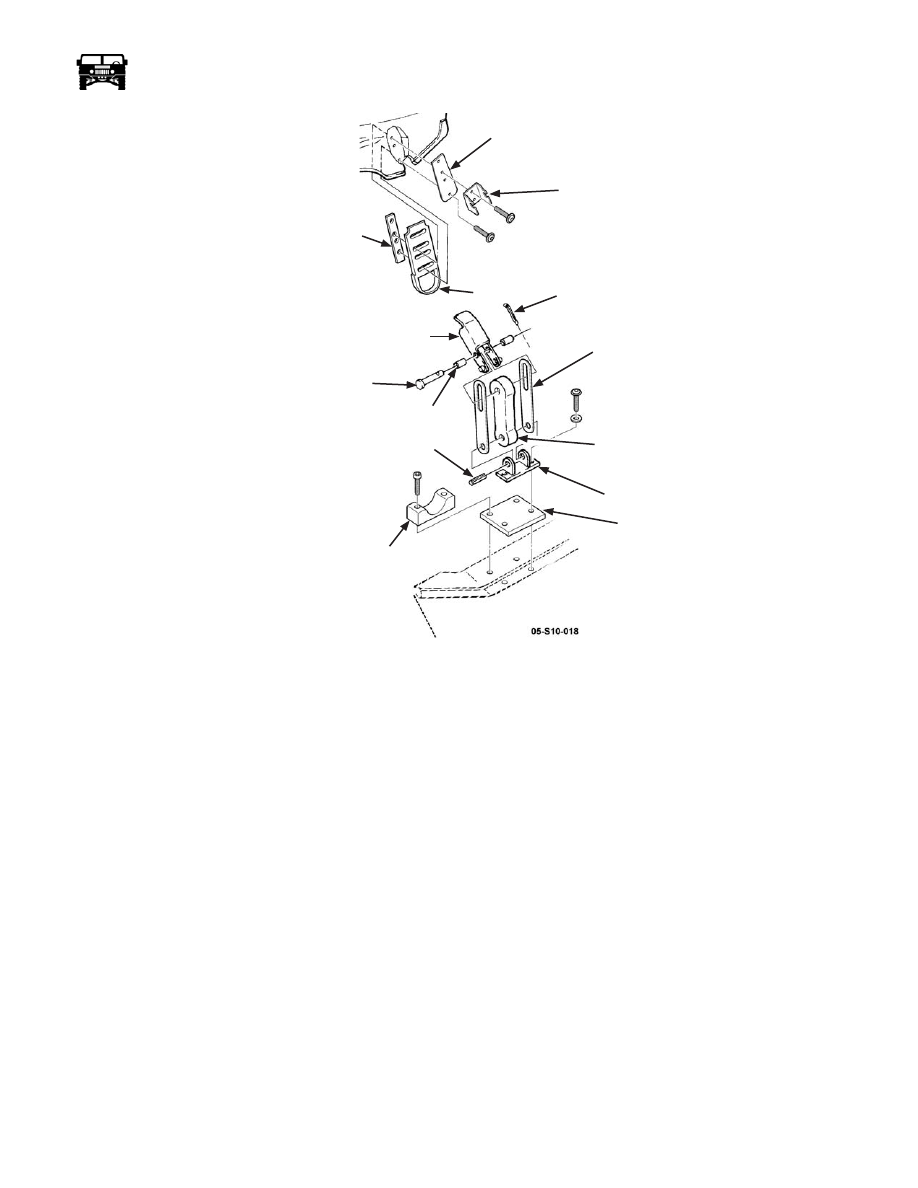

Figure 10-75:   Hood Latch Replacement

Installation

1.

Secure the latch bracket, latch plate and the hood latch stop bracket to the hood with the four bolts and the bolt tapping plate.
Tighten the bolts to 10 lb-ft (14 N•m) (Figure  10-75).

NOTE: If base plate or stop plate on passenger side or spacer on drivers side were removed a sealer must be applied to prevent wa-
ter intrusion into the cabin compartment.

2.

Apply a sealing compound to the bottom of the base before securing the base to the body with the two bolts. Tighten the bolts
to 6 lb-ft (8 N•m) (Figure  10-75).

3.

Secure the rubber isolator and limiter straps to the base with the spring pin.

HOOD RELEASE CABLE ASSEMBLY REPLACEMENT

Removal

1.

Raise and secure the hood.

2.

Remove the cable handle, two nuts, lockwasher, nut and the cable assembly from the cable mounting bracket.

3.

Remove the cable assembly from the cable clamp bracket (Figure  10-77).

4.

Remove the cable assembly and the grommet from the body.

5.

Remove the lock pin from the cable assembly.

Installation

1.

Install the lock pin on the cable assembly (Figure  10-77).

2.

Secure the cable assembly to the cable clamp bracket.

BASE

ROLLER

SPACER

STOP

LIMITER

STRAP

COTTER

PIN

LATCH

BRACKET

LATCH

PLATE

TAPPING

PLATE

RUBBER

ISOLATOR

STOP

LATCH

SPRING

PIN

LATCH

PIN

10-68 Body

______________________________________________________________________

3.

Secure the cable assembly to the cable mounting bracket with the nut, lockwasher, two nuts and the cable handle (Figure
 10-76).

4.

Install the grommet and the cable assembly on the body and apply sealer around the cable and the grommet.

5.

Lower the hood.

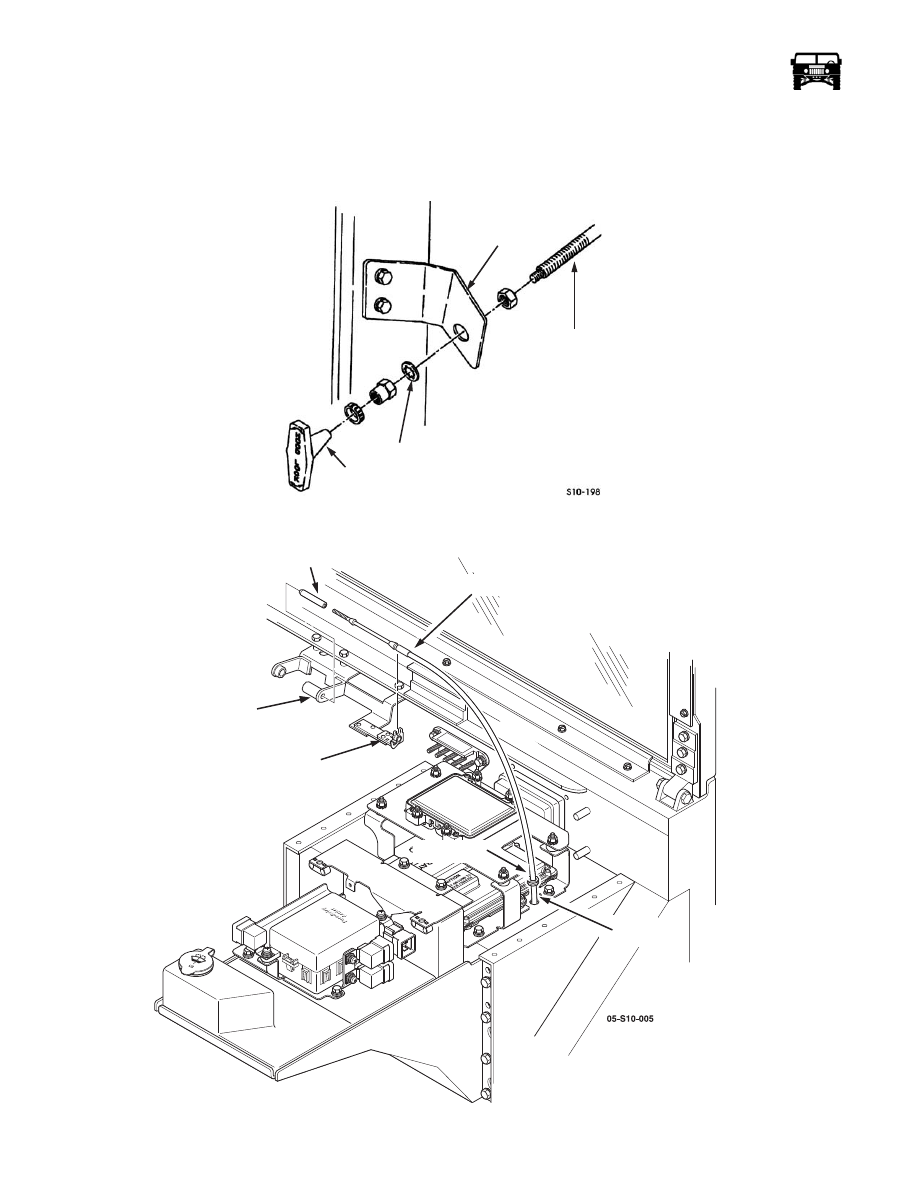

Figure 10-76:   Hood Release Handle Assembly Mounting

Figure 10-77:   Hood Release Cable Assembly

HANDLE

BRACKET

 MOUNTING

CABLE

CABLE

ASSEMBLY

WASHER

LOCK

CABLE ASSEMBLY

GROMMET

PIN

CABLE CLAMP

BRACKET

APPLY

SEALER

BRACKET

_____________________________________________________________________

 Body  10-69

Hood Release Latch and Bracket Assembly Replacement

Removal

1.

Raise and secure the hood.

2.

Remove the two bolts, lockwashers and the latch assembly from the hood (Figure  10-78).

3.

Remove the pin, spring and the lock arm from the latch assembly (Figure  10-79).

4.

Remove the cable assembly from the cable clamp bracket (Figure  10-77).

5.

Remove the three nuts, lockwashers, bolts and the bracket assembly from the body.

6.

Remove the two nuts and the lockwasher assemblies, screws and the cable clamp bracket from the bracket assembly.

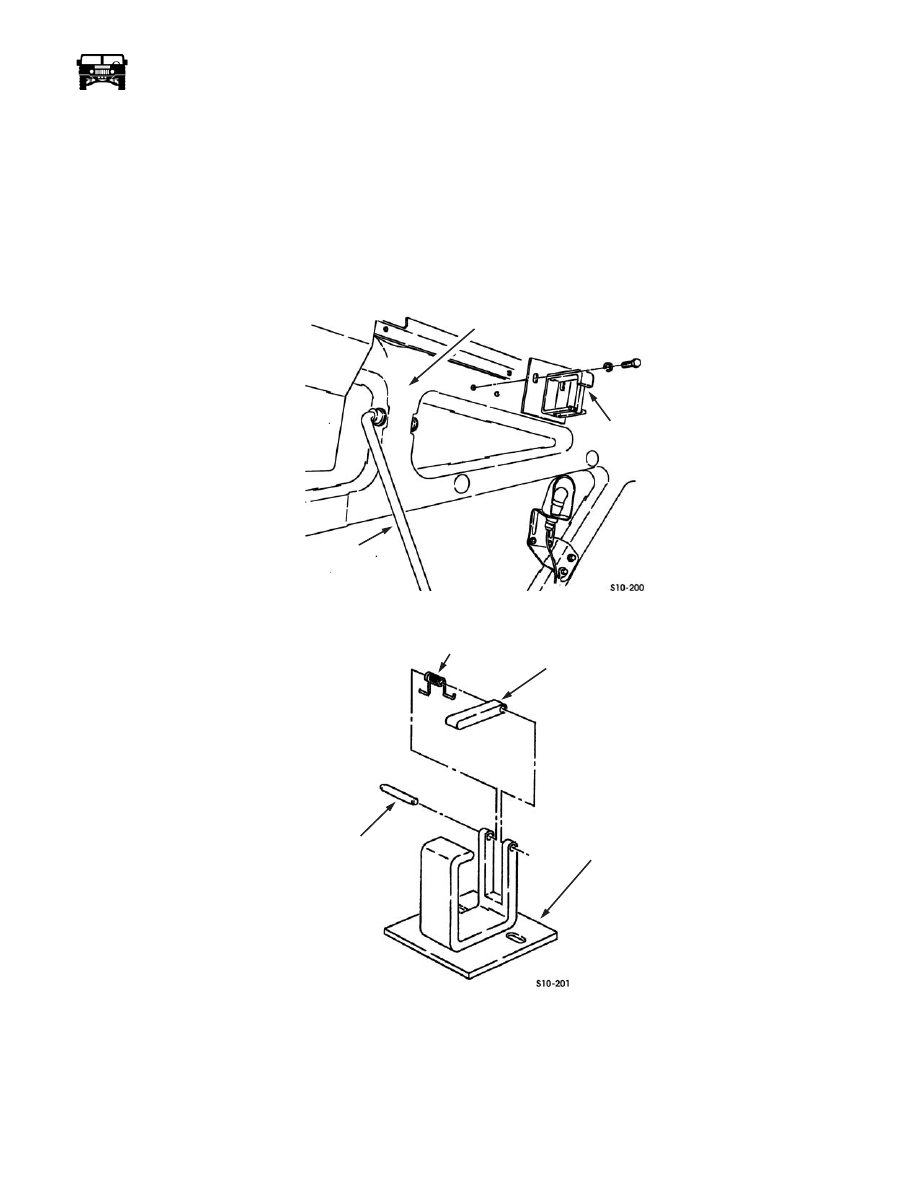

Figure 10-78:   Hood Release Latch and Bracket Assembly Mounting

Figure 10-79:   Latch Assembly Breakdown

Installation

1.

Secure the cable clamp bracket to the bracket assembly with the two screws, nut and the lockwasher assemblies.

2.

Secure the bracket assembly to the body with the three bolts, lockwashers and the nuts.

3.

Secure the cable assembly to the cable clamp bracket. Seal the grommet with a silicone sealer (Figure  10-77).

HOOD

LATCH

PROP ROD

 ASSEMBLY

SPRING

LOCK ARM

LATCH

PIN

 ASSEMBLY
