Hummer H1 (2006+). Manual - part 304

10-78 Body

______________________________________________________________________

Right Hood Retainer Bracket Replacement

Removal

Remove the four bolts, lockwashers, washers, right hood retainer bracket and the spacer from the hood (Figure  10-91).

Installation

Secure the right hood retainer bracket and the spacer to the hood with the four washers, lockwashers and the bolts (Figure  10-91).

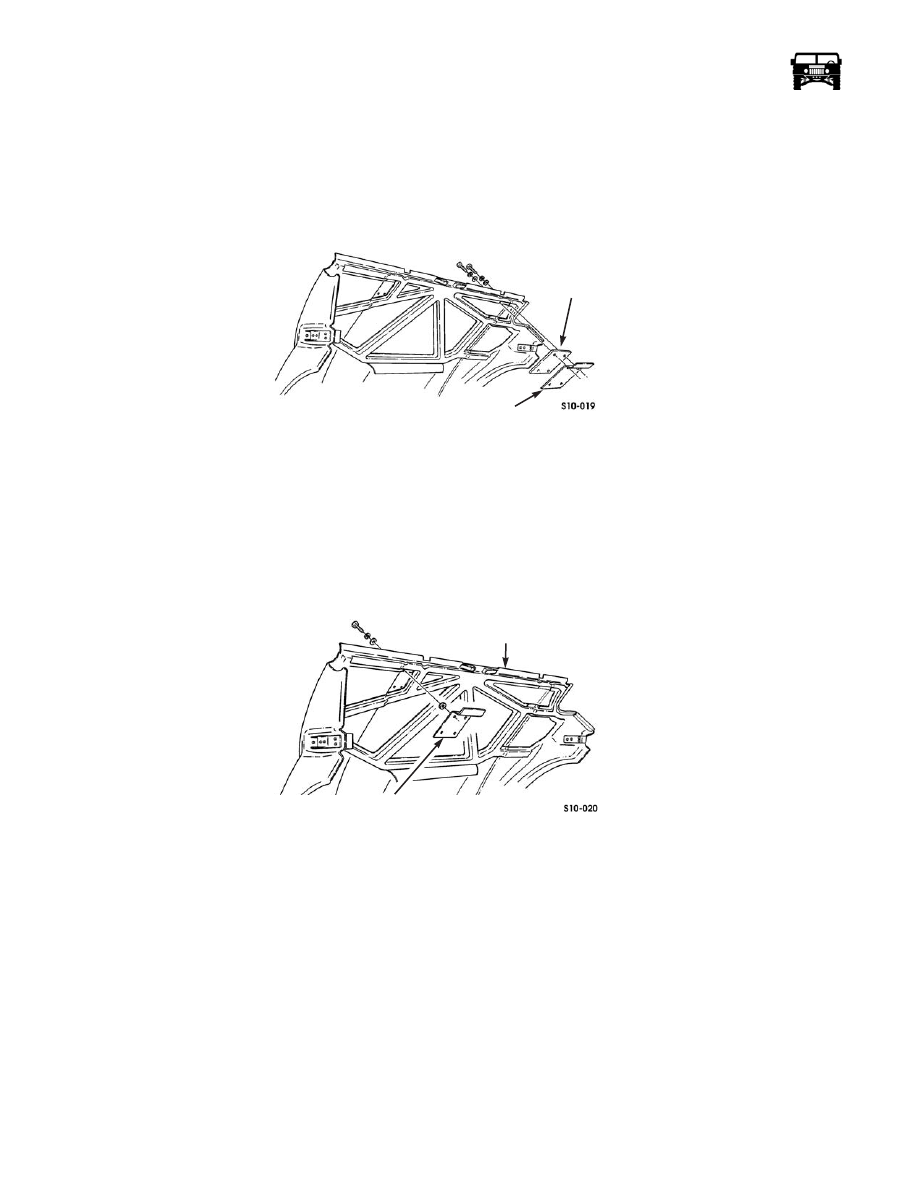

Figure 10-91:   Right Hood Retainer Bracket Replacement

Left Hood Retainer Bracket Replacement

Removal

Remove the four bolts, lockwashers, washers, left hood retainer bracket and the four washers from the hood (Figure  10-92).

Installation

Install the left hood retainer bracket on the hood with the eight washers, four lockwashers and the bolts (Figure  10-92).

Figure 10-92:   Left Hood Retainer Bracket

ENGINE SPLASH SHIELD REPLACEMENT

Removal

WARNING:  To avoid injury or damage to equipment, raise and support hood during removal and installation.

NOTE: This section covers the left engine splash shield, the right splash shield is part of the battery box and is detailed in section
twelve.

1.

Disconnect the fluid level sensor connector on the brake master cylinder.

2.

Remove the hood prop rod and the bracket (Refer to section 10).

3.

Remove the three locknuts, washers, bolts and the washer securing the splash shield to the support brackets and remove splash
shield.

SPACER

RIGHT HOOD

RETAINER BRACKET

HOOD

LEFT HOOD RETAINER BRACKET

_____________________________________________________________________

 Body  10-79

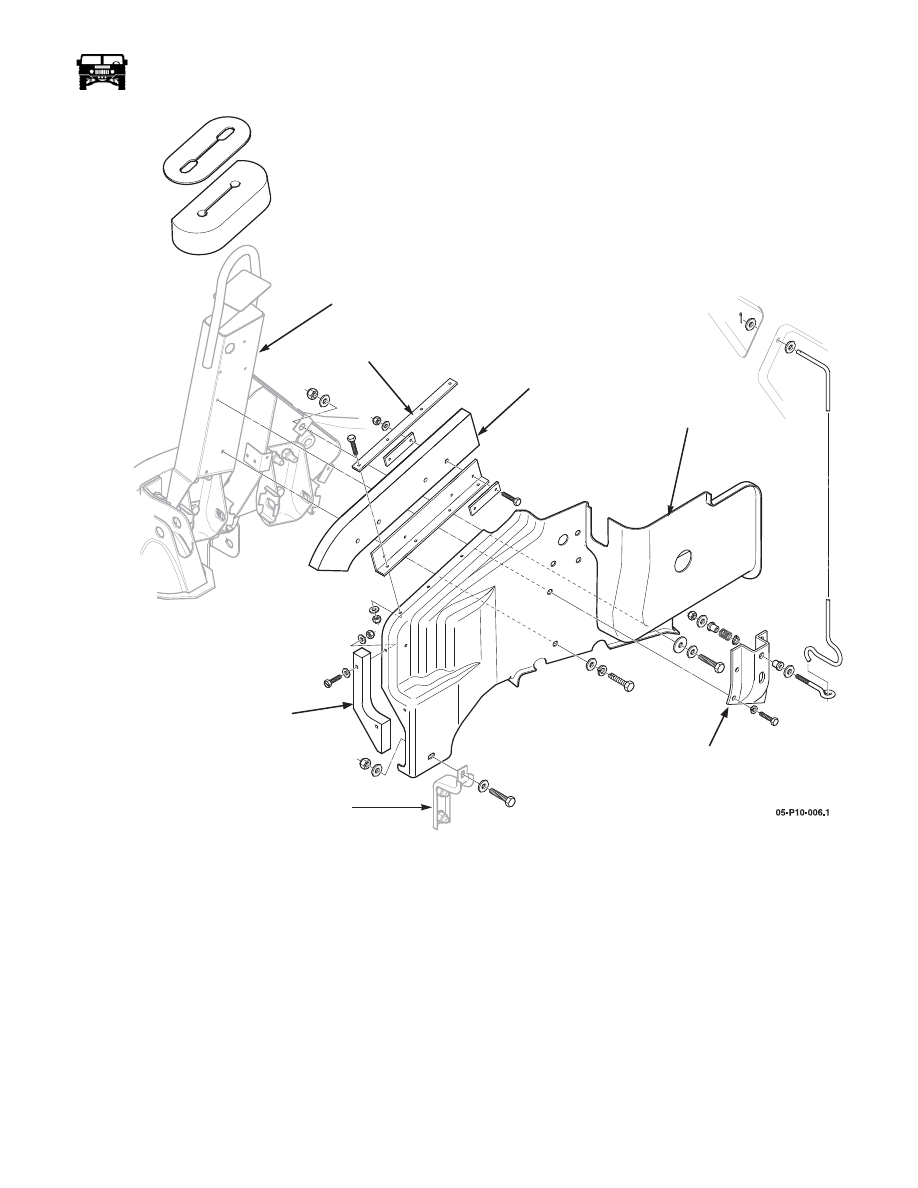

Figure 10-93:   Engine (Left) Splash Shield Assembly Replacement

Disassembly

1.

Remove the four locknuts, washers, bolts, upper seal and the retainer from the splash shield (Figure  10-93).

2.

Remove the two locknuts, washers, bolts and the lower seal from the splash shield (Figure  10-93).

Assembly

1.

Secure the upper seal and the retainer to the splash shield with the four locknuts, washers and the bolts.

2.

Secure the lower seal to the splash shield with the two locknuts, washers and the bolts.

Installation

1.

Secure the splash shield to the support bracket with the three locknuts, washers, bolts and the washer (Figure  10-93). Tighten
the bolts to 10 lb-ft (14 N•m).

2.

Install the hood prop rod and the bracket.

3.

Connect the fluid level sensor connector to the brake master cylinder.

RETAINER

SUPPORT

SPLASH SHIELD

AIRLIFT

BRACKET

BRACKET

UPPER

SEAL

LOWER

SEAL

HOOD PROP

ROD BRACKET

10-80 Body

______________________________________________________________________

WINDSHIELD ASSEMBLY

Windshield Glass and Weatherstrip Replacement

Removal

1.

Remove the windshield wiper arm and the blade.

2.

Remove the six bolts and the upper retainer from the windshield frame (Figure  10-94).

3.

Remove the four bolts and the center retainer from the windshield frame.

4.

Remove the four bolts and the lower retainer.

5.

Remove the weatherstrip and the glass from the windshield frame.

6.

Clean the sealing compound from the windshield frame.

Installation

1.

Apply a 1/8 in. (3 mm) bead of sealing compound to the edge of the glass and the windshield frame (Figure  10-94).

2.

Position the weatherstrip on the glass.

3.

Position the glass and the weatherstrip to the windshield frame with the center retainer and the four bolts.

4.

Secure the upper retainer to the windshield frame with the six bolts.

5.

Secure the lower retainer to the windshield frame with the four bolts

6.

Apply a thin bead of sealing compound to the top edge of the outside weatherstrip.

7.

Install the windshield wiper arm and the blade.

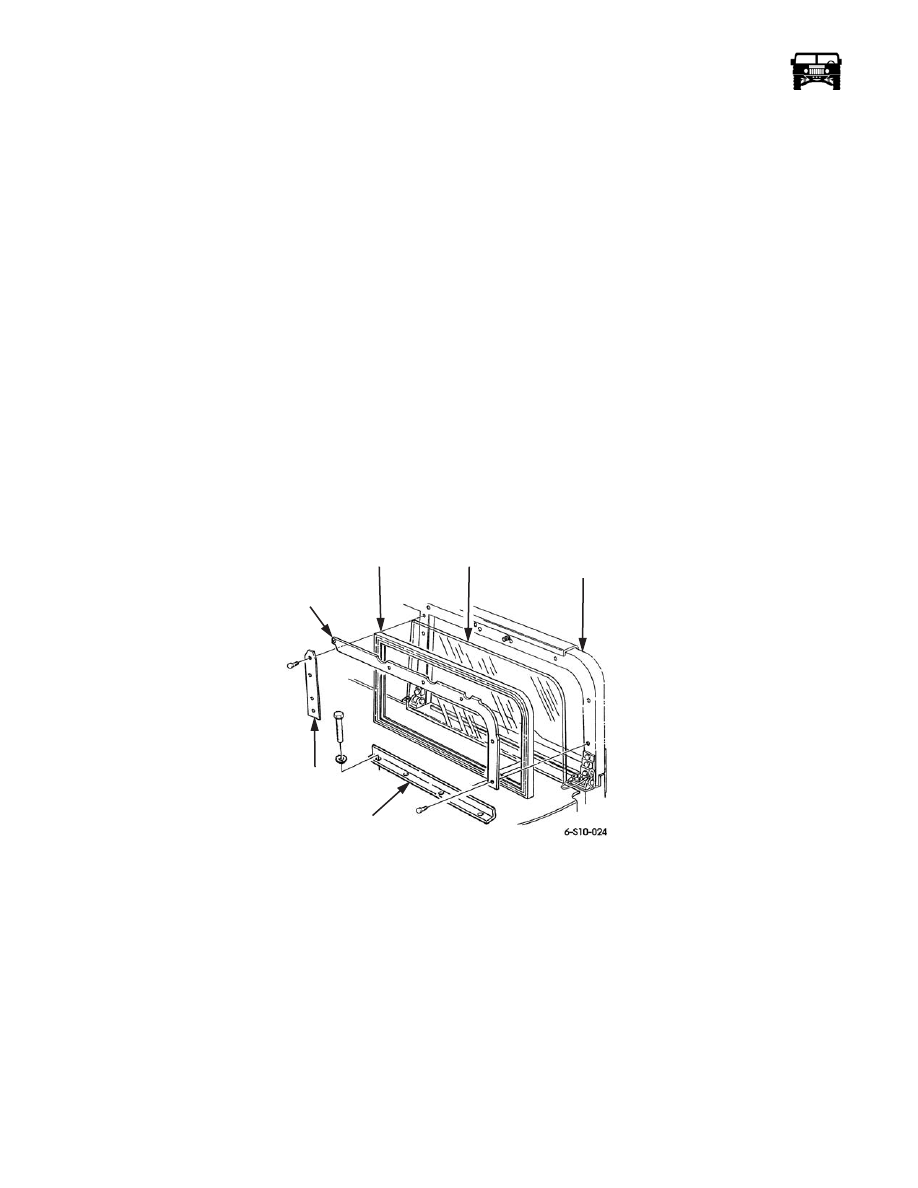

Figure 10-94:   Windshield Glass Replacement

Windshield Assembly Replacement

WARNING:  To avoid injury or damage to equipment, support windshield during removal and installation.

Removal

1.

Remove the soft top or loosen the roof assembly, as applicable.

2.

Remove the windshield wiper blade and the arm.

3.

Remove the windshield wiper linkage.

4.

Remove the windshield wiper arm pivots.

5.

Remove the two locknuts and the bolts securing the windshield assembly to the A-pillar (Figure  10-95).

CENTER

UPPER

WEATHERSTRIP

GLASS

WINDSHIELD

FRAME

RETAINER

RETAINER

LOWER RETAINER

_____________________________________________________________________

 Body  10-81

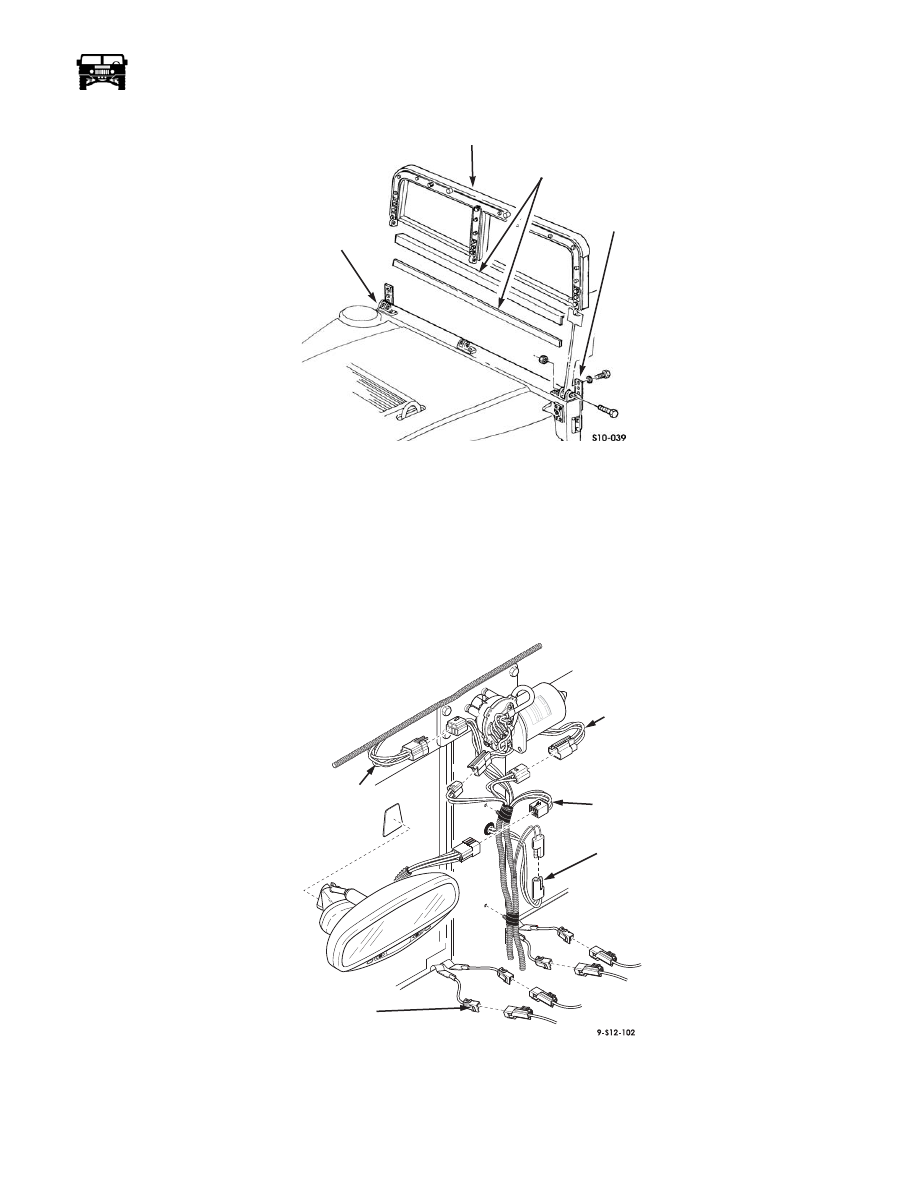

Figure 10-95:   Windshield Assembly Mounting

6.

Disconnect the roof harness, wiper motor, heated windshield, clearance light and the compass mirror connections at the center
pillar and pull the harness loose from the windshield center pillar (Figure  10-96).

7.

Remove the six bolts and the washers securing the windshield assembly to the two brackets (Figure  10-95).

8.

Remove the windshield assembly from the A-pillar.

9.

Remove the two seals from the windshield assembly.

10. Clean the remains of the seals from the windshield.

Figure 10-96:   Wiring Harness Lead Location

A-PILLAR

WINDSHIELD

SEALS

BRACKET

ASSEMBLY

ROOF

HARNESS

CLEARANCE

LIGHT

HEATED

WINDSHIELD

COMPASS

MIRROR

WIPER

MOTOR
