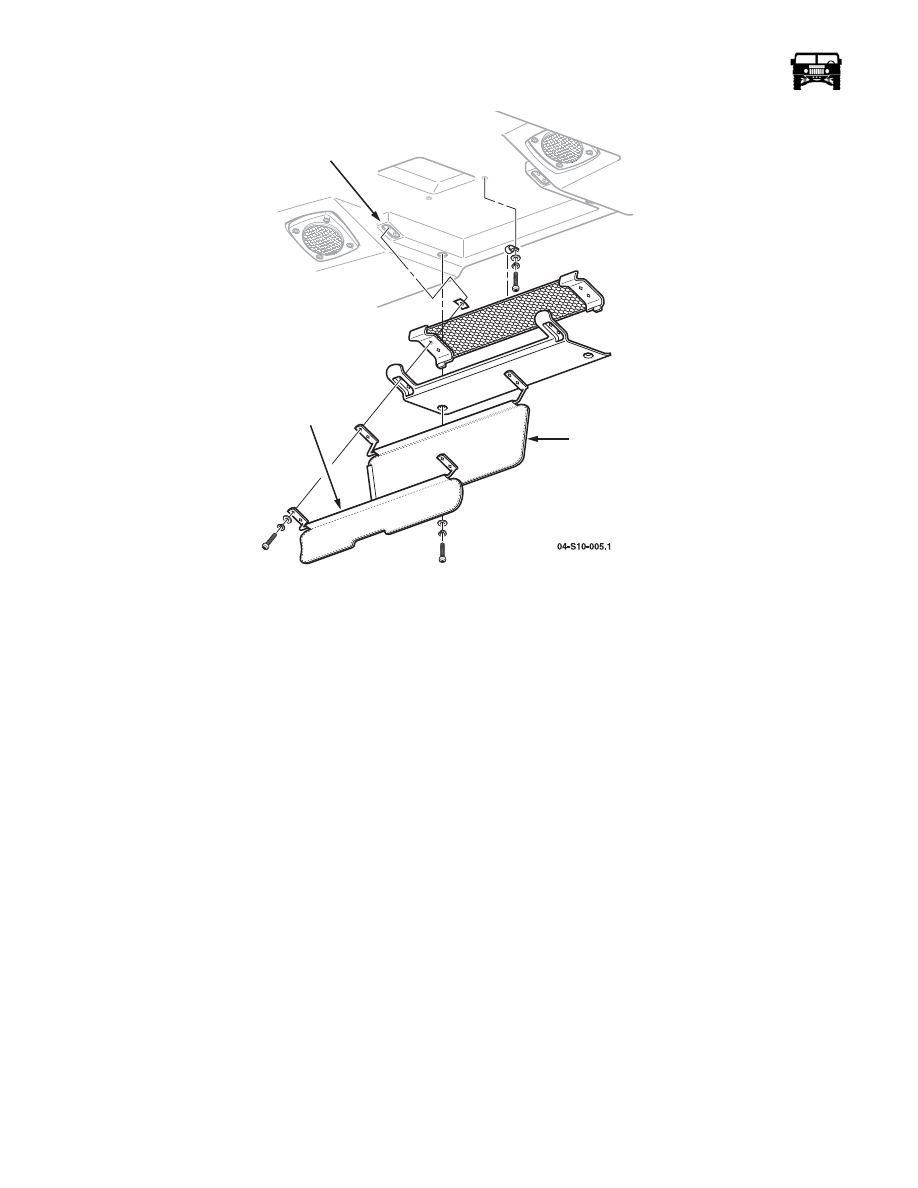

Figure 10-45:   Visor Mounting

POWER MIRRORS

Power Mirror Assembly Replacement

Removal

1.

Remove the three screws securing the power mirror assembly and the gasket to the mounting plate (Figure  10-46).

2.

Disconnect the power mirror assembly connector from the door jumper harness.

3.

Inspect the gasket and replace if damaged.

Installation

NOTE: Ensure the door jumper harness is routed through the gasket before connecting to the power mirror assembly.

1.

Connect the power mirror assembly connector to the door jumper harness (Figure  10-46).

NOTE: The wires from the power mirror assembly must be coiled in the mirror housing to ensure clearance of the attachments.

2.

Install the gasket and the power mirror assembly on the mounting plate with the three screws.

VISOR

BODY

STORAGE

COMPARTMENT

DOOR

_____________________________________________________________________

 Body  10-43

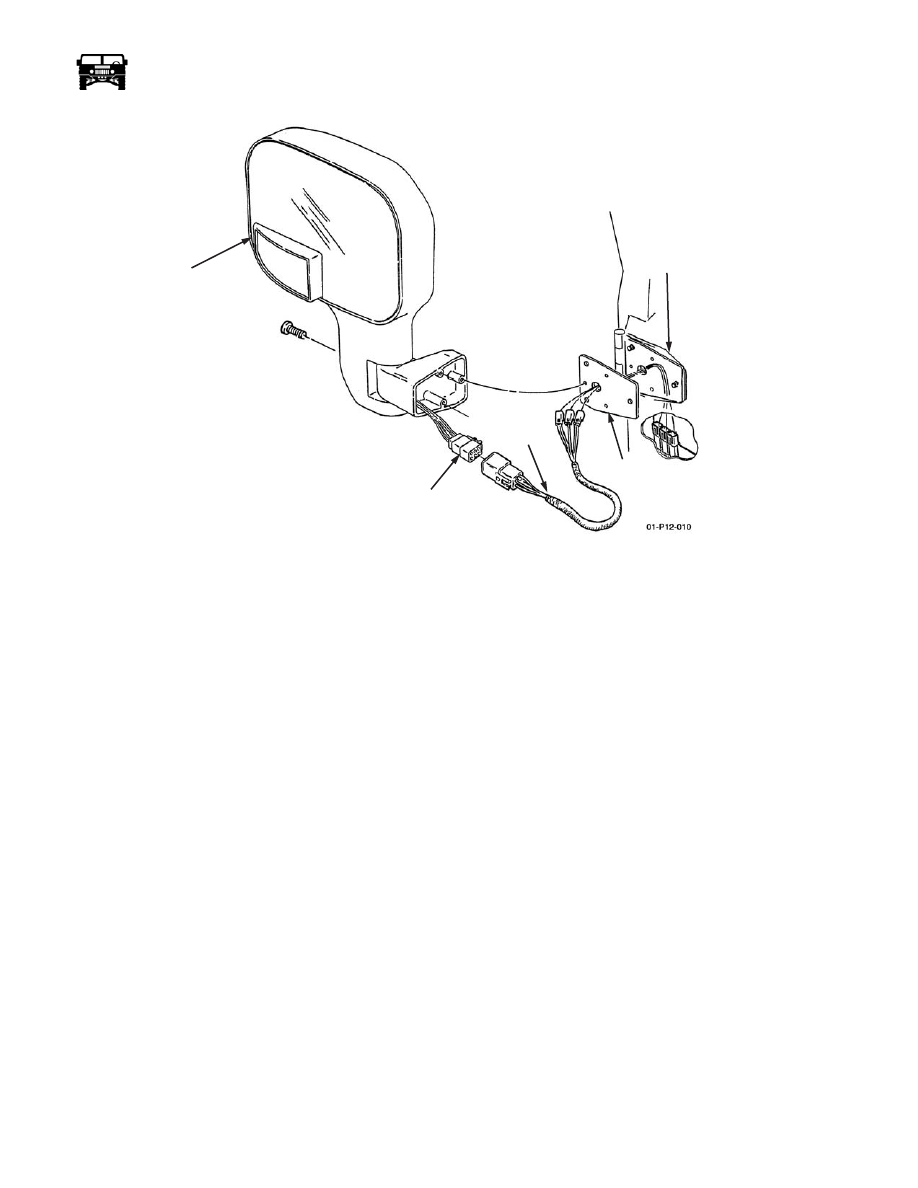

Figure 10-46:   Power Mirror Assembly

Rearview Mirror Replacement

Removal

1.

Remove the screw and the rear view mirror from the mirror bracket.

NOTE: Perform step 2 only if the bracket requires replacement. Mark the location of the bracket prior to removal.

2.

Remove the bracket from the windshield.

Cleaning and Inspection

Clean the epoxy remains from the windshield.

Installation

NOTE: Perform step 1 only if bracket was removed.

1.

Secure the mirror bracket to the windshield with quick-drying epoxy. Allow to dry.

2.

Secure the rear view mirror to the mirror bracket the with screw.

DOOR REPLACEMENT

Door replacement varies in complexity depending on the type and number of components that must be removed from the old door
and installed on the new door. Removal and installation of these components are detailed in the previous pages of this section. Any
reference to wiring harness removal and installation is covered in Section 12.

NOTE: Door replacement is basically the same for all doors.

Removal

CAUTION: To avoid damage, support door during removal.

1.

Remove the side view mirror (front doors only).

POWER MIRROR

DOOR

JUMPER

HARNESS

CONNECTOR

MOUNTING

PLATE

GASKET

ASSEMBLY

10-44 Body

______________________________________________________________________

2.

Remove the door harness from the pillar (Refer to section 12).

3.

Remove the door stop strap assembly.

4.

Remove the twelve-point bolts and washers securing the upper door hinge to the pillar (Figure  10-47).

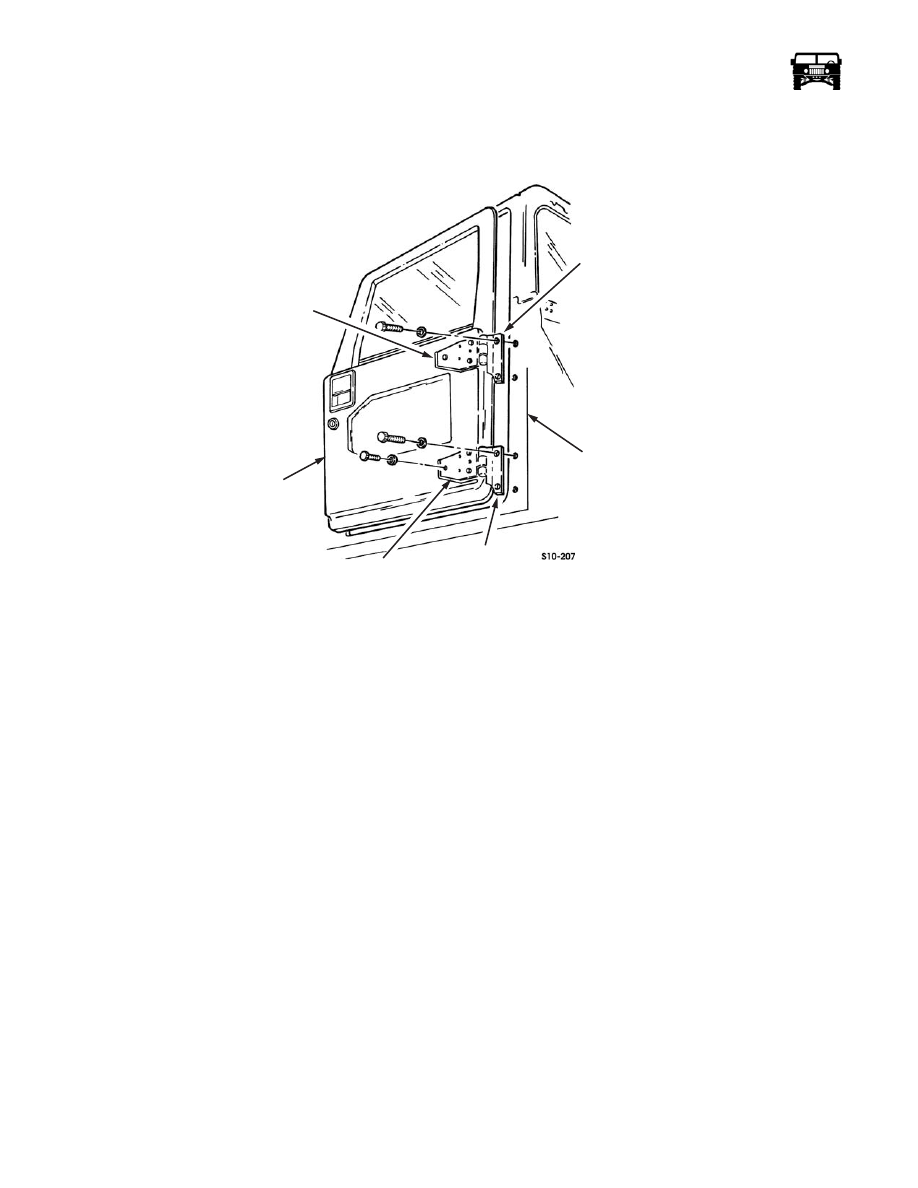

Figure 10-47:   Door Mounting

5.

Close the door.

6.

Remove the twelve-point bolts and washers securing the lower door hinge to the pillar and remove the door.

Disassembly

1.

Remove the twelve-point bolts, washers and the upper and lower hinge plates from the door (Figure  10-47).

2.

Remove the power windows and/or the door locks switches from the door (Refer to section 10).

3.

Remove the screws and door pull handle or armrest from door trim panel.

4.

Remove the screws securing the inside door handle to the door trim panel. Pull the handle away from the trim panel and
disconnect the inside operating rod from the handle.

5.

Remove the screw/washer assemblies and the door trim panel from the door.

6.

Remove the vapor barrier and the moisture barrier flap from the door (Figure  10-48).

7.

Disconnect the inside operating rod from the door latch assembly and remove the rod (Figure  10-49).

8.

Remove the lock cylinder clip from the lock cylinder.

9.

Push the lock cylinder through the outside of the door. Remove the clip securing the lever and the lock operating rod to the
cylinder and remove the cylinder from the door (Figure  10-51).

10. Remove the nuts and the lock washers securing the gasket and the outside door handle to the door. Disconnect the outside

operating rod from the handle and remove the handle.

UPPER

HINGE

PLATE

DOOR

LOWER

HINGE

PLATE

LOWER

DOOR

HINGE

PILLAR

UPPER

HINGE

 DOOR

_____________________________________________________________________

 Body  10-45

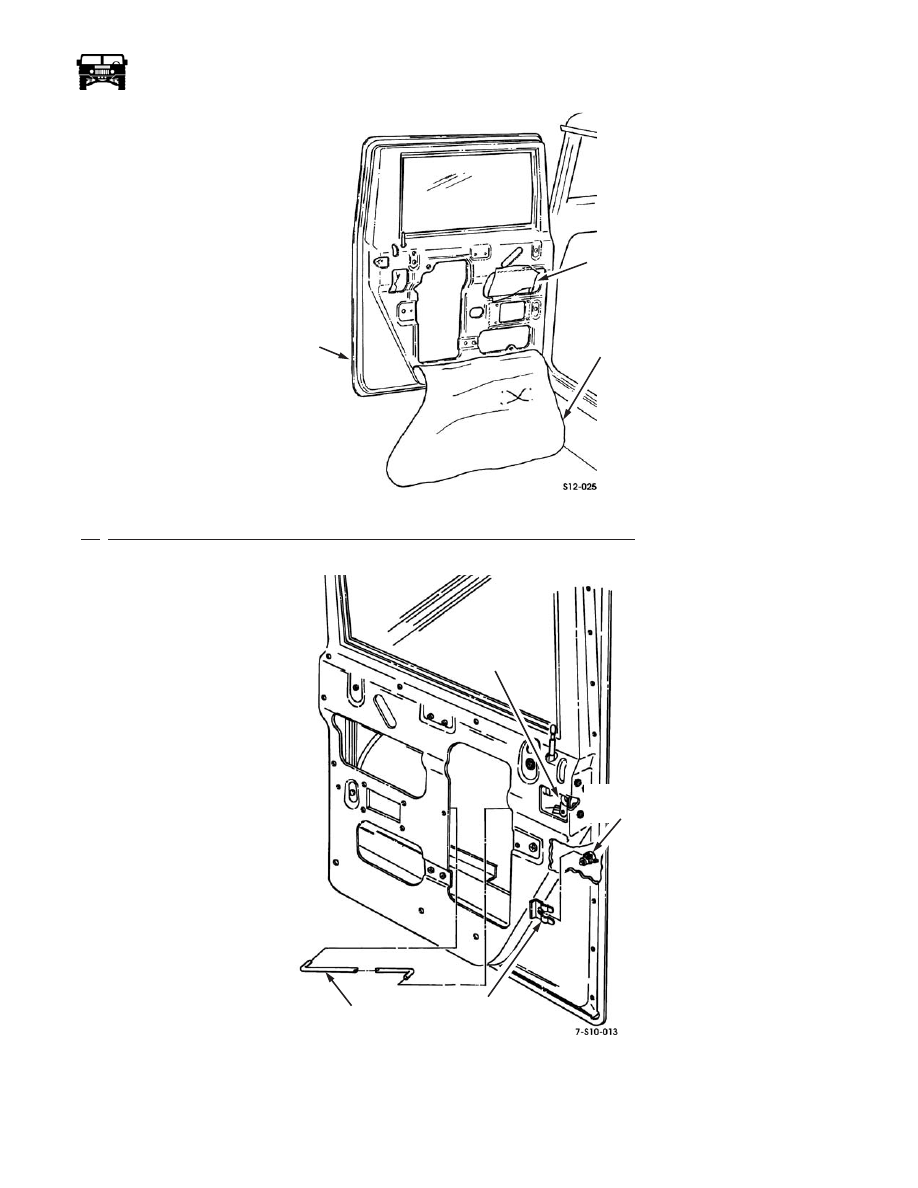

Figure 10-48:   Vapor Barrier and Moisture Barrier Flap

11. Remove the screws, lock washers and the latch assembly from the door (Figure 10-50).

12. Remove all the rods from the door latch assembly.

Figure 10-49:   Inside Operating Rod Location

MOISTURE

BARRIER

FLAP

VAPOR

BARRIER

DOOR

DOOR

LOCK

INSIDE

OPERATING

 ROD

CYLINDER

 CLIP

 LATCH

 ASSEMBLY

LOCK

CYLINDER
