10-34 Body

______________________________________________________________________

NOTE: Perform step 12 on model 90 only.

13. Remove the lower center trim panel screw/washer assemblies and the lower center trim panel from the lower rear compartment

wall.

14. Remove the dome light.

15. Remove the front and the rear j-channel, and the headliner from the roof.

Installation

1.

Secure the headliner to roof with the j-channel.

2.

Secure the dome light to the roof.

NOTE: Perform step 12 on model 90 only.

3.

Secure the lower center trim panel to the lower rear compartment wall with screw/washer assemblies.

4.

Secure the upper and the lower wheelhouse trim panels to the wheelhouse with the screw/washer assemblies and the panel
fasteners.

NOTE: Perform steps 5 through 7 on model 84 only

5.

Install the rear compartment trim.

6.

Secure the lower C-pillar trim to the lower C-pillar with the four screw (Figure  10-34).

7.

Secure the upper C-pillar trim to the C pillar with the screws.

8.

Secure the B-pillar trim to the B-pillar with the screws (Figure  10-35).

9.

Secure the lower B-pillar trim to the B-pillar.

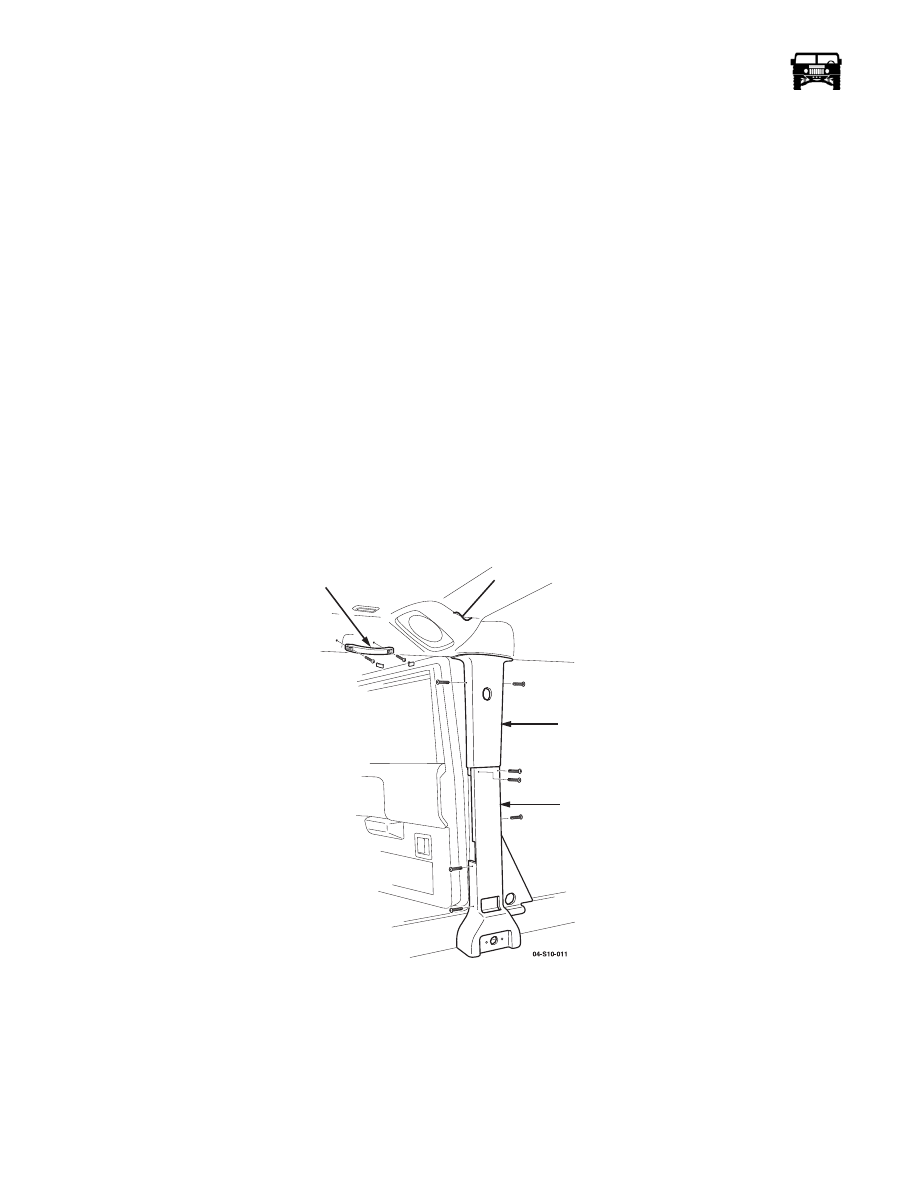

Figure 10-35:   B-Pillar and Interior Trim Component Identification

10. Secure the grab handle to the trim with the screws and the covers.

11. Install the seat belt assemblies.

12. Install the overhead speakers (Refer to section 12).

13. Install the rear seats.

14. Install the drivers compartment trim.

GRAB HANDLE

TRIM

B-PILLAR

LOWER

B-PILLAR

TRIM

_____________________________________________________________________

 Body  10-35

Driver’s Compartment Trim Replacement

Removal

1.

Remove the overhead speakers from the driver’s compartment.

2.

Remove the visors.

3.

Remove the rear view mirror.

4.

Remove the covers, screws and the grab handle from the trim (Figure  10-37).

5.

Remove the defrost vents (Figure  10-36).

6.

Remove the upper crash pad (Figure  10-36).

7.

Remove the screw and the windshield center trim from the windshield frame (Figure  10-37).

8.

Remove the screws and the A-pillar trim from the A-pillar.

9.

Remove the front seat belts.

10. Remove the screws and the B-pillar trim from the B-pillar.

11. Remove the screws and the lower B-pillar trim from the B-pillar (Figure  10-37).

12. Remove the dome light.

13. lower the head liner and slide forward out of the J-channel.

14. Remove the front seats.

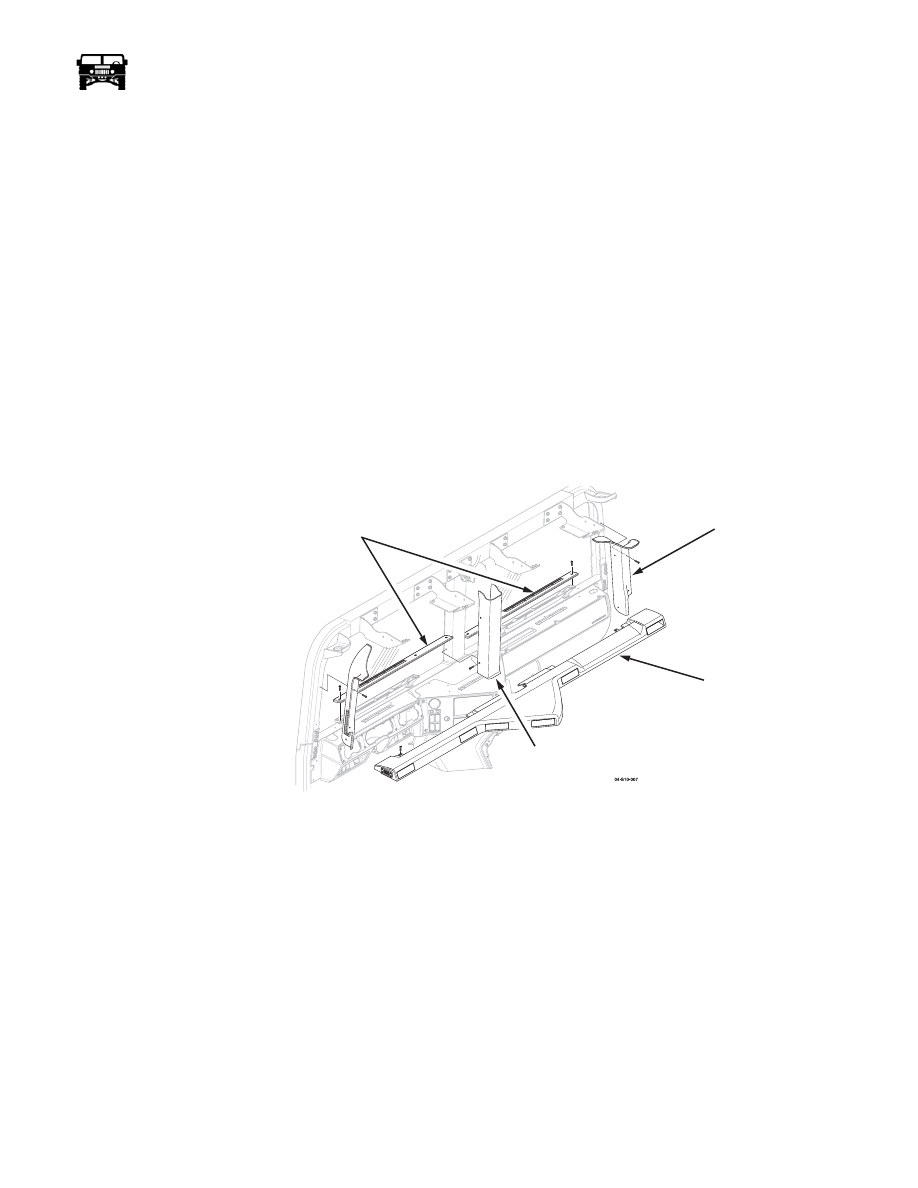

Figure 10-36:   Driver’s Compartment Trim Replacement

UPPER

CRASH

PAD

A-PILLAR

TRIM

DEFROST

VENT

CENTER

TRIM

10-36 Body

______________________________________________________________________

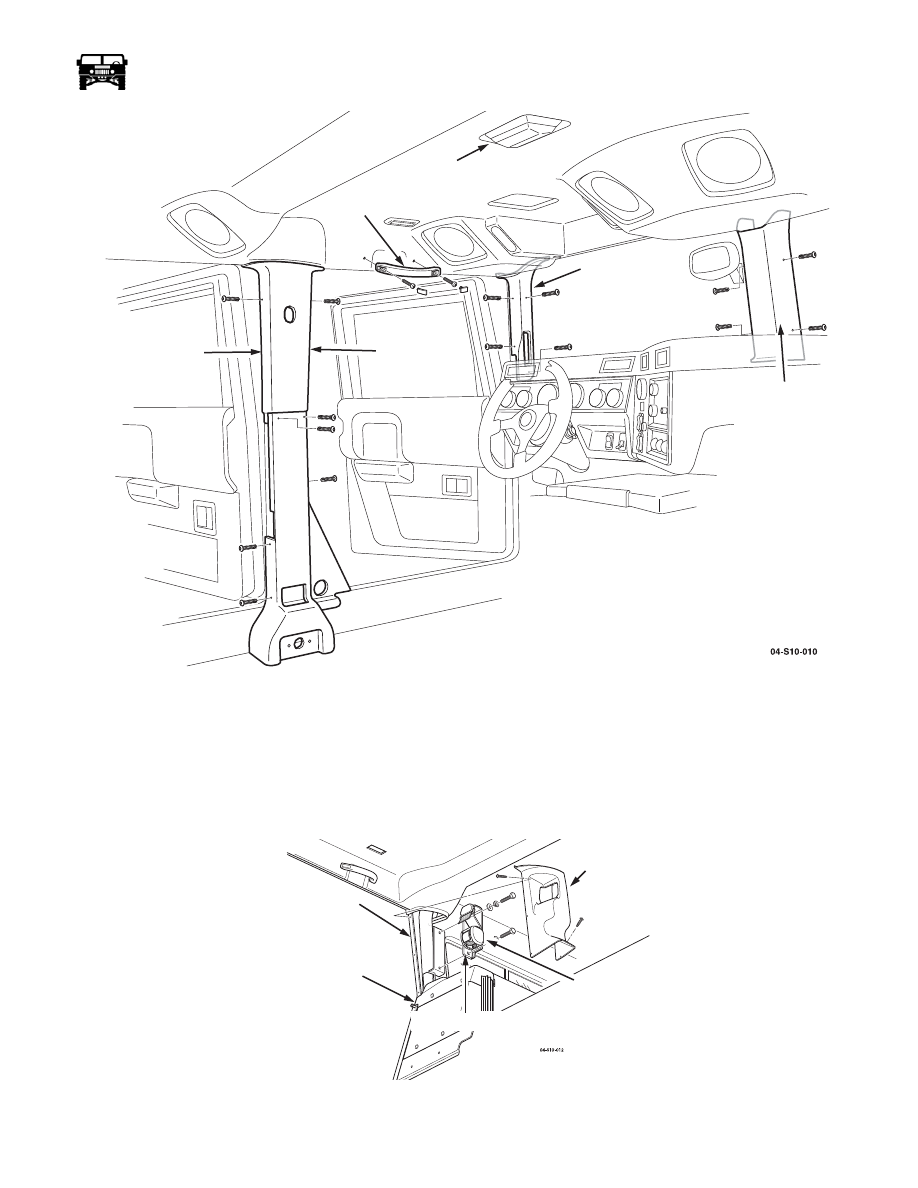

Figure 10-37:   A-Pillar and B-Bar Interior Trim Identification

Installation

1.

Position the headliner in the J-channel.

2.

Secure the dome light to the roof with the screw.

3.

Secure the grab handle to the trim with the screws and the covers.

4.

Secure the B-pillar trim to the B-pillar with the screws (Figure  10-38).

5.

Secure the lower B-pillar trim to the B-pillar with the screws.

6.

Secure the front seat belt assemblies in place.

7.

Secure the front seats to the floor with the bolts.

8.

Secure the lower A-pillar trim to the A-pillar with the screws.

9.

Secure the windshield center trim to the windshield frame with the screws (Figure  10-38).

10. Secure the visors to the brackets with the screws.

11. Install the upper crash pad (Refer to section 12).

12. Install the overhead speakers (Refer to section 12).

REAR

VIEW

MIRROR

B-PILLAR

TRIM

LOWER

B-PILLAR

TRIM

CENTER

TRIM

GRAB

HANDLE

DOME

LIGHT

_____________________________________________________________________

 Body  10-37

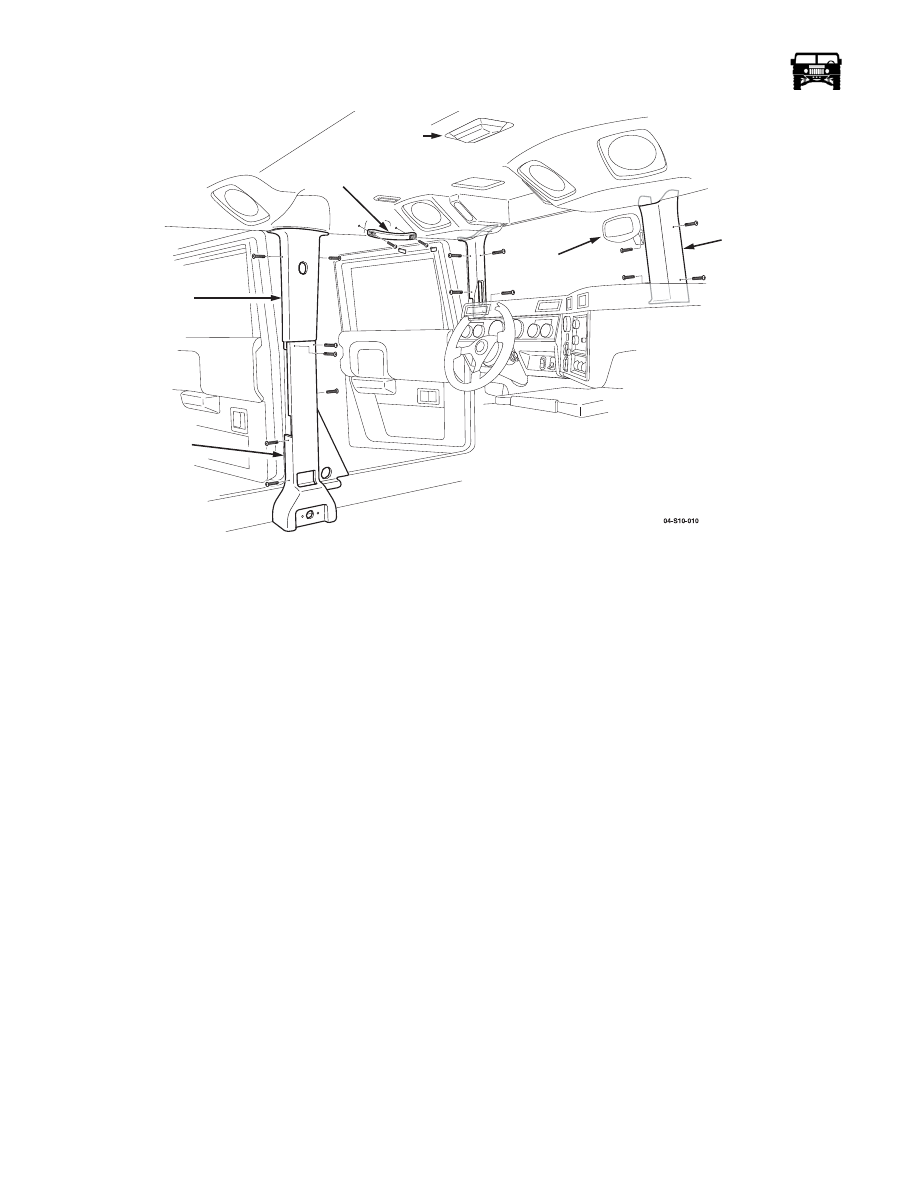

Figure 10-38:   A-Pillar and B-Bar Interior Trim Components

Station Wagon Rear Compartment Trim Replacement

Removal

1.

Remove the rear seats.

2.

Remove the upper C-pillar trim.

3.

Remove the bolts, washers, upper seat belt bracket and the seat belt assembly from the C-pillar (Figure  10-39).

Figure 10-39:   C-Pillar Trim

4.

Remove the trim from the rear compartment side wall.

GRAB HANDLE

A-PILLAR

B-PILLAR

B-PILLAR TRIM

WINDSHIELD

DOME LIGHT

CENTER TRIM

SEAT BELT ASSEMBLY

C-PILLAR

UPPER

C-PILLAR

TRIM

LOWER

C-PILLAR

TRIM

SEAT

BELT
