10-30 Body

______________________________________________________________________

Installation

1.

Place the headrest post in the ferrules and push down (Figure  10-30).

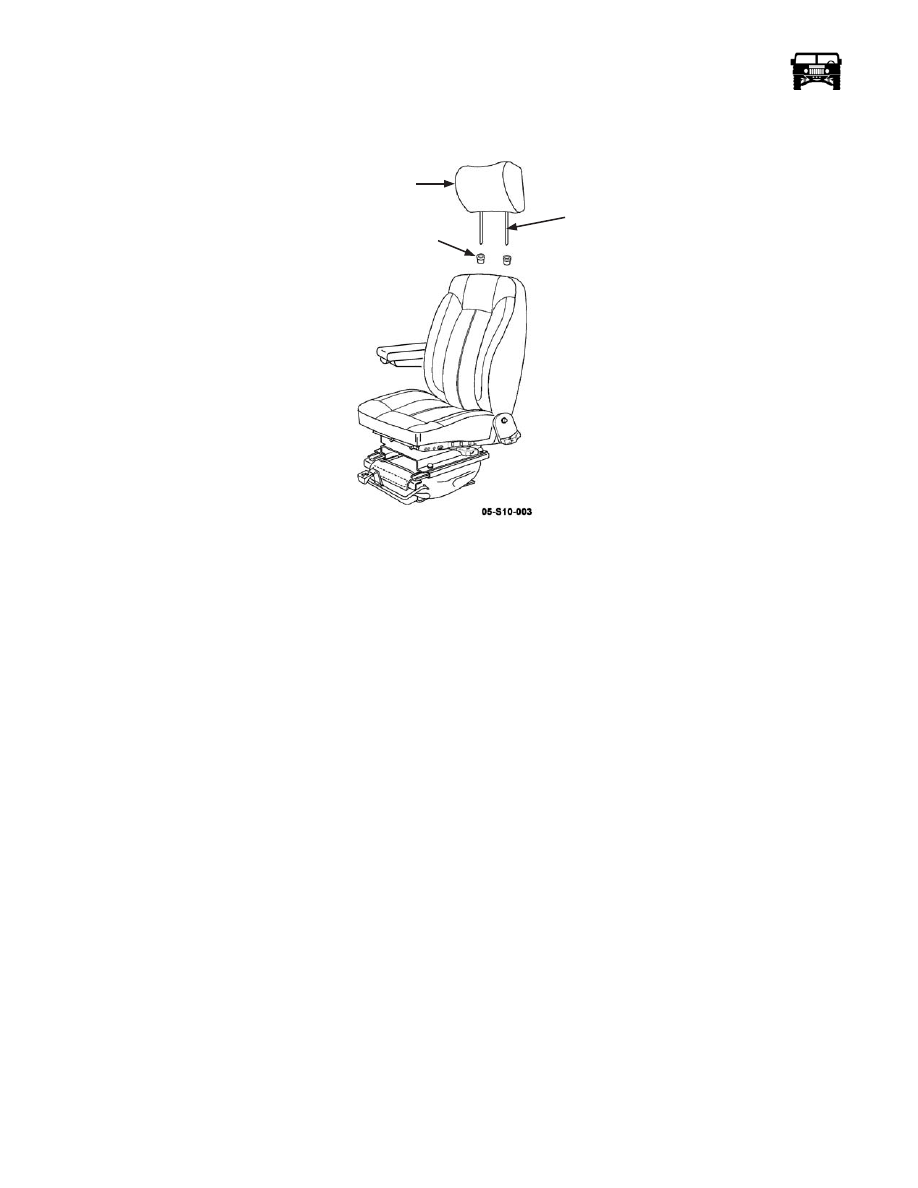

Figure 10-30:   Seat Headrest

REMOVABLE LOAD BARRIER AND MOUNTING BRACKETS REPLACEMENT (STATION WAGON)

Removal

1.

Remove the drive screws and the carpet assembly from the front and the back of the removable load barrier (Figure  10-31).

2.

Remove the necessary interior trim to gain access to the mounting brackets.

3.

Remove the removable load barrier by lifting the barrier up and out of the mounting brackets on the inner wheel house panels.

4.

Remove the rivets and the mounting bracket from the left inner wheel house panel.

5.

Remove the rivets and the mounting bracket from the right inner wheel house panel.

Inspection

Inspect the bumper strips. If they are damaged, replace them.

Installation

1.

Secure the mounting bracket to the left inner wheel house panel with the rivets (Figure  10-31).

2.

Secure the mounting bracket to the right inner wheel house panel with the rivets.

3.

Install the removable load barrier in the mounting brackets.

4.

Install the interior trim.

5.

Secure the carpet assembly to the front and the back of the removable load barrier with the drive screws.

HEADREST

FERRULE

HEADREST

POST

_____________________________________________________________________

 Body  10-31

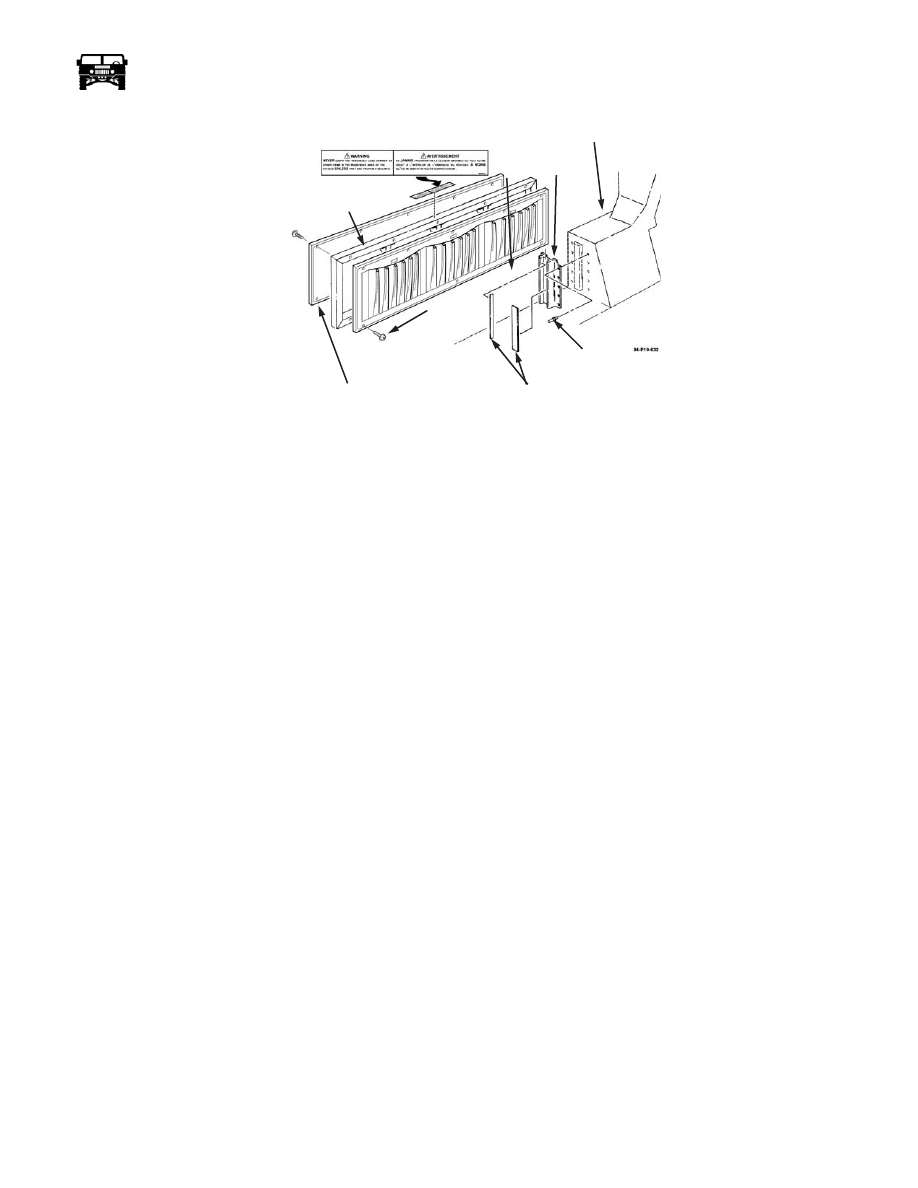

Figure 10-31:   Removable Load Barrier Location

INTERIOR TRIM

B-Bar Replacement Model 84

Removal

1.

Remove the passenger compartment trim.

2.

Remove the trim from the B-bar.

NOTE: It may be necessary to remove any duct tape or tie straps securing the electrical wiring harnesses to the B-bar.

3.

Remove the screws, washers and the headliner support from the B-bar (Figure  10-32).

4.

Remove the screws, lock washers and the mounting brackets from the mounting blocks.

5.

Remove the B-pillar seals and the rabbet seals from the B-pillar. Inspect and discard the seals if they are damaged.

6.

Remove the locknuts, washers and the strikers from the B-pillar.

7.

Remove the six locknuts, washers, bolts and the mounting blocks from the B-pillar.

8.

Remove the B-bar.

9.

Remove the screws, washers and the two trim mounting brackets from the B-bar.

REMOVABLE

MOUNTING

BUMPER STRIPS

RIVET

SCREW

CARPET ASSEMBLY

BRACKET

LOAD BARRIER

RIGHT INNER WHEEL

HOUSE PANEL

DRIVE

10-32 Body

______________________________________________________________________

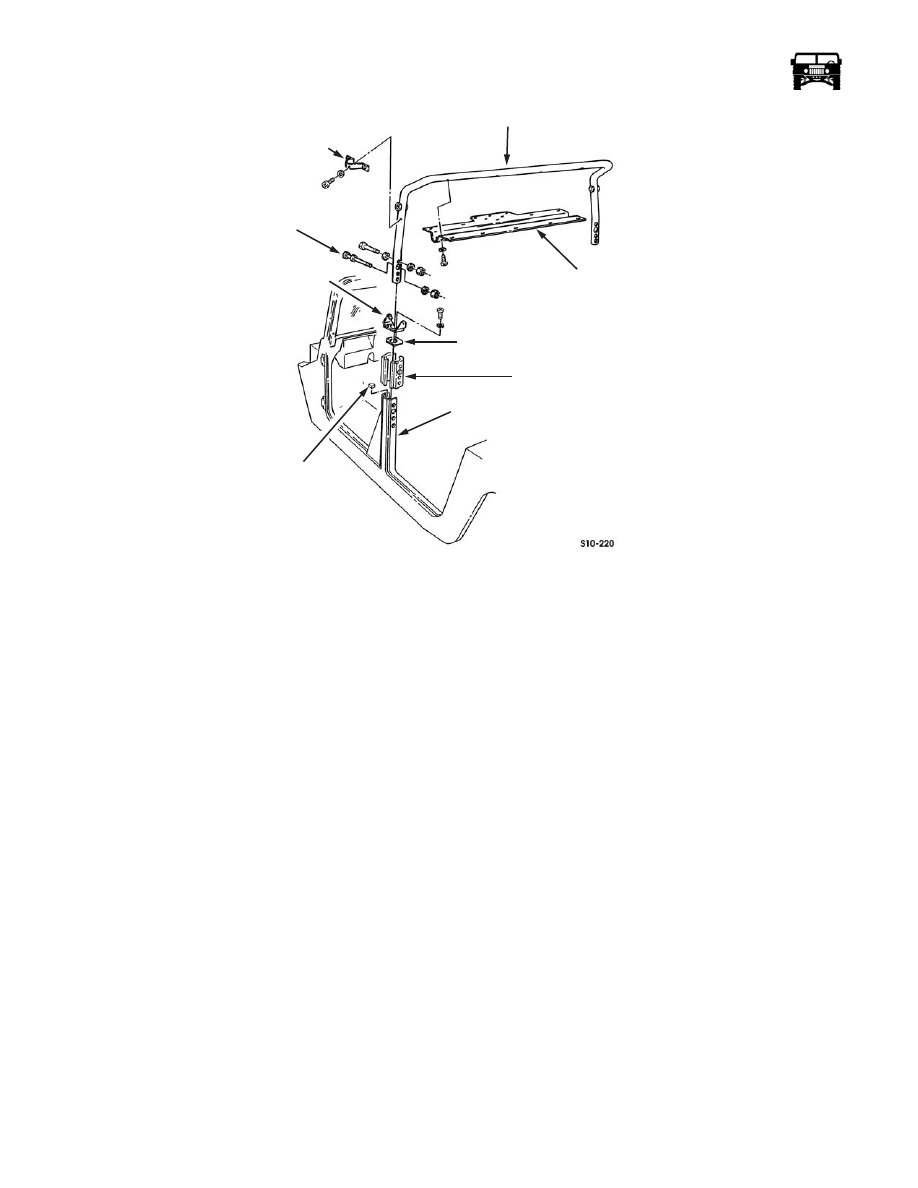

Figure 10-32:   B-Bar Mounting

Installation

1.

Secure the trim mounting brackets to the B-bar with the four washers and the screws (Figure  10-32).

2.

Install the B-bar.

3.

Secure the mounting blocks to the B-pillar with the washers, bolts and the locknuts. Tighten the locknuts to 24 lb-ft (33 N•m).

4.

Secure the strikers to the B-pillar with the washers and the locknuts.

5.

Install the B-pillar seals and the rabbet seals on the B-pillar.

6.

Secure the mounting brackets to the mounting blocks with the lock washers and the screws.

7.

Secure the headliner support to the B-bar with the washers and the screws.

8.

Install the passenger compartment trim.

Passenger’s Compartment Trim Replacement

Removal

1.

Remove the drivers compartment trim.

NOTE: Perform step 2, 6, 8, 9,13, and 14 on model 84 only.

2.

Remove the rear compartment trim.

3.

Remove the seat belts.

4.

Remove the rear seats.

5.

Remove the speakers.

B-BAR

HEADLINER

B-PILLAR

MOUNTING

B-PILLAR

RABBET

MOUNTING

STRIKER

TRIM

MOUNTING

BRACKET

SUPPORT

 SEAL

 BLOCK

SEAL

BRACKET

_____________________________________________________________________

 Body  10-33

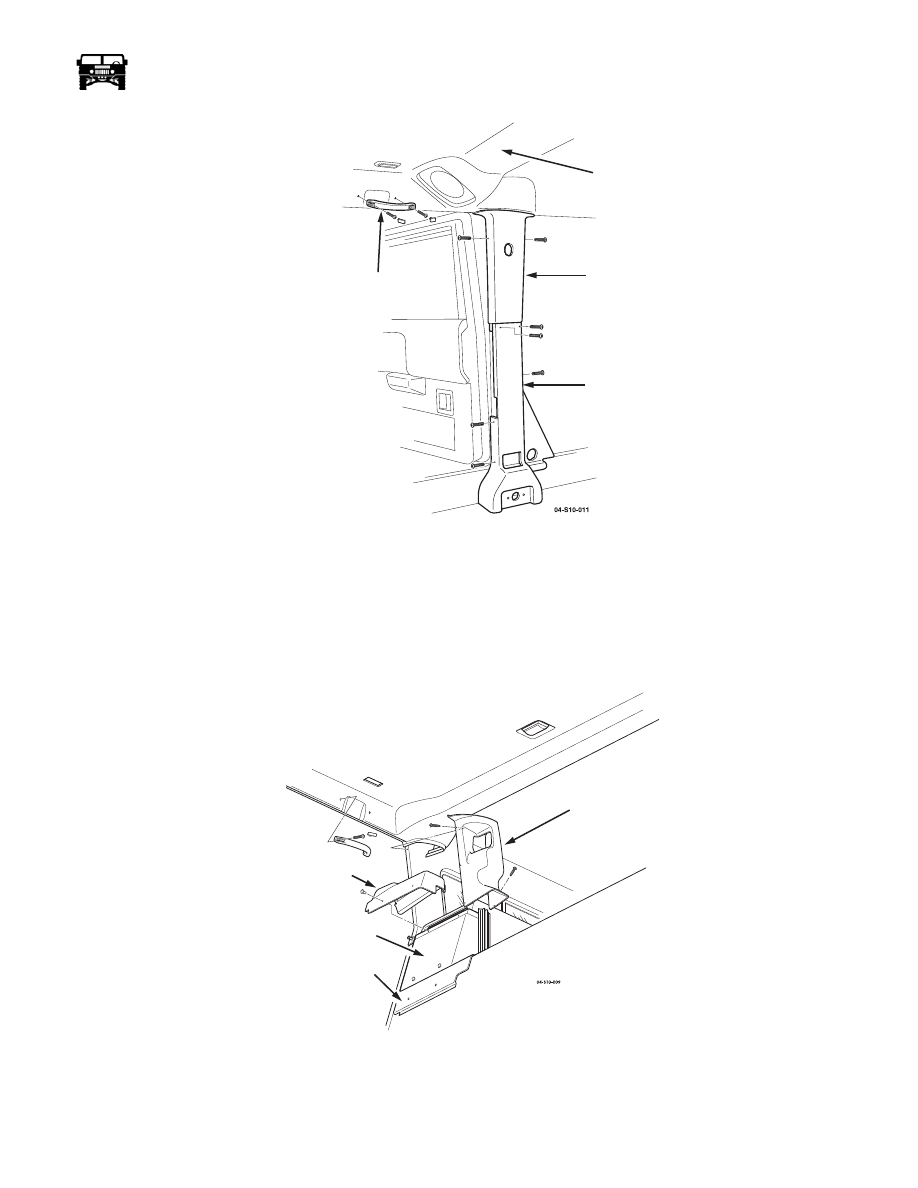

Figure 10-33:   Driver Side Interior Trim Component Identification (Model 84)

6.

Remove the grab handle covers, screws and the grab handle from the trim.

7.

Remove the B-pillar screws and the B-pillar trim from the B-pillar.

8.

Remove the B-pillar screws and the lower B-pillar trim from the B-pillar.

9.

Remove the screw/washer assemblies and the upper C-pillar trim (Figure  10-34).

10. Remove the C-pillar screw/washer assemblies and the lower C-pillar trim from the lower C-pillar.

Figure 10-34:   Interior Trim Component Identification (Model 84)

11. Remove the panel fasteners and the upper wheelhouse trim from the wheelhouse.

12. Remove the lower wheelhouse screw/washer assemblies and the lower wheelhouse trim from the wheelhouse.

GRAB

 HANDLE

B-PILLAR

TRIM

CENTER

HEADLINER

LOWER

B-PILLAR

TRIM

LOWER

C-PILLAR

UPPER

 C-PILLAR

TRIM

TRIM

UPPER WHEEL

HOUSE TRIM

LOWER WHEEL

HOUSE TRIM
