CIGARETTE LIGHTER REPLACEMENT

Removal

1.

Remove the element from the lighter assembly heater (Figure  10-20).

4.

Remove the heater and the bezel from the console using the cigarette lighter socket tool (J-42059).

5.

Remove the wiring harness connector from the lighter assembly

Installation

1.

Install the wiring harness connector on the lighter assembly.

2.

Install the heater in console (Figure  10-20).

3.

Install the element in the lighter assembly.

4.

Engage the cigarette lighter to ensure proper operation.

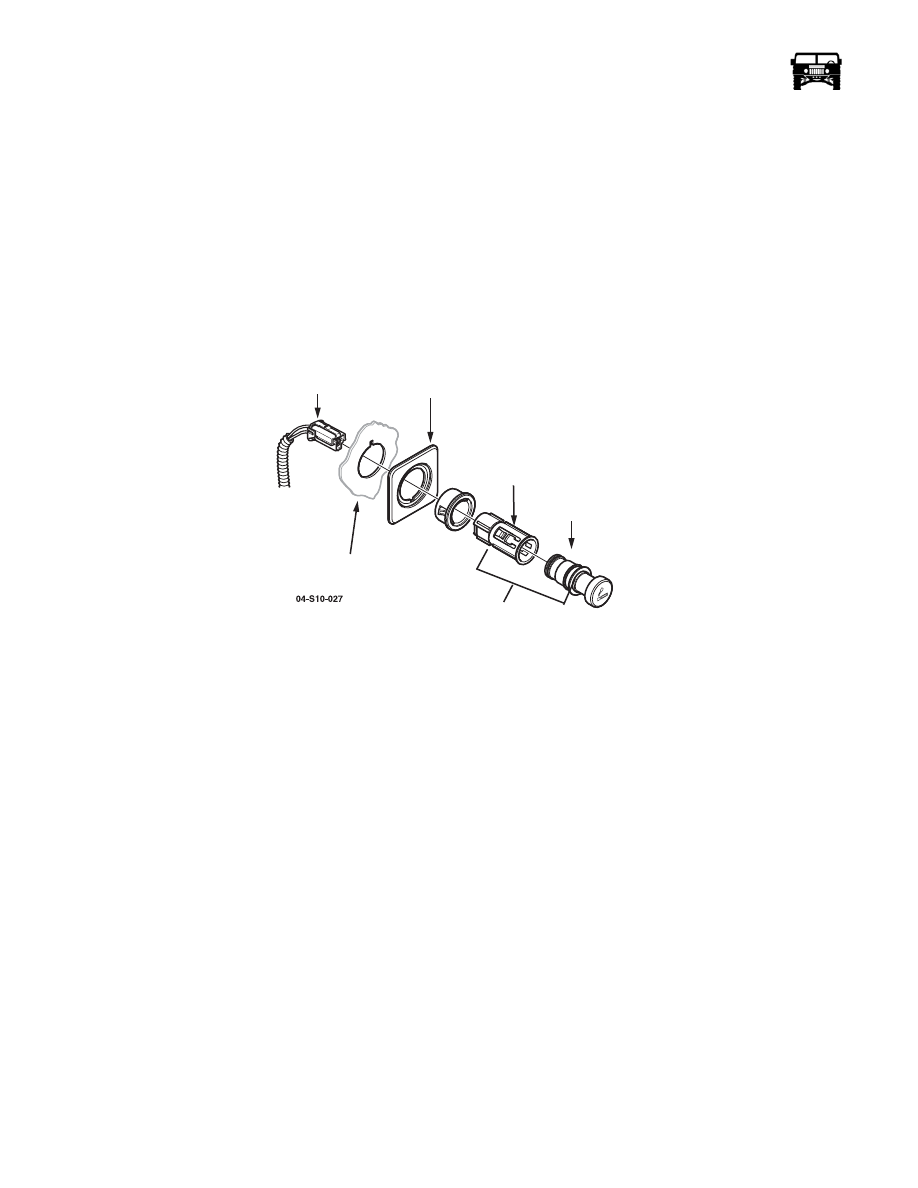

Figure 10-20:   Cigarette Lighter Breakdown

GLOVE BOX REPLACEMENT

Removal

Remove the five screws securing the glove box to the center console and remove the box (Figure  10-21).

Installation

Secure the glove box to the center console with the five screws (Figure  10-21).

WIRING HARNESS

ELEMENT

HEATER

CONSOLE

 CONNECTOR

LIGHTER

ASSEMBLY

BEZEL

_____________________________________________________________________

 Body  10-23

Figure 10-21:   Glove box

ENGINE ACCESS COVER

Inner Engine Access Cover Flexible Latch and Hold-Down Striker Replacement

Removal

1.

Remove the center dash assembly (Refer to secton 10).

2.

Remove the center console (Refer to secton10).

3.

Remove the right side crash pad (Refer to secton10).

4.

Release the two engine cover flexible latches and the two hold down strikers (Figure  10-22).

5.

Remove the rivets from the flexible latches to the cargo floor.

6.

Remove the rivet from the hold down striker to the body (Figure  10-22).

Installation

1.

Secure the flexible latch to the cargo floor with the rivets (Figure  10-22).

2.

Secure the hold down striker to the body with the rivets (Figure  10-22).

3.

Install the engine access cover and secure with the two flexible latches and the two striker latches.

4.

Install the right side crash pad.

5.

Install the center console.

6.

Install the center dash assembly.

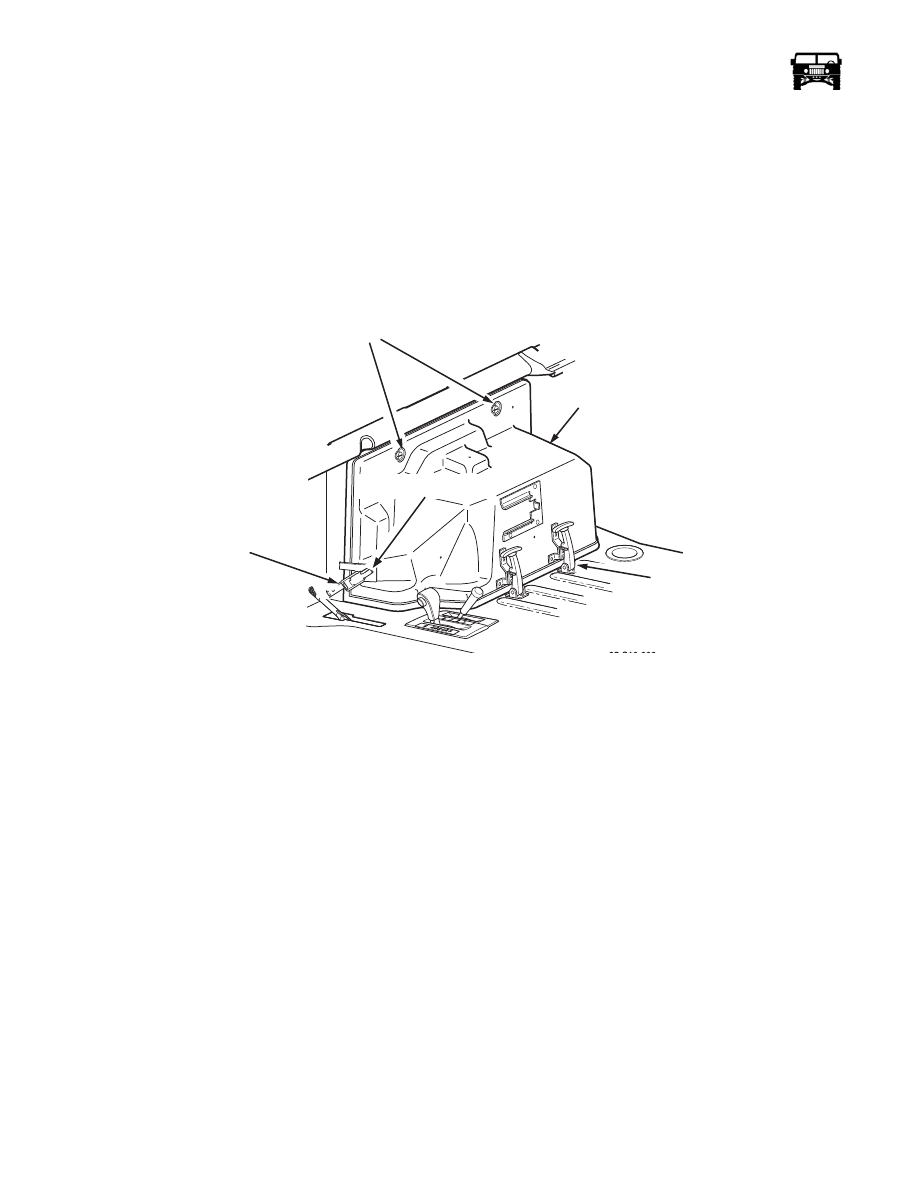

Figure 10-22:   Inner Engine Access Cover Latch Location

GLOVE BOX

CENTER CONSOLE

FLEXIBLE

BODY

CARGO FLOOR

 LATCH

HOLD DOWN

STRIKER

10-24 Body

______________________________________________________________________

Engine Access Cover Replacement

Removal

1.

Remove the center dash assembly.

2.

Remove the center console.

3.

Remove the right side crash pad.

4.

Unlatch the flexible latches from the keepers on the engine access cover hold-down brackets (Figure  10-23).

5.

Unlatch the hold down latches from the engine access cover hold-down strikers.

6.

Turn the ring studs and remove access cover.

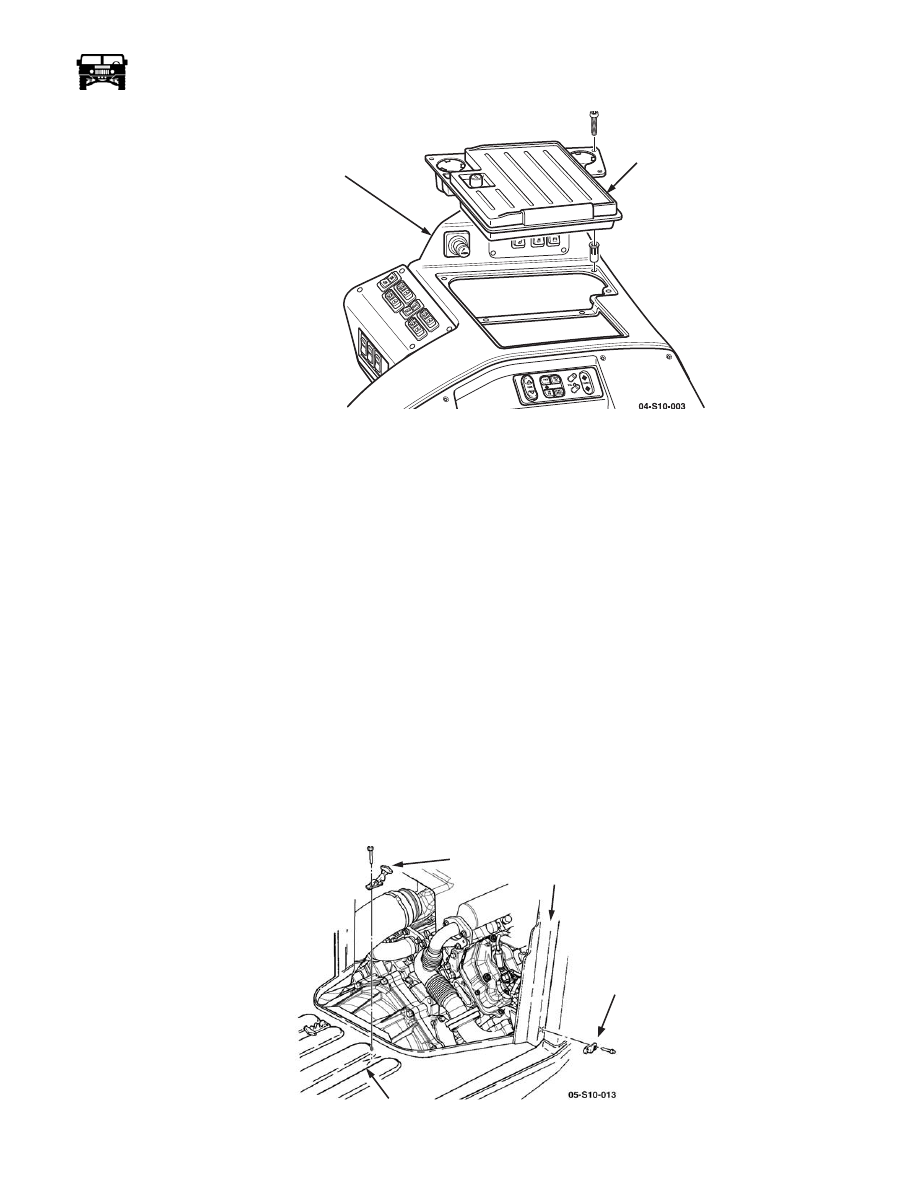

Figure 10-23:   Engine Access Cover Replacement

Disassembly

1.

Remove the rivets, retainers and the insulation from the engine access cover (Figure  10-24).

2.

Remove the seal from the access cover.

3.

Remove the retaining rings, washers and the ring studs from the access cover (Figure  10-25).

4.

Remove the locknuts and the shoulder bolts securing the latch guide plates and the back plates to the access cover and remove
the latches.

5.

Remove the rivets, latch guide plates and the back plates from the access cover.

6.

Remove the rivets and the keepers from the hold-down brackets.

7.

Remove the rivets, nuts, washers, screws, hold-down brackets and the backing plates from the access cover.

Assembly

1.

Secure the hold-down brackets and the backing plates to access the cover with rivets, screws, washers and the nuts (Figure
 10-25).

2.

Secure the keepers to the hold-down brackets with the rivets.

3.

Secure the latch guide plates and the back plates to the access cover with the rivets.

4.

Secure the latch guide plates to the back plates and the access cover with the shoulder bolts and the locknuts. Install latches.

5.

Secure the washers and the ring studs to the access cover with the washers and the retaining rings.

6.

Install the seal on the access cover (Figure  10-24).

7.

Secure the insulation to the access cover with the rivets and the retainers.

ENGINE

FLEXIBLE

RING STUDS

HOLD-DOWN STRIKER

LATCH

ACCESS

COVER

HOLD-DOWN LATCH

_____________________________________________________________________

 Body  10-25

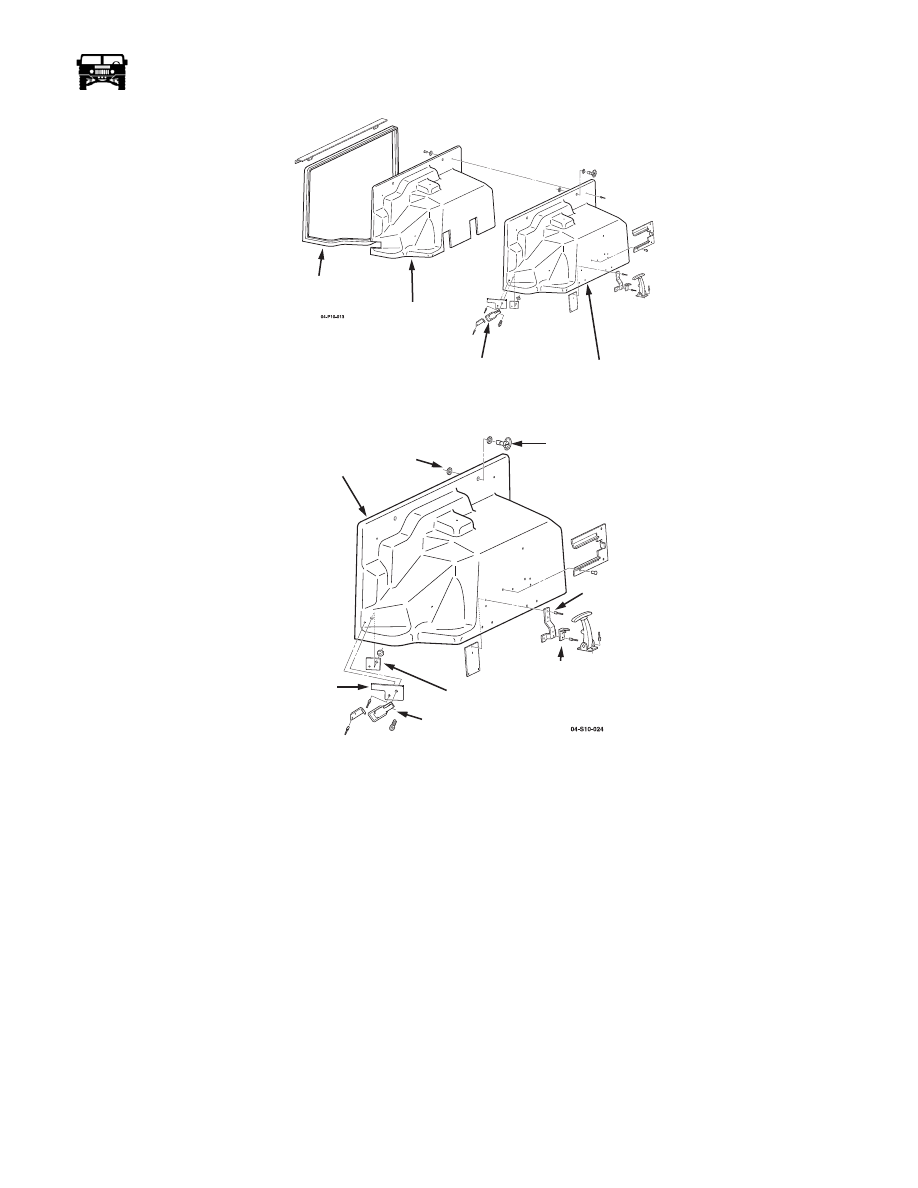

Figure 10-24:   Engine Access Cover, Insulation and Seal Breakdown

Figure 10-25:   Engine Access Cover Fastener Positioning

Installation

1.

Position the engine access cover and the fasten ring studs (Figure  10-25).

2.

Secure the hold-down latches on the hold-down strikers.

3.

Latch the flexible latches on the hold-down bracket keepers.

4.

Install the center dash assembly.

5.

Install the right side crash pad.

6.

Install the center console.

Seat Belt Buckle Assembly Replacement

NOTE: Replacement of the seat belt assembly is basically the same for all seat locations on all the vehicle models. This procedure
covers the left front seat belt buckle on the model 84 vehicle.

Removal

1.

Move the seat to the forward position.

2.

Remove the bolt/washer assembly and the seat belt buckle from the body (Figure  10-26).

3.

Remove the four socket-head screws securing the shifter bezel and remove the bezel.

SEAL

RETAINER

ENGINE ACCESS

COVER

INSULATION

RING STUD

RETAINING

LATCH

HOLD-DOWN LATCH

BACK PLATE

KEEPER

HOLD-DOWN

ENGINE

BRACKET

RINGS

GUIDE

PLATE

ACCESS COVER
