Accessories 13-45
®
05745159
SOFT SLANT BACK (MODEL 90)
Removal
1.
Unzip the forward portion of the slant back cover from the
soft top cover.
2.
Release the hook and loop fasteners on the lower sides and
the lower rear of the slant back cover.
3.
Release the hook and loop fasteners on the inside of the
cover securing the cover to the support structure.
4.
Remove the slant back cover from the slant back support
assembly.
5.
Release the hook and loop straps securing the formers to
the support structure and remove the formers.
6.
Loosen the support structure retaining straps and release
the strap hooks from the footman loops.
7.
Remove the screws securing the hinge brackets to the
wheel houses and remove the support structure.

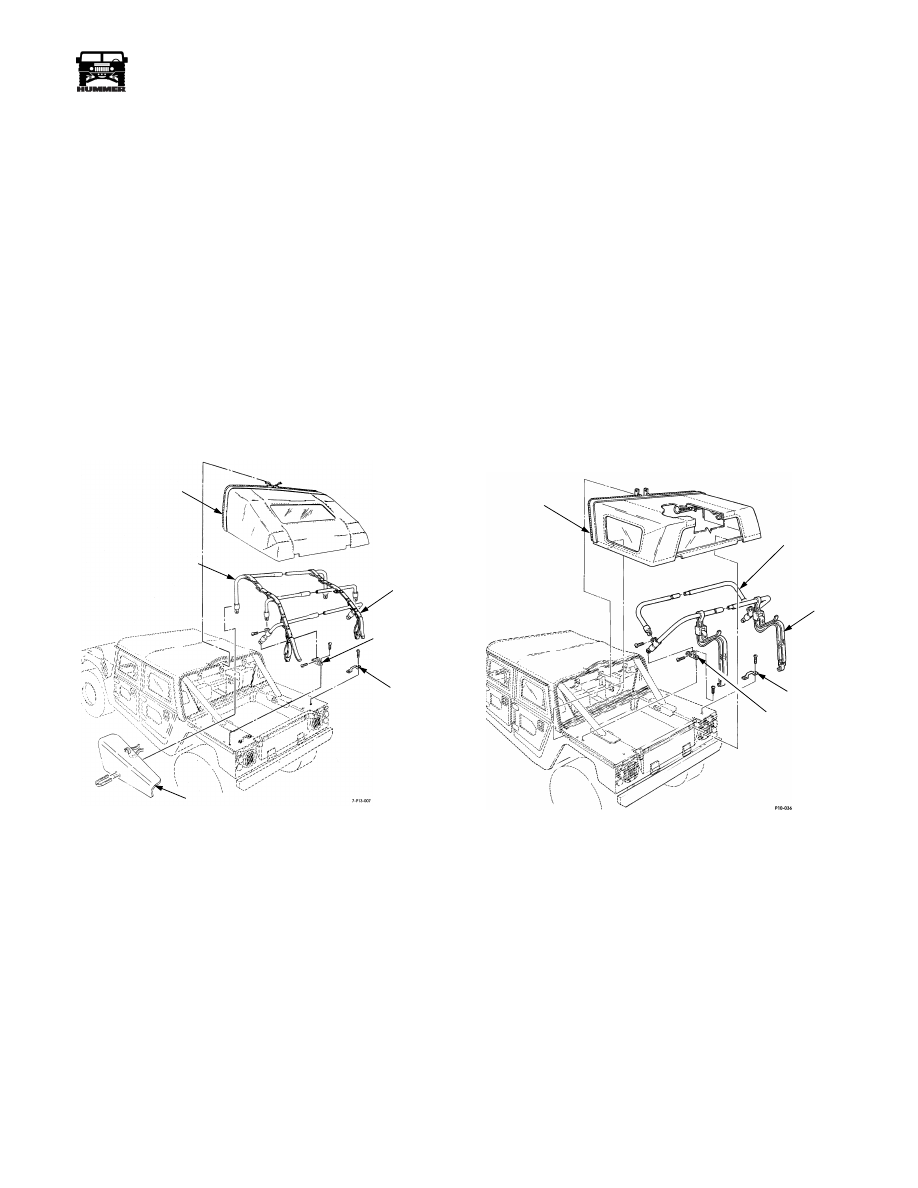

Figure 13-88: Soft Slant Back R & I.
Installation
1.
Place the support structure on the wheelhouses and install
the screws through the hinge brackets into the wheel-
houses.
2.
Insert the retaining strap hooks in the footman loops and
adjust the retaining straps.
3.
Place the formers on the forward top corners of the
support structure and secure with the hook and loop straps.
4.
Engage the hook and loop fasteners on the inside of the
cover.
5.
Place the cover on the support structure and zip the
forward edge to the soft top cover.
6.
Pull the rear edge of the cover tight and engage the hook
and loop on the tailgate.
7.
Pull the sides of the cover tight and engage the hook and
loop on the sides of the wheelhouses.
SOFT SQUARE BACK (MODEL 90)
Removal
1.
Unzip the forward portion of the square back cover from
the soft top cover.
2.
Release the hook and loop fasteners on the lower sides and
the lower rear of the square back cover.
3.
Release the hook and loop fasteners on the inside of the
cover securing the cover to the support structure.
4.
Remove the square back cover from the square back
support assembly.
5.
Loosen the support structure retaining straps and release
the strap hooks from the footman loops.
6.
Remove the screws securing the hinge brackets to the
wheel houses and remove the support structure.
Figure 13-89: Soft Square Back R & I.
Installation
1.
Place the support structure on the wheelhouses and install
the screws through the hinge brackets into the wheel-
houses.
2.
Insert the retaining strap hooks in the footman loops and
adjust the retaining straps.
3.
Place the cover on the support structure and zip the
forward edge to the soft top cover.
4.
Engage the hook and loop fasteners on the inside of the
cover.
5.
Pull the rear edge of the cover tight and engage the hook
and loop on the tailgate.
6.
Pull the sides of the cover tight and engage the hook and
loop on the sides of the wheelhouses.
FOOTMAN
LOOP
HINGE
BRACKET
SUPPORT
STRUCTURE
STRAP
COVER
FORMER
FOOTMAN
LOOP
STRAP
HINGE
BRACKET
SUPPORT
STRUCTURE
COVER
