 Body  10-31

®

05745159

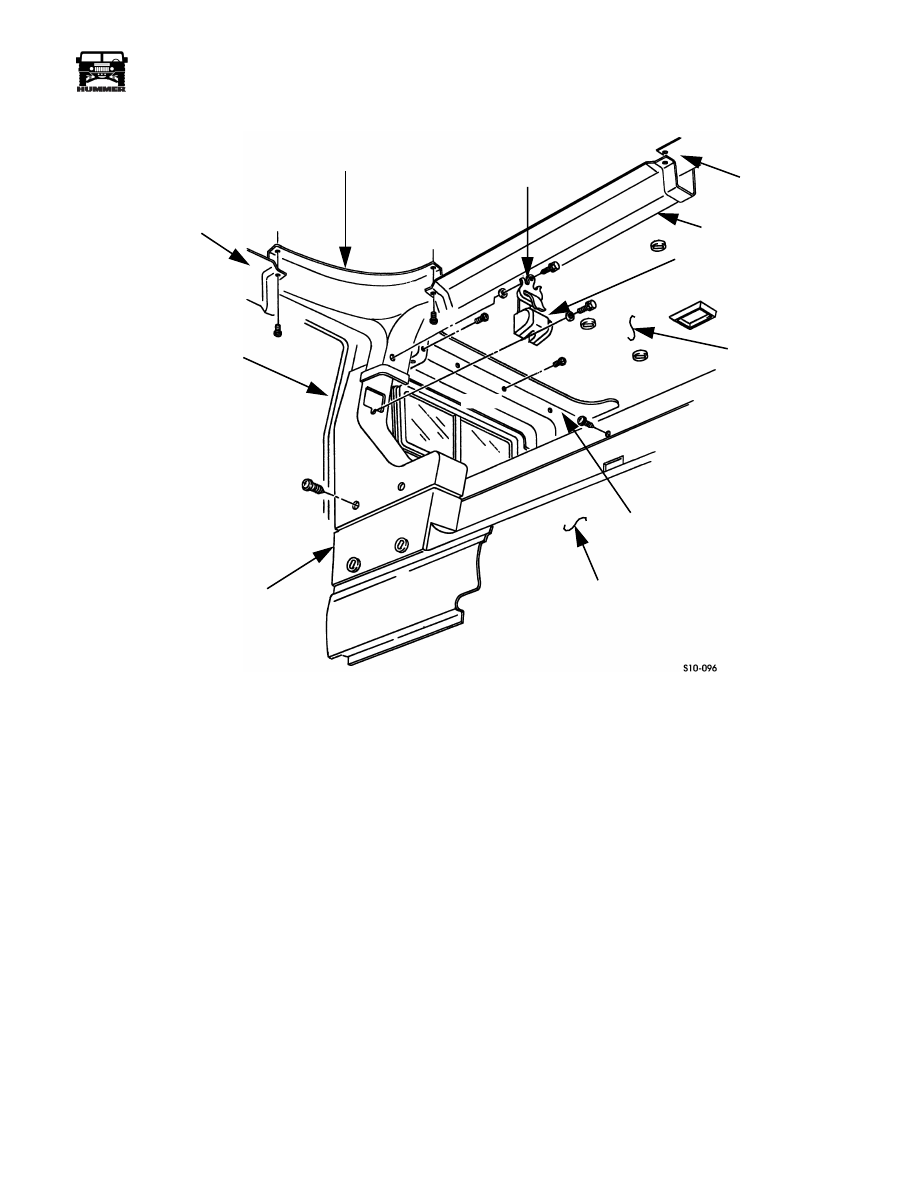

Figure 10-49:   Station Wagon Side Wall Component Breakdown

B-PILLAR TRIM

C-PILLAR

CENTER TRIM

SEAT BELT BRACKET

HEADLINER

SEAT BELT ASSEMBLY

STATION WAGON

COMPARTMENT SIDE WALLS

TRIM PANEL

LOWER REAR

COMPARTMENT

WALL

UPPER C-PILLAR TRIM

LOWER C-PILLAR TRIM

10-32

Body

______________________________________________________________________

®

Inner Kick Panels Replacement

Removal

1.

Remove seats.

NOTE:

Remove one bolt, washer, and seat buckle for two-pas-

senger models.

2.

Remove bolts, washers, and seat buckles from front and
rear of tunnel (Figure 10-50).

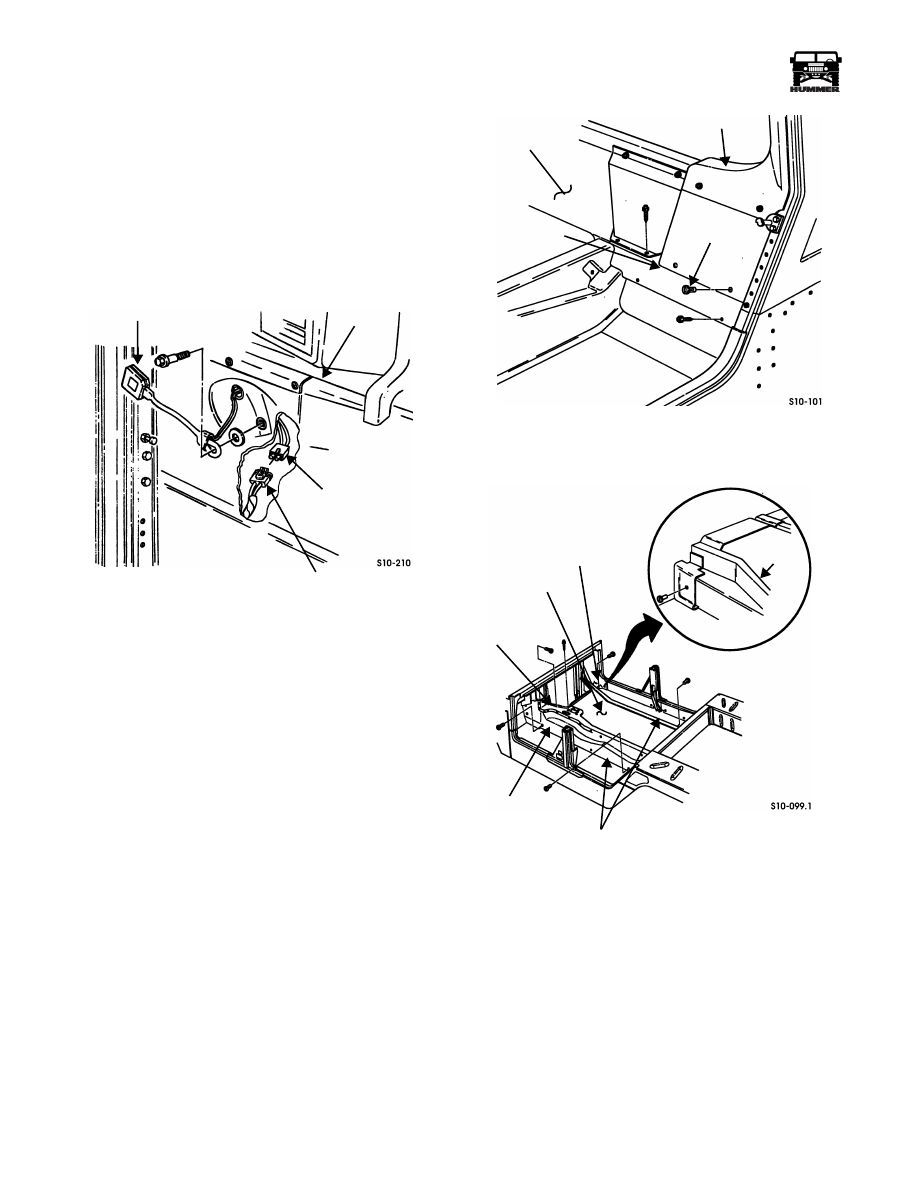

Figure 10-50:   Seat Belt Buckle Electrical

Connector Location

NOTE:

Ensure seat belt buckle electrical connector or wiring

harness is pulled out and away from kick panel for ease of in-
stallation.

3.

Disconnect seat belt buckle electrical connector from
wiring harness connector on driver side.

NOTE:

Perform steps 4 and 5 for four-passenger models only.

4.

Remove panel fasteners, screw/washer assemblies, and
rear wall trim from rear compartment wall  (Figure 10-51).

5.

Remove panel fasteners and rear inner kick panel from
tunnel  (Figure 10-52).

Figure 10-51:   Rear Compartment Trim Removal

Figure 10-52:   Inner Kick Panel Mounting

6.

Remove front and center consoles.

7.

Remove screw/washer assemblies, panel fastener, and
shift control panel from tunnel (Figure 10-52).

8.

Remove panel fasteners and left front inner kick panel
from tunnel.

9.

Remove panel fasteners and right front inner kick panel.

NOTE:

Perform step 10 for two-passenger models only.

10. Remove panel fastener and inner kick panel from rear of

tunnel.

SEAT BUCKLE

SEAT BELT BUCKLE

ELECTRICAL

CONNECTOR

B-BEAM

WIRING

HARNESS

CONNECTOR

 TRIM

REAR

REAR

PANEL

FASTENER

WALL TRIM

COMPARTMENT

COMPARTMENT

WALL

PANEL

RIGHT FRONT

TUNNEL

LEFT FRONT

REAR INNER

TWO PASSENGER

VEHICLE ONLY

KICK PANELS

 INNER KICK

 PANEL

 INNER KICK PANEL

SHIFT

CONTROL

TRIM PANEL

KICK

PANEL

_____________________________________________________________________

 Body  10-33

®

05745159

Installation

NOTE:

Perform step 1 for two-passenger models only.

1.

Secure rear inner kick panel to right rear of tunnel with
panel fastener  (Figure 10-52).

2.

Secure right front inner kick panel to tunnel with panel
fasteners.

3.

Secure left front inner kick panel to tunnel with panel
fasteners.

4.

Secure shift control trim panel to tunnel with screw/
washer assemblies and panel fastener.

5.

Install center and front consoles.

NOTE:

Perform steps 6 and 7 for four-passenger models only.

6.

Secure rear inner kick panels with panel fasteners
(Figure 10-51).

7.

Secure rear wall trim to rear compartment wall with panel
fasteners and screw/washer assemblies.

8.

Connect driver side seat belt buckle electrical connector
(Figure 10-50).

NOTE:

Install one seat buckle on two-passenger models.

9.

Secure seat buckles to tunnel with washers and bolts.
Tighten bolts to 35-40 lb-ft (47-55 N•m).

10. Install seats.

Outer Kick Panel Replacement

Removal

NOTE:

Soft top models require removal of speakers from

front outer kick panels before performing the following task.

1.

Remove door stop straps.

2.

Remove panel fasteners and right front outer kick panel
from body (Figure 10-53).

3.

Remove panel fasteners and left front outer kick panel
from body.

4.

Remove panel fasteners and left center outer kick panel
from body.

5.

Remove panel fastener and right center outer kick panel
from body.

6.

Remove screws, washers, and rear lower seat belt brackets
from body.

7.

Remove panel fasteners and left and right rear outer kick
panels from body.

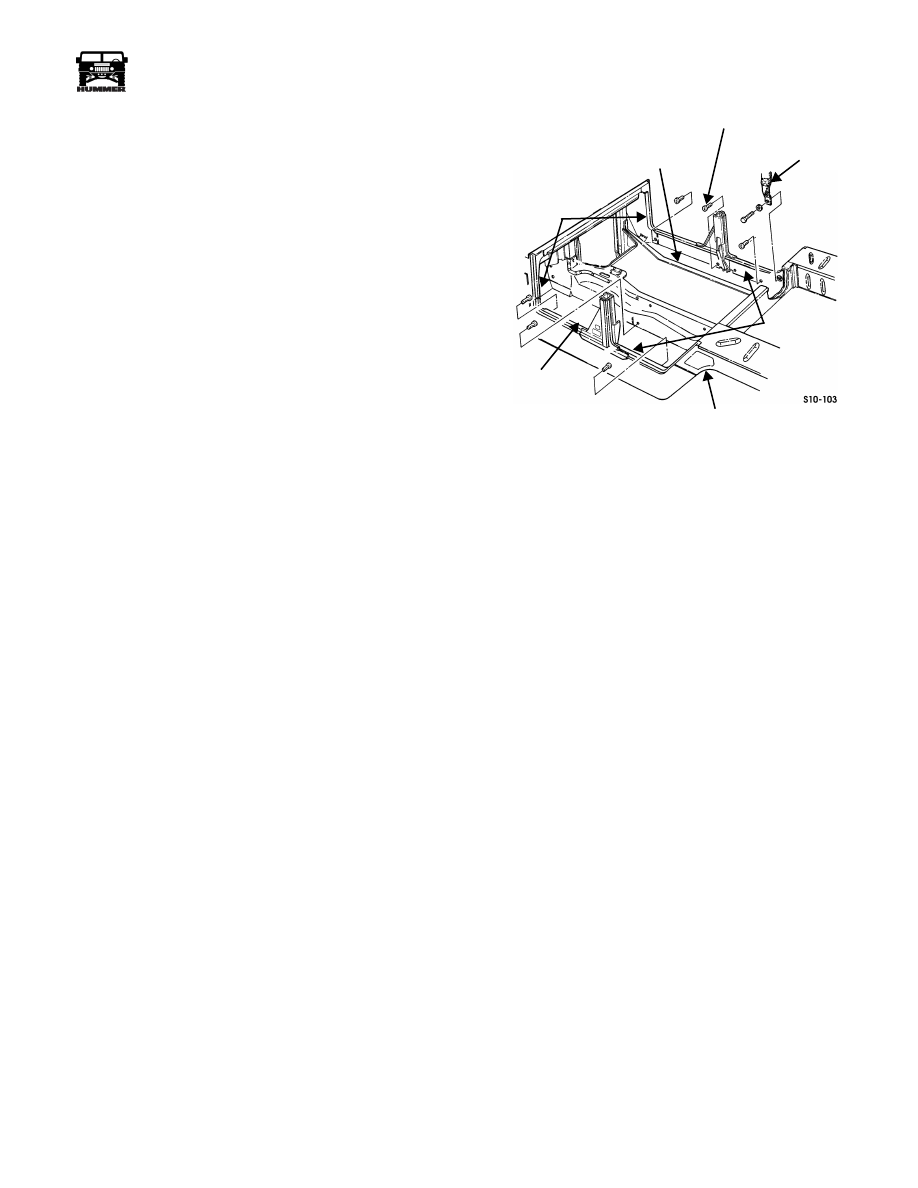

Figure 10-53:   Outer Kick Panel Identification

Installation

1.

Secure left and right rear outer kick panels to body with
panel fasteners  (Figure 10-53).

2.

Secure rear lower seat belt brackets to body with washers
and screws.

3.

Secure right center outer kick panel to body with panel
fastener.

4.

Secure left center outer kick panel to body with panel
fasteners.

5.

Secure left front outer kick panel to body with panel
fasteners.

6.

Secure right front outer kick panel to body with panel
fasteners.

7.

Install door stop straps.

PANEL FASTENER

SEAT BELT

BODY

REAR KICK

CENTER KICK

FRONT KICK

BRACKET

 PANELS

 PANEL

PANELS

CENTER KICK

 PANEL

LOWER

10-34

Body

______________________________________________________________________

®

Tunnel Carpet, Padding, and Hardboard
Replacement

Removal

NOTE:

Tunnel carpet, padding, and hardboard replacement is

basically the same for all models. This task represents four-
passenger model carpet replacement.

1.

Remove inner kick panels.

2.

Remove carpet from tunnel (Figure 10-54).

3.

Remove padding from tunnel.

4.

Remove panel fasteners and hardboard from tunnel.

Installation

1.

Secure hardboard to tunnel with panel fasteners
(Figure 10-54).

2.

Install padding on tunnel.

3.

Install carpet on tunnel.

4.

Install inner kick panels.

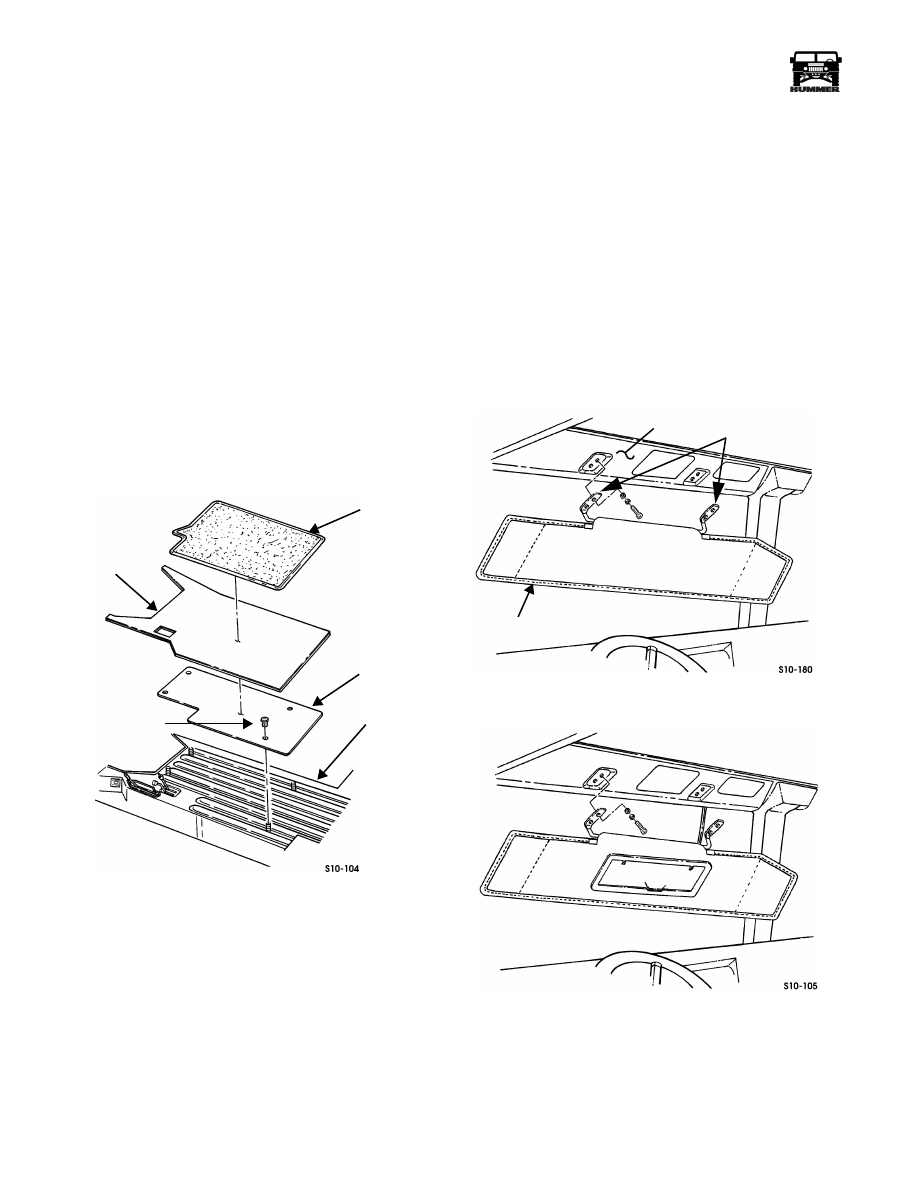

Figure 10-54:    Carpet and Padding Installation

VISOR REPLACEMENT

Removal

NOTE:

Visor replacement is the same for each side of the ve-

hicle. This procedure covers the driver’s side.

NOTE:

If your vehicle has the lighted visor mirror, disconnect

the visor mirror lead from the roof harness connector before re-
moving the visor (Figure 10-57).

Remove screws, lockwashers, washers, and visor from body
(Figure 10-57).

Installation

Secure visor mounting brackets to body with four screws, lock-
washers, and washers (Figure 10-57).

Figure 10-55:   Visor Mounting

Figure 10-56:   Visor With Lighted Mirror

CARPET

PADDING

HARDBOARD

PANEL FASTENER

TUNNEL

VISOR

BODY

MOUNTING

BRACKETS
