 Body  10-27

®

05745159

Figure 10-39:   Four-Passenger Vehicle Interior Trim

Component Identification

12. Remove screw/washer assemblies and window trim from

rear compartment wall and roof.

13. Remove panel fasteners and upper wheelhouse trim from

wheelhouse.

14. Remove screw/washer assemblies and lower wheelhouse

trim from wheelhouse.

15. Remove screw/washer assemblies and lower center trim

panel from lower rear compartment wall.

16. Remove domelight.

17. Remove panel fasteners and headliner from roof.

Installation

1.

Secure headliner to roof with panel fasteners (Figure 10-39).

2.

Secure domelight.

3.

Secure lower center trim panel to lower rear compartment
wall with screw/washer assemblies.

4.

Secure upper and lower wheelhouse trim panels to
wheelhouse with screw/washer assemblies and panel
fasteners.

5.

Secure window trim to rear compartment wall and roof
with screw/washer assemblies.

6.

Secure trim panel to rear compartment wall with screw/
washer assemblies.

NOTE:

Perform steps 7 through 9 for station wagon models

only.

7.

Secure lower C-pillar trim to lower C-pillar with four
screw and washer assemblies (Figure 10-38).

8.

Secure upper C-pillar trim to roof with nine screw and
washer assemblies.

9.

Secure C-pillar center trim to roof with eight screw and
washer assemblies.

10. Secure B-pillar trim to B-pillar with washers and screws

(Figure 10-40).

11. Secure upper B-bar trim to roof with screw/washer

assemblies.

12. Secure B-bar center trim to roof with screw/washer

assemblies.

Figure 10-40:   B-Pillar and Interior Trim

Component Identification

13. Secure grab handle to trim with screws and covers.

14. Install seat belt assemblies.

15. Install overhead speakers (Section 12).

16. Install rear seats.

HEADLINER

PANEL

LOWER REAR

COMPARTMENT

WALL

FASTENER

REAR

COMPARTMENT

 WALL

ROOF

WINDOW

TRIM

WINDOW TRIM

UPPER

WHEELHOUSE

TRIM

TRIM

PANEL

LOWER

WHEELHOUSE

TRIM

LOWER CENTER

 TRIM PANEL

GRAB HANDLE

COVER

ROOF

UPPER
B-BAR

TRIM

CENTER

B-BAR

TRIM

TRIM

B-PILLAR

10-28

Body

______________________________________________________________________

®

Driver’s Compartment Trim Replacement

Removal

1.

Remove overhead speakers from driver’s compartment and
passenger’s compartment (if applicable) (Section 12).

2.

Remove visors.

3.

Remove seat belt assemblies.

4.

Remove covers, screws, and grab handle from trim.
(Figure 10-41).

5.

Remove screw/washer assemblies and B-bar center trim
from roof.

6.

Remove screw/washer assemblies and center trim from
windshield frame and roof (Figure 10-42).

7.

Remove screw/washer assemblies and upper A-pillar trim
from roof.

8.

Remove screw/washer assembly and lower A-pillar trim
from A-pillar.

9.

Remove screw/washer assemblies and upper B-bar trim
from roof.

10. Remove screws, washers, and B-pillar trim from B-pillar.

NOTE:

Replacement of the rear driver’s compartment trim for

2-door vehicles with and without an enlarged cab is basically
the same. Steps 11 through 13 cover 2-door vehicles without
an enlarged cab.

11. Remove seats.

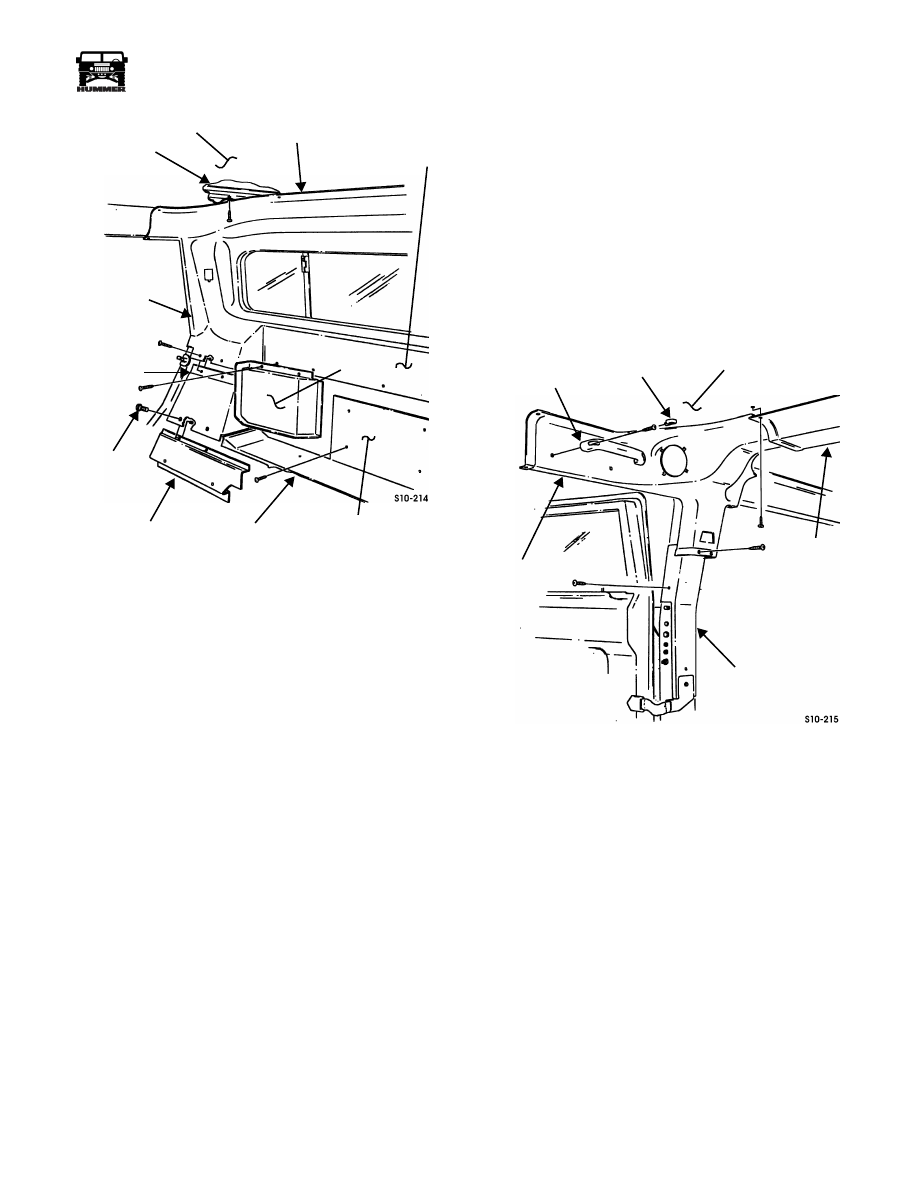

Figure 10-41:   Driver’s Compartment Trim Replacement

Figure 10-42:   A-Pillar and B-Bar Interior Trim Identification

GRAB

COVER

ROOF

B-BAR

 CENTER TRIM

 HANDLE

UPPER

TRIM

A-PILLAR

LOWER

UPPER

CENTER TRIM

B-BAR

A-PILLAR

TRIM

A-PILLAR

 TRIM

B-PILLAR

TRIM

_____________________________________________________________________

 Body  10-29

®

05745159

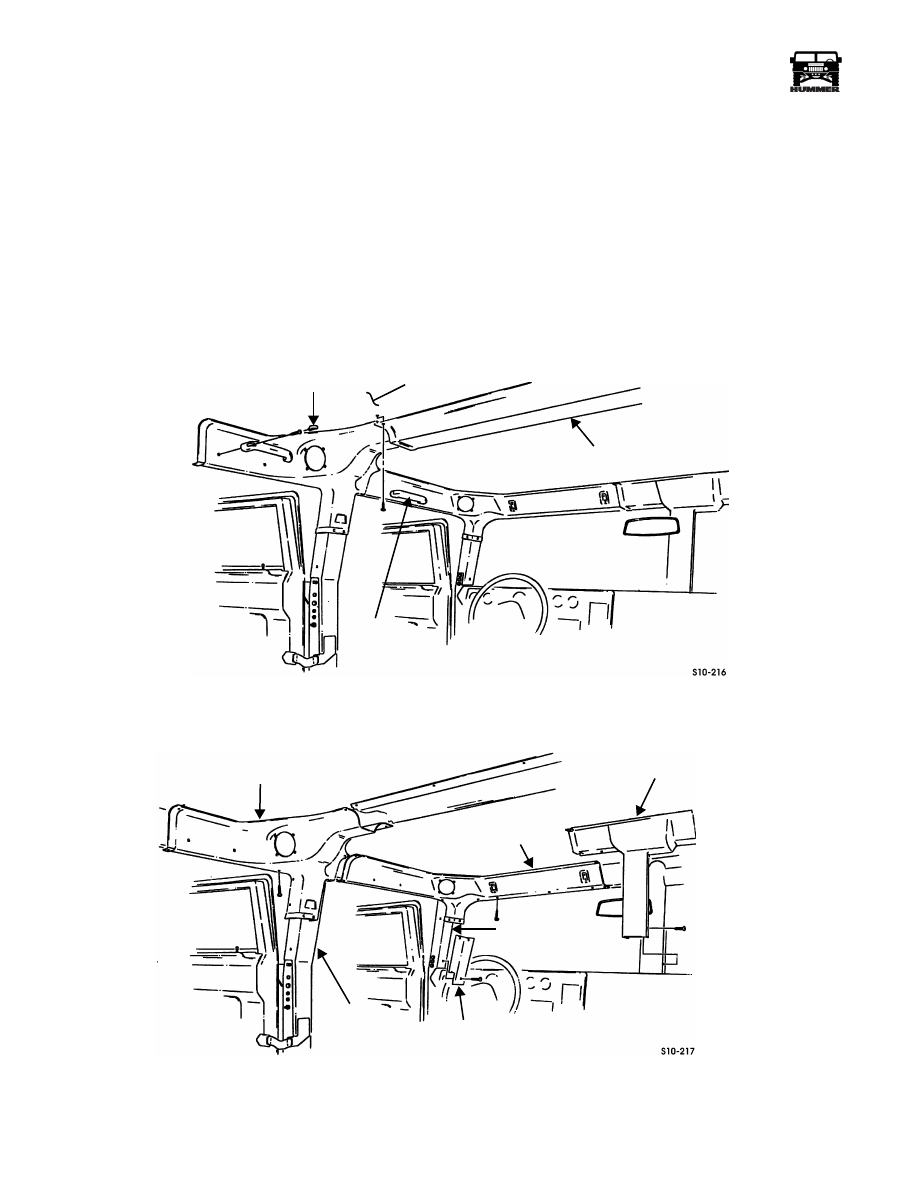

Figure 10-43:    Rear Compartment Wall Location

13. Remove screw/washer assemblies, B-beam trim, and rear

edge trim from B-beam and lower rear compartment wall.

14. Remove domelight.

15. Remove panel fasteners and headliner from roof (Figure 10-44).

Installation

1.

Position headliner on roof and install with panel fasteners
(Figure 10-44).

2.

Install domelight.

NOTE:

Perform steps 3 through 5 for 2-door vehicles without

an enlarged cab.

3.

Secure rear edge trim and B-beam trim to B-beam and rear
compartment wall with screw/washer assemblies
(Figure 10-43).

4.

Secure trim to upper rear compartment wall with screw/
washer assemblies.

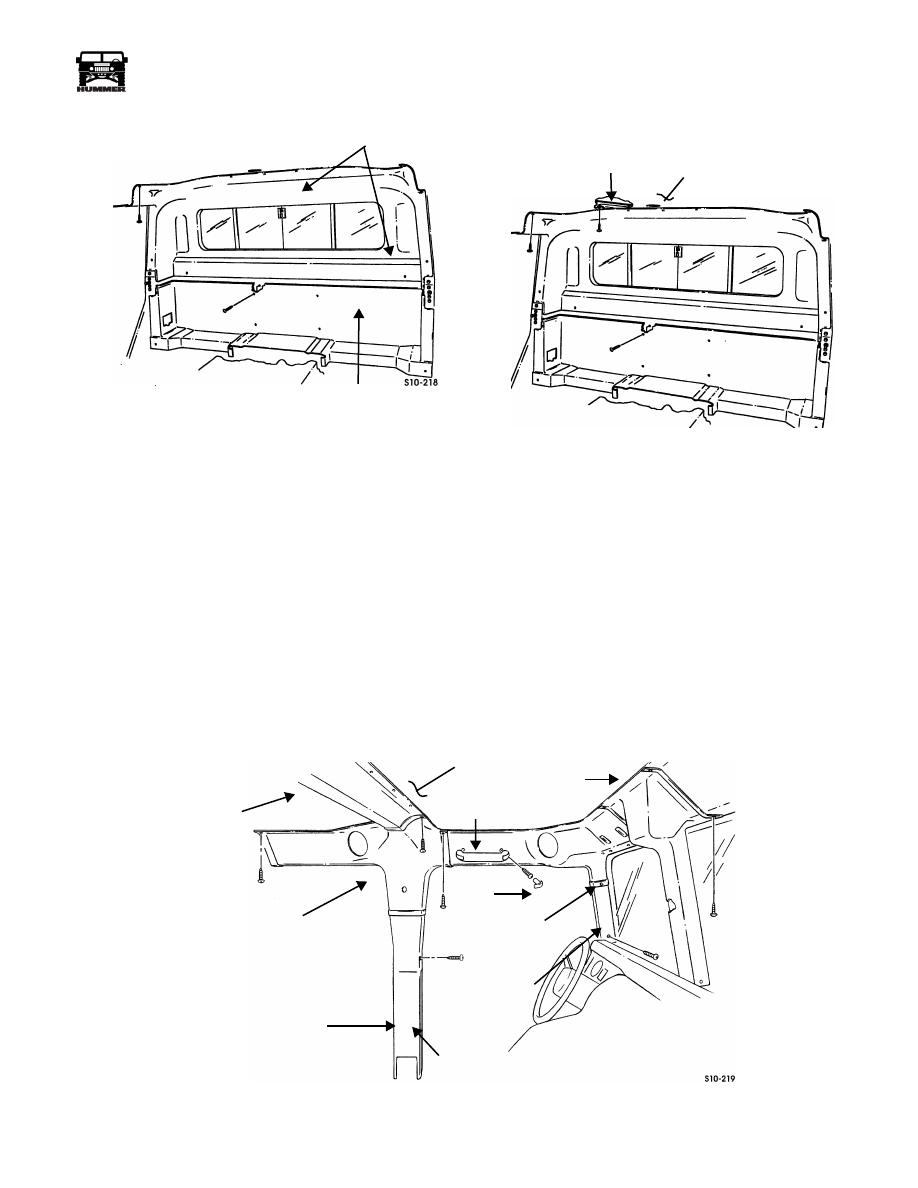

Figure 10-44:   Headliner Positioning

5.

Install seats.

6.

Secure B-pillar trim to B-pillar with washers and screws
(Figure 10-45).

7.

Secure upper B-bar trim to roof with screw/washer
assemblies.

8.

Secure lower A-pillar trim to A-pillar with screw/washer
assembly.

9.

Secure upper A-pillar trim to roof with screw/washer
assemblies (Figure 10-42).

10. Secure center trim to windshield frame and roof with

screw/washer assemblies (Figure 10-45).

11. Secure B-bar center trim to roof with screw/washer

assemblies.

12. Secure grab handle to trim with screws and covers.

Figure 10-45:   A-Pillar and B-Bar Interior Trim Components

 LOWER REAR

COMPARTMENT WALL

UPPER REAR

COMPARTMENT WALL

ROOF

HEADLINER

ROOF

GRAB HANDLE

COVER

A-PILLAR

LOWER

A-PILLAR

CENTER TRIM

B-PILLAR

UPPER
B-BAR

TRIM

B-BAR

CENTER

TRIM

TRIM

B-PILLAR TRIM

10-30

Body

______________________________________________________________________

®

Station Wagon Rear Compartment Trim
Replacement

Removal

1.

Remove rear seats.

2.

Remove bolts, washers, upper seat belt bracket, and seat
belt assembly from C-pillar (Figure 10-46).

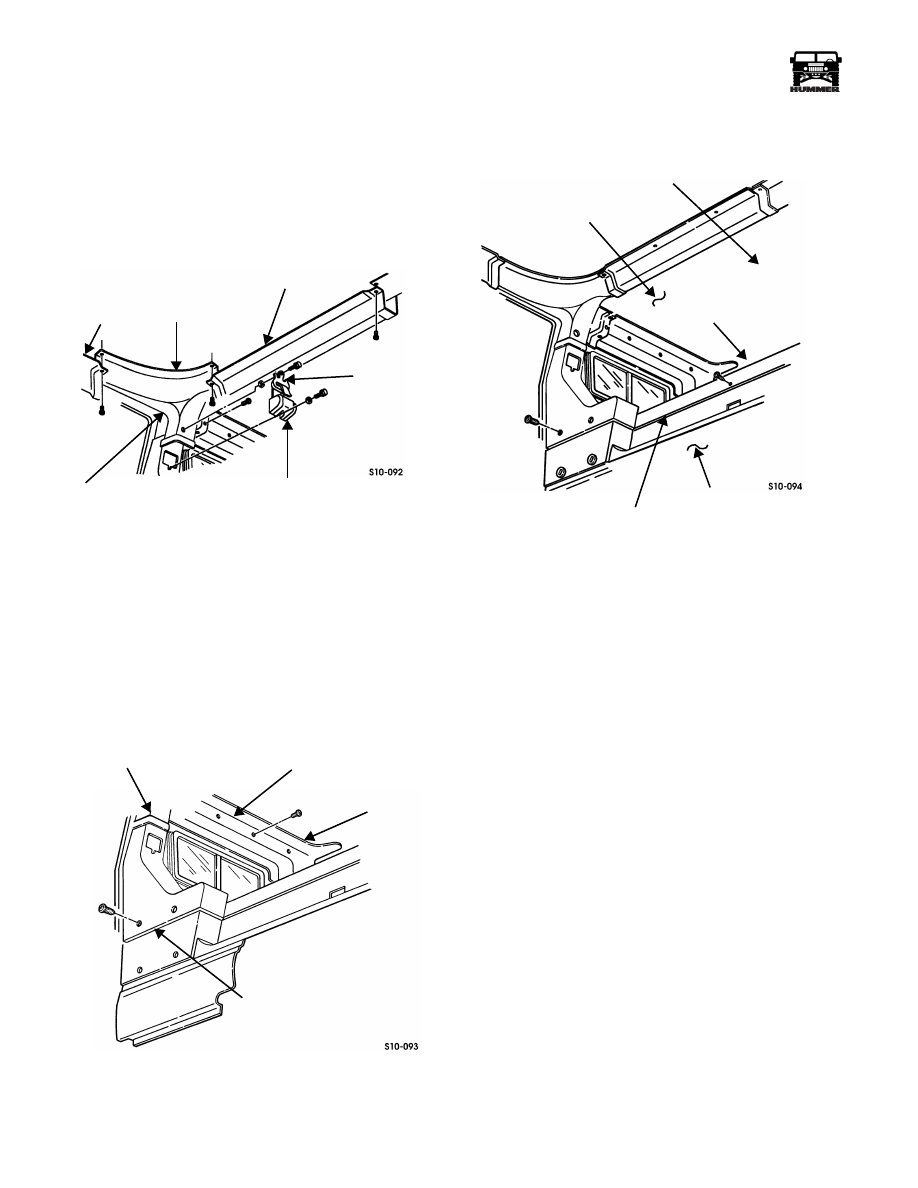

Figure 10-46:   C- and B-Pillar Trim Component Iden-

tification

3.

Remove screw/washer assemblies and center trim from C-
pillar.

4.

Remove screw/washer assemblies from edge of trim on
upper B-pillar trim.

5.

Remove screw/washer assemblies and upper C-pillar trim
from C-pillar.

6.

Remove screw/washer assemblies and trim from station
wagon compartment side wall (Figure 10-47).

Figure 10-47:   C-Pillar Trim Location

7.

Remove screw/washer assemblies and lower C-pillar trim
from C-pillar.

8.

Remove screw/washer assemblies and two trim panels
from lower rear compartment wall (Figure 10-48).

Figure 10-48:   Headliner and Trim Removal

9.

Remove panel fasteners and trim panel from rear
compartment wall.

10. Remove domelight.

11. Remove panel fasteners and rear headliner from roof.

Installation

1.

Secure trim to bottom of rear window.

2.

Secure rear headliner to roof with panel fasteners
(Figure 10-48).

3.

Install domelight.

4.

Secure trim panel to compartment wall with two panel
fasteners.

5.

Secure trim panels to lower rear compartment wall with
screw/washer assemblies.

6.

Secure lower C-pillar trim to lower side of C-pillar with
screw/washer assemblies (Figure 10-49).Secure trim to
upper station wagon compartment side wall with screw/
washer assemblies.

7.

Secure upper C-pillar trim to C-pillar with screw/washer
assemblies.

8.

Secure edge of upper trim on B-pillar with screw/washer
assemblies.

9.

Secure center trim to C-pillar with screw/washer
assemblies.

10. Secure seat belt assembly and bracket to C-pillar with

washers and bolts. Tighten bolts to 35-40 lb-ft (47-55
N•m).

11. Install rear seat.

CENTER TRIM

SEAT BELT

SEAT BELT ASSEMBLY

C-PILLAR

B-PILLAR

BRACKET

UPPER

 TRIM

C-PILLAR

UPPER

 TRIM

C-PILLAR

STATION WAGON

COMPARTMENT

LOWER C-PILLAR TRIM

SIDE WALL

TRIM

HEADLINER

TRIM

LOWER

CENTER TRIM

PANEL FASTENERS

REAR

COMPARTMENT

WALL
