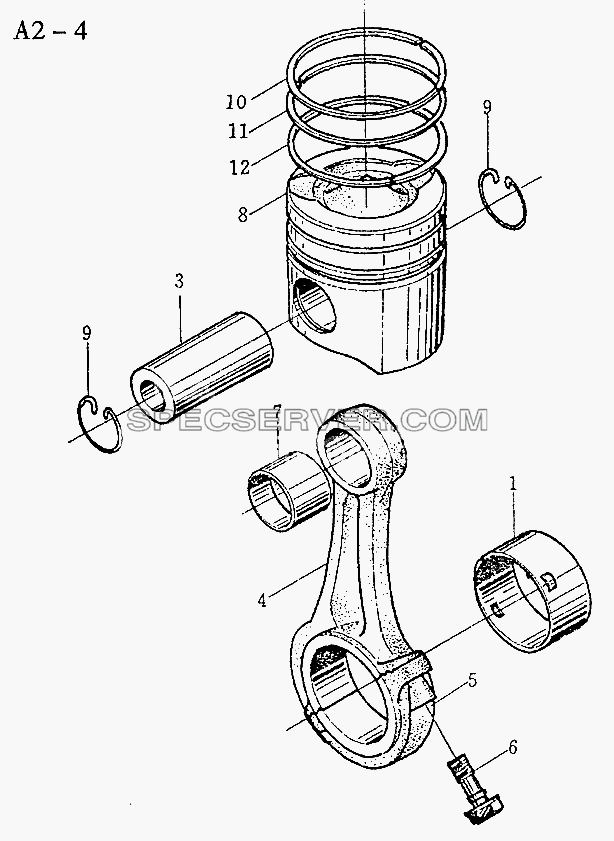

№		Номер детали	Наименование запчасти
1		61800030049 [Sheel pin]	Sheel pin
3		61560030013 [Bolt]	Bolt
4		61800030040 [Connecting rod]	Connecting rod
5		61800030044 [Connecting g cover]	Connecting cover
6		61800030019 [Screw]	Screw
7		61500030018 [Bush]	Bush
8		61800030042 [Piston]	Piston
9		81560030012 [Circlip]	Circlip
10		61560030046 [Double laddering]	Double laddering
11		61560030044 [Conical ring]	Conical ring
12		61560030045 [Spiral spring oil ring]	Spiral spring oil ring

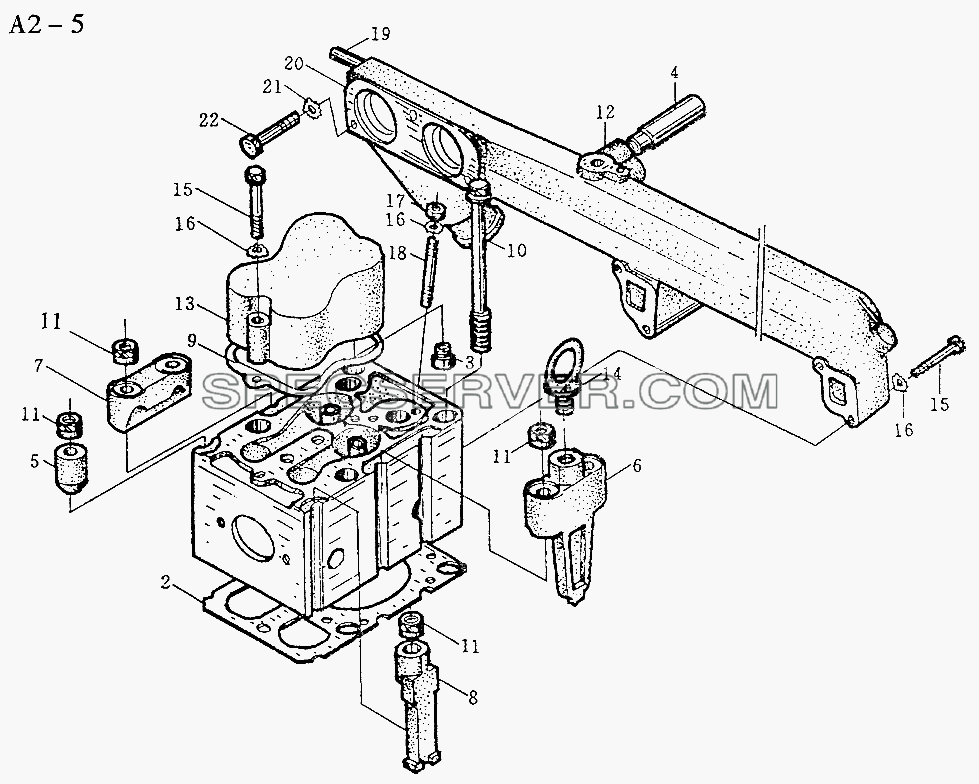

WD618 CYLINDER HEAD (A2-5) для Sinotruck (полного) (список запасных частей)

Таблица запасных частей

№		Номер детали	Наименование запчасти
-		61560040058 [Cylinder head]	Cylinder head
2		61500040049 [Joint]	Joint
3		61560040032 [Scraper]	Scraper
4		61800040076 [Pipe]	Pipe
5		61200040023 [Clip]	Clip
6		61500040012 [Clip]	Clip
7		61500040009 [Clip]	Clip
8		61200040027 [Clip]	Clip
9		61560040039 [Joint]	Joint
10		61500040023 [Screw]	Screw
11		61200040034 [Hut]	Hut
12		61500040102 [Pipe]	Pipe
13		614 040065 [Cover]	Cover
14		614 010388 [Screw]	Screw
15		90003800466 [Screw]	Screw
16		90003932023 [Spring washer]	Spring washer
17		61500010385 [Nut]	Nut
18		90003813471 [Stud]	Stud
19		61000040030 [Pipe]	Pipe
20		61800040075 [Cover]	Cover
21		90003932030 [Spring washer]	Spring washer
22		90003802461 [Screw]	Screw

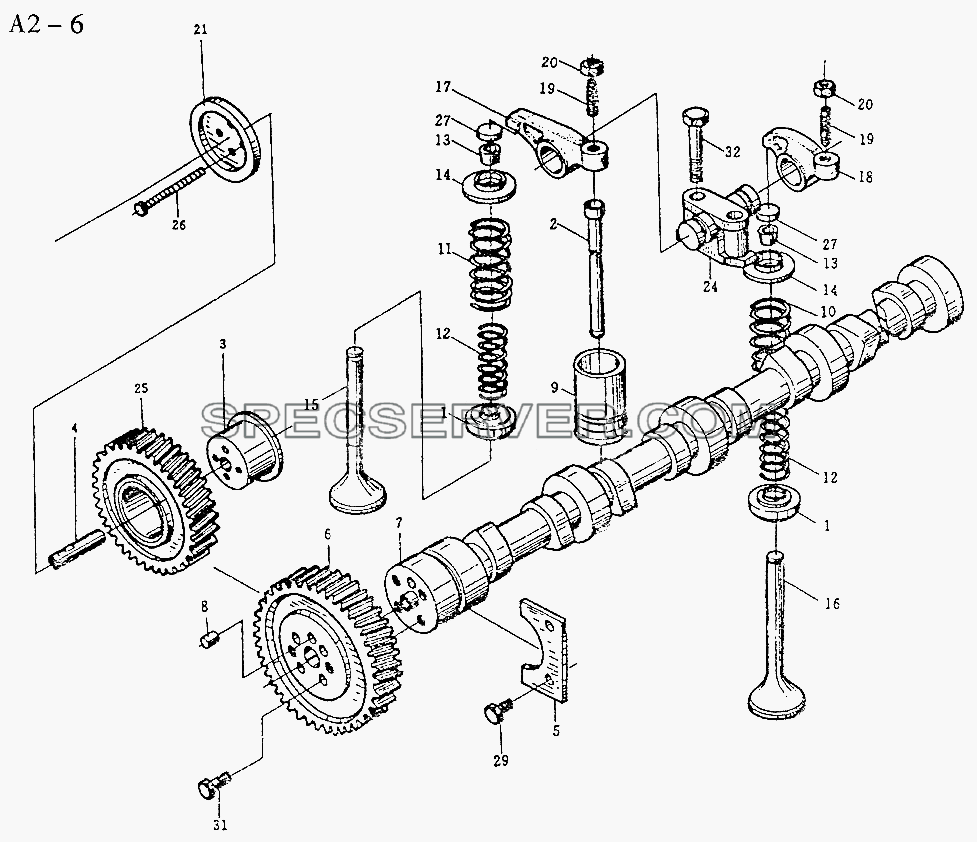

WD618 VALVE DISTRIBUTING MECHANISM (A2-6) для Sinotruck (полного) (список запасных частей)

Таблица запасных частей

№		Номер детали	Наименование запчасти
1		61560050021 [Rotator]	Rotator
2		61800050143 [Push rod]	Push rod
3		61560050044 [Counter shaft]	Counter shaft
4		61560050058 [Counter shaft]	Counter shaft
5		614 050133 [Stop plate]	Stop plate
6		61800050144 [Gear]	Gear
7		61500050096 [Camshaft]	Camshaft
8		90003901409 [Pin]	Pin
9		61500050032 [Push rod]	Push rod
10		61500050002 [Outer valve spring]	Outer valve spring
11		61560050020 [Outer inlet valve spring]	Outer inlet valve spring
12		61560050025 [Inner valve spring]	Inner valve spring
13		61500050025 [Valve cone]	Valve cone
14		61500050109 [Spring base]	Spring base
15		61560050042 [Intake valve]	Intake valve
16		61560050041 [Exhaust valve]	Exhaust valve
17		614 050048 [Rocker arm for intake valve]	Rocker arm for intake valve
18		614 050049 [Rocker arm for exhaust valve]	Rocker arm for exhaust valve
19		614 050010 [Screw]	Screw
20		2130050065 [Nut]	Nut
21		61560050045 [Shim]	Shim
24		61500050108 [Rocker arm support]	Rocker arm support
25		61800050098 [Intermed wheel]	Intermed wheel
26		61560050059 [Screw]	Screw
27		61500050105 [Air valve cap]	Air valve cap
29		90003802411 [Screw]	Screw
31		90003802443 [Screw]	Screw
32		90003802655 [Screw]	Screw

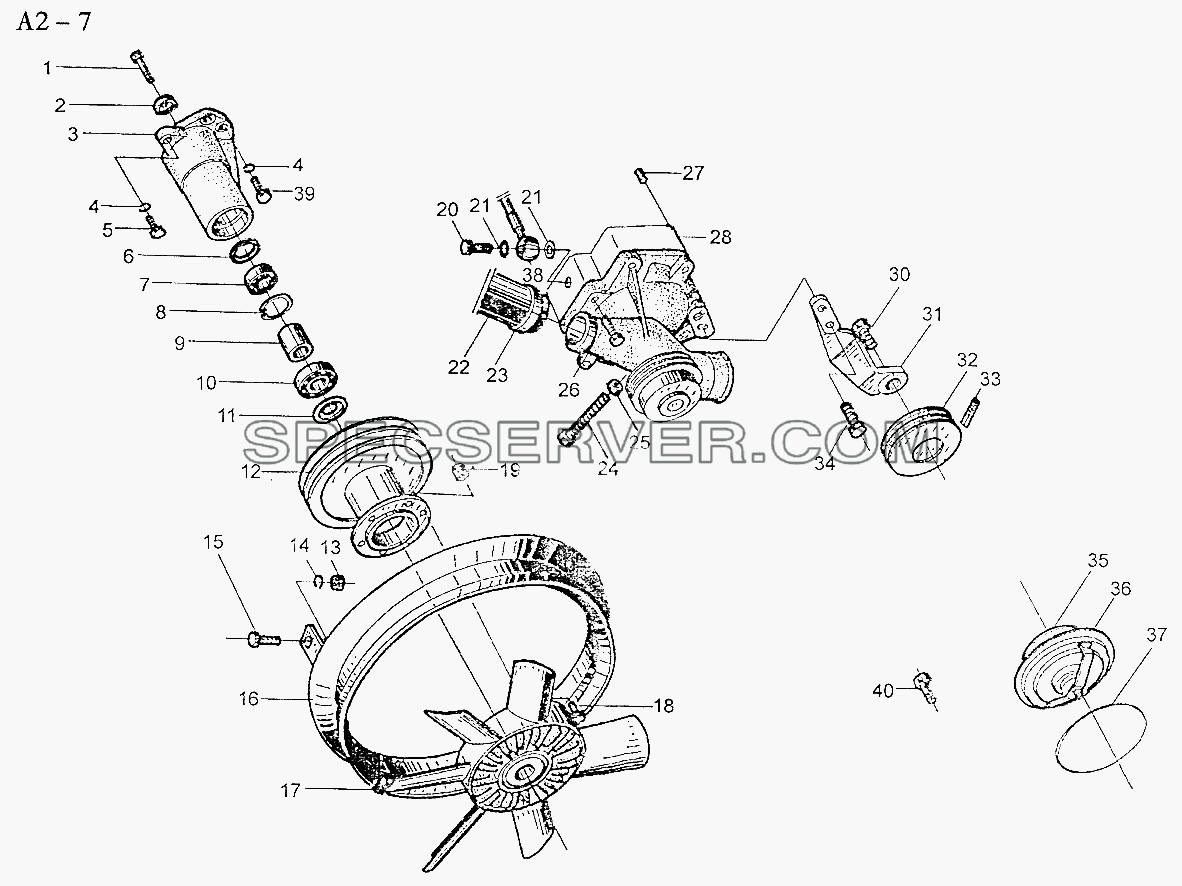

WD618 COOLING SYSTEM (A2-7) для Sinotruck (полного) (список запасных частей)

Таблица запасных частей

№		Номер детали	Наименование запчасти
1		90003802549 [Screw]	Screw
2		81500060188 [Pressure block]	Pressure block
3		61800061025 [Fan support]	Fan support
4		90003932025 [Spring washer]	Spring washer
5		90003802542 [Screw]	Screw
6		81500060035 [Protecting sheet]	Protecting sheet
7		90003310016 [Bearing]	Bearing
8		90003934260 [Circlip]	Circlip
9		61500060151 [Spacer]	Spacer
10		90003820056 [Cyl roller bear]	Cyl roller bear
11		61500060030 [Protecting sheet]	Protecting sheet
12		61800061039 [Belt pulley]	Belt pulley
13		90003871250 [Nut]	Nut
14		90003932030 [Spring washer]	Spring washer
15		90003802419 [Screw]	Screw
16		61800060161 [Ring]	Ring
17		81500060300 [Visw hub]	Visw hub
18		90003802424 [Screw]	Screw
19		90003888451 [Nut]	Nut
20		90003962607 [Hollow screw]	Hollow screw
21		90003098010 [Gasket]	Gasket
22		61800060157 [Hose]	Hose
23		90003989308 [Clamp]	Clamp
24		90003802578 [Screw]	Screw
25		90003871305 [Nut]	Nut
26		206012833126 [Screw]	Screw
27		90003901409 [Pin]	Pin
28		61800061003 [Water pump]	Water pump
30		90003802836 [Screw]	Screw
31		61800061011 [Lashing]	Lashing
32		61560060069 [Roll C]	Roll C
33		AZ1500090065 [V-belt]	V-belt
34		90003860059 [Screw]	Screw
35		61800040079 [Joint]	Joint
36		61800060172 [Thermostate]	Thermostate
36		61800060172B [Thermostate 71C]	Thermostate 71C
37		680340065 [Gasket]	Gasket
38		61560070012 [Oil inlet pipe]	Oil inlet pipe
39		90003802538 [Screw]	Screw
40		90003802672 [Screw]	Screw

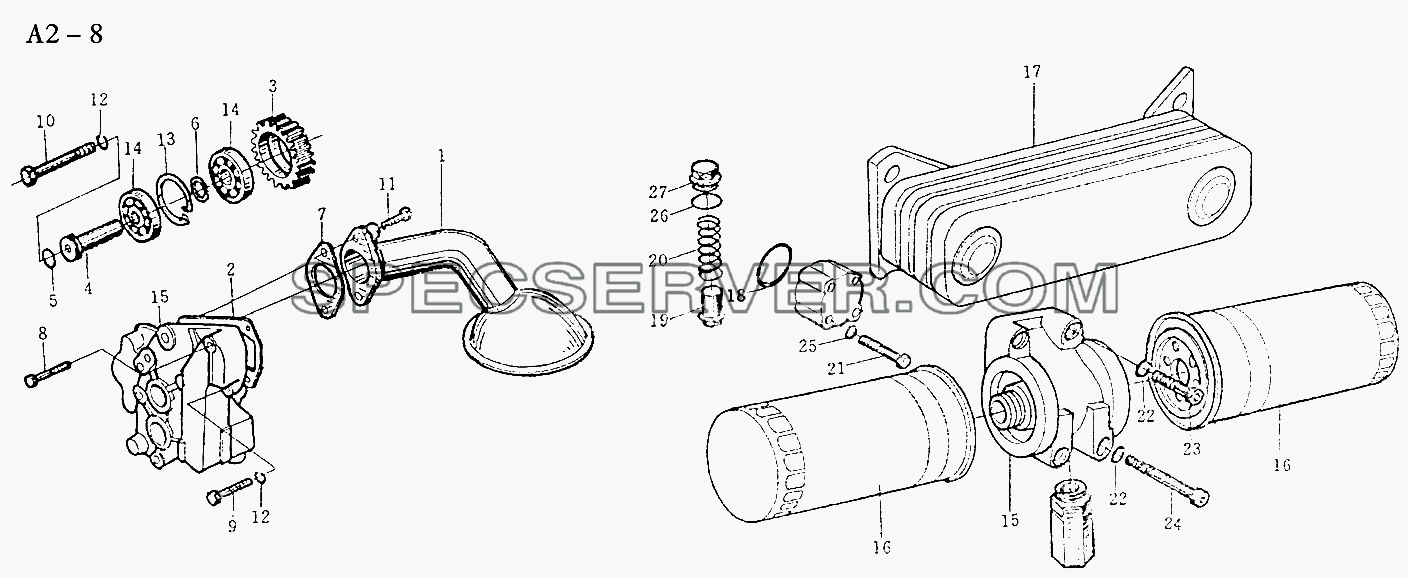

WD618 OIL PUMP AND OIL FILTER (A2-8) для Sinotruck (полного) (список запасных частей)

Таблица запасных частей

№		Номер детали	Наименование запчасти
1		61800070051 [Suction pipe]	Suction pipe
2		614 070055 [Gasket]	Gasket
3		61800070024 [Idler gear]	Idler gear
4		614 070056 [Visw hub]	Visw hub
5		614 070155 [Thermostate]	Thermostate
6		614 070049 [Thermostate]	Thermostate
7		614 070078 [Roll C]	Roll C
8		90003800551 [Screw]	Screw
9		90003802527 [Screw]	Screw
10		90003802578 [Screw]	Screw
11		90003802523 [Screw]	Screw
12		90003931122 [Washer]	Washer
13		90003934732 [Circlip]	Circlip
14		90003311410 [Ball bearing]	Ball bearing
15		61800070028 [Hose]	Hose
16		6100007005 [Filter]	Filter
17		61800010113 [Oil radiator]	Oil radiator
18		81400010032 [Screw]	Screw
19		614 070069 [Safety valve]	Safety valve
20		614 070068 [Valve spring]	Valve spring
21		90003862419 [Screw]	Screw
22		90003932023 [Spring washer]	Spring washer
23		90003862443 [Screw]	Screw
24		90003862482 [Screw]	Screw
25		9000309 086 [Gasket]	Gasket
26		90003962051 [Screw]	Screw

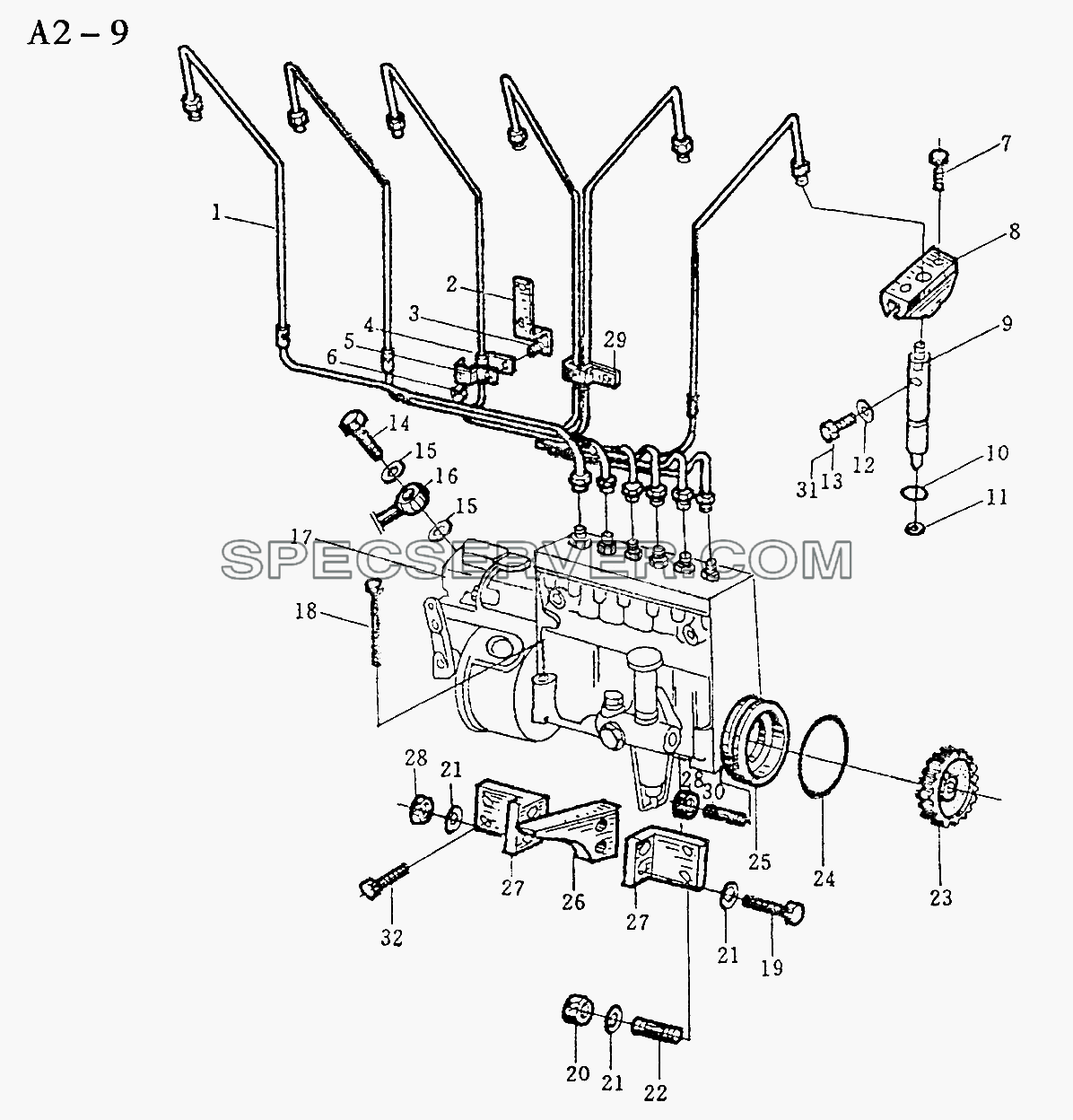

WD618 INJECTION PUMP, INJECTION LINES (A2-9) для Sinotruck (полного) (список запасных частей)

Таблица запасных частей

№		Номер детали	Наименование запчасти
-		61560080272-1 [Nozzle]	Nozzle
-		61800080048-1 [Feul feed pump]	Feul feed pump
-		61800080054-1 [1st cyl. injection pipe]	1st cyl. injection pipe
-		61800080054-2 [2nd cyl. injection pipe]	2nd cyl. injection pipe
-		61800080054-3 [3rd cyl. injection pipe]	3rd cyl. injection pipe
-		61800080054-4 [4th cyl. injection pipe]	4th cyl. injection pipe
-		61800080054-5 [5th cyl. injection pipe]	5th cyl. injection pipe
-		61800080054-6 [6th cyl. injection pipe]	6th cyl. injection pipe
1		61800080054 [Injection pipe set]	Injection pipe set
2		61560080172 [Support plate]	Support plate
3		206012832910 [Screw]	Screw
4		614 080060 [Clamp]	Clamp
5		614 080060 [Clamp]	Clamp
6		90003871232 [Nut]	Nut
7		90003802455 [Screw]	Screw
8		61500080094A [Plate]	Plate
9		61560080272 [Nozzle holder]	Nozzle holder
10		609 070080 [Joint]	Joint
11		614 080082 [Washer]	Washer
12		90003090005 [Joint]	Joint
13		61500080170 [Hollow screw]	Hollow screw
14		90003962612 [Hollow screw]	Hollow screw
15		90003098012 [Joint]	Joint
16		61800080064 [Pipe]	Pipe
17		61800080048 [Injection pump]	Injection pump
18		90003800323 [Screw]	Screw
19		206012890098 [Screw]	Screw
20		90003888452 [Hexagon nut]	Hexagon nut
21		90003930271 [Washer]	Washer
22		90003813537 [Stud]	Stud
23		61800080034 [Gear]	Gear
24		90003120088 [Screw]	Screw
25		61800080015 [Spacer]	Spacer
26		61800080039 [Bracket]	Bracket
27		61800080040 [Angle]	Angle
28		90003871305 [Nut]	Nut
29		61560080174 [Clamp]	Clamp
30		90003813527 [Stud]	Stud
31		61500080169 [Hollow Screw]	Hollow Screw
32		90003802523 [Screw]	Screw
