№		Номер детали	Наименование запчасти
-		614080739 [Fine filter element]	Fine filter element
-		614080740 [Frefilter element]	Frefilter element
33		90003098010 [Casket]	Casket
34		61500070011 [Oil inlet pipe]	Oil inlet pipe
35		90003962607 [Hollow screw]	Hollow screw
37		61800080176 [Oil outlet pipe]	Oil outlet pipe
38		90003802627 [Screw]	Screw
39		61800080041 [Bracket]	Bracket
40		90003802519 [Screw]	Screw
41		90003559844 [Plug]	Plug
42		90003962607 [Hollow screw]	Hollow screw
43		61800080061 [Hose]	Hose
44		90003098015 [Gasket]	Gasket
45		206783400106 [Hollow screw]	Hollow screw
46		614080295 [Fuel filter C]	Fuel filter C
47		61800080061 [Hose]	Hose

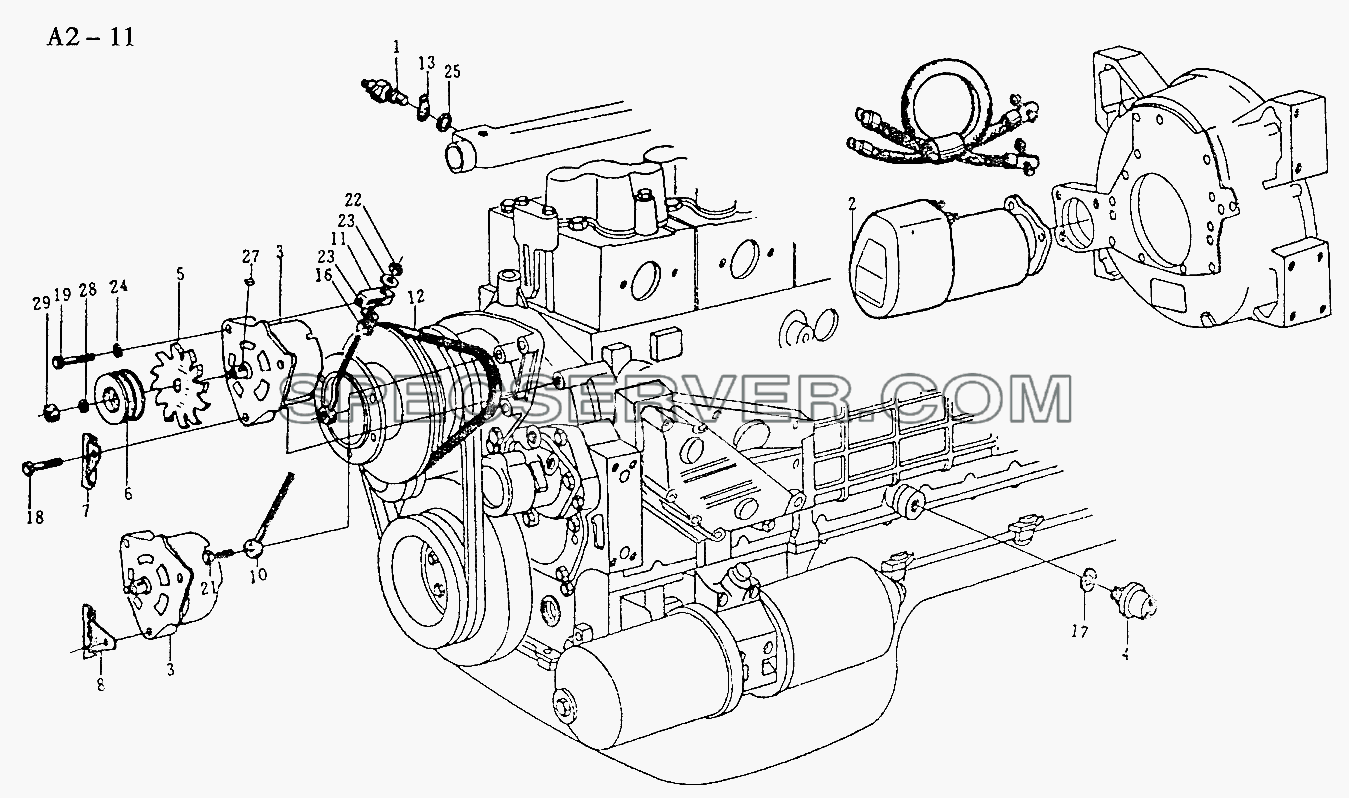

WD618 ELECTRICAL IMPLEMENTS (A2-11) для Sinotruck (полного) (список запасных частей)

Таблица запасных частей

№		Номер детали	Наименование запчасти
1		614 090067 [Water temperature sensor]	Water temperature sensor
2		61500090029 [Starter]	Starter
3		61200090043 [Altemater]	Altemater
4		61500090051 [Oil pressure sensor]	Oil pressure sensor
5		614 090058 [Wheel]	Wheel
6		61500090004 [Belt pulley]	Belt pulley
7		61800090021 [Sheet]	Sheet
10		61200060184 [Screw]	Screw
11		61500090024 [Distance piece]	Distance piece
12		61800090022 [V-belt]	V-belt
13		614 090050 [Connecting terminal]	Connecting terminal
16		90003888452 [Nut]	Nut
17		90003098020 [Sealing ring]	Sealing ring
18		90003800571 [Screw]	Screw
19		90003800564 [Screw]	Screw
21		90003802523 [Screw]	Screw
22		90003871305 [Nut]	Nut
23		90003935125 [Gasket]	Gasket
24		90003932025 [Spring washer]	Spring washer
25		90003098014 [Gasket]	Gasket
27		900 023006 [Key]	Кеу
28		916 690010 [Spring washer]	Spring washer
29		915 041004 [Nut]	Nut

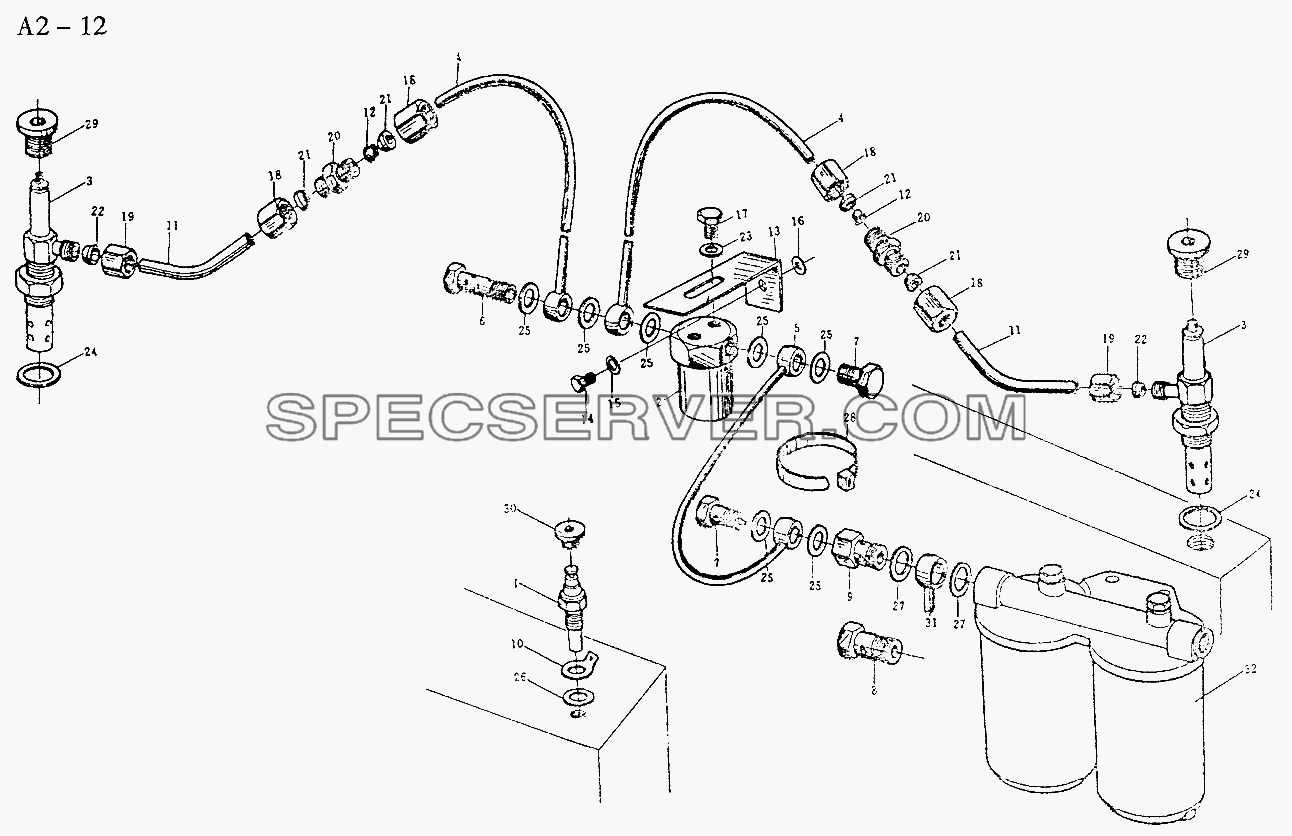

WD618 FLAME STARTING SYSTEM (A2-12) для Sinotruck (полного) (список запасных частей)

Таблица запасных частей

№		Номер детали	Наименование запчасти
1		AZ1500090132 [Temperature sensor]	Temperature sensor
2		61200090163 [Solenoid valve]	Solenoid valve
3		61200090162 [Flamespark plug]	Flamespark plug
4		61560080154 [Fuel pipe]	Fuel pipe
5		61200080159 [Fuel pipe]	Fuel pipe
6		81560080212 [Hollow screw]	Hollow screw
7		90003962607 [Hollow screw]	Hollow screw
8		90003962621 [Hollow screw]	Hollow screw
9		609E110070 [Connection screw]	Connection screw
10		79000770116 [Blade terminal]	Blade terminal
11		81560080327 [Pipe]	Pipe
12		99014280016 [Bush]	Bush
13		99012360441 [Angle]	Angle
14		90003802415 [Screw]	Screw
15		90003932023 [Spring washer]	Spring washer
16		90003930261 [Washer]	Washer
17		90003802307 [Hex head screw]	Hex head screw
18		90003559516 [Union nut]	Union nut
19		90030559506 [Union nut]	Union nut
20		90003559462 [Adaptor]	Adaptor
21		90003559561 [Taper bush]	Taper bush
22		90003559557 [Taper bush]	Taper bush
23		90003931082 [Spring washer]	Spring washer
24		90003098029 [Gasket]	Gasket
25		90003098010 [Gasket]	Gasket
26		90003098010 [Gasket]	Gasket
27		90003098015 [Gasket]	Gasket
28		90003171697 [Wire fastener]	Wire fastener
29		90003960005 [Thead pvug]	Thead pvug
30		90003962014 [Hek head screw]	Hek head screw
31		61800080062 [Hose]	Hose
32		614 080295 [Feul filter]	Feul filter

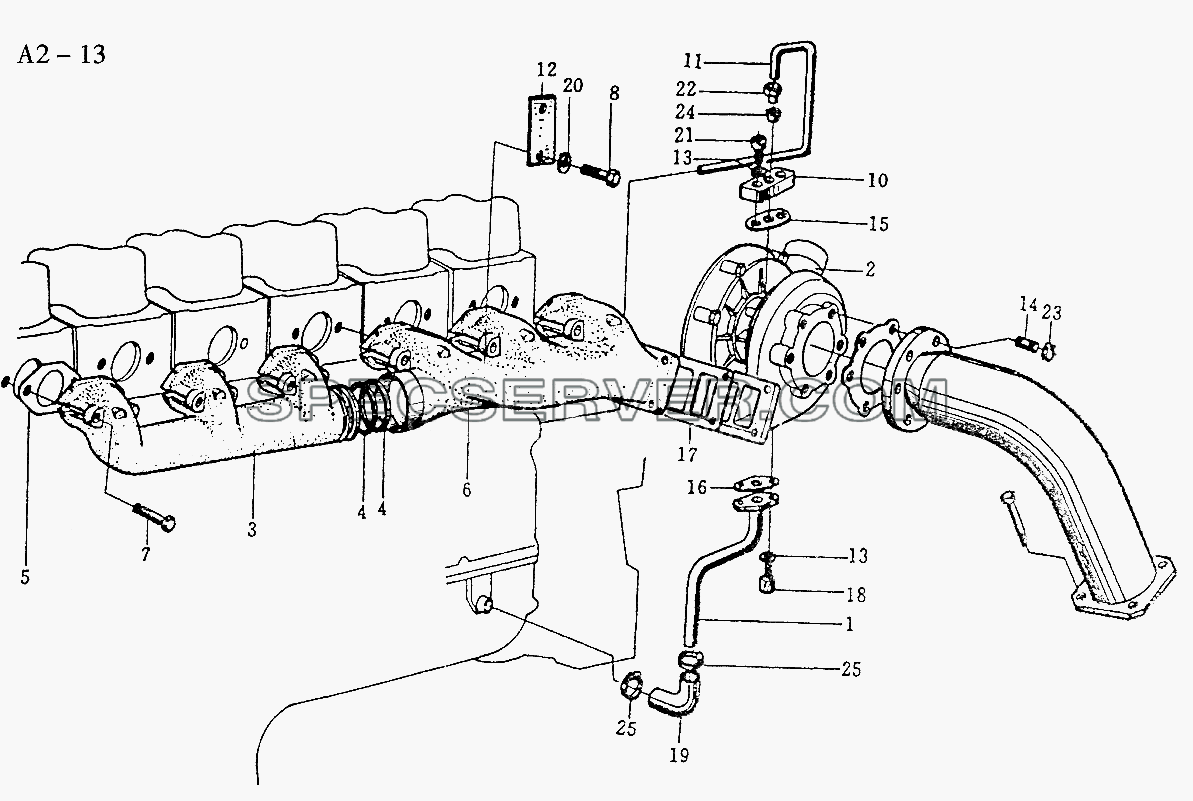

WD618 EXHAUST MANIFOLD (A2-13) для Sinotruck (полного) (список запасных частей)

Таблица запасных частей

№		Номер детали	Наименование запчасти
1		61800110043 [Oil pipe]	Oil pipe
2		61800110044 [Turbochager]	Turbochager
3		61560110120 [Exhause manifold front]	Exhause manifold front
4		61260110162 [Set of discs]	Set of discs
5		61560110242 [Joint]	Joint
6		61560110222 [Exhaust manifold rear]	Exhaust manifold rear
7		61560110104 [Screw]	Screw
8		61560110105 [Screw]	Screw
10		81560110152 [Joint]	Joint
11		61800110041 [Oil inlet pipe]	Oil inlet pipe
12		99974200 [Plate]	Plate
13		188250083 [Washer]	Washer
14		81560110187 [Stud]	Stud
15		619E110050 [Joint]	Joint
16		61260110048 [Joint]	Joint
17		61560110210 [Joint]	Joint
18		61460070014 [Screw]	Screw
19		61560110225 [Hose]	Hose
20		609 070067 [Flat washer]	Flat washer
21		90003862428 [Screw]	Screw
22		90003559513 [Nut]	Nut
23		90003888470 [Nut]	Nut
24		90003559563 [Taper bush]	Taper bush
25		90003989340 [Clamp]	Clamp

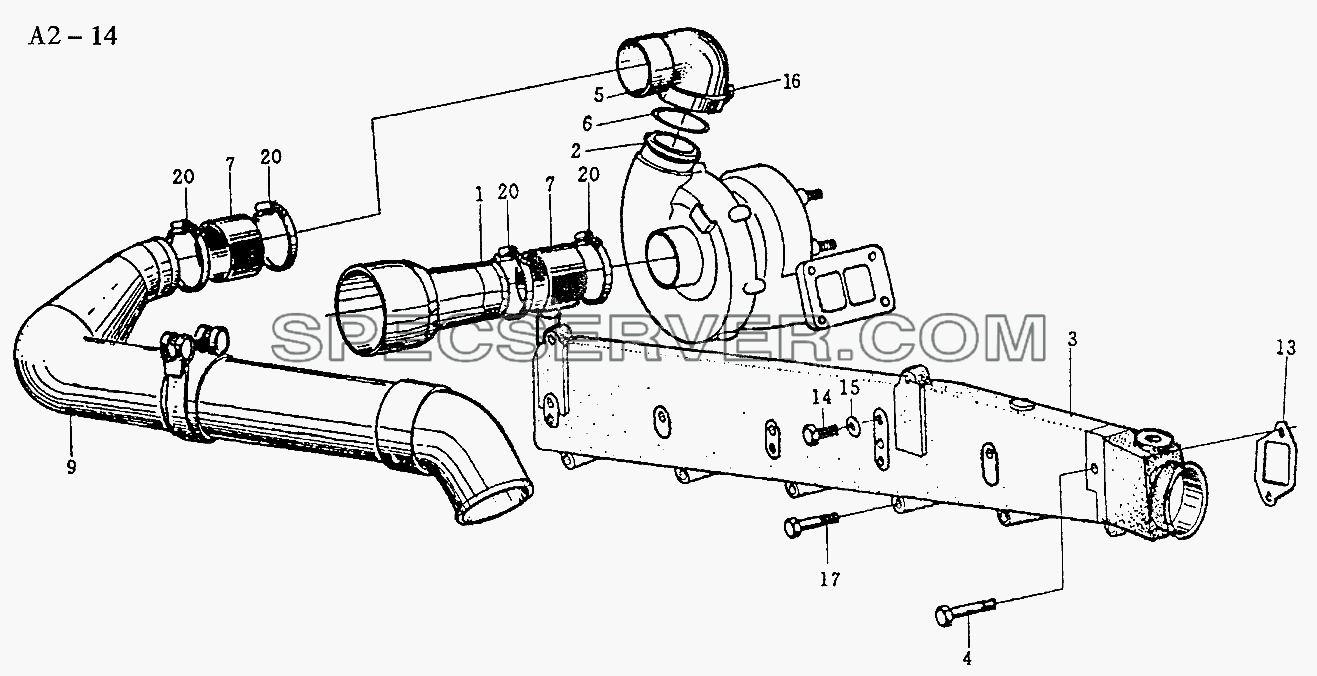

WD618 AIR INTAKE MANIFOLD (A2-14) для Sinotruck (полного) (список запасных частей)

Таблица запасных частей

№		Номер детали	Наименование запчасти
-		90003800497 [Screw]	Screw
1		61260110505 [Funnel]	Funnel
2		61800110044 [Turbochager]	Turbochager
3		61500110155 [Air intake manifold]	Air intake manifold
4		614 110064 [Screw]	Screw
5		61800110045 [Connector pipe]	Connector pipe
6		190 320035 [Gasket]	Gasket
7		81560110220 [Hose]	Hose
9		612600110001 [Pipe]	Pipe
13		61500110024 [Joint]	Joint
14		90003962014 [Screw plug]	Screw plug
15		90003098010 [Sealing ring]	Sealing ring
16		61560110226 [Clip]	Clip
17		90003800465 [Screw]	Screw
20		90003989318 [Clamp]	Clamp

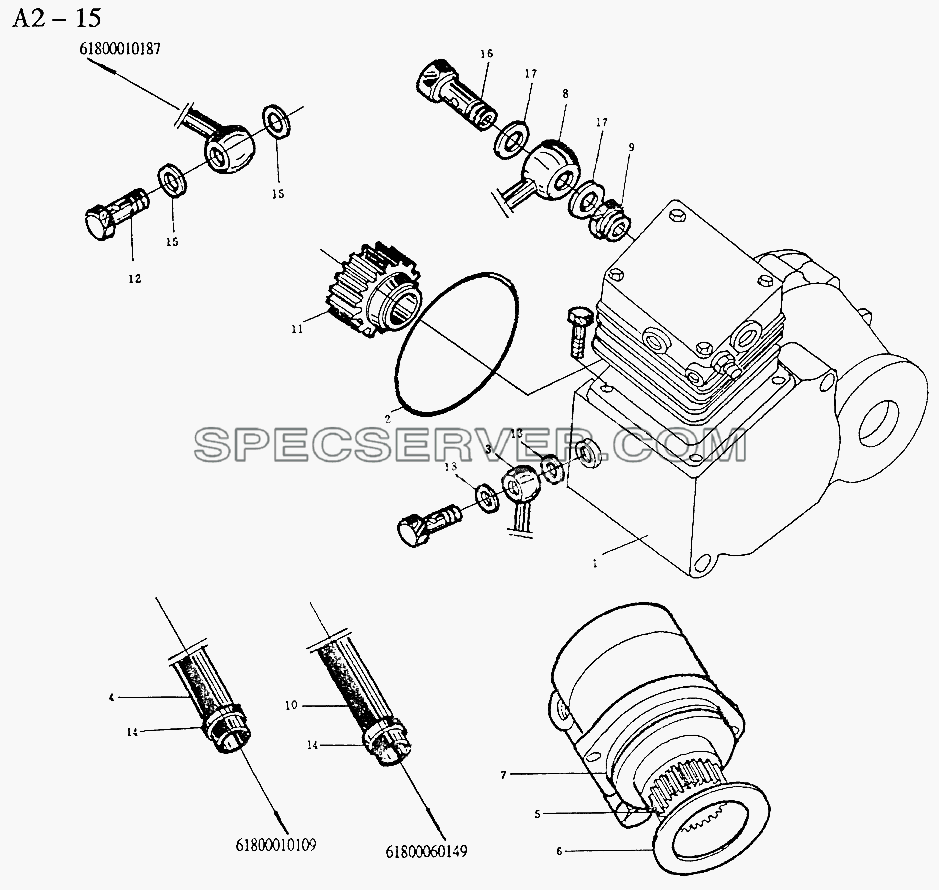

WD618 AIR COMPRESSOR (A2-15) для Sinotruck (полного) (список запасных частей)

Таблица запасных частей

№		Номер детали	Наименование запчасти
1		61800130043 [Air compressor]	Air compressor
2		30800010003 [Gasket]	Gasket
3		61800130044 [Oil pipe]	Oil pipe
4		612600130013 [Hose]	Hose
5		61800130010 [Gear for hydraulic pump]	Gear for hydraulic pump
6		61800130047 [Joint]	Joint
7		61800130034 [Hydraulic pupm]	Hydraulic pupm
8		99100270120 [Connector]	Connector
9		99100360161 [Connector]	Connector
10		612600130014 [Hose]	Hose
11		61800130046 [Gear]	Gear
12		90003962607 [Hollow screw]	Hollow screw
13		90003098010 [Joint]	Joint
14		90003989300 [Clamp]	Clamp
15		90003098026 [Gasket]	Gasket
16		90003962627 [Hollow screw]	Hollow screw
17		90003098016 [Joint]	Joint
