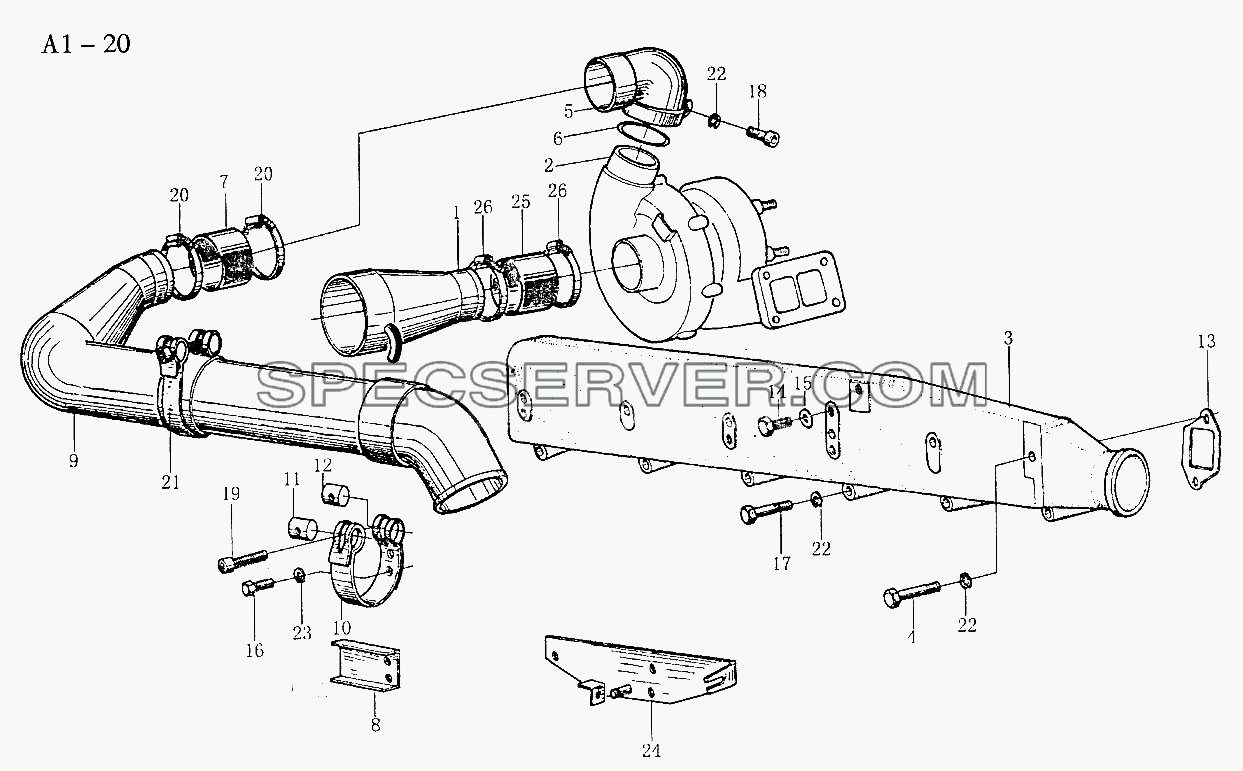

№		Номер детали	Наименование запчасти
-		61560110226 [Ciip]	Ciip
-		90003800497 [Screw]	Screw
-		90003802411 [Screw]	Screw
-		90003989318 [Clamp]	Clamp
1		612600110505 [Funnel]	Funnel
2		615600116227 [Turbochager]	Turbochager
3		61560110131 [Airintake manifold]	Airintake manifold
4		614 110064 [Ltexagon bolt]	Hexagon bolt
5		61560110165 [Connecting pipe]	Connecting pipe
6		190 320035 [Glip]	Clip
7		612600110824 [Hose]	Hose
8		61560110072 [Lashing]	Lashing
9		61560110051 [Pipe]	Pipe
10		61560110021 [Strap]	Strap
11		209 190017 [Bolt]	Bolt
12		1700550013 [Bolt]	Bolt
13		61500110024 [Joint]	Joint
14		90003962014 [Hex.head screw plug]	Hex.head screw plug
15		90003098010 [Sealing ring]	Sealing ring
16		90003802415 [Screw]	Screw
17		90003800465 [Screw]	Screw
18		90003862443 [Screw]	Screw
19		90003862462 [Screw]	Screw
20		90003989312 [Clamp]	Clamp
21		90003862456 [Screw]	Screw
22		90003932023 [Spring washer]	Spring washer
23		609E110036 [Washer]	Washer
24		99100570015 [Bracket]	Bracket
25		81560110220 [Hose]	Hose
26		90003989312 [Clamp]	Clamp

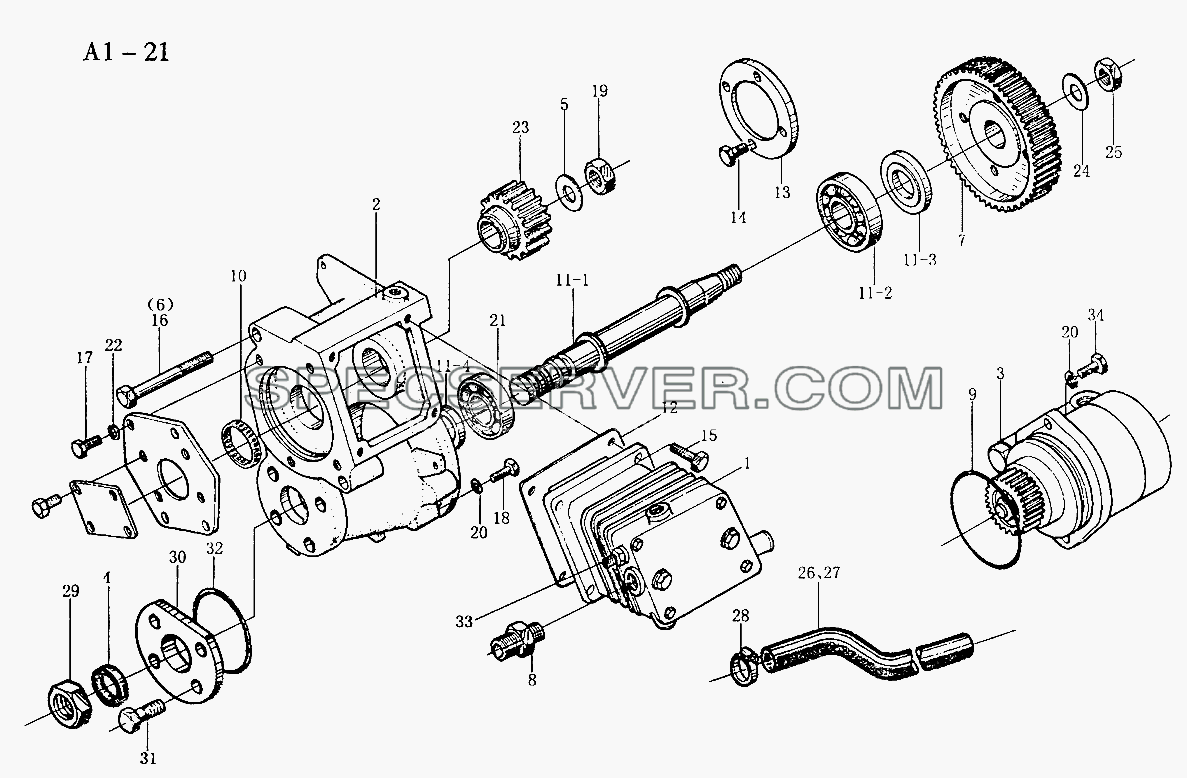

WD615 AIR COMPRESSOR (A1-21) для Sinotruck (полного) (список запасных частей)

Таблица запасных частей

№		Номер детали	Наименование запчасти
-		612600130047 [Bush]	Bush
-		612600130048 [Shaft]	Shaft
-		61500080158 [Bearing]	Bearing
-		90003320154 [Rolling bearing]	Rolling bearing
1		AZ1560130070 [Air compressor]	Air compressor
2		AZ1560130063 [Housing]	Housing
4		90003070092 [Oil seal]	Oil seal
5		609 070161 [Flat washer shaft]	Flat washer shaft
6		90003802561 [Hex head bolt]	Hex head bolt
7		AZ1560130064 [Gear]	Gear
11		61500080167 [Shaft C]	Shaft C
12		61500130080 [Gasket]	Gasket
13		61500080165 [Cover]	Cover
14		90003802432 [Hex head bolt]	Hex head bolt
15		90003802438 [Hex head bolt]	Hex head bolt
16		90003800569 [Hex head bolt]	Hex head bolt
17		90003802411 [Hex head bolt]	Hex head bolt
18		90003802419 [Hexagon bolt]	Hexagon bolt
19		612600130001 [Hex head nut]	Hex head nut
20		90003932023 [Curved or wave]	Curved or wave
21		61500080130 [Pack ring]	Pack ring
22		90003930261 [Washer]	Washer
23		61560130012 [Gear]	Gear
24		409020045 [Joint]	Joint
25		612600130001 [Hex head nut]	Hex head nut
26		612600130046 [Lock nut]	Lock nut
27		61500130097 [Oil seal seat]	Oil seal seat
28		90003802415 [Hex head bolt]	Hex head bolt
29		192320002 [Gasket]	Gasket
30		612600130073 [Plate]	Plate

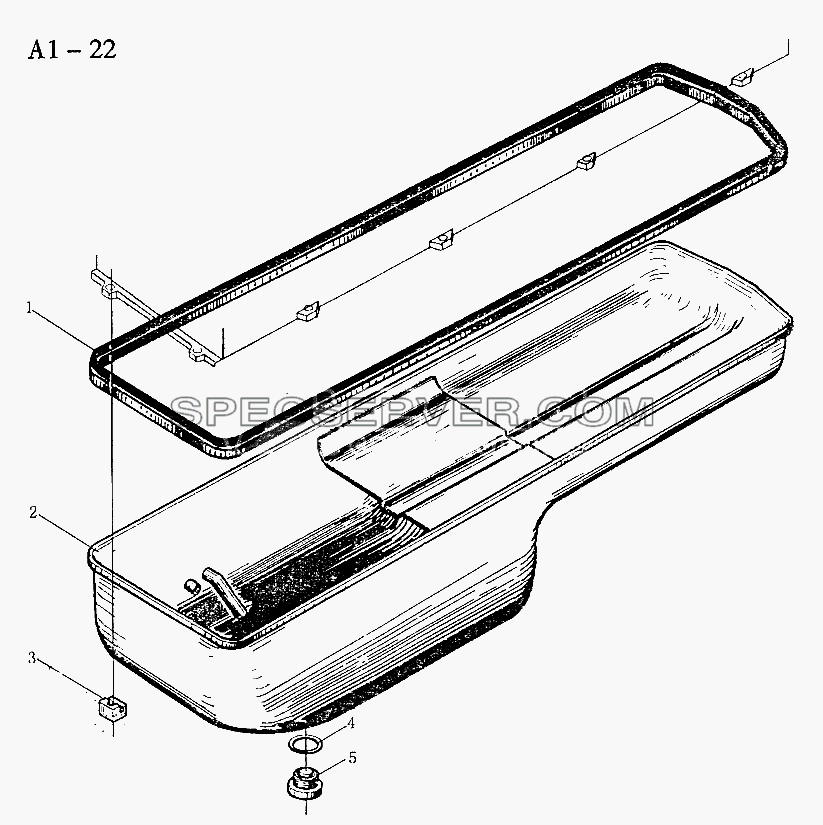

WD615 OIL PAN (A1-22) для Sinotruck (полного) (список запасных частей)

Таблица запасных частей

№		Номер детали	Наименование запчасти
1		614 150004 [Seal]	Seal
2		61200150104 [Oil pan]	Oil pan
2		61800150015 [Oil pan]	Oil pan
3		614 150046 [Retainer]	Retainer
4		90003930261 [Washer]	Washer
5		90003802442 [Hex.head screw]	Hex.head screw
6		612600150106 [Gasket]	Gasket
7		612600150108 [Thread plug]	Thread plug

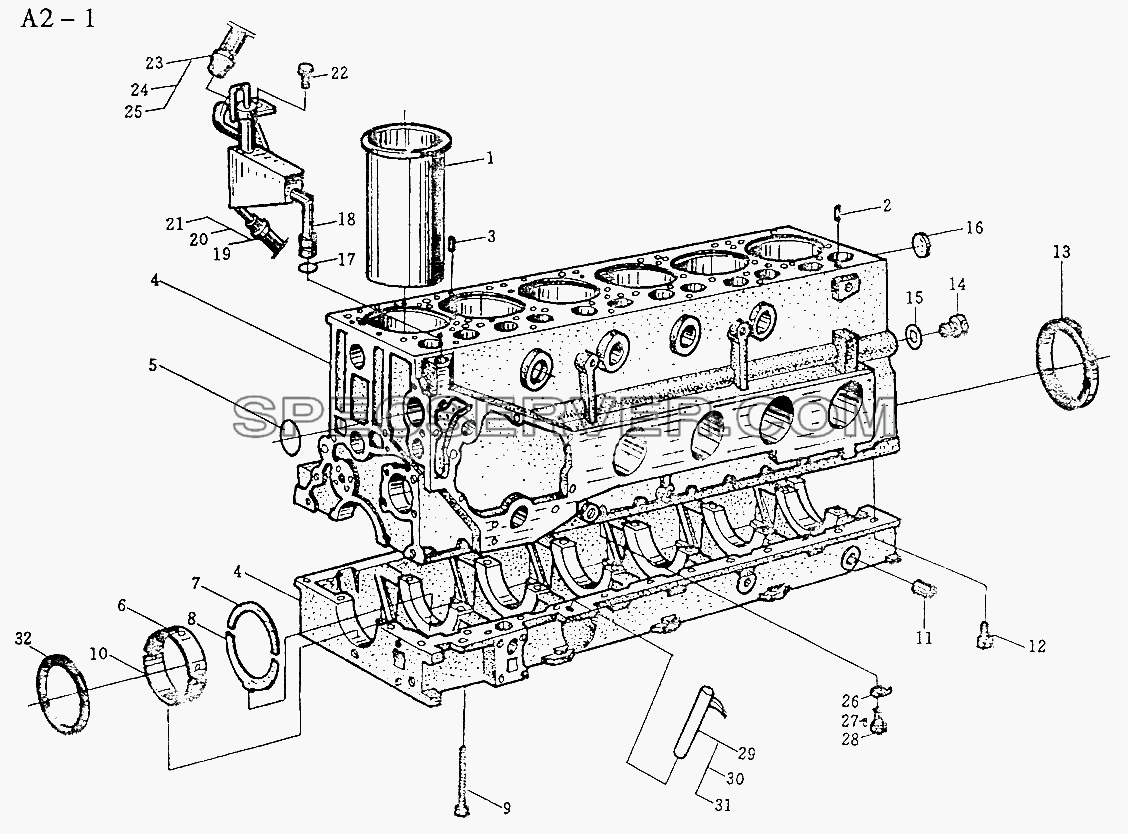

WD618 CRANK CASE (A2-1) для Sinotruck (полного) (список запасных частей)

Таблица запасных частей

№		Номер детали	Наименование запчасти
1		61800010125 [Liner]	Liner
2		90003901604 [Dowel pin]	Dowel pin
3		90003909626 [Dower pin]	Dower pin
4		61800010109 [Crank case]	Crank case
5		61000010314 [Gasket]	Gasket
6		61800010128 [Shell]	Shell
7		61800010127 [Stop washer]	Stop washer
8		61800010130 [Stop washer]	Stop washer
9		90003802493 [Screw]	Screw
10		61800010132 [Shell]	Shell
11		61400010011 [Pipe]	Pipe
12		90003862428 [Screw]	Screw
13		6150001047 [Gasket real]	Gasket real
14		61460070011 [Screw plug]	Screw plug
15		90003098086 [Joint]	Joint
16		288730062 [Gasket]	Gasket
17		609F070041 [Gasket]	Gasket
18		61500010385 [Oil separator]	Oil separator
19		609E110049 [Clamp]	Clamp
20		33700550284 [Hose]	Hose
21		90003989300 [Hose clamp]	Hose clamp
22		90003802812 [Screw]	Screw
23		61500010355 [Hose]	Hose
24		9003989301 [Hose clamp]	Hose clamp
25		9003171356 [Clip]	Clip
26		61560010090 [Spraying nozzle]	Spraying nozzle
27		90003909603 [Screw]	Screw
28		90003962621 [Cover]	Cover
29		61800010331 [Up-Jauge]	Up-Jauge
30		61800010334 [Down-Jauge]	Down-Jauge
31		61800010329 [Oil dipstick]	Oil dipstick
32		81400010032 [Gasket]	Gasket

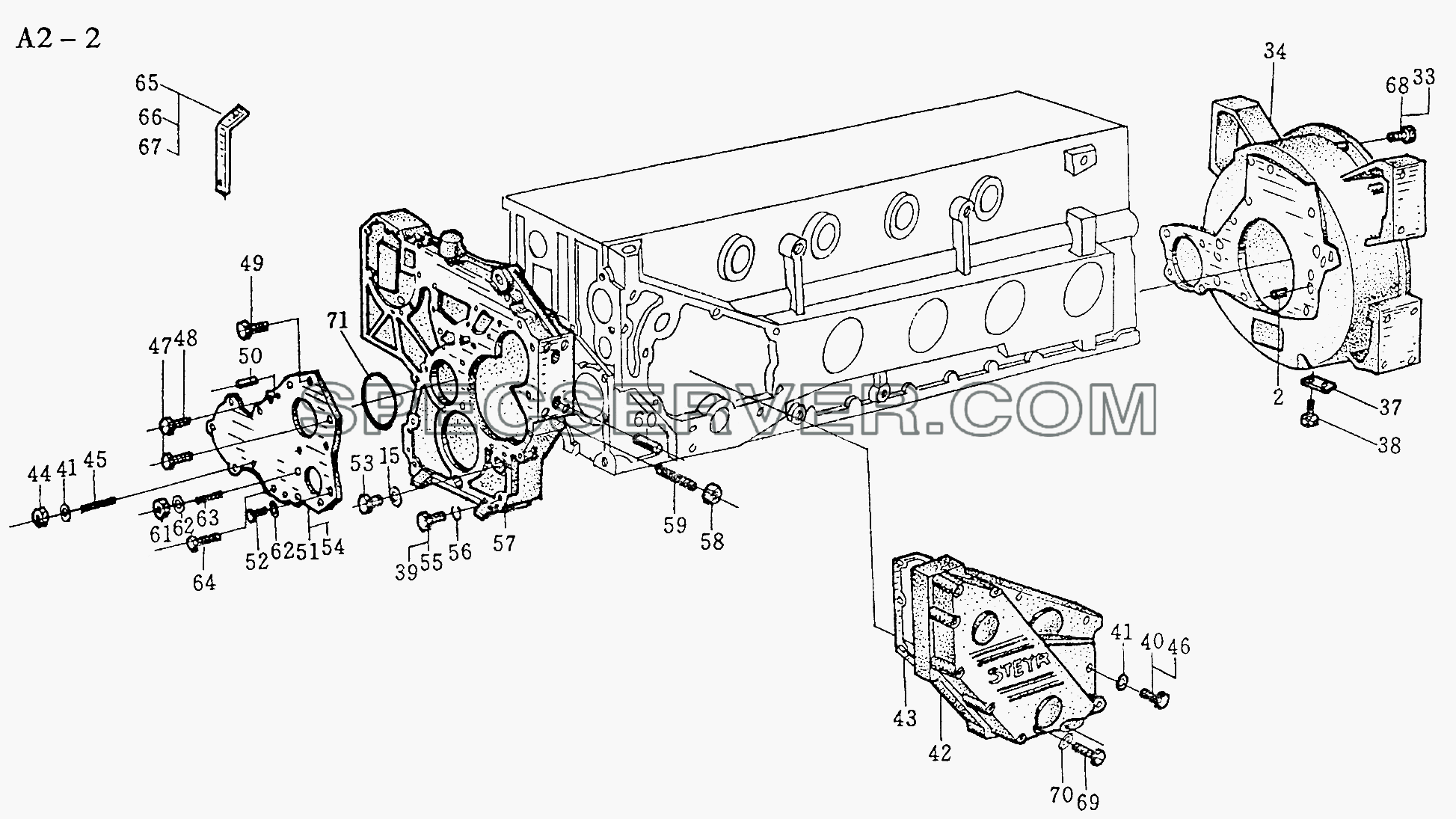

WD618 GEAR CASE, FLYWHEEL HOUSING (A2-2) для Sinotruck (полного) (список запасных частей)

Таблица запасных частей

№		Номер детали	Наименование запчасти
33		61500010101 [Screw]	Screw
34		61500010012 [Flywheel housing]	Flywheel housing
37		1800210011 [Cover]	Cover
38		90003802511 [Screw]	Screw
39		90003802423 [Screw]	Screw
40		90003802437 [Screw]	Screw
41		90003932030 [Spring]	Spring
42		61800010112 [Cover]	Cover
43		61500010370 [Joint]	Joint
44		90003871252 [Nut]	Nut
45		90003813423 [Stud]	Stud
46		90003800467 [Screw]	Screw
47		90003802538 [Screw]	Screw
48		90003802569 [Screw]	Screw
49		90003802519 [Screw]	Screw
50		90003901406 [Pin]	Pin
51		61800010118 [Cover]	Cover
52		90003802532 [Screw]	Screw
53		90003962051 [Screw]	Screw
54		61500010046 [Gasket front]	Gasket front
55		90003802561 [Screw]	Screw
56		90003931122 [Spring washer]	Spring washer
57		61800010121 [Gear case]	Gear case
58		90003888453 [Nut]	Nut
59		90003813628 [Stud]	Stud
60		90003900085 [Dowel pin]	Dowel pin
61		90003871305 [Nut]	Nut
62		90003932025 [Spring washer]	Spring washer
63		90003810125 [Stud]	Stud
64		90003802419 [Screw]	Screw
65		61800060153 [Bracket]	Bracket
66		61800060152 [Bracket]	Bracket
67		61800060151 [Bracket]	Bracket
68		61500010062 [Screw]	Screw
69		90003932020 [Plug]	Plug
70		90003098014 [Gasket]	Gasket
71		90003120602 [Gasket]	Gasket

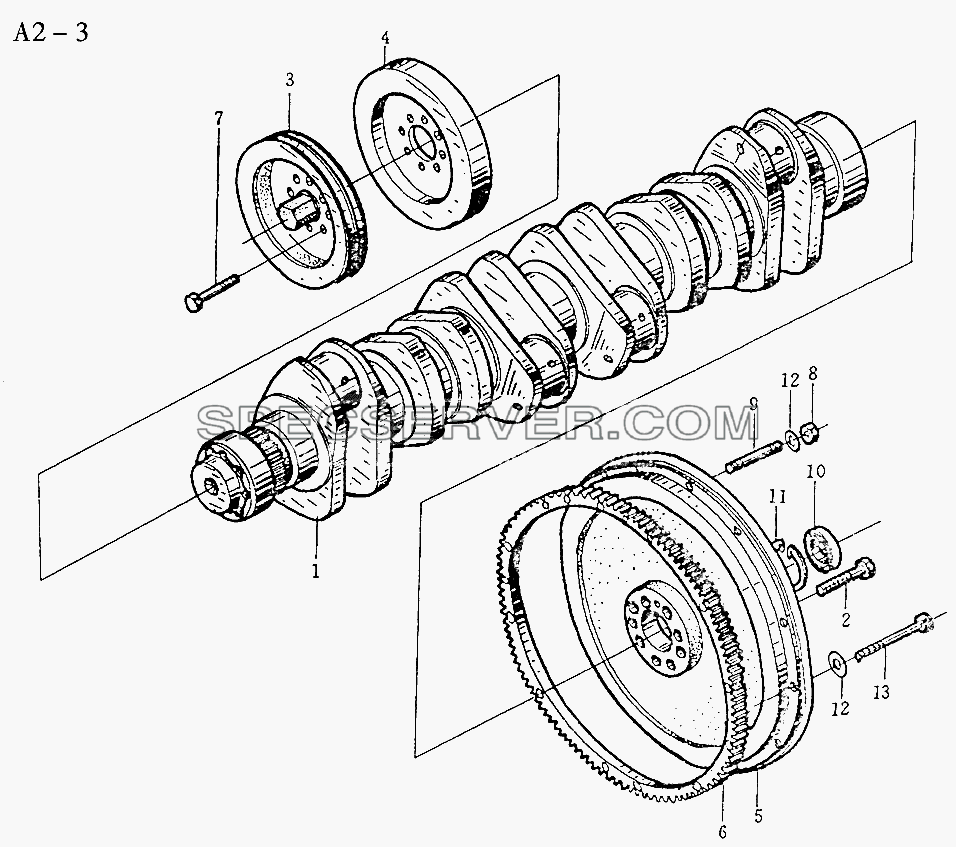

WD618 CRANK SHAFT, FLYWHEEL (A2-3) для Sinotruck (полного) (список запасных частей)

Таблица запасных частей

№		Номер детали	Наименование запчасти
1		61800020022 [Crank shaft C]	Crank shaft C
2		61500020046 [Screw]	Screw
3		61800020025 [Belt pulley]	Belt pulley
4		61800020012 [Vibration damper]	Vibration damper
5		61500020023 [Fly wheel C]	Fly wheel C
6		81500020009 [Ring gear]	Ring gear
7		90003802558 [Screw]	Screw
8		90003871305 [Nut]	Nut
9		90003813571 [Stud]	Stud
10		90003311416 [Ball bearing]	Ball bearing
11		90003934310 [Circlip]	Circlip
12		90003432025 [Joint]	Joint
13		90003802569 [Screw]	Screw
