Checking and Maintaining Tires

Winter Tires

Main

tenan

Winter Tires

If driving on snowy or frozen roads, mount all season marked

M+S

tires, snow tires,

or tire chains; reduce speed; and maintain sufficient distance between vehicles when
driving.

Be particularly careful when operating the steering wheel or brakes to prevent
skidding.

Use tire chains, snow tires, or all season tires when necessary or according to the law.

When mounting, refer to the following points.

For winter tires:

•

Select the size and load ranges that are the same as the original tires.

•

Mount the tires to all four wheels.

For tire chains:

•

Install them on the front tires only.

•

Because your vehicle has limited tire clearance, we strongly recommend using the
chains listed below:

•

Follow the chain manufacturer's instruction when installing. Mount them as
tightly as you can.

•

Check that the chains do not touch the brake lines or suspension.

•

Drive slowly.

Cable-type: SCC RADIAL CHAIN TC2111MM

Cable-type: SCC RADIAL CHAIN TC2212MM

Winter Tires

NOTICE

Traction devices that are the wrong size or improperly
installed can damage your vehicle's brake lines,
suspension, body, and wheels. Stop driving if they are
hitting any part of the vehicle.

When tire chains are mounted, follow the chain
manufacturer's instructions regarding vehicle
operational limits.

If your vehicle is equipped with summer tires, be
aware that these tires are not designed for winter
driving conditions. For more information, contact a
dealer.

WARNING

Using the wrong chains, or not properly
installing chains, can damage the brake
lines and cause a crash in which you can be
seriously injured or killed.

Follow all instructions in this owner's
manual regarding the selection and use of
tire chains.

Models with 235/65R17 tires

Models with 235/60R18 tires

616

Main

tenan

Battery

Checking the Battery

The condition of the battery is monitored by a
sensor located on the negative terminal of the
battery. If there is a problem with this sensor,
the driver information interface will display a
warning message. If this happens, have your
vehicle inspected by a dealer.

Check the battery terminals for corrosion monthly.

If your vehicle's battery is disconnected or goes dead:

•

The audio system is disabled.

Audio System Theft Protection

P. 232

•

The immobilizer system needs to be reset.

Immobilizer System Indicator

P. 101

Battery

WARNING:

Battery post, terminals,

and related accessories contain lead
and lead compounds.

Wash your hands after handling.

WARNING

The battery gives off explosive hydrogen
gas during normal operation.

A spark or flame can cause the battery to
explode with enough force to kill or
seriously hurt you.

When conducting any battery
maintenance, wear protective clothing and
a face shield, or have a skilled technician do
it.

Canadian models

617

Battery

Charging the Battery

Main

tenan

Charging the Battery

Disconnect both battery cables to prevent damaging your vehicle's electrical system.
Always disconnect the negative (–) cable first, and reconnect it last.

Battery

When you find corrosion, clean the battery terminals
by applying a baking powder and water solution.
Clean the terminals with a damp towel. Cloth/towel
dry the battery. Coat the terminals with grease to
help prevent future corrosion.

When replacing the battery, the replacement must be
of the same specifications.
Consult a dealer for more information.

The battery installed in this vehicle is specifically
designed for a model with Auto Idle Stop.
Using a battery other than this specified type may
shorten the battery life, and prevent Auto Idle Stop
from activating. If you need to replace the battery,
make sure to select the specified type and size. Ask a
dealer for more details.

The Vehicle Stability Assist

(VSA

) system, brake

system (Amber), Adaptive Cruise Control (ACC) with
Low Speed Follow, low tire pressure/ TPMS

and

safety support indicators may come on in amber
along with a message in the gauge when you set the
power mode to ON after reconnecting the battery.
Drive a short distance at more than 12 mph (20 km/h).
Each indicator should go off. If any do not, have your
vehicle checked by a dealer.

* Not available on all models

618

Main

tenan

Remote Transmitter Care

Replacing the Remote Battery

If the indicator does not come on when the button is pressed, replace the battery.

Remove the built-in key.

Remove the upper half of the cover by
carefully prying on the slot with key grip.

Wrap a key grip with a cloth to prevent
scratching the keyless remote.

Remove carefully to avoid losing the
buttons.

Remove the battery by prying on the edge
with flat-tip screwdriver. Make sure to
replace the battery with the correct polarity.

Wrap a flat-tip screwdriver with a cloth
to prevent scratching the keyless remote.

Replacing the Remote Battery

NOTICE

An improperly disposed of battery can damage the
environment. Always confirm local regulations for
battery disposal.

Replacement batteries are commercially available or
at a dealer.

WARNING

CHEMICAL BURN HAZARD

The battery that powers the remote
transmitter can cause severe internal burns
and can even lead to death if swallowed.
Keep new and used batteries away from
children.
If you suspect that a child has swallowed
the battery, seek medical attention
immediately.

Battery type: CR2032

Battery

619

Main

tenan

Climate Control System Maintenance

Air Conditioning

To ensure proper and safe operation, the Society of Automotive Engineers (SAE
J2845) recommends that the refrigerant system only be serviced by trained and
certified technicians.

Never repair or replace the air conditioning evaporator (cooling coil) with one
removed from a used or salvaged vehicle.

New replacement mobile air conditioning evaporators must be certified (and
labeled) as meeting SAE Standard J2842.

Dust and Pollen Filter

The climate control system is equipped with a dust and pollen filter that collects
pollen, dust, and other debris in the air. The Maintenance Minder

messages will let

you know when to replace the filter.

We recommend that you replace the dust and pollen filter sooner when using your
vehicle in areas with high concentrations of dust.

Climate Control System Maintenance

NOTICE

Vented refrigerant is harmful to the environment.
To avoid refrigerant from venting, never replace the
evaporator with one removed from a used or
salvaged vehicle.

Refrigerant in your vehicle’s air conditioning system is
flammable and can be ignited during servicing if
proper procedures are not followed.

The air conditioner label is found under the hood:

Safety Labels

P. 87

Specifications

P. 666

Canadian models

Caution

Flammable Refrigerant

Requires Registered
Technician to Service

Air Conditioning
System

Dust and Pollen Filter

If the airflow from the climate control system
deteriorates noticeably, and the windows fog up
easily, the filter may need to be replaced. Please
contact a dealer for replacement.

620

Main

tenan

Cleaning

Interior Care

Use a damp cloth with a mixture of mild detergent and warm water to remove dirt.
Use a clean cloth to remove detergent residue.

Use a soft brush with a mixture of mild soap and warm water to clean the seat belts.
Let the belts air dry. Wipe the loops of the seat belt anchors using a clean cloth.

Wipe using a glass cleaner.

■

Cleaning Seat Belts

Interior Care

Do not spill liquids inside the vehicle. Electrical
devices and systems may malfunction if liquids are
splashed on them.

Do not use silicone based sprays on electrical devices
such as audio devices and switches.
Doing so may cause the items to malfunction or
cause a fire inside the vehicle.
If a silicone based spray is inadvertently used on
electrical devices, consult a dealer.

Depending on their composition, chemicals and
liquid aromatics may cause discoloration, wrinkles,
and cracking to resin-based parts and textiles.
Do not use alkali solvents or organic solvents such as
benzene or gasoline.

After using chemicals, make sure to gently wipe them
away using a dry cloth.
Do not place used cloths on top of resin based parts
or textiles for long periods of time without washing.

Loop

■

Cleaning the Window

Cleaning the Window

Wires are mounted to the inside of the rear window.
Wipe along the same direction as the wires with a
soft cloth so as not to damage them.

Be careful not to spill fluids, such as water or glass
cleaner, on or around the cover of the electrical
components around the rearview mirror.

621

Cleaning

Interior Care

Main

tenan

The driver's floor mat hooks over floor
anchors, which keep the mat from sliding
forward.

Do not put any additional floor mats on
top of the anchored mat.

To properly clean leather:

Use a vacuum or soft dry cloth first to remove any dirt or dust.

Clean the leather with a soft cloth dampened with a solution comprised of 90%
water and 10% neutral soap.

Wipe away any soap residue with a clean damp cloth.

Wipe away residual water and allow leather to air dry in the shade.

■

Floor Mats

Floor Mats

If you use any floor mats that were not originally
provided with your vehicle, make sure they are
designed for your specific vehicle, fit correctly, and
are securely anchored by the floor anchors.
Position any rear seat floor mats properly. If not
properly positioned, the floor mats can interfere with
the front seat functions.

Lock

Unlock

Example

■

Maintaining Genuine Leather

Maintaining Genuine Leather

It is important to clean or wipe away dirt or dust as
soon as possible. Spills can soak into leather resulting
in stains. Dirt or dust can cause abrasions in the
leather. In addition, please note that some dark
colored clothing can rub onto the leather seats
resulting in discoloration or stains.

* Not available on all models

622

Cleaning

Exterior Care

Main

tenan

Exterior Care

Dust off the vehicle body after you drive.
Regularly inspect your vehicle for scratches on painted surfaces. A scratch on a
painted surface can result in body rust. If you find a scratch, promptly repair it.

Wash the vehicle regularly. Wash more frequently when driving in the following
conditions:

•

If driving on roads with road salt.

•

If driving in coastal areas.

•

If tar, soot, bird droppings, insects, or tree sap are stuck to painted surfaces.

•

Make sure to follow the instructions indicated on the automated car wash.

•

Fold in the door mirrors.

•

Keep sufficient distance between the cleaning nozzle and the vehicle body.

•

Take particular care around the windows. Standing too close may cause water to
enter the vehicle interior.

•

Do not spray high pressure water directly into the engine compartment. Instead,
use low pressure water and a mild detergent.

•

Do not spray water directly onto the camera or the area around it. Water may
enter the lens and cause the camera to malfunction.

■

Washing the Vehicle

■

Using an Automated Car Wash

■

Using High Pressure Cleaners

Washing the Vehicle

Do not spray water into the air intake vents. It can
cause a malfunction.

Lock the doors when washing the vehicle.
Do not spray water onto the fuel fill door directly. A
high-pressure spray may cause it to open.
Do not spray water onto the capless unit when the
fuel fill door is open. It can cause damage to the fuel
system or engine.

If you need to lift the wiper arms away from the
windshield, first set the wiper arms to the
maintenance position.

Changing the Front Wiper Blade

P. 603

Air Intake Vents

Continued

623

Cleaning

Exterior Care

Main

tenan

A good coat of automotive body wax helps protect your vehicle’s paint from the
elements. Wax will wear off over time and expose your vehicle’s paint to the
elements, so reapply as necessary.

If you get gasoline, oil, engine coolant, or battery fluid on resin coated parts, they
may be stained or the coating may peel. Promptly wipe it away using a soft cloth and
clean water.

Wipe using a glass cleaner.

Aluminum is susceptible to deterioration caused by salt and other road
contaminants. When necessary, as early as possible use a sponge and mild detergent
to wipe away these contaminants. Do not use a stiff brush or harsh chemicals
(including some commercial wheel cleaners). These can damage the protective finish
on aluminum alloy wheels, resulting in corrosion. Depending on the type of finish,
the wheels also may lose their luster or appear burnished. To avoid water stains,
wipe the wheels dry with a cloth while they are still wet.

■

Applying Wax

■

Maintaining the Bumpers and Other Resin Coated Parts

■

Cleaning the Window

■

Maintaining Aluminum Wheels

Applying Wax

NOTICE

Chemical solvents and strong cleaners can damage
the paint, metal, and plastic on your vehicle. Wipe
away spills immediately.

Maintaining the Bumpers and Other Resin Coated Parts

Ask a dealer about the correct coating material when
you want to repair the painted surface of the parts
made of resin.

* Not available on all models

624

Cleaning

Exterior Care

Main

tenan

The inside lenses of exterior lights (headlights, brake lights, etc.) may fog temporarily
if you have driven in the rain, or after the vehicle has been run through a car wash.
Dew condensation also may build up inside the lenses when there is a significant
enough difference between the ambient and inside lens temperatures (similar to
vehicle windows fogging up in rainy conditions). These conditions are natural
processes, not structural design problems in the exterior lights.
Lens design characteristics may result in moisture developing on the light lens frame
surfaces. This also is not a malfunction.
However, if you see large amounts of water accumulation, or large water drops
building up inside the lenses, have your vehicle inspected by a dealer.

■

Fogged Exterior Light Lenses

625

Main

tenan

Accessories and Modifications

Accessories

When installing accessories, check the following:

•

Do not install accessories on the windshield. They can obstruct your view and
delay your reaction to driving conditions.

•

Do not install any accessories over areas marked SRS Airbag, on the sides or backs
of the front seats, on the sides of the rear seats, on front or side pillars, or near
the side windows.
Accessories installed in these areas may interfere with proper operation of the
vehicle’s airbags or may be propelled into you or another occupant if the airbags
deploy.

•

Be sure electronic accessories do not overload electrical circuits or interfere with
proper operation of your vehicle.

Fuses

P. 653

•

Before installing any electronic accessory, have the installer contact a dealer for
assistance. If possible, have a dealer inspect the final installation.

Modifications

Do not modify your vehicle in a manner that may affect its handling, stability, or reliability,
or install non-genuine Honda parts or accessories that may have a similar effect.

Even minor modifications to vehicle systems can affect overall vehicle performance.
Always make sure all equipment is properly installed and maintained, and do not make any
modification to your vehicle or its systems that might cause your vehicle to no longer meet
federal, state, province, territory, and local regulations.

The on-board diagnostic port (OBD-II/SAE J1962 connector) installed on this vehicle
is intended to be used with automobile system diagnostic devices or with other
devices that Honda has approved. Use of any other type of device may adversely
affect the vehicle's electronic systems or allow them to be compromised, possibly
resulting in a system malfunction, drained battery, or other unexpected problems.

Do not modify or attempt to repair any of the electrical components.

Accessories and Modifications

Honda Genuine accessories are recommended to
ensure proper operation on your vehicle.

WARNING

Improper accessories or modifications can
affect your vehicle's handling, stability, and
performance, and cause a crash in which
you can be seriously hurt or killed.

Follow all instructions in this owner's
manual regarding accessories and
modifications.

628

Han

lin
g the U

expected

Tools

Types of Tools

Types of Tools

The tools are stored in the cargo area.

Wheel Nut Wrench/

Jack Handle

Jack

Jack Handle Bar

Jack

Tool Bag

Funnel

629

Continued

Han

lin
g the U

expected

If a Tire Goes Flat

Changing a Flat Tire

If a tire goes flat while driving, grasp the steering wheel firmly, and brake gradually
to reduce speed. Then, stop in a safe place. Replace the flat tire with a compact
spare tire. Go to a dealer as soon as possible to have the full-size tire repaired or
replaced.

Park the vehicle on a firm, level, non-slippery surface, and apply the parking
brake.

Put the transmission into

(

Turn on the hazard warning lights and set the power mode to VEHICLE OFF.

Changing a Flat Tire

Follow compact spare precautions:
Periodically check the tire pressure of the compact
spare. It should be set to the specified pressure.
Specified Pressure: 60 psi (420 kPa, 4.2 kgf/cm

)

When driving with the compact spare tire, keep the
vehicle speed under 50 mph (80 km/h). Replace with
a full-size tire as soon as possible.

The compact spare tire and wheel in your vehicle are
specifically for this model. Do not use them with
another vehicle. Do not use another type of compact
spare tire or wheel with your vehicle.

Do not mount tire chains on a compact spare tire.
If a chain-mounted front tire goes flat, remove one of
the full-size rear tires and replace it with the compact
spare tire. Remove the flat front tire and replace it
with the full-size tire that was removed from the rear.
Mount the tire chains on the front tire.

NOTICE

Do not use the jack if it doesn’t work properly. Call
your dealer or a professional towing service.

630

If a Tire Goes Flat

Changing a Flat Tire

Han

lin
g the U

expected

Pull the strap on the floor lid and open the
lid.

Take the tool bag out of the cargo area.
Take the wheel nut wrench and jack handle
bar out of the tool bag.

Take the jack out of the spare tire area.

Remove the jack by turning the jack’s
end bracket to the left to loosen it.

Unscrew the wing bolt, and remove the
spacer cone. Then, remove the spare tire.

■

Getting Ready to Replace the Flat Tire

Strap

Tool Bag

Spare Tire

631

If a Tire Goes Flat

Changing a Flat Tire

Continued

Han

lin
g the U

expected

Place a wheel block or rock in front and rear
of the wheel diagonal to the flat tire.

Place the compact spare tire (wheel side up)
under the vehicle body, near the tire that
needs to be replaced.

Put the flat tip of the jack handle bar into
the edge of the wheel cover. Carefully pry
the edge and remove the cover.

Wrap a cloth around the flat tip of the
jack handle bar to prevent scratches on
the cover.

Wheel
Blocks

The tire to be replaced.

Jack Handle Bar

Wheel
Cover

Wheel Nut

Models with wheel cover

Continued

633

If a Tire Goes Flat

Changing a Flat Tire

Han

lin
g the U

expected

Place the jack under the jacking point
closest to the tire to be changed.

Turn the end bracket clockwise as shown in
the image until the top of the jack contacts
the jacking point.

Make sure that the jacking point tab is
resting in the jack notch.

Raise the vehicle, using the jack handle bar
and the jack handle, until the tire is off the
ground.

■

How to Set Up the Jack

How to Set Up the Jack

Do not use the jack with people or luggage in the
vehicle.

Use the jack provided in your vehicle.
Other jacks may not support the weight (“load”) or
may not fit the jacking point.

The following instructions must be followed to use
the jack safely:

•

Do not use while the engine is running.

•

Use only where the ground is firm and level.

•

Use only at the jacking points.

•

Do not get in the vehicle while using the jack.

•

Do not put anything on top of or underneath the
jack.

Loose items can fly around the interior in a crash and
can seriously injure the occupants.

Store the wheel, jack, and tools securely before
driving.

WARNING

The vehicle can easily roll off the jack,
seriously injuring anyone underneath.

Follow the directions for changing a tire
exactly, and never get under the vehicle
when it is supported only by the jack.

Jacking Points

Jack
Handle
Bar

Wheel Nut

Wrench as Jack Handle

If a Tire Goes Flat

Changing a Flat Tire

634

Han

lin
g the U

expected

Remove the wheel nuts and flat tire.

Wipe the mounting surfaces of the wheel
with a clean cloth.

Mount the compact spare tire.

Screw the wheel nuts until they touch the
lips around the mounting holes, then stop
rotating.

Lower the vehicle and remove the jack.
Tighten the wheel nuts in the order
indicated in the image. Go around,
tightening the nuts, two to three times in
this order.

Wheel nut torque:

80 lbf∙ft (108 N∙m, 11 kgf∙m)

■

Replacing the Flat Tire

Replacing the Flat Tire

Do not over tighten the wheel nuts by applying extra
torque using your foot or a pipe.

Make sure the wire support ring is hooked into the
clips around the edge of the wheel cover.

Align the valve mark on the wheel cover to the tire
valve on the wheel, then install the wheel cover.

Models with wheel cover

Clips

Valve Mark

Continued

635

If a Tire Goes Flat

Changing a Flat Tire

Han

lin
g the U

expected

Remove the center cap.

Place the flat tire face down in the spare tire
well.

Remove the spacer cone from the wing
bolt, flip it over, and insert it back on the
bolt. Secure the flat tire with the wing bolt.

Securely store the wheel nut wrench and
jack handle bar back in the tool bag. Store
the bag in the cargo area.

Store the jack in its holder. Turn the jack’s
end bracket to lock it in place.

■

Storing the Flat Tire

Replacing the Flat Tire

Make sure the wire support ring is on the outer side
of the tire valve as shown.

Models with wheel cover

Wire Support Ring

Tire Valve

Storing the Flat Tire

WARNING

Loose items can fly around the interior in a
crash and can seriously injure the
occupants.
Store the wheel, jack, and tools securely
before driving.

Center Cap

Models with aluminum wheels

Spacer Cone

Wing
Bolt

For
compact
spare tire

For
full-size
tire

All models

636

If a Tire Goes Flat

Changing a Flat Tire

Han

lin
g the U

expected

If you replace a flat tire with the spare tire, the low tire pressure/TPMS indicator
comes on while you are driving. After driving for a few miles (kilometers),

Tire

pressure monitor system problem. Check tire pressure. See your dealer.

will

appear on the driver information interface and the indicator will start blinking for a
short time and then stay on; however, this is normal and is no cause for concern.

Calibrate the TPMS when you replace the tire with a specified regular tire.

TPMS Calibration

P. 456

■

TPMS and the Compact Spare Tire

U.S. models

637

Continued

Han

lin
g the U

expected

Engine Does Not Start

Checking the Engine

If the engine does not start, check the starter.

Starter condition

Checklist

Starter doesn’t turn or turns
over slowly.

The battery may be dead. Check
each of the items on the right and
respond accordingly.

Check for a message on the driver information interface.

●

If the

To start, touch start button with emblem side of remote

message appears.

If the Keyless Remote Battery is Weak

P. 639

Make sure the keyless remote is in its operating range.

ENGINE START/STOP Button Operating Range

P. 176

Check the battery.

Have the battery checked by a dealer.

Battery

P. 616

Check the fuses.

Check all fuses, or have your vehicle checked by a dealer.

Inspecting and Changing Fuses

P. 658

Checking the Engine

If you must start the vehicle immediately, use an
assisting vehicle or booster battery to jump start it.

If the Battery Is Dead

P. 642

Depending on the situation, you may be able to
temporarily start the engine using the emergency
starting procedure.

Emergency Engine Start

P. 640

638

Engine Does Not Start

Checking the Engine

Han

lin
g the U

expected

Starter condition

Checklist

The starter turns over normally,
but the engine doesn’t start.

There may be a problem with a
fuse. Check each of the items on
the right and respond accordingly.

Review the engine start procedure.

Follow its instructions, and try to start the engine again.

Starting the Engine

P. 429

Check the immobilizer system indicator.

When the immobilizer system indicator is blinking, the engine cannot be started.

Immobilizer System

P. 169

Check the fuel level.

There should be enough fuel in the tank.

Fuel Gauge

P. 110

Check the fuses.

Check all fuses or have the vehicle checked by a dealer.

Inspecting and Changing Fuses

P. 658

If the problem continues:

Emergency Towing

P. 660

639

Engine Does Not Start

If the Keyless Remote Battery is Weak

Han

lin
g the U

expected

If the Keyless Remote Battery is Weak

If the beeper sounds, the

To start, touch start button with emblem side of

remote

message appears on the driver information interface, the

ENGINE START/

STOP

button flashes, and the engine won’t start, start the engine as follows:

Press the

ENGINE START/STOP

button.

The beeper sounds and the

ENGINE

START/STOP

button flashes for about

30 seconds.

Touch the center of the

ENGINE START/

STOP

button with the

logo on the keyless

remote while the

ENGINE START/STOP

button is flashing.
The buttons on the keyless remote should
be facing you.

The beeper sounds, and the

ENGINE

START/STOP

button stays on for about

10 seconds.

Depress the brake pedal and press the

ENGINE START/STOP

button while the

ENGINE START/STOP

button is on.

The engine starts.

If you don’t depress the pedal, the mode
will change to ACCESSORY.

640

Engine Does Not Start

Emergency Engine Start

Han

lin
g the U

expected

Emergency Engine Start

If the engine does not start using the normal starting procedure, you may be able to
start it using the emergency start procedure below.
Do not use this procedure if it is not an emergency.

Make sure the parking brake is applied.

The parking brake and brake system indicator (red) comes on for 30 seconds
when you pull up the electric parking brake switch.

Check that the transmission is in

(

, then set the power mode to ACCESSORY.

Firmly depress the brake pedal, then press and hold the

ENGINE START/STOP

button for at least 15 seconds.

This should be considered a system malfunction even if you are able to start the
engine using the above procedure.
Have your vehicle checked by a dealer immediately.

Emergency Engine Start

Refer to the following if you cannot move the shift
lever out of the

(

position.

Shift Lever Does Not Move

P. 644

641

Engine Does Not Start

Emergency Engine Stop

Han

lin
g the U

expected

Emergency Engine Stop

The

ENGINE START/STOP

button may be used to stop the engine due to an

emergency situation even while driving. If you must stop the engine, do either of the
following operations:

•

Press and hold the

ENGINE START/STOP

button for about two seconds.

•

Firmly press the

ENGINE START/STOP

button three times.

The steering wheel will not lock. However, because turning off the engine disables
the power assist the engine provides to the steering and braking systems, it will
require significantly more physical effort and time to steer and slow the vehicle. Use
both feet on the brake pedal to slow down the vehicle and stop immediately in a
safe place.

The power mode is in ACCESSORY when the engine is stopped.
To change the mode to VEHICLE OFF, put the transmission into

(

after the vehicle

comes to a complete stop.

Emergency Engine Stop

Do not press the

ENGINE START/STOP

button while

driving unless it is absolutely necessary for the engine
to be turned off.
If you press the

ENGINE START/STOP

button while

driving, the beeper sounds.

642

Han

lin
g the U

expected

If the Battery Is Dead

Jump Starting Procedure

Turn off the power to electric devices, such as audio and lights. Turn off the engine,
then open the hood.

Open the terminal cover on your vehicle’s
battery positive

terminal.

Connect the first jumper cable to your
vehicle's battery

terminal.

Connect the other end of the first jumper
cable to the booster battery

terminal.

Use a 12-volt booster battery only.

When using an automotive battery
charger to boost your 12-volt battery,
select a lower charging voltage than
15-volt. Check the charger manual for
the proper setting.

Connect the second jumper cable to the
booster battery

terminal.

Connect the other end of the second
jumper cable to the engine mounting bolt
as shown. Do not connect this jumper cable
to any other part.

If your vehicle is connected to another
vehicle, start the assisting vehicle's engine
and increase its rpm slightly.

Attempt to start your vehicle's engine. If it
turns over slowly, check that the jumper
cables have good metal-to-metal contact.

If the Battery Is Dead

Securely attach the jumper cables clips so that they
do not come off when the engine vibrates. Be careful
not to tangle the jumper cables or allow the cable
ends to touch each other while attaching or
detaching the jumper cables.

Battery performance degrades in cold conditions and
may prevent the engine from starting.

WARNING

A battery can explode if you do not follow
the correct procedure, seriously injuring
anyone nearby.

Keep all sparks, open flames, and smoking
materials away from the battery.

Booster Battery

643

If the Battery Is Dead

Jump Starting Procedure

Han

lin
g the U

expected

Once your vehicle's engine has started, remove the jumper cables in the following
order.

Disconnect the jumper cable from your vehicle's ground.

Disconnect the other end of the jumper cable from the booster battery

terminal.

Disconnect the jumper cable from your vehicle's battery

terminal.

Disconnect the other end of the jumper cable from the booster battery

terminal.

Have your vehicle inspected by a nearby service station or a dealer.

■

What to Do After the Engine Starts

What to Do After the Engine Starts

The Vehicle Stability Assist

(VSA

) system, brake

system (Amber), Adaptive Cruise Control (ACC) with
Low Speed Follow, low tire pressure/TPMS

and

safety support indicators may come on along with a
message in the gauge when you set the power mode
to ON after reconnecting the battery.
Drive a short distance at more than 12 mph (20 km/h).
Each indicator should go off. If it does not, have your
vehicle checked by a dealer.

* Not available on all models

644

Han

lin
g the U

expected

Shift Lever Does Not Move

Follow the procedure below if you cannot move the shift lever out of the

(

position.

Set the parking brake.

Set the power mode to VEHICLE OFF.

Remove the built-in key from the keyless
remote.

Wrap a cloth around the tip of the built-in
key. Put it into the shift lock release slot as
shown in the image, and remove the cover.

Insert the built-in key into the shift lock
release slot.

While pushing the built-in key in, press the
shift lever release button, and place the
shift lever into

(

The lock is now released. Have the shift
lever checked by a dealer as soon as
possible.

■

Releasing the Lock

Slot

Cover

Release
Button

Shift Lock Release Slot

645

Continued

Han

lin
g the U

expected

Overheating

How to Handle Overheating

Overheating symptoms are as follows:

•

The

Engine temperature too hot. Do not drive. Allow engine to cool.

message appears on the driver information interface.

•

Steam or spray comes out of the engine compartment.

■

First thing to do

Immediately park the vehicle in a safe place.

Turn off all accessories and turn on the hazard warning lights.

No steam or spray present:

Keep the engine running and open the hood.

Steam or spray is present:

Turn off the engine and wait until it subsides.

Then, open the hood.

How to Handle Overheating

NOTICE

Continuing to drive with the

Engine temperature

too hot. Do not drive. Allow engine to cool.

message on the driver information interface may
damage the engine.

WARNING

Steam and spray from an overheated
engine can seriously scald you.

Do not open the hood if steam is coming
out.

Overheating

How to Handle Overheating

646

Han

lin
g the U

expected

■

Next thing to do

Check that the cooling fan is operating and
stop the engine once the

Engine

temperature too hot. Do not drive.
Allow engine to cool.

message on the

driver information interface disappears.

If the cooling fan is not operating,
immediately stop the engine.

Once the engine has cooled down, inspect
the coolant level and check the cooling
system components for leaks.

If the coolant level in the reserve tank is
low, add coolant until it reaches the

MAX

mark.

If there is no coolant in the reserve tank,
check that the radiator is cool. Cover the
radiator cap with a heavy cloth and open
the cap. If necessary, add coolant up to
the base of the filler neck, and put the
cap back on.

■

Last thing to do

Once the engine has cooled sufficiently, restart it and check the driver information
interface. The

Engine temperature too hot. Do not drive. Allow engine to

cool.

message does not appear, resume driving. If it appears again, contact a dealer

for repairs.

How to Handle Overheating

If the coolant is leaking, contact a dealer for repairs.

Use water as an emergency/temporary measure only.
Have a dealer flush the system with proper antifreeze
as soon as possible.

WARNING

Removing the radiator cap while the
engine is hot can cause the coolant to spray
out, seriously scalding you.

Always let the engine and radiator cool
down before removing the radiator cap.

Reserve
Tank

MAX

MIN

647

Han

lin
g the U

expected

Indicator, Coming On/Blinking

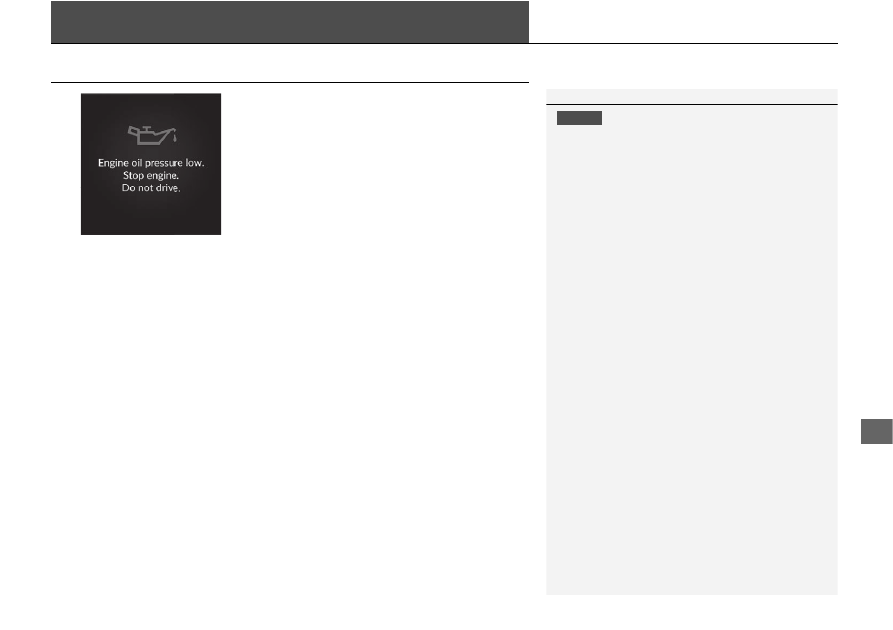

If the Engine oil pressure low Warning Appears

■

Reasons for the warning to appear

Appears when the engine oil pressure is low.

■

What to do as soon as the warning
appears

Immediately park the vehicle on level
ground in a safe place.

If necessary, turn the hazard warning lights
on.

■

What to do after parking the vehicle

Stop the engine and let it sit for
approximately three minutes.

Open the hood and check the oil level.

Add oil as necessary.

Oil Check

P. 590

Start the engine and check the

Engine oil

pressure low

warning.

The warning disappears: Start driving
again.

The warning does not disappear within
10 seconds: Immediately stop the engine
and contact a dealer for repairs.

If the Engine oil pressure low Warning Appears

NOTICE

Running the engine with low oil pressure can cause
serious mechanical damage almost immediately.

Honda CR-V (2024 year). Manual in english - page 19
