Maintenance Minder

To Use Maintenance Minder

Main

tenan

U.S. models

· Adjust the valves during services A, B, 1, 2, or 3 if they are noisy.

*1: If a Maintenance Minder message does not appear more than 12 months after the display is reset,

change the engine oil every year.

# : See information on maintenance and emissions warranty in the first column on page

675

CODE

Maintenance Main Items

●

Replace engine oil

●

Replace engine oil

and oil filter

●

Inspect front and rear brakes

●

Inspect these items:

•

Tie rod ends, steering gearbox, and boots

•

Suspension components

•

Driveshaft boots

•

Brake hoses and lines (including ABS/VSA

)

•

All fluid levels and condition of fluids

•

Exhaust system

•

Fuel lines and connections

*2: If you drive in dusty conditions, replace the air cleaner element every 15,000 miles (24,000 km).
*3: If you drive primarily in urban areas that have high concentrations of soot in the air from industry and

from diesel-powered vehicles, replace the dust and pollen filter every 15,000 miles (24,000 km).

*4: Driving in mountainous areas at very low vehicle speeds results in higher transmission temperatures.

This requires transmission fluid changes more frequently than recommended by the Maintenance
Minder. If you regularly drive your vehicle under these conditions, have the transmission fluid changed
every 25,000 miles (40,000 km).

*5: If a Maintenance Minder message does not appear more than 36 months after the display for item 7 is

reset, change the brake fluid every 3 years.

CODE

Maintenance Sub Items

●

Rotate tires

●

Replace air cleaner element

●

Replace dust and pollen filter

●

Inspect drive belt

●

Replace transmission fluid

●

Replace spark plugs

●

Inspect valve clearance

●

Replace engine coolant

●

Replace rear differential fluid

●

Replace brake fluid

* Not available on all models

585

Maintenance Minder

To Use Maintenance Minder

Continued

Main

tenan

Canadian models

· Adjust the valves during services A, 0, 9, 1, 2, or 3 if they are noisy.

*1: If a Maintenance Minder message does not appear more than 12 months after the display is reset,

change the engine oil every year.

*2: If you drive in dusty conditions, replace the air cleaner element every 24,000 km (15,000 miles).
*3: If you drive primarily in urban areas that have high concentrations of soot in the air from industry and

from diesel-powered vehicles, replace the dust and pollen filter every 24,000 km (15,000 miles).

*4: Driving in mountainous areas at very low vehicle speeds results in higher transmission temperatures.

*5: If a Maintenance Minder message does not appear more than 36 months after the display for item 7 is

reset, change the brake fluid every 3 years.

# : See information on maintenance and emissions warranty in the first column on page

675

CODE

Maintenance Main Items

●

Replace engine oil

●

Replace engine oil

and oil filter

CODE

Maintenance Sub Items

●

Rotate tires

●

Replace air cleaner element

●

Replace dust and pollen filter

●

Inspect drive belt

●

Replace transmission fluid

●

Replace spark plugs

●

Inspect valve clearance

●

Replace engine coolant

●

Replace rear differential fluid

●

Replace brake fluid

●

Service front and rear brakes

●

Inspect these items:

•

Tie rod ends, steering gearbox, and boots

•

Suspension components

•

Driveshaft boots

•

Brake hoses and lines (including ABS/VSA

)

•

All fluid levels and condition of fluids

•

Exhaust system

•

Fuel lines and connections

* Not available on all models

Maintenance Minder

To Use Maintenance Minder

586

Main

tenan

Reset the maintenance minder information display if you have performed the
maintenance service.

Set the power mode to ON.

Press the

(home) button.

Roll the left selector wheel until

is displayed.

Press the left selector wheel to go to the Maintenance Minder screen.

Press and hold the left selector wheel for about 10 seconds to enter the reset
mode.

Roll the left selector wheel to select a maintenance item to reset, or to select

All

due items

(You can also select

Cancel

to end the process).

Press the left selector wheel to reset the selected item.

Repeat from step 5 for other items you wish to reset.

■

Resetting the Display

Resetting the Display

NOTICE

Failure to reset the Maintenance Minder

display

after a maintenance service results in the system
showing incorrect maintenance intervals, which can
lead to serious mechanical problems.

The dealer will reset the Maintenance Minder

display after completing the required maintenance
service. If someone other than a dealer performs
maintenance service, reset the Maintenance
Minder

display yourself.

You can also reset the Maintenance Minder

display

using the driver information interface or audio/
information screen.

Settings

P. 129

Customized Features

P. 359

Left Selector Wheel

(Home) Button

* Not available on all models

588

Maintenance Under the Hood

Opening the Hood

Main

tenan

Opening the Hood

Park the vehicle on a level surface, and set
the parking brake.

Pull the hood release handle under the
driver's side lower corner of the dashboard.

The hood will pop up slightly.

Push the hood latch lever (located under
the front edge of the hood to the center) to
the side and raise the hood. Once you have
raised the hood slightly, you can release the
lever.

Lift the hood up most of the way.

The hydraulic supports will lift it up the
rest of the way and hold it up.

When closing, lower it to approximately 12
inches (30 cm), then press down firmly with
your hands.

Opening the Hood

NOTICE

Do not open the hood when the wiper arms are
raised. The hood will strike the wipers, resulting in
possible damage to the hood and/or the wipers.

When closing the hood, check that the hood is
securely latched.

If the hood latch lever moves stiffly, or if you can
open the hood without lifting the lever, the latch
mechanism should be cleaned and lubricated.

Do not open the hood while the Auto Idle Stop
function is activated.

Hood Release Handle

Pull

Lever

589

Maintenance Under the Hood

Recommended Engine Oil

Main

tenan

Recommended Engine Oil

Use a genuine engine oil or another commercial engine oil of suitable type and
viscosity (for the ambient temperature) as shown in the image that follows.

Oil is a major contributor to your engine’s performance and longevity. If you drive
the vehicle with insufficient or deteriorated oil, the engine may fail or be damaged.

*1:Formulated to improve fuel economy.

■

Synthetic oil

You may also use synthetic motor oil if it is labeled with the API Certification Seal
and is the specified viscosity grade.

Genuine Engine Oil

Commercial Engine Oil

●

Honda Genuine Motor Oil

●

API service SN or higher grade fuel-
efficient oil

●

API Certification Mark "Starburst"

Recommended Engine Oil

Engine Oil Additives
Your vehicle does not require oil additives. In fact,
they may adversely affect the engine performance
and durability.

The following seal indicates the oil is energy
conserving and that it meets the American Petroleum
Institute’s latest requirements.

Ambient Temperature

590

Maintenance Under the Hood

Oil Check

Main

tenan

Oil Check

We recommend that you check the engine oil level every time you refuel.
Park the vehicle on level ground.
Wait approximately three minutes after turning the engine off before you check the
oil.

Remove the dipstick (orange).

Wipe the dipstick with a clean cloth or
paper towel.

Insert the dipstick back all the way into its
hole.

Remove the dipstick again, and check the
level. It should be between the upper and
lower marks. Add oil if necessary.

Oil Check

If the oil level is near or below the lower mark, slowly
add oil, being careful not to overfill.

NOTICE

Under certain driving conditions, it is normal for the
engine oil level to rise above the upper mark. If you
have a concern, consult a dealer for details.

Upper Mark

Lower Mark

591

Maintenance Under the Hood

Adding Engine Oil

Main

tenan

Adding Engine Oil

Unscrew and remove the engine oil fill cap.

Add oil slowly.

Reinstall the engine oil fill cap, and tighten
it securely.

Wait for three minutes and recheck the
engine oil dipstick.

Adding Engine Oil

If any oil spills, wipe it away immediately. Spilled oil
may damage the engine compartment components.

NOTICE

Do not fill the engine oil above the upper mark.
Overfilling the engine oil may result in leaks and
engine damage.

Engine Oil
Fill Cap

592

Maintenance Under the Hood

Changing the Engine Oil and Oil Filter

Main

tenan

Changing the Engine Oil and Oil Filter

You must change the engine oil and oil filter regularly in order to maintain the
engine's lubrication. The engine may be damaged if they are not changed regularly.

Change the oil and filter in accordance with the maintenance message on the driver
information interface.

Run the engine until it reaches normal
operating temperature, and then turn the
engine off.

Open the hood and remove the engine oil
fill cap.

Remove the phillips head screws and
slotted head screws by turning 90°
counter-clockwise on the undercarriage
and remove the under cover.

Remove the drain bolt and washer from
the bottom of the engine, and drain the
oil into a suitable container.

Changing the Engine Oil and Oil Filter

NOTICE

You may damage the environment if you do not
dispose of the oil in a suitable way. If you are
changing the oil by yourself, appropriately dispose of
the used oil. Put the oil in a sealed container and take
it to a recycling center. Do not throw the oil away
into a garbage can or onto the ground.

Screw

Under Cover

Drain Bolt

Washer

593

Maintenance Under the Hood

Changing the Engine Oil and Oil Filter

Main

tenan

Remove the oil filter and dispose of the
remaining oil.

Check that the filter gasket is not stuck to
the engine contact surface.

If it is stuck, you must detach it.

Wipe away dirt and dust adhering to the
contact surface of the engine block, and
install a new oil filter.

Apply a light coat of new engine oil to
the filter gasket.

Put a new washer on the drain bolt, then
reinstall the drain bolt.

Tightening torque:
30 lbf∙ft (40 N∙m, 4.0 kgf∙m)

Pour the recommended engine oil into the
engine.

Engine oil change capacity (including filter):
3.7 US qt (3.5 L)

10.

Reinstall the engine oil fill cap securely and
start the engine.

11.

Run the engine for a few minutes, and
then check that there is no leak from the
drain bolt or oil filter.

12.

Stop the engine, wait for three minutes, and
then check the oil level on the dipstick.

If necessary, add more engine oil.

13.

Reinstall the under cover in the same order
it was removed.

Changing the Engine Oil and Oil Filter

You will need a special wrench to replace the oil
filter. You can buy this wrench from a dealer.

When installing the new oil filter, follow the
instructions supplied with the oil filter.

Reinstall the engine oil fill cap. Start the engine. If the

Engine oil pressure low

warning appears, turn off

the engine, and check your work.

Oil Filter

594

Maintenance Under the Hood

Engine Coolant

Main

tenan

Engine Coolant

This coolant is premixed with 50% antifreeze and 50% water. Do not add any
straight antifreeze or water.

We recommend you check the engine coolant level every time you refuel. Check the
reserve tank first. If it is completely empty, also check the coolant level in the
radiator. Add the engine coolant accordingly.

1. Make sure the engine and radiator are

cool

Check the amount of coolant in the reserve
tank.

If the coolant level is below the

MIN

mark, add the specified coolant until it
reaches the

MAX

mark.

Inspect the cooling system for leaks.

Specified coolant: Honda Long Life Antifreeze/Coolant Type 2

■

Reserve Tank

Engine Coolant

NOTICE

Genuine Honda engine coolant is a 50/50 mixture of
antifreeze and water that can withstand freezing at
temperatures as low as about −31°F (−35°C). If your
vehicle is consistently subjected to temperatures
below this, the concentration of antifreeze in the
coolant should be increased. Consult a dealer for
details.

If Honda antifreeze/coolant is not available, you may
use another major brand of non-silicate coolant as a
temporary replacement. Check that it is a high quality
coolant recommended for aluminum engines.
Continued use of any non-Honda coolant can result
in corrosion, causing the cooling system to
malfunction or fail. Have the cooling system flushed
and refilled with Honda antifreeze/coolant as soon as
possible.

WARNING

Removing the radiator cap while the
engine is hot can cause the coolant to spray
out, seriously scalding you.

Always let the engine and radiator cool
down before removing the radiator cap.

MAX

MIN

Reserve Tank

595

Maintenance Under the Hood

Engine Coolant

Main

tenan

1. Make sure the engine and radiator are

cool.

Turn the radiator cap 1/8 turn counter-
clockwise and relieve any pressure in the
cooling system.

Push down and turn the radiator cap
counter-clockwise to remove it.

The coolant level should be up to the base
of the filler neck. Add coolant if it is low.

Put the radiator cap back on, and tighten it
fully.

■

Radiator

Engine Coolant

Do not add rust inhibitors or other additives to your
vehicle’s cooling system. They may not be compatible
with the coolant or with the engine components.

Radiator

NOTICE

Pour the fluid slowly and carefully so you do not spill
any. Clean up any spills immediately; they can
damage components in the engine compartment.

Radiator Cap

596

Maintenance Under the Hood

Transmission Fluid

Main

tenan

Transmission Fluid

Have a dealer check the fluid level and replace if necessary.

Do not attempt to check or change the continuously variable transmission fluid
yourself.

■

Continuously Variable Transmission (CVT) Fluid

Specified fluid: Honda HCF-2

Continuously Variable Transmission (CVT) Fluid

NOTICE

Do not mix Honda HCF-2 with other
transmission fluids.

Using a transmission fluid other than Honda HCF-2
may adversely affect the operation and durability of
your vehicle’s transmission, and damage the
transmission.
Any damage caused by using a transmission fluid that
is not equivalent to Honda HCF-2 is not covered by
Honda’s new vehicle limited warranty.

597

Maintenance Under the Hood

Brake Fluid

Main

tenan

Brake Fluid

The fluid level should be between the

MIN

and

MAX

marks on the side of the reserve

tank.

Specified fluid: Honda Heavy Duty Brake Fluid DOT 3

■

Checking the Brake Fluid

Brake Fluid

NOTICE

Brake fluid marked DOT 5 is not compatible with your
vehicle's braking system and can cause extensive
damage.

If the specified brake fluid is not available, you should
use only DOT 3 or DOT 4 fluid from a sealed
container as a temporary replacement.

Using any non-Honda brake fluid can cause corrosion
and decrease the longevity of the system. Have the
brake system flushed and refilled with Honda Heavy
Duty Brake Fluid DOT 3 as soon as possible.

If the brake fluid level is at or below the

MIN

mark,

have a dealer inspect the vehicle for leaks or worn
brake pads as soon as possible.

Reserve Tank

MIN

MAX

598

Maintenance Under the Hood

Refilling Window Washer Fluid

Main

tenan

Refilling Window Washer Fluid

Check the amount of window washer fluid.

If the level is low, fill the washer reservoir.

If the washer fluid is low, a message appears
on the driver information interface.

Pour the washer fluid carefully. Do not overflow the reservoir.

Refilling Window Washer Fluid

NOTICE

Do not use engine antifreeze or a vinegar/water
solution in the windshield washer reservoir.
Antifreeze can damage your vehicle's paint. A
vinegar/water solution can damage the windshield
washer pump.
Use only commercially available windshield washer
fluid.
Avoid prolonged use of hard water to prevent lime
scale buildup.

Canadian models

599

Main

tenan

Replacing Light Bulbs

Headlights

Headlights are LED type. Have an authorized Honda dealer inspect and replace the
light assembly.

Front Turn Signal, Parking/Daytime Running Lights

Front turn signal, parking/daytime running lights are LED type. Have an authorized
Honda dealer inspect and replace the light assembly.

Front Side Marker Lights

Front side marker lights are LED type. Have an authorized Honda dealer inspect and
replace the light assembly.

Side Turn Signal/Emergency Indicator Lights

Door mirror side turn lights are LED type. Have an authorized Honda dealer inspect
and replace the light assembly.

Headlights

The headlight aim is set by the factory, and does not
need to be adjusted. However, if you regularly carry
heavy items in the cargo area or tow a trailer, have
the aiming readjusted at a dealer or by a qualified
technician.

600

Replacing Light Bulbs

Brake Light, Taillight, Rear Side Marker Light, and Rear Turn Signal Light Bulbs

Main

tenan

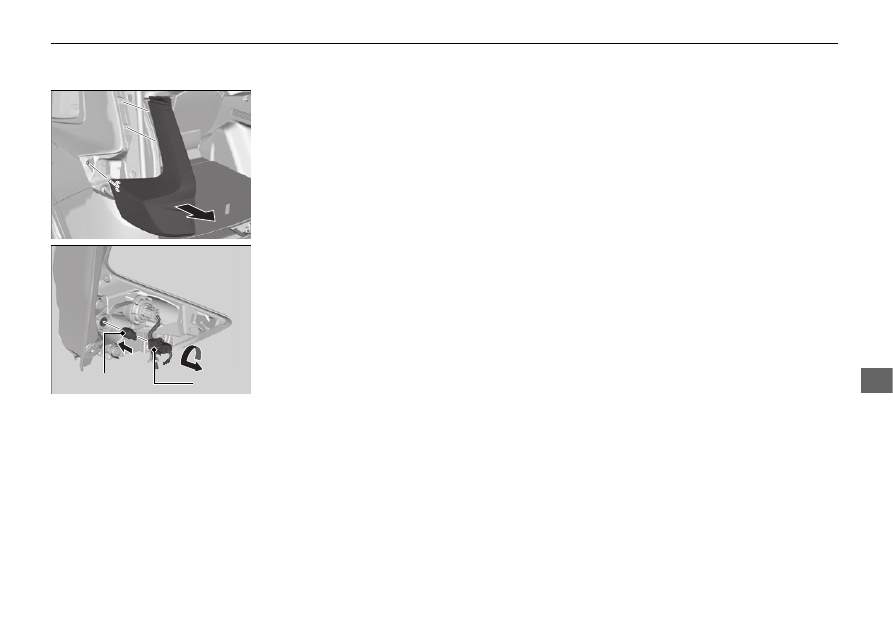

Brake Light, Taillight, Rear Side Marker Light, and
Rear Turn Signal Light Bulbs

When replacing, use the following bulbs.

Unscrew the bolts.

Pull the taillight carefully until the snap pins
are removed from the body grommets.

Brake Light: LED
Taillight: LED
Rear Side Marker Light: LED
Rear Turn Signal Light: 21 W (Amber)

Brake Light, Taillight, Rear Side Marker Light, and Rear Turn
Signal Light Bulbs

Brake lights, taillights, and rear side marker lights are
LED type. Have an authorized Honda dealer inspect
and replace the light assembly.

Bolt

Snap Pin

602

Replacing Light Bulbs

Taillight

and Back-Up Lights

Main

tenan

Taillight

and Back-Up Lights

Taillights and back-up lights are LED type. Have an authorized Honda dealer inspect
and replace the light assembly.

Rear License Plate Light

Rear license plate light is LED type. Have an authorized Honda dealer inspect and
replace the light assembly.

High-Mount Brake Light

High-mount brake light is LED type. Have an authorized Honda dealer inspect and
replace the light assembly.

* Not available on all models

603

Continued

Main

tenan

Checking and Maintaining Wiper Blades

Checking Wiper Blades

If the wiper blade rubber has deteriorated, it will leave streaks, become noisy, and
the hard surfaces of the blade may scratch the window glass.

Changing the Front Wiper Blade

Set the power mode to ON, then to
VEHICLE OFF.

Within 10 seconds of setting the power
mode to VEHICLE OFF, hold the wiper
switch in the

MIST

position for more than

two seconds.

Both wiper arms are set to the
maintenance position as shown in the
image.

Lift both wiper arms.

Changing the Front Wiper Blade

NOTICE

When lifting the wiper arms, always follow the
instructions to move them into the maintenance
position.

The wiper arms may be damaged if they are moved
manually.

NOTICE

Avoid dropping the wiper arm onto the windshield, it
may damage the wiper arm and/or the windshield.

604

Checking and Maintaining Wiper Blades

Changing the Front Wiper Blade

Main

tenan

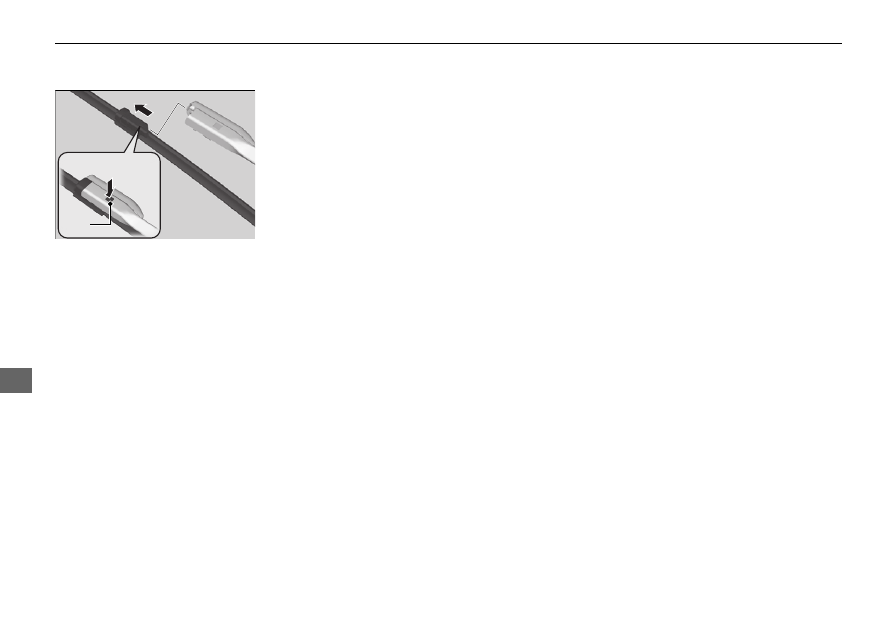

Depress the lock tab, then slide the wiper
blade off the wiper arm.

Slide the new wiper blade onto the wiper
arm until it clicks into place.

Lower both wiper arms.

Set the power mode to ON, then set the
wiper switch to the

MIST

position once.

The wiper arms return to the standard
position.

Tab

605

Checking and Maintaining Wiper Blades

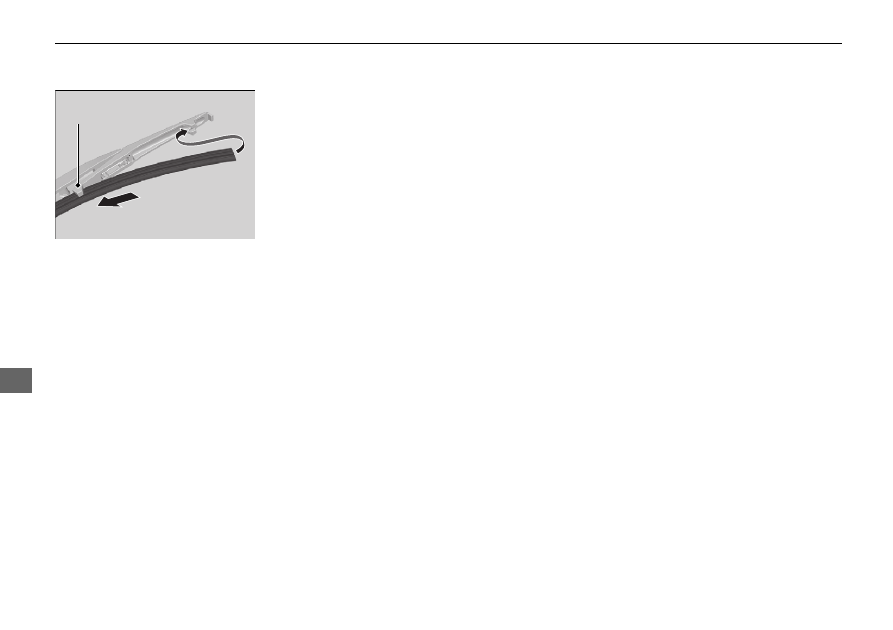

Changing the Rear Wiper Blade Rubber

Continued

Main

tenan

Changing the Rear Wiper Blade Rubber

Raise the wiper arm off.

Pivot the bottom end of the wiper blade up
until it comes off from the wiper arm.

Slide the blade out of the wiper.

Remove the retainers from wiper blade and
mount to a new rubber blade.

Changing the Rear Wiper Blade Rubber

NOTICE

Avoid dropping the wiper arm, it may damage the
rear window.

Wiper Arm

Blade

Retainer

607

Main

tenan

Checking and Maintaining Tires

Checking Tires

To safely operate your vehicle, your tires must be of the proper type and size, in
good condition with adequate tread, and properly inflated.

■

Inflation guidelines

Properly inflated tires provide the best combination of handling, tread life, and comfort.
Refer to the driver’s doorjamb label or specifications page for the specified pressure.

Underinflated tires wear unevenly, adversely affect handling and fuel economy, and
are more likely to fail from overheating.

Overinflated tires make your vehicle ride harshly, are more prone to road hazards,
and wear unevenly.

Every day before you drive, look at each of the tires. If one looks lower than the
others, check the pressure with a tire gauge.

At least once a month or before long trips, use a gauge to measure the pressure in
all tires, including the spare. Even tires in good condition can lose 1–2 psi
(10–20 kPa, 0.1–0.2 kgf/cm

) per month.

■

Inspection guidelines

Every time you check inflation, also examine the tires and valve stems.
Look for:

•

Bumps or bulges on the side or in the tread. Replace the tire if you find any cuts,
splits, or cracks in the side of the tire. Replace it if you see fabric or cord.

•

Remove any foreign objects and inspect for air leaks.

•

Uneven tread wear. Have a dealer check the wheel alignment.

•

Excessive tread wear.

Wear Indicators

P. 612

•

Cracks or other damage around valve stem.

Checking Tires

Measure the air pressure when tires are cold. This
means the vehicle has been parked for at least three
hours, or driven less than 1 mile (1.6 km). If
necessary, add or release air until the specified
pressure is reached.

If checked when hot, tire pressure can be as much as
4–6 psi (30–40 kPa, 0.3–0.4 kgf/cm

) higher than if

checked when cold.

Whenever tire pressure is adjusted, you must
calibrate the TPMS.

Tire Pressure Monitoring System (TPMS)

P. 455

Have a dealer check the tires if you feel a consistent
vibration while driving. New tires and any that have
been removed and reinstalled should be properly
balanced.

WARNING

Using tires that are excessively worn or
improperly inflated can cause a crash in
which you can be seriously hurt or killed.

Follow all instructions in this owner’s
manual regarding tire inflation and
maintenance.

U.S. models

608

Checking and Maintaining Tires

Tire and Loading Information Label

Main

tenan

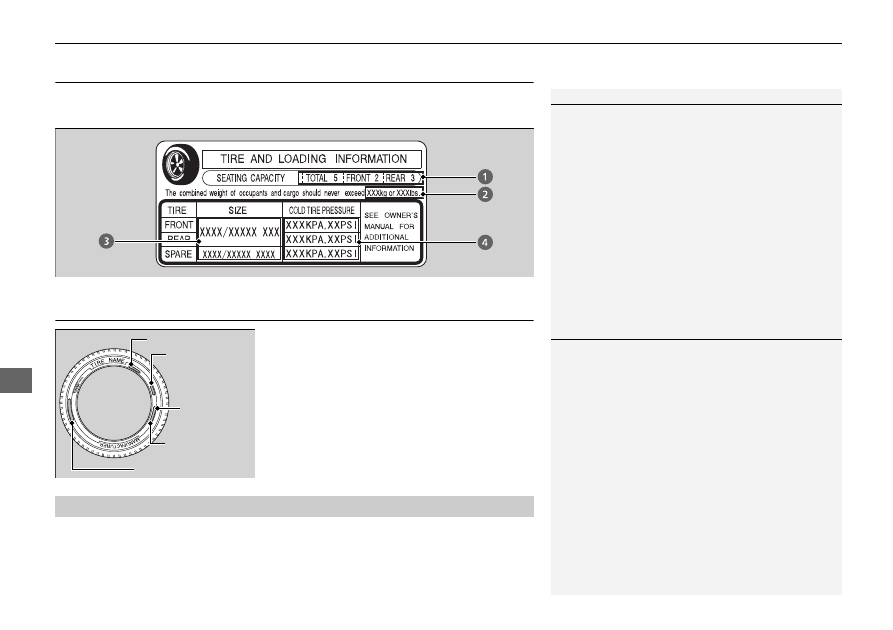

Tire and Loading Information Label

The label attached to the driver’s doorjamb provides necessary tire and loading
information.

Tire Labeling

The tires that came on your vehicle have a
number of markings. Those you should be
aware of are described as shown.

Whenever tires are replaced, they should be replaced with tires of the same size.

Tire and Loading Information Label

The tire and loading information label attached to the
driver’s doorjamb contains:

The number of people your vehicle can carry.

The total weight your vehicle can carry. Do not
exceed this weight.

The original tire sizes for front, rear, and spare.

The proper cold tire pressure for front, rear, and
spare.

Label
Example

Example

Tire Size

Tire
Identification
Number (TIN)

Maximum
Tire Load

Maximum
Tire Pressure

Tire Size

■

Tire Sizes

Tire Sizes

Following is an example of tire size with an
explanation of what each component means.

P235/60 R18 102T

P: Vehicle type (P indicates passenger vehicle).
235: Tire width in millimeters.
60: Aspect ratio (the tire’s section height as a
percentage of its width).
R: Tire construction code (R indicates radial).
18: Rim diameter in inches.
102: Load index (a numerical code associated with
the maximum load the tire can carry).
T: Speed symbol (an alphabetical code indicating the
maximum speed rating).

609

Checking and Maintaining Tires

Tire Labeling

Main

tenan

The tire identification number (TIN) is a group of numbers and letters that look like
the example in the side column. TIN is located on the sidewall of the tire.

Cold Tire Pressure

– The tire air pressure when the vehicle has been parked for at

least three hours or driven less than 1 mile (1.6 km).

Load Rating

– Means the maximum load that a tire is rated to carry for a given

inflation pressure.

Maximum Inflation Pressure

– The maximum tire air pressure that the tire can

hold.

Maximum Load Rating

– Means the load rating for a tire at the maximum

permissible inflation pressure for that tire.

Recommended Inflation Pressure

– The cold tire inflation pressure recommended

by the manufacturer.

Treadwear Indicators (TWI)

– Means the projections within the principal grooves

designed to give a visual indication of the degrees of wear of the tread.

■

Tire Identification Number (TIN)

■

Glossary of Tire Terminology

Tire Identification Number (TIN)

DOT B97R FW6X 2209

DOT: This indicates that the tire meets all
requirements of the U.S. Department of
Transportation.
B97R: Manufacturer's identification mark.
FW6X: Tire type code.
22 09: Date of manufacture.

Year
Week

610

Checking and Maintaining Tires

DOT Tire Quality Grading (U.S. Vehicles)

Main

tenan

DOT Tire Quality Grading (U.S. Vehicles)

The tires on your vehicle meet all U.S. Federal Safety
Requirements. All tires are also graded for treadwear, traction,
and temperature performance according to Department of
Transportation (DOT) standards. The following explains these
gradings.

Quality grades can be found where applicable on the tire sidewall
between tread shoulder and maximum section width.

The treadwear grade is a comparative rating based on the wear
rate of the tire when tested under controlled conditions on a
specified government test course. For example, a tire graded 150
would wear one and one-half (1 1/2) times as well on the
government course as a tire graded 100. The relative performance
of tires depends upon the actual conditions of their use, however,
and may depart significantly from the norm due to variations in
driving habits, service practices and differences in road
characteristics and climate.

■

Uniform Tire Quality Grading

■

Treadwear

Uniform Tire Quality Grading

For example:

Treadwear 200
Traction AA
Temperature A

All passenger car tires must conform
to Federal Safety Requirements in
addition to these grades.

611

Checking and Maintaining Tires

DOT Tire Quality Grading (U.S. Vehicles)

Main

tenan

The traction grades, from highest to lowest, are AA, A, B, and C.
Those grades represent the tire's ability to stop on wet pavement
as measured under controlled conditions on specified
government test surfaces of asphalt and concrete. A tire marked
C may have poor traction performance.

The temperature grades are A (the highest), B, and C,
representing the tire's resistance to the generation of heat and its
ability to dissipate heat when tested under controlled conditions
on a specified indoor laboratory test wheel. Sustained high
temperature can cause the material of the tire to degenerate and
reduce tire life, and excessive temperature can lead to sudden tire
failure. The grade C corresponds to a level of performance which
all passenger car tires must meet under the Federal Motor Vehicle
Safety Standard No. 109. Grades B and A represent higher levels
of performance on the laboratory test wheel than the minimum
required by law.

■

Traction

■

Temperature

Traction

Warning: The traction grade
assigned to this tire is based on
straight-ahead braking traction tests,
and does not include acceleration,
cornering, hydroplaning, or peak
traction characteristics.

Temperature

Warning: The temperature grade for
this tire is established for a tire that is
properly inflated and not
overloaded. Excessive speed,
underinflation, or excessive loading,
either separately or in combination,
can cause heat buildup and possible
tire failure.

612

Checking and Maintaining Tires

Wear Indicators

Main

tenan

Wear Indicators

The groove where the wear indicator is
located is about 1/16 inch (about 1.6 mm)
shallower than elsewhere on the tire. If the
tread has worn so that the indicator is
exposed, replace the tire.

Worn out tires have poor traction on wet
roads.

Tire Service Life

The life of your tires is dependent on many factors, including driving habits, road
conditions, vehicle loading, inflation pressure, maintenance history, speed, and
environmental conditions (even when the tires are not in use).

In addition to regular inspections and inflation pressure maintenance, it is
recommended that you have annual inspections performed once the tires reach five
years old. All tires, including the spare, should be removed from service after 10
years from the date of manufacture, regardless of their condition or state of wear.

Example of a Wear
Indicator mark

613

Checking and Maintaining Tires

Tire and Wheel Replacement

Main

tenan

Tire and Wheel Replacement

Replace your tires with radials of the same size, load range, speed rating, and
maximum cold tire pressure rating (as shown on the tire‘s sidewall). Using tires of a
different size or construction can cause certain vehicle systems such as the ABS and
Vehicle Stability Assist

(VSA

) system to work incorrectly.

It is best to replace all four tires at the same time. If that isn’t possible, replace the
front or rear tires in pairs.

Make sure that the wheel’s specifications match those of the original wheels.

Tire and Wheel Replacement

WARNING

Installing improper tires on your vehicle can
affect handling and stability. This can cause
a crash in which you can be seriously hurt or
killed.

Always use the size and type of tires
recommended in this owner’s manual.

614

Checking and Maintaining Tires

Tire Rotation

Main

tenan

Tire Rotation

Rotating tires according to the maintenance messages on the driver information
interface helps to distribute wear more evenly and increase tire life.

■

Tires without rotation marks

Rotate the tires as shown here.

■

Tires with rotation marks

Rotate the tires as shown here.

Tire Rotation

Tires with directional tread patterns should only be
rotated front to back (not from one side to the other).
Directional tires should be mounted with the rotation
indication mark facing forward, as shown below.

Whenever tires are rotated, you must calibrate the
TPMS.

Tire Pressure Monitoring System (TPMS)

P. 455

Front

Direction Mark

U.S. models

Front

Honda CR-V (2024 year). Manual in english - page 18
