When Driving

u

Real Time AWD with Intelligent Control System

TM

*

Driving

Real Time AWD with Intelligent Control System

TM

*

Your vehicle is equipped with the AWD system. When the system senses a loss of
front wheel traction, it automatically transfers some power to the rear wheels. This
allows you to utilize all available traction and may increase mobility.

You still need to exercise the same care when accelerating, steering, and braking
that you would in a two wheel drive vehicle.

If you excessively spin all four wheels and overheat the AWD system, only the front
wheels receive power. Stop until the system cools down.

1

Real Time AWD with Intelligent Control System

TM

*

NOTICE

Do not continuously spin the front tires of your
vehicle. Continuously spinning the front tires can
cause transmission or rear differential damage.

The AWD system may not function properly if tire
type and size are mixed. Make sure to use the same
size and type of tire, and the air pressures as
specified.

2

Tire and Wheel Replacement

 P. 613

* Not available on all models

455

uu

When Driving

u

Tire Pressure Monitoring System (TPMS)

Continued

Driving

Tire Pressure Monitoring System (TPMS)

Instead of directly measuring the pressure in each tire, the TPMS on this vehicle
monitors and compares the rolling radius and rotational characteristics of each
wheel and tire while you are driving to determine if one or more tires are
significantly under-inflated.

This will cause the low tire pressure/TPMS
indicator to come on and a message to appear
on the gauge.

U.S. models

1

Tire Pressure Monitoring System (TPMS)

The system does not monitor the tires when driving
at low speed.

Conditions such as low ambient temperature and
altitude change directly affect tire pressure and can
trigger the low tire pressure/TPMS indicator to come on.

Tire pressure checked and inflated in:

•

Warm weather can become under-inflated in
colder weather.

•

Cold weather can become overinflated in warmer
weather.

The low tire pressure/TPMS indicator will not come
on as a result of overinflation.

The TPMS may not function properly if tire type and
size are mixed. Make sure to use the same size and
type of tire.

2

Checking and Maintaining Tires

 P. 607

The low tire pressure/TPMS indicator may come on
with a delay or may not come on at all when:

•

You rapidly accelerate, decelerate, or turn the
steering wheel.

•

You drive on snowy or slippery roads.

•

Tire chains are used.

The low tire pressure/TPMS indicator may come on
under the following conditions:

•

A compact spare tire

*

 is used.

•

There is a heavier and uneven load on the tires,
such as when towing a trailer, than the condition at
calibration.

•

Tire chains are used.

Low Tire Pressure/TPMS Indicator

* Not available on all models

uu

When Driving

u

Tire Pressure Monitoring System (TPMS)

456

Driving

You must start TPMS calibration every time you:

•

Adjust the pressure in one or more tires.

•

Rotate the tires.

•

Replace one or more tires.

Before calibrating the TPMS:

•

Set the cold tire pressure in all four tires.

2

Checking Tires

 P. 607

Make sure:

•

The vehicle is at a complete stop.

•

The transmission is in

(

P

.

•

The power mode is in ON.

1

Tire Pressure Monitoring System (TPMS)

The Vehicle Stability Assist

TM

 (VSA

®

) system, brake

system (Amber), Adaptive Cruise Control (ACC) with
Low Speed Follow, low tire pressure/TPMS and safety
support indicators may come on in amber along with
a message in the gauge when you set the power
mode to ON after reconnecting the battery.
Drive a short distance at more than 12 mph (20 km/h).
Each indicator should go off. If any do not, have your
vehicle checked by a dealer.

■

TPMS Calibration

1

TPMS Calibration

TPMS cannot be calibrated if a compact spare tire is
installed.
The calibration process requires approximately 30
minutes of cumulative driving at speeds between
31-62 mph (50-100 km/h).
During this period, if power mode is set to ON and
the vehicle is not moved within 45 seconds, you may
notice the low tire pressure indicator comes on
briefly. This is normal and indicates that the
calibration process is not yet complete.

If the tire chains are installed, remove them before
calibrating the TPMS.

If the low tire pressure/TPMS indicator comes on even
when the properly inflated specified regular tires are
installed, have your vehicle checked by a dealer.

We recommend that the tires be replaced with the
same brand, model, and size as the originals. Ask a
dealer for details.

457

uu

When Driving

u

Tire Pressure Monitoring System (TPMS)

Continued

Driving

When you calibrate the TPMS, do the
following.

2

Switching the Display

 P. 113

1.

Press the

 (home) button, to select

Settings

, then press the left selector wheel.

u

Vehicle settings

 appears on the display.

2.

Roll the left selector wheel.

u

TPMS calibration

 appears on the

display.

Models with 7-in. Color Touchscreen

458

uu

When Driving

u

Tire Pressure Monitoring System (TPMS)

Driving

3.

Press the left selector wheel.

u

The display switches to the
customization setup screen, where you
can select

Cancel

 or

Calibrate

.

4.

Roll the left selector wheel and select

Calibrate

, then press the left selector

wheel.

u

Calibration started

 screen appears,

then the display returns to the
customization menu screen.

•

If the

Calibration failed to start

 message

appears, repeat step 4.

•

The calibration process finishes
automatically.

459

uu

When Driving

u

Tire Pressure Monitoring System (TPMS)

Driving

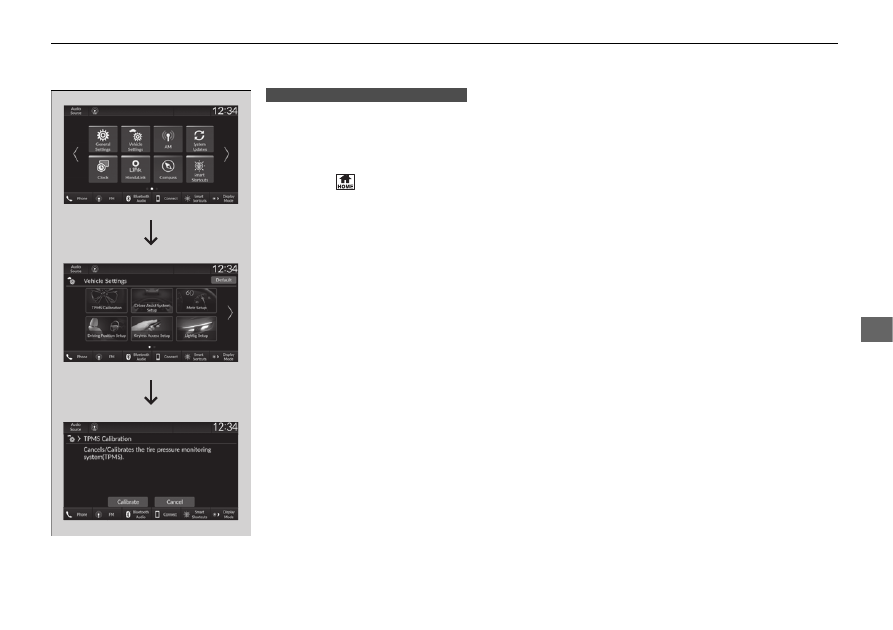

When you calibrate the TPMS, do the
following.

2

Audio System Basic Operation

 P. 262

1.

Set the power mode to ON.

2.

Press the

 button.

3.

Select

Vehicle Settings

.

4.

Select

TPMS Calibration

.

5.

Select

Calibrate

 or

Cancel

.

•

If the

Calibration Failed To Start.



message appears, repeat step 5.

•

The calibration process finishes
automatically.

Models with 9-in. Color Touchscreen

460

uu

When Driving

u

Tire Pressure Monitoring System (TPMS) - Required Federal Explanation

Driving

Tire Pressure Monitoring System (TPMS) - Required
Federal Explanation

Each tire, including the spare (if provided), should be checked
monthly when cold and inflated to the inflation pressure
recommended by the vehicle manufacturer on the vehicle placard
or tire inflation pressure label.

(If your vehicle has tires of a different size than the size indicated
on the vehicle placard or tire inflation pressure label, you should
determine the proper tire inflation pressure for those tires.)

As an added safety feature, your vehicle has been equipped with
a tire pressure monitoring system (TPMS) that illuminates a low
tire pressure telltale

when one or more of your tires is significantly under-inflated.

Accordingly, when the low tire pressure telltale illuminates, you
should stop and check your tires as soon as possible, and inflate
them to the proper pressure.

Driving on a significantly under-inflated tire causes the tire to
overheat and can lead to tire failure. Under-inflation also reduces
fuel efficiency and tire tread life, and may affect the vehicle's
handling and stopping ability.

U.S. models

461

uu

When Driving

u

Tire Pressure Monitoring System (TPMS) - Required Federal Explanation

Driving

Please note that the TPMS is not a substitute for proper tire
maintenance, and it is the driver's responsibility to maintain
correct tire pressure, even if under-inflation has not reached the
level to trigger illumination of the TPMS low tire pressure telltale.

Your vehicle has also been equipped with a TPMS malfunction
indicator to indicate when the system is not operating properly.
The TPMS malfunction indicator is combined with the low tire
pressure telltale. When the system detects a malfunction, the
telltale will flash for approximately one minute and then remain
continuously illuminated. This sequence will continue upon
subsequent vehicle start-ups as long as the malfunction exists.

When the malfunction indicator is illuminated, the system may
not be able to detect or signal low tire pressure as intended.

TPMS malfunctions may occur for a variety of reasons, including
the installation of replacement or alternate tires or wheels on the
vehicle that prevent the TPMS from functioning properly.

Always check the TPMS malfunction telltale after replacing one or
more tires or wheels on your vehicle to ensure that the
replacement or alternate tires and wheels allow the TPMS to
continue to function properly.

462

uu

When Driving

u

Blind Spot Information System

*

Driving

Blind Spot Information System

*

When the system detects vehicles approaching from behind in adjacent lanes, the
appropriate indicator comes on, providing assistance when you change lanes.

The system activates when your vehicle is moving forward at about 20 mph (32 km/h)
or above.

Alert zone range
A: Approx. 1.6 ~ 10 feet (0.5 ~ 3 meters) from vehicle side.
B: Approx. 10 feet (3 meters) from rear bumper.
C: Approx. 10 ~ 82 feet (3 ~ 25 meters) behind from rear bumper. (The faster the
approaching vehicle, the further away it will be detected.)

The initially set alert zone is alert zone 1. Over time, after the vehicle has been driven
on straight roads with traffic and roadside objects, the system will adapt and expand
the alert zone (alert zone 1 and 2).

■

How the System works

1

Blind Spot Information System

*

Important Safety Reminder

Like all assistance systems, the Blind Spot Information
System has limitations. Always look in your mirrors,
to either side of your vehicle, and behind you for
other vehicles before changing lanes. Overreliance on
the Blind Spot Information System may result in a
collision.

Have your vehicle checked by a dealer in the
following situations:

•

The rear bumper or area around the radar sensors
is strongly impacted.

•

The indicator does not come on even if a vehicle in
the alert zone should have been detected.

•

The rear bumper or any system components need
to be repaired.

If the rear bumper or any system components are
repaired, the system will revert to alert zone 1 only
until it is able to adapt and expand to alert zone 1
and 2.

For proper Blind Spot Information System operation:

•

Always keep the rear bumper and area around the
radar sensors clean.

•

Do not cover the rear bumper corner area with
labels or stickers of any kind.

Radar Sensors : underneath
the rear bumper corners

: Alert Zone 1

A

B

C

: Alert Zone 2

* Not available on all models

Continued

463

uu

When Driving

u

Blind Spot Information System

*

Driving

■

When the system detects a vehicle

Blind Spot Information System alert indicator:
Located on the outside rearview mirror on
both sides.

Comes on when:

•

A vehicle approaches you from behind to
overtake you at a speed difference of no
more than about 31 mph (50 km/h).

•

You pass a vehicle at a speed difference of
no more than about 12 mph (20 km/h).

Blinks and a beeper sounds when:

You use the turn signal lever to signal a turn in
the direction of the detected vehicle while the
Blind Spot Information System alert indicator
is on.

u

The beeper sounds three times.

1

Blind Spot Information System

*

The system is for your convenience only. Even if an
object is within the alert zone, the following
situations may occur:

•

The Blind Spot Information System alert indicator
does not come on and the message

Blind spot

information system not available

 appears on

the driver information interface.

•

The Blind Spot Information System alert indicator
may come on even with the message displayed.

The Vehicle Stability Assist

TM

 (VSA

®

) system, brake

system (Amber), Adaptive Cruise Control (ACC) with
Low Speed Follow, low tire pressure/TPMS

*

 and

safety support indicators may come on in amber
along with a message in the gauge when you set the
power mode to ON after reconnecting the battery.
Drive a short distance at more than 12 mph (20 km/h).
Each indicator should go off. If any do not, have your
vehicle checked by a dealer.

Turn the system off when towing a trailer.
The system may not work properly for the following
reasons:

•

The added mass tilts the vehicle and changes the
radar coverage.

•

The trailer itself can be detected by the radar
sensors, causing the Blind Spot Information System
alert indicators to come on.

Comes On

Blinks

* Not available on all models

uu

When Driving

u

Blind Spot Information System

*

464

Driving

You can turn the system on and off using the driver information interface.

2

Safety Support

 P. 124

The Blind Spot Information System will stay on the previously selected on or off
setting each time you start the engine.

■

Blind Spot Information System On and Off

1

Blind Spot Information System

*

You can change the settings for the Blind Spot
Information System.

2

Settings

*

 P. 129

2

Customized Features

 P. 359

* Not available on all models

465

uu

When Driving

u

Blind Spot Information System

*

Driving

The Blind Spot Information System alert indicator may not come on under the
following conditions:

•

There is a large speed difference between your vehicle and the vehicle in the
adjacent lane.

•

A vehicle is parked in a side lane.

•

An object not detected by the radar sensors approaches or passes your vehicle.

•

The vehicle driving in the adjacent lane is a motorcycle or other small vehicle.

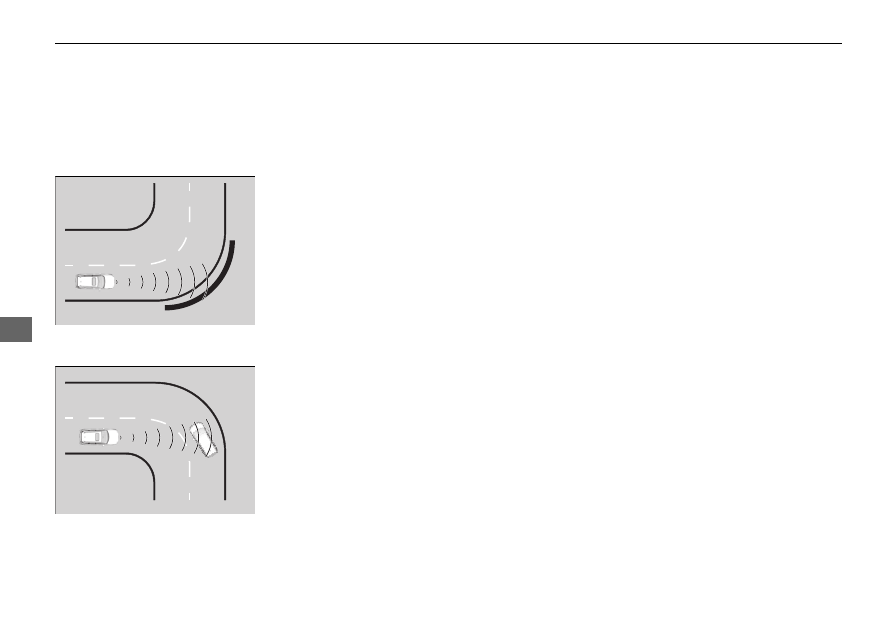

The Blind Spot Information System may not operate correctly under the following
conditions:

•

Making a turn at an intersection.

•

Objects (guard rails, poles, trees, etc.) are detected.

•

An object that does not reflect radio waves well or a motorcycle, is in the alert
zone.

•

Driving on a curved road.

•

A vehicle is moving from a far lane to the adjacent lane.

•

The system picks up signal interference such as other radar sensors from another
vehicle or strong radio wave transmitted from a facility nearby.

•

The rear bumper or the area around the radar sensors is covered by dirt, mud,
snow, ice, etc.

•

The rear bumper or the area around the radar sensors has been damaged or
deformed.

•

In bad weather (heavy rain, snow, and fog).

•

Making a short turn or driving on a bumpy road that slightly tilts the vehicle.

•

An object such as a bicycle rack is attached to the rear of the vehicle.

■

Blind Spot Information System Conditions and Limitations

466

Driving

Honda Sensing

®

Assists with functions such as acceleration, braking, and steering in order to reduce
the burden on the driver, as well as avoid or reduce the severity of collisions.

Honda Sensing

®

 has the following functions.

■

The functions which do not require switch operations to activate

•

Collision Mitigation Braking System

TM

 (CMBS

TM

)

2

 P. 469

•

Low Speed Braking Control

*



2

 P. 481

•

Road Departure Mitigation System

2

 P. 487

•

Traffic Sign Recognition System

2

 P. 536

•

Blind Spot Information System

*



2

 P. 462

•

Cross Traffic Monitor

*



2

 P. 563

•

Parking Sensor System

*



2

 P. 558

•

Auto High-Beam

2

 P. 184

•

Driver Attention Monitor

2

 P. 120

■

The functions which require switch operations to activate

•

Adaptive Cruise Control (ACC) with Low Speed Follow

2

 P. 495

•

Lane Keeping Assist System (LKAS)

2

 P. 515

•

Traffic Jam Assist

2

 P. 527

* Not available on all models

467

uu

Honda Sensing

®

u

Continued

Driving

■

 Button

Press to activate standby mode for ACC with
Low Speed Follow.
Or press to cancel the system.

■

LKAS Button

Press to activate standby mode for LKAS and
Traffic Jam Assist.
Or press to cancel these systems.

■

Interval Button

Press to change the ACC with Low Speed
Follow following-interval.

■

CANCEL Button

Press to cancel ACC with Low Speed Follow.

■

RES/+/SET/− Switch

Press the

RES/+

/

SET/−

 switch up to set or

resume the ACC with Low Speed Follow or
increase the vehicle speed.
Press the

RES/+

/

SET/−

 switch down to set the

ACC with Low Speed Follow or decrease the
vehicle speed.

■

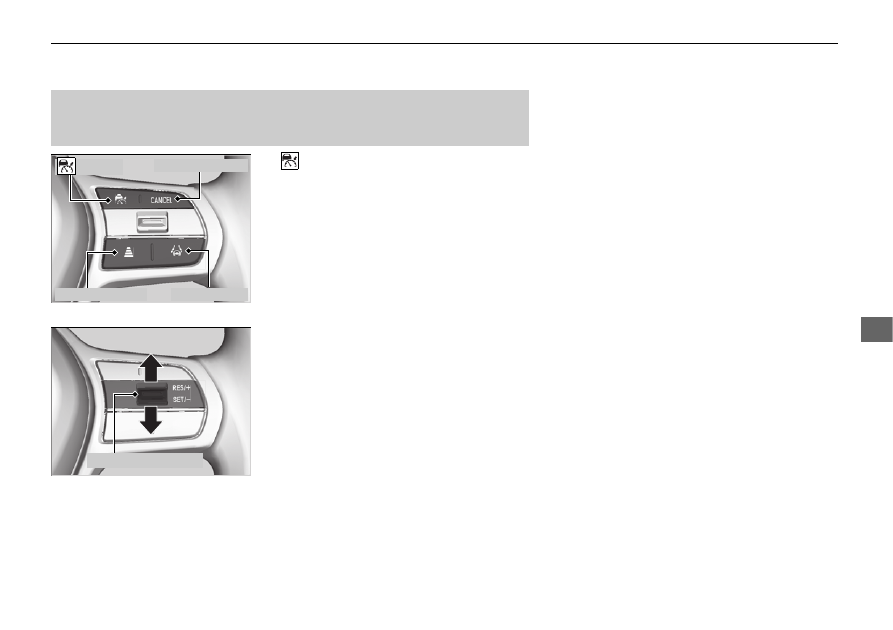

Operation Switches for the Adaptive Cruise Control (ACC)

with Low Speed Follow/Lane Keeping Assist System (LKAS)/
Traffic Jam Assist

Interval Button

 Button

LKAS Button

CANCEL

 Button

RES/+

/

SET/−

 Switch

468

uu

Honda Sensing

®

u

Driving

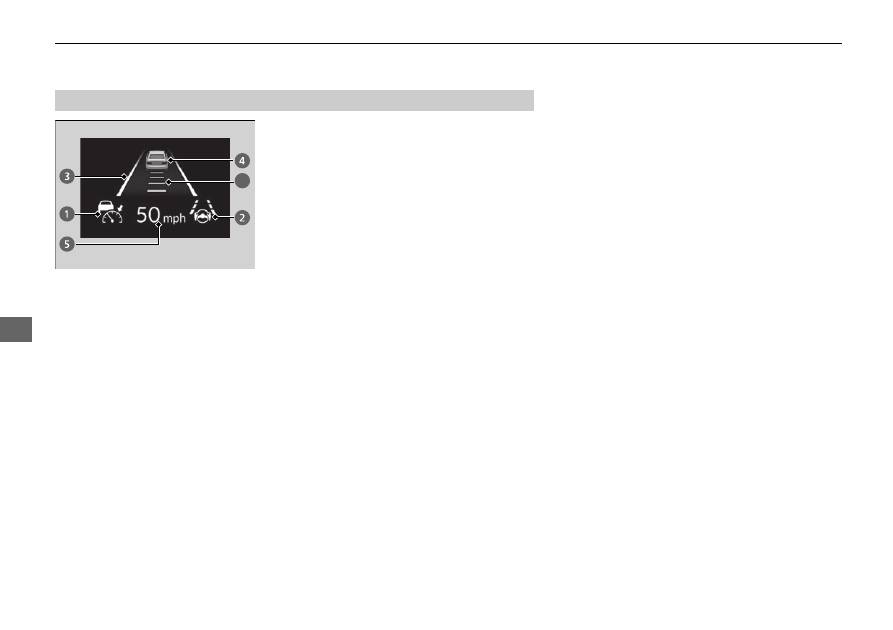

You can see the current state of Adaptive
Cruise Control (ACC) with Low Speed Follow,
Lane Keeping Assist System (LKAS) and Traffic
Jam Assist.

a

Indicates that ACC with Low Speed Follow
is ready to be activated.

•

Green: The system is on.

•

White: The system is standby.

•

Amber: There is a problem with the system.

b

Indicates that LKAS or Traffic Jam Assist is
ready to be activated.

•

Green: The system is on.

•

White: The system is standby.

•

Amber: There is a problem with the system.

c

Indicates that LKAS or Traffic Jam Assist is
activated and whether or not traffic lane
lines are detected.

•

Green lines: The system is on.

•

White lines: Traffic lane lines are detected.

•

Amber line: Lane departure is detected.

d

Indicates whether or not a vehicle is
detected ahead.

e

Indicates that ACC with Low Speed Follow
shows the set vehicle speed.

f

Indicates that ACC with Low Speed Follow
shows the set vehicle interval.

■

Gauge Content

6

469

uu

Honda Sensing

®

u

Collision Mitigation Braking System

TM

 (CMBS

TM

)

Continued

Driving

Collision Mitigation Braking System

TM

 (CMBS

TM

)

The system can assist you when it determines there is a possibility of your vehicle
colliding with a vehicle (including motorcycles) ahead from behind, an oncoming
vehicle in front, a pedestrian, or someone riding a bicycle (moving bicycle). The
CMBS

TM

 is designed to alert you when the potential for a collision is determined, as

well as assist in reducing speed, avoiding collisions, and reducing collision severity.

1

Collision Mitigation Braking System

TM

 (CMBS

TM

)

Important Safety Reminder

The CMBS

TM

 is designed to reduce the severity of an

unavoidable collision. It does not prevent collisions
nor stop the vehicle automatically. It is still your
responsibility to operate the brake pedal and steering
wheel appropriately according to the driving
conditions.

The CMBS

TM

 may not activate or may not detect a

vehicle in front of your vehicle under certain
conditions:

2

CMBS

TM

 Conditions and Limitations

 P. 474

For directions on the proper handling of the radar
sensor, refer to the following page.

2

Radar Sensor

 P. 544

You can read about handling information for the
camera equipped with this system.

2

Front Sensor Camera

 P. 542

470

uu

Honda Sensing

®

u

Collision Mitigation Braking System

TM

 (CMBS

TM

)

Driving

■

How the system works

The CMBS

TM

 will be canceled when your vehicle stops or the system determines

there no longer is the potential for a collision.
The CMBS

TM

 may also be canceled when a driver operates the steering wheel and

the brake or accelerator pedal to avoid a collision.

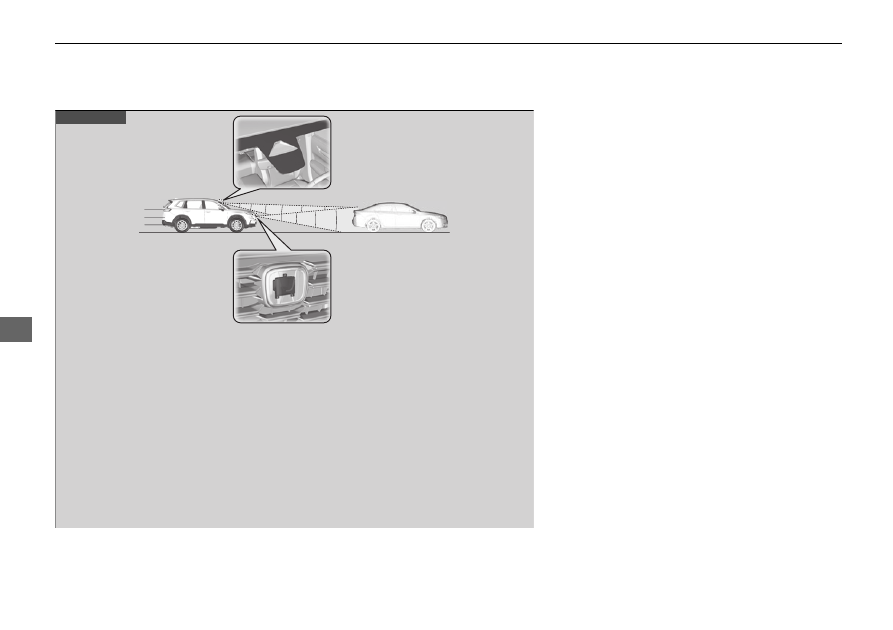

The radar sensor is behind
the Honda emblem on the
front grille.

A front sensor camera
is located behind the
rearview mirror.

The system starts monitoring the roadway ahead when your vehicle speed is about
3 mph (5 km/h) or above and will search for a vehicle, pedestrian, or moving bicycle
in front of you.

When to use

The CMBS

TM

 activates when:

●

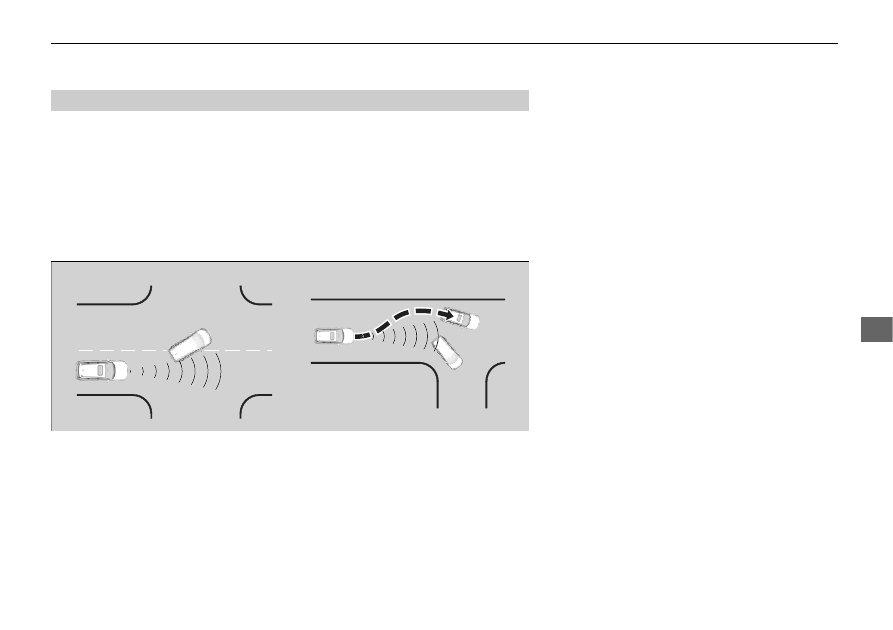

The speed difference between your vehicle and a vehicle, pedestrian, or moving
bicycle detected in front of you becomes about 3 mph (5 km/h) and over with a
chance of a collision.

●

Your vehicle drives at about 18 mph (30 km/h) or less and there is a chance of in
frontal collision with a detected oncoming vehicle when you turn left at an
intersection.

●

Your vehicle speed is about 62 mph (100 km/h) or less and the system determines
there is a chance of a collision with:

- An oncoming or stationary vehicle detected in front of you.
- A pedestrian or moving bicycle detected in front of you.

Continued

471

uu

Honda Sensing

®

u

Collision Mitigation Braking System

TM

 (CMBS

TM

)

Driving

■

When the system activates

You can change the distance (

Long

/

Normal

/

Short

) between vehicles at which the

system's earliest collision alert will come on.

2

Settings

*

 P. 129

2

Customized Features

 P. 359

1

When the system activates

The camera in the CMBS

TM

 is also designed to detect

pedestrians.
However, this pedestrian detection feature may not
activate or may not detect a pedestrian in front of
your vehicle under certain conditions.
Refer to the ones indicating the pedestrian detection
limitations from the list.

2

CMBS

TM

 Conditions and Limitations

 P. 474

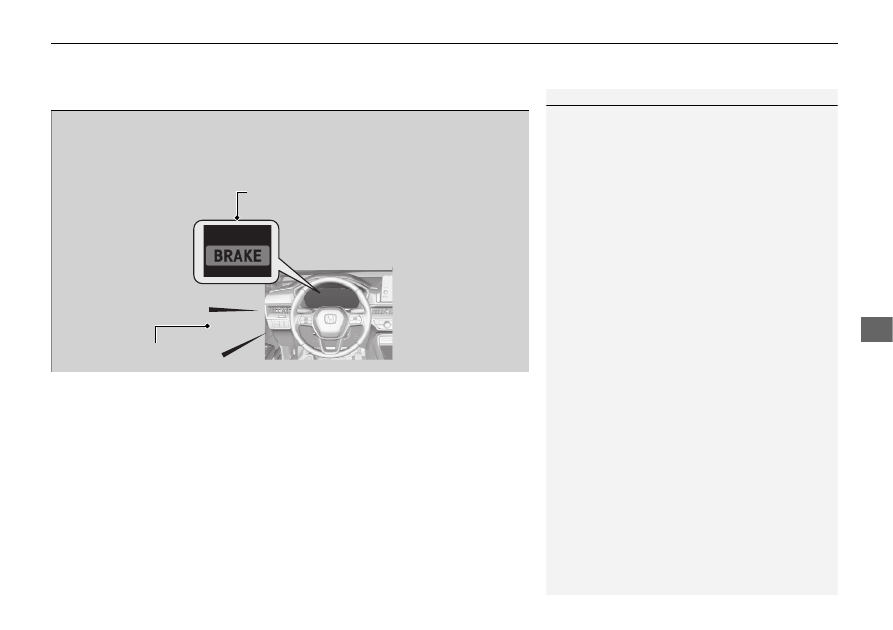

The system provides visual and audible alerts of a possible collision, and stops if the
collision is avoided.

u

Take appropriate action to prevent a collision (apply the brakes, change
lanes, etc.).

Beep

Visual Alerts

Audible Alert

* Not available on all models

472

uu

Honda Sensing

®

u

Collision Mitigation Braking System

TM

 (CMBS

TM

)

Driving

The system has three alert stages for a possible collision. However, depending on circumstances, the CMBS

TM

 may not go through all of

the stages before initiating the last stage.

■

Collision Alert Stages

Distance between vehicles

CMBS

TM

The radar sensor detects a vehicle

Audible & Visual WARNINGS

Braking

Stage

one

There is a risk of a collision with the
vehicle ahead of you.

When in

Long

, visual and audible alerts come

on at a longer distance from a vehicle ahead
than in

Normal

 setting, and in

Short

, at a

shorter distance than in

Normal

.

—

Stage

two

The risk of a collision has increased,
time to respond is reduced.

Visual and audible alerts.

Lightly

applied

Stage

three

The CMBS

TM

 determines that a

collision is unavoidable.

Forcefully

applied

Your Vehicle

Vehicle Ahead

Normal

Short

Long

Your Vehicle

Vehicle Ahead

Your

Vehicle

Vehicle

Ahead

Continued

473

uu

Honda Sensing

®

u

Collision Mitigation Braking System

TM

 (CMBS

TM

)

Driving

You can turn the system on and off using the driver information interface.

2

Safety Support

 P. 124

The CMBS

TM

 is turned on every time you start the engine, even if you turned it off

the last time you drove the vehicle.

■

CMBS

TM

 On and Off

1

CMBS

TM

 On and Off

You cannot turn the CMBS

TM

 off while driving.

The CMBS

TM

 may automatically shut off, and the

safety support indicator (amber) will come and stay
on under certain conditions:

2

CMBS

TM

 Conditions and Limitations

 P. 474

When the CMBS

TM

 is activated, it will continue to

operate even if the accelerator pedal is partially
depressed. However, it will be canceled if the
accelerator pedal is fully depressed.

The Vehicle Stability Assist

TM

 (VSA

®

) system, brake

system (Amber), Adaptive Cruise Control (ACC) with
Low Speed Follow, low tire pressure/TPMS

*

 and

safety support indicators may come on in amber
along with a message in the gauge when you set the
power mode to ON after reconnecting the battery.
Drive a short distance at more than 12 mph (20 km/h).
Each indicator should go off. If any do not, have your
vehicle checked by a dealer.

* Not available on all models

uu

Honda Sensing

®

u

Collision Mitigation Braking System

TM

 (CMBS

TM

)

474

Driving

In the following situations, the radar sensor or camera may be unable to correctly
detect vehicles, pedestrians, moving bicycles, or road conditions, potentially causing
the CMBS

TM

 to operate improperly.

2

Front Sensor Camera

 P. 542

2

Radar Sensor

 P. 544

■

Environmental conditions

•

Driving in bad weather (rain, fog, snow, etc.).

•

Sudden changes between light and dark, such as an entrance or exit of a tunnel.

•

There is little contrast between objects and the background.

•

Driving into low sunlight (e.g., at dawn or dusk).

•

Strong light is reflected onto the pedestrians, moving bicycles or roadway.

•

Driving in the shadows of trees, buildings, etc.

•

Roadway objects or structures are misinterpreted as vehicles and pedestrians.

•

Reflections on the interior of the windshield.

•

Driving at night or in a dark place such as a tunnel (due to low-light conditions,
pedestrians, moving bicycles or other vehicles may not be detected).

■

Roadway conditions

•

Driving on a snowy or wet roadway (obscured lane marking, vehicle tracks,
reflected lights, road spray, high contrast).

•

Driving on curvy, winding, or undulating roads.

•

The road is hilly or the vehicle is approaching the crest of a hill.

•

Driving through an area where there are objects that strongly reflect radio waves
onto vehicles, pedestrians, or moving bicycles.

•

Your vehicle is strongly shaken on uneven road surfaces.

■

CMBS

TM

 Conditions and Limitations

1

Collision Mitigation Braking System

TM

 (CMBS

TM

)

Have your vehicle checked by a dealer if you find any
unusual behavior of the system (e.g., the warning
message appears too frequently).

475

uu

Honda Sensing

®

u

Collision Mitigation Braking System

TM

 (CMBS

TM

)

Continued

Driving

■

Vehicle conditions

•

Headlight lenses are dirty or the headlights are not properly adjusted.

•

The outside of the windshield is blocked by dirt, mud, leaves, wet snow, etc.

•

The inside of the windshield is fogged.

•

An abnormal tire or wheel condition (incorrect sizes, varied sizes or construction,
improperly inflated, compact spare tire, etc.).

•

When tire chains are installed.

•

The vehicle is tilted due to a heavy load or suspension modifications.

•

The camera temperature gets too high.

•

Driving with the parking brake applied.

•

When the radar sensor behind the Honda emblem on the front grille gets dirty.

•

The vehicle is towing a trailer.

•

Driving at night or in a dark place (e.g., a tunnel) with the headlights off.

•

There is residue on the windshield from the windshield wipers.

uu

Honda Sensing

®

u

Collision Mitigation Braking System

TM

 (CMBS

TM

)

476

Driving

■

Examples of limitations on the correct detection of the camera due to the
condition of the vehicle ahead of you, oncoming vehicles, pedestrians, or
moving bicycles

•

The distance between your vehicle and the vehicle ahead of you, oncoming
vehicle, pedestrian, or moving bicycle ahead of you is too short.

•

The vehicle ahead of you, oncoming vehicle, pedestrian, or moving bicycle
suddenly cuts in front of or jumps out in front of you.

•

The bicycle is stopped.

•

The oncoming vehicle or vehicle ahead of you is sideways or facing diagonally.

•

When the vehicle ahead of you, oncoming vehicle, pedestrian, or moving bicycle
blends in with the background, preventing the system from recognizing them.

•

When several pedestrians are moving ahead of you in a group.

•

When several bicycles are moving ahead of you in a group.

•

When a pedestrian or moving bicycle crosses the road too quickly.

•

A pedestrian or moving bicycle approaches from the opposite direction.

•

The headlights of the vehicle ahead of you or oncoming vehicle are lit on one side
or not lit on either side in a dark place.

•

When part of a pedestrian (heads, limbs, etc.) is hidden by load.

•

When a pedestrian is bent over or squatting, when their hands are raised, or they
are running.

•

When the pedestrian is shorter than about 3.3 feet (1 meter) or taller than about
6.6 feet (2 meters) in height.

•

When the pedestrian is pushing a stroller or bicycle.

1

Collision Mitigation Braking System

TM

 (CMBS

TM

)

Make sure that all the tires are of the same specified
size, type and brand, and that they are evenly worn. If
you use tires of different sizes, types, brands, or degree
of wear, the system may not work properly.

Do not modify the suspension. Altering the height of
the vehicle may prevent the system from working
properly.

477

uu

Honda Sensing

®

u

Collision Mitigation Braking System

TM

 (CMBS

TM

)

Continued

Driving

■

Examples of other limitations on detection or system operation

•

When the vehicle ahead of you is a small motorcycle, motorcycle with a sidecar,
wheelchair, or other specially shaped vehicle.

•

When a vehicle is lower in the rear than the front such as trucks that are not
carrying a load, or a narrow vehicle.

•

When the vehicle ahead of you, oncoming vehicle, pedestrian or moving bicycle
is not in front of the vehicle.

•

The speed difference between your vehicle and the vehicle ahead of you,
oncoming vehicle, pedestrian or moving bicycle is significantly large.

•

When the vehicle or moving bicycle in front of you slows suddenly.

•

When the driver operates the brake pedal and steering wheel to avoid a collision.

•

When you approach the vehicle ahead of you, oncoming vehicle, pedestrians or
moving bicycles while accelerating rapidly or operating the steering wheel (except
when turning left at an intersection, etc.)

*1

•

When the moving bicycle is a child-sized bicycle, folding bicycle, three-wheeler or
other bicycle with small tires, or a long bicycle like a tandem bicycle.

•

When the radar and camera cannot correctly identify the shape of the vehicle
ahead of you, oncoming vehicle, pedestrian, or moving bicycle.

•

When the minimum ground clearance of a vehicle ahead of you is extremely high.

•

When turning left or right and your turn signal is not activated in the same
direction you are turning.

*1 : When there is a possibility of a frontal collision with the oncoming vehicle while turning left, the CMBS

TM



is activated. However, it may not be activated if you suddenly turn the steering wheel.

478

uu

Honda Sensing

®

u

Collision Mitigation Braking System

TM

 (CMBS

TM

)

Driving

■

Automatic shutoff

The CMBS

TM

 may automatically shut itself off and the safety support indicator

(amber) comes and stays on when:

•

You drive off-road or on a mountain road, or curved and winding road for an
extended period.

•

Driving in bad weather (rain, fog, snow, etc.).

•

Driving with the parking brake applied.

•

The camera temperature gets too high.

•

The front of the camera or radar sensor behind the Honda emblem is covered by
dirt, fog, rain, mud, wet snow, seals, accessories, stickers, or film on the
windshield.

•

An abnormal tire condition is detected (incorrect tire size, flat tire, etc.).
Once the conditions that caused the CMBS

TM

 to shut off improve or are addressed

(e.g., cleaning), the system comes back on.

479

uu

Honda Sensing

®

u

Collision Mitigation Braking System

TM

 (CMBS

TM

)

Continued

Driving

Even if there is little chance of a collision, the CMBS

TM

 may activate under the

following conditions.
Also, the system may activate if it detects a possibility of collision with pedestrians,
moving bicycles, or vehicles.

•

Your vehicle approaches or passes another vehicle that is making a left or right
turn.

•

Your vehicle approaches another vehicle ahead of you and you change lanes to
pass.

■

With Little Chance of a Collision

480

uu

Honda Sensing

®

u

Collision Mitigation Braking System

TM

 (CMBS

TM

)

Driving

•

When your vehicle approaches vehicles, pedestrians, or moving bicycles.

•

When vehicles, pedestrians, or moving bicycles are passing in front of you.

•

When you drive under a low structure or through a narrow gate at high speed.

•

When there are traffic signs or structures such as guard rails are beside the road
along a curve.

•

When driving through curves, your vehicle comes to a point where the oncoming
vehicle is right in front of you.

•

When approaching stationary vehicles or walls, such as when parking.

481

uu

Honda Sensing

®

u

Low Speed Braking Control

*

Continued

Driving

Low Speed Braking Control

*

Using sonar sensors located on the front and rear bumpers, this system can detect if
there is danger of a potential collision with a wall or other obstacle during normal
driving or when the accelerator pedal is depressed with too much force. The system
then assists in avoiding collisions and reducing damage from impact through
assistive braking and/or assistive driving power suppression.

1

Low Speed Braking Control

*

If the Low Speed Braking Control activates in a
situation where you do not want automatic brake
application (such as when the vehicle is between two
railroad crossing gates), simply press the brake pedal
to deactivate the system and then continue to drive
as intended.

3

WARNING

The Low Speed Braking Control System
cannot avoid all collisions and may not
reduce damage in each situation where the
accelerator is mistakenly or aggressively
pressed. Overreliance on the system may
result in a collision with serious injury or
death. Always check your surroundings,
your shift position, and your pedal use.
Driver remains responsible for safely
operating the vehicle.

* Not available on all models

uu

Honda Sensing

®

u

Low Speed Braking Control

*

482

Driving

■

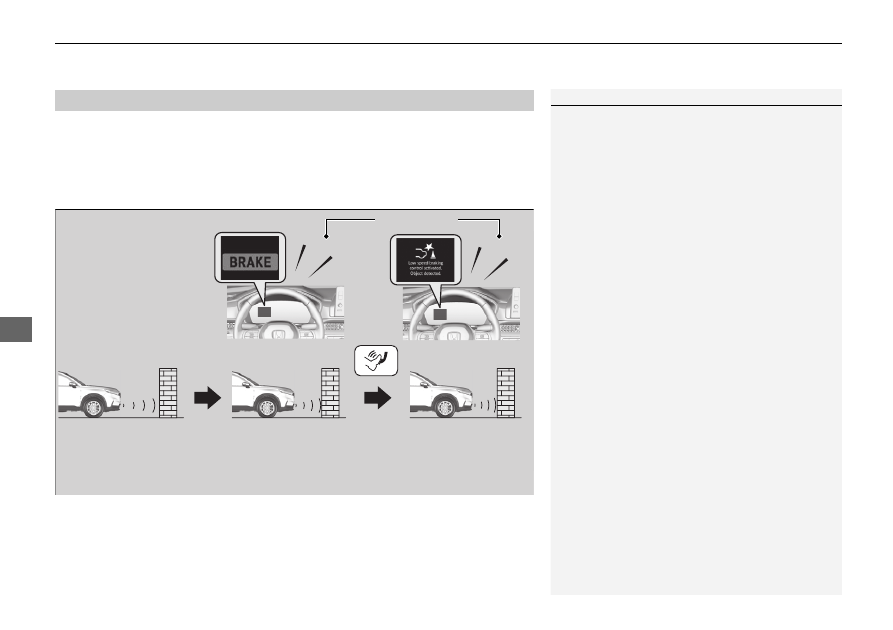

Assistive braking

Assistive braking provides a visual and audible alert when the vehicle is moving
between approximately 1 and 6 mph (2 and 10 km/h) and there is the possibility of
a collision with a detected wall or other obstacles, as well as providing assistance
with braking.

If the only rear sensors are turned off using the parking sensor system, the assistive
braking will not work when reversing.

2

Parking sensor system on and off

 P. 559

■

How the System Works

1

Low Speed Braking Control

*

For directions on the proper handling of the sonar
sensors, please refer to the following page.

2

Sonar Sensors

*

 P. 545

The vehicle will release the brake and start moving a
few seconds after the system is activated. To keep the
vehicle stopped, keep the brake pedal depressed or
put the transmission into

(

P

.

In order to prevent the system from activating when
not needed, always turn it off during vehicle
maintenance, when loading on ships, trucks, and so
on, or when using a chassis dynamometer or free
rollers for inspection or when washing the car in
conveyor type car wash machine.

If you put any accessories on or around the rear
sensors, the Low Speed Braking Control System may
activate if it detects these accessories as an obstacle.
In this case, turn off the rear sensor.

2

Customized Features

 P. 359

Audible Alert

Beep

Beep

The vehicle
applies brake

Driver
depresses
brake pedal

Remove
brake after
maintaining
stationary
position

Stop

* Not available on all models

483

uu

Honda Sensing

®

u

Low Speed Braking Control

*

Continued

Driving

■

Assistive driving power suppression

When the vehicle is stopped or moving at less than 6 mph (10 km/h) and there is an
obstacle such as a wall near the front of or back of the vehicle, if the accelerator
pedal is depressed more than necessary, the system will inform you with a visual and
audible alert. At the same time, the system will prevent sudden forward or
backwards movement by limiting the output of the engine, then assistive braking
will activate when you get closer to the obstacle.

Assistive driving power suppression will not activate in the following situations.
When moving forward:

•

When on a steep slope or the shift position is in

(

P

,

(

R

, or

(

N

.

When reversing:

•

When on a steep slope or the shift position is in a position other than

(

R

.

If the only rear sensors are turned off using the parking sensor system, the assistive
driving power suppression will not work when reversing.

2

Parking sensor system on and off

 P. 559

Audible Alert

Beep

Beep

Accidental depression of
the accelerator/Limiting
the output of the engine

uu

Honda Sensing

®

u

Low Speed Braking Control

*

484

Driving

You can turn the system on and off using the driver information interface.

2

Safety Support

 P. 124

The system is turned on every time you start the engine, even if you turned it off the
last time you drove the vehicle.

■

System On and Off

1

System On and Off

The Low Speed Braking Control system may
temporarily turn off after reconnecting the battery.
The system will automatically turn ON after the
vehicle has been moving at over 12 mph (20 km/h)
for some time.
If the system does not turn on, have your vehicle
checked by a dealer.

Continued

485

uu

Honda Sensing

®

u

Low Speed Braking Control

*

Driving

Conditions for assistive driving power suppression.

•

When the accelerator is no longer depressed.

•

When the accelerator is depressed for approximately four seconds.

•

When the brake pedal is depressed.

Conditions for assistive braking cancellation.

•

A certain amount of time has passed since activation.

The system may not operate correctly under the following conditions:

■

Examples of obstacles the sonar sensors cannot detect

•

Obstacles that do not reflect sound waves well, such as people, snow, cloth,
sponges, etc.

•

Thin obstacles such as fences, bicycles, sign posts, etc.

•

Short or small obstacles.

•

Obstacles immediately in front of the bumper.

•

Obstacles that are not perpendicular to the ground.

•

Moving objects or obstacles that suddenly enter the road.

■

Conditions for Cancellation

■

Low Speed Braking Control System Conditions and Limitations

1

Conditions for Cancellation

After Low Speed Braking Control has activated once,
it will not activate again for the same obstacle.
They can be activated again after driving for a certain
distance after last activation.

Low Speed Braking Control activates separately when
moving forward and reversing. (For example, if it
activates when moving forward, it can be activated
again immediately if reversing.)
However, if assistive braking has been activated, in
order to activate assistive driving power suppression
again, it is necessary to drive for a certain distance to
reset the system.
