Honda Civic Hatchback (2024 year). Manual in english

Continued

235

Interior Convenience Items

Storage Items

Co
ntrols

■

Front seat beverage holders

Located in the console between the front
seats.

■

Rear seat beverage holders

Fold the armrest down to use the rear seat
beverage holders.

Located on the rear seat.

■

Beverage Holders

Beverage Holders

NOTICE

Spilled liquids damage the upholstery, carpeting, and
electrical components in the interior.

Be careful when you are using the beverage holders.
Hot liquid can scald you.

Five-passenger models

Four-passenger models

* Not available on all models

Continued

237

Interior Convenience Items

Storage Items

Co
ntrols

There is a coat hook on the rear left grab
handle.

To open the sunglasses holder, push and
release the indent. To close, push it again until
it latches.

You can store eyeglasses and other small
items in this holder.

■

Coat Hook

Coat Hook

The coat hook is not designed for large or heavy
items.

■

Sunglasses Holder

Sunglasses Holder

Keep the holder closed while driving except when
accessing stored items.

Push

* Not available on all models

Interior Convenience Items

Storage Items

238

Co
ntrols

The cargo hook in the cargo area can be used
to hang a light items.

The tie-down anchors on the cargo area floor
can be used to install a net for securing items.

■

Cargo Hook

Cargo Hook

NOTICE

Do not hang a large object or an object that weighs
more than 6 lbs (3 kg) on the cargo hook.
Hanging heavy or large objects may damage the
hook.

Hook

■

Tie-down Anchors

Tie-down Anchors

Do not let anyone access items in the cargo area
while driving. Loose items can cause injury if you have
to brake hard.

Anchor

Continued

239

Interior Convenience Items

Storage Items

Co
ntrols

The cargo area cover can be used to cover the
cargo space.

■

To pull out

Pull the cover handle straight out, and hang
both ends on the hooks.

When storing, remove it from the hook and
gently put it back.

■

Cargo Area Cover

Cargo Area Cover

Do not access parcels in the cargo area while driving.
This may cause injury if you have to brake hard.

Do not stack objects higher than the top of the seat
in the cargo area. They could block your view and be
thrown about the vehicle during a sudden stop.

To prevent cargo area cover damage:

•

Do not place items on the cargo area cover.

•

Do not put weight on the cargo area cover.

Handle

Hooks

240

Interior Convenience Items

Storage Items

Co
ntrols

■

To remove:

Slide the lever on the cargo area cover case
and remove it while pulling it toward you.

■

Cargo area cover extension

The extension is attached at the back of the
hatch by four clips. It extends the covering
area when you close the hatch. To remove,
unclip the extension from the hatch. When
reinstalling the extension, make sure that the
tabs come to the near side.

Lever

Extension

Clips

Tab

Clips

241

Interior Convenience Items

Other Interior Convenience Items

Continued

Co
ntrols

Other Interior Convenience Items

The accessory power socket can be used when the power mode is in ACCESSORY or
ON.

■

Console panel

Open the cover to use it.

■

Accessory Power Socket

Accessory Power Socket

NOTICE

Do not insert an automotive type cigarette lighter
element. This can overheat the accessory power
socket.

The accessory power socket is designed to supply
power for 12-volt DC accessories that are rated 180
watts (15 amps) or less.

To prevent battery drain, use the accessory power
socket only when the engine is running.

When the accessory power socket is not in use, close
the cover to prevent any small foreign objects from
getting into the accessory power socket.

Interior Convenience Items

Other Interior Convenience Items

242

Co
ntrols

To use the wireless charger, the power mode must be in ACCESSORY or ON.
Charge any devices compatible with Qi wireless charging on the area indicated by
the

mark as follows:

To turn the system on and off, press and
hold the

(power) button.

When the system is activated, the green
indicator light comes on.

Place the device you want to charge on the
charging area.

The system will automatically start
charging the device and the amber
indicator light will come on.

Make sure that the device is compatible
with the system and placed with the
chargeable side in the center of the
charging area.

When charging is completed, the green
indicator light will come on.

Depending on the device, the amber
indicator light will stay on.

■

Wireless Charger

Wireless Charger

RF Radiation Exposure Statement:

This equipment complies with FCC RF Radiation
exposure limits set forth for an uncontrolled
environment.
This device and its antenna must not be co-located or
operating in conjunction with any other antenna or
transmitter.

In order to use safely:

•

Remove any metal objects from the charge pad
before charging a device.

•

Do not open the charger case.

•

Do not use the charger if it malfunctions. Contact
your dealer.

If the charger interferes with radio communications,
attempt to correct the interference:

•

Press and hold the switch on the charger for a few
seconds to turn off the charger.

Green Indicator

Charging Area

(Power) Button

Amber Indicator

* Not available on all models

Continued

243

Interior Convenience Items

Other Interior Convenience Items

Co
ntrols

■

When charging does not start

Perform one of the solutions in the following table.

Indicator

Cause

Solution

Green

Amber

Blinking
simulta-

neously

There is an obstacle(s) between
the charging area and the
device.

Remove the
obstacle(s).

The device is not within the
charging area.

Pick up and reset the
device to the center of
the charging area
where

is located.

The temperature of the wireless
charger pad increases.

Temporarily suspend
charging the device.
Wait for the
temperature to drop
and attempt to charge
the device again.

Amber

Blinking

The wireless charger is faulty.

Contact a dealer for
repairs.

Wireless Charger

This system consumes a lot of power. Do not use the system
for a long time when the engine is not running. This may
weaken the battery, making it difficult to start the engine.

When using the wireless charger, check the user's manual
that came with the compatible device you want to charge.

CAUTION

Metal objects between the charge pad
and the device to be charged will get
hot and can burn you.

•

Always remove foreign objects from
the charge pad before charging the
device.

•

Be sure the surface is clear of dust and
other debris before charging.

•

Do not spill liquids (i. e. water, drinks,
etc.) on the charger and the device.

•

Do not use oil, grease, alcohol,
benzine or thinner for cleaning the
charge pad.

•

Do not cover the system with towels,
clothing, or other objects while
charging etc.

•

Avoid spraying aerosols which may
come in contact with the charge pad
surface.

* Not available on all models

Interior Convenience Items

Other Interior Convenience Items

244

Co
ntrols

Wireless Charger

The wireless charger can support up to 15 W, but the
charging rate varies based on the device and other
conditions.

NOTICE

Do not place any magnetic recording media or
precision machines within the charging area while
charging.
The data on your cards such as credit cards can be
lost because of the magnetic effect. Also, precision
machines such as watches can be affected.

“Qi” and

marks are the registered trademarks

owned by Wireless Power Consortium (WPC).

In the following cases, charging may stop or not start:

•

The device is already fully charged.

•

The temperature of the device is extremely high
while charging.

•

You are at a place that emits strong
electromagnetic waves or noises, such as a TV
station, electric power plant, or gas station.

•

The device has a cover, case or accessories which
are not compatible with wireless charging.

A device may not charge if the size or shape of its
chargeable side is not appropriate for use with the
charging area.

Not all devices are compatible with the system.

* Not available on all models

Continued

245

Interior Convenience Items

Other Interior Convenience Items

Co
ntrols

Wireless Charger

During the charging phase, it is normal for the
charging area and device to heat up.

Charging may be briefly interrupted when:

•

All the doors and the hatch are closed
- to avoid interference with the proper functioning
of the keyless access system.

•

The position of the device is altered.

Do not charge more than one device at a time on a
charging area.

If the device becomes too hot and its battery
protection function activates, it may charge
extremely slowly or no longer charge.
The temperature at which the battery protection
function activates depends on the device.

* Not available on all models

Interior Convenience Items

Other Interior Convenience Items

246

Co
ntrols

The power mode must be in ON to use the
heated steering wheel.

Press the button on the lower side of the
steering wheel.

When a comfortable temperature is reached,
press the button again to turn it off.

The heated steering wheel is turned off every
time you start the engine, even if you turned it
on the last time you drove the vehicle.

■

Heated Steering Wheel

Canadian models

Heated Steering Wheel

Do not use the heated steering wheel continuously
when the engine is off. Under such conditions, the
battery may be weakened, making the engine
difficult to start.

* Not available on all models

Continued

247

Interior Convenience Items

Other Interior Convenience Items

Co
ntrols

The seat heaters can be used when the power
mode is in ON.

Press the seat heater button:
Once - The HI setting (three indicators on)
Twice - The MID setting (two indicators on)
Three times - The LO setting (one indicator on)
Four times - The OFF setting (no indicators on)

When the power mode is turned on after it is
turned off, the previous setting is maintained.

■

Front Seat Heaters

Front Seat Heaters

Do not use the seat heaters even in LO when the
engine is off. Under such conditions, the battery may
be weakened, making the engine difficult to start.

After a certain period of time, the strength setting for
the front seat heaters will automatically be reduced
by one level at a time until the front seat heaters
shuts off. The elapsed time varies according to the
interior environment.

WARNING

Heat induced burns are possible when
using seat heaters.

Persons with a diminished ability to sense
temperature (e.g., persons with diabetes,
lower-limb nerve damage, or paralysis) or
with sensitive skin should not use seat
heaters.

* Not available on all models

Interior Convenience Items

Other Interior Convenience Items

248

Co
ntrols

The seat heaters can be used when the power
mode is in ON.

There is no heater in the rear center seating
position.

■

Rear Seat Heaters

Canadian models

Rear Seat Heaters

Do not use the seat heaters even in LO when the
engine is off. Under such conditions, the battery may
be weakened, making the engine difficult to start.

After a certain period of time, the strength setting for
the rear seat heaters will automatically be reduced by
one level at a time until the rear seat heaters shuts
off. The elapsed time varies according to the interior
environment.

WARNING

Heat induced burns are possible when
using seat heaters.

Persons with a diminished ability to sense
temperature (e.g., persons with diabetes,
lower-limb nerve damage, or paralysis) or
with sensitive skin should not use seat
heaters.

* Not available on all models

249

Continued

Co
ntrols

Climate Control System

Using Automatic Climate Control

The automatic climate control system maintains the interior temperature you select.
The system also selects the proper mix of heated or cooled air that raises or lowers
the interior temperature to your preference as quickly as possible.

Use the system when the engine is running.

Press the

AUTO

button.

Adjust the interior temperature using the driver's side or passenger's side
temperature control dial.

Press the

(

ON/OFF

) button to cancel.

Using Automatic Climate Control

If any buttons are pressed while using the climate
control system in auto, the function of the button
that was pressed will take priority.

The auto button indicator

AUTO

indicator

will go

off, but functions unrelated to the button that were
pressed will be controlled automatically.

During idle-stops, air-conditioning is suspended, and
only the blower remains active. If you do not want
air-conditioning suspended, press the Auto Idle Stop

OFF

button to cancel idle-stop.

To prevent cold air from blowing in from outside, the
fan may not start immediately when the

AUTO

button is pressed.

If the interior is very warm, you can cool it down
more rapidly by partially opening the windows,
turning the system on auto, and setting the
temperature to low. Change the fresh air mode to
recirculation mode until the temperature cools down.

When you set the temperature to the lower or upper
limit,

is displayed.

Models with Auto Idle Stop

Models with SYNC button

Dashboard
vents

Dashboard
and floor
vents

Floor vents

Floor and
defroster
vents

AUTO

Button

SYNC

Button

A/C

(Air Conditioning) Button

(Recirculation) Button

(

ON/OFF

) Button

Fan Control Dial

Driver's Side
Temperature
Control Dial

Passenger's Side
Temperature
Control Dial

* Not available on all models

Climate Control System

Using Automatic Climate Control

250

Co
ntrols

Use the system when the engine is running.

Press the

AUTO

button.

Adjust the interior temperature using the temperature control dial.

Press the

(

ON/OFF

) button to cancel.

■

Switching between the recirculation and fresh air modes

Press the

(recirculation) button and switch the mode depending on

environmental conditions.
Recirculation mode (indicator on): Recirculates air from the vehicle's interior through
the system.
Fresh air mode (indicator off): Maintains outside ventilation. Keep the system in
fresh air mode in normal situations.

Using Automatic Climate Control

Pressing the

button switches the climate control

system between on and off. When turned on, the
system returns to your last selection.

While ECON mode is active, the climate control
system may have reduced cooling performance.

Models with ECON mode

Models without SYNC button

AUTO

Button

Temperature
Control Dial

(Recirculation) Button

(

ON/OFF

) Button

Fan Control Dial

Dashboard
vents

Dashboard
and floor
vents

Floor vents

Floor and
defroster
vents

A/C

(Air Conditioning) Button

Continued

251

Climate Control System

Using Automatic Climate Control

Co
ntrols

Pressing the

(windshield defroster) button

turns the air conditioning system on and
automatically switches the system to fresh air
mode.

Press the

button again to turn off, the

system returns to the previous settings.

■

Defrosting the Windshield and Windows

Defrosting the Windshield and Windows

For your safety, make sure you have a clear view
through all the windows before driving.

Do not set the temperature near the upper or lower
limit.
When cold air hits the windshield, the outside of the
windshield may fog up.

If you press the

button during Auto Idle Stop, the

engine restarts automatically.

To defog during the Auto Idle Stop, restart the
engine as follows.
1. Make sure the shift lever is in

(

2. Press the

button.

Models with Auto Idle Stop

Manual transmission models with Auto Idle Stop

Models with SYNC button

Models without SYNC button

Climate Control System

Using Automatic Climate Control

252

Co
ntrols

■

To rapidly defrost the windows

Press the

button.

Press the

button.

To rapidly defrost the windows

After defrosting the windows, switch over to fresh air
mode. If you keep the system in recirculation mode,
the windows may fog up from humidity. This
impedes visibility.

Models with SYNC button

Models without SYNC button

253

Climate Control System

Using Automatic Climate Control

Co
ntrols

You can set the temperature synchronously for the driver's side and the passenger's
side in synchronization mode.

Press the

SYNC

button.

The system switches to synchronization mode.

Adjust the temperature using the driver's side temperature control dial.

Press the

SYNC

button or adjust the interior temperature using the passenger's side

temperature control dial to return to dual mode.

■

Synchronization Mode

Synchronization Mode

When the system is in dual mode, the driver's side
temperature and the passenger's side temperature
can be set separately.

When you press the

button, the system changes

to synchronization mode.

Driver's Side
Temperature
Control Dial

Passenger's
Side
Temperature
Control Dial

SYNC

Button

* Not available on all models

256

Features

Audio System

About Your Audio System

The audio system features AM/FM radio and SiriusXM

Radio service

. It can also

play USB flash drives, iPod, iPhone and

Bluetooth

devices.

You can operate the audio system from the buttons and switches on the panel, the
remote controls on the steering wheel, or the icons on the touchscreen interface.

*1: Models with 9-in. Color Touchscreen
*2: Models with 7-in. Color Touchscreen

About Your Audio System

SiriusXM

Radio

is available on a subscription basis

only. For more information on SiriusXM

Radio

contact a dealer.

General Information on the Audio System

P. 361

SiriusXM

Radio

is available in the United States and

Canada, except Hawaii, Alaska, and Puerto Rico.

SiriusXM

is a registered trademark of SiriusXM

Radio, Inc.

State or local laws may prohibit the operation of
handheld electronic devices while operating a
vehicle.

Remote Controls

iPod

USB Flash Drive

* Not available on all models

257

Audio System

USB Port(s)

Continued

Features

USB Port(s)

■

On the front panel (

)

The USB port (2.5A) is for charging devices,
playing audio files, and connecting
compatible phones with Apple CarPlay or
Android Auto.

To prevent any potential issues, be sure
to use an Apple MFi Certified Lightning
Connector for Apple CarPlay, and for
Android Auto, the USB cables should be
certified by USB-IF to be compliant with
USB 2.0 Standard.

■

On the front panel (

)

The USB port (2.5A) is only for charging
devices.

You cannot play music even if you have
connected music players to it.

USB Port(s)

•

Do not leave the iPod or USB flash drive in the
vehicle. Direct sunlight and high temperatures may
damage it.

•

We recommend that you use a USB cable if you are
attaching a USB flash drive to the USB port.

•

Do not connect the iPod or USB flash drive using a
hub.

•

Do not use a device such as a card reader or hard
disk drive, as the device or your files may be
damaged.

•

We recommend backing up your data before using
the device in your vehicle.

•

Displayed messages may vary depending on the
device model and software version.

The USB port can supply up to 2.5A of power. It does
not output 2.5A unless requested by the device.
For amperage details, read the operating manual of
the device that needs to be charged.

Under certain conditions, a device connected to the
port may generate noise to the radio station you are
listening to.

USB charge

On the front panel

Models with 7-in. Color Touchscreen

Models with 9-in. Color Touchscreen

* Not available on all models

259

Audio System

Audio System Theft Protection

Features

Audio System Theft Protection

The audio system is disabled when it is disconnected from the power source, such as
when the battery is disconnected or goes dead. In certain conditions, the system
may display a code entry screen. If this occurs, reactivate the audio system.

■

Reactivating the audio system

Set the power mode to ON.

Turn on the audio system.

Press and hold the

VOL/

AUDIO

(Volume/Power) knob for more than two

seconds.

The audio system is reactivated when the audio control unit establishes a
connection with the vehicle control unit. If the control unit fails to recognize
the audio unit, you must go to a dealer and have the audio unit checked.

260

Audio System

Audio Remote Controls

Features

Audio Remote Controls

Allow you to operate the audio system while driving. The information is shown on
the driver information interface.

SOURCE Button

Cycles through the audio modes as follows:
FM



USB/iPod/Apple CarPlay/

Android Auto



Bluetooth

Audio

VOL

(

/VOL

(

(Volume) Switch

Press Up:

To increase the volume.

Press Down:

To decrease the volume.

(Seek/Skip) Buttons

•

When listening to the radio

Press :

To select the next preset radio station.

Press :

To select the previous preset radio station.

Press and hold

To select the next strong station.

Press and hold

To select the previous strong station.

•

When listening to an iPod, USB flash drive,

Bluetooth

Audio, or Smartphone

Connection

Press :

To skip to the next song.

Press :

To go back to the beginning of the current or previous song.

•

When listening to a USB flash drive or

Bluetooth

Audio

Press and hold

To skip to the next folder/group.

Press and hold

To go back to the previous folder/group.

Audio Remote Controls

Some modes appear only when an appropriate
device or medium is used.

Depending on the

Bluetooth

device you connect,

some functions may not be available.

Models with 7-in. Color Touchscreen

(Seek/Skip) Buttons

SOURCE

Button

VOL

(

VOL

(

(Volume) Switch

261

Audio System

Audio Remote Controls

Continued

Features

Left Selector Wheel
Roll up or down:

SiriusXM

To cycle through the audio modes, roll up or down
and then press the left selector wheel:

Bluetooth

Audio

USB

Smartphone Connection

(Apple CarPlay/Android Auto)

262

Audio System

Audio Remote Controls

Features

Allow you to operate the audio system while driving. The information is shown on
the driver information interface.

VOL

(

/VOL

(

(Volume) Switch

Press Up:

To increase the volume.

Press Down:

To decrease the volume.

(Seek/Skip) Buttons

•

When listening to the radio

Press :

To select the next preset radio station.

Press :

To select the previous preset radio station.

Press and hold

To select the next strong station.

Press and hold

To select the previous strong station.

•

When listening to an iPod, USB flash drive,

Bluetooth

Audio, or Smartphone

Connection

Press :

To skip to the next song.

Press :

To go back to the beginning of the current or previous song.

•

When listening to a USB flash drive

Press and hold

To skip to the next folder.

Press and hold

To go back to the previous folder.

Models with 9-in. Color Touchscreen

(Seek/Skip) Buttons

Left Selector
Wheel

VOL

(

VOL

(

(Volume) Switch

263

Audio System

Audio Remote Controls

Features

Left Selector Wheel
Roll up or down:

Back

Phone

SiriusXM

To cycle through the modes, roll up or down and
then press the left selector wheel:

Customize display

Bluetooth

Audio

USB

Apps

(Apple CarPlay/Android Auto)

264

Features

Audio System Basic Operation

To use the audio system, the power mode must be in ACCESSORY or ON.

Use the selector knob or

MENU

button to

access some audio functions.

Press

to switch between the normal and

extended display for some functions.

Selector knob:

Rotate left or right to scroll

through the available choices. Press

to set

your selection.

MENU button:

Press to display the menu

screen.

(Back) button:

Press to go back to the

previous display.

Models with 7-in. Color Touchscreen

Audio System Basic Operation

These indications are used to show how to operate
the selector knob.

Rotate

to select.

Press

to enter.

Menu Items

Adjusting the Clock

P. 174

Adjusting the Sound

P. 265

Display Setup

P. 266

Customized Features

P. 382

Press the buttons on the steering wheel to change
any audio setting.

Audio Remote Controls

P. 260

Touchscreen operation

•

Use simple gestures - including touching, swiping
and scrolling - to operate certain audio functions.

•

Some items may be grayed-out during driving to
reduce the potential for distraction.

•

You can select them when the vehicle is stopped.

•

Wearing gloves may limit or prevent touchscreen
response.

You can change the touchscreen sensitivity setting.

Customized Features

P. 382

(Back)

Button

Selector Knob

MENU

Button

Menu Display

265

Audio System Basic Operation

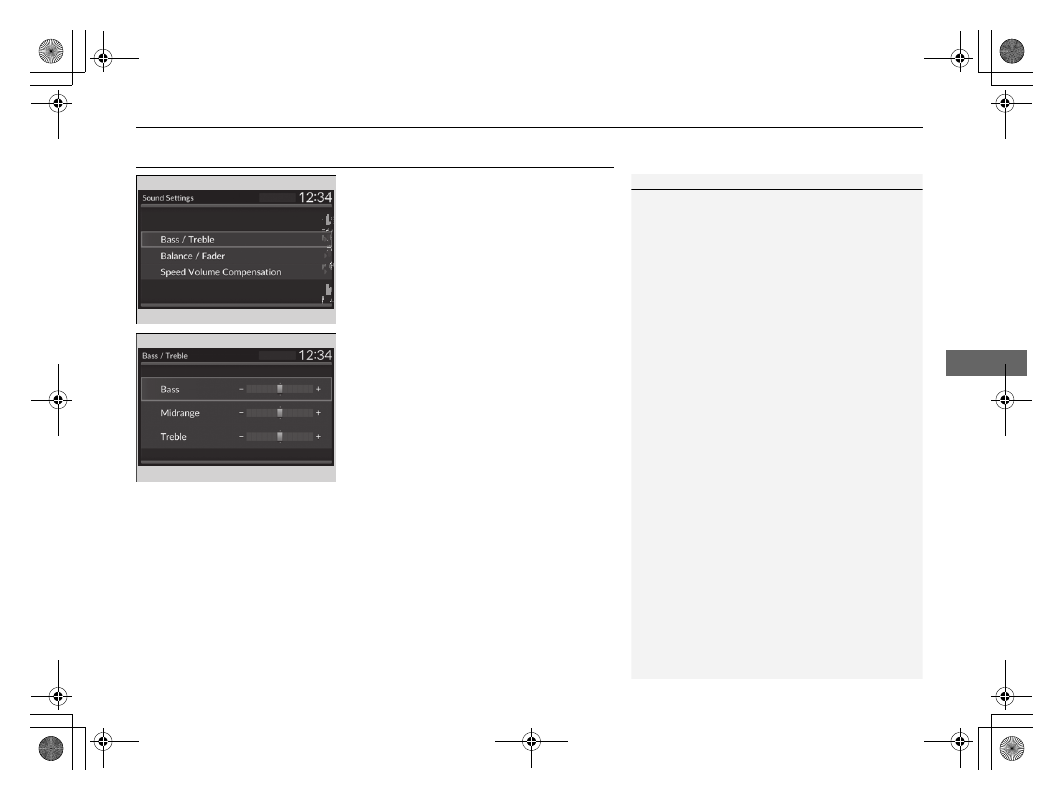

Adjusting the Sound

Features

Adjusting the Sound

Select an audio source.

Press the

MENU

button.

Select

Sound Settings

Select an item from the following choices:

•

Bass / Treble:

Bass, Midrange, Treble

•

Balance / Fader:

Balance, Fader

•

Speed Volume Compensation:

Sets the

amount of volume increase.

Adjusting the Sound

The Speed Volume Compensation (SVC) adjusts the
volume level based on the vehicle speed. As you go
faster, audio volume increases. As you slow down,
audio volume decreases.

266

Audio System Basic Operation

Display Setup

Features

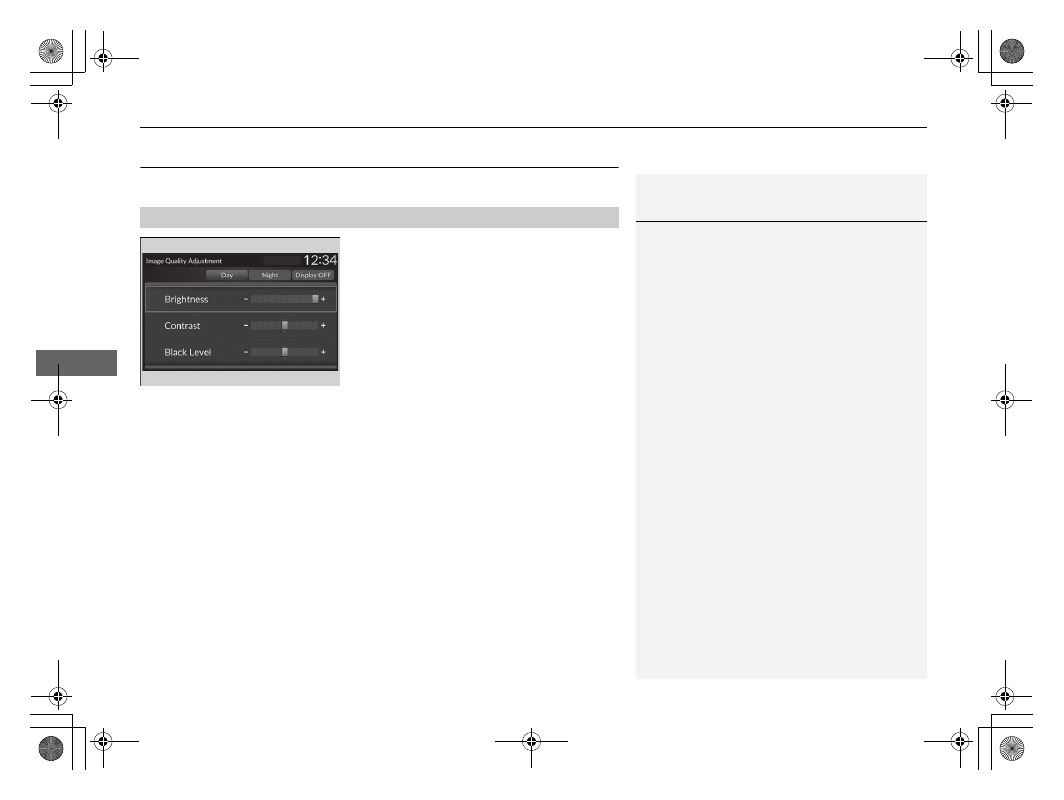

Display Setup

You can set the screen brightness separately for Day and Night modes.

Press the

MENU

button.

Select

Display Adjustment

Select

Day

Night

Select the setting you want.

■

Changing the Screen Brightness

Changing the Screen Brightness

You can change the

Contrast

and

Black Level

settings in the same manner.

You can adjust the settings by sliding or tapping on
the bar.

Honda Civic Hatchback (2024 year). Manual in english - page 7
