Indicator, Coming On/Blinking

u

If the Brake System Indicator (Red) Comes On

Han

d

lin
g the U

n

expected

If the Brake System Indicator (Red) Comes On

Reasons for the indicator to come on

The brake fluid is low.

There is a malfunction in the brake system.

What to do when the indicator comes on while driving

Depress the brake pedal lightly to check pedal pressure.

If normal, check the brake fluid level the next time you stop.

If abnormal, take immediate action. If necessary, downshift the
transmission to slow the vehicle using engine braking.

If the Electric Power Steering (EPS) System Indicator
Comes On

Reasons for the indicator to come on

Comes on when there is a problem with the EPS system.

What to do when the indicator comes on

Stop the vehicle in a safe place and restart the engine.
If the indicator comes on and stays on, immediately have your vehicle
inspected by a dealer.

1

If the Brake System Indicator (Red) Comes On

Have your vehicle repaired immediately.
It is dangerous to drive with low brake fluid. If there
is no resistance from the brake pedal, stop
immediately in a safe place. If necessary downshift
the gears.

If the brake system indicator (red) and

ABS

 indicator

come on simultaneously, the electronic brake
distribution system is not working. This can result in
vehicle instability under sudden braking.
Have your vehicle inspected by a dealer immediately.

If both red and amber brake system indicators come
on, stop the vehicle in a safe place and have it
inspected by a dealer immediately.

U.S.

Canada

560

uu

Indicator, Coming On/Blinking

u

If the Low Tire Pressure/TPMS Indicator Comes On or Blinks

Han

d

lin
g the U

n

expected

If the Low Tire Pressure/TPMS Indicator Comes On or
Blinks

Reasons for the indicator to come on or blink

A tire pressure is significantly low.
If there is a problem with the TPMS with Tire Fill Assist, the indicator
blinks for about one minute, and then stays on.
If the compact spare tire is installed, the indicator will either come on or
it will first blink for about one minute, then stay on.

What to do when the indicator comes on

Drive carefully and avoid abrupt cornering and hard braking.
Stop your vehicle in a safe place. Check the tire pressure and adjust the
pressure to the specified level. The specified tire pressure is on a label on
the driver side doorjamb.
If the compact spare tire causes the indicator to come on, change the
tire to a full-size tire.

What to do when the indicator blinks, then remains on

Have the tire inspected by a dealer as soon as possible. If the compact
spare tire causes the indicator to first blink, and then stay on, change the
tire to a full-size tire. The indicator goes off after driving for a few miles
(kilometers).

1

If the Low Tire Pressure/TPMS Indicator Comes On or Blinks

NOTICE

Driving on an extremely underinflated tire can cause
it to overheat. An overheated tire can fail. Always
inflate your tires to the prescribed level.

TPMS with Tire Fill Assist provides visual and audible
assistance during tire pressure adjustment. With the
power mode in ON, while you adjust tire pressure up
or down, the system alerts you as follows:

Below recommended pressure:

The beeper

sounds and exterior lights flash once every five
seconds.

At recommended pressure:

The beeper sounds

and exterior lights flash rapidly for three seconds with
five seconds intervals.

Above recommended pressure:

The beeper

sounds and lights flash twice every two seconds.

561

uu

Indicator, Coming On/Blinking

u

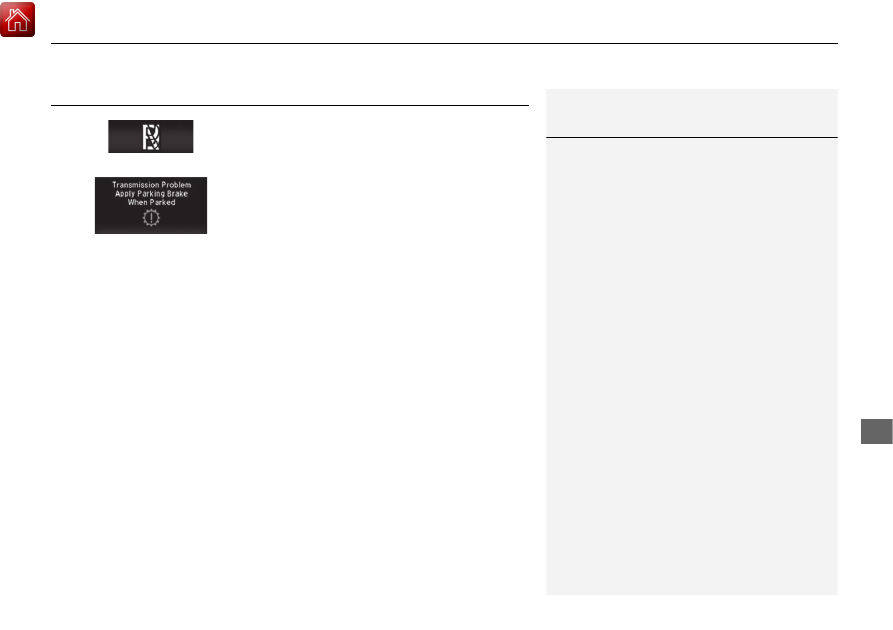

If the Transmission System Indicator Blinks along with the Warning Message

Han

d

lin
g the U

n

expected

If the Transmission System Indicator Blinks along
with the Warning Message

Reasons for the indicator to blink

The transmission is malfunctioning.

What to do when the indicator blinks

Immediately have your vehicle inspected by
a dealer.

Put the transmission into

(

N

 after starting

the engine.

u

Check if the

(

N

 position in the

instrument panel and the indicator on
the

(

N

 button light/blink.

2

Starting the Engine

 P. 385

1

If the Transmission System Indicator Blinks along with the
Warning Message

You may not be able to start the engine.

Make sure to set the parking brake when parking
your vehicle.

Call a professional towing service if you need to tow
your vehicle.

2

Emergency Towing

 P. 568

562

Han

d

lin
g the U

n

expected

Fuses

Fuse Locations

If any electrical devices are not working, set the power mode to VEHICLE OFF and
check to see if any applicable fuse is blown.

Fuse locations are shown on the fuse box
cover. Locate the fuse in question by the fuse
number and box cover number.

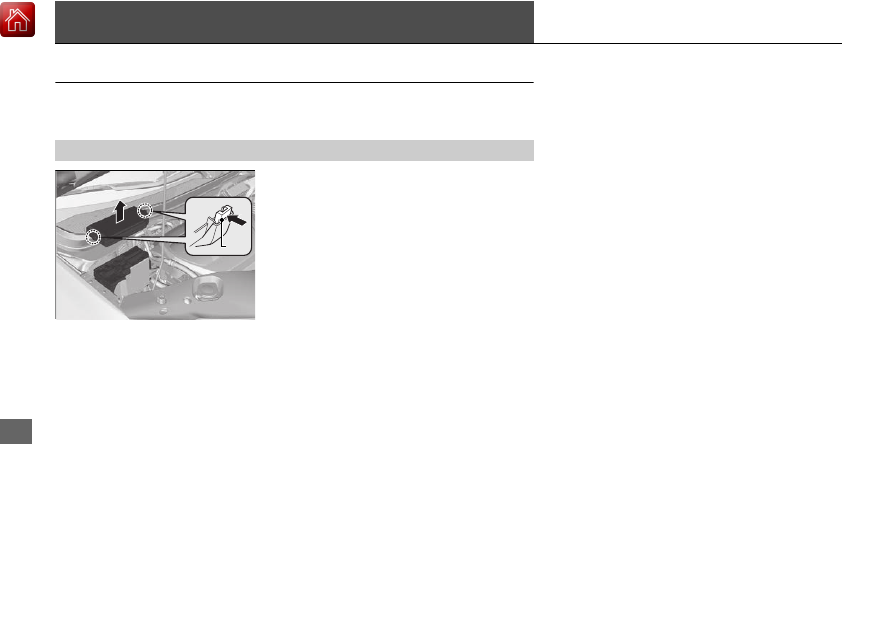

Located near the passenger’s side damper
house. Push the tabs to open the box.

Engine Compartment Fuse Box Type A

Tab

563

uu

Fuses

u

Fuse Locations

Continued

Han

d

lin
g the U

n

expected

Circuit protected and fuse rating

Circuit Protected

Amps

1

(70 A)

*1

AC INVERTER

70 A

*2

RR BLOWER

30 A

*1

(30 A)

*2

VSA MTR

40 A

VSA FSR

20 A

MAIN FAN

30 A

*1

(30 A)

*2

MAIN FUSE

150 A

2

SUB FAN

30 A

WIP MTR

30 A

WASHER

20 A

T/G LOCK MAIN

20 A

ACM

30 A

FR BLOWER

40 A

AUDIO AMP

30 A

RR DEF

30 A

*1

(30 A)

*2

(40 A)

(30 A)

*1

RR DEF

30 A

*2

(20 A)

3

*1

RR BLOWER

30 A

*2

*1

(30 A)

*2

*1

(30 A)

*2

*1

MAIN FAN

30 A

*2

4

SMALL

10 A

*1

STOP

10 A

*2

5

T/G LOCK

10 A

6

STOP

10 A

*1

SMALL

10 A

*2

7

T/G UNLOCK

10 A

8

L H/L LO

10 A

*1

IGPS

7.5 A

*2

9

CRUISE CANCEL SW

7.5 A

10

R H/L LO

10 A

*1

L H/L LO

10 A

*2

11

IGPS

7.5 A

*1

R H/L LO

10 A

*2

12

INJECTOR

20 A

*1

IG COIL

15 A

*2

13

H/L LO MAIN

20 A

*1

DBW

15 A

*2

14

*1

AC INVERTER RLY

15 A

*2

Circuit Protected

Amps

*1:Models without the AC power outlet
*2:Models with the AC power outlet

15

FR FOG

10 A

*1

BACK UP

10 A

*2

16

HAZARD

15 A

*1

MAIN RLY

15 A

*2

17

AS P/SEAT (REC)

(20 A)

18

AS P/SEAT (SLI)

(20 A)

19

TCU

15 A

20

MG CLUTCH

7.5 A

21

MAIN RLY

15 A

*1

HAZARD

15 A

*2

22

FI SUB

15 A

23

IG COIL

15 A

*1

INJECTOR

20 A

*2

24

DBW

15 A

*1

H/L LO MAIN

20 A

*2

25

SMALL/STOP MAIN

20 A

26

BACK UP

10 A

*1

FR FOG

10 A

*2

27

H/STEERING WHEEL

(10 A)

28

HORN

10 A

29

VBUM

10 A

Circuit Protected

Amps

564

uu

Fuses

u

Fuse Locations

Han

d

lin
g the U

n

expected

Fuse locations are shown on the fuse box
cover. Locate the fuse in question by the
fuse number and box cover number.

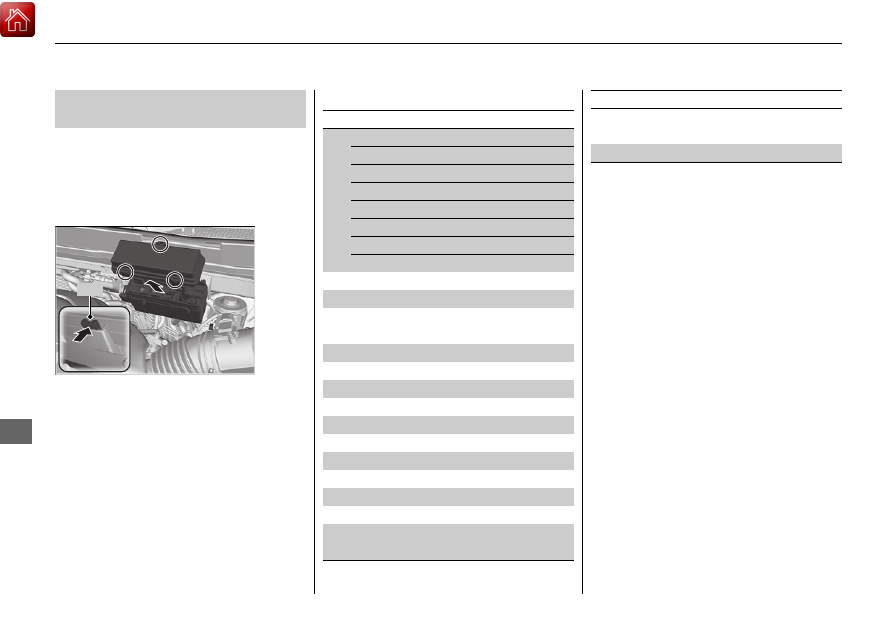

Located near the brake fluid reservoir. Push
the tabs to open the box.

Engine Compartment Fuse

Box Type B

Tab

Circuit protected and fuse rating

Circuit Protected

Amps

1

(40 A)

4WD

(20 A)

IG MAIN

30 A

IG MAIN2

30 A

(40 A)

F/B MAIN2

60 A

F/B MAIN

60 A

EPS

60 A

2

3

TRL E-BRAKE

(20 A)

4

BMS

7.5 A

*1

*2

5

H/L HI MAIN

20 A

6

+B TRL HAZARD

(7.5 A)

7

+B TRL BACKUP

(7.5 A)

8

CTR ACC SOCKET

20 A

9

TRAILER SMALL

(30 A)

10

ACC/IG2_MAIN

10 A

11

TRL CHARGE

(20 A)

12

ST CUT1

30 A

13

IDLE STOP

30 A

14

IDLE STOP

30 A

15

FR DE-ICER

(15 A)

*1

*2

*1:Models with LED parking lights
*2:Models without LED parking lights

16

RR _HTD SEAT

(20 A)

*1

BMS

7.5 A

*2

17

STRLD

7.5 A

Circuit Protected

Amps

565

uu

Fuses

u

Fuse Locations

Continued

Han

d

lin
g the U

n

expected

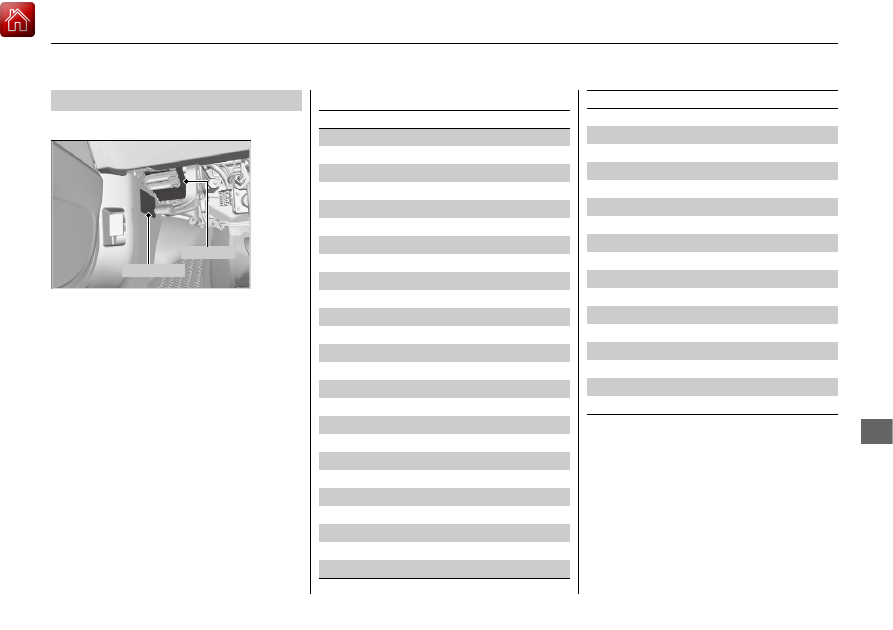

Located under the dashboard.

Fuse locations are shown on the label on
the side panel.
Locate the fuse in question by the fuse
number and label number.

Interior Fuse Box Type A

Fuse Box

Fuse Label

Circuit protected and fuse rating

Circuit Protected

Amps

1

DR P/W

20 A

2

DOOR LOCK

20 A

3

SMART

7.5 A

4

AS P/W

20 A

5

FR ACC SOCKET

20 A

6

FUEL PUMP

20 A

7

ACG

15 A

8

FRONT WIPER

7.5 A

9

ABS/VSA

7.5 A

10

SRS

10 A

11

REAR LEFT P/W

20 A

12

BACK P/W

(20 A)

13

REAR RIGHT P/W

20 A

14

S/R FUEL LID

20 A

15

DR P/SEAT (REC)

(20 A)

16

CARGO LT

7.5 A

17

FR SEAT HEATER

(20 A)

18

INTR LT

7.5 A

19

DR REAR DOOR UNLOCK

10 A

20

AS SIDE DOOR UNLOCK

10 A

21

DRL

7.5 A

22

KEY LOCK

7.5 A

23

A/C

7.5 A

24

IG1a FEED BACK

7.5 A

25

INST PANEL LIGHTS

7.5 A

26

LUMBAR SUPPORT

(7.5 A)

27

PARKING LIGHTS

7.5 A

28

OPTION

10 A

29

BACK LT

7.5 A

30

31

ST MOTOR

7.5 A

32

SRS

7.5 A

33

AS SIDE DOOR LOCK

10 A

34

DR DOOR LOCK

10 A

35

DR DOOR UNLOCK

10 A

36

DR P/SEAT (SLIDE)

(20 A)

37

RIGHT H/L HI

10 A

38

LEFT H/L HI

10 A

39

IG1b FEED BACK

7.5 A

40

ACC

7.5 A

41

DR REAR DOOR LOCK

10 A

42

Circuit Protected

Amps

566

uu

Fuses

u

Fuse Locations

Han

d

lin
g the U

n

expected

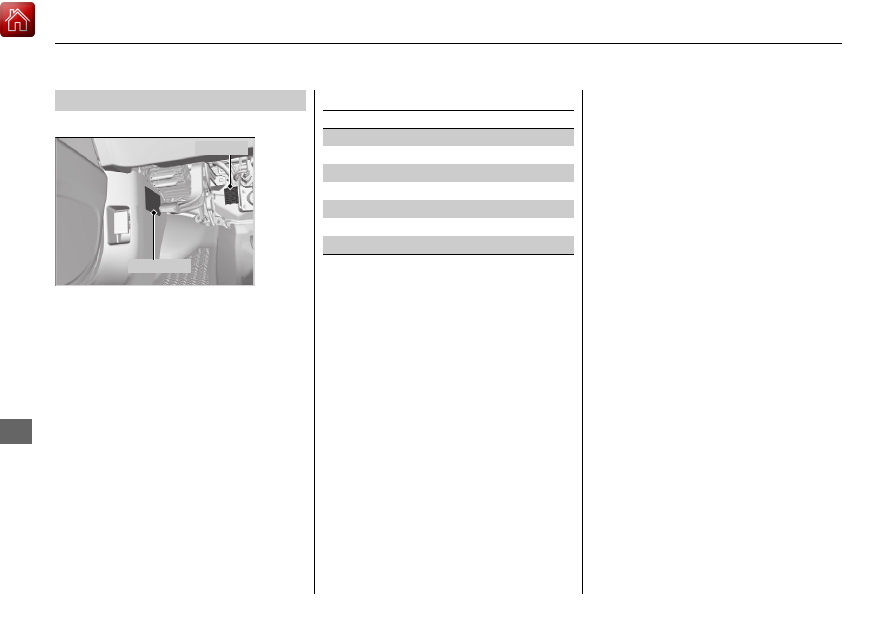

Located under the dashboard.

Fuse locations are shown on the label on
the side panel.
Locate the fuse in question by the fuse
number and label number.

Interior Fuse Box Type B

Fuse Box

Fuse Label

Circuit protected and fuse rating

Circuit Protected

Amps

A

METER

7.5 A

B

ABS/VSA

7.5 A

C

ACG

7.5 A

D

MICU

7.5 A

E

AUDIO

20 A

F

BACK UP

10 A

G

ACC

7.5 A

567

uu

Fuses

u

Inspecting and Changing Fuses

Han

d

lin
g the U

n

expected

Inspecting and Changing Fuses

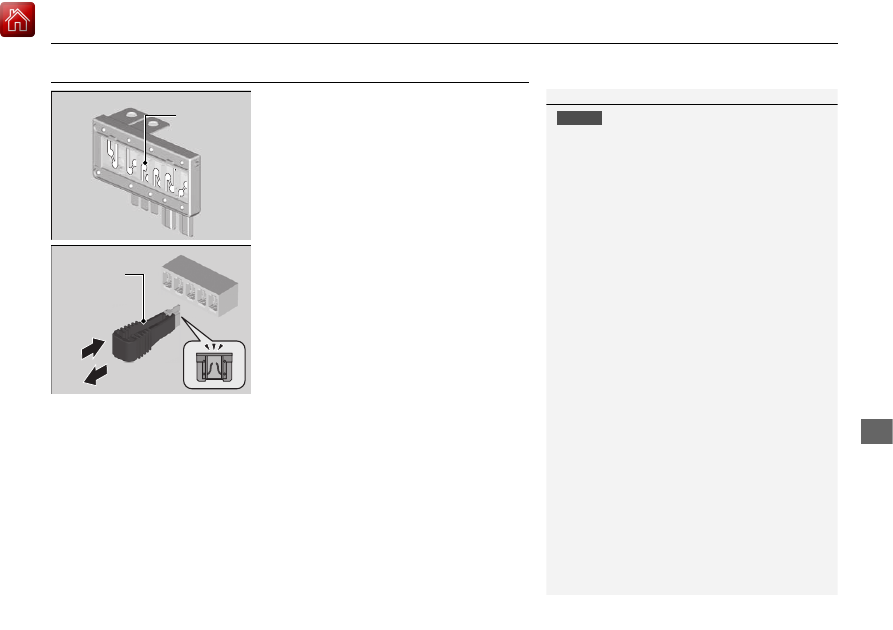

1.

Set the power mode to VEHICLE OFF. Turn
headlights and all accessories off.

2.

Remove the fuse box cover.

3.

Check the large fuses in the engine
compartment.

u

If the fuse is blown, use a phillips-head
screwdriver to remove the screw and
replace it with a new one.

4.

Inspect the small fuses in the engine
compartment and the vehicle interior.

u

If there is a blown fuse, remove it with
the fuse puller and replace it with a new
one.

1

Inspecting and Changing Fuses

NOTICE

Replacing a fuse with one that has a higher rating
greatly increases the chances of damaging the
electrical system.

Use the charts to locate the fuse in question and
confirm the specified amperage on the fuse label.

2

Fuse Locations

 P. 562

Replace fuse with a spare fuse of the same specified
amperage.

There is a fuse puller on the back of the type A engine
compartment fuse box cover.

Combined
Fuse

Blown Fuse

Fuse Puller

568

Han

d

lin
g the U

n

expected

Emergency Towing

Call a professional towing service if you need to tow your vehicle.

Flatbed equipment

The operator loads your vehicle on the back of a truck.

This is the best way to transport your vehicle.

Wheel lift equipment

The tow truck uses two pivoting arms that go under the front tires and lift them off
the ground. The rear tires remain on the ground.

This is an acceptable way to

tow your vehicle.

1

Emergency Towing

NOTICE

Trying to lift or tow your vehicle by the bumpers will
cause serious damage. The bumpers are not designed
to support the vehicle’s weight.

NOTICE

Improper towing such as towing behind a
motorhome or other motor vehicle can damage the
transmission.

Never tow your vehicle with just a rope or chain.
It is very dangerous since ropes or chains may shift
from side to side or break.

All models

2WD models

569

Han

d

lin
g the U

n

expected

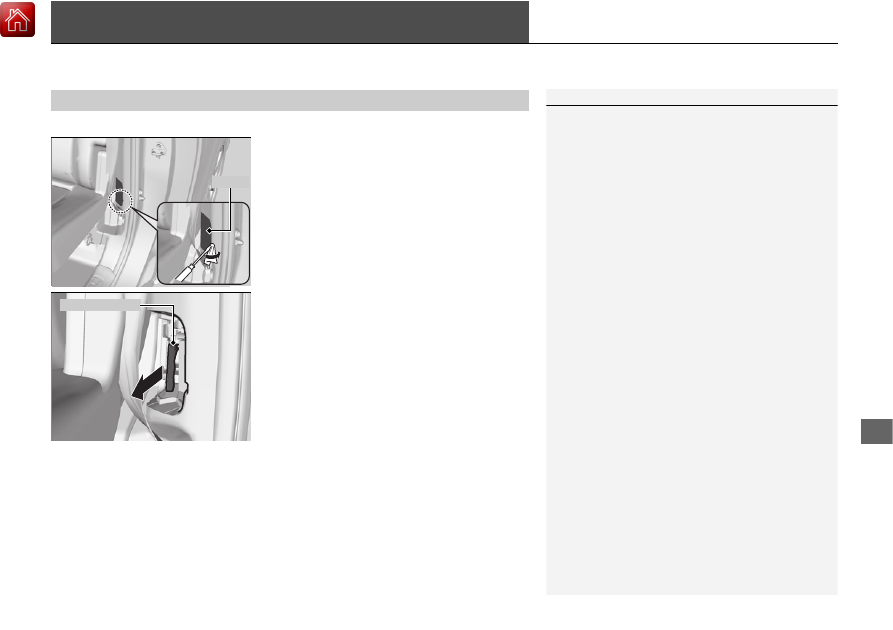

If You Cannot Unlock the Fuel Fill Door

If you cannot unlock the fuel fill door, use the following procedure.

1.

Open the rear driver side door.

2.

Wrap a cloth around the tip of a small flat-
tip screwdriver. Put it into the cover slot as
shown in the image, and remove the cover.

3.

Pull the release lever toward you.

u

The release lever unlocks the fuel fill door
when it is pulled.

4.

Open the fuel fill door.

What to Do If Unable to Unlock the Fuel Fill Door

1

What to Do If Unable to Unlock the Fuel Fill Door

After taking these steps, contact a dealer to have the
vehicle checked.

Cover

Release Lever

570

Han

d

lin
g the U

n

expected

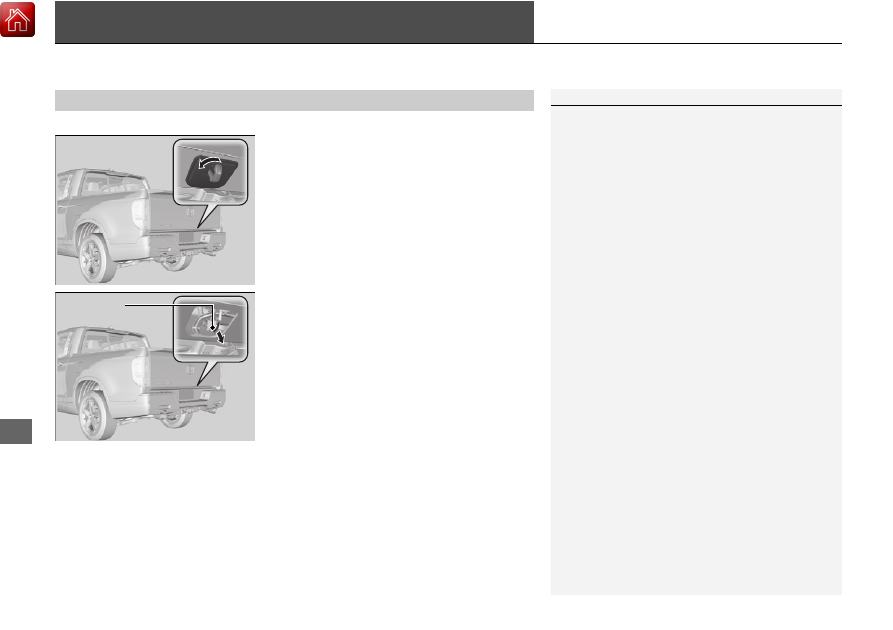

If You Cannot Unlock the Tailgate

If you cannot unlock the tailgate, use the following procedure.

1.

Press the unlock button on the keyless
remote.

2.

Remove the built-in key from the keyless
remote.

3.

Fully insert the key into the cover located on
the underside of the tailgate beside the
lower handle and turn it as shown in the
image.

4.

Remove the cover.

5.

Pull the emergency release cable.

6.

Open the tailgate in either swing out or flip
down position by pulling either handle.

2

Opening/Closing the Tailgate

 P. 132

What to Do If Unable to Unlock the Tailgate

1

What to Do If Unable to Unlock the Tailgate

Following up:
After taking these steps, contact a dealer to have the
vehicle checked.

Alarm may sound if you pull the emergency release
cable without pressing the unlock button on the
keyless remote.

2

Security System

 P. 136

Emergency
Release Cable

571

Continued

Han

d

lin
g the U

n

expected

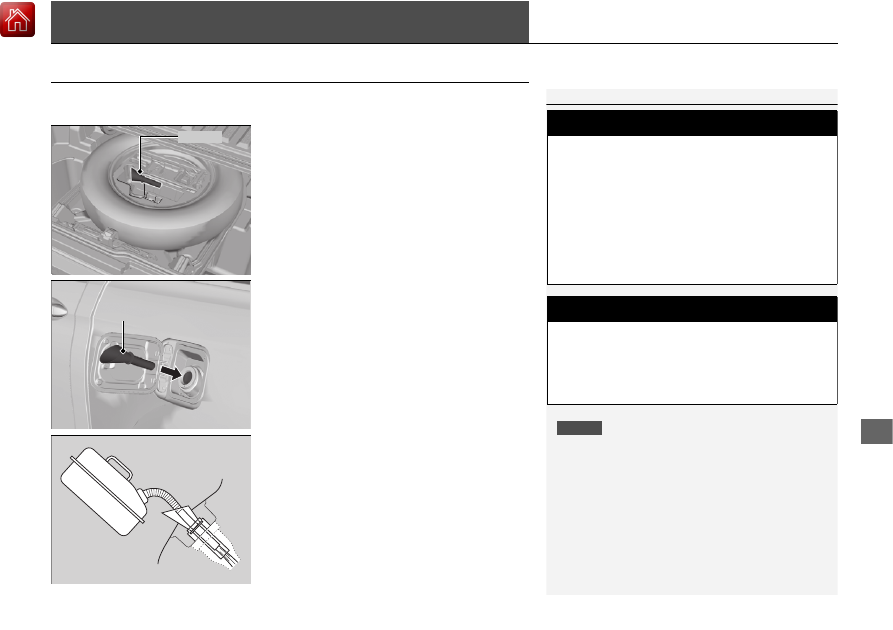

Refueling

Refueling From a Portable Fuel Container

If you have run out of fuel and need to refuel your vehicle from a portable fuel
container, use the funnel provided with your vehicle.

1.

Turn off the engine.

2.

Press the fuel fill door release button.

u

The fuel fill door opens.

3.

Open the trunk and pull out the tire tray
with the handles.

2

Getting Ready to Replace the Flat Tire



P. 540

4.

Remove the funnel from the tool box.

5.

Place the end of the funnel on the lower
part of filler opening, then insert it slowly
and fully.

u

Make sure that the end of the funnel
goes down along with the filler pipe.

6.

Fill the tank with fuel from the portable fuel
container.

u

Pour fuel carefully so you do not spill any.

7.

Remove the funnel from the filler neck.

u

Wipe up any fuel from the funnel before
storing it.

8.

Shut the fuel fill door by hand.

1

Refueling From a Portable Fuel Container

NOTICE

Do not insert the nozzle of a portable fuel container
or any funnel other than the one provided with your
vehicle. Doing so can damage the fuel system.
Do not try to pry open or push open the sealed fuel
tank with foreign objects. This can damage the fuel
system and its seal.

Make sure the fuel in the portable fuel container is
gasoline before you refuel.

3

WARNING

Gasoline is highly flammable and explosive.
You can be burned or seriously injured
when handling fuel.

Stop the engine, and keep heat, sparks,
and flames away.

Handle fuel only outdoors.

Wipe up spills immediately.

3

WARNING

Do not fill a portable fuel container in the
pickup bed.
Static electricity can ignite gas vapors and
you can be burned.

Funnel

Funnel

uu

Refueling

u

Refueling From a Portable Fuel Container

572

Han

d

lin
g the U

n

expected

1

Refueling From a Portable Fuel Container

Your vehicle has a warning label for filling a portable
fuel container on the left rear side of the pickup bed.

Whenever filling a fuel container, use an approved
fuel container, and place it on the ground. Do not fill
the fuel container in the vehicle, including the pickup
bed and the trunk. Make sure to put the fuel pump
nozzle in the fuel filler of the container securely and
to handle it properly.

574

Info

rm

ation

Specifications

Vehicle Specifications

*1: Models with AWD
*2: Models with 2WD

Air Conditioning

Model

Ridgeline

No. of Passengers:
Front

2

Rear

3

Total

5

Weights:
Gross Vehicle
Weight Rating

See the certification label
on the driver’s doorjamb

Gross Axle Weight
Rating (Front)

See the certification label
on the driver’s doorjamb

Gross Axle Weight
Rating (Rear)

See the certification label
on the driver’s doorjamb

Gross Combined Weight
Rating

U.S.:

10,031 lbs (4,550 kg)

*1

8,245 lbs (3,740 kg)

*2

Canada:

4,550 kg

Refrigerant Type

HFO-1234yf (R-1234yf)

Charge Quantity

21.3 – 23.1 oz (605 – 655 g)

Lubricant Type

RL85HM (POE)

Quantity

7.75 – 9.34 cu-in (127 – 153 cm

3

)

Engine Specifications

Fuel

Washer Fluid

Displacement

211.8 cu-in (3,471 cm

3

)

Spark Plugs

NGK

DILZKR7B11G

Type

Unleaded gasoline, Pump octane number
of 87 or higher

Fuel Tank Capacity

19.5 US gal (73.8 L)

Tank Capacity

U.S.: 1.0 US gal (3.8 L)
Canada: 1.4 US gal (5.3 L)

Light Bulbs

*1: Models with LED parking lights
*2: Models without LED parking lights
*3: Models with Truck Bed Audio System
*4: Models without Truck Bed Audio System
*5: Models with moonroof
*6: Models without moonroof

Headlights (Low Beam)

LED

Headlights (High Beam)

60W (HB3)

Fog Lights

LED

Front Turn Signal/Parking

*

 Lights

28/8 W (Amber)

Parking Lights

*

LED

Front Side Marker Lights

LED

Daytime Running Lights

LED

*1

60W (HB3)

*2

Side Turn Signal Lights (on Door Mirrors)

*

LED

Brake/Taillights/Rear Side Marker Lights

LED

Back-Up Lights

21 W

Rear Turn Signal Lights

21 W

High-Mount Brake Light

LED

Rear License Plate Lights

5 W

Bed Lights

LED

*3

5 W

*4

Interior Lights

Front Map Lights

LED

*5

5 W

*6

Rear Map Lights

5 W

Vanity Mirror Lights

*

1.4 W

Door Pocket Lights

*

LED

Beverage Holder Light

*

LED

Door Courtesy Lights

*

3.8 W

Door Inner Handle Lights

*

LED

Console Compartment Light

1.4 W

Glove Box Light

1.4 W

Foot Lights

*

LED

* Not available on all models















Content      ..     33      34      35      36     ..
