Continued

543

uu

If a Tire Goes Flat

u

Changing a Flat Tire

Han

d

lin
g the U

n

expected

1.

Place the jack under the jacking point
closest to the tire to be changed.

2.

Turn the end bracket clockwise as shown in
the image until the top of the jack contacts
the jacking point.

u

Make sure that the jacking point tab is
resting in the jack notch.

3.

Raise the vehicle, using the jack handle bar
and the jack handle, until the tire is off the
ground.

How to Set Up the Jack

1

How to Set Up the Jack

Do not use the jack with people or luggage in the
vehicle.

Use the jack provided in your vehicle.
Other jacks may not support the weight (“load”) or
may not fit the jacking point.

The following instructions must be followed to use
the jack safely:

Do not use while the engine is running.

Use only where the ground is firm and level.

Use only at the jacking points.

Do not get in the vehicle while using the jack.

Do not put anything on top of or underneath the
jack.

3

WARNING

The vehicle can easily roll off the jack,
seriously injuring anyone underneath.

Follow the directions for changing a tire
exactly, and never get under the vehicle
when it is supported only by the jack.

Jacking Points

Jack Handle Bar

Wheel Nut Wrench as Jack Handle

uu

If a Tire Goes Flat

u

Changing a Flat Tire

544

Han

d

lin
g the U

n

expected

1.

Remove the wheel nuts and flat tire.

2.

Wipe the mounting surfaces of the wheel
with a clean cloth.

3.

Mount the compact spare tire.

4.

Screw the wheel nuts until they touch the
lips around the mounting holes, then stop
rotating.

5.

Lower the vehicle and remove the jack.
Tighten the wheel nuts in the order
indicated in the image. Go around,
tightening the nuts, two to three times in
this order.

Wheel nut torque:

94 lbf∙ft (127 N∙m, 13 kgf∙m)

Replacing the Flat Tire

1

Replacing the Flat Tire

Do not over tighten the wheel nuts by applying extra
torque using your foot or a pipe.

Continued

545

uu

If a Tire Goes Flat

u

Changing a Flat Tire

Han

d

lin
g the U

n

expected

1.

Remove the center cap and place the tire on
the pickup bed.

2.

Wrap a cloth around the tip of a small flat-
tip screwdriver. Put it into the cap as shown
in the image, and remove the cap.

Securing the Flat Tire on the Pickup Bed

1

Securing the Flat Tire on the Pickup Bed

3

WARNING

Loose items can be thrown out of the
vehicle in a crash and could seriously injure
the occupants.

Store the wheel, jack, and tools securely
before driving.

Cap

546

uu

If a Tire Goes Flat

u

Changing a Flat Tire

Han

d

lin
g the U

n

expected

3.

Place the spacer cone onto the wheel hub,
then secure the flat tire to the pickup bed
with the wing bolt as shown.

4.

Securely store the jack on the tire tray using
the strap.

5.

Release the tire tray and slide it back in
place.

6.

Tighten the tire tray holding bolts securely.

7.

Store the center cap and the tool box in the
trunk.

u

Make sure it does not get scratched or
damaged.

If you remove the tire from the pickup bed,
reinstall the cap to its original location.

Wing Bolt

Spacer Cone

Continued

547

uu

If a Tire Goes Flat

u

Changing a Flat Tire

Han

d

lin
g the U

n

expected

As a temporary mounting location, you may secure the compact spare tire on the
pickup bed, if needed.

1.

Wrap a cloth around the tip of a small flat-
tip screwdriver. Put it into the cap as shown
in the image, and remove the cap.

2.

Remove the compact spare tire from the
tire tray.

2

Getting Ready to Replace the Flat Tire



P. 540

3.

Place the compact spare tire on the pickup
bed as shown.

4.

Place the spacer cone on the wheel hub and
the spacer washer within the spacer cone.
Then secure the compact spare tire to the
pickup bed with the wing bolt as shown.

5.

Store or secure the tool box.

If you remove the compact spare tire from the
pickup bed, reinstall the cap to its original
location.

Securing a Compact Spare Tire on the Pickup Bed

1

Securing a Compact Spare Tire on the Pickup Bed

The spacer washer is stored in the tool box.

3

WARNING

Loose items can be thrown out of the
vehicle in a crash and could seriously injure
the occupants.

Store the wheel and tools securely before
driving.

Cap

Spacer Cone

Wing Bolt

Spacer Washer

uu

If a Tire Goes Flat

u

Changing a Flat Tire

548

Han

d

lin
g the U

n

expected

If you replace a flat tire with the compact spare tire, the low tire pressure/TPMS
indicator comes on while you are driving. After driving for a few miles (kilometers),

Tire Pressure Monitor Problem

 will appear on the multi-information display and

the indicator will start blinking for a short time and then stay on; however, this is
normal and is no cause for concern.

If you replace the tire with a full-size tire, the warning message on the multi-
information display and the low tire pressure/TPMS indicator will go off after a few
miles (kilometers).

TPMS with Tire Fill Assist and the Compact Spare Tire

1

TPMS with Tire Fill Assist and the Compact Spare Tire

The system cannot monitor the pressure of the
compact spare tire. Manually check the compact
spare tire pressure to be sure that it is correct.

Use the TPMS specific wheels. Each is equipped with
a tire pressure sensor mounted inside the tire behind
the valve stem.

549

Han

d

lin
g the U

n

expected

Engine Does Not Start

Checking the Engine

If the engine does not start, check the starter.

Starter condition

Checklist

Starter doesn’t turn or turns
over slowly.

The battery may be dead. Check
each of the items on the right and
respond accordingly.

Check for a message on the multi-information display.

If the

To Start, Hold Remote Near Start Button

 message appears

2

If the Keyless Remote Battery is Weak

 P. 550

u

Make sure the keyless remote is in its operating range.

2

ENGINE START/STOP Button Operating Range

 P. 145

Check the brightness of the interior lights.

Turn on the interior lights and check the brightness.

If the interior lights are dim or do not come on at all

2

Battery

 P. 525

If the interior lights come on normally

2

 Fuses

 P. 562

The starter turns over normally
but the engine doesn’t start.

There may be a problem with a
fuse. Check each of the items on
the right and respond accordingly.

Review the engine start procedure.

Follow its instructions, and try to start the engine again.

2

 Starting the Engine

 P. 385

Check the immobilizer system indicator.

When the immobilizer system indicator is blinking, the engine cannot be started.

2

Immobilizer System

 P. 136

Check the fuel level.

There should be enough fuel in the tank.

2

 Fuel Gauge

 P. 110

Check the fuses.

Check all fuses, or have the vehicle checked by a dealer.

2

Inspecting and Changing Fuses

 P. 567

If the problem continues:

2

Emergency Towing

 P. 568

1

Checking the Engine

If you must start the vehicle immediately, use an
assisting vehicle or booster battery to jump start it.

2

If the Battery Is Dead

 P. 552

550

uu

Engine Does Not Start

u

If the Keyless Remote Battery is Weak

Han

d

lin
g the U

n

expected

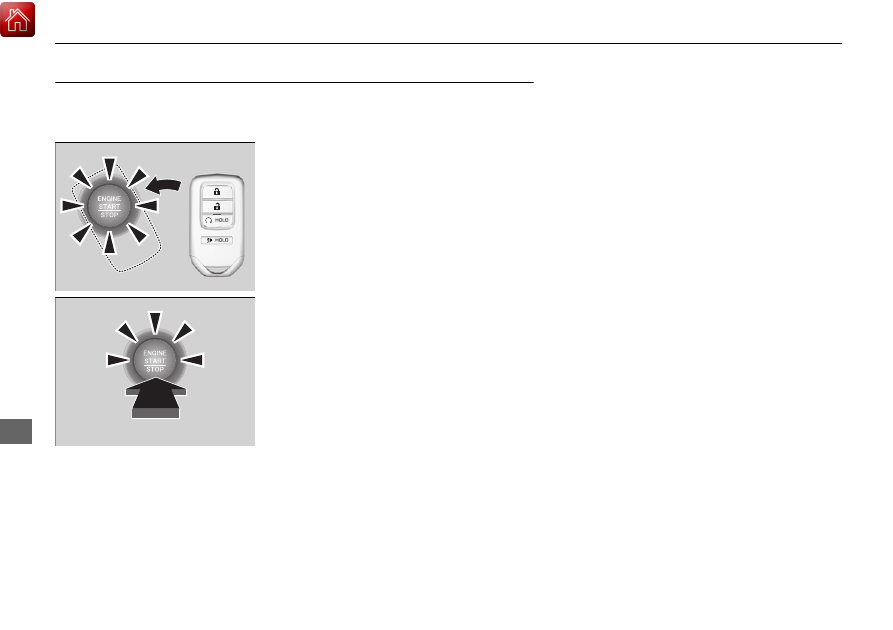

If the Keyless Remote Battery is Weak

If the beeper sounds, the

To Start, Hold Remote Near Start Button

 message

appears on the multi-information display, and the

ENGINE START/STOP

 button

flashes, and the engine won’t start, start the engine as follows:

1.

Touch the center of the

ENGINE START/

STOP

 button with the

H

 logo on the keyless

remote while the

ENGINE START/STOP



button is flashing. The buttons on the
keyless remote should be facing you.

u

The

ENGINE START/STOP

 button

flashes for about 30 seconds.

2.

Depress the brake pedal and press the

ENGINE START/STOP

 button within 10

seconds after the beeper sounds and the

ENGINE START/STOP

 button changes

from flashing to on.

u

If you don’t depress the pedal, the mode
will change to ACCESSORY.

551

uu

Engine Does Not Start

u

Emergency Engine Stop

Han

d

lin
g the U

n

expected

Emergency Engine Stop

The

ENGINE START/STOP

 button may be used to stop the engine due to an

emergency situation even while driving. If you must stop the engine, do either of the
following operations:

Press and hold the

ENGINE START/STOP

 button for about two seconds.

Firmly press the

ENGINE START/STOP

 button three times.

The steering wheel will not lock. However, because turning off the engine disables
the power assist the engine provides to the steering and braking systems, it will
require significantly more physical effort and time to steer and slow the vehicle. Use
both feet on the brake pedal to slow down the vehicle and stop immediately in a
safe place.

The transmission automatically changes to

(

P

 after the vehicle comes to a complete

stop.

Then, the power mode changes to VEHICLE OFF.

Then press the

ENGINE START/STOP

 button twice without depressing the brake

pedal to change the mode to VEHICLE OFF.

1

Emergency Engine Stop

Do not press the

ENGINE START/STOP

 button while

driving unless it is absolutely necessary for the engine
to be turned off.
If you press the

ENGINE START/STOP

 button while

driving, the beeper sounds.

U.S. models

Canadian models

552

Han

d

lin
g the U

n

expected

If the Battery Is Dead

Turn off the power to electric devices, such as audio and lights. Turn off the engine,
then open the hood.

1.

Pull up on the engine cover, remove it from
the pins.

u

Start on the passenger side and lift the
outermost edge of the cover.

u

Move towards the driver side while
applying uniform upward pressure.

2.

Connect the first jumper cable to your
vehicle’s battery

+

 terminal.

3.

Connect the other end of the first jumper
cable to the booster battery

+

 terminal.

u

Use a 12-volt booster battery only.

u

When using an automotive battery
charger to boost your 12-volt battery,
select a lower charging voltage than
15-volt. Check the charger manual for
the proper setting.

4.

Connect the second jumper cable to the
booster battery

-

 terminal.

Jump Starting Procedure

1

If the Battery Is Dead

Securely attach the jumper cables clips so that they
do not come off when the engine vibrates. Also be
careful not to tangle the jumper cables or allow the
cable ends to touch each other while attaching or
detaching the jumper cables.

Battery performance degrades in cold conditions and
may prevent the engine from starting.

3

WARNING

A battery can explode if you do not follow
the correct procedure, seriously injuring
anyone nearby.

Keep all sparks, open flames, and smoking
materials away from the battery.

Pins

Engine Cover

Booster Battery

553

uu

If the Battery Is Dead

u

Continued

Han

d

lin
g the U

n

expected

5.

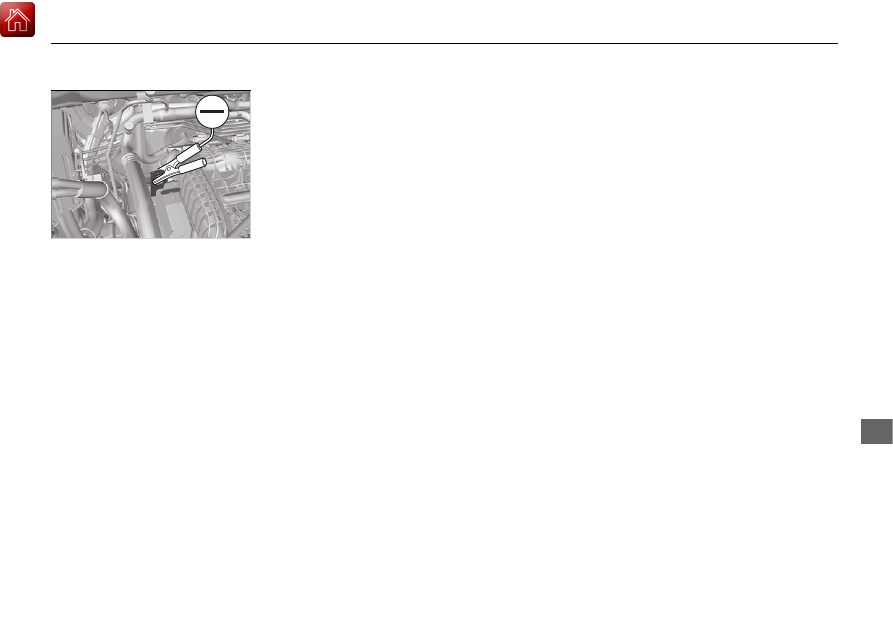

Connect the other end of the second
jumper cable to the engine hanger as
shown. Do not connect this jumper cable to
any other part.

6.

If your vehicle is connected to another
vehicle, start the assisting vehicle’s engine
and increase its rpm slightly.

7.

Attempt to start your vehicle’s engine. If it
turns over slowly, check that the jumper
cables have good metal-to-metal contact.

554

uu

If the Battery Is Dead

u

Han

d

lin
g the U

n

expected

Once your vehicle’s engine has started, remove the jumper cables in the following
order.

1.

Disconnect the jumper cable from your vehicle’s ground.

2.

Disconnect the other end of the jumper cable from the booster battery

-



terminal.

3.

Disconnect the jumper cable from your vehicle’s battery

+

 terminal.

4.

Disconnect the other end of the jumper cable from the booster battery

+



terminal.

Have your vehicle inspected by a nearby service station or a dealer.

What to Do After the Engine Starts

555

Continued

Han

d

lin
g the U

n

expected

Overheating

How to Handle Overheating

Overheating symptoms are as follows:

The temperature gauge needle is at the

 mark or the engine suddenly loses

power.

The

Engine Temperature Too Hot

 message appears on the multi-information

display.

Steam or spray comes out of the engine compartment.

First thing to do

1.

Immediately park the vehicle in a safe place.

2.

Turn off all accessories and turn on the hazard warning lights.

u

No steam or spray present:

Keep the engine running and open the hood.

u

Steam or spray is present:

Turn off the engine and wait until it subsides.

Then open the hood.

1

How to Handle Overheating

NOTICE

Continuing to drive with the temperature gauge
needle at the

 mark may damage the engine.

Continuing to drive with the

Engine Temperature

Too Hot

 message on the multi-information display

may damage the engine.

3

WARNING

Steam and spray from an overheated
engine can seriously scald you.

Do not open the hood if steam is coming
out.

H

H

uu

Overheating

u

How to Handle Overheating

556

Han

d

lin
g the U

n

expected

Next thing to do

1.

Check that the cooling fan is operating and
stop the engine once the temperature
gauge needle goes down.

u

If the cooling fan is not operating,
immediately stop the engine.

2.

Once the engine has cooled down, inspect
the coolant level and check the cooling
system components for leaks.

u

If the coolant level in the reserve tank is
low, remove the engine compartment
cover then add coolant until it reaches
the

MAX

 mark.

2

Engine Compartment Cover

 P. 498

u

If there is no coolant in the reserve tank,
check that the radiator is cool. Cover the
radiator cap with a heavy cloth and open
the cap. If necessary, add coolant up to
the base of the filler neck, and put the
cap back on.

Last thing to do

Once the engine has cooled sufficiently, restart it and check the temperature gauge.
If the temperature gauge needle has gone down, resume driving. If it has not gone
down, contact a dealer for repairs.

1

How to Handle Overheating

If the coolant is leaking, contact a dealer for repairs.

Use water as an emergency/temporary measure only.
Have a dealer flush the system with proper antifreeze
as soon as possible.

3

WARNING

Removing the radiator cap while the
engine is hot can cause the coolant to spray
out, seriously scalding you.

Always let the engine and radiator cool
down before removing the radiator cap.

Reserve Tank

MAX

MIN

557

Han

d

lin
g the U

n

expected

Indicator, Coming On/Blinking

If the Low Oil Pressure Indicator Comes On

Reasons for the indicator to come on

Comes on when the engine oil pressure is low.

What to do as soon as the indicator comes on

1.

Immediately park the vehicle on level ground in a safe place.

2.

If necessary, turn the hazard warning lights on.

What to do after parking the vehicle

1.

Stop the engine and let it sit for approximately three minutes.

2.

Open the hood and check the oil level.

2

Oil Check

 P. 500

3.

Start the engine and check the low oil pressure indicator.

u

The indicator goes off: Start driving again.

u

The indicator does not go off within 10 seconds: Immediately stop
the engine and contact a dealer for repairs.

If the Charging System Indicator Comes On

Reasons for the indicator to come on

Comes on when there is a problem with the charging system.

What to do when the indicator comes on

Turn off the climate control system, rear defogger, and other electrical
systems, and immediately contact a dealer for repairs.

1

If the Low Oil Pressure Indicator Comes On

NOTICE

Running the engine with low oil pressure can cause
serious mechanical damage almost immediately.

1

If the Charging System Indicator Comes On

If you need to stop temporarily, do not turn off the
engine. Restarting the engine may rapidly discharge
the battery.

558

uu

Indicator, Coming On/Blinking

u

If the Malfunction Indicator Lamp Comes On or Blinks

Han

d

lin
g the U

n

expected

If the Malfunction Indicator Lamp Comes On or
Blinks

Reasons for the indicator lamp to come on or blink

Comes on when there is a problem with the engine emissions control
system.

Blinks when engine misfiring is detected.

What to do when the indicator lamp comes on

Avoid high speeds and immediately get your vehicle inspected at a
dealer.

What to do when the indicator lamp blinks

Park the vehicle in a safe place with no flammable items and wait at least
10 minutes or more with the engine stopped until it cools.

1

If the Malfunction Indicator Lamp Comes On or Blinks

NOTICE

If you drive with the malfunction indicator lamp on,
the emissions control system and the engine could be
damaged.

If the malfunction indicator lamp blinks again when
restarting the engine, drive to the nearest dealer at
31 mph (50 km/h) or less. Have your vehicle
inspected.















Content      ..     32      33      34      35     ..
