527

Main

tenan

ce

Remote Transmitter Care

Replacing the Remote Battery

If the indicator does not come on when the button is pressed, replace the battery.

1.

Remove the built-in key.

2.

Remove the upper half of the cover by
carefully prying on the edge with a coin.

u

Wrap a coin with a cloth to prevent
scratching the keyless remote.

u

Remove carefully to avoid losing the
buttons.

3.

Make sure to replace the battery with the
correct polarity.

1

Replacing the Remote Battery

NOTICE

An improperly disposed of battery can damage the
environment. Always confirm local regulations for
battery disposal.

Replacement batteries are commercially available or
at a dealer.

3

WARNING

CHEMICAL BURN HAZARD

The battery that powers the remote
transmitter can cause severe internal burns
and can even lead to death if swallowed.
Keep new and used batteries away from
children.
If you suspect that a child has swallowed
the battery, seek medical attention
immediately.

Battery type: CR2032

Battery

528

Main

tenan

ce

Climate Control System Maintenance

Air Conditioning

To ensure proper and safe operation, the Society of Automotive Engineers (SAE
J2845) recommends that the refrigerant system only be serviced by trained and
certified technicians.

Never repair or replace the air conditioning evaporator (cooling coil) with one
removed from a used or salvaged vehicle.

New replacement mobile air conditioning evaporators must be certified (and
labeled) as meeting SAE Standard J2842.

Dust and Pollen Filter

The climate control system is equipped with a dust and pollen filter that collects
pollen, dust, and other debris in the air. The Maintenance Minder

TM

 messages will let

you know when to replace the filter.

We recommend that you replace the dust and pollen filter sooner when using your
vehicle in areas with high concentrations of dust.

1

Climate Control System Maintenance

NOTICE

Vented refrigerant is harmful to the environment.
To avoid refrigerant from venting, never replace the
evaporator with one removed from a used or
salvaged vehicle.

Refrigerant in your vehicle’s air conditioning system is
flammable and can be ignited during servicing if
proper procedures are not followed.

The air conditioner label is found under the hood:

2

Safety Labels

 P. 75

2

Specifications

 P. 574

Canadian models

: Caution

: Flammable Refrigerant

Requires Registered
Technician to Service

Air Conditioning
System

1

Dust and Pollen Filter

If the airflow from the climate control system
deteriorates noticeably, and the windows fog up
easily, the filter may need to be replaced. Please
contact a dealer for replacement.

529

Continued

Main

tenan

ce

Cleaning

Interior Care

Use a damp cloth with a mixture of mild detergent and warm water to remove dirt.
Use a clean cloth to remove detergent residue.

Use a soft brush with a mixture of mild soap and warm water to clean the seat belts.
Let the belts air dry. Wipe the loops of the seat belt anchors using a clean cloth.

Wipe using a glass cleaner.

Cleaning Seat Belts

1

Interior Care

Do not spill liquids inside the vehicle.
Electrical devices and systems may malfunction if
liquids are splashed on them.

Do not use silicone based sprays on electrical devices
such as audio devices and switches.
Doing so may cause the items to malfunction or
cause a fire inside the vehicle.
If a silicone based spray is inadvertently used on
electrical devices, consult a dealer.

Depending on their composition, chemicals and
liquid aromatics may cause discoloration, wrinkles,
and cracking to resin-based parts and textiles.
Do not use alkali solvents or organic solvents such as
benzene or gasoline.

After using chemicals, make sure to gently wipe them
away using a dry cloth.
Do not place used cloths on top of resin based parts
or textiles for long periods of time without washing.

Loop

Cleaning the Window

1

Cleaning the Window

Wires are mounted to the inside of the rear window.
Wipe along the same direction as the wires with a
soft cloth so as not to damage them.

Be careful not to spill fluids, such as water or glass
cleaner, on or around the cover of both the front
sensor camera and the rainfall/light sensor

*

.

* Not available on all models

uu

Cleaning

u

Interior Care

530

Main

tenan

ce

The front and rear seat floor mats hook over
floor anchors, which keep them from sliding
forward. To remove a mat for cleaning, turn
the anchor knobs to the unlock position.
When reinstalling the mat after cleaning, turn
the knobs to the lock position.

Do not put additional floor mats on top of
the anchored mats.

To properly clean leather:

1.

Use a vacuum or soft dry cloth first to remove any dirt or dust.

2.

Clean the leather with a soft cloth dampened with a solution comprised of 90%
water and 10% neutral soap.

3.

Wipe away any soap residue with a clean damp cloth.

4.

Wipe away residual water and allow leather to air dry in the shade.

Floor Mats

1

Floor Mats

If you use any floor mats that were not originally
provided with your vehicle, make sure they are
designed for your specific vehicle, fit correctly, and
are securely anchored by the floor anchors.
Position the rear seat floor mat properly. If not
properly positioned, the floor mat can interfere with
the front seat functions.

Lock

Unlock

Maintaining Genuine Leather

1

Maintaining Genuine Leather

It is important to clean or wipe away dirt or dust as
soon as possible. Spills can soak into leather resulting
in stains. Dirt or dust can cause abrasions in the
leather. In addition, please note that some dark
colored clothing can rub onto the leather seats
resulting in discoloration or stains.

531

uu

Cleaning

u

Exterior Care

Continued

Main

tenan

ce

Exterior Care

Dust off the vehicle body after you drive.
Regularly inspect your vehicle for scratches on painted surfaces. A scratch on a
painted surface can result in body rust. If you find a scratch, promptly repair it.

Wash the vehicle regularly. Wash more frequently when driving in the following
conditions:

If driving on roads with road salt.

If driving in coastal areas.

If tar, soot, bird droppings, insects, or tree sap are stuck to painted surfaces.

Use a water and mild detergent solution, and
a soft brush or cloth to clean the inside of the
trunk.

To drain water from the trunk, remove the
drain plug by turning it counter-clockwise.

u

When you are finished washing the
trunk, dry it with a soft cloth, and
reinstall the drain plug.

Washing the Vehicle

Washing the Trunk

1

Washing the Vehicle

Do not spray water into the air intake vents. It can
cause a malfunction.

Do not spray water onto the capless unit when the
fuel fill door is open. It can cause damage to the fuel
system or engine.

Air Intake Vents

Drain plug

uu

Cleaning

u

Exterior Care

532

Main

tenan

ce

Make sure to follow the instructions indicated on the automated car wash.

Fold in the door mirrors.

For models equipped with automatic intermittent wipers, turn the wipers off.

Keep sufficient distance between the cleaning nozzle and the vehicle body.

Take particular care around the windows. Standing too close may cause water to
enter the vehicle interior.

Do not spray high pressure water directly into the engine compartment. Instead,
use low pressure water and a mild detergent.

A good coat of automotive body wax helps protect your vehicle’s paint from the
elements. Wax will wear off over time and expose your vehicle’s paint to the
elements, so reapply as necessary.

Using an Automated Car Wash

Using High Pressure Cleaners

Applying Wax

1

Using an Automated Car Wash

When using an automated car wash that pulls the
vehicle through with a conveyor, make sure the
transmission in

(

N

 position.

2

If you want to keep the transmission in

(

N



position [car wash mode]

 P. 399

1

Applying Wax

NOTICE

Chemical solvents and strong cleaners can damage
the paint, metal, and plastic on your vehicle. Wipe
away spills immediately.

Continued

533

uu

Cleaning

u

Exterior Care

Main

tenan

ce

If you get gasoline, oil, engine coolant, or battery fluid on resin coated parts, they
may be stained or the coating may peel. Promptly wipe it away using a soft cloth and
clean water.

Wipe using a glass cleaner.

Aluminum is susceptible to deterioration caused by salt and other road
contaminants. When necessary, as early as possible use a sponge and mild detergent
to wipe away these contaminants. Do not use a stiff brush or harsh chemicals
(including some commercial wheel cleaners).
These can damage the protective finish on aluminum alloy wheels, resulting in
corrosion. Depending on the type of finish, the wheels also may lose their luster or
appear burnished. To avoid water stains, wipe the wheels dry with a cloth while they
are still wet.

Maintaining the Bumpers and Other Resin Coated Parts

Cleaning the Window

Maintaining Aluminum Wheels

1

Maintaining the Bumpers and Other Resin Coated Parts

Ask a dealer about the correct coating material when
you want to repair the painted surface of the parts
made of resin.

534

uu

Cleaning

u

Exterior Care

Main

tenan

ce

The inside lenses of exterior lights (headlights, brake lights, etc.) may fog temporarily
if you have driven in the rain, or after the vehicle has been run through a car wash.
Dew condensation also may build up inside the lenses when there is a significant
enough difference between the ambient and inside lens temperatures (similar to
vehicle windows fogging up in rainy conditions). These conditions are natural
processes, not structural design problems in the exterior lights.
Lens design characteristics may result in moisture developing on the light lens frame
surfaces. This also is not a malfunction.
However, if you see large amounts of water accumulation, or large water drops
building up inside the lenses, have your vehicle inspected by a dealer.

Fogged Exterior Light Lenses

535

Main

tenan

ce

Accessories and Modifications

Accessories

When installing accessories, check the following:

Do not install accessories on the windshield. They can obstruct your view and
delay your reaction to driving conditions.

Do not install any accessories over areas marked

SRS AIRBAG

, on the sides or

backs of the front seats, on front or side pillars, or near the side windows.
Accessories installed in these areas may interfere with proper operation of the
vehicle’s airbags or may be propelled into you or another occupant if the airbags
deploy.

Be sure electronic accessories do not overload electrical circuits or interfere with
proper operation of your vehicle.

2

Fuses

 P. 562

Before installing any electronic accessory, have the installer contact a dealer for
assistance. If possible, have a dealer inspect the final installation.

Your vehicle should not be used to carry a slide-in camper. If you install a truck
cap, be sure it is properly installed and does not exceed your vehicle’s load limits.

2

Maximum Load Limit

 P. 367

1

Accessories and Modifications

Honda Genuine accessories are recommended to
ensure proper operation on your vehicle.

3

WARNING

Improper accessories or modifications can
affect your vehicle’s handling, stability, and
performance, and cause a crash in which
you can be seriously hurt or killed.

Follow all instructions in this owner’s
manual regarding accessories and
modifications.

536

uu

Accessories and Modifications

u

Modifications

Main

tenan

ce

Modifications

Do not modify your vehicle in a manner that may affect its handling, stability, or
reliability, or install non-genuine Honda parts or accessories that may have a similar
effect.

Even minor modifications to vehicle systems can affect overall vehicle performance.
Always make sure all equipment is properly installed and maintained, and do not
make any modification to your vehicle or its systems that might cause your vehicle
to no longer meet federal, state, province, territory, and local regulations.

The on-board diagnostic port (OBD-II/SAE J1962 connector) installed on this vehicle
is intended to be used with automobile system diagnostic devices or with other
devices that Honda has approved. Use of any other type of device may adversely
affect the vehicle’s electronic systems or allow them to be compromised, possibly
resulting in a system malfunction, drained battery, or other unexpected problems.

Do not modify or attempt to repair any of the electrical components.

537

Handling the Unexpected

This chapter explains how to handle unexpected troubles.

Tools

Types of Tools .................................. 538

If a Tire Goes Flat

Changing a Flat Tire ......................... 539

Engine Does Not Start

Checking the Engine ........................ 549
If the Keyless Remote Battery is Weak ...550
Emergency Engine Stop ................... 551

If the Battery Is Dead

....................... 552

Overheating

How to Handle Overheating............. 555

Indicator, Coming On/Blinking

If the Low Oil Pressure Indicator Comes

On ............................................. 557

If the Charging System Indicator Comes

On ................................................. 557

If the Malfunction Indicator Lamp Comes

On or Blinks ................................... 558

If the Brake System Indicator (Red) Comes

On .................................................559

If the Electric Power Steering (EPS) System

Indicator Comes On ....................... 559

If the Low Tire Pressure/TPMS Indicator

Comes On or Blinks........................ 560

If the Transmission System Indicator Blinks

along with the Warning Message... 561

Fuses

Fuse Locations ................................. 562
Inspecting and Changing Fuses........ 567

Emergency Towing

........................... 568

If You Cannot Unlock the Fuel Fill Door

....569

If You Cannot Unlock the Tailgate

... 570

Refueling

Refueling From a Portable Fuel

Container ................................... 571

538

Han

d

lin
g the U

n

expected

Tools

Types of Tools

1

Types of Tools

The tools are stored in the trunk.

Wheel Nut Wrench/
Jack Handle

Jack

Jack Handle Bar

Funnel

Trunk

539

Continued

Han

d

lin
g the U

n

expected

If a Tire Goes Flat

Changing a Flat Tire

If a tire goes flat while driving, grasp the steering wheel firmly, and brake gradually
to reduce speed. Then, stop in a safe place. Replace the flat tire with a compact
spare tire. Go to a dealer as soon as possible to have the full-size tire repaired or
replaced.

1.

Park the vehicle on a firm, level, non-slippery surface and apply the parking brake.

2.

Put the transmission into

(

P

.

3.

Turn on the hazard warning lights and set the power mode to VEHICLE OFF.

1

Changing a Flat Tire

Follow compact spare precautions:
Periodically check the tire pressure of the compact
spare. It should be set to the specified pressure.
Specified Pressure: 60 psi (420 kPa, 4.2 kgf/cm

2

)

When driving with the compact spare tire, keep the
vehicle speed under 50 mph (80 km/h). Replace with
a full-size tire as soon as possible.

The compact spare tire and wheel in your vehicle are
specifically for this model. Do not use them with
another vehicle. Do not use another type of compact
spare tire or wheel with your vehicle.

Do not mount tire chains on a compact spare tire.
If a chain-mounted front tire goes flat, remove one of
the full-size rear tires and replace it with the compact
spare tire. Remove the flat front tire and replace it
with the full-size tire that was removed from the rear.
Mount the tire chains on the front tire.

Do not use a puncture-repairing agent on a flat tire,
as it can damage the tire pressure sensor.

uu

If a Tire Goes Flat

u

Changing a Flat Tire

540

Han

d

lin
g the U

n

expected

1.

Open the trunk.

2.

Remove the two tire tray holding bolts.

3.

Pull out the tire tray with the handles, and
hook the rear of the tire tray to the guides
on the back edge of the trunk.

4.

Loosen the strap, then take the jack out.

Getting Ready to Replace the Flat Tire

1

Changing a Flat Tire

NOTICE

Do not use the jack if it doesn’t work properly. Call
your dealer or a professional towing service.

Tire Tray

Tire Tray Holding Bolts

Handles

Strap

Jack

541

uu

If a Tire Goes Flat

u

Changing a Flat Tire

Continued

Han

d

lin
g the U

n

expected

5.

Unscrew the wing bolt, and remove the
tool box and the spacer cone. Then, remove
the compact spare tire.

6.

Place a wheel block or rock in front and rear
of the wheel diagonal to the flat tire.

7.

Place the compact spare tire (wheel side up)
under the vehicle body, near the tire that
needs to be replaced.

Wing Bolt

Spacer Cone

Tool Box

Wheel Blocks

The tire to be replaced.

542

uu

If a Tire Goes Flat

u

Changing a Flat Tire

Han

d

lin
g the U

n

expected

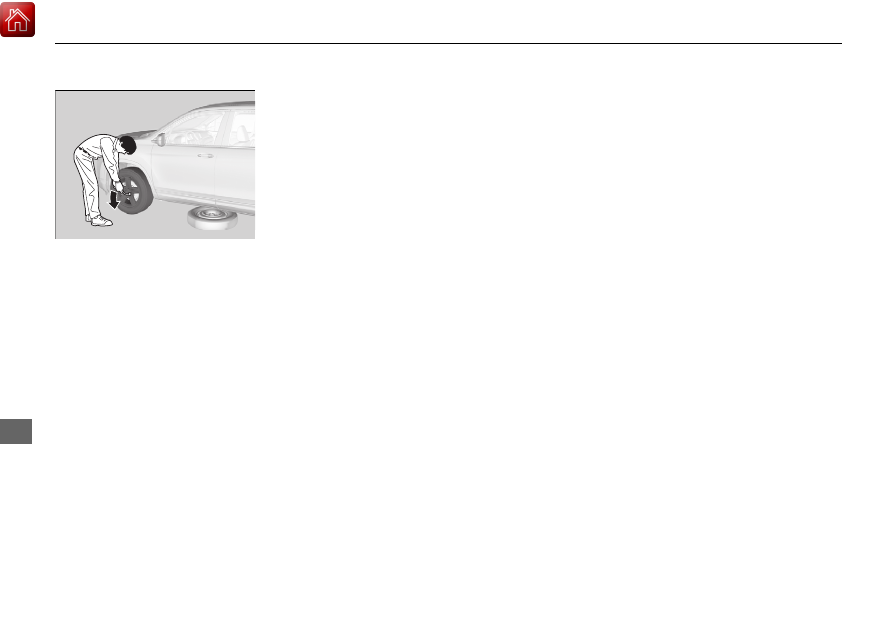

8.

Loosen each wheel nut about one turn
using the wheel nut wrench.















Content      ..     31      32      33      34     ..
