Honda HR-V eHEV (2022 year). Manual in english - page 32

513

uu

Maintenance Schedule

*

u

Continued

Main

tenan

ce

Service at the indicated distance or time
- whichever comes first.

km X 1,000

15

30

45

60

75

90

105 120 135 150 165 180 195

months

12

24

36

48

60

72

84

96

108 120 132 144 156

Test drive (noise, stability, dashboard operation)

•

•

•

•

•

•

•

•

•

•

•

•

•

Visually inspect the following items:

Driveshaft boots

•

•

•

•

•

•

•

•

•

•

•

•

•

Tie rod ends, steering gearbox, and boots
Suspension components
Brake hoses and lines (including ABS/VSA)
Exhaust system
Fuel lines and connections
All fluid levels and condition of fluid

uu

Maintenance Schedule

*

u

514

Main

tenan

ce

If you drive your vehicle under severe conditions, you must have the following items
served to the maintenance schedule indicated as Severe.

*1:Except Ukrainian models

Items

Condition

Engine oil and oil filter

A, B, C, D and E

Transmission fluid

*1

B, D

1

Maintenance Schedule

*

The condition is considered as severe when you drive:
A. Less than 8 km (5 miles), or less than 16 km (10
miles) in freezing temperatures per trip.
B. In extremely hot temperature above 35°C.
C. With extensive idling or long periods of stop-and-
go.
D. With a loaded roof rack, or in mountains.
E. On muddy, dusty or de-iced roads.

* Not available on all models

515

uu

Maintenance Schedule

*

u

Maintenance Record (On Vehicles without Service Book)

Continued

Main

tenan

ce

Maintenance Record (On Vehicles without Service Book)

Have your servicing dealer record all required maintenance below. Keep receipts for all work done on your vehicle.

Km or Month

Date

Sign or Stamp

20,000 km

12,500 Mi. (or 12 Mo.)

40,000 km

25,000 Mi. (or 24 Mo.)

60,000 km

37,500 Mi. (or 36 Mo.)

80,000 km

50,000 Mi. (or 48 Mo.)

100,000 km

62,500 Mi. (or 60 Mo.)

120,000 km

75,000 Mi. (or 72 Mo.)

140,000 km

87,500 Mi. (or 84 Mo.)

160,000 km

100,000 Mi. (or 96 Mo.)

180,000 km

112,500 Mi. (or 108 Mo.)

200,000 km

125,000 Mi. (or 120 Mo.)

Except Ukrainian models

516

uu

Maintenance Schedule

*

u

Maintenance Record (On Vehicles without Service Book)

Main

tenan

ce

Km or Month

Date

Sign or Stamp

15,000 km

 (or 12 Mo.)

30,000 km

(or 24 Mo.)

45,000 km

 (or 36 Mo.)

60,000 km

 (or 48 Mo.)

75,000 km

 (or 60 Mo.)

90,000 km

 (or 72 Mo.)

105,000 km

 (or 84 Mo.)

120,000 km

 (or 96 Mo.)

135,000 km

 (or 108 Mo.)

150,000 km

 (or 120 Mo.)

165,000 km

 (or 132 Mo.)

180,000 km

 (or 144 Mo.)

195,000 km

 (or 156 Mo.)

Ukrainian models

517

Main

tenan

ce

Maintenance Under the Bonnet

Maintenance Items Under the Bonnet

a

Brake Fluid (Black Cap) (Right-hand
Drive Type)

e

Radiator Cap

b

Brake Fluid (Black Cap) (Left-hand
Drive Type)

f

Engine Oil Dipstick (Orange)

c

12-volt Battery

g

Washer Fluid (Blue Cap)

d

Engine Coolant Reserve Tank

h

Engine Oil Fill Cap

518

uu

Maintenance Under the Bonnet

u

Opening the Bonnet

Main

tenan

ce

Opening the Bonnet

1.

Park the vehicle on a level surface, and set
the parking brake.

2.

 Pull the bonnet release handle under the
driver’s side lower outside corner of the
dashboard.

u

The bonnet will pop up slightly.

3.

Push the bonnet latch lever (located under
the front edge of the bonnet to the centre)
to the side and raise the bonnet. Once you
have raised the bonnet slightly, you can
release the lever.

1

Opening the Bonnet

NOTICE

Do not open the bonnet when the wiper arms are
raised. The bonnet will strike the wipers, resulting in
possible damage to the bonnet and/or the wipers.

When closing the bonnet, check that the bonnet is
securely latched.

If the bonnet latch lever moves stiffly, or if you can
open the bonnet without lifting the lever, the latch
mechanism should be cleaned and lubricated.

a

Bonnet Release Handle

b

Pull

a

Lever

519

uu

Maintenance Under the Bonnet

u

Opening the Bonnet

Main

tenan

ce

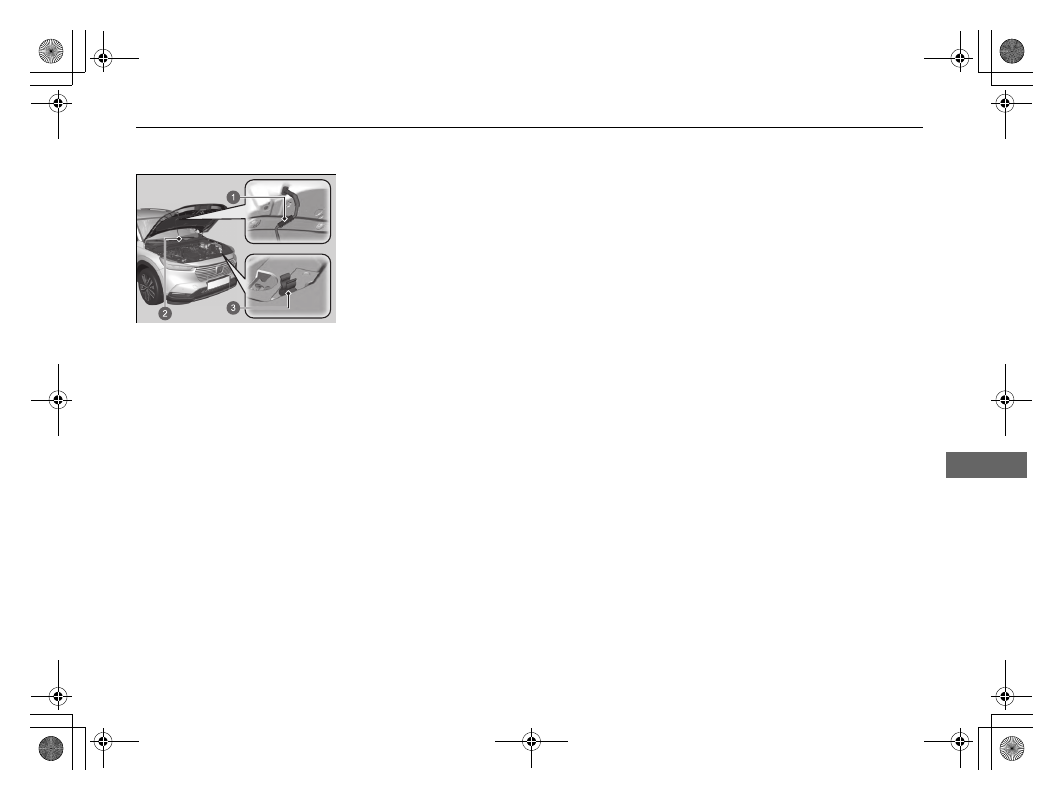

4.

Remove the support rod from the clamp
using the grip. Mount the support rod in
the bonnet.

When closing, remove the support rod, and
stow it in the clamp, then gently lower the
bonnet. Remove your hand at a height of
approximately 30 cm (12 inches) and let the
bonnet close.

a

Grip

b

Support Rod

c

Clamp

520

uu

Maintenance Under the Bonnet

u

Recommended Engine Oil

Main

tenan

ce

Recommended Engine Oil

Use a genuine engine oil or another commercial engine oil of suitable type and
viscosity (for the ambient temperature) as shown in the image that follows.

Oil is a major contributor to your engine's performance and longevity. If you drive
the vehicle with insufficient or deteriorated oil, the engine may fail or be damaged.

*1:Formulated to improve fuel economy.

Genuine Engine Oil

Commercial Engine Oil

●

Honda Engine Oil Type 2.0

*1

●

ACEA C5

1

Recommended Engine Oil

Engine Oil Additives
You cannot use Engine Oil Additives.

European and Ukrainian models

Ambient Temperature

Ambient Temperature

521

uu

Maintenance Under the Bonnet

u

Recommended Engine Oil

Main

tenan

ce

*1:Formulated to improve fuel economy.

Genuine Engine Oil

Commercial Engine Oil

●

Honda Genuine Motor Oil

*1

●

ACEA C5

Except European and Ukrainian models

Ambient Temperature

Ambient Temperature

522

uu

Maintenance Under the Bonnet

u

Oil Check

Main

tenan

ce

Oil Check

We recommend that you check the engine oil level every time you refuel.
Park the vehicle on level ground.

Turn off the power system. You can check the oil level without the engine having
run beforehand. If the engine has been running, wait approximately three minutes
before you check the oil.

1.

Remove the dipstick (orange).

2.

Wipe the dipstick with a clean cloth or
paper towel.

3.

Insert the dipstick back all the way into its
hole.

4.

Remove the dipstick again, and check the
level. It should be between the upper and
lower marks. Add oil if necessary.

1

Oil Check

If the oil level is near or below the lower mark, slowly
add oil, being careful not to overfill.

The amount of oil consumed depends on how the
vehicle is driven and the climatic and road conditions
encountered. The rate of oil consumption can be up
to 1 litre per 1,000 km/625 miles.
Consumption is likely to be higher when the engine is
new.

a

Upper Mark

b

Lower Mark

523

uu

Maintenance Under the Bonnet

u

Adding Engine Oil

Main

tenan

ce

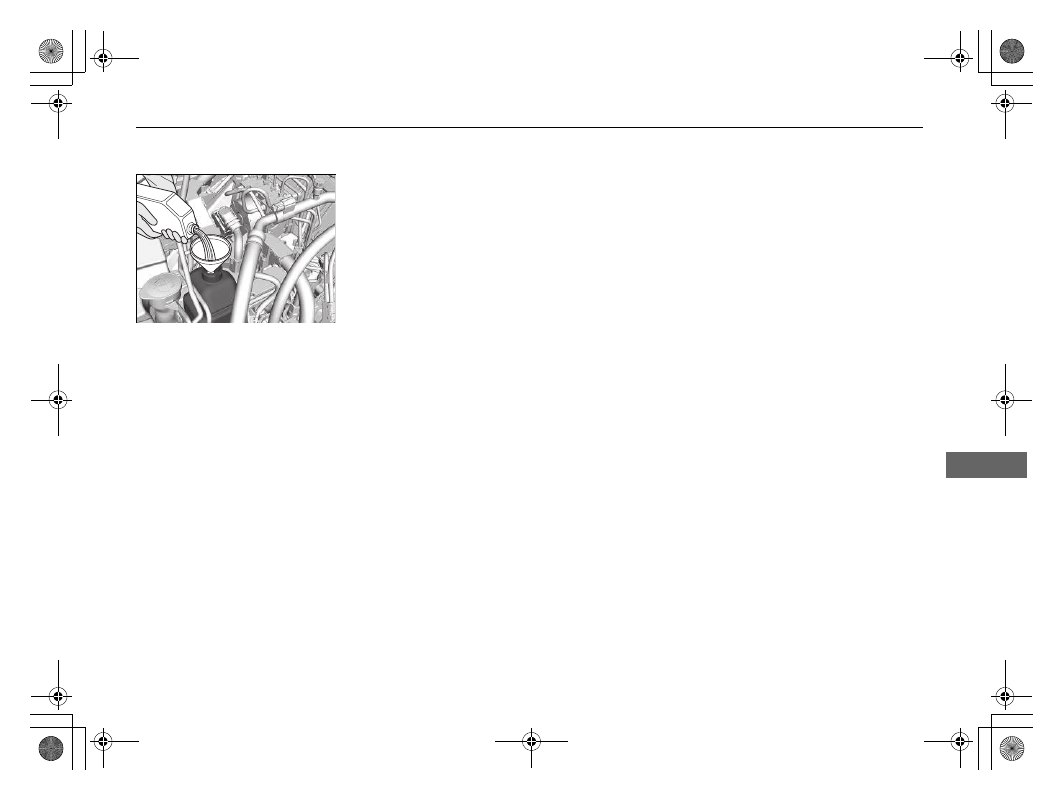

Adding Engine Oil

1.

Unscrew and remove the engine oil fill cap.

2.

Add oil slowly.

3.

Reinstall the engine oil fill cap, and tighten
it securely.

4.

Wait for three minutes and recheck the
engine oil dipstick.

1

Adding Engine Oil

NOTICE

Do not fill the engine oil above the upper mark.
Overfilling the engine oil may result in leaks and
engine damage.

If any oil spills, wipe it away immediately. Spilled oil
may damage the engine compartment components.

a

Engine Oil Fill Cap

524

uu

Maintenance Under the Bonnet

u

Cooling System

Main

tenan

ce

Cooling System

This coolant is premixed with 50% antifreeze and 50% water. Do not add any
straight antifreeze or water.

We recommend you check the engine coolant level every time you refuel. Check the
reserve tank first. If it is completely empty, also check the coolant level in the
radiator. Add the engine coolant accordingly.

1. Make sure the engine and radiator are

cool.

2.

Check the amount of coolant in the reserve
tank.

u

If the coolant level is below the

MIN



mark, add the specified coolant until it
reaches the

MAX

 mark.

Specified coolant: Honda All Season Antifreeze/Coolant Type 2

■

Reserve Tank

1

Cooling System

NOTICE

If temperatures consistently below -30°C are
expected, the coolant mixture should be changed to
a higher concentration. Consult your Honda dealer
for details about a suitable coolant mixture.

If Honda antifreeze/coolant is not available, you may
use another major brand of non-silicate coolant as a
temporary replacement. Check that it is a high quality
coolant recommended for aluminium engines.
Continued use of any non-Honda coolant can result
in corrosion, causing the cooling system to
malfunction or fail. Have the cooling system flushed
and refilled with Honda antifreeze/coolant as soon as
possible.

Do not add rust inhibitors or other additives to your
vehicle’s cooling system. They may not be compatible
with the coolant or with the engine components.

3

WARNING

Removing the radiator cap while the
engine is hot can cause the coolant to spray
out, seriously scalding you.

Always let the engine and radiator cool
down before removing the radiator cap.

a

MAX

b

MIN

c

Reserve Tank

525

uu

Maintenance Under the Bonnet

u

Cooling System

Continued

Main

tenan

ce

3.

Inspect the cooling system for leaks.

uu

Maintenance Under the Bonnet

u

Cooling System

526

Main

tenan

ce

1. Make sure the engine and radiator are

cool.

2.

Turn the radiator cap 1/8 turn anti-
clockwise and relieve any pressure in the
cooling system.

3.

Push down and turn the radiator cap anti-
clockwise to remove it.

4.

The coolant level should be up to the base
of the filler neck. Add coolant if it is low.

5.

Put the radiator cap back on, and tighten it
fully.

•

Never open when hot.

•

Hot coolant will scald you.

•

Relief pressure valve begins to open at 108
kPa.

■

Radiator

1

Radiator

NOTICE

Pour the fluid slowly and carefully so you do not spill
any. Clean up any spills immediately; they can
damage components in the engine compartment.

a

Radiator Cap

■

Radiator Cap

527

uu

Maintenance Under the Bonnet

u

Transmission Fluid

Main

tenan

ce

Transmission Fluid

Have a dealer check the fluid level and replace if necessary.
Follow your vehicle’s maintenance service timing of when to change transmission
fluid.

2

Maintenance Schedule

*

 P. 509

Do not attempt to check or change the transmission fluid yourself.

Specified fluid: Honda ATF DW-1

1

Transmission Fluid

NOTICE

Do not mix Honda ATF DW-1 with other
transmission fluids.

Using a transmission fluid other than Honda ATF DW-
1 may adversely affect the operation and durability of
your vehicle’s transmission, and damage the
transmission.
Any damage caused by using a transmission fluid that
is not equivalent to Honda ATF DW-1 is not covered
by Honda’s new vehicle limited warranty.

* Not available on all models

528

uu

Maintenance Under the Bonnet

u

Brake Fluid

Main

tenan

ce

Brake Fluid

The fluid level should be between the

MIN



and

MAX

 marks on the side of the reserve

tank.

Specified fluid: Brake Fluid with DOT 3 or DOT 4

■

Checking the Brake Fluid

1

Brake Fluid

NOTICE

Brake fluid marked DOT 5 is not compatible with your
vehicle’s braking system and can cause extensive
damage.

We recommend using a genuine product.

If the brake fluid level is at or below the

MIN

 mark,

have a dealer inspect the vehicle for leaks or worn
brake pads as soon as possible.

Left-hand Drive Type

a

Reserve Tank

b

MAX

c

MIN

Right-hand Drive Type

a

Reserve Tank

b

MAX

c

MIN
