Indicator, Coming On/Blinking

u

If the Electric Power Steering (EPS) System Indicator Comes On

Han

d

lin

g the U

n

expected

If the Electric Power Steering (EPS) System Indicator
Comes On

■

Reasons for the indicator to come on

•

Comes on when there is a problem with the EPS system.

■

What to do when the indicator comes on

•

Stop the vehicle in a safe place and turn on the power system again.
If the indicator comes on and stays on, immediately have your vehicle
inspected by a dealer.

657

uu

Indicator, Coming On/Blinking

u

If the Low Tire Pressure/TPMS Indicator Comes On or Blinks

Han

d

lin

g the U

n

expected

If the Low Tire Pressure/TPMS Indicator Comes On or
Blinks

■

Reasons for the indicator to come on or blink

A tire pressure is significantly low, or the TPMS has not been calibrated.
If there is a problem with the TPMS, the indicator blinks for about one
minute, and then stays on.

■

What to do when the indicator comes on

Drive carefully and avoid abrupt cornering and hard braking.
Stop your vehicle in a safe place. Check the tire pressure and adjust the
pressure to the specified level. The specified tire pressure is on a label on
the driver side doorjamb.

u

Calibrate the TPMS after the tire pressure is adjusted.

2

TPMS Calibration

 P. 494

■

What to do when the indicator blinks, then remains on

Have the tire inspected by a dealer as soon as possible.

1

If the Low Tire Pressure/TPMS Indicator Comes On or Blinks

NOTICE

Driving on an extremely underinflated tire can cause
it to overheat. An overheated tire can fail. Always
inflate your tires to the prescribed level.

658

uu

Indicator, Coming On/Blinking

u

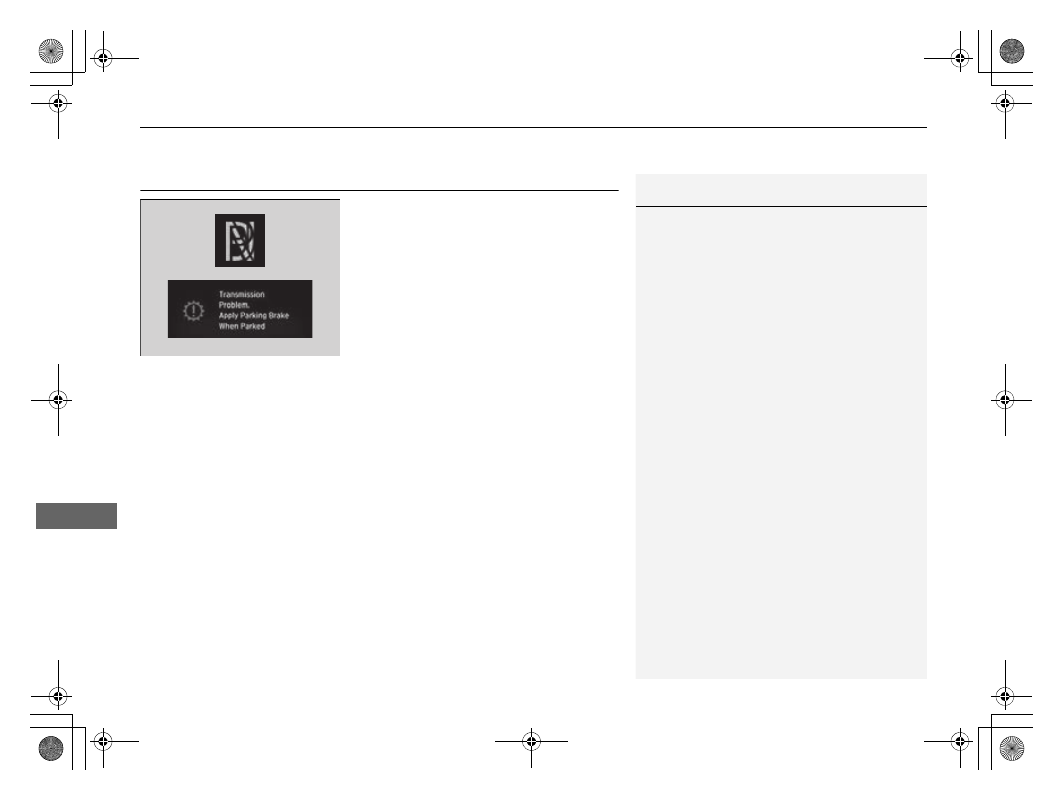

If the Transmission System Indicator Blinks along with the Warning Message

Han

d

lin

g the U

n

expected

If the Transmission System Indicator Blinks along
with the Warning Message

■

Reasons for the indicator to blink

The transmission is malfunctioning.

■

What to do when the indicator blinks

•

Immediately have your vehicle inspected by
a dealer.

1

If the Transmission System Indicator Blinks along with the
Warning Message

You may not be able to turn on the power system.

Make sure to set the parking brake when parking
your vehicle.

Call a professional towing service if you need to tow
your vehicle.

2

Emergency Towing

 P. 664

659

Continued

Han

d

lin

g the U

n

expected

Fuses

Fuse Locations

If any electrical devices are not working, set
the power mode to VEHICLE OFF and check
to see if any applicable fuse is blown.

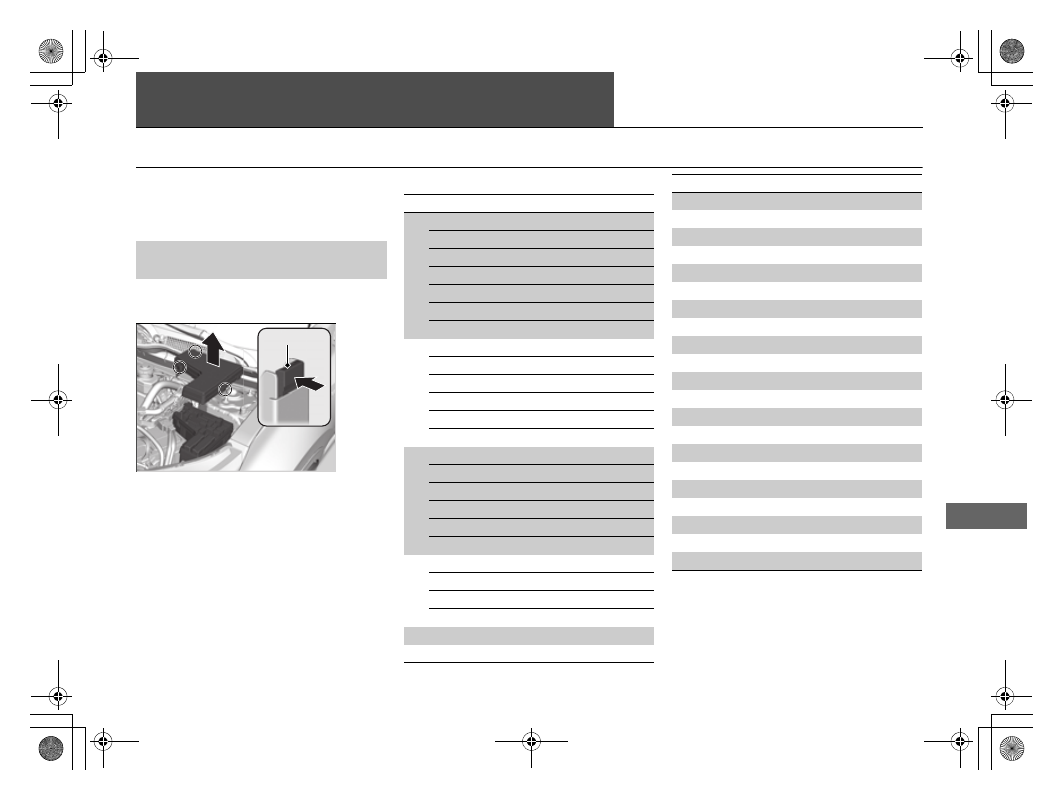

Located near the brake fluid reservoir. Push
the tabs to open the box.

Fuse locations are shown on the fuse box
cover. Locate the fuse in question by the
fuse number and box cover number.

■

Engine Compartment Fuse Box

Type A

Tab

■

Circuit protected and fuse rating

Circuit Protected

Amps

1

OP BLOCK 2

40 A

ESB

(40 A)

ABS/VSA FSR

40 A

R/M 1

30 A

IG MAIN 2

30 A

R/M 2

30 A

MAIN FUSE

150 A

2

EPS

70 A

IG MAIN 1

30 A

FUSE BOX OPTION

40 A

FUSE BOX 1

60 A

FRONT WIPER MOTOR

30 A

P-ACT

30 A

3

REAR DEFROSTER

40 A

−

(30 A)

FUSE BOX 2

40 A

ABS/VSA MOTOR

40 A

−

(40 A)

BLOWER MOTOR

40 A

4

POWER TAILGATE

*

(40 A)

OP BLOCK 1

*

(40 A)

AWD

(20 A)

IG HOLD 2

(20 A)

5

−

−

6

WASHER

15 A

7

IGP

15 A

8

FI SUB

15 A

9

STOP LIGHTS

10 A

10

IG HOLD 1

10 A

11

IGPS

7.5 A

12

FI ECU

10 A

13

PCU EWP

10 A

14

HAZARD

10 A

15

IG COIL

15 A

16

RFC COIL

5 A

17

FRONT DEICER

*

(15 A)

18

BACK UP

10 A

19

AUDIO

15 A

20

AUDIO AMP

*

(20 A)

21

−

−

22

SHUTTER GRILLE

10 A

23

A/C WATER PUMP

10 A

24

HORN

10 A

25

−

−

26

−

−

27

−

−

Circuit Protected

Amps

* Not available on all models

660

uu

Fuses

u

Fuse Locations

Han

d

lin

g the U

n

expected

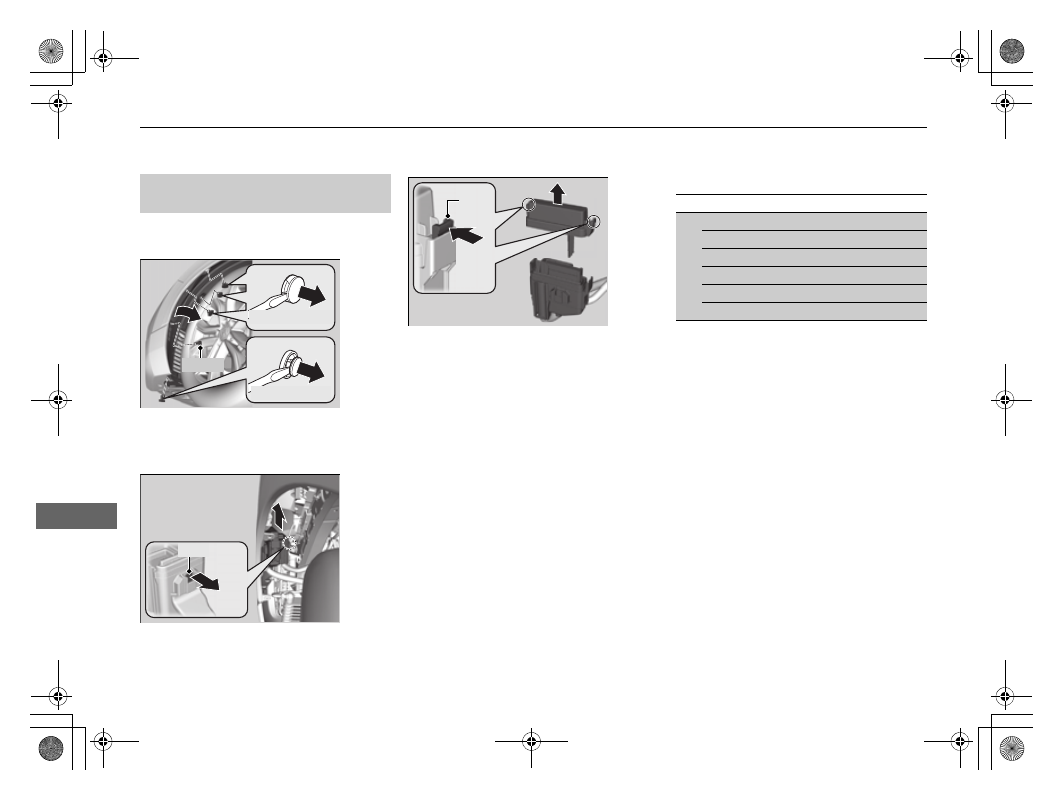

Located inside the driver side of the front
bumper.

1.

Turn the steering wheel to the right.

2.

Remove the holding clips and screw, and
pull the inner fender back.

3.

Pull the tab to remove the fuse box.

■

Engine Compartment Fuse

Box Type B

Holding Clips

Screw

Holding Clip

Tab

4.

Pull out the fuse box inside the inner
fender, then push the tabs to open the
box.

Fuse locations are shown on the fuse box
cover.
Locate the fuse in question by the fuse
number and box cover number.

Tab

■

Circuit protected and fuse rating

Circuit Protected

Amps

1

PTC2

(40 A)

−

(20 A)

PTC4

(40 A)

EVTC

(20 A)

MAIN FAN

(40 A)

E/W PUMP

(30 A)

661

uu

Fuses

u

Fuse Locations

Continued

Han

d

lin

g the U

n

expected

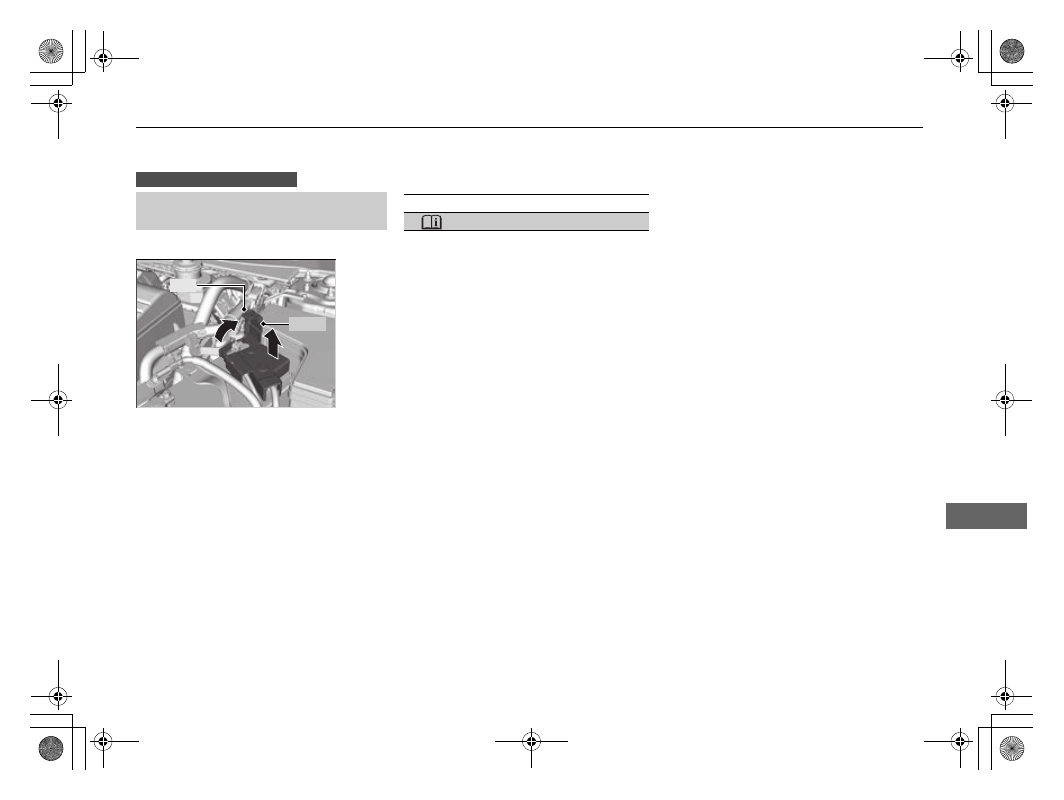

Located near the

+

 terminal on the battery.

1.

Open the

+

 terminal cover by pulling the

tab.

2.

Remove the cover as shown.

Fuse location is shown on the fuse box
cover.
Replacement of the fuse should be done by
a dealer.

■

Engine Compartment Fuse

Box Type C

Models with Fuse Box Type C

Tab

Cover

■

Circuit protected and fuse rating

Circuit Protected

Amps

Sub Fuse

100 A

662

uu

Fuses

u

Fuse Locations

Han

d

lin

g the U

n

expected

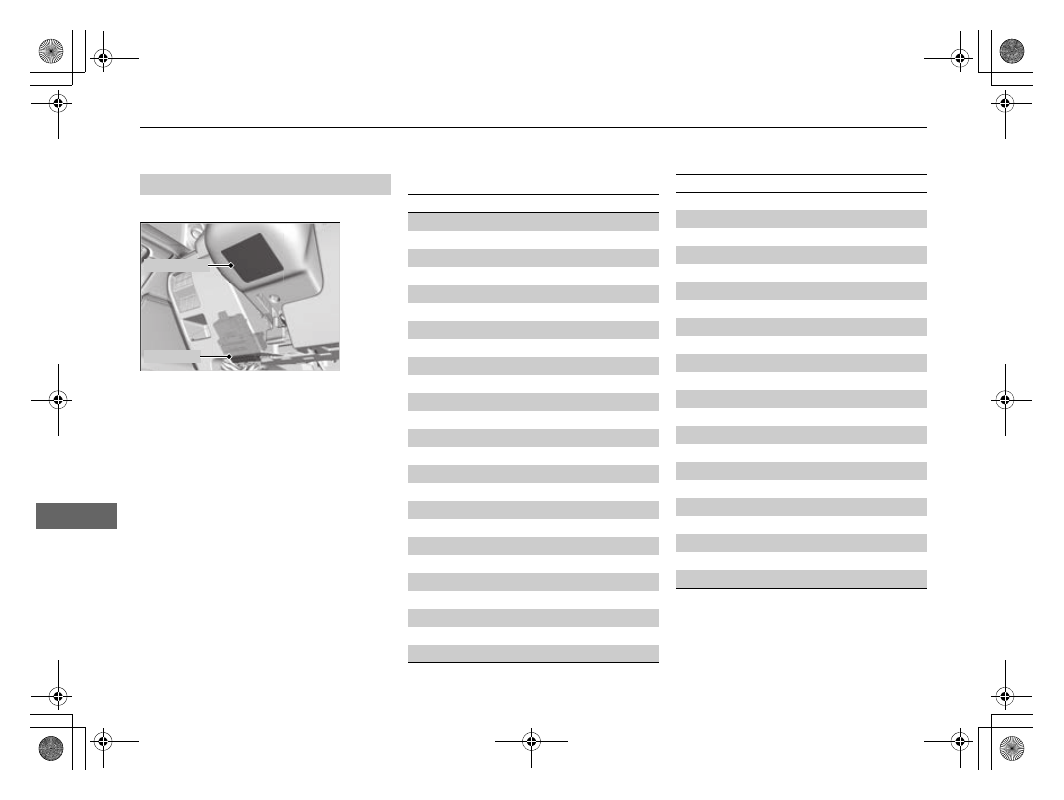

Located under the dashboard.

Fuse locations are shown on the label on
the steering column lower cover.
Locate the fuse in question by the fuse
number and label number.

■

Interior Fuse Box

Fuse Label

Fuse Box

■

Circuit protected and fuse rating

Circuit Protected

Amps

1

ACCESSORY

10 A

2

ACC KEY LOCK

5 A

3

IG1 P-DRV

5 A

4

IG1 OPTION 2

5 A

5

IG1 OPTION

10 A

6

IG1 SRS 2

10 A

7

IG1 METER

10 A

8

IG1 FUEL PUMP

15 A

9

IG2 A/C

10 A

10

CTR ACCESSORY SOCKET

(20 A)

11

IG1 MONITOR

5 A

12

R SIDE DOOR LOCK

10 A

13

L SIDE DOOR UNLOCK

10 A

14

P/W RR L

20 A

15

P/W AS

20 A

16

DOOR LOCK

20 A

17

IG1 TCU

(10 A)

18

DR POWER LUMBAR

*

(10 A)

19

MOONROOF

*

(20 A)

20

IG1 STARTER

10 A

21

IG1 ACG

10 A

22

IG2 DAYTIME LIGHT

10 A

23

USB CHARGER

*

(7.5 A)

24

+B OPTION

5 A

25

DR DOOR LOCK

(10 A)

26

R SIDE DOOR UNLOCK

10 A

27

P/W RR R

20 A

28

P/W DR

20 A

29

FR ACCESSORY SOCKET

*

20 A

30

SMART

10 A

31

DR P/SEAT RECLINE

*

(20 A)

32

FR HEATED SEAT

*

(20 A)

33

DR P/SEAT SLIDE

*

(20 A)

34

IG1 ABS/VSA

10 A

35

IG1 SRS

10 A

36

HAC OPTION

20 A

37

+B TRAILER

15 A

38

L SIDE DOOR LOCK

10 A

39

DR DOOR UNLOCK

(10 A)

a

PTG

*

(20 A)

b

AS P/SEAT SLIDE

*

(20 A)

c

AS P/SEAT RECLINE

*

(20 A)

d

SUNSHADE

*

(20 A)

e

IMA 1

10 A

f

RR HEATED SEAT

*

(20 A)

g

HEATED STRG

*

(10 A)

h

SBW

15 A

Circuit Protected

Amps

* Not available on all models

663

uu

Fuses

u

Inspecting and Changing Fuses

Han

d

lin

g the U

n

expected

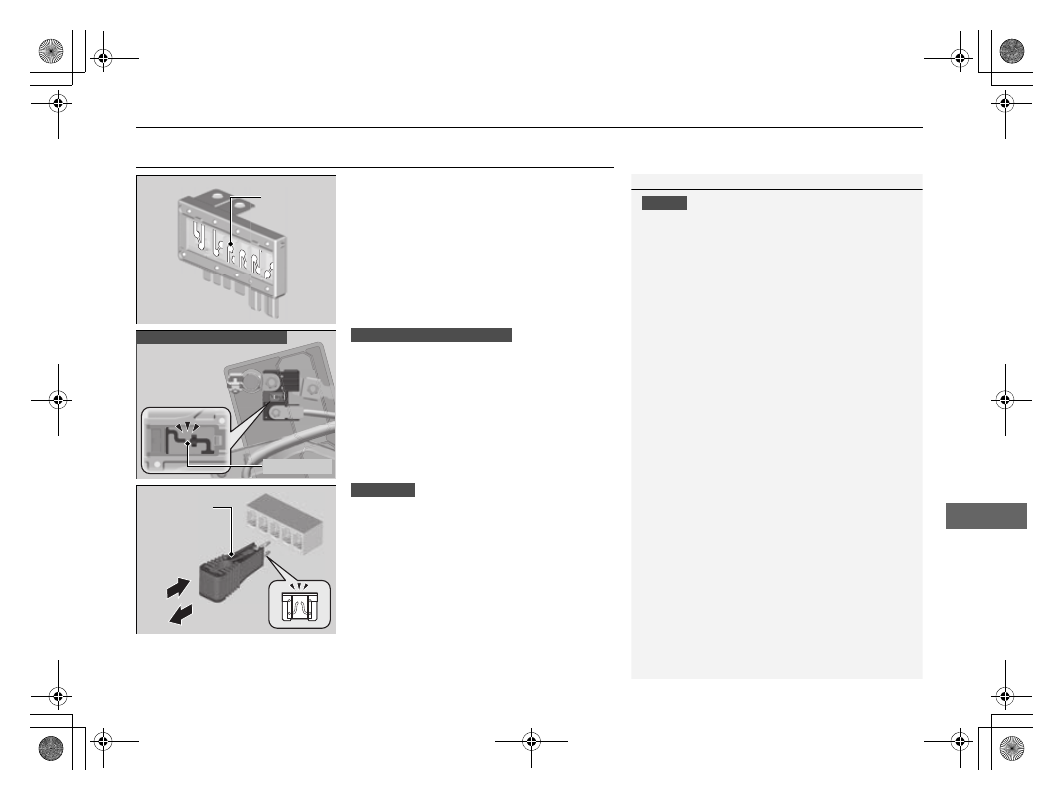

Inspecting and Changing Fuses

1.

Set the power mode to VEHICLE OFF. Turn
headlights and all accessories off.

2.

Remove the fuse box cover.

3.

Check the large fuse in the engine
compartment.

u

If the fuse is blown, use a Phillips-head
screwdriver to remove the screw and
replace it with a new one.

4.

Check the fuse in the engine compartment
fuse box type C.

u

If the fuse is blown, have it replaced by a
dealer.

5.

Inspect the small fuses in the engine
compartment and the vehicle interior.

u

If there is a blown fuse, remove it with
the fuse puller and replace it with a new
one.

1

Inspecting and Changing Fuses

NOTICE

Replacing a fuse with one that has a higher rating
greatly increases the chances of damaging the
electrical system.

Use the charts to locate the fuse in question and
confirm the specified amperage on the fuse label.

2

Fuse Locations

 P. 659

Replace fuse with a spare fuse of the same specified
amperage.

There is a fuse puller in the engine compartment fuse
box type A.

Combined

Fuse

Blown Fuse

Blown Fuse

Models with Fuse Box Type C

Models with Fuse Box Type C

Fuse Puller

All models

664

Han

d

lin

g the U

n

expected

Emergency Towing

Call a professional towing service if you need to tow your vehicle.

■

Flatbed equipment

The operator loads your vehicle on the back of a truck.

This is the only way you can safely transport your vehicle.

Any other towing method will damage the vehicle’s drive system.

1

Emergency Towing

NOTICE

Trying to lift or tow your vehicle by the bumpers will
cause serious damage. The bumpers are not designed
to support the vehicle's weight.

Improper towing such as towing behind a
motorhome or other motor vehicle can damage the
transmission.

Never tow your vehicle with just a rope or chain.
It is very dangerous since ropes or chains may shift
from side to side or break.

665

Han

d

lin

g the U

n

expected

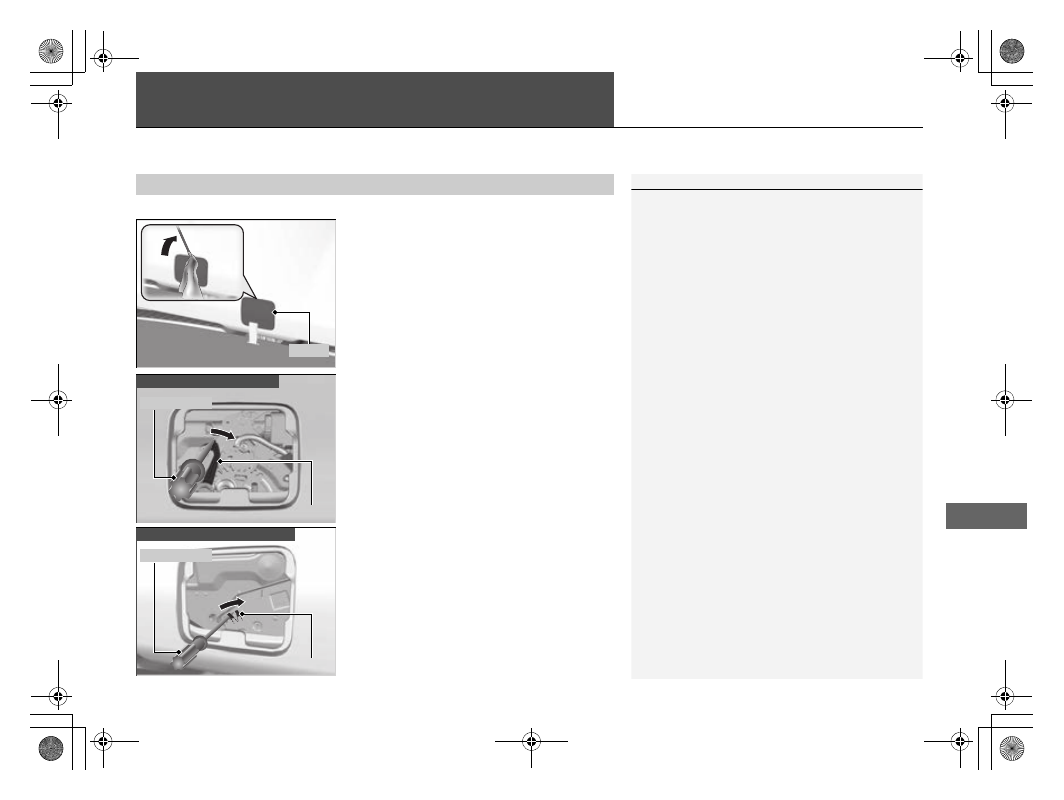

If You Cannot Open the Tailgate

If you cannot open the tailgate, use the following procedure.

1.

Use a flat-tip screwdriver and remove the
cover on the inside of the tailgate.

u

Wrap the flat-tip screwdriver with a cloth
to prevent scratches.

2.

To open the tailgate, push the tailgate
while pushing the lever to the right with the
flat-tip screwdriver.

■

What to Do If Unable to Open the Tailgate

1

What to Do If Unable to Open the Tailgate

Following up:
After taking these steps, contact a dealer to have the
vehicle checked.

When you open the tailgate from inside, make sure
there is enough space around the tailgate, and it
does not hit anyone or any object.

Cover

Lever

Models with power tailgate

Screwdriver

Models without power tailgate

Lever

Screwdriver

666

Han

d

lin

g the U

n

expected

Refueling

Refueling From a Portable Fuel Container

If you have run out of fuel and need to refuel your vehicle from a portable fuel
container, use the funnel provided with your vehicle.

1.

Turn off the power system.

2.

Pull on the fuel fill door release handle
under the lower left corner of the
dashboard.

u

The fuel fill door opens.

3.

Take the funnel out of the tool case in the
cargo area.

2

Types of Tools

 P. 628

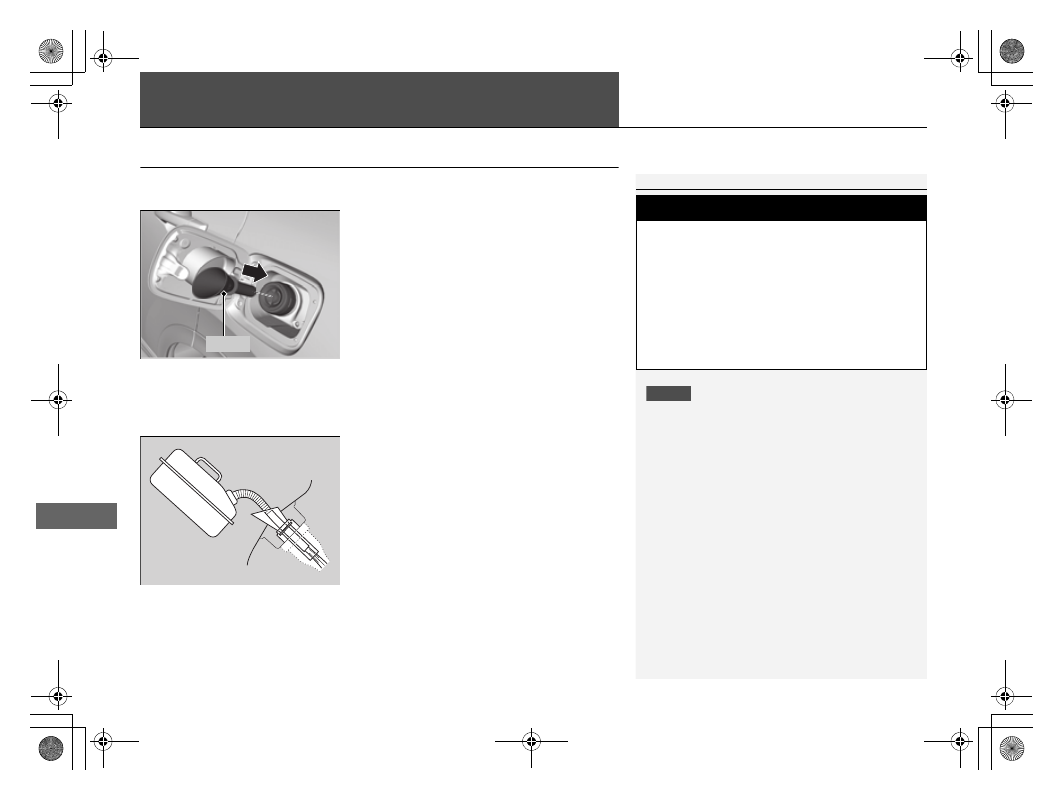

4.

Place the end of the funnel on the lower
part of filler opening, then insert it slowly
and fully.

u

Make sure that the end of the funnel
goes down along with the filler pipe.

5.

Fill the tank with fuel from the portable fuel
container.

u

Pour fuel carefully so you do not spill any.

6.

Remove the funnel from the filler neck.

u

Wipe up any fuel from the funnel before
storing it.

7.

Shut the fuel fill door by hand.

1

Refueling From a Portable Fuel Container

NOTICE

Do not insert the nozzle of a portable fuel container
or any funnel other than the one provided with your
vehicle. Doing so can damage the fuel system.
Do not try to pry open or push open the sealed fuel
tank with foreign objects. This can damage the fuel
system and its seal.

Make sure the fuel in the portable fuel container is
gasoline before you refuel.

3

WARNING

Gasoline is highly flammable and explosive.
You can be burned or seriously injured
when handling fuel.

•

Turn the power system off, and keep
heat, sparks, and flames away.

•

Handle fuel only outdoors.

•

Wipe up spills immediately.

Funnel

667

Information

This chapter includes your vehicle’s specifications, locations of identification numbers, and other

information required by regulation.

Specifications

.................................... 668

Identification Numbers

Vehicle Identification Number (VIN),

Engine Number, Motor Number, and
Transmission Number..................... 670

Devices that Emit Radio Waves

....... 671

Reporting Safety Defects

................. 672

Emissions Testing

Testing of Readiness Codes.............. 673

Warranty Coverages

........................ 675

Authorized Manuals

......................... 678

Customer Service Information

......... 679

668

Info

rm

ation

Specifications

■

Vehicle Specifications

Model

CR-V

No. of Passengers:
Front

2

Rear

3

Total

5

Weights:
Gross Vehicle Weight
Rating

See the certification label on the driver’s
doorjamb

Gross Axle Weight
Rating (Front)

See the certification label on the driver’s
doorjamb

Gross Axle Weight
Rating (Rear)

See the certification label on the driver’s
doorjamb

■

Air Conditioning

■

Engine Specifications

■

Fuel

■

Washer Fluid

Refrigerant Type

HFO-1234yf (R-1234yf)

Charge Quantity

14.6 – 16.4 oz (415 – 465 g)

Lubricant Type

ND-OIL 11 (POE)

Quantity

7.32 – 8.24 cu-in (120 – 135 cm

3

)

Displacement

121.6 cu-in (1,993 cm

3

)

Spark Plugs

NGK

DILZKAR7D11S

Type

Unleaded gasoline, Pump octane number
of 87 or higher

Fuel Tank Capacity

14 US gal (53 L)

Tank Capacity

2.6 US qt (2.5 L)

■

Light Bulbs

Headlights (Low Beam)

LED

Headlights (High Beam)

LED

Fog Lights

*

LED

Front Turn Signal Lights

LED

Front Side Marker Lights

LED

Parking/Daytime Running Lights

LED

Side Turn Signal Lights
(on Door Mirrors)

*

LED

Brake/Taillights

LED

Rear Side Marker Lights

LED

Rear Turn Signal Lights

LED

Back-Up Lights

16 W

Taillights

LED

High-Mount Brake Light

LED

Rear License Plate Light

LED

Interior Lights

Map Lights

8 W

Ceiling Light

8 W

Cargo Area Lights

5 W

Vanity Mirror Lights

*

1.4 W

Front Door Inner
Handle Lights

*

LED

Foot Lights

*

LED

* Not available on all models

669

uu

Specifications

u

Info

rm

ation

■

Brake Fluid

■

Transmission Fluid

■

Rear Differential Fluid

Specified

Honda Heavy Duty Brake Fluid DOT 3

Specified

Honda ATF DW-1

Capacity

Change

2.5 US qt (2.4 L)

Specified

Honda DPSF-II

Capacity

Change

1.32 US qt (1.247 L)

■

Engine Oil

■

Engine Coolant

Recommended

·Honda Genuine Motor Oil 0W-20
·API Premium-grade 0W-20 detergent oil

Capacity

Change

3.7 US qt (3.5 L)

Change including
filter

4.0 US qt (3.8 L)

Specified

Honda Long Life Antifreeze/Coolant Type2

Ratio

50/50 with distilled water

Capacity

1.46 US gal (5.52 L)
(change including the remaining 0.17 US gal
(0.65 L) in the reserve tank)

■

Tire

*1: Original tire size is mentioned on the tire information label on

the driver’s doorjamb.

*2: Models with 17 inch wheel
*3: Models with 18 inch wheel
*4: Models with 19 inch wheel

Regular

Size

*1

235/65R17 104H
235/60R18 103H
235/55R19 101H

Pressure
psi (kPa [kgf/cm

2

])

Front

32 (220 [2.2])

*2

35 (240 [2.4])

*3

33 (230 [2.3])

*4

Rear

30 (210 [2.1])

*2

32 (220 [2.2])

*3

33 (230 [2.3])

*4

Wheel Size

Regular

17 x 7 1/2J

*2

18 x 7 1/2J

*3

19 x 7 1/2J

*4

670

Info

rm

ation

Identification Numbers

Vehicle Identification Number (VIN), Engine Number,
Motor Number, and Transmission Number

Your vehicle has a 17-digit vehicle identification number (VIN) used to register your
vehicle for warranty purposes, and for licensing and insuring your vehicle.

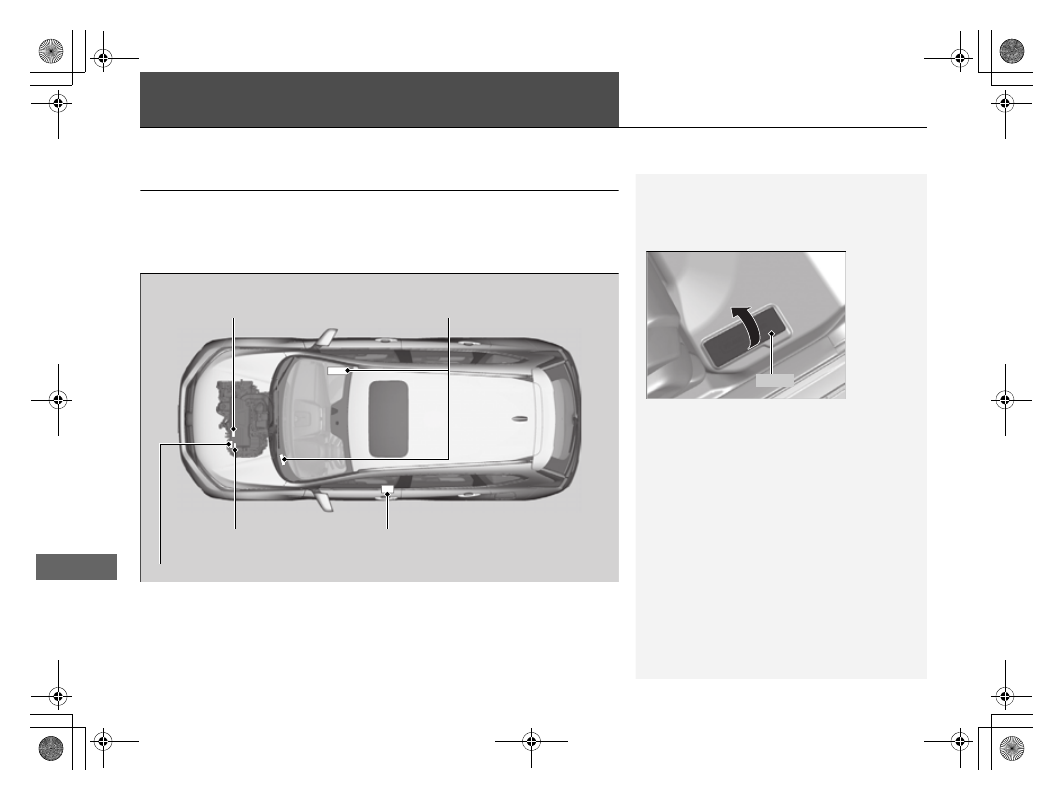

The locations of your vehicle’s VIN, engine number, motor number, and
transmission number are shown as follows.

1

Vehicle Identification Number (VIN), Engine Number, Motor
Number, and Transmission Number

The interior vehicle identification number (VIN) is
located under the cover.

Cover

Vehicle Identification Number

Engine Number

Certification Label/

Vehicle Identification Number

Continuously Variable

Transmission Number

Motor Number

671

Info

rm

ation

Devices that Emit Radio Waves

Each radio frequency device installed in the vehicle conforms to the requirements
and standards of the regulation listed below:

As required by the FCC:
This device complies with Part 15 of the FCC rules. Operation is
subject to the following two conditions: (1) This device may not
cause harmful interference, and (2) this device must accept any
interference received, including interference that may cause
undesired operation.

Changes or modifications not expressly approved by the party
responsible for compliance could void the user’s authority to
operate the equipment.
