623

uu

Cleaning

u

Exterior Care

Main

tenan

ce

The inside lenses of exterior lights (headlights, brake lights, etc.) may fog temporarily
if you have driven in the rain, or after the vehicle has been run through a car wash.
Dew condensation also may build up inside the lenses when there is a significant
enough difference between the ambient and inside lens temperatures (similar to
vehicle windows fogging up in rainy conditions). These conditions are natural
processes, not structural design problems in the exterior lights.
Lens design characteristics may result in moisture developing on the light lens frame
surfaces. This also is not a malfunction.
However, if you see large amounts of water accumulation, or large water drops
building up inside the lenses, have your vehicle inspected by a dealer.

Fogged Exterior Light Lenses

624

Main

tenan

ce

Accessories and Modifications

Accessories

When installing accessories, check the following:

Do not install accessories on the windshield. They can obstruct your view and
delay your reaction to driving conditions.

Do not install any accessories over areas marked SRS Airbag, on the sides or backs
of the front seats, on front or side pillars, or near the side windows.
Accessories installed in these areas may interfere with proper operation of the
vehicle’s airbags or may be propelled into you or another occupant if the airbags
deploy.

Be sure electronic accessories do not overload electrical circuits or interfere with
proper operation of your vehicle.

2

Fuses

 P. 659

Before installing any electronic accessory, have the installer contact a dealer for
assistance. If possible, have a dealer inspect the final installation.

1

Accessories and Modifications

Honda Genuine accessories are recommended to
ensure proper operation on your vehicle.

3

WARNING

Improper accessories or modifications can
affect your vehicle's handling, stability, and
performance, and cause a crash in which
you can be seriously hurt or killed.

Follow all instructions in this owner's
manual regarding accessories and
modifications.

3

WARNING

Use of improperly designed, engineered or
manufactured high-voltage battery
assemblies could cause a fire in your
vehicle.

A vehicle fire could result in a crash or
injury.

Only use a genuine Honda high-voltage
battery assembly, or its equivalent, in your
vehicle.

625

uu

Accessories and Modifications

u

Modifications

Main

tenan

ce

Modifications

Do not modify your vehicle in a manner that may affect its handling, stability, or
reliability, or install non-genuine Honda parts or accessories that may have a similar
effect.

Even minor modifications to vehicle systems can affect overall vehicle performance.
Always make sure all equipment is properly installed and maintained, and do not
make any modification to your vehicle or its systems that might cause your vehicle
to no longer meet federal, state, province, territory, and local regulations.

The on-board diagnostic port (OBD-II/SAE J1962 connector) installed on this vehicle
is intended to be used with automobile system diagnostic devices or with other
devices that Honda has approved. Use of any other type of device may adversely
affect the vehicle’s electronic systems or allow them to be compromised, possibly
resulting in a system malfunction, drained battery, or other unexpected problems.

Do not modify or attempt to repair your vehicle’s high-voltage hybrid power system
or otherwise modify vehicle electrical systems. Disassembling or modifying electrical
equipment can result in a crash or a fire.

If you ever need to replace your vehicle’s high-voltage battery assembly outside of
warranty coverage, we highly recommend that you only use a genuine Honda high-
voltage battery assembly. Genuine Honda high-voltage battery assemblies are
designed to work with your vehicle’s hybrid power system and have been designed,
engineered and manufactured to avoid overcharging situations. Non-genuine high-
voltage battery assemblies may not have been similarly designed, engineered and
manufactured, and installation of such assemblies could result in overcharging, fires,
loss of power, or other conditions that may increase the likelihood of a crash or
injury.

627

Handling the Unexpected

This chapter explains how to handle unexpected troubles.

Tools

Types of Tools .................................. 628

If a Tire Goes Flat

Temporarily Repairing a Flat Tire....... 629

Handling of the Jack

......................... 643

Power System Won’t Start

Checking the Procedure ................... 644

If the Keyless Remote Battery is Weak... 645

Emergency Power System Off........... 646

If the 12-Volt Battery Is Dead

.......... 647

Overheating

How to Handle Overheating............. 649

Indicator, Coming On/Blinking

If the Low Oil Pressure Indicator Comes

On ............................................. 652

If the 12-volt Battery Charging System

Indicator Comes On ....................... 652

If the Malfunction Indicator Lamp Comes

On or Blinks ................................... 653

If the Brake System Indicator (Red) Comes

On or Blinks ................................... 654

If the Brake System Indicator (Red) Comes On

or Blinks at the Same Time When the Brake
System Indicator (Amber) Comes On.. 655

If the Electric Power Steering (EPS) System

Indicator Comes On ....................... 656

If the Low Tire Pressure/TPMS Indicator

Comes On or Blinks ....................... 657

If the Transmission System Indicator Blinks

along with the Warning Message... 658

Fuses

Fuse Locations ................................. 659
Inspecting and Changing Fuses........ 663

Emergency Towing

........................... 664

If You Cannot Open the Tailgate

..........665

Refueling

.................................................666

628

Han

d

lin

g the U

n

expected

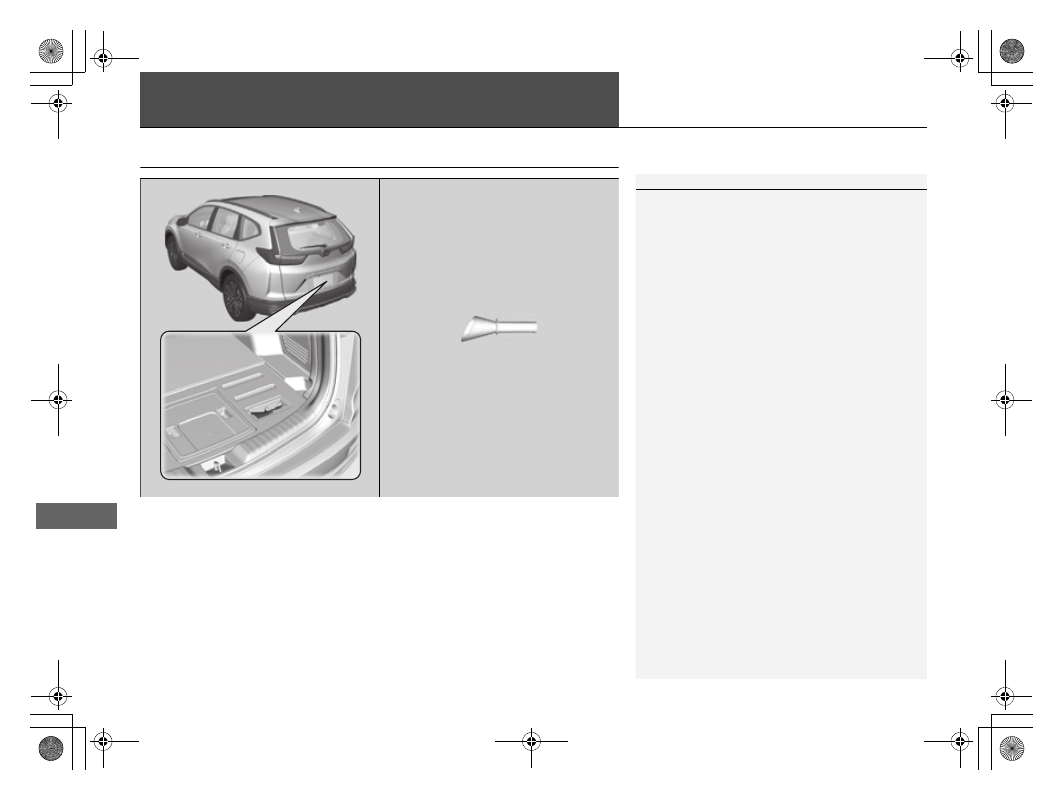

Tools

Types of Tools

1

Types of Tools

The tools are stored in the cargo area.

Funnel

629

Continued

Han

d

lin

g the U

n

expected

If a Tire Goes Flat

Temporarily Repairing a Flat Tire

If the tire has a large cut or is otherwise severely damaged, you will need to have the
vehicle towed. If the tire only has a small puncture, from a nail for instance, you can
use the temporary tire repair kit so that you can drive to the nearest service station
for a more permanent repair.

If a tire goes flat while driving, grasp the steering wheel firmly, and brake gradually
to reduce speed. Then, stop in a safe place.

1.

Park the vehicle on a firm, level, non-slippery surface and apply the parking brake.

2.

Put the transmission into

(

P

.

3.

Turn on the hazard warning lights and set the power mode to VEHICLE OFF
(LOCK).

1

Temporarily Repairing a Flat Tire

The kit should not be used in the following situations.
Instead, contact a dealer or roadside assistance to
have the vehicle towed.

The tire sealant has expired.

More than one tire is punctured.

The puncture or cut is larger than 3/16 inch (4.8
mm).

The tire side wall is damaged or the puncture is
outside the contact area.

Damage has been caused by driving with the tire
extremely under inflated.

The tire bead is no longer seated.

The rim is damaged.

Do not remove a nail or screw that punctured the
tire. If you remove it from the tire, you may not be
able to repair the puncture using the kit.

When the puncture is:

Kit Use

Smaller than 3/16 inch

(4.8 mm)

Yes

Larger than 3/16 inch

(4.8 mm)

No

Contact
Area

uu

If a Tire Goes Flat

u

Temporarily Repairing a Flat Tire

630

Han

d

lin

g the U

n

expected

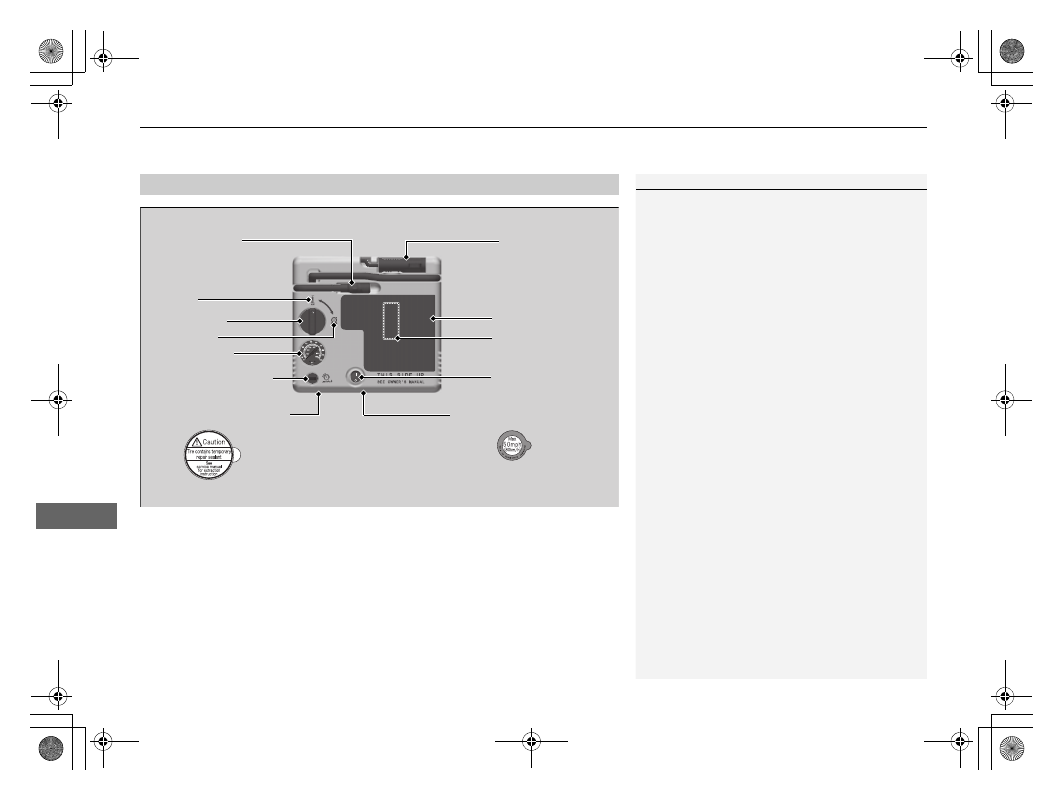

Getting Ready to Temporarily Repair the Flat Tire

1

Getting Ready to Temporarily Repair the Flat Tire

Repair notification label and speed restriction label
are applied to the side of the temporary tire repair kit.

When making a temporary repair, carefully read the
instruction manual provided with the kit.

Selector Knob

Speed Restriction Label

Repair Notification Label

Pressure Relief Button

Inflator Switch

Instruction Manual

REPAIR

 Side

Sealant/Air Hose

AIR

Side

Power Plug

Pressure Gauge

Tire Sealant

Expiration Date

631

uu

If a Tire Goes Flat

u

Temporarily Repairing a Flat Tire

Continued

Han

d

lin

g the U

n

expected

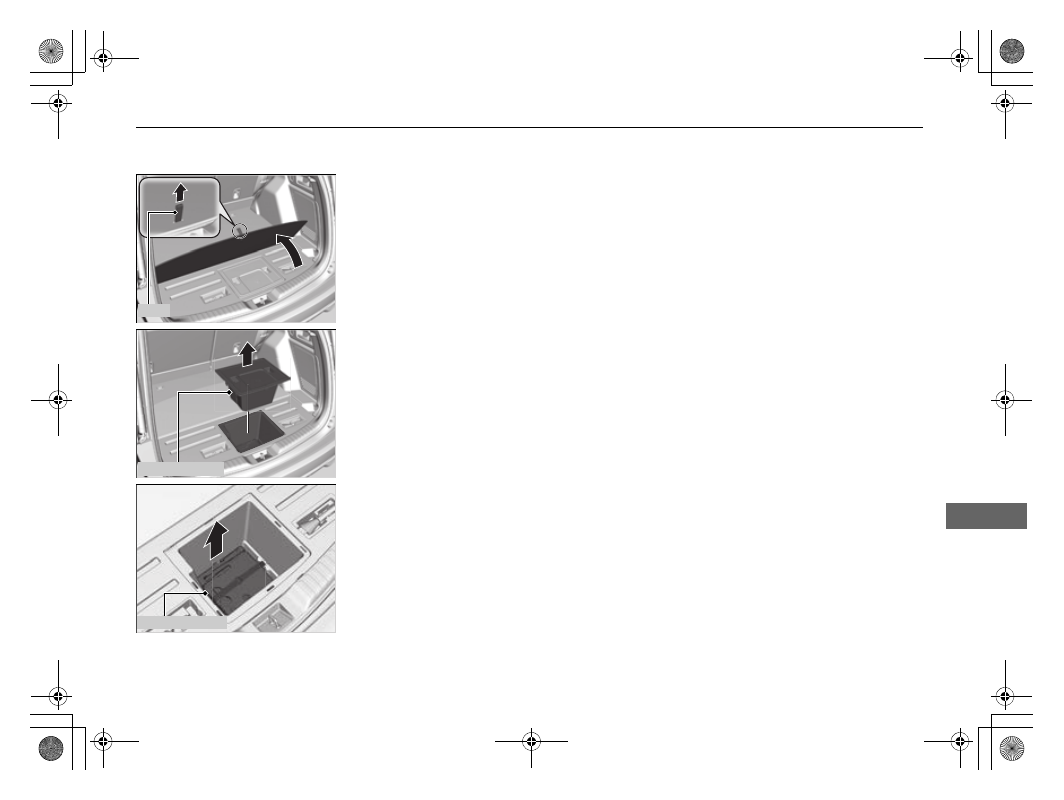

1.

Using the tab, fold back the cargo area
floor lid.

2.

Remove the plastic spacer from the cargo
area.

3.

Unfasten the strap and remove the tire
repair kit.

4.

Place the kit face up, on flat ground near
the flat tire, and away from traffic. Do not
place the kit on its side.

Tab

Plastic Spacer

Tire Repair Kit

uu

If a Tire Goes Flat

u

Temporarily Repairing a Flat Tire

632

Han

d

lin

g the U

n

expected

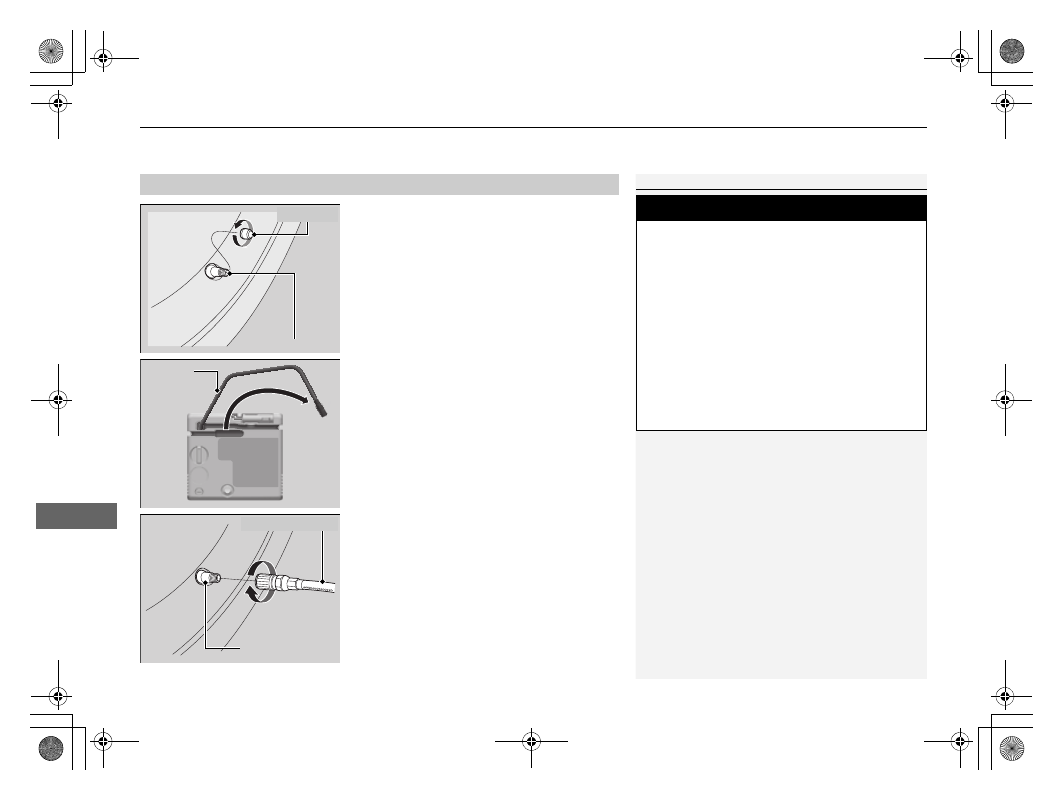

1.

Remove the valve cap from the tire valve
stem.

2.

Unwind the sealant/air hose from the kit.

3.

Attach the sealant/air hose onto the tire
valve stem. Screw it clockwise until it is
tight.

Injecting Sealant and Air

1

Injecting Sealant and Air

In cold temperatures, the sealant may not flow easily.
In this situation, warm it up for five minutes before
using.

The sealant can permanently stain clothing and other
materials. Be careful during handling and wipe away
any spills immediately.

3

CAUTION

Tire sealant contains substances that are
harmful if inhaled, ingested or if contact is
made with the eyes or skin.

Always use in a well-ventilated area and
use gloves and safety glasses for protection;
do not ingest.

For skin or eye contact, flush with cool
water; if ingested, rinse mouth with water.
In all cases, seek medical attention if
necessary.

Tire Valve Stem

Valve Cap

Sealant/

Air Hose

Tire Valve Stem

Sealant/Air Hose

Continued

633

uu

If a Tire Goes Flat

u

Temporarily Repairing a Flat Tire

Han

d

lin

g the U

n

expected

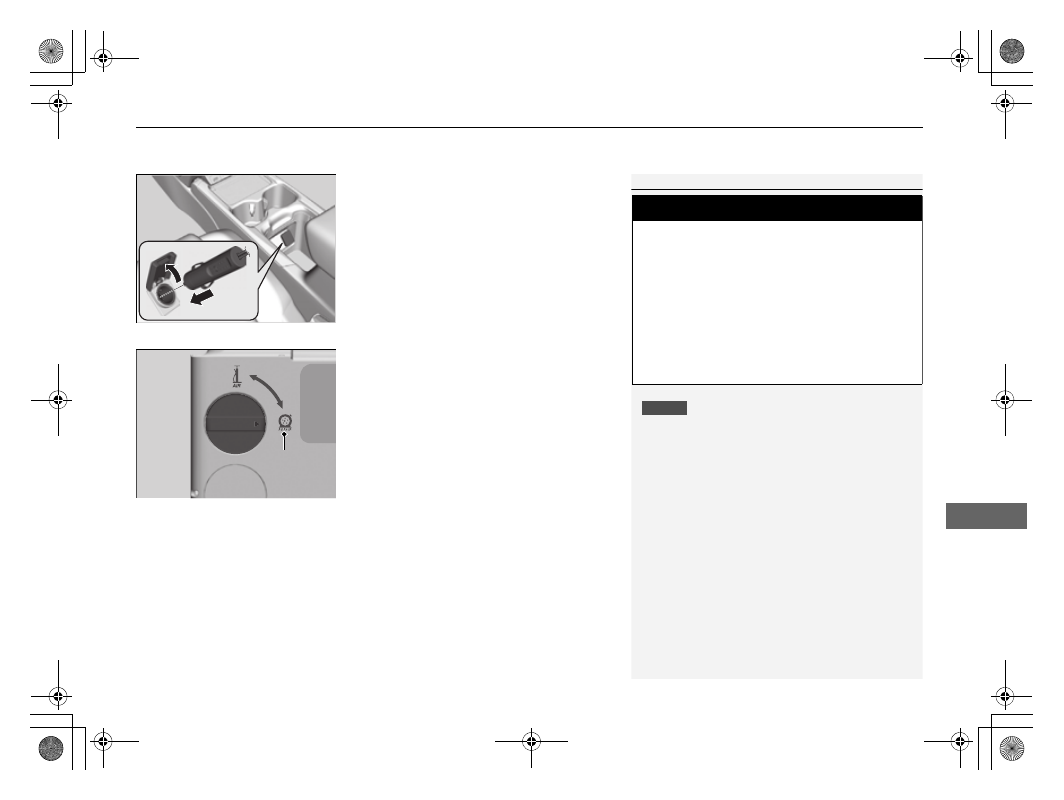

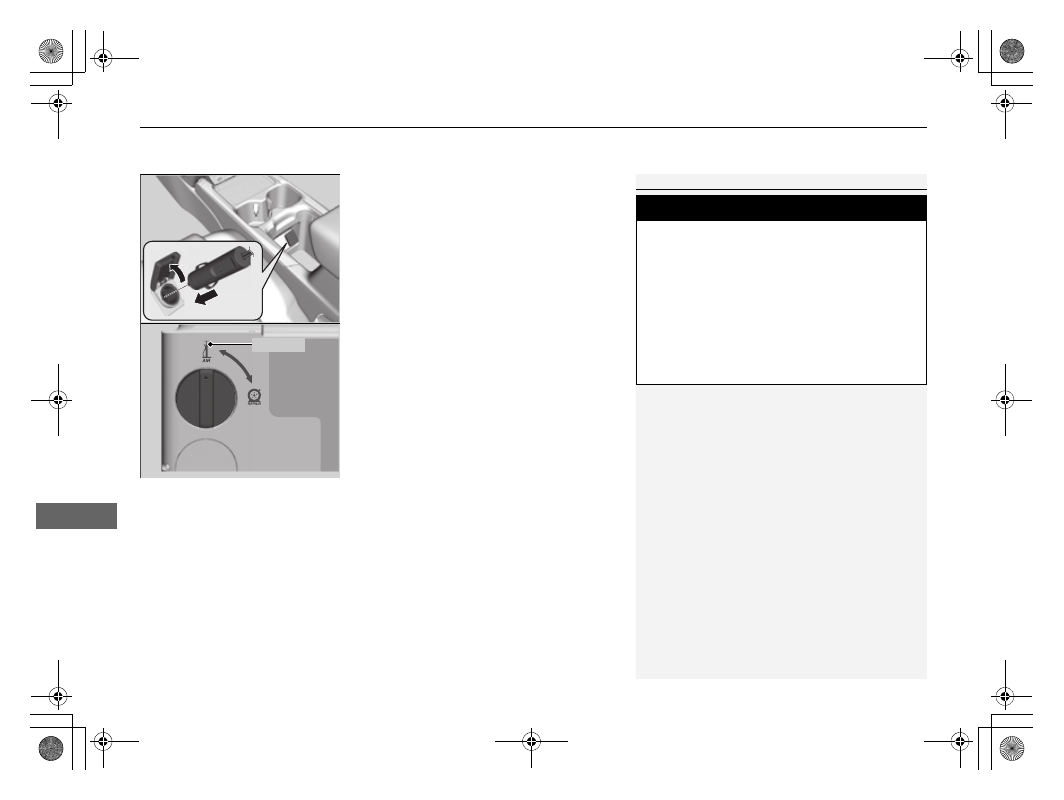

4.

Plug in the compressor to the accessory
power socket.

u

Be careful not to pinch the cord in a
door or window.

2

Accessory Power Socket

 P. 229

5.

Turn on the vehicle’s power system.

2

Turning on the Power

 P. 469

u

Keep the power system on while
injecting sealant and air.

2

Carbon Monoxide Gas

 P. 86

6.

Turn the selector knob to

REPAIR

.

1

Injecting Sealant and Air

NOTICE

Do not operate the temporary tire repair kit
compressor for more than 15 minutes. The
compressor can overheat and become permanently
damaged.

Until the sealant injection is complete, the pressure
shown on the pressure gauge will appear higher than
actual. After the sealant injection is complete the
pressure will drop and then begin to rise again as the
tire is inflated with air. This is normal. To accurately
measure the air pressure using the gauge, turn the air
compressor off only after the sealant injection is
complete.

3

WARNING

Running the engine with the vehicle in an
enclosed or even partly enclosed area can
cause a rapid buildup of toxic carbon
monoxide.

Breathing this colorless, odorless gas can
cause unconsciousness and even death.
Only run the engine to power the air
compressor with the vehicle outdoors.

REPAIR

 Side

uu

If a Tire Goes Flat

u

Temporarily Repairing a Flat Tire

634

Han

d

lin

g the U

n

expected

7.

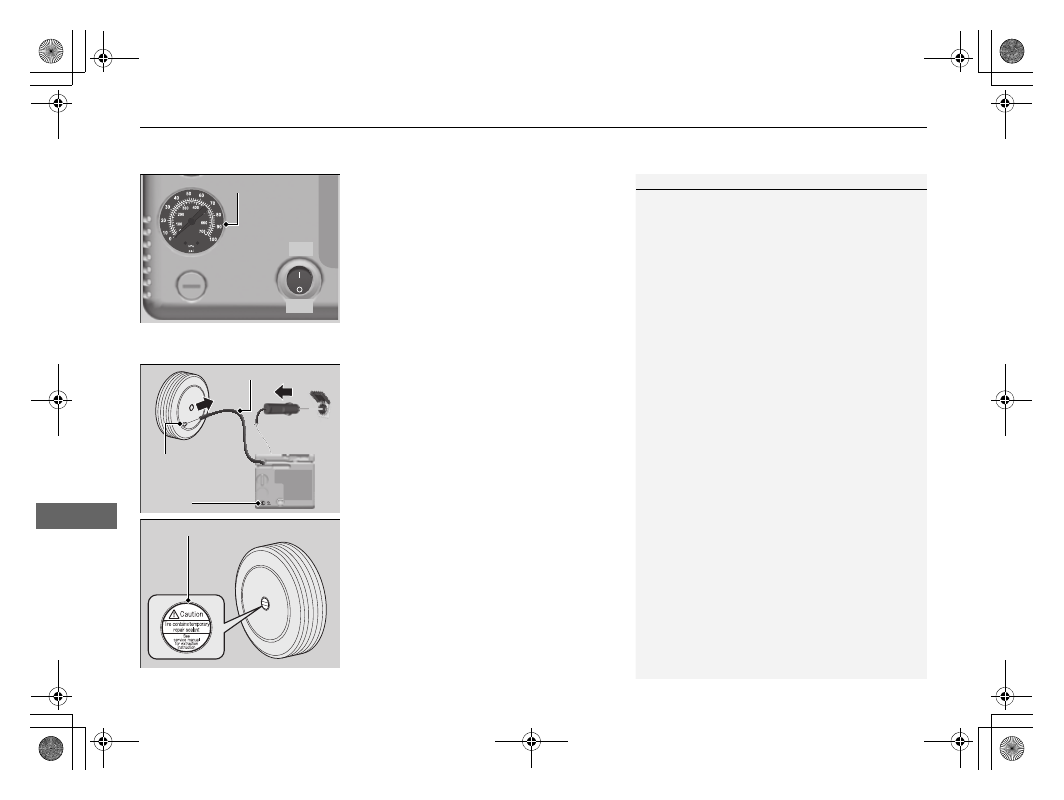

Press the inflator switch to turn on the kit.

u

The compressor starts injecting sealant
and air into the tire.

u

When the sealant injection is complete,
continue to add air.

8.

After the tire reaches the specified air
pressure, turn off the kit.

u

To check the pressure, periodically turn
off the compressor and read the gauge.

u

Refer to the driver’s doorjamb label for
the specified pressure.

9.

Unplug the power plug from the accessory
power socket.

10.

Unscrew the sealant/air hose from the tire
valve stem. Reinstall the valve cap.

11.

Press the pressure relief button until the
gauge returns to 0 psi (0 kPa).

12.

Apply the repair notification label to the
flat surface of the wheel.

u

The wheel surface must be clean to
ensure the label adheres properly.

Pressure Gauge

OFF

ON

1

Injecting Sealant and Air

If the required air pressure is not reached within 10
minutes, the tire may be too severely damaged for
the kit to provide the necessary seal, and your vehicle
will need to be towed.

See a dealer for a replacement sealant bottle and
proper disposal of an empty bottle.

Sealant/Air Hose

Tire Valve Stem

Pressure Relief

Button

Repair Notification Label

635

uu

If a Tire Goes Flat

u

Temporarily Repairing a Flat Tire

Continued

Han

d

lin

g the U

n

expected

1.

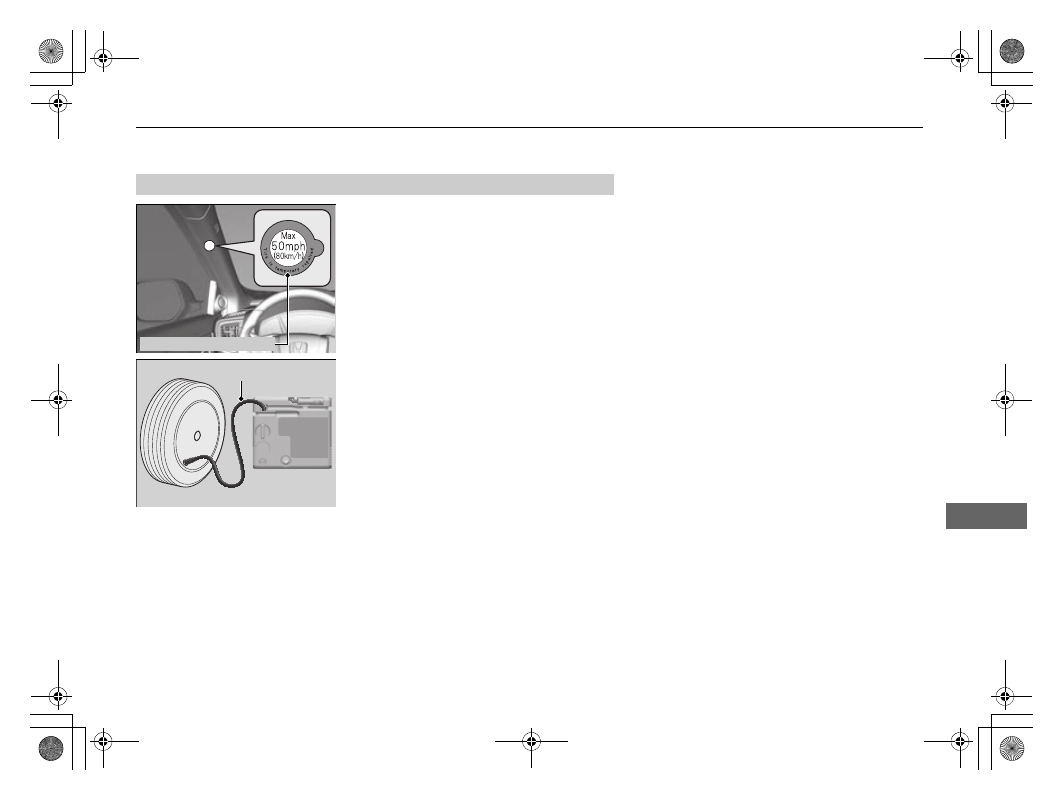

Apply the speed restriction label to the
location as shown.

2.

Drive the vehicle for about 10 minutes.

u

Do not exceed 50 mph (80 km/h).

3.

Stop the vehicle in a safe place.

4.

Recheck the air pressure using the sealant/
air hose on the compressor.

Distributing the Sealant in the Tire

Speed Restriction Label

Sealant/Air Hose

uu

If a Tire Goes Flat

u

Temporarily Repairing a Flat Tire

636

Han

d

lin

g the U

n

expected

5.

Turn the selector knob to

AIR

.

u

Do not turn the air compressor on while
checking the pressure.

2

Inflating an Under-inflated Tire

 P. 640

1

Distributing the Sealant in the Tire

3

WARNING

Running the engine with the vehicle in an
enclosed or even partly enclosed area can
cause a rapid buildup of toxic carbon
monoxide.

Breathing this colorless, odorless gas can
cause unconsciousness and even death.
Only run the engine to power the air
compressor with the vehicle outdoors.

AIR

Side

637

uu

If a Tire Goes Flat

u

Temporarily Repairing a Flat Tire

Continued

Han

d

lin

g the U

n

expected

6.

If the air pressure is

Less than 25 psi (175 kPa):

Do not add air or continue driving. The leak is too severe. Call for help and have
your vehicle towed.

2

Emergency Towing

 P. 664

Front: 32 psi (220 kPa)/rear: 30 psi (210 kPa) or more:

Front: 35 psi (240 kPa)/rear: 32 psi (220 kPa) or more:

33 psi (230 kPa) or more:

Continue driving for another 10 minutes or until you reach the nearest service
station, whichever is sooner. Do not exceed 50 mph (80 km/h). If you have not
reached a service station, stop and check the tire pressure.

u

If the air pressure does not go down after the 10 minute driving, you do not
need to check the pressure any more.

Models with 235/65R17 104H tires

Models with 235/60R18 103H tires

Models with 235/55R19 101H tires

638

uu

If a Tire Goes Flat

u

Temporarily Repairing a Flat Tire

Han

d

lin

g the U

n

expected

Greater than 25 psi (175 kPa), but less than front: 32 psi (220 kPa)/rear: 30
psi (210 kPa):

Turn the air compressor on to inflate the tire until the tire pressure reaches front:
32 psi (220 kPa)/rear: 30 psi (210 kPa).

2

Inflating an Under-inflated Tire

 P. 640

Greater than 25 psi (175 kPa), but less than front: 35 psi (240 kPa)/rear: 32
psi (220 kPa):

Turn the air compressor on to inflate the tire until the tire pressure reaches front:
35 psi (240 kPa)/rear: 32 psi (220 kPa).

2

Inflating an Under-inflated Tire

 P. 640

Greater than 25 psi (175 kPa), but less than 33 psi (230 kPa):

Turn the air compressor on to inflate the tire until the tire pressure reaches 33
psi (230 kPa).

2

Inflating an Under-inflated Tire

 P. 640

Then, drive carefully for 10 more minutes or until you reach the nearest service
station, whichever is sooner. Do not exceed 50 mph (80 km/h). If you have not
reached a service station, stop and check the tire pressure.

u

You should repeat this procedure as long as the air pressure is not within the
range indicated for the tire size.

Models with 235/65R17 104H tires

Models with 235/60R18 103H tires

Models with 235/55R19 101H tires

All models

639

uu

If a Tire Goes Flat

u

Temporarily Repairing a Flat Tire

Continued

Han

d

lin

g the U

n

expected

7.

Unplug the kit from the accessory power
socket.

8.

Unscrew the sealant/air hose from the tire
valve stem. Reinstall the valve cap.

9.

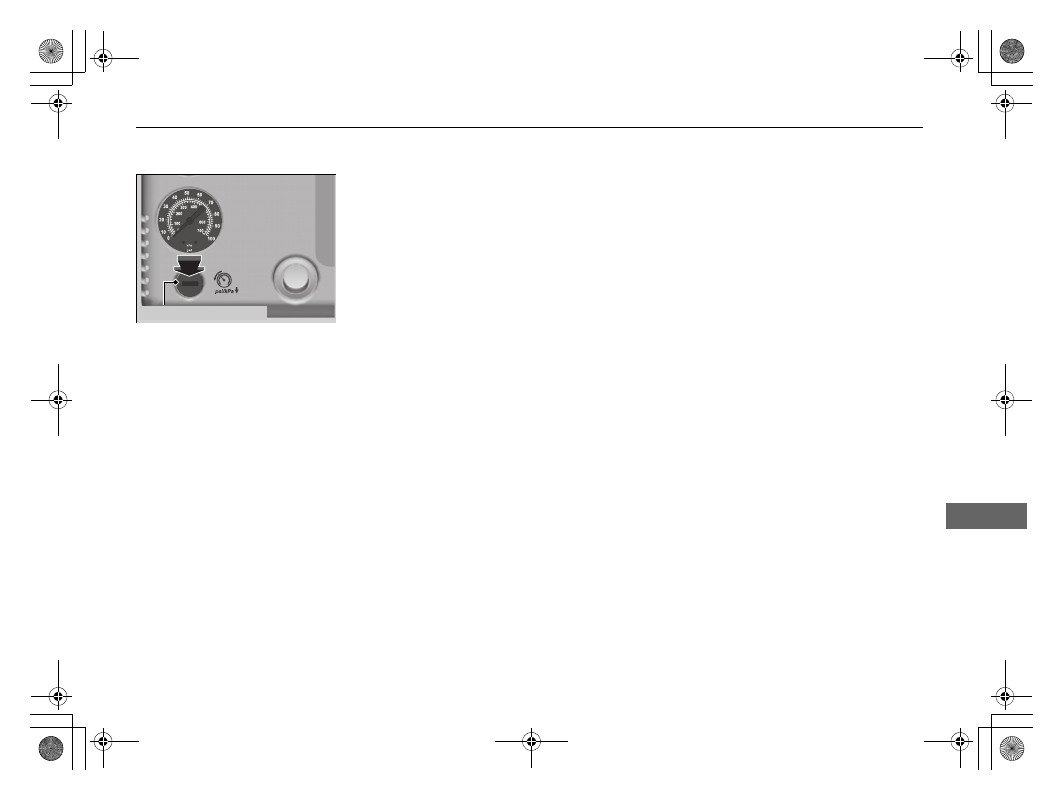

Press the pressure relief button until the
gauge returns to 0 psi (0 kPa).

10.

Repackage and properly stow the kit.

Pressure Relief Button















Content      ..     37      38      39      40     ..
