Honda CR-V Hybrid (2022 year). Manual in english - page 31

When Driving

Tire Pressure Monitoring System (TPMS)

494

Driving

You must start TPMS calibration every time you:

•

Adjust the pressure in one or more tires.

•

Rotate the tires.

•

Replace one or more tires.

Before calibrating the TPMS:

•

Set the cold tire pressure in all four tires.

Checking Tires

P. 606

Make sure:

•

The vehicle is at a complete stop.

•

Change the shift position to

(

•

The power mode is in ON.

■

TPMS Calibration

Tire Pressure Monitoring System (TPMS)

The indicators for the Adaptive Cruise Control (ACC)
with Low Speed Follow, Road Departure Mitigation
(RDM), Vehicle Stability Assist

(VSA

) system,

Vehicle Stability Assist

(VSA

) OFF, low tire

pressure/TPMS, Collision Mitigation Braking System

(CMBS

), and Parking Brake and Brake System

(Amber) may come on along with a message in the
Driver Information Interface after reconnecting the
12V-battery. Drive a short distance at more than 12
mph (20 km/h). The indicator should go off. If it does
not, have your vehicle checked by a dealer.

TPMS Calibration

The calibration process requires approximately 30
minutes of cumulative driving at speeds between 30-
65 mph (48-105 km/h).
During this period, if the ignition is turned on and the
vehicle is not moved within 45 seconds, you may
notice the low tire pressure/TPMS indicator comes on
briefly. This is normal and indicates that the
calibration process is not yet complete.

If the tire chains are installed, remove them before
calibrating the TPMS.

If the low tire pressure/TPMS indicator comes on even
when the properly inflated specified regular tires are
installed, have your vehicle checked by a dealer.

We recommend that the tires be replaced with the
same brand, model, and size as the originals. Ask a
dealer for details.

495

When Driving

Tire Pressure Monitoring System (TPMS)

Continued

Driving

You can calibrate the system from the
customized features on the driver information
interface.

Press the

then

button to select

Vehicle Settings

, then press the

ENTER

button.

TPMS Calibration

appears on the

display.

Press the

ENTER

button.

The display switches to the
customization setup screen, where you
can select

Cancel

Calibrate

Press the

button and select

Calibrate

, then press the

ENTER

button.

Calibration Started

screen appears,

then the display returns to the
customization menu screen.

•

If the

Calibration Failed to Start

message

appears, repeat steps 2-3.

•

The calibration process finishes
automatically.

Models with color audio system

3 4

496

When Driving

Tire Pressure Monitoring System (TPMS)

Driving

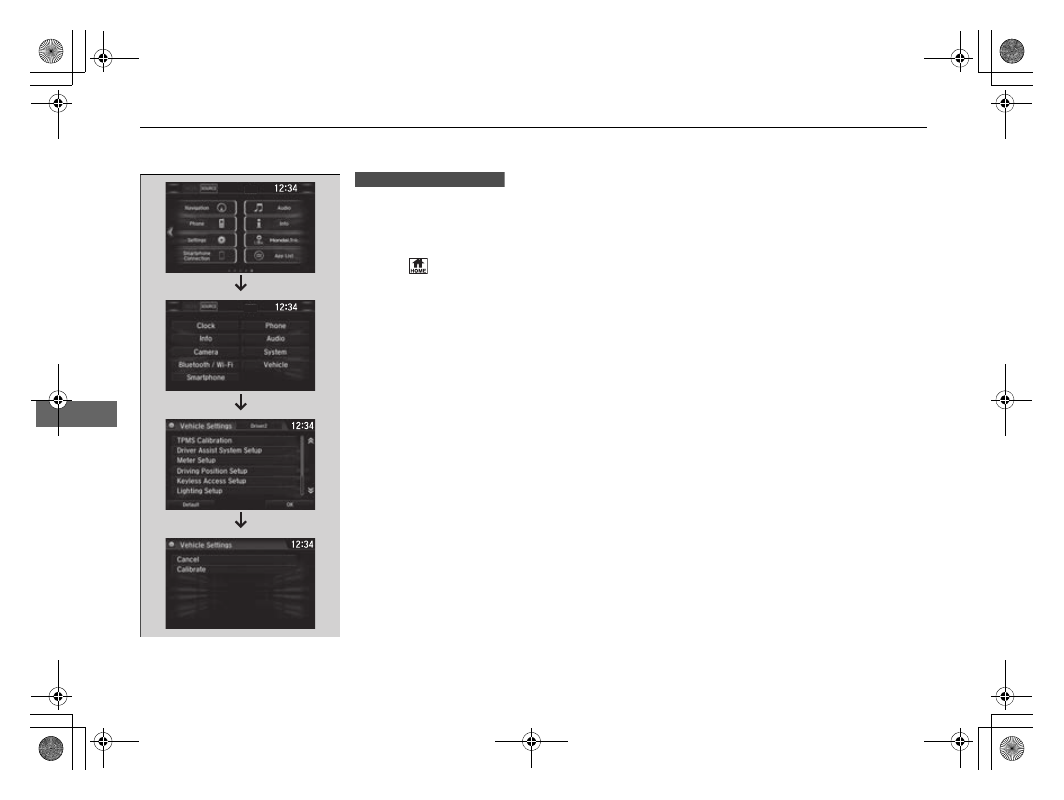

You can calibrate the system from the
customized feature on the audio/information
screen.

Set the power mode to ON.

Select .

Select

Settings

Select

Vehicle

Select

TPMS Calibration

Select

Cancel

Calibrate

When the calibration is complete, the
display returns to the customization
menu screen.

•

If the

Unable to initialize TPMS.

message

appears, repeat step 6.

•

The calibration process finishes
automatically.

Models with Display Audio

497

When Driving

Tire Pressure Monitoring System (TPMS) - Required Federal Explanation

Continued

Driving

Tire Pressure Monitoring System (TPMS) - Required
Federal Explanation

Each tire, including the spare (if provided), should be checked
monthly when cold and inflated to the inflation pressure
recommended by the vehicle manufacturer on the vehicle placard
or tire inflation pressure label.

(If your vehicle has tires of a different size than the size indicated
on the vehicle placard or tire inflation pressure label, you should
determine the proper tire inflation pressure for those tires.)

As an added safety feature, your vehicle has been equipped with
a tire pressure monitoring system (TPMS) that illuminates a low
tire pressure telltale

when one or more of your tires is significantly under-inflated.

Accordingly, when the low tire pressure telltale illuminates, you
should stop and check your tires as soon as possible, and inflate
them to the proper pressure.

Driving on a significantly under-inflated tire causes the tire to
overheat and can lead to tire failure. Under-inflation also reduces
fuel efficiency and tire tread life, and may affect the vehicle's
handling and stopping ability.

498

When Driving

Tire Pressure Monitoring System (TPMS) - Required Federal Explanation

Driving

Please note that the TPMS is not a substitute for proper tire
maintenance, and it is the driver’s responsibility to maintain
correct tire pressure, even if under-inflation has not reached the
level to trigger illumination of the TPMS low tire pressure telltale.

Your vehicle has also been equipped with a TPMS malfunction
indicator to indicate when the system is not operating properly.
The TPMS malfunction indicator is combined with the low tire
pressure telltale. When the system detects a malfunction, the
telltale will flash for approximately one minute and then remain
continuously illuminated. This sequence will continue upon
subsequent vehicle start-ups as long as the malfunction exists.

When the malfunction indicator is illuminated, the system may
not be able to detect or signal low tire pressure as intended.

TPMS malfunctions may occur for a variety of reasons, including
the installation of replacement or alternate tires or wheels on the
vehicle that prevent the TPMS from functioning properly.

Always check the TPMS malfunction telltale after replacing one or
more tires or wheels on your vehicle to ensure that the
replacement or alternate tires and wheels allow the TPMS to
continue to function properly.

499

When Driving

Blind spot information System

Continued

Driving

Blind spot information System

Is designed to detect vehicles in specified alert zones adjacent to your vehicle,
particularly in harder to see areas commonly known as “blind spots.”

When the system detects vehicles approaching from behind in adjacent lanes, the
appropriate indicator comes on for a few seconds, providing assistance when you
change lanes.

■

How the system works

Blind spot information System

Important Safety Reminder

Like all assistance systems, blind spot information
system has limitations. Overreliance on blind spot
information system may result in a collision.

The system is for your convenience only. Even if an
object is within the alert zone, the following
situations may occur.

•

The blind spot information system alert indicator
may not come on due to obstruction (splashes,
etc.) even without the

Blind Spot Info Not

Available

driver information interface appearing.

•

The blind spot information system alert indicator
may come on even with the message appearing.

WARNING

Failure to visually confirm that it is safe to

change lanes before doing so may result in

a crash and serious injury or death.

Do not rely only on the blind spot

information system when changing lanes.

Always look in your mirrors, to either side

of your vehicle, and behind you for other

vehicles before changing lanes.

Alert zone range

A: Approx. 1.6 ft. (0.5 m)

B: Approx. 10 ft. (3 m)

C: Approx. 10 ft. (3 m)

Radar Sensors:

underneath the

rear bumper

corners

Alert Zone

●

The transmission is in

(

●

Your vehicle speed is
between 20 mph (32 km/h)
and 100 mph (160 km/h)

* Not available on all models

When Driving

Blind spot information System

500

Driving

■

When the system detects a vehicle

Blind spot information System

The blind spot information system alert indicator may
not come on under the following conditions:

•

A vehicle does not stay in the alert zone for more
than two seconds.

•

A vehicle is parked in a side lane.

•

The speed difference between your vehicle and the
vehicle you are passing is greater than 6 mph (10
km/h).

•

An object not detected by the radar sensors
approaches or passes your vehicle.

•

A vehicle running in the adjacent lane is a
motorcycle or other small vehicle.

You can change the setting for the blind spot
information system.

Customized Features

P. 369

■

Comes on when:

●

A vehicle enters the alert zone from behind
to overtake you with a speed difference of
no more than 31 mph (50 km/h) from your
vehicle.

●

You pass a vehicle with a speed difference
of no more than 12 mph (20 km/h).

■

Blinks and the beeper sounds when:

You move the turn signal lever in the direction

of the detected vehicle. The beeper sounds

three times.

Comes On

Blinks

Blind spot information System Alert Indicator:
Located on the outside rearview mirror on

both sides.

* Not available on all models

501

When Driving

Blind spot information System

Driving

Blind spot information System

Blind spot information system may be adversely
affected when:

•

Objects (guard rails, poles, trees, etc.) are detected.

•

An object that does not reflect radio waves well,
such as a motorcycle, is in the alert zone.

•

Driving on a curved road.

•

A vehicle is moving from a far lane to the adjacent
lane.

•

The system picks up external electrical interference.

•

The rear bumper or the sensors have been
improperly repaired or the rear bumper has been
deformed.

•

The orientation of the sensors has been changed.

•

In bad weather (Heavy rain, snow, and fog).

•

Making a turn at an intersection.

•

Driving on a bumpy road.

•

Making a short turn that slightly tilts the vehicle.

For proper blind spot information system operation:

•

Always keep the rear bumper corner area clean.

•

Do not cover the rear bumper corner area with
labels or stickers of any kind.

•

Take your vehicle to a dealer if you need the rear
bumper corner area or the radar sensors to be
repaired, or the rear bumper corner area is strongly
impacted.

* Not available on all models

502

When Driving

High Voltage Battery

Driving

High Voltage Battery

The High Voltage battery gradually discharges even if the vehicle is not in use. As a
result, if your vehicle is parked for an extended period of time, the battery charge
level will become low. Extended periods of time at a low state of charge will shorten
battery life. To maintain the battery state of charge, drive your vehicle for more than
30 minutes at least once every three months.
Extreme high temperatures can affect the battery life. You can minimize the effects
by parking the vehicle in the shade during the summer.

High Voltage Battery

Be careful not to let the High Voltage battery drain
too much. If the battery level becomes close to zero,
it will make it impossible to start the engine.

503

Continued

Driving

Honda Sensing

is a driver support system which employs the use of two distinctly

different kinds of sensors: a radar sensor located inside the front grille and a front
sensor camera mounted to the interior side of the windshield, behind the rearview
mirror.

Honda Sensing

has following functions.

■

The functions which do not require switch operations to activate

•

Collision Mitigation Braking System

(CMBS

)

P. 506

•

Road Departure Mitigation (RDM) System

P. 543

■

The functions which require switch operations to activate

•

Adaptive Cruise Control (ACC) with Low Speed Follow

P. 517

•

Lane Keeping Assist System (LKAS)

P. 534

504

Honda Sensing

Driving

■

MAIN Button

Press to activate standby mode for ACC with
Low Speed Follow and LKAS. Or press to
cancel these systems.

■

LKAS Button

Press to activate or cancel the LKAS.

■

RES/+ and −/SET Buttons

Press

RES/+

button to resume the ACC with

Low Speed Follow or increase the vehicle
speed.
Press

−/SET

button to set the ACC with Low

Speed Follow or decrease the vehicle speed.

■

Interval Button

Press the (interval) button to change the
ACC with Low Speed Follow following-
interval.

■

CANCEL Button

Press to cancel ACC with Low Speed Follow.

■

Operation Switches for the ACC with Low Speed Follow/

LKAS

MAIN

Button

Interval

Button

CANCEL

Button

LKAS Button

RES/+

Button

−/SET

Button

505

Honda Sensing

Driving

You can see the current state of ACC with
Low Speed Follow, and LKAS.

Indicates that ACC with Low Speed Follow,
and LKAS are ready to be activated.

Indicates that LKAS is activated and
whether or not traffic lane lines are
detected.

Indicates whether or not ACC with Low
Speed Follow detected the vehicle ahead.

Indicates that ACC with Low Speed Follow
shows the set vehicle speed.

Indicates that ACC with Low Speed Follow
shows the set vehicle interval.

■

Driver Information Interface Content

506

Honda Sensing

Collision Mitigation Braking System

(CMBS

)

Driving

Collision Mitigation Braking System

(CMBS

)

The system can assist you when it determines there is a possibility of your vehicle
colliding with a vehicle or a pedestrian detected in front of your vehicle. The CMBS

is designed to alert you when the potential for a collision is determined, as well as to
reduce your vehicle speed to help minimize collision severity when a collision is
deemed unavoidable.

Collision Mitigation Braking System

(CMBS

)

Important Safety Reminder

The CMBS

is designed to reduce the severity of an

unavoidable collision. It does not prevent collisions
nor stop the vehicle automatically. It is still your
responsibility to operate the brake pedal and steering
wheel appropriately according to the driving
conditions.

The CMBS

may not activate or may not detect a

vehicle in front of your vehicle under certain
conditions:

CMBS

Conditions and Limitations

P. 511

For directions on the proper handling of the radar
sensor, refer to the following page.

Radar Sensor

P. 550

You can read about handling information for the
camera equipped with this system.

Front Sensor Camera

P. 548

Continued

507

Honda Sensing

Collision Mitigation Braking System

(CMBS

)

Driving

■

How the system works

The system starts monitoring the roadway ahead when your vehicle speed is about

3 mph (5 km/h) or above and will search for a vehicle in front of you.

The radar sensor is

in the front grille.

The CMBS

activates when:

●

The speed difference between your vehicle and a vehicle or pedestrian detected in
front of you becomes about 3 mph (5 km/h) and over with a chance of a collision.

●

Your vehicle speed is about 62 mph (100 km/h) or less and the system
determines there is a chance of a collision with:

- Vehicles detected in front of you that are stationary, oncoming, or traveling in

your same direction.
- A pedestrian who is detected in front of you.

●

Your vehicle speed is above 62 mph (100 km/h), and the system determines
there is a chance of a collision with a vehicle detected in front of you traveling
in your same direction.

The camera is

located behind the

rearview mirror.

When to use

How the system works

When the CMBS

activates, it may automatically

apply the brake. It will be canceled when your vehicle
stops or a potential collision is not determined.

Honda Sensing

Collision Mitigation Braking System

(CMBS

)

508

Driving

■

When the system activates

You can change the distance (

Long

Normal

Short

) between vehicles at which the

system’s earliest collision alert will come on through driver information interface

audio/information screen

setting options.

Customized Features

P. 140, 369

How the system works

The camera in the CMBS

is also designed to detect

pedestrians.
However, this pedestrian detection feature may not
activate or may not detect a pedestrian in front of
your vehicle under certain conditions.
Refer to the ones indicating the pedestrian detection
limitations from the list.

CMBS

Conditions and Limitations

P. 511

The system provides visual and audible alerts of a possible collision, and stops

if the collision is avoided.

Take appropriate action to prevent a collision (apply the brakes, change
lanes, etc.)

Beep

Visual Alerts

Audible Alert

* Not available on all models

509

Honda Sensing

Collision Mitigation Braking System

(CMBS

)

Continued

Driving

The system has three alert stages for a possible collision. However, depending on circumstances, the CMBS

may not go through all of

the stages before initiating the last stage.

■

Collision Alert Stages

Distance between vehicles

CMBS

The sensors detect a vehicle Audible & Visual WARNINGS

Braking

Stage

one

There is a risk of a collision with
the vehicle ahead of you.

When in

Long

, visual and

audible alerts come on at a
longer distance from a vehicle
ahead than in

Normal

setting,

and in

Short

, at a shorter

distance than in

Normal

—

Stage

two

The risk of a collision has
increased, time to respond is
reduced.

Visual and audible alerts.

Lightly applied

Stage

three

The CMBS

determines that a

collision is unavoidable.

Forcefully applied

Your Vehicle

Vehicle
Ahead

NORMAL

SHORT

LONG

Your
Vehicle

Vehicle
Ahead

Your
Vehicle

Vehicle
Ahead

Content .. 29 30 31 32 ..
