Honda CR-V (2022 year). Manual in english - page 38

606

uu

Honda Sensing

u

Lane Keeping Assist System (LKAS)

Driving

■

The LKAS may automatically be cancelled when:

•

The camera temperature gets extremely high or low.

•

The camera behind the rearview mirror, or the area around the camera, including
the windscreen, gets dirty.

•

The ABS or VSA system engages.

The beeper sounds if the LKAS is automatically cancelled.

The system may not detect lane markings and therefore may not keep the vehicle in
the middle of a lane under certain conditions, including the following:

■

Environmental conditions

•

Driving in bad weather (rain, fog, snow, etc.).

•

Sudden changes between light and dark, such as an entrance or exit of a tunnel.

•

There is little contrast between lane lines and the roadway surface.

•

Driving into low sunlight (e.g., at dawn or dusk).

•

Strong light is reflected onto the roadway.

•

Driving in the shadows of trees, buildings, etc.

•

Shadows of adjacent objects are parallel to lane markings.

•

Roadway objects or structures are misinterpreted as lane markers.

•

Reflections on the interior of the windscreen.

•

Driving at night or in a dark condition such as a tunnel.

■

LKAS Conditions and Limitations

607

uu

Honda Sensing

u

Lane Keeping Assist System (LKAS)

Continued

Driving

■

Roadway conditions

•

Driving on a snowy or wet roadway (obscured lane marking, vehicle tracks,
reflected lights, road spray, high contrast).

•

Driving on a road with temporary lane markings.

•

Faint, multiple, or varied lane markings are visible on the roadway due to road
repairs or old lane markings.

•

The roadway has merging, split, or crossing lines (e.g., such as at an intersection
or crosswalk).

•

The lane markings are extremely narrow, wide, or changing.

•

The vehicle in front of you is driving near the lane lines.

•

The road is hilly or the vehicle is approaching the crest of a hill.

•

Driving on rough or unpaved roads, or over bumpy surfaces.

Faded lines

Duplicate lines

Tyre tracks

Very wide or narrow traffic lane

608

uu

Honda Sensing

u

Lane Keeping Assist System (LKAS)

Driving

•

When objects on the road (curb, guard rail, pylons, etc.) are recognised as white
lines (or yellow lines).

•

Driving on roads with double lines.

■

Vehicle conditions

•

Headlight lenses are dirty or the headlights are not properly adjusted.

•

The outside of the windscreen is streaked or blocked by dirt, mud, leaves, wet
snow, etc.

•

The inside of the windscreen is fogged.

•

The camera temperature gets too high.

•

An abnormal tyre or wheel condition (wrong sized, varied size or construction,
improperly inflated, compact spare tyre, etc.).

•

The vehicle is tilted due to a heavy load or suspension modifications.

•

The vehicle is towing a trailer.

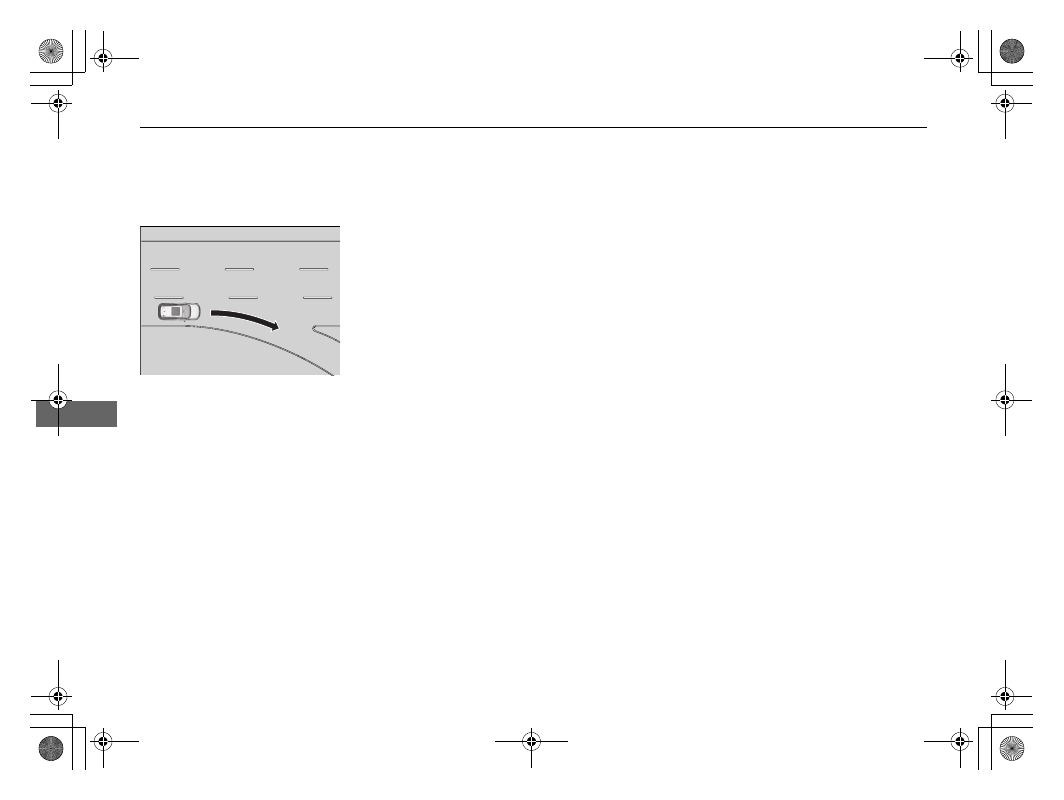

Lane void of lines at junction

609

uu

Honda Sensing

u

Road Departure Mitigation System

Continued

Driving

Road Departure Mitigation System

Alerts and helps to assist you when the system detects a possibility of your vehicle
unintentionally crossing over detected lane markings or the edge of the pavement,
or leaving the roadway altogether.

The front camera behind the rearview mirror
monitors left and right lane markings (in white
or yellow) and the outer edge of the
pavement (bordered by grass or gravel). If
your vehicle is getting too close to detected
lane markings or the outer edge of the
pavement (bordered by grass or gravel)
without a turn signal activated, the system, in
addition to a visual alert, applies steering
torque and alerts you with rapid vibrations on
the steering wheel, to help you remain within
the detected lane.
If the system determines that the vehicle is
about to veer off the edge of the pavement, it
will alert the driver with an audible warning
instead of steering wheel vibrations.

2

Customized Features

 P. 157, 408

As a visual alert,

 message appears on the

driver information interface.

■

How the System Works

1

Road Departure Mitigation System

Important Safety Reminder

Like all assistance systems, the Road Departure
Mitigation system has limitations.
Over-reliance on the Road Departure Mitigation
system may result in a collision. It is always your
responsibility to keep the vehicle within your driving
lane.

The Road Departure Mitigation system only alerts you
when lane drift is detected without a turn signal in
use. The Road Departure Mitigation system may not
detect all lane markings or lane or roadway
departures; accuracy will vary based on weather,
speed and lane marker condition. It is always your
responsibility to safely operate the vehicle and avoid
collisions.

You can read about handling information for the
camera equipped with this system.

2

Front Sensor Camera

 P. 623

The Road Departure Mitigation system may not work
properly or may work improperly under the certain
conditions:

2

Road Departure Mitigation System
Conditions and Limitations

 P. 613

There are times when you may not notice Road
Departure Mitigation functions due to your operation
of the vehicle, or road surface conditions.

uu

Honda Sensing

u

Road Departure Mitigation System

610

Driving

If the system determines that its steering input is insufficient to keep your vehicle on
the roadway, it may apply braking.

u

Braking is applied only when the lane markings are solid continuous lines.

The system cancels assisting operations when you turn the steering wheel to avoid
crossing over detected lane markings.

If the system operates several times without
detecting driver response, the system beeps to
alert you. After that, the Road Departure
Mitigation steering assist is temporarily
stopped, and the warning sound is given only.

After a few minutes, the message to the left is
displayed and the Road Departure Mitigation
system is fully restored.

1

Road Departure Mitigation System

If LKAS is off and you have selected

Normal

 or

Early



from the customised options using the driver
information interface or audio/information screen,
the message below will appear if the system has
determined that there is a possibility of your vehicle
crossing over detected lane markings or the outer
edge of the pavement (into grass or gravel border). If
you have selected

Delayed

, however, the message

will only appear if the vehicle is about to cross over
the outer edge of the pavement.

2

Customized Features

 P. 157, 408

Continued

611

uu

Honda Sensing

u

Road Departure Mitigation System

Driving

The system becomes ready to start searching for lane markings when all the
following conditions are met:

•

The vehicle is travelling between about 72 and 180 km/h (45 and 112 mph).

•

The vehicle is on a straight or slightly curved road.

•

The turn signals are off.

•

The brake pedal is not depressed.

•

The wipers are not in continuous operation.

•

The vehicle is not accelerating or braking, and the steering wheel is not being
turned.

•

The system makes a determination that the driver is not actively accelerating,
braking or steering.

■

How the System Activates

1

How the System Activates

The Road Departure Mitigation system may
automatically shut off and the

 indicator comes

and stays on.

2

Indicators

 P. 114

Road Departure Mitigation system function can be
impacted when the vehicle is:

•

Not driven within a traffic lane.

•

Driven on the inside edge of a curve, or outside of
a lane.

•

Driven in a narrow lane.

uu

Honda Sensing

u

Road Departure Mitigation System

612

Driving

Press the Road Departure Mitigation button to
turn the system on and off.

u

The indicator in the button comes on and
the message appears on the driver
information interface when the system is
on.

■

Road Departure Mitigation System On and Off

1

Road Departure Mitigation System On and Off

When you have selected

Warning Only

 from the

customized options using the driver information
interface or audio/information screen the system
does not operate the steering wheel and braking.

2

Customized Features

 P. 157, 408

The adaptive cruise control (ACC)

*

, adaptive cruise

control (ACC) with low speed follow (LSF)

*

, road

departure mitigation, vehicle stability assist (VSA)
system, vehicle stability assist (VSA) OFF, low tyre
pressure/deflation warning system, collision
mitigation braking system (CMBS), and parking brake
and brake system (amber) indicators may come on in
amber along with a message in the driver information
interface when you turn the ignition switch to ON

(

w

*1

 after reconnecting the battery. Drive a short

distance at more than 20 km/h (12 mph). Each
indicator should go off. If any do not, have your
vehicle checked by a dealer.

*1: Models with the keyless access system have an

ENGINE START/STOP

 button instead of an ignition

switch.

Indicator

Road Departure
Mitigation Button

* Not available on all models

613

uu

Honda Sensing

u

Road Departure Mitigation System

Continued

Driving

The system may not properly detect lane markings and the position of your vehicle
under certain conditions. Some examples of these conditions are listed below.

■

Environmental conditions

•

Driving in bad weather (rain, fog, snow, etc.).

•

Sudden changes between light and dark, such as an entrance or exit of a tunnel.

•

There is little contrast between lane lines and the roadway surface.

•

Driving into low sunlight (e.g., at dawn or dusk).

•

Strong light is reflected onto the roadway.

•

Driving in the shadows of trees, buildings, etc.

•

Shadows of adjacent objects are parallel to lane markings.

•

Roadway objects or structures are misinterpreted as lane markers.

•

Reflections on the interior of the windscreen.

•

Driving at night or in a dark condition such as a tunnel.

•

The outer edge of the pavement is bordered by objects, material etc. other than
grass or gravel.

■

Road Departure Mitigation System Conditions and

Limitations

614

uu

Honda Sensing

u

Road Departure Mitigation System

Driving

■

Roadway conditions

•

Driving on a snowy or wet roadway (obscured lane marking, vehicle tracks,
reflected lights, road spray, high contrast).

•

Driving on a road with temporary lane markings.

•

Faint, multiple, or varied lane markings are visible on the roadway due to road
repairs or old lane markings.

•

The roadway has merging, split, or crossing lines (e.g., such as at an intersection
or crosswalk).

•

The lane markings are extremely narrow, wide, or changing.

•

The vehicle in front of you is driving near the lane lines.

•

The road is hilly or the vehicle is approaching the crest of a hill.

•

Driving on rough or unpaved roads, or over bumpy surfaces.

•

When objects on the road (curb, guard rail, pylons, etc.) are recognised as white
lines (or yellow lines).

•

Driving on roads with double lines.

■

Vehicle conditions

•

Headlight lenses are dirty or the headlights are not properly adjusted.

•

The outside of the windscreen is streaked or blocked by dirt, mud, leaves, wet
snow, etc.

•

The inside of the windscreen is fogged.

•

The camera temperature gets too high.

•

An abnormal tyre or wheel condition (wrong sized, varied size or construction,
improperly inflated, compact spare tyre, etc.).

•

The vehicle is tilted due to a heavy load or suspension modifications.

•

When tyre chains are installed.

•

The vehicle is towing a trailer.

615

uu

Honda Sensing

u

Traffic Sign Recognition System

Continued

Driving

Traffic Sign Recognition System

Reminds you of road sign information, such as the current speed limit and that
overtaking is prohibited, your vehicle has just passed through, showing it on the
driver information interface and the head-up display

*

.

When the camera located behind the rearview mirror captures traffic signs while
driving, the system displays the ones that are recognised as designated for your
vehicle. The sign icon will be displayed until the vehicle reaches a predetermined
time and distance.

The sign icon also may switch to another one, or disappear when:

•

The end of speed limit or other designated limit is detected.

•

Your vehicle enters/exists motorway or highway.

•

You make a turn with a turn signal at an intersection.

■

How the System Works

1

Traffic Sign Recognition System

The system is designed to detect signs that follow the
Vienna Convention standards. Not all signs may be
displayed, but any signs posted on roadsides should
not be ignored. The system does not work on the
designated traffic signs of all the countries you travel,
nor in all situations.
Do not rely too much on the system. Always drive at
speeds appropriate for the road conditions.

Never apply a film or attach any objects to the
windscreen that could obstruct the camera’s field of
vision and cause the system to operate abnormally.
Scratches, nicks, and other damage to the
windscreen within the camera’s field of vision can
cause the system to operate abnormally. If this
occurs, we recommend that you replace the
windscreen with a genuine Honda replacement
windscreen. Making even minor repairs within the
camera’s field of vision or installing an aftermarket
replacement windscreen may also cause the system
to operate abnormally. After replacing the
windscreen, have a dealer recalibrate the camera.
Proper calibration of the camera is necessary for the
system to operate properly.

Driver information interface

Head-up display

*

* Not available on all models

uu

Honda Sensing

u

Traffic Sign Recognition System

616

Driving

If the system does not detect any traffic signs while you are driving, the image below
may appear.

1

Traffic Sign Recognition System

To help reduce the likelihood that high interior
temperatures will cause the camera’s sensing system
to shut off, when parking, find a shady area or face
the front of the vehicle away from the sun. If you use
a reflective sun shade, do not allow it to cover the
camera housing.
Covering the camera can concentrate heat on it.

If

 appears, the Traffic Sign Recognition System

does not work, and

 will be displayed.

•

Use the climate control system to cool down the
interior and, if necessary, also use demister mode
with the air flow directed towards the camera.

•

Start driving the vehicle to lower the windscreen
temperature, which cools down the area around
the camera.

If

 appears, the Traffic Sign Recognition System

does not work, and

 will be displayed.

•

Park your vehicle in a safe place, and clean the
windscreen. If the message does not disappear
after you have cleaned the windscreen and driven
for a while, have your vehicle checked by a dealer.

Driver information interface

Head-up display

*

* Not available on all models

Continued

617

uu

Honda Sensing

u

Traffic Sign Recognition System

Driving

1

Traffic Sign Recognition System

If your vehicle exceeds the detected speed limit, an
icon representing the speed limit sign for the current
area will blink in the display.

The system’s ability to accurately notify the driver of
the speed limit is dependent on certain conditions
such as the units displayed on the traffic sign as well
as the speed and direction of travel of the vehicle. In
some cases, the system may display false warnings or
other inaccurate information.

2

Traffic Sign Recognition System Conditions
and Limitations

 P. 618

The unit for speed limits (mph or km/h) varies from
country to country. If you enter a country whose unit
differs to the one of the country from which you
came, use the instrument panel to change the unit,
otherwise the system will not work correctly.

2

Speedometer

 P. 146

2

Customized Features

 P. 157, 408

uu

Honda Sensing

u

Traffic Sign Recognition System

618

Driving

The Traffic Sign Recognition system may not be able to recognise the traffic sign in
the following cases.

■

Vehicle conditions

•

Headlight lenses are dirty or the headlights are not properly adjusted.

•

The outside of the windscreen is blocked by dirt, mud, leaves, wet snow, etc.

•

The inside of the windscreen is fogged.

•

There are portions remaining to be wiped.

•

An abnormal tyre or wheel condition (wrong sized, varied size or construction,
improperly inflated, compact spare tyre, etc.).

•

The vehicle is tilted due to a heavy load or suspension modifications.

■

Environmental conditions

•

Driving into low sunlight (e.g., at dawn or dusk).

•

Strong light is reflected onto the roadway.

•

Sudden changes between light and dark, such as an entrance or exit of a tunnel.

•

When you drive in the shadows of trees, buildings, etc.

•

Driving at night, in dark areas such as long tunnels.

•

Driving in bad weather (rain, fog, snow, etc.).

•

A vehicle in front of you is travelling flying up spray or snow.

■

Traffic Sign Recognition System Conditions and Limitations

1

Traffic Sign Recognition System Conditions and Limitations

When the Traffic Sign Recognition System
malfunctions,

 appears on the driver information

interface. If this message does not disappear, have
your vehicle checked by a dealer.

Driver information interface

Head-up display

*

* Not available on all models

619

uu

Honda Sensing

u

Traffic Sign Recognition System

Continued

Driving

■

The position or the condition of the traffic sign

•

A sign is hard to be found since it is in a complicated area.

•

A sign is located far away from your vehicle.

•

A sign is located where the beam of the headlight is hard to reach.

•

A sign is on a corner or bend in the road.

•

Faded or bent signs.

•

Rotated or damaged signs.

•

A sign is covered with mud, snow, or frost.

•

A part of the sign is hidden by the trees, or the sign itself is hidden by a vehicle
and others.

•

Light (a streetlight) or a shadow is reflected on the surface of the sign.

•

A sign is too bright or too dark (an electric sign).

•

A sign of a small size.

■

Other conditions

•

When you are driving at a high speed.

620

uu

Honda Sensing

u

Traffic Sign Recognition System

Driving

The Traffic Sign Recognition System may not operate correctly, such as displaying a
sign that does not follow the actual regulation for the roadway or does not exist at
all in the following cases.

u

A speed limit sign may display at a higher or lower speed than the actual speed
limit.

•

There is a supplementary sign with further information such as weather, time,
vehicle type, etc.

•

Figures on the sign are hard to read (electric sign, numbers on the sign are
blurred, etc.).

•

A sign is in the vicinity of the lane you are driving even though it is not for the lane
(speed limit sign situated at the junction between the side road and the main
road, etc.).

•

There are things that look similar to the colour or shape of the recognition object
(similar sign, electric sign, signboard, structure, etc.).

•

A lorry or another large vehicle with a sticker of the speed limit sign on the back
are travelling in front of you.

621

uu

Honda Sensing

u

Traffic Sign Recognition System

Continued

Driving

Two traffic signs can be simultaneously displayed next to each other when detected.
The speed limit sign icon is displayed on the right half of the screen. The overtaking prohibition sign icon appears on the left. Any additional
sign that indicates speed limit based on weather (snow, etc.) or specific period of time can appear on either side.

■

Signs Displayed on the Driver Information Interface and

Head-Up Display

*

■

When main mode is selected

■

When main mode is not selected

Overtaking
Prohibition
Sign

*1

Speed Limit
Sign

Additional
Speed Limit
Sign Based on
Conditions

*2

Speed Limit
Sign

Overtaking Prohibition Sign

*1

Speed Limit Sign

Depending on situation, *1 can be replaced with *2, or *2 can appear on the right side.

Driver information interface

Driver information interface

Head-up display

*

Overtaking
Prohibition
Sign

*1

Speed Limit
Sign

Additional
Speed Limit
Sign Based on
Conditions

*2

Speed Limit
Sign

Head-up display

*

Overtaking Prohibition Sign

*1

Speed Limit Sign

* Not available on all models
