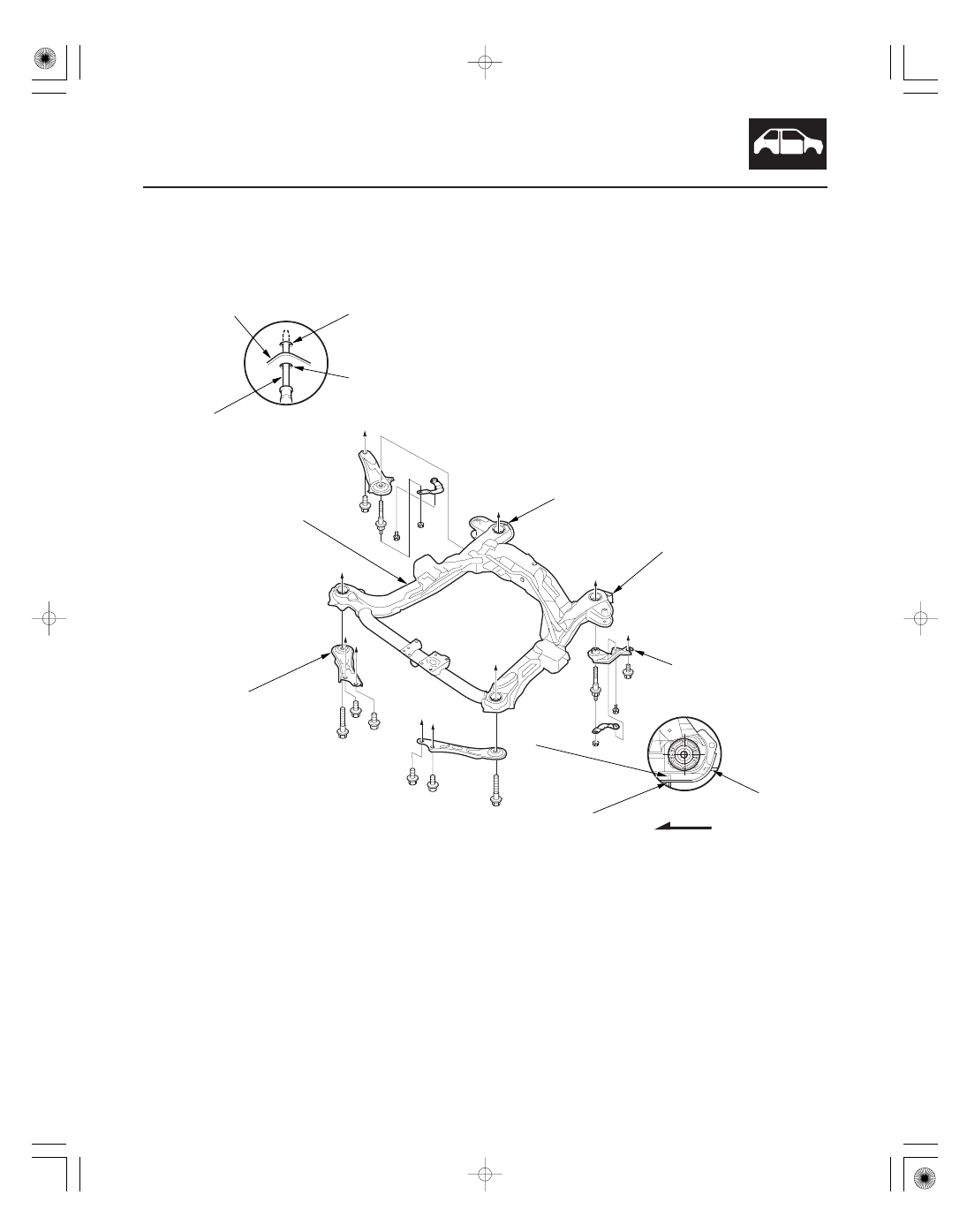

Front Subframe Alignment

’06 model

20-194

Frame

Subframe Replacement (cont’d)

SCREWDRIVER or
TAPERED PUNCH

INSTALLATION
REFERENCE HOLE
(Subframe side)

REFERENCE HOLE
(Body side)

SUBFRAME

FRONT SUBFRAME

To body

To body

To body

To body

To body

To body

To body

To body

FRONT SUBFRAME
FRONT BRACKET

FRONT SUBFRAME
REAR BRACKET

INSTALLATION
REFERENCE HOLE

INSTALLATION
REFERENCE HOLE

BODY

forward

Reference holes alignment

NOTE:

• Before removing the subframe, make a mark where the subframe lines up with the body for reinstallation.
• When installing, align both installation reference holes in the subframe with the reference holes in the body using a

screwdriver or tapered punch as a guide.

• After mounting the subframe and brackets loosely, align the reference marks with the body, then tighten the bolts.
• After reinstalling all removed parts, check and adjust the front wheel alignment (see page 18-5).

Make alignment
mark here.

Make alignment
mark here.

02

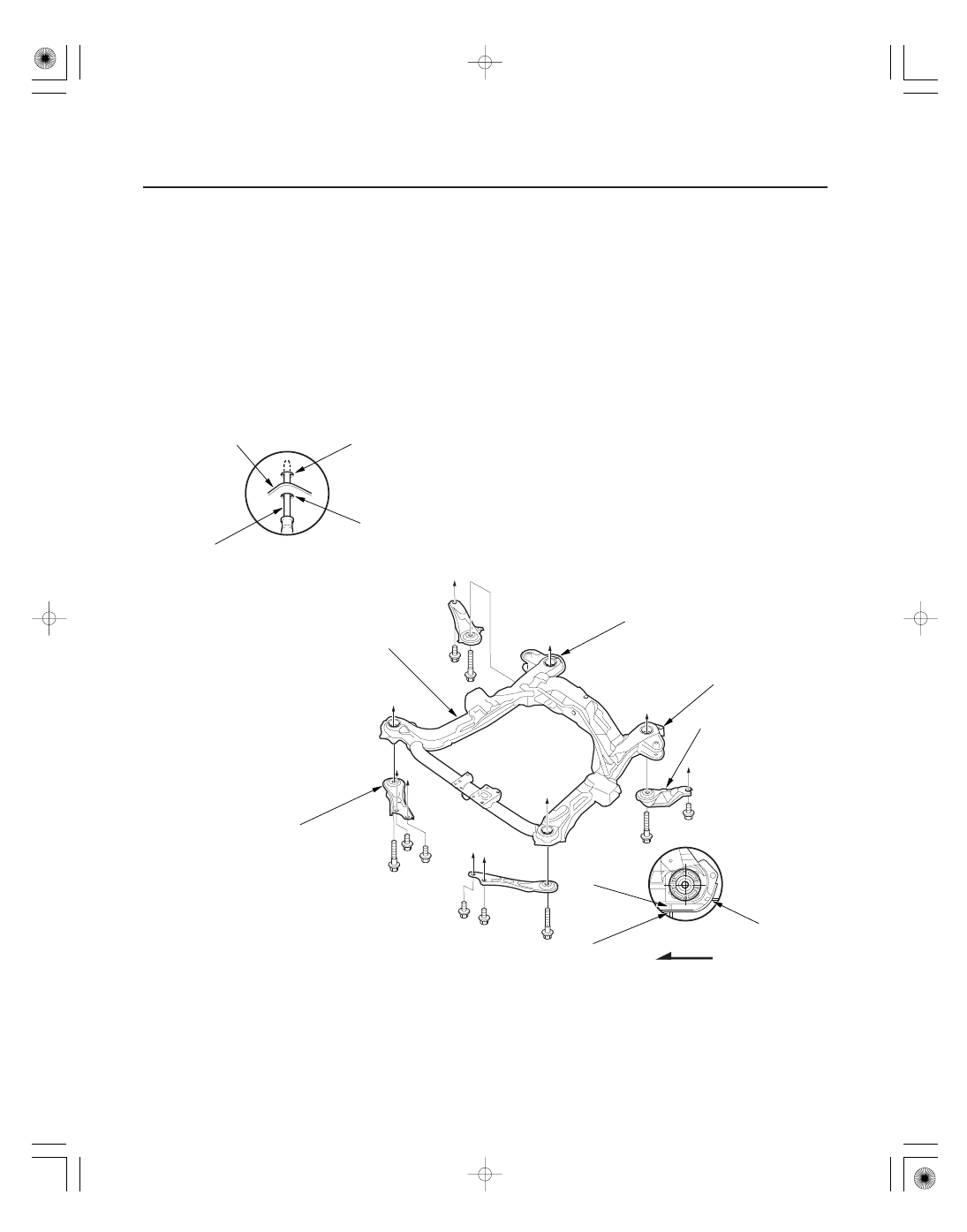

’07-08 models

20-195

SCREWDRIVER or
TAPERED PUNCH

INSTALLATION
REFERENCE HOLE
(Subframe side)

REFERENCE HOLE
(Body side)

SUBFRAME

FRONT SUBFRAME

To body

To body

To body

To body

To body

To body

To body

To body

FRONT SUBFRAME
FRONT BRACKET

FRONT SUBFRAME
REAR BRACKET

INSTALLATION
REFERENCE HOLE

INSTALLATION
REFERENCE HOLE

BODY

forward

Reference holes alignment

(cont’d)

Make alignment
mark here.

Make alignment
mark here.

03

Rear Subframe Torque

20-196

Frame

Subframe Replacement (cont’d)

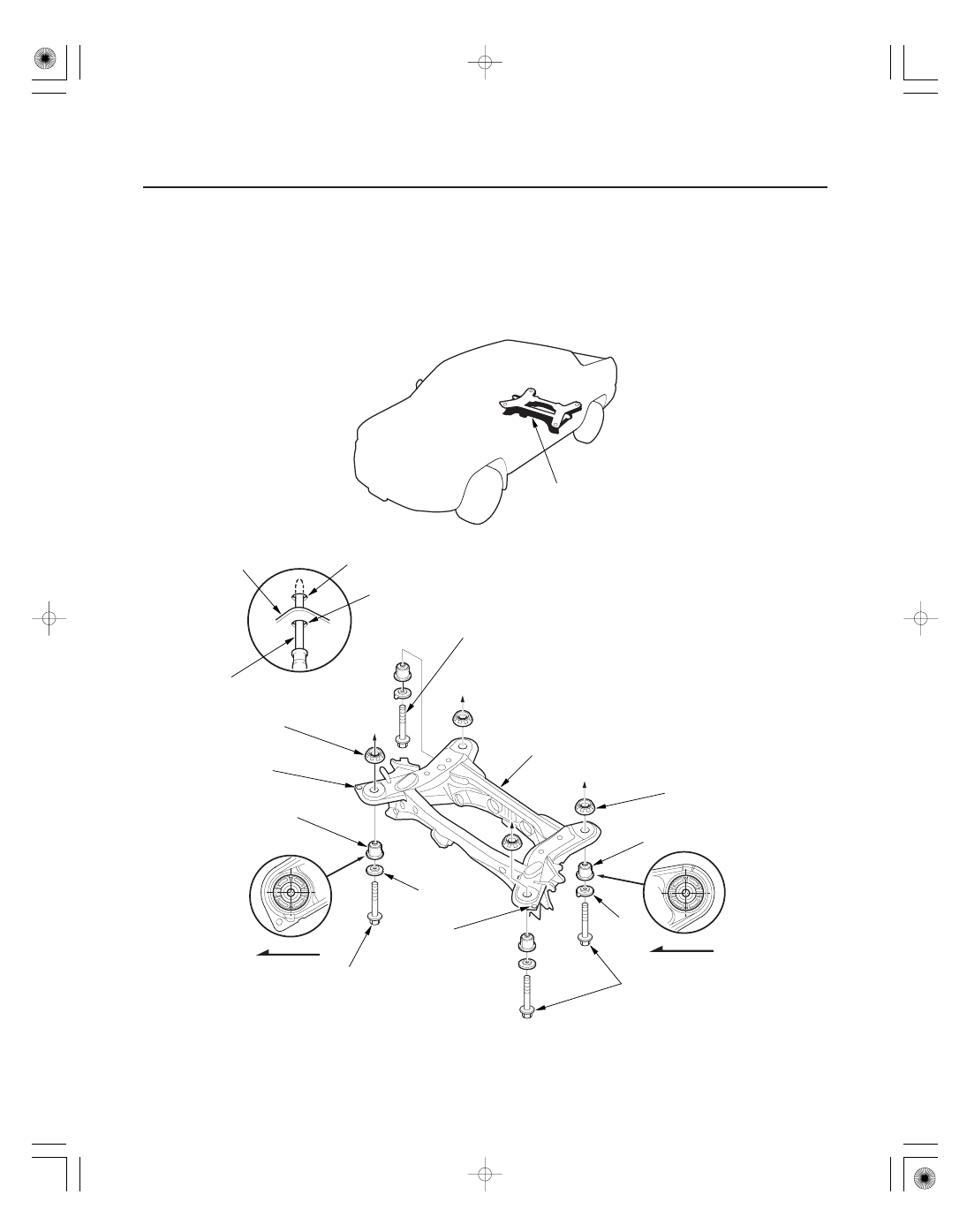

REAR SUBFRAME

Reference hole alignment

SUBFRAME

REFERENCE HOLE
(Body side)

INSTALLATION
REFERENCE HOLE
(Subframe side)

SCREWDRIVER or
TAPERED PUNCH

UPPER INSULATOR

To body

To body

To
body

To body

LOWER INSULATOR

Forward

Forward

INSTALLATION
REFERENCE HOLE

WASHER

SPECIAL BOLT
14 x 1.5 mm
93 N·m (9.5 kgf·m, 69 lbf·ft)

SPECIAL BOLTS
14 x 1.5 mm
93 N·m (9.5 kgf·m, 69 lbf·ft)

WASHER

LOWER INSULATOR

UPPER INSULATOR

REAR SUBFRAME

SPECIAL BOLT
14 x 1.5 mm
93 N·m (9.5 kgf·m, 69 lbf·ft)

INSTALLATION
REFERENCE HOLE

NOTE:

• When installing, align both installation reference holes in the subframe with the reference holes in the body using a

screwdriver or tapered punch as a guide.

• After removing the subframe mounting bolts, be sure to replace them with new ones.

Replace.

Replace.

Replace.

SJC8A000000000J2001ZAAT01
