MOTORCRAFT PARTS - 2.3L ECOBOOST™

Motorcraft Part Number

Component

FA-2022

Air filter element.

BAGM-48H6-760 (less accessory

switches)

Battery.

BAGM-94RH7-800 (with accessory

switches)

FP-93

Cabin air filter.

FL-910-S

Engine oil filter.

SP-594

Spark plug.

FT-202 (conventional gearshift)

Transmission fluid filter.

FT-231 (electric gearshift)

WW-2503 (driver side)

Windshield wiper blade-front.

WW-1708 (passenger side)

If a Motorcraft oil filter is not available, use an oil filter that aligns to SAE/USCAR – 36

Performance Specifications. Filter Type B.

We recommend Motorcraft parts that are available at your authorized dealer or at
www.parts.ford.com. We engineer these parts for your vehicle to meet or exceed our
specifications. Use of other parts could impact vehicle performance, emissions and
durability. Your warranty could be void for any damage related to use of other parts.

474

Capacities and Specifications

MOTORCRAFT PARTS - 2.7L ECOBOOST™

Motorcraft Part Number

Component

FA-2022

Air filter element.

BAGM-94RH7-800

Battery.

FP-93

Cabin air filter.

FL-2062-A

Engine oil filter.

SP-594

Spark plug.

FT-202

Transmission fluid filter.

WW-2503 (driver side)

Windshield wiper blades.

WW-1708 (passenger side)

475

Capacities and Specifications

MOTORCRAFT PARTS - 3.0L ECOBOOST™

Motorcraft Part Number

Component

FA-2058

Air filter element.

BAGM-94RH7-800

Battery.

FP-93

Cabin air filter.

FL-2062-A

Engine oil filter.

SP-594

Spark plug.

FT-202

Transmission fluid filter.

WW-2503 (driver side)

Windshield wiper blades.

WW-1708 (passenger side)

476

Capacities and Specifications

ENGINE OIL CAPACITY AND
SPECIFICATION - 2.3L
ECOBOOST™

Use oil that meets the defined
specification and viscosity grade.

If you do not use oil that meets the defined
specification and viscosity grade, it could
result in:
•

Component damage that your vehicle
warranty does not cover.

•

Longer engine cranking periods.

•

Increased emission levels.

•

Reduced vehicle performance.

•

Reduced fuel economy.

E142732

An oil that displays this symbol conforms
to current engine, emission system and
fuel economy performance standards of
ILSAC.

We recommend Motorcraft motor oil for
your vehicle. If Motorcraft oil is not
available, use motor oils of the
recommended viscosity grade that display
the API Certification Mark for gasoline
engines.

Do not use supplemental engine oil
additives because they are unnecessary
and could lead to engine damage that your
vehicle warranty does not cover.

Capacities

Including the Oil Filter

Variant

6.0 qt (5.7 L)

All.

Materials

Specification

Name

WSS-M2C961-A1

Motorcraft® SAE 5W-30 Motor Oil(U.S.)
Motorcraft® SAE 5W-30 Motor Oil / Huile moteur
SAE 5W-30 Motorcraft®(Canada)
XO-5W30-Q1SP, XO-5W30-Q1FS(U.S.)
CXO-5W30-LSP6, CXO-5W30-LFS6(Canada)

477

Capacities and Specifications

Alternative Engine Oil for
Extremely Cold Climates

To improve engine cold start performance,

we recommend that you use the following
alternative engine oil in extremely cold
climates, where the ambient temperature
reaches -22.0°F (-30°C) or below.

Materials

Specification

Name

WSS-M2C963-A1

Engine Oil - SAE 0W-30

E240523

Note:

If you use your vehicle regularly above

the altitude of 5,000 ft (1,524 m) and under
the temperature of -4.0°F (-20°C), it is
recommended to use the alternative engine
oil.

ENGINE OIL CAPACITY AND
SPECIFICATION - 2.7L
ECOBOOST™

Use oil that meets the defined
specification and viscosity grade.

If you do not use oil that meets the defined
specification and viscosity grade, it could
result in:
•

Component damage that your vehicle
warranty does not cover.

•

Longer engine cranking periods.

•

Increased emission levels.

•

Reduced vehicle performance.

•

Reduced fuel economy.

E142732

478

Capacities and Specifications

An oil that displays this symbol conforms
to current engine, emission system and
fuel economy performance standards of
ILSAC.

We recommend Motorcraft motor oil for
your vehicle. If Motorcraft oil is not
available, use motor oils of the
recommended viscosity grade that display
the API Certification Mark for gasoline
engines.

Do not use supplemental engine oil
additives because they are unnecessary
and could lead to engine damage that your
vehicle warranty does not cover.

Capacities

Including the Oil Filter

Variant

6.0 qt (5.7 L)

All.

Materials

Specification

Name

WSS-M2C961-A1

Motorcraft® SAE 5W-30 Motor Oil(U.S.)
Motorcraft® SAE 5W-30 Motor Oil / Huile moteur
SAE 5W-30 Motorcraft®(Canada)
XO-5W30-Q1SP, XO-5W30-Q1FS(U.S.)
CXO-5W30-LSP6, CXO-5W30-LFS6(Canada)

Alternative Engine Oil for
Extremely Cold Climates

To improve engine cold start performance,
we recommend that you use the following
alternative engine oil in extremely cold
climates, where the ambient temperature
reaches -22.0°F (-30°C) or below.

Materials

Specification

Name

WSS-M2C963-A1

Engine Oil - SAE 0W-30

479

Capacities and Specifications

E240523

Note:

If you use your vehicle regularly above

the altitude of 5,000 ft (1,524 m) and under
the temperature of -4.0°F (-20°C), it is
recommended to use the alternative engine
oil.

ENGINE OIL CAPACITY AND
SPECIFICATION - 3.0L
ECOBOOST™

Use oil that meets the defined
specification and viscosity grade.

If you do not use oil that meets the defined
specification and viscosity grade, it could
result in:
•

Component damage that your vehicle
warranty does not cover.

•

Longer engine cranking periods.

•

Increased emission levels.

•

Reduced vehicle performance.

•

Reduced fuel economy.

E142732

An oil that displays this symbol conforms
to current engine, emission system and
fuel economy performance standards of
ILSAC.

We recommend Motorcraft® motor oil for
your vehicle. If Motorcraft® oil is not
available, use motor oils of the
recommended viscosity grade that display
the API Certification Mark for gasoline
engines.

Do not use supplemental engine oil
additives because they are unnecessary
and could lead to engine damage that your
vehicle warranty does not cover.

480

Capacities and Specifications

Capacities

Including the Oil Filter

Variant

7.0 qt (6.62 L)

All.

Materials

Specification

Name

WSS-M2C961-A1

Motorcraft® SAE 5W-30 Motor Oil(U.S.)
Motorcraft® SAE 5W-30 Motor Oil / Huile moteur
SAE 5W-30 Motorcraft®(Canada)
XO-5W30-Q1SP, XO-5W30-Q1FS(U.S.)
CXO-5W30-LSP6, CXO-5W30-LFS6(Canada)

Alternative Engine Oil for
Extremely Cold Climates

To improve engine cold start performance,
use the following engine oil in climates
where the ambient temperature is -22.0°F
(-30°C) or below.

Materials

Specification

Name

WSS-M2C963-A1

Engine Oil - SAE 0W-30

E240523

481

Capacities and Specifications

Note:

If you use your vehicle regularly above

the altitude of 5,000 ft (1,524 m) and under
the temperature of -4.0°F (-20°C), it is
recommended to use the alternative engine
oil.

COOLING SYSTEM CAPACITY
AND SPECIFICATION - 2.3L
ECOBOOST™

Use coolant that meets the defined
specification.

If you do not use coolant that meets the
defined specification, it could result in:
•

Component damage that your vehicle
warranty does not cover.

•

Reduced vehicle performance.

Capacities

Quantity

Variant

10.5 qt (9.9 L)

All.

Materials

Specification

Name

WSS-M97B57-A2

Motorcraft® Yellow Prediluted Antifreeze/
Coolant(U.S.)
Motorcraft® Yellow Prediluted Antifreeze/Coolant
/ Antigel/liquide de refroidissement prédilué jaune
Motorcraft®(Canada)
VC-13DL-G(U.S.)
CVC-13DL-G(Canada)

COOLING SYSTEM CAPACITY
AND SPECIFICATION - 2.7L
ECOBOOST™

Use coolant that meets the defined
specification.

If you do not use coolant that meets the
defined specification, it could result in:
•

Component damage that your vehicle
warranty does not cover.

•

Reduced vehicle performance.

Capacities

Quantity

Variant

12.4 qt (11.7 L)

All.

482

Capacities and Specifications

Materials

Specification

Name

WSS-M97B57-A2

COOLING SYSTEM CAPACITY
AND SPECIFICATION - 3.0L
ECOBOOST™

Use coolant that meets the defined
specification.

If you do not use coolant that meets the
defined specification, it could reduce
vehicle performance or cause component
damage that your vehicle warranty does
not cover.

Capacities

Quantity

Variant

12.4 qt (11.7 L)

All.

Materials

Specification

Name

WSS-M97B57-A2

WSS-M97B57-A2 is yellow coolant. Yellow
coolant may appear fluorescent green in
some cooling systems which is a normal
characteristic.

Note:

Do not mix different colors or types

of coolant in your vehicle. This reduces the
effectiveness of the coolants and could void
the warranty.

483

Capacities and Specifications

AIR CONDITIONING SYSTEM
CAPACITY AND
SPECIFICATION - 2.3L
ECOBOOST™

WARNING:

The air conditioning

refrigerant system contains refrigerant
under high pressure. Only qualified
personnel should service the air
conditioning refrigerant system. Opening

the air conditioning refrigerant system
can cause personal injury.

Use refrigerant and oil that meets the
defined specifications.

If you do not use refrigerant and oil that
meets the defined specifications, it could
result in:
•

Component damage that your vehicle
warranty does not cover.

•

Reduced vehicle performance.

Capacities

Refrigerant Oil

Refrigerant

Variant

2.71 fl oz (80 ml)

21.2 oz (0.6 kg)

All.

Materials

Specification

Name

WSS-M17B21-A

R-1234yf Refrigerant(U.S.)
R-1234yf Refrigerant / Frigorigène R-1234yf(Canada)
YN-33-A(U.S.)
HS7Z-19B519-BA(Canada)

WSS-M2C300-A2

Motorcraft® R-1234yf Refrigerant PAG Oil(U.S.)
Motorcraft® R-1234yf Refrigerant PAG Oil / Huile
PAG pour frigorigène R-1234yf Motorcraft®(Canada)
YN-35(U.S. & Canada)

485

Capacities and Specifications

AIR CONDITIONING SYSTEM
CAPACITY AND
SPECIFICATION - 2.7L
ECOBOOST™

WARNING:

The air conditioning

refrigerant system contains refrigerant
under high pressure. Only qualified
personnel should service the air
conditioning refrigerant system. Opening

the air conditioning refrigerant system
can cause personal injury.

Use refrigerant and oil that meets the
defined specifications.

If you do not use refrigerant and oil that
meets the defined specifications, it could
result in:
•

Component damage that your vehicle
warranty does not cover.

•

Reduced vehicle performance.

Capacities

Refrigerant Oil

Refrigerant

Variant

2.71 fl oz (80 ml)

20 oz (0.58 kg)

All.

Materials

Specification

Name

WSS-M17B21-A

R-1234yf Refrigerant(U.S.)
R-1234yf Refrigerant / Frigorigène R-1234yf(Canada)
YN-33-A(U.S.)
HS7Z-19B519-BA(Canada)

WSS-M2C300-A2

Motorcraft® R-1234yf Refrigerant PAG Oil(U.S.)
Motorcraft® R-1234yf Refrigerant PAG Oil / Huile
PAG pour frigorigène R-1234yf Motorcraft®(Canada)
YN-35(U.S. & Canada)

486

Capacities and Specifications

AIR CONDITIONING SYSTEM
CAPACITY AND
SPECIFICATION - 3.0L
ECOBOOST™

WARNING:

The air conditioning

refrigerant system contains refrigerant
under high pressure. Only qualified
personnel should service the air
conditioning refrigerant system. Opening

the air conditioning refrigerant system
can cause personal injury.

Use refrigerant and oil that meets the
defined specifications.

If you do not use refrigerant and oil that
meets the defined specifications, it could
result in:
•

Component damage that your vehicle
warranty does not cover.

•

Reduced vehicle performance.

Capacities

Refrigerant Oil

Refrigerant

Variant

2.71 fl oz (80 ml)

20.5 oz (0.58 kg)

All.

Materials

Specification

Name

WSS-M17B21-A

R-1234yf Refrigerant(U.S.)
R-1234yf Refrigerant / Frigorigène R-1234yf(Canada)
YN-33-A(U.S.)
HS7Z-19B519-BA(Canada)

WSS-M2C300-A2

Motorcraft® R-1234yf Refrigerant PAG Oil(U.S.)
Motorcraft® R-1234yf Refrigerant PAG Oil / Huile
PAG pour frigorigène R-1234yf Motorcraft®(Canada)
YN-35(U.S. & Canada)

WASHER FLUID SPECIFICATION

Capacities

Quantity

Variant

Fill as required.

All.

487

Capacities and Specifications

Materials

Specification

Name

WSS-M14P19-A

Motorcraft® Premium Windshield Wash Concen-
trate with Bitterant(U.S.)
Motorcraft® Premium Quality Windshield Washer
Fluid / Liquide lave-glace de haute qualité Motor-
craft®(Canada)
ZC-32-B2(U.S.)
CXC-37-F/M(Canada)

AUTOMATIC TRANSMISSION
FLUID CAPACITY AND
SPECIFICATION

Materials

Specification

Name

WSS-M2C949-A,

Motorcraft® MERCON® ULV Automatic Transmis-
sion Fluid(U.S.)
Motorcraft® MERCON® ULV Automatic Transmis-
sion Fluid / MERCON® ULV huile pour boîtes auto-
matique Motorcraft®(Canada)
XT-12-QULV(U.S. & Canada)

Note:

Only use transmission fluid that

conforms to the defined specification. Use
of other fluids could result in vehicle
damage not covered by the vehicle
warranty.

BRAKE FLUID SPECIFICATION

Use fluid that meets the defined
specification and viscosity grade.

If you do not use fluid that meets the
defined specification and viscosity grade,
it could result in:
•

Component damage that your vehicle
warranty does not cover.

•

Reduced brake performance.

Note:

We recommend you use Dot 4 Low

Viscosity (LV) High Performance Brake Fluid
meeting WSS-M6C65-A2 specifications or
ISO 4925 Class 6 standards. If you use any
fluid other than the recommended fluid, it
could cause reduced brake performance
and not meet our performance standards.
Keep brake fluid clean and dry.
Contamination with dirt, water, petroleum
products or other materials could result in
brake system damage and possible failure.

488

Capacities and Specifications

Capacities

Quantity

Variant

Fill as required.

All.

Materials

Specification

Name

WSS-M6C65-A2

Motorcraft® DOT 4 LV High Performance Motor
Vehicle Brake Fluid(U.S.)
Motorcraft® DOT 4 LV High Performance Motor
Vehicle Brake Fluid / Liquide de frein automobile
haute performance DOT 4 LV Motorcraft®(Canada)
PM-20(U.S. & Canada)

TRANSFER CASE FLUID
CAPACITY AND
SPECIFICATION

Use fluid that meets the defined
specification and viscosity grade.

If you do not use fluid that meets the
defined specification and viscosity grade,
it could result in:
•

Component damage that your vehicle
warranty does not cover.

•

Reduced vehicle performance.

Capacities

Quantity

Variant

1.3 qt (1.2 L)

Four-wheel drive (Electronic shift on the
Fly).

1.6 qt (1.55 L)

Automatic four-wheel drive.

Materials

Specification

Name

WSS-M2C938-A

Motorcraft® MERCON® LV Automatic Transmission
Fluid(U.S.)
Motorcraft® MERCON® LV Automatic Transmission
Fluid / Huile pour boîte automatique MERCON® LV
Motorcraft®(Canada)
XT-10-QLVC(U.S.)
CXT-10-LV6(Canada)

489

Capacities and Specifications

FRONT AXLE FLUID CAPACITY
AND SPECIFICATION

Use fluid that meets the defined
specification and viscosity grade.

If you do not use fluid that meets the
defined specification and viscosity grade,
it could result in:
•

Component damage that your vehicle
warranty does not cover.

•

Reduced vehicle performance.

Capacities

Quantity

Variant

23.8 ± 0.8 fl oz (705 ± 25 ml)

Without electronic locking differential and
without front axle disconnect.

Materials

Specification

Name

WSP-M2C197-A

Motorcraft® SAE 80W-90 Premium Rear Axle
Lubricant(U.S.)
Motorcraft® SAE 80W-90 Premium Axle Lubricant
/ Lubrifiant pour essieux de très haute qualité SAE
80W-90 Motorcraft®(Canada)
XY-80W90-QL(U.S.)
CXY-80W90-1L(Canada)

REAR AXLE FLUID CAPACITY
AND SPECIFICATION

Use fluid that meets the defined
specification and viscosity grade.

If you do not use fluid that meets the
defined specification and viscosity grade,
it could result in:
•

Component damage that your vehicle
warranty does not cover.

•

Reduced vehicle performance.

Capacities

Quantity

Specification

Variant

65 ± 0 fl oz (1.93 ± 0.03 L)

75w85

Standard axle high ride.

60 ± 0 fl oz (1.73 ± 0.03 L)

75w85

Locking axle high ride.

80 ± 0 fl oz (2.35 ± 0.03 L)

75w85

Raptor locking axle.

490

Capacities and Specifications

VEHICLE IDENTIFICATION
NUMBER

LOCATING THE VEHICLE
IDENTIFICATION NUMBER

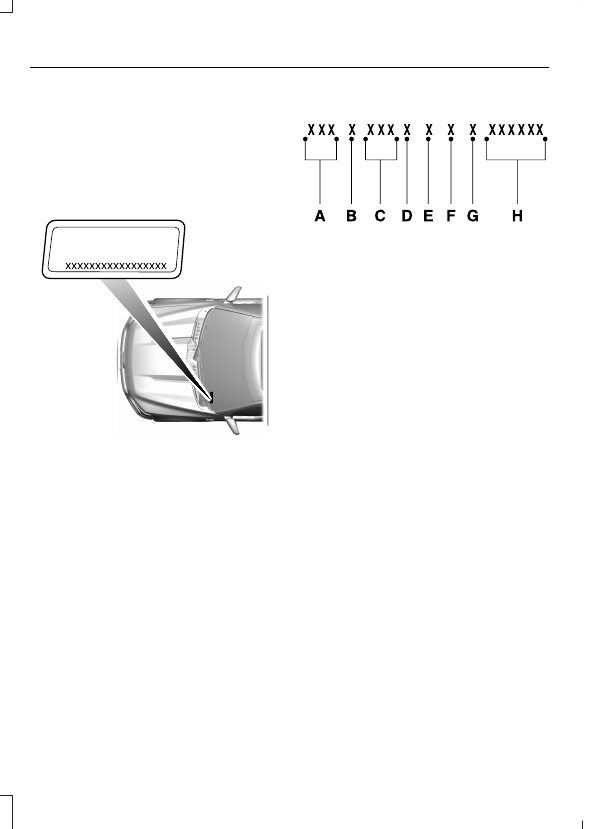

The vehicle identification number is on the
left-hand side of the instrument panel.

E311767

Note:

In the illustration, XXXX is

representative of your vehicle identification
number.

VEHICLE IDENTIFICATION
NUMBER OVERVIEW

The vehicle identification number contains
the following information:

E142477

World manufacturer identifier.

Brake system, gross vehicle
weight rating, restraint devices
and their locations.

Make, vehicle line, series, body
type.

Engine or motor type.

Check digit.

Model year.

Assembly plant.

Production sequence number.

492

Vehicle Identification

WHAT IS A CONNECTED
VEHICLE

A connected vehicle has technology that
allows your vehicle to connect to a mobile
network and for you to access a range of
features. When used in conjunction with
the FordPass app, it could allow you to
monitor and control your vehicle further,
for example checking the tire pressures,
the fuel level and the vehicle location. For
additional information, refer to the local
Ford website.

CONNECTED VEHICLE
REQUIREMENTS

Connected service and related feature
functionality requires a compatible vehicle
network.

Some remote features require additional
service activation. Log in to your Ford
account for details. Some restrictions, third
party terms and message or data rates
may apply.

CONNECTED VEHICLE
LIMITATIONS

Evolving technology, cellular networks, or
regulations could affect functionality and
availability, or continued provision of some
features. These changes could even stop
some features from functioning.

CONNECTING THE VEHICLE TO
A MOBILE NETWORK

WHAT IS THE MODEM

The modem allows access to a
range of features built into your
vehicle.

ENABLING AND DISABLING THE
MODEM

E386797

Press the button on the

touchscreen.

2. Press

Connectivity

3. Press

Connected Vehicle Features

4. Switch vehicle connectivity on or off.

CONNECTING FORDPASS TO THE
MODEM

Make sure that the modem is enabled
using the vehicle settings menu.

2. Open the FordPass app on your device

and log in.

3. Add your vehicle or select your vehicle

if already added.

4. Select the option to activate your

vehicle.

5. Make sure that the name on the screen

matches the name shown in your
FordPass account.

6. Confirm that FordPass account is

connected to the modem.

CONNECTING THE VEHICLE TO
A WI-FI NETWORK

E386797

Press the button on the

touchscreen.

2. Press

Connectivity

3. Press

Wi-Fi

4. Switch

Wi-Fi

on.

5. Press

View Available Networks

6. Select an available Wi-Fi network.

Note:

Enter the network password to

connect to a secure network.

493

Connected Vehicle

CONNECTED VEHICLE –
TROUBLESHOOTING

CONNECTED VEHICLE –
FREQUENTLY ASKED QUESTIONS

Why can I not confirm the
connection of my FordPass
account to the modem?

•

The modem is not enabled. Switch
vehicle connectivity on.

•

The network signal is weak. Move your
vehicle closer to a place where the
network signal is not obstructed.

Why can I not connect to a Wi-Fi
network?

•

You entered the wrong network
password. Enter the correct password.

•

The network signal is weak. Move your
vehicle closer to the Wi-Fi router or to
a place where the network signal is not
obstructed.

•

There are multiple access points in
range with the same network name.
Choose a unique name for your
network. Do not use the default name
unless it contains a unique identifier,
for example as part of the MAC
address.

Why does the Wi-Fi connection
disconnect after successful
connection?

•

The network signal is weak. Move your
vehicle closer to the Wi-Fi router or to
a place where the network signal is not
obstructed.

What can I do if I am close to a Wi-
Fi router but the network signal
strength is weak?

•

If your vehicle has a heated windshield,
position your vehicle so that the
windshield is not facing the Wi-Fi
router.

•

If your vehicle has metallic tinting on
the windows but not on the windshield,
position your vehicle so that the
windshield is facing the Wi-Fi router or
open the windows that are facing the
router.

•

If your vehicle has metallic tinting on
the windows and the windshield, open
the windows that are facing the router.

•

If your vehicle is in a garage and you
have the garage door closed, open the
garage door as it could block the signal.

Why can I not see a network I
expect to see in the list of available
networks?

•

The network is hidden. Make the
network visible and try again, or
manually add a network in the Wi-Fi
settings menu.

•

Some network security types are not
supported, for example WEP.

Why do software downloads take
too long?

•

The network signal is weak. Move your
vehicle closer to the Wi-Fi router or to
a place where the network signal is not
obstructed.

•

Wi-Fi network is in high demand or has
a slow Internet connection. Use a more
reliable Wi-Fi network.

494

Connected Vehicle

CREATING A VEHICLE WI-FI
HOTSPOT

You can create a Wi-Fi hotspot in your
vehicle and allow devices to connect to it
for access to the Internet.

E386797

Press the button on the

touchscreen.

2. Press

Connectivity

3. Press

Vehicle Hotspot

Note:

The vehicle hotspot default setting

is on.

4. Press Settings under the Vehicle

Hotspot menu.

5. Press

Edit

6. Switch the Wi-Fi Visibility option on or

off.

Note:

The Wi-Fi visibility default setting is

on.

Finding the Wi-Fi Hotspot Name
and Password

E386797

Press the button on the

touchscreen.

2. Press

Connectivity

3. Press

Vehicle Hotspot

4. Press Settings under the Vehicle

Hotspot menu.

Note:

The network name is the hotspot

name.

5. Switch the Show Password option on

or off.

Connecting a Device to the Wi-Fi
Hotspot

On your device, switch Wi-Fi on and
select the hotspot from the list of
available Wi-Fi networks.

2. When prompted, enter the password.

Purchasing a Data Plan

Connect a device to the hotspot.

Note:

The vehicle network carrier’s portal

opens on your device.

2. If the portal does not open on your

device, open a website and it redirects
to the vehicle network carrier’s portal.

Note:

Secure websites do not redirect.

3. Follow the instructions on the carrier

portal to purchase a plan.

Note:

If you have an active plan, the system

does not redirect to the vehicle network
carrier’s portal when you connect a device.
Visit the vehicle network carrier’s website
to purchase more data.

Note:

If data usage information is available

in the vehicle hotspot menu, it is
approximate.

Note:

If you carry out a factory reset, the

system does not remove your vehicle from
your vehicle network carrier’s account. To
remove your vehicle from the account,
contact your vehicle network carrier.

Note:

The vehicle network carrier provides

Vehicle Hotspot services, subject to your
vehicle network carrier agreement, coverage
and availability.

496

Vehicle Wi-Fi Hotspot

CHANGING THE VEHICLE WI-
FI HOTSPOT NAME OR
PASSWORD

E386797

Press the button on the

touchscreen.

2. Press

Connectivity

3. Press

Vehicle Hotspot

4. Press Settings under the Vehicle

Hotspot menu.

5. Press

Edit

6. Press

Change Network Name

Enter your required network name.

8. Press enter to save the network name.

9. Press

Change Password

10.

Enter your required password.

11.

Press enter to save the password.

Changing the Wi-Fi Hotspot
Frequency

Note:

The vehicle hotspot frequency band

is selectable depending upon your device
capabilities. You will not be able to connect
your device to the vehicle hotspot if it does
not support the selected frequency band.

E386797

Press the button on the

touchscreen.

2. Press

Connectivity

3. Press

Vehicle Hotspot

4. Press Settings under the Vehicle

Hotspot menu.

5. Press

Edit

6. Select a frequency.

VEHICLE WI-FI HOTSPOT –
TROUBLESHOOTING

VEHICLE WI-FI HOTSPOT –
FREQUENTLY ASKED QUESTIONS

Why can I not see the Wi-Fi hotspot
name when I search for Wi-Fi
networks on my cell phone or other
device?

•

Make sure Wi-Fi hotspot visibility is on.

•

The system does not provide a Wi-Fi
hotspot at this time.

•

Check what frequency the hotspot is
transmitting in the vehicle hotspot
settings menu. If the frequency is 5 GHz
and your device cannot see the
network, change the frequency to 2.4
GHz.

497

Vehicle Wi-Fi Hotspot

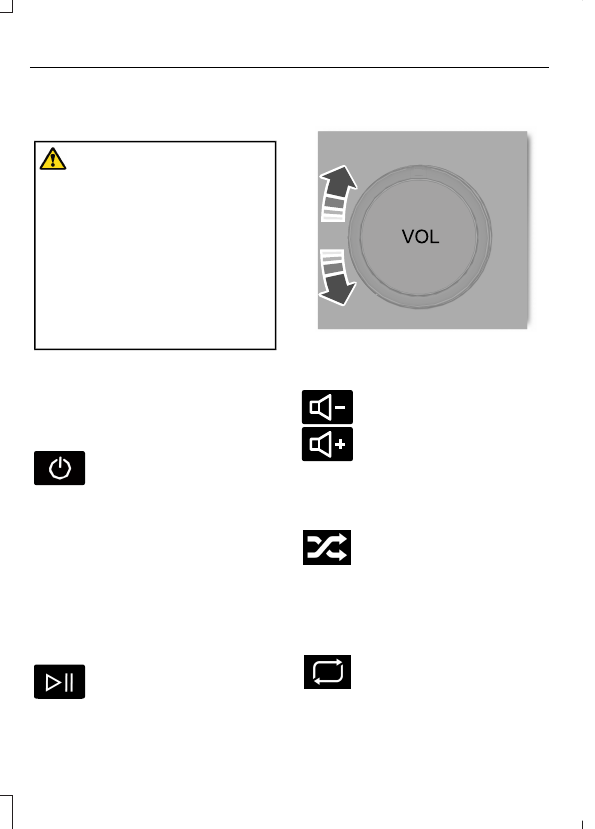

AUDIO SYSTEM
PRECAUTIONS

WARNING:

Driving while distracted

can result in loss of vehicle control, crash
and injury. We strongly recommend that
you use extreme caution when using any
device that may take your focus off the
road. Your primary responsibility is the
safe operation of your vehicle. We
recommend against the use of any
hand-held device while driving and
encourage the use of voice-operated
systems when possible. Make sure you
are aware of all applicable local laws
that may affect the use of electronic
devices while driving.

Listening to loud audio for long periods of
time could damage your hearing.

SWITCHING THE AUDIO UNIT
ON AND OFF

Press the button on the volume
control.

SELECTING THE AUDIO
SOURCE

Press your preferred audio source.

Note:

Available audio sources are listed

along the top of the radio screen.

PLAYING OR PAUSING THE
AUDIO SOURCE

Press to pause playback. Press
again to resume playback.

Note:

Not all sources can be paused.

ADJUSTING THE VOLUME

E265373

Turn to adjust the volume.

Using the Steering Wheel

E280802

E280803

Press the buttons to adjust the
volume.

SWITCHING SHUFFLE MODE
ON AND OFF

Press the button on the
touchscreen to switch shuffle
mode on or off.

Note:

Not all sources have shuffle mode.

SWITCHING REPEAT MODE ON
AND OFF

Press the button on the
touchscreen to switch repeat
mode on or off.

Note:

Not all sources have repeat mode.

498

Audio System

SETTING A MEMORY PRESET

Select a station.

2. Press and hold a memory preset button

on the touchscreen.

Note:

The audio mutes briefly while the

system saves the preset and returns once
stored.

Note:

You can save presets from multiple

radio bands to the memory preset bar.

ADJUSTING THE SOUND
SETTINGS

To access the sound settings menu:

E386797

Press the button on the

touchscreen.

2. Press

Sound

From the menu, you can adjust the
following:
•

Balance and fade.

•

Tone settings.

•

Speed compensated volume.

•

Volume settings.Occupancy mode.

•

Sound mode.

SETTING THE CLOCK AND
DATE

E386797

Press the button on the

touchscreen.

2. Press

General

3. Press

Clock

4. Set the time.

Note:

The

and

options are not

available if

24-hour mode

is on.

Switching Automatic Time
Updates On and Off

E386797

Press the button on the

touchscreen.

2. Press

General

3. Press

Clock

4. Switch

Automatic time zone update

on or off.

FM RADIO

FM RADIO LIMITATIONS

The further you travel from a FM station,
the weaker the signal and the weaker the
reception.

Hills, mountains, tall buildings, bridges,
tunnels, freeway overpasses, parking
garages, dense tree foliage and
thunderstorms can interfere with the
reception.

When you pass a ground-based broadcast
repeating tower, a stronger signal may
overtake a weaker one and result in the
audio system muting.

SELECTING AN FM RADIO
STATION

Manually Selecting a Radio
Station

E356421

Press the button on the radio
tuner to go up the frequency
band.

E356422

Press the button on the radio
tuner to go down the frequency
band.

499

Audio System

Using Seek

Press to seek the next station up
the frequency band.

Press and hold to quickly seek up the
frequency band.

Press to seek the next station
down the frequency band.

Press and hold to quickly seek down the
frequency band.

Using the Station List

Press the search button on the radio
screen.

2. Press a radio station from the list.

DIGITAL RADIO

(IF EQUIPPED)

WHAT IS DIGITAL RADIO

HD Radio™ technology is the digital
evolution of analog FM radio.

For additional information, visit

www.HDRadio.com

HD Radio Technology is manufactured
under license from iBiquity Digital
Corporation and foreign patents. HD Radio
and the HD and HD Radio logos are
proprietary trademarks of XPERI. The
vehicle manufacturer and XPERI are not
responsible for the content sent using HD
Radio technology. Content may be
changed, added or deleted at any time at
the station owner's discretion.

HOW DOES DIGITAL RADIO WORK

Your system has a special receiver that
allows it to receive digital broadcasts in
addition to analog broadcasts.

HD1 signifies the main programming status
and is available in both analog and digital
broadcasts. Other multicast stations are
only available digitally and could contain
new or different content.

Note:

When the system first receives an

HD1 station, it plays the station in the analog
version until it verifies the station is an HD
Radio station. Then it shifts to the digital
version.

Note:

There is an audio mute delay when

switching to an HD2 or HD3 station because
the system has to reacquire and decode the
digital signal.

DIGITAL RADIO LIMITATIONS

If you are outside the reception area, the
system could not work.

If you are on the fringe of the reception
area, the station could mute due to weak
signal strength.

Note:

If you are listening to HD1, the system

changes back to the analog broadcast until
the digital broadcast is available again. If
you are listening to any other multicast
channels, the station mutes and stays
muted unless it is able to connect to the
digital signal again.

Depending on the station quality, you could
hear a slight sound change when the
station changes between analog and
digital audio.

You cannot access a saved HD station if
your vehicle is outside the station’s
reception area.

SWITCHING DIGITAL RADIO
RECEPTION ON AND OFF

Press

Settings

on the touchscreen.

2. Press

Radio Settings

3. Switch

HD Radio

on or off.

500

Audio System

DIGITAL RADIO INDICATORS

HD Radio Indicator

The indicator appears when HD Radio is
on and you tune to a station broadcasting
HD Radio technology.

E142616

The color of the indicator changes to
indicate the system status.

Gray indicates the system is acquiring a
digital station.

Orange indicates digital audio is playing.

Multicast Indicator

The multicast indicator appears if the
current station is broadcasting multiple
digital broadcasts. The highlighted
numbers indicate additional digital
channels available.

Note:

For stations that have more than one

HD multicast, the HD indicator and radio
text appears as a button. Press the button
to cycle through all of the HD stations on
that specific frequency.

SATELLITE RADIO

(IF EQUIPPED)

WHAT IS SATELLITE RADIO

Your factory-installed SiriusXM radio
system includes a limited subscription
term, which begins on the date of sale or
lease of your vehicle. See an authorized
dealer for availability.

For additional information about extended
subscription terms, visit

www.SiriusXM.com

in the United States,

www.SiriusXM.ca

Canada, or call SiriusXM at
1-888-539-7474.

Note:

SiriusXM reserves the unrestricted

right to change, rearrange, add or delete
programming including canceling, moving
or adding particular channels, and its prices,
at any time, with or without notice to you.
Neither SiriusXM and its affiliates nor Ford
Motor Company and its affiliates will be
liable to you or any third party for any such
modification, suspension or termination.

SATELLITE RADIO LIMITATIONS

For optimal reception performance, keep
the antenna clear of snow and ice build-up
and keep luggage and other material as
far away from the antenna as possible.
Placing luggage over the antenna may
reduce performance. Factory-installed and
aftermarket vehicle structures including,
but not limited to, roof racks and soft top
roofs in a partially open position could
reduce reception performance.

Hills, mountains, tall buildings, bridges,
tunnels, freeway overpasses, parking
garages, dense tree foliage and
thunderstorms can interfere with your
reception.

When you pass a ground-based
broadcast-repeating tower, a stronger
signal may overtake a weaker one and
could result in the audio system muting.
Your display could show an error message
to indicate the interference.

LOCATING THE SATELLITE RADIO
IDENTIFICATION NUMBER

Select SiriusXM as the audio source.

2. Tune to channel 0.

501

Audio System

SELECTING A CHANNEL

Manually Selecting a Channel

E328569

E328570

Press the button to find the
previous or next available radio
channel.

Linear Tuner

The linear tuner is displayed when
manually selecting a channel. You can
swipe left or right on the linear tuner
carousel to navigate through the channel
list. Tap on a channel title to listen to it.

Using Direct Tune

Press the channel up or down button
to open the linear tuner screen.

2. Press

Direct Tune

to open the number

pad.

3. Enter the channel you prefer.

Using Browse

Press

Browse

2. Select a channel.

SATELLITE RADIO SETTINGS

Subscription

Your subscription status is displayed. You
can subscribe or manage your subscription
directly from the touchscreen.

SiriusXM Favorites

While you are listening to SiriusXM, you can
save favorites by:

•

Tapping the currently tuned channel
or show logo on the SiriusXM audio
screen.

•

Tuning to a channel or show you want
to save as a favorite. Navigate to the
SiriusXM Favorites screen and press
the Add Current button. The currently
tuned channel or show is saved as a
favorite.

•

Saving a radio preset. This saves the
currently tuned SiriusXM channel or
show as a favorite

Note:

Requires a trial or active subscription

to use.

Listening History

Listening history is a list of recently listened
to SiriusXM content. You can view, manage
and reset the listening history using the
controls on the touchscreen.

Note:

Requires a trial or active subscription

to use.

Help and Support

You can contact SiriusXM Customer Care
directly from the operating system and
view information required to manage your
SiriusXM account.

502

Audio System

AUDIO SYSTEM – TROUBLESHOOTING

AUDIO SYSTEM – INFORMATION MESSAGES

Satellite Radio Troubleshooting

Recommended Action

Potential Effects

Error Message

Internet connectivity is

turned off. See

Connected

Vehicle

(page 493).

Internet streaming and On

Demand shows are unavail-

able and some SiriusXM

features are disabled.

Connectivity Disabled

SYNC attempts to connect.

See

Satellite Radio Limit-

ations

(page 501). Switch to

a satellite connection for the
current channel if the option

is available.

Audio system may mute.

Switch to Satellite button

may be displayed on the

SiriusXM audio screen if the
channel is also available via

satellite.

No Internet

Antenna may be obstructed
or satellite reception is weak
in your location. See

Satel-

lite Radio Limitations

(page 501). Switch to an

internet connection for the

current channel if the option

is available.

Audio system may mute.

Switch to Internet button

may be displayed on the

SiriusXM audio screen if the
channel is also available via

streaming.

No Satellite Signal

Allow some time for the

audio to load or tune to a

different channel.

Audio system may mute

while the audio attempts to

load.

Slow Network Connection

A temporary update may be
in progress. Allow some time
before retrying to tune to the

channel. If the issue

continues, the channel may

no longer be available.

Audio system may mute.

Radio may tune to a

different channel.

Channel Unavailable

A temporary update may be
in progress. Allow some time

before retrying to play the

episode. If the issue

continues, the episode may

no longer be available.

Audio system may mute.

Radio may tune to a

different channel.

Episode Unavailable

503

Audio System

Recommended Action

Potential Effects

Error Message

Allow some time and retry

the action.

Audio system may mute.

Radio may tune to a

different channel.

Something went wrong

Your subscription has

expired or you have not yet

subscribed for access to the

listed content. Navigate to

Subscription under the

Satellite Radio Settings

menu. If you have an active

subscription which includes
the listed channel or content

and you see this error, you

may need to refresh your

radio. To refresh your Siri-

usXM radio, visit www.siri-

usxm.com/refresh in the US,

or www.siriusxm.ca/refresh

in Canada.

You may need to provide

your SiriusXM Radio identific-

ation number. See

Locating the Satellite

Radio Identification

Number

(page 501).

Cannot listen to selected

content. Content may

appear grayed out and some

features may be disabled.

Subscribe to Listen

504

Audio System

Ford Ranger (2024 year). Manual in english - page 15
