WHAT IS DRIVE MODE
CONTROL

Your vehicle has various drive modes that
you can select for different driving
conditions. Depending on the drive mode
that you select, the system adjusts various
vehicle settings.

HOW DOES DRIVE MODE
CONTROL WORK

Drive mode control adjusts your vehicle
configuration for each mode you select.

Changing the drive mode adjusts the
steering effort and feel of the steering
system.

The stability and traction control assist
your vehicle control in adverse conditions
or high-performance driving.

Throttle control enhances the powertrain
response, transmission controls become
optimized with shift schedules, and
four-wheel drive settings are optimized
and tuned to each mode.

Changing the drive mode can engage or
disengage the electronic locking
differentials.

Changing the drive mode changes the
four-wheel drive mode to the default
setting for the selected drive mode.

Note:

The system has diagnostic checks

that continuously monitor the system for
proper operation. If a mode is unavailable
due to a system fault, the drive mode
system defaults to normal. When the
system defaults to normal, the driveline
settings remain the same as prior to the
system fault.

Note:

Your vehicle reverts to normal mode

each time it is started. If you shut your
vehicle off in a drive mode other than
normal mode, at startup the instrument
cluster screen displays a pop-up asking if
you would like to return to your last used
drive mode. If you select yes to the pop-up,
your vehicle returns to the last selected drive
mode and the default four-wheel driveline
setting associated with that drive mode. If
you select no, your vehicle remains in normal
mode and the default four-wheel driveline
setting associated with that drive mode. If
you do not select yes or no the pop up
message times out, your vehicle remains in
normal mode, and the four-wheel driveline
setting remains in its last used setting.

SELECTING A DRIVE MODE

E359616

Rotate the drive mode control on the
center console to select or change a drive
mode.

Note:

Button icons vary depending on the

vehicle.

282

Drive Mode Control - Raptor

Selecting a Steering Mode

E347142

To change the steering feel,
press the button on the steering
wheel. The first press displays a

pop-up message in the instrument cluster
display of the selected mode and
subsequent presses changes the selected
mode.

Modes:
•

Normal – Developed to complement
vehicle response during daily driving.

•

Sport – Slightly less assist and
damping for improved steering feel
during spirited driving.

•

Comfort – Slightly more assist for
driver preference and daily driving ease.

•

Off-road – Similar assist to Normal
with added damping for improved
control during off-road driving.

After selecting the desired setting, you may
feel a soft feedback bump in the steering
wheel when the changeover occurs.

Note:

If you disconnect or remove the

battery, the steering system defaults to
normal.

Selecting a Suspension Mode

E347107

To change the suspension feel,
press the button on the steering
wheel. The first press displays a

pop-up message in the instrument cluster
display of the selected mode and
subsequent presses changes the selected
mode.

Modes:
•

Normal – Developed to complement
vehicle response during daily driving.

•

Sport – Slightly firmer suspension with
emphasis on handling and control.

•

Off-road – Maximizes suspension
performance in extreme off-road
environments.

Selecting an Exhaust Mode

E347131

To change the exhaust sound,
press the button on the steering
wheel. The first press displays a

pop-up message in the instrument cluster
display of the selected mode and
subsequent presses changes the selected
mode.

Modes:
•

Normal – Default setting provides a
balance of comfort and feedback.

•

Sport – Slightly louder than normal for
spirited driving.

•

Baja – Loudest setting for off-road use
only. Maximum exhaust noise under all
driving conditions.

•

Quiet – Quietest setting for maximum
comfort under all driving conditions.

Quiet Start

Quiet start allows you to schedule when
the exhaust mode turns on the quiet
setting. The time window can be from 1 to
24 hours

Enabling and disabling quiet start:
1.

Press Settings.

2. Press Vehicle.
3. Press Quiet Start.
4. Press Quiet Start.
5. Press Settings.

Setting quiet time:
1.

Press Settings.

2. Press Vehicle.
3. Press Quiet Start.
4. Press Set Quiet Time.
5. Set your desired start and end times.

283

Drive Mode Control - Raptor

MyMode

E359278

You can use MyMode to create
one custom vehicle
configuration based on the

current state of your vehicle.

When you have your vehicle configured to
your desired settings, press and hold the
button for a few seconds to save as
MyMode.

Press the button twice to activates your
saved MyMode.

You can check the saved MyMode settings
with a single press of the button.

You can save the following settings as
MyMode:
•

Drive mode.

•

Steering mode.

•

Suspension mode.

•

Exhaust mode.

•

Four-wheel drive mode.

•

Stop and start on or off.

•

Rear electronic locking differential on
or off.

Note:

MyMode can only be set with

configurations that are available for each
drive mode. See

Drive Modes

(page 279).

Note:

You can save or view MyMode at any

time, regardless of your vehicle's speed or
transmission selection, as long as your
vehicle is running and it meets system
conditions.

Note:

When activating MyMode, your

vehicle must meet all preconditions for the
drive mode and various settings before it
activates. A message appears if it does not
meet system conditions.

DRIVE MODES

BAJA

E225314

For high speed off-road driving.
Baja mode optimizes the throttle
control for better response and

torque delivery.

Four-wheel drive high (4H) is the default
four-wheel drive mode. Four-wheel drive
auto (4A) is not selectable in baja mode.

The front electronic locking differential is
available below 25 mph (40 km/h) when
in four-wheel drive low (4L). The rear
electronic locking differential is available
at any speed in all selectable four-wheel
drive modes.

Note:

Do not use this mode on dry, hard

pavement. This could produce some
vibration, driveline bind up, and potential
excessive tire and vehicle wear depending
on the four-wheel drive mode selection.

NORMAL

E347003

For everyday driving. This mode
is the perfect balance of
excitement, comfort and

convenience. This is the default mode after
each ignition cycle, the driveline settings
remain the same prior to the ignition cycle.

Four-wheel drive auto (4A) is the default
four-wheel drive mode. All four-wheel drive
modes are selectable when in normal
mode.

The front electronic locking differential is
available below 25 mph (40 km/h) when
in four-wheel drive low (4L). The rear
electronic locking differential is available
below 25 mph (40 km/h).

Note:

The rear electronic locking differential

is available at any speed when in four-wheel
drive low (4L).

284

Drive Mode Control - Raptor

OFF-ROAD

E347001

For off-road driving through
sand, loose gravel, mud or mixed
off-road terrain. This mode

optimizes accelerator pedal response,
traction and stability controls in order to
enhance vehicle performance in off-road
environments. If your vehicle becomes
stuck in deep conditions, this mode may
assist with helping to get unstuck.

Four-wheel drive high is the default
four-wheel drive mode. Four-wheel drive
low is selectable in off-road mode.

Comfort is the default steering mode. All
steering modes are available.

Off-road is the default suspension mode.
all suspension modes are available.

Sport is the default exhaust mode. All
exhaust modes are available.

The system tunes the engine and
transmission control to off-road mode.

The system tunes the stability and traction
control to off-road mode.

The electronic locking differential engages
when you select this mode at any speed,
and you can disengage it at any time using
the button. See See

Switching the

Electronic Locking Differential On and
Off

(page 210).

Note:

Do not use this mode when driving

on pavement or packed snow. This could
cause driveline bind up and damage the
system depending on the four-wheel drive
mode selection. See See

Four-Wheel Drive

(page 199).

ROCK CRAWL

E347002

For off-road driving and
optimum rock climbing. Rock
crawl mode optimizes throttle

response and adjusts transmission shift
points to provide additional control of your
vehicle.

Four-wheel drive low (4L) is the only
four-wheel drive mode available in rock
crawl mode.

Comfort is the default steering mode. All
steering modes are available.

Off-road is the default suspension mode.
All suspension modes are available.

Normal is the default exhaust mode. All
exhaust modes are available.

The front electronic locking differential is
available below 25 mph (40 km/h) when
in four-wheel drive low (4L). The rear
electronic locking differential is engaged
when in rock crawl mode and is available
at any speed.

SLIPPERY

E347004

For less than ideal conditions
such as snow or ice. This mode
can be used for crossing terrain

where a firm surface is covered with loose
or slippery material. Slippery mode lowers
throttle response and optimizes shifting
for slippery surfaces.

Four-wheel drive auto (4A) is the default
four-wheel drive mode. Two-wheel drive
high (2H) is not available.

The front electronic locking differential is
available below 25 mph (40 km/h) when
in four-wheel drive low (4L). The rear
electronic locking differential is available
below 25 mph (40 km/h).

285

Drive Mode Control - Raptor

Note:

The rear electronic locking differential

is available at any speed when in four-wheel
drive low (4L).

Note:

Do not use this mode on hard

pavement while in four-wheel drive high
(4H) or four-wheel drive low (4L). This
could produce some vibration, driveline bind
up, and potential excessive tire and vehicle
wear depending on the four-wheel drive
mode selection.

SPORT

E246593

For sporty driving with improved
performance handling and
response. This mode increases

accelerator pedal response and provides
a sportier steering feel. The powertrain
system holds onto lower gears longer,
helping your vehicle accelerate faster.

Two-wheel drive auto (2H) is the default
four-wheel drive mode. Four-wheel drive
low (4L) is not selectable in sport mode.

TOW/HAUL

E347108

For improved transmission
operation when towing a trailer
or a heavy load. This mode

moves upshifts to higher engine speeds to
reduce the frequency of transmission
shifting. This mode also provides engine
braking in all forward gears, which slows
your vehicle and assists you in controlling
your vehicle when descending a slope. The
amount of downshift braking provided
varies based on the amount you press the
brake pedal.

Four-wheel drive auto (4A) is the default
four-wheel drive mode. All four-wheel drive
modes are selectable in tow/haul mode.

The system tunes the steering and
suspension to enhance driving comfort
when towing or carrying heavy loads.

The electronic locking differential is
available below 25 mph (40 km/h). See

Switching the Electronic Locking
Differential On and Off

(page 210).

286

Drive Mode Control - Raptor

WHAT IS THE INTELLIGENT
SPEED LIMITER

The system allows you to limit the vehicle
speed to the maximum speed limit
detected by the traffic sign recognition
system.

HOW DOES THE INTELLIGENT
SPEED LIMITER WORK

Intelligent speed limiter uses data from the
traffic sign recognition system to set a
maximum speed. For example, if the traffic
sign recognition system detects a 50 mph
(80 km/h) speed limit, the vehicle speed
is limited to 50 mph (80 km/h).

INTELLIGENT SPEED LIMITER
PRECAUTIONS

WARNING:

When you are going

downhill, your vehicle speed may
increase above the set speed. The
system will not apply the brakes but a
warning displays. Failure to follow this
warning could result in serious personal
injury or death.

WARNING:

You are responsible for

controlling your vehicle at all times. The
system is designed to be an aid and does
not relieve you of your responsibility to
drive with due care and attention. Failure
to follow this instruction could result in
the loss of control of your vehicle,
personal injury or death.

Note:

The system does not limit your

vehicle's speed to speed limits shown with
a supplementary traffic sign.

SWITCHING THE INTELLIGENT
SPEED LIMITER ON AND OFF

E280228

Press to switch the system on.

The system activates with the
detected speed limit or, if no

speed limit is detected the current speed
of your vehicle is set. Press again to switch
the system off.

SETTING THE SPEED LIMIT

E246884

E246885

Press the toggle button upward
or downward with the system in
standby mode to set the speed
limiter to the current vehicle
speed. The set speed is stored
and displayed in the instrument

cluster.

Note:

The set speed limiter adjusts when

the system detects a different maximum
speed limit.

Note:

If the system cannot detect a

maximum speed limit, the system returns
to standby mode.

CHANGING THE SET SPEED
LIMIT

E246884

E246885

You can adjust the set speed in
small or large increments. Press
the toggle button upward or
downward once to adjust the set
speed in small increments. Press
and hold the toggle button

upward or downward to adjust the set
speed in large increments.

287

Intelligent Speed Limiter

(If Equipped)

ADJUSTING THE SPEED LIMIT
TOLERANCE

E386797

Press the button on the

touchscreen.

2. Press

Driver Assistance

3. Press

Speed Limit Assist

4. Switch

Intelligent Speed Limiter

on.

5. Use the slider bar to adjust the

allowable tolerance for the system.

CANCELING THE SET SPEED
LIMIT

E308130

Press to cancel the limiter and
place it in standby mode. The
symbol in instrument cluster

display appears grey.

RESUMING THE SET SPEED
LIMIT

E308130

Press to resume the limiter. The
system sets the speed limit to
the detected maximum speed

limit when it resumes. The symbol in the
instrument cluster display appears green.

INTENTIONALLY EXCEEDING
THE SET SPEED LIMIT

Firmly press the accelerator pedal to
temporarily turn the system off. The
system reactivates once your vehicle speed
drops below the set speed.

INTELLIGENT SPEED LIMITER
INDICATORS

E280228

It illuminates in the instrument
cluster when the system is in
standby or active.

INTELLIGENT SPEED LIMITER
AUDIBLE WARNINGS

A warning appears in the instrument
cluster and a tone sounds if any of the
following occur:
•

Your vehicle's speed exceeds the
current set speed.

•

The system detects a maximum speed
limit that is lower than your vehicle's
current speed. A tone sounds when
your vehicle speed remains above the
speed limit for 30 seconds.

•

You intentionally exceed the set speed.

If the traffic sign recognition system
detects a speed limit outside the
operational speed range, 15–113 mph
(24–182 km/h), a single warning tone
sounds and the system switches to
standby mode.

SWITCHING FROM
INTELLIGENT SPEED LIMITER
TO SPEED LIMITER

E386797

Press the button on the

touchscreen.

2. Press

Driver Assistance

3. Press

Speed Limit Assist

4. Switch

Intelligent Speed Limiter

off.

288

Intelligent Speed Limiter

(If Equipped)

Note:

If you switch intelligent speed limiter

off, the system defaults to manual speed
limiter. You can manually set the speed
limiter using the controls on the steering
wheel.

INTELLIGENT SPEED LIMITER
– TROUBLESHOOTING

INTELLIGENT SPEED LIMITER –
FREQUENTLY ASKED QUESTIONS

Why does a warning appear in the
instrument cluster display?
•

The vehicle speed exceeds the current
set speed.

•

The system detects a maximum speed
limit that is lower than the current
vehicle speed.

•

You intentionally exceed the set speed.

289

Intelligent Speed Limiter

(If Equipped)

WHAT IS THE LANE KEEPING
SYSTEM

The lane keeping system alerts you by
providing temporary steering assistance
or steering wheel vibration when it detects
an unintended lane departure.

HOW DOES THE LANE
KEEPING SYSTEM WORK

The lane keeping system uses a forward
looking camera mounted on the windshield
to monitor vehicle movement within the
lane of travel.

When the camera detects a drift out of the
lane of travel, the lane keeping system
alerts the driver by vibrating the steering
wheel, or aids the driver by providing a
small steering input to move the vehicle
back into the lane of travel.

The driver can select one of three modes:

•

Alert

•

Aid

•

Alert + Aid

LANE KEEPING SYSTEM
PRECAUTIONS

WARNING:

You are responsible for

WARNING:

The system will not

operate if the sensor cannot track the
road lane markings.

WARNING:

The sensor may

incorrectly track lane markings as other
structures or objects. This can result in
a false or missed warning.

WARNING:

In cold and severe

weather conditions the system may not
function. Rain, snow and spray can all
limit sensor performance.

WARNING:

The system may not

operate properly if the sensor is blocked.
Keep the windshield free from
obstruction.

WARNING:

If damage occurs in the

immediate area surrounding the sensor,
have your vehicle checked as soon as
possible.

WARNING:

The system may not

correctly operate if your vehicle is fitted
with a suspension kit not approved by
us.

WARNING:

Large contrasts in

outside lighting can limit sensor
performance.

LANE KEEPING SYSTEM
LIMITATIONS

The lane keeping system only operates
when the vehicle speed is greater than
40 mph (64 km/h).

The system works when the camera can
detect at least one lane marking or the
edge of the road.

290

Lane Keeping System

Note:

When you select Aid or Alert and Aid

mode and the system detects no steering
activity for a short period of time, the system
alerts you to put your hands on the steering
wheel. The system may detect a light grip
or touch on the steering wheel as hands-off
driving.

The lane keeping system may not correctly
operate in any of the following conditions:
•

The lane keeping system does not
detect at least one lane marking.

•

You switch the turn signal on.

•

You apply direct steering, accelerate
fast or brake hard.

•

The vehicle speed is less than 40 mph
(64 km/h).

•

The anti-lock brake, stability control or
traction control system activates.

•

The lane is too narrow.

•

Something is obscuring the camera or
it is unable to detect the lane markings
due to environment, traffic or vehicle
conditions.

•

Entering or exiting a tight curve when
driving at high speeds.

The lane keeping system may not correct
lane positioning in any of the following
conditions:
•

High winds.

•

Uneven road surfaces.

•

Heavy or uneven loads.

•

Incorrect tire pressure.

SWITCHING THE LANE
KEEPING SYSTEM ON AND
OFF

E334922

To activate the lane keeping
system, press the button on the
steering wheel.

To deactivate the lane keeping system,
press the button again.

Note:

When switching the system on or off

a message appears in the instrument cluster
display to show the status.

Note:

The system stores the on or off

setting until manually changed.

SWITCHING THE LANE
KEEPING SYSTEM MODE

The lane keeping system has different
settings that you can view or adjust using
the information display.

•

Alert (If Equipped)

•

Aid

•

Alert and Aid

The system permanently stores the last
known selection for each setting.

To change the lane keeping system mode:

E386797

Press the button on the

touchscreen.

2. Press

Driver Assistance

3. Press

Lane-Keeping System

4. Press

Lane-Keeping Mode

5. Select a setting.

Note:

The system remembers the last

setting when you start your vehicle.

LANE KEEPING SYSTEM
SETTINGS

Adjusting the Steering Wheel
Vibration Intensity

E386797

Press the button on the

touchscreen.

291

Lane Keeping System

2. Press

Driver Assistance

3. Press

Lane-Keeping System

4. Press

Lane-Keeping Intensity

5. Select a setting.

Note:

This setting is not available in all

modes.

ALERT MODE

WHAT IS ALERT MODE

Alert mode vibrates the steering wheel
when it detects an unintended lane
departure.

HOW DOES ALERT MODE WORK

E165515

When in alert mode, the lane keeping
system alerts you by vibrating the steering
wheel. The intensity of the vibration is set
through the lane keeping system menu.

AID MODE

WHAT IS AID MODE

Aid mode provides temporary steering
assistance toward the center of the lane.

HOW DOES AID MODE WORK

E165516

The lane keeping system aids you when
an unintentional lane departure occurs.
The system provides a small steering input
to move the vehicle towards the center of
the lane.

ALERT AND AID MODE

WHAT IS ALERT AND AID MODE

Alert and aid mode uses multiple features
to keep you in your lane. The system first
provides a small steering input to bring
your vehicle back towards the center of
the lane. If your vehicle moves too far from
the center of the lane the system alerts
you with vibration in the steering wheel.

292

Lane Keeping System

HOW DOES ALERT AND AID MODE
WORK

E165517

Alert.

Aid.

The lane keeping system detects a lane
departure and provides aid when the
vehicles enters

and applies the

additional alert warning if

is entered.

LANE KEEPING SYSTEM
INDICATORS

E335296

If you switch the lane keeping system on,
a graphic with lane markings appears in
the instrument cluster display.

When you switch the system off, the lane
marking graphics do not display.

Note:

The overhead vehicle graphic may

still display if adaptive cruise control is
enabled.

While the lane keeping system is on, the
color of the lane markings change to

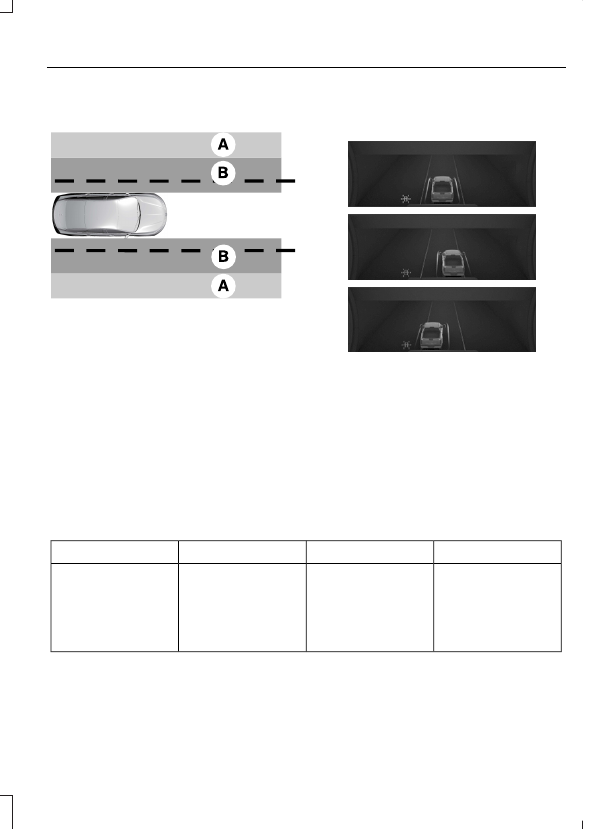

indicate the system status.

Red

Orange

Green

Gray

Indicates that the

system is providing

or has just provided
a lane keeping alert

warning.

Indicates that the

system is providing

or has just provided

a lane keeping aid

intervention.

Indicates that the

system is available

or ready to provide a

warning or interven-

tion on the indicated

side.

Indicates that the

system is tempor-

arily unavailable to

provide a warning or

intervention on the

indicated side.

293

Lane Keeping System

BLIND SPOT ASSIST

(IF EQUIPPED)

WHAT IS BLIND SPOT ASSIST

Blind spot assist is an extension of the lane
keeping system.

It may help you identify adjacent vehicles
during a lane change.

Blind spot assist provides a blind spot
warning and steering assistance to help
you become aware of and steer away from
vehicles in your blind spot during lane
changes.

HOW DOES BLIND SPOT ASSIST
WORK

E334922

Activate and deactivate the
system using the lane keeping
system button on the steering

wheel.

During lane changes, the design of the
blind spot assist feature detects vehicles
in, or approaching, your blind spot and
provides a warning, plus steering
assistance to direct your vehicle back into
your lane.

When active, this system functions with or
without the use of turn signals and hazard
flashers.

You must keep your hands on the steering
wheel at all times.

BLIND SPOT ASSIST LIMITATIONS

All system limitations present in the basic
lane keeping system also apply to blind
spot assist.

Blind spot assist does not function under
the following conditions:

•

No lane markings are detected.

•

One or both rear radar sensors become
blocked or faulty.

•

Attaching bike or cargo racks could
cause false alerts due to obstruction
of the sensor.

Blind spot assist may have difficulty
detecting hazards under the following
conditions:

•

If a vehicle is approaching in an
adjacent lane at a speed higher than
your vehicle.

•

Bad weather obstructing the sensors.

294

Lane Keeping System

BLIND SPOT ASSIST INDICATORS

E310089

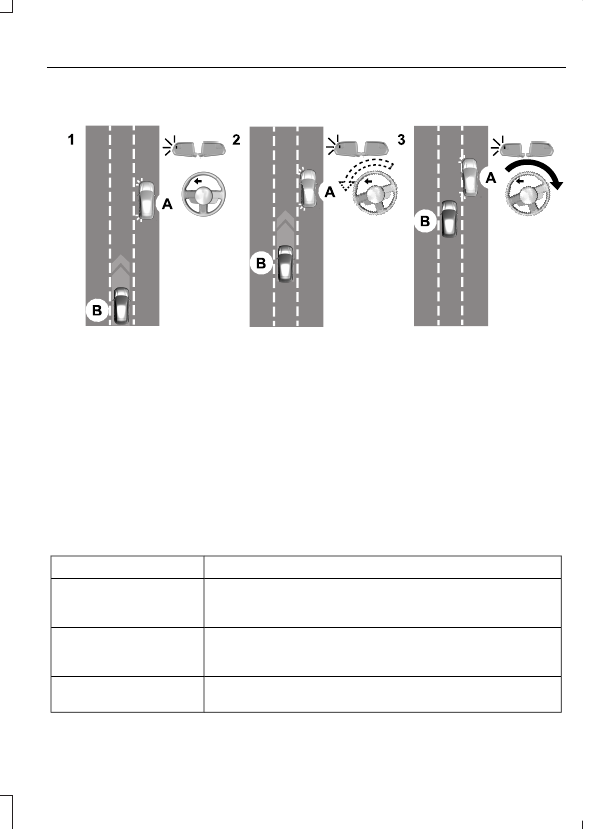

Diagram 1:

Vehicle A uses its left turn

signal preparing to change from the right
lane to the middle lane. Vehicle B is already
in the middle lane and just entered Vehicle
A's blind spot causing the blind spot
information system alert indicator to flash
on the exterior mirror.

Diagram 2:

The driver of Vehicle A begins

to steer into the center lane not aware of
Vehicle B.

Diagram 3:

Blind spot assist counter

steers to help alert the driver of Vehicle A
to direct their vehicle back into the right
lane to help avoid a possible collision with
Vehicle B.

The lane keeping aid warning lamp or
yellow lane marking in your instrument
cluster display indicate blind spot assist
activation. In addition, the blind spot
information system alert indicator flashes
on the exterior mirror on the same side as
the detection. See

Blind Spot

Information System

(page 301).

Blind Spot Assist Information Messages

Action

Message

Displays if you attach a trailer to your vehicle with the blind
spot information system switched off or you have not
configured the trailer.

Blind Spot Assist Not
Available Trailer
Attached

Displays if your blind spot information system sensors are
blocked.

Blind Spot Assist Not
Available Side Sensor
Blocked

The system has detected a fault that requires service. Have
your vehicle checked as soon as possible.

Blind Spot Assist System
fault

295

Lane Keeping System

Action

Message

Lost communication with the trailer module. Blind spot assist
is suppressed until the failure is fixed.

Trailer Brake Module
Fault

Lost communication with the trailer module. Blind spot assist
is suppressed until the failure is fixed.

Trailer Lighting Module
Fault See Manual

Front camera fault. Blind spot assist is disabled until the
failure is fixed.

Front Camera Fault
Service Required

BLIND SPOT ASSIST WITH
TRAILER COVERAGE

(IF EQUIPPED)

WHAT IS BLIND SPOT ASSIST
WITH TRAILER COVERAGE

Blind spot assist with trailer coverage is an
extension of the lane keeping system.

It may help you identify adjacent vehicles
during a lane change.

Blind spot assist provides a blind spot
warning and steering assistance to help
you become aware of and steer away from
vehicles in your blind spot during lane
changes.

When attaching a trailer, ensure you have
properly set up the trailer coverage
settings. See

Blind Spot Information

System With Trailer Coverage

(page

303).

HOW DOES BLIND SPOT ASSIST
WITH TRAILER COVERAGE WORK

E334922

Activate and deactivate the
system using the lane keeping
system button on the steering

wheel.

If a supported trailer is connected, the
function is reduced to only detecting
vehicles on both sides of your vehicle and
trailer, extending rearward from the
exterior mirrors to the end of your trailer.
See

Blind Spot Information System

With Trailer Coverage

(page 303).

When active, this system functions with or
without the use of direction indicators and
hazard flashers.

You must keep your hands on the steering
wheel at all times.

BLIND SPOT ASSIST WITH
TRAILER COVERAGE
LIMITATIONS

All system limitations present in the basic
lane keeping system also apply to blind
spot assist.

Blind spot assist does not function under
the following conditions:

296

Lane Keeping System

•

No lane markings are detected.

•

One or both rear radar sensors become
blocked or faulty.

•

You have not configured the attached
trailer correctly in the trailer tow menus
or you attached an unsupported trailer.
The system only supports certain trailer
shapes and dimensions.

Note:

Blind spot assist with trailer coverage

could have reduced performance if any of
the above limitations are present.

Blind spot assist may have difficulty
detecting hazards under the following
conditions:

•

If a vehicle is approaching in an
adjacent lane at a relative speed much
higher than your vehicle.

•

Bad weather conditions are present
that obstruct the sensors.

•

Attaching bike or cargo racks could
cause false alerts due to obstruction
of the sensor.

BLIND SPOT ASSIST WITH
TRAILER COVERAGE INDICATORS

E310089

Diagram 1:

Vehicle A uses its left turn

Diagram 2:

The driver of Vehicle A begins

to steer into the center lane not aware of
Vehicle B.

Diagram 3:

Blind spot assist counter

steers to help alert the driver of Vehicle A
to direct their vehicle back into the right
lane to help avoid a possible collision with
Vehicle B.

Blind Spot

Information System

(page 301).

297

Lane Keeping System

Blind Spot Assist Information Messages

Action

Message

Displays if you attach a trailer to your vehicle with the blind
spot information system switched off or you have not
configured the trailer.

Blind Spot Assist Not
Available Trailer
Attached

Displays if your blind spot information system sensors are
blocked.

Blind Spot Assist Not
Available Side Sensor
Blocked

The system has detected a fault that requires service. Have
your vehicle checked as soon as possible.

Blind Spot Assist System
fault

Lost communication with the trailer module. Blind spot assist
is disabled until the failure is fixed.

Trailer Brake Module
Fault

Lost communication with the trailer module. Blind spot assist
is disabled until the failure is fixed.

Trailer Lighting Module
Fault See Manual

Front camera fault. Blind spot assist is disabled until the
failure is fixed.

Front Camera Fault
Service Required

LANE KEEPING SYSTEM – TROUBLESHOOTING

LANE KEEPING SYSTEM – INFORMATION MESSAGES

Action

Message

The system has malfunctioned. Have your

vehicle checked as soon as possible.

Lane Keeping Sys. Malfunction Service

Required

The system has detected a condition that

has caused the system to be temporarily

unavailable.

Front Camera Temporarily Not Available

The system has detected a condition that

requires you to clean the windshield in order

for it to operate properly.

Front Camera Low Visibility Clean Screen

The system has malfunctioned. Have your

vehicle checked as soon as possible.

Front Camera Malfunction Service Required

The system requests that you keep your

hands on the steering wheel.

Keep Hands on Steering Wheel

298

Lane Keeping System

LANE KEEPING SYSTEM – FREQUENTLY ASKED QUESTIONS

Why is the feature not available (lane markings are gray) when I can see the lane markings

on the road?

Your vehicle speed is less than 40 mph (65 km/h).

The sun is shining directly into the camera lens.

A quick intentional lane change has occurred.

Your vehicle stays too close to the lane markings for an extended interval of time.

Driving at high speeds in curves.

The last alert warning or aid intervention occurred a short time ago.

Ambiguous lane markings, for example, in construction zones.

Rapid transition from light to dark, or from dark to light.

Sudden offset in lane markings.

ABS or AdvanceTrac™ is active.

There is a camera blockage due to dirt, grime, fog, frost or water on the windshield.

You are driving too close to the vehicle in front of you.

Transitioning between no lane markings to lane markings, or vice versa.

There is standing water on the road.

Faint lane markings, for example, partial yellow lane markings on concrete roads.

Lane width is too narrow or too wide.

You have not calibrated the camera after a windshield replacement.

Driving on tight or on uneven roads.

299

Lane Keeping System

WHAT IS BLIND SPOT
INFORMATION SYSTEM

Blind spot information system detects
vehicles that may have entered the blind
spot zone.

HOW DOES BLIND SPOT
INFORMATION SYSTEM WORK

Blind spot information system uses
sensors on both sides of your vehicle,
detecting rearward from the exterior
mirrors to approximately 13 ft (4 m)
beyond the rear bumper. The detection
area extends to approximately 59 ft (18 m)
beyond the rear bumper when the vehicle
speed is greater than 30 mph (48 km/h)
to alert you of faster approaching vehicles.

E255695

BLIND SPOT INFORMATION
SYSTEM PRECAUTIONS

WARNING:

Do not use the blind

spot information system as a
replacement for using the interior and
exterior mirrors or looking over your
shoulder before changing lanes. The
blind spot information system is not a
replacement for careful driving.

WARNING:

The system may not

operate properly during severe weather
conditions, for example snow, ice, heavy
rain and spray. Always drive with due
care and attention. Failure to take care
may result in a crash.

Note:

Blind spot information system does

not prevent contact with other vehicles. It
does not detect parked vehicles,
pedestrians, animals or other infrastructure.

BLIND SPOT INFORMATION
SYSTEM LIMITATIONS

Blind spot information system does not
operate in park (P) or reverse (R).

The system may not alert you if a vehicle
quickly passes through the detection zone.

BLIND SPOT INFORMATION
SYSTEM REQUIREMENTS

Vehicles with Automatic
Transmission

Blind spot information system turns on
when all the following occur:
•

You start your vehicle.

•

You shift into drive (D).

•

The vehicle speed is greater than
6 mph (10 km/h).

Note:

The system does not operate in park

(P) or reverse (R).

301

Blind Spot Information System

(If Equipped)

Vehicles with Manual
Transmission

(If Equipped)

Blind spot information system turns on
when all the following occur:
•

You start your vehicle.

•

The vehicle speed is greater than
6 mph (10 km/h).

Note:

The system does not operate in

reverse (R).

SWITCHING BLIND SPOT
INFORMATION SYSTEM ON
AND OFF

E386797

Press the button on the

touchscreen.

2. Press

Driver Assistance

3. Switch

Blind Spot Information

System

on or off.

When you switch blind spot information
system off, a warning lamp illuminates.
When you switch the system on or off, the
alert indicators flash twice.

Note:

The system remembers the last

setting when you start your vehicle.

LOCATING THE BLIND SPOT
INFORMATION SYSTEM
SENSORS

E395712

The sensors are inside the brake lamp on
both sides of your vehicle.

Note:

Keep the sensors free from snow, ice

and large accumulations of dirt.

Note:

Do not cover the sensors with bumper

stickers, repair compound or other objects.

Note:

Bike and cargo racks could cause

false alerts due to obstruction of the sensor.
We recommend switching the feature off
when using a bike or cargo rack.

Note:

Blocked sensors may affect system

accuracy.

If the sensors become blocked, a message
appears in the instrument cluster display.
See

Blind Spot Information System –

Information Messages

(page 306). The

alert indicators illuminate but the system
does not alert you.

302

Blind Spot Information System

(If Equipped)

BLIND SPOT INFORMATION
SYSTEM WITH TRAILER
COVERAGE

(IF EQUIPPED)

WHAT IS BLIND SPOT
INFORMATION SYSTEM WITH
TRAILER COVERAGE

E225007

Trailer coverage detection zone.

Blind spot information system detects
vehicles that may have entered the blind
spot zone. The detection area is on both
sides your vehicle and trailer, extending
rearward from the exterior mirrors to the
end of your trailer.

HOW DOES BLIND SPOT
INFORMATION SYSTEM WITH
TRAILER COVERAGE WORK

The blind spot information system with
trailer coverage is designed to detect
vehicles that could have entered the blind
spot zone. The detection area is on both
sides of your vehicle and trailer, extending
rearward from the exterior mirrors to the
end of your trailer. When you attach a
trailer and have set up a trailer, the blind
spot information system with trailer tow
becomes active when driving forward
above 6 mph (10 km/h).

You can set up the trailer length, select a
trailer or switch blind spot information
system with trailer tow off.

BLIND SPOT INFORMATION
SYSTEM WITH TRAILER
COVERAGE LIMITATIONS

Trailer coverage only supports
conventional trailers. The system turns off
if you select a fifth wheel or gooseneck
trailer type.

Make sure the trailer width is less than or
equal to 8 ft (2.4 m) and the length is less
than 33 ft (10.1 m). If you input values
higher, the system turns off.

Some trailers could cause a slight change
in system performance:
•

Large box trailers could cause false
alerts to occur when driving next to
infrastructures or near parked cars. A
false alert could also occur while
making a 90-degree turn.

•

Trailers that have a width greater than
8 ft (2.4 m) at the front and have a
total length greater than 20 ft (6 m)
could cause delayed alerts when a
vehicle is passing at high speeds.

•

Box trailers that have a width greater
than 8 ft (2.4 m) at the front could
cause early alerts when you pass a
vehicle.

•

Clamshell or V-nose box trailers with
a width greater than 8 ft (2.4 m) at the
front could cause delayed alerts when
a vehicle traveling the same speed as
your vehicle merges lanes.

303

Blind Spot Information System

(If Equipped)

SWITCHING BLIND SPOT
INFORMATION SYSTEM WITH
TRAILER COVERAGE ON AND OFF

E386797

Press the button on the

touchscreen.

2. Press

Driver Assistance

3. Switch

Blind Spot Information

System

on or off.

Note:

Some vehicles may not have the

ability to switch the feature on or off.

When you switch the system off, a warning
lamp illuminates and the alert indicators
flash twice.

Note:

The system turns off and a message

appears when a trailer is connected, but not
set up or selected.

SETTING A TRAILER LENGTH

E225008

Trailer length.

Trailer width.

Trailer hitch ball.

You can set up a trailer to work with the
blind spot information system through the
touchscreen. When setting up a trailer, a
sequence of screens appear asking for
trailer information.

Select the type of trailer; conventional,
fifth wheel or gooseneck.

Note:

The system only supports a

conventional trailer.

2. Do you want to set up blind spot with

trailer screen? No, the system turns off.
Yes, the system takes you to the next
screen.

3. Is the width less than or equal to 8 ft

(2.4 m)and the length less than or
equal to 33 ft (10 m)? Yes, the system
takes you to the next screen. No, the
system turns off.

4. Trailer width measurement. Measure

the width at the front of the trailer. The
maximum width the system can
support is 7.9 ft (2.4 m).

Note:

You do not need to enter an exact

trailer width measurement. You only need
to confirm the width of the trailer is less than
or equal to 8 ft (2.4 m).

5. Trailer length measurement. The trailer

length is the distance between the
trailer hitch ball and the rear of the
trailer. The maximum length the
system can support is 33 ft (10 m).

6. Enter the length of trailer. The default

setting is 25 ft (7.6 m). Select a length
that is equal to or within 3 ft (1 m) of
the actual measured length. For
example, if the actual measured length
is 25 ft (7.5 m), toggle the length in the
menu to 27 ft (8.2 m). The system
setup saves when you enter the trailer
length.

Note:

If the trailer is a bike rack or cargo

rack with electrical lighting, enter a length
of 3 ft (1 m). Cross traffic alert remains on
for trailers with a length of 3 ft (1 m) or less.

Note:

The system requires that you enter

the correct measurement for it to properly
function.

304

Blind Spot Information System

(If Equipped)

SELECTING A TRAILER

When you connect a trailer to your vehicle,
the trailer set up menu appears in the
touchscreen. This menu allows you to set
up a new trailer or choose from a
previously set up trailer. A warning
message appears and the system turns off
if you do not choose or add a new trailer.

Note:

The warning message may not

appear until your vehicle reaches 22 mph
(35 km/h).

BLIND SPOT INFORMATION
SYSTEM INDICATORS

E309137

E249861

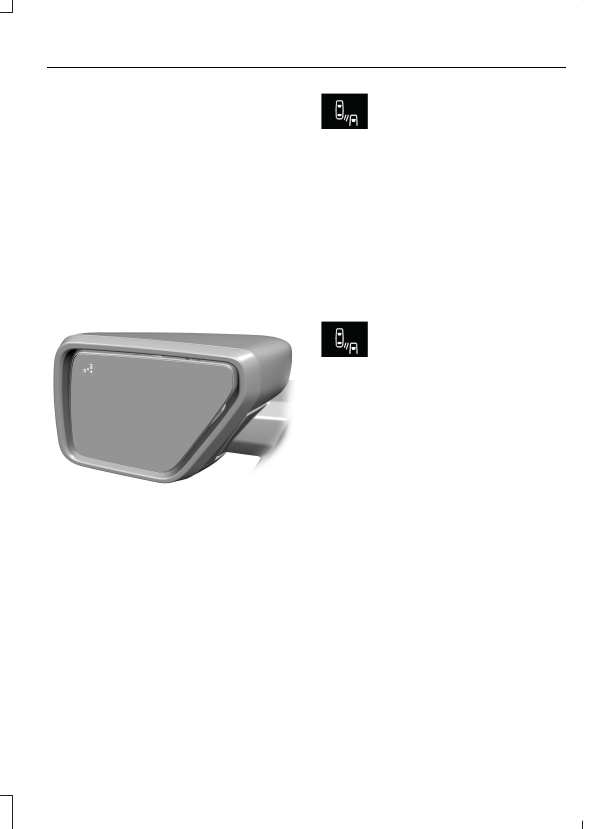

When blind spot information
system detects a vehicle, an
alert indicator illuminates in the

exterior mirror on the side from which the
vehicle is approaching. If you turn the turn
signal on for that side of your vehicle, the
alert indicator flashes.

BLIND SPOT INFORMATION
SYSTEM –
TROUBLESHOOTING

BLIND SPOT INFORMATION
SYSTEM – WARNING LAMPS

E249861

If the system detects a fault, it
illuminates in the instrument
cluster and a message appears

in the instrument cluster display. Have
your vehicle checked as soon as possible.

305

Blind Spot Information System

(If Equipped)

BLIND SPOT INFORMATION SYSTEM – INFORMATION MESSAGES

Action

Message

A fault with the system has occurred. Have

your vehicle checked as soon as possible.

Blind Spot System Fault

Something is blocking the sensors. Clean

the sensors.

Blind Spot Not Available Sensor Blocked

See Manual

The system automatically turns off and

displays this message when you connect a

trailer to your vehicle under any of the

following conditions:

- Your vehicle does not have blind spot

information system with trailer coverage.

- You switch the blind spot information

system off through the touchscreen.

- Your trailer exceeds the limits for the

system. See

Setting a Trailer Length

(page 304).

Blind Spot Alert Deactivated Trailer

Attached

Note:

When connecting a trailer, the system

may detect the trailer and turn the system
OFF. If the system does not automatically
turn OFF, manually switch the blind spot
information system OFF. If your vehicle has
the blind spot information system with
trailer coverage, the system prompts you to
set up a trailer that allows the feature to
function, if your trailer meets the
requirements of the system.

306

Blind Spot Information System

(If Equipped)

WHAT IS CROSS TRAFFIC
ALERT

The system alerts you of vehicles
approaching from the sides behind your
vehicle when you shift into reverse (R).

HOW DOES CROSS TRAFFIC
ALERT WORK

Cross traffic alert detects vehicles that
approach at a speed between 4–37 mph
(6–60 km/h). Coverage decreases when
the sensors are partially, mostly or fully
obstructed.

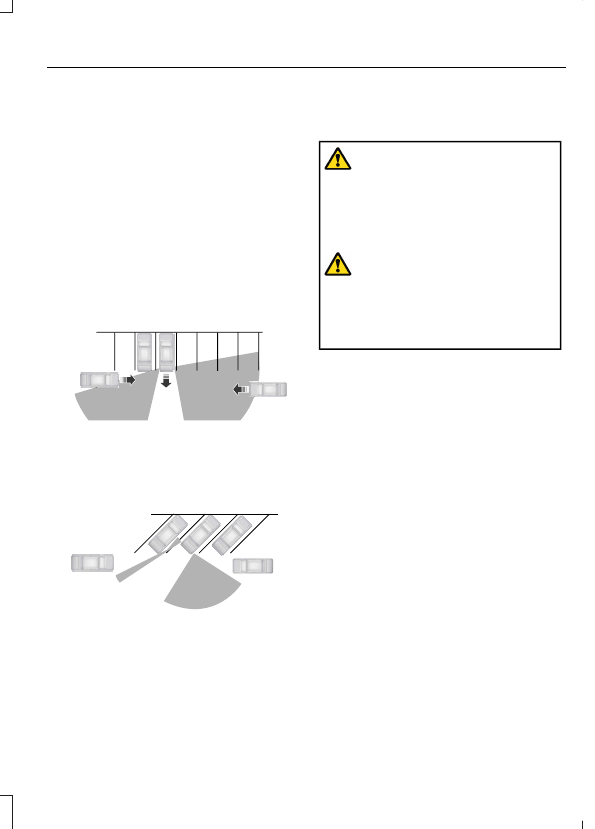

E142440

The sensor on the left-hand side is only
partially obstructed and zone coverage on
the right-hand side is maximized.

E142441

Zone coverage also decreases when
parking at narrow angles. The sensor on
the left-hand side is mostly obstructed and
zone coverage on that side is severely
reduced.

Note:

Slowly reversing helps increase the

coverage area and effectiveness.

CROSS TRAFFIC ALERT
PRECAUTIONS

WARNING:

Do not use the cross

traffic alert system as a replacement for
using the interior and exterior mirrors or
looking over your shoulder before
reversing out of a parking space. The
cross traffic alert system is not a
replacement for careful driving.

WARNING:

The system may not

operate properly during severe weather
conditions, for example snow, ice, heavy
rain and spray. Always drive with due
care and attention. Failure to take care
may result in a crash.

CROSS TRAFFIC ALERT
LIMITATIONS

The system may not correctly operate
when any of the following occur:
•

Something is blocking the sensors.

•

Adjacently parked vehicles or objects
are obstructing the sensors.

•

Vehicles approach at speeds less than
4 mph (6 km/h) or greater than 37 mph
(60 km/h).

•

Your vehicle speed is greater than
7 mph (12 km/h).

•

You reverse out of an angled parking
space.

307

Cross Traffic Alert

(If Equipped)

Cross Traffic Alert Limitations
with a Trailer Attached

The system remains on when you attach
a trailer to vehicles with blind spot
information system with trailer coverage
under the following conditions:
•

You connect a trailer.

•

The trailer is a bike rack or cargo rack
with a maximum length of 3 ft (1 m).

•

You set the trailer length to 3 ft (1 m)
in the instrument cluster display.

Note:

The system may not correctly operate

when towing a trailer. For vehicles with a
trailer tow module and tow bar approved
by the manufacturer, the system turns off
when you attach a trailer. For vehicles with
an aftermarket trailer tow module or tow
bar, we recommend that you switch the
system off when you attach a trailer.

SWITCHING CROSS TRAFFIC
ALERT ON AND OFF

E386797

Press the button on the

touchscreen.

2. Press

Driver Assistance

3. Switch

Cross Traffic Alert

on or off.

When you switch the system on or off, the
alert indicators flash twice.

Note:

The system turns on every time you

start your vehicle.

LOCATING THE CROSS
TRAFFIC ALERT SENSORS

E395712

The sensors are inside the brake lamp on
both sides of your vehicle.

Note:

Keep the sensors free from snow, ice

and large accumulations of dirt.

Note:

Do not cover the sensors with bumper

stickers, repair compound or other objects.

Note:

Blocked sensors may affect system

accuracy.

If something is blocking the sensors, a
message may appear in the information
display when you shift into reverse (R).

Note:

Bike and cargo racks could cause

false alerts due to obstruction of the sensor.
We recommend switching the feature off
when using a bike or cargo rack.

CROSS TRAFFIC ALERT
INDICATORS

When the cross traffic alert detects an
approaching vehicle, a tone sounds, a
warning lamp illuminates in the relevant
exterior mirror and arrows appear in the
instrument cluster display to show from
which side the vehicle is approaching.

308

Cross Traffic Alert

(If Equipped)

If the system malfunctions, a warning lamp
illuminates in the instrument cluster and
a message appears in the instrument
cluster display. Have your vehicle checked
as soon as possible.

Note:

In some conditions, the system could

alert you, even when there is nothing in the
detection zone, for example a vehicle
passing further away from your vehicle.

CROSS TRAFFIC ALERT – TROUBLESHOOTING

CROSS TRAFFIC ALERT – INFORMATION MESSAGES

Action

Message

Displays instead of indication arrows when

the system detects a vehicle. Check for

approaching traffic.

Only available in vehicles with 8 inch

displays.

Cross Traffic Alert

Indicates blocked cross traffic alert system
sensors. Clean the sensors. If the message

continues to appear, have your vehicle

checked as soon as possible.

Cross Traffic Not Available Sensor Blocked

See Manual

The system has malfunctioned.

Have your vehicle checked as soon as

possible.

Cross Traffic System Fault

Displays if you attach a trailer to your

vehicle.

Cross Traffic Alert Deactivated Trailer

Attached

Note:

When connecting a trailer, the system

may detect the trailer and turn the system
OFF. If the system does not turn OFF
automatically, switch the cross traffic alert
system OFF manually. See

Switching

Cross Traffic Alert On and Off

(page 308).

309

Cross Traffic Alert

(If Equipped)

WHAT IS PRE-COLLISION
ASSIST

Pre-collision assist detects and warns of
approaching hazards in the roadway. If
your vehicle is rapidly approaching another
stationary vehicle, a vehicle traveling in the
same direction as yours, or a pedestrian
within your driving path, the system
provides multiple levels of assistance to
help avoid a collision.

HOW DOES PRE-COLLISION
ASSIST WORK

The system warns the driver of potential
hazards by providing three levels of
assistance.

E156130

If your vehicle is rapidly approaching
potential hazards, the system provides the
following levels of functionality:

Alert.

2. Brake Support.

3. Automatic Emergency Braking.

E329466

Alert

: When active, a flashing

visual warning appears and an
audible warning tone sounds.

Brake Support

: The system is designed

to help reduce the impact speed by
preparing the brakes for rapid braking. The
system does not automatically apply the
brakes. If you press the brake pedal, the
system could apply additional braking up
to maximum braking force, even if you
lightly press the brake pedal.

Automatic Emergency Braking

: This

may activate if the system determines that
a collision is imminent.

Note:

If you perceive the pre-collision assist

alerts as being too frequent or disturbing,
then you can reduce the alert sensitivity.
Setting the low sensitivity would result in
fewer and later warnings of a potential
forward collision. The manufacturer
recommends using the high sensitivity
setting where possible.

Note:

Automatic emergency braking

performance is not affected by the
sensitivity setting.

Each system has various levels of
detection capabilities. See

Pre-Collision

Assist Limitations

(page 311).

PRE-COLLISION ASSIST
PRECAUTIONS

WARNING:

You are responsible for

WARNING:

The system does not

detect vehicles moving in a different
direction or animals. Apply the brakes
when necessary. Failure to follow this
instruction could result in the loss of
control of your vehicle, personal injury or
death.

WARNING:

The system does not

operate during hard acceleration or
steering. Failure to take care may lead
to a crash or personal injury.

310

Pre-Collision Assist

WARNING:

The system may

operate with reduced function during
cold and inclement weather conditions.
Snow, ice, rain, spray and fog can
adversely affect the system. Keep the
front camera and radar free of snow and
ice. Failure to follow this instruction may
result in the loss of control of your
vehicle, serious personal injury or death.

WARNING:

Take additional care if

your vehicle is heavily loaded or you are
towing a trailer. These conditions could
result in reduced performance of this
system. Failure to follow this instruction
could result in the loss of control of your
vehicle, personal injury or death.

WARNING:

The system cannot

help prevent all crashes. Do not rely on
this system to replace driver judgment
and the need to maintain a safe distance
and speed.

WARNING:

In situations where the

vehicle camera has limited detection
capability, this may reduce system
performance. These situations include
but are not limited to direct or low
sunlight, vehicles at night without tail
lights, unconventional vehicle types,
pedestrians with complex backgrounds,
running pedestrians, partly obscured
pedestrians, or pedestrians that the
system cannot distinguish from a group.
Failure to take care may result in the loss
of control of your vehicle, serious
personal injury or death.

PRE-COLLISION ASSIST
LIMITATIONS

Pre-collision assist depends on the
detection ability of its camera and sensors.
Any obstructions or damage to these areas
can limit detection or prevent the system
from functioning. See

Locating the

Pre-Collision Assist Sensors

(page 312).

The system is active at 3 mph (5 km/h)
and above.

Note:

The Pre-Collision Assist system

disables when you select

4X4 LOW

or when

you manually disable AdvanceTrac™.

Note:

Brake support and automatic

emergency braking are active at speeds up
to 80 mph (130 km/h). If your vehicle has a
radar sensor included with adaptive cruise
control, then brake support and automatic
emergency braking are active up to the
maximum speed of the vehicle.

Pedestrian Detection Limitations

Pedestrian detection is active at speeds
up to 50 mph (80 km/h).

Pedestrian detection operates optimally
when detected hazards are clearly
identifiable. System performance may
reduce in situations where pedestrians are
running, partly obscured, have a complex
background, or cannot be distinguished
from a group.

Intersection Assist

(If Equipped)

If your vehicle comes with the radar sensor
included in the adaptive cruise control,
pre-collision assist may operate to detect
oncoming vehicles as you traverse
intersections. Detection of vehicles driving
in an oncoming direction is active if your
vehicle is driving at speeds up to 50 mph
(80 km/h).

311

Pre-Collision Assist

E309750

SWITCHING PRE-COLLISION
ASSIST ON AND OFF

E386797

Press the button on the

touchscreen.

2. Press

Driver Assistance

3. Press

Pre-Collision Assist

4. Switch the feature on or off.

Adjusting the Pre-Collision Assist
Settings

You can adjust the following settings by
using the touchscreen controls in the
pre-collision assist menu:
•

Change alert sensitivity to one of three
possible settings.

•

If required, switch automatic
emergency braking on or off.

•

If required, switch the entire
pre-collision assist feature on or off.

Note:

Automatic emergency braking

switches on every time you switch the
ignition on.

LOCATING THE PRE-
COLLISION ASSIST SENSORS

E365303

Camera.

Radar sensor (if equipped).

If a message regarding a blocked sensor
or camera appears in the instrument
cluster, something is obstructing the radar
signals or camera images. The radar sensor
is located behind the fascia cover in the
center of the lower grille. If a sensor or
camera is blocked, the system may not
function, or performance may reduce. See

Pre-Collision Assist – Information
Messages

(page 316).

Note:

Proper system operation requires the

camera have a clear view of the road. Have
any windshield damage in the area of the
camera's field of view repaired.

Note:

If something hits the front end of your

vehicle or damage occurs and your vehicle
has a radar sensor, the radar sensing zone
could change. This could cause missed or
false vehicle detections. Have your vehicle
serviced to have the radar checked for
proper coverage and operation.

312

Pre-Collision Assist

Ford Ranger (2024 year). Manual in english - page 9
