REAR VIEW CAMERA GUIDE
LINES

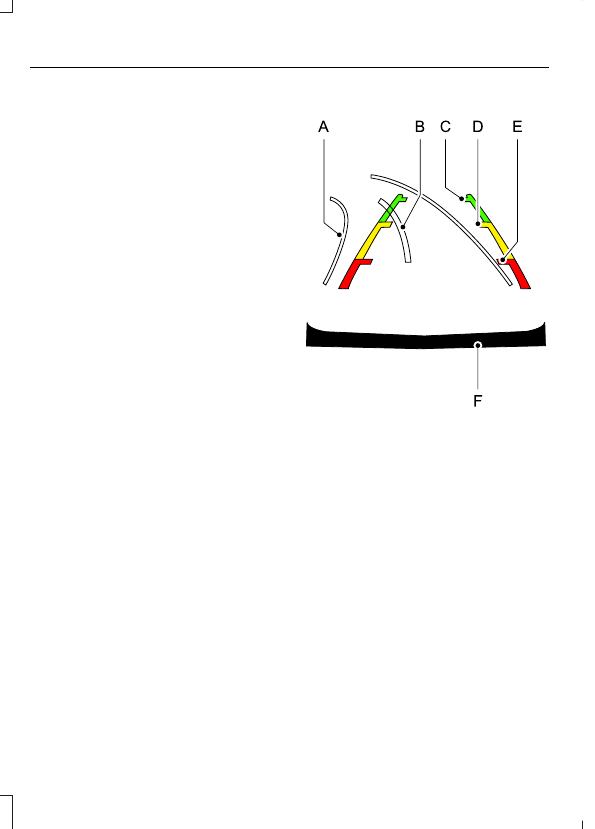

E306774

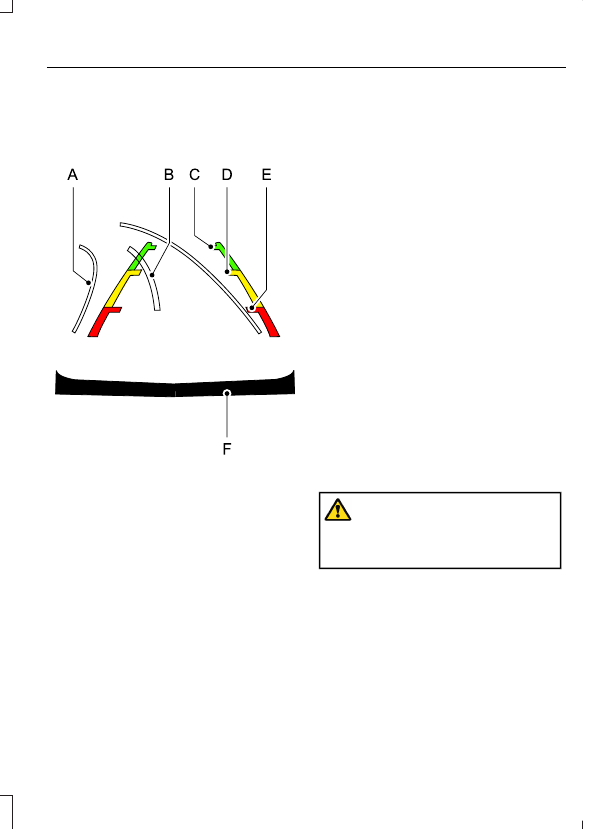

Active guide lines.

Centerline.

Fixed guide line: Green zone.

Fixed guide line: Yellow zone.

Fixed guide line: Red zone.

Rear bumper.

Active guide lines only show with fixed
guide lines. To use active guide lines, turn
the steering wheel to point the guide lines
toward an intended path. If the steering
wheel position changes while reversing,
your vehicle might deviate from the
intended path.

The fixed and active guide lines fade in and
out depending on the steering wheel
position. The active guide lines do not
display when the steering wheel position
is straight.

Use caution while reversing. Objects in the
red zone are closest to your vehicle and
objects in the green zone are farther away.
Objects get closer to your vehicle as they
move from the green zone to the yellow or
red zones. Use the side view mirrors and
rear view mirror to get better coverage on
both sides and rear of your vehicle.

Note:

Active guide lines and fixed guide

lines are only available when the
transmission is in reverse (R).

Note:

The centerline is only available if the

active or fixed guide lines are on.

Note:

Not all camera modes work properly

without an auxiliary camera.

REAR VIEW CAMERA
SETTINGS

ZOOMING THE REAR VIEW
CAMERA IN AND OUT

WARNING:

When manual zoom is

on, the full area behind your vehicle may
not show. Be aware of your surroundings
when using the manual zoom feature.

Selectable settings for this feature are
zoom in (+) and zoom out (-). Press the
symbol on the camera screen to change
the view. The default setting is zoom off.

This allows you to get a closer view of an
object behind your vehicle. The zoomed
image keeps the bumper in the image to
provide a reference. The zoom is only
active while the transmission is in reverse
(R).

249

Rear View Camera

Note:

Manual zoom is only available when

the transmission is in reverse (R).

Note:

Only the centerline shows when you

enable manual zoom.

SWITCHING REAR VIEW CAMERA
DELAY ON AND OFF - VEHICLES
WITH: DIGITAL REAR VIEW
CAMERA

Open the driver assistance menu. See

Center Display

(page 507).

2. Switch

Rear View Camera Delay

on or

off.

When shifting the transmission out of
reverse (R) and into any gear other than
park (P), the camera image remains in the
display until the vehicle speed reaches
approximately 5 mph (8 km/h) or you shift
your vehicle into park (P).

SWITCHING THE REAR VIEW

CAMERA VIEW - VEHICLES WITH:
DIGITAL REAR VIEW CAMERA

E337002

Press to access the different
camera views.

E310967

Rear normal view provides an
image of what is directly behind
your vehicle.

E310974

Rear split view provides an
extended view of what is behind
your vehicle.

E350276

The hitch view provides an
image of the area around the
tow hitch.

E311776

Trailer AUX camera shows a rear
view camera image of what is
behind your trailer. This camera

view may not be available depending on
your vehicle features.

Note:

The rear normal view, hitch view and

trailer auxiliary view are also available when
your vehicle speed is greater than 6 mph
(10 km/h).

250

Rear View Camera

WHAT IS THE 360 DEGREE
CAMERA

The 360 degree camera system provides
visibility around your vehicle in parking
maneuvers such as:

•

Centering in a parking space.

•

Obstacles near your vehicle.

•

Parallel parking.

The 360 degree camera system consists
of front, side and rear cameras.

HOW DOES THE 360 DEGREE
CAMERA WORK

The 360 degree camera system:

•

Allows you to see what is directly in
front of or behind your vehicle.

•

Helps you when parallel parking and
centering in a parking space.

•

Provides a cross traffic view in front of
and behind your vehicle.

•

Allows you to see a top-down view of
the area outside your vehicle, including
the blind spots and obstacles near your
vehicle.

360 DEGREE CAMERA
PRECAUTIONS

WARNING:

The 360 degree

camera system still requires the driver
to use it in conjunction with looking out
of the windows, and checking the interior
and exterior mirrors for maximum
coverage.

WARNING:

Objects that are close

to either corner of the bumper or under
the bumper, might not be seen on the
screen due to the limited coverage of the
camera system.

WARNING:

When manual zoom is

on, the full area behind your vehicle may
not show. Be aware of your surroundings
when using the manual zoom feature.

WARNING:

Do not switch the

camera features on or off when your
vehicle is moving.

WARNING:

You are responsible for

controlling your vehicle at all times. The
system is designed to be an aid and does
not relieve you of your responsibility to
drive with due care and attention. Failure
to follow this instruction could result in
the loss of control of your vehicle,
personal injury or death.

WARNING:

Use caution when the

tailgate is ajar. If the tailgate is ajar, the
camera is out of position and the video
image could be incorrect.

LOCATING THE 360 DEGREE
CAMERAS

Rear View Camera

The rear view camera is on the tailgate. It
provides a video image of the area behind
your vehicle.

Front View Camera

The front view camera is in the front grille.
It provides a video image of the area in
front of your vehicle.

251

360 Degree Camera

(If Equipped)

Note:

For vehicles with selectable drive

modes, the front view camera switches on
when you are in mud/ruts, deep snow/sand,
rock crawl or baja mode, or in four-wheel
drive low.

Side View Camera

The side view camera is on the outside
mirror. It provides a video image of the area
on the sides of your vehicle to aid you when
parking or when backing up a trailer.

360 DEGREE CAMERA GUIDE
LINES

Note:

Active guide lines are only available

when the transmission is in reverse (R).

E306774

Active guide lines.

Centerline.

Fixed guide line: Green zone.

Fixed guide line: Yellow zone.

Fixed guide line: Red zone.

Rear bumper.

Active guide lines only show with fixed
guide lines. Turn the steering wheel to
point the guide lines toward an intended
path. If the steering wheel position changes
when reversing, your vehicle could deviate
from the intended path.

The fixed and active guide lines fade in and
out depending on the steering wheel
position. The active guide lines do not
display when the steering wheel position
is straight.

252

360 Degree Camera

(If Equipped)

Objects in the red zone are closest to your
vehicle and objects in the green zone are
farther away. Objects get closer to your
vehicle as they move from the green zone
to the yellow or red zones. Use the side
view mirrors and rear view mirror to get
better coverage on both sides and rear of
your vehicle.

Keep Out Zone

E310341

The keep out zone is represented by the
yellow dotted lines running parallel to your
vehicle.

360 DEGREE CAMERA
SETTINGS

SWITCHING THE 360 DEGREE
CAMERA ON AND OFF

E332186

To access the 360 degree
camera, press the camera
button on the touchscreen or

shift into reverse (R).

Note:

When you press the camera button,

it defaults to the front 360 camera view.
The other front camera views are accessible
on the touchscreen.

Note:

The rear view camera activates when

you shift into reverse (R). Additional views
are then accessible on the touchscreen.

When in park (P), neutral (N) or drive (D),
the front images display when you press
the camera button.

Note:

Not all cameras are available.

Note:

The 360 degree camera system turns

off when your vehicle is in motion at low
speed, except when in reverse (R).

Switching Additional Views On
and Off

(If Equipped)

You can switch additional camera views
on and off via the touchscreen.

Trailer Side View

Trailer side view activates using the turn
signal lever with a trailer attached. It
provides a side view of the vehicle and
trailer for better visibility during lane
changes and turns.

To switch trailer side view on and off:

Open the driver assistance menu. See

Center Display

(page 507).

2. Switch Trailer Side View on or off.

SWITCHING THE 360 DEGREE
CAMERA VIEW

E337002

Press to access the different
camera views.

E336516

Front normal view provides an
image of what is directly in front
of your vehicle.

E336517

Front split view provides an
extended view of what is in front
of your vehicle.

E310996

Normal + 360 degree view
contains the normal camera
view next to a 360 degree

camera view.

253

360 Degree Camera

(If Equipped)

E310967

Rear normal view provides an
image of what is directly behind
your vehicle.

E310974

Rear split view provides an
extended view of what is behind
your vehicle.

E392079

50/50 view provides views of
the left and right side of your
vehicle. It is available in park (P),

neutral (N), and drive (D).

E311776

Trailer AUX camera shows a rear
view camera image of what is
behind your trailer. This camera

view may not be available depending on
your vehicle features.

E350276

The hitch view provides an
image of the area around the
tow hitch.

E224485

Zooms in on the image. See

Connecting a Trailer

(page 331).

E337359

Zooms in on the 360 degree
image.

Note:

The rear normal view, hitch view,

50/50 view, and trailer aux view are also
available when your vehicle speed is greater
than 6 mph (10 km/h).

254

360 Degree Camera

(If Equipped)

WHAT IS ACTIVE PARK
ASSIST

Assists you with parking in and out of
parking spaces.

HOW DOES ACTIVE PARK
ASSIST WORK - VEHICLES
WITH: FULLY ACTIVE PARK
ASSIST

Active park assist uses sensors to detect
parking spaces. The system steers,
accelerates, brakes and shifts gears as
necessary to maneuver into or out of a
parking space.

HOW DOES ACTIVE PARK
ASSIST WORK - VEHICLES
WITH: SEMI ACTIVE PARK
ASSIST

Active park assist uses sensors to detect
parking spaces. The system controls
steering as required to maneuver into or
out of a parking space.

ACTIVE PARK ASSIST
PRECAUTIONS

WARNING:

You must remain in

your vehicle when the system turns on.
At all times, you are responsible for
controlling your vehicle, supervising the
system and intervening, if required.
Failure to take care may result in the loss
of control of your vehicle, serious
personal injury or death.

WARNING:

The sensors may not

detect objects in heavy rain or other
conditions that cause interference.

WARNING:

You are responsible for

WARNING:

Do not use the system

with accessories that extend beyond the
front or rear of your vehicle, for example
a trailer hitch or bike rack. The system is
not able to make corrections for the
additional length of the accessories.

SWITCHING ACTIVE PARK
ASSIST ON AND OFF -
VEHICLES WITH: FULLY
ACTIVE PARK ASSIST

E326188

Press the parking aid button,
then press the active park assist
icon on the touchscreen to bring

up full screen notifications.

Press the soft keys on the touchscreen to
switch between the parallel park in,
perpendicular park in, or parallel park out
parking modes.

Cancelling Active Park Assist

To cancel parking assistance at any time,
shift out of neutral (N).

Pausing Active Park Assist

To pause parking assistance at any time,
release the parking aid button.

255

Active Park Assist

(If Equipped)

If you open the passenger or rear doors,
active park assist pauses.

To resume parking, press and hold the
parking aid button again.

SWITCHING ACTIVE PARK
ASSIST ON AND OFF -
VEHICLES WITH: SEMI ACTIVE
PARK ASSIST

E326188

Press the parking aid button, and
then press the active park assist
icon on the touchsceen to bring

up full screen notifications.

Press the soft keys on the touchscreen to
switch between parallel park in,
perpendicular park in or parallel park out
parking modes.

Cancelling Active Park Assist

To cancel parking assistance at any time:
•

Press the active park assist button
during operation.

•

Grab the steering wheel during
operation.

•

Drive above 22 mph (35 km/h) for a
short period of time when searching for
a parking space.

•

Drive above 6 mph (9 km/h) during
operation.

•

Switch traction control off.

ENTERING A PARALLEL
PARKING SPACE - VEHICLES
WITH: FULLY ACTIVE PARK
ASSIST

E402255

Press the parking button.

Note:

The system detects other vehicles

and curbs to find a parking space.

E402256

Press the active park assist

icon on the touchscreen.

3. Use the turn signal lever to search for

a parking space on the driver or
passenger side of your vehicle.

Note:

If you do not use the turn signal lever,

the system searches for a parking space on
the passenger side of your vehicle.

4. Drive your vehicle approximately 3 ft

(1 m) away from and parallel to the
other parked vehicles when searching
for a parking space.

Note:

A tone sounds and a message

appears in the information and
entertainment display when active park
assist finds a suitable parking space.

5. Press and hold the brake pedal.

6. Release the steering wheel and shift

into neutral (N).

E402255

Press and hold the parking

button.

8. Release the brake pedal to allow your

vehicle to park.

Note:

You can slow down your vehicle at

any time by pressing the brake pedal.

Note:

When parallel parking between

objects, the system parks closer to the
object in front of your vehicle to allow easier
access to the luggage compartment.

Note:

When parking is complete, your

vehicle shifts into park (P).

256

Active Park Assist

(If Equipped)

ENTERING A PARALLEL
PARKING SPACE - VEHICLES
WITH: SEMI ACTIVE PARK
ASSIST

Press the active park assist button.

2. Select parallel park.

Note:

The system detects other vehicles

and curbs to find a parking space.

3. Use the turn signal lever to search for

a parking space on the driver or
passenger side of your vehicle.

Note:

The system defaults to searching for

a parking spot on the passenger side of your
vehicle if you do not use the turn signal lever.

4. Drive your vehicle approximately 3 ft

(1 m) away from and parallel to the
other parked vehicles when searching
for a parking space.

Note:

A tone sounds and a message

appears on the touchscreen when active
park assist finds a parking space.

5. Press and hold the brake pedal.

6. Release the steering wheel and shift

into reverse (R).

Use the accelerator and brake to
control your vehicle's speed when
parking. You are responsible for
stopping your vehicle.

8. Active park assist is a multi-step

process and requires you to shift the
transmission multiple times. Follow the
onscreen instructions until parking is
complete.

Note:

You can slow down your vehicle at

any time by pressing the brake pedal.

Note:

When parallel parking between

objects, the system will park closer to the
object in front of your vehicle to allow easier
access to the cargo area.

ENTERING A PERPENDICULAR
PARKING SPACE - VEHICLES
WITH: FULLY ACTIVE PARK
ASSIST

E402255

Press the parking button.

Note:

Active park assist does not recognize

parking space lines and centers your vehicle
between objects.

E402256

Press the active park assist

icon on the touchscreen.

3. Select perpendicular parking.

4. Use the turn signal lever to search for

a parking space on the driver or
passenger side of your vehicle.

Note:

If you do not use the turn signal lever,

the system searches for a parking space on
the passenger side of your vehicle.

5. Drive your vehicle approximately 3 ft

(1 m) away from and perpendicular to
the other parked vehicles when
searching for a parking space.

Note:

A tone sounds and a message

appears in the information and
entertainment display when active park
assist finds a parking space.

6. Press and hold the brake pedal.

Release the steering wheel and shift
into neutral (N).

E402255

Press and hold the parking

button.

9. Release the brake pedal to allow the

vehicle to park.

Note:

Active park assist backs your vehicle

into parking spaces.

257

Active Park Assist

(If Equipped)

Note:

Active park assist aligns the front end

of your vehicle with the lane side of the
object next to it.

Note:

When the system detects only one

object, it allows enough distance to open
the door on either side.

Note:

You can slow down your vehicle at

any time by pressing the brake pedal.

Note:

When parking is complete, your

vehicle shifts into park (P).

ENTERING A PERPENDICULAR
PARKING SPACE - VEHICLES
WITH: SEMI ACTIVE PARK
ASSIST

Press the active park assist button.

2. Select perpendicular parking.

Note:

Active park assist does not recognize

parking space lines and centers your vehicle
between objects.

Note:

Active park assist backs your vehicle

into parking spaces.

3. Use the turn signal lever to search for

a parking space on the driver or
passenger side of your vehicle.

Note:

The system defaults to searching for

a parking spot on the passenger side of your
vehicle if you do not use the turn signal lever.

4. Drive your vehicle approximately 3 ft

(1 m) away from and perpendicular to
the other parked vehicles when
searching for a parking space.

Note:

A tone sounds and a message

appears in the information and
entertainment display when active park
assist finds a parking space.

5. Press and hold the brake pedal.

6. Release the steering wheel and shift

into reverse (R).

Use the accelerator and brake to
control your vehicle's speed when
parking. You are responsible for
stopping your vehicle.

8. Active park assist is a multi-step

process and requires you to shift the
transmission multiple times. Follow the
onscreen instructions until parking is
complete.

Note:

Active park assist aligns the front-end

of your vehicle with the lane side of the
object next to it.

Note:

When only one object is detected,

the system allows enough distance to open
the door on either side.

Note:

You can slow down your vehicle at

any time by pressing the brake pedal.

EXITING A PARKING SPACE -
VEHICLES WITH: FULLY
ACTIVE PARK ASSIST

E402255

Press the parking button.

E402256

Press the active park assist

icon on the touchscreen.

3. Select parallel park exit.

4. Use the turn signal to choose the

direction to exit the parking space.

5. Press and hold the brake pedal.

6. Release the parking brake.

Release the steering wheel and shift
into neutral (N).

E402255

Press and hold the parking

button.

9. Release the brake pedal to allow your

vehicle to move.

258

Active Park Assist

(If Equipped)

Note:

After active park assist drives your

vehicle to a position where you can exit the
parking space in a forward movement, a
message appears instructing you to take full
control of your vehicle.

10.

Take control of your vehicle.

Note:

You can slow down your vehicle at

any time by pressing the brake pedal.

EXITING A PARKING SPACE -
VEHICLES WITH: SEMI ACTIVE
PARK ASSIST

Active park assist only assists leaving
parallel parking spaces.

Press the active park assist button.

2. Select parallel park exit.

3. Use the turn signal to choose the

direction to exit the parking space.

4. Press and hold the brake pedal.
5. Release the parking brake.

6. Release the steering wheel and shift

into the instructed gear.

Use the accelerator and brake to
control your vehicle's speed when
exiting the parking space. You are
responsible for stopping your vehicle.

8. Active park assist is multi-step process

and requires you to shift the
transmission multiple times. Follow the
onscreen instructions until operation
is complete.

Note:

After active park assist drives your

vehicle to a position where you can exit the
parking space in a forward movement, a
message appears instructing you to take full
control of your vehicle.

9. Take control of your vehicle.

Note:

You can slow down your vehicle at

any time by pressing the brake pedal.

ACTIVE PARK ASSIST –
TROUBLESHOOTING

ACTIVE PARK ASSIST –
INFORMATION MESSAGES

Details

Message

The system

requires service.

Have your vehicle

checked as soon as

possible.

Active Park Fault

ACTIVE PARK ASSIST –
FREQUENTLY ASKED QUESTIONS

Why does active park assist not
operate correctly?

•

The system is unable to detect a
vehicle, curb or object to park next to
or in between. The system needs
boundary objects to operate correctly.

Why does active park assist not
search for a parking space?

•

You have switched traction control off.

•

The transmission is in reverse (R). Your
vehicle must be moving forward to be
able to detect a parking space.

Why does active park assist not
offer a parking space?

•

The sensors could be blocked. For
example, snow, ice or large
accumulations of dirt. Blocked sensors
can affect how the system functions.

•

The sensors in the front or rear bumper
could be damaged.

•

There is not enough room in the parking
space for your vehicle to safely park.

259

Active Park Assist

(If Equipped)

•

There is not enough space for the
parking maneuver on the opposite side
of the parking space.

•

The parking space is more than 1.6 yd
(1.5 m) or less than 0.5 yd (0.5 m)
away from your vehicle.

•

Your vehicle's speed is greater than
21.7 mph (35 km/h) for parallel parking
or greater than 11.8 mph (19 km/h) for
perpendicular parking.

•

You recently disconnected or replaced
the battery. After you reconnect the
battery you must drive your vehicle on
a straight road for a short period of
time.

Why does active park assist not
correctly position the vehicle into
a parking space?

•

An irregular curb along the parking
space prevents the system from
correctly aligning your vehicle.

•

Vehicles or objects bordering the space
could not be correctly parked.

•

Your vehicle stopped too far past the
parking space.

•

The tires are not correctly installed or
maintained. For example, using a spare
tire, not inflated correctly, improper
size, or of different sizes.

•

A repair or alteration changed the
detection capabilities.

•

A parked vehicle has a high
attachment. For example, a salt
sprayer, snowplow or moving truck bed.

•

The parking space length or position of
parked objects changes after your
vehicle passes the space.

•

The temperature around your vehicle
quickly changes. For example, driving
from a heated garage into a cold
outside temperature, or after leaving a
car wash.

260

Active Park Assist

(If Equipped)

WHAT IS CRUISE CONTROL

Cruise control lets you maintain a set
speed without keeping your foot on the
accelerator pedal.

Requirements

Use cruise control when the vehicle speed
is greater than 20 km/h in metric units or
15 mph in imperial units.

SWITCHING CRUISE CONTROL
ON AND OFF

WARNING:

Do not use cruise

control on winding roads, in heavy traffic
or when the road surface is slippery. This
could result in loss of vehicle control,
serious injury or death.

The cruise controls are on the steering
wheel.

Switching Cruise Control On

E332905

Press the button to activate the
system. When the system
activates, the set speed is equal

to the current vehicle speed or 20 km/h (15
mph), whichever is greater. If the speed is
too low, or other conditions are not correct
for cruise control activation, the system
enters standby mode.

Switching Cruise Control Off

E332905

Press the button when the
system is active or switch the
ignition off.

Note:

When you switch cruise control off,

the set speed clears.

SETTING THE CRUISE
CONTROL SPEED

WARNING:

When you are going

downhill, your vehicle speed could
increase above the set speed. The
system does not apply the brakes.

Drive to the speed you prefer.

E246884

E246885

Press the toggle button upward
or downward to set the current
speed.

Take your foot off the accelerator pedal.

Note:

The indicator changes color in the

instrument cluster display.

Changing the Set Speed

E246884

Press and release the toggle
button up to increase the set
speed in small increments.

Press and hold the toggle button up to
accelerate. Release the button when you
have reached your preferred speed.

E246885

Press and release the toggle
button down to decrease the set
speed in small increments.

Press and hold the toggle button down to
decelerate. Release the button when you
have reached your preferred speed.

Note:

If you accelerate by pressing the

accelerator pedal, the set speed does not
change. When you release the accelerator
pedal, your vehicle returns to the speed that
you previously set.

261

Cruise Control

CANCELING THE SET SPEED

E308130

Press the button, or tap the
brake pedal to cancel the set
speed.

Note:

The system remembers the set

speed.

Note:

The system cancels if the vehicle

speed drops below 10 mph (16 km/h) under
the set speed when driving uphill.

RESUMING THE SET SPEED

E308130

Press the button.

CRUISE CONTROL
INDICATORS

E71340

Illuminates when you switch the
system on.

262

Cruise Control

HOW DOES ADAPTIVE CRUISE
CONTROL WORK

Adaptive cruise control uses a radar sensor
to adjust your vehicle speed to maintain a
set gap between you and the vehicle in
front of you in the same lane.

HOW DOES ADAPTIVE CRUISE
CONTROL WITH STOP AND GO
WORK

Adaptive cruise control with stop and go
uses radar and camera sensors to maintain
a set gap between your vehicle and the
vehicle in front of you while following it to
a complete stop. Stop and go can also be
set to follow a vehicle directly in front of
you and adjust the set speed, while you are
at a complete stop.

ADAPTIVE CRUISE CONTROL
PRECAUTIONS

WARNING:

You are responsible for

WARNING:

Pay close attention to

changing road conditions such as
entering or leaving a highway, on roads
with intersections or roundabouts, roads
without visible lanes of travel, roads that
are winding, slippery, unpaved, or steep
slopes.

WARNING:

The system does not

control speed in low traction conditions
or extremely steep slopes. The system
is designed to be an aid and does not
relieve you of your responsibility to drive
with due care and attention. Failure to
follow this instruction could result in
personal injury.

WARNING:

The system is not a

crash warning or avoidance system.

WARNING:

Do not use the system

when towing a trailer that has
aftermarket electronic trailer brake
controls. Failure to follow this instruction
could result in the loss of control of your
vehicle, personal injury or death.

WARNING:

Do not use tire sizes

other than those recommended because
this can affect the normal operation of
the system. Failure to do so may result
in a loss of vehicle control, which could
result in serious injury.

WARNING:

Do not use the system

with a snow plow blade installed.

WARNING:

Do not use the system

in poor visibility, for example fog, heavy
rain, spray or snow.

When Following a Vehicle

WARNING:

When following a

vehicle that is braking, your vehicle does
not always decelerate quickly enough to
avoid a crash without driver intervention.
Apply the brakes when necessary. Failure
to follow this instruction could result in
personal injury or death.

263

Adaptive Cruise Control

(If Equipped)

Hilly Condition Usage

You should select a lower gear when the
system is active in situations such as
prolonged downhill driving on steep slopes,
for example in mountainous areas. The
system needs additional engine braking in
these situations to reduce the load on the
vehicle’s regular brake system to prevent
it from overheating.

Note:

An audible alarm sounds and the

system shuts down if it applies brakes for
an extended period of time. This allows the
brakes to cool. The system functions
normally again after the brakes cool.

ADAPTIVE CRUISE CONTROL
LIMITATIONS

Sensor Limitations

WARNING:

On rare occasions,

detection issues can occur due to the
road infrastructures, for example bridges,
tunnels and safety barriers. In these
cases, the system may brake late or
unexpectedly. At all times, you are
responsible for controlling your vehicle,
supervising the system and intervening,
if required.

WARNING:

If the system

malfunctions, have your vehicle checked
as soon as possible.

WARNING:

Large contrasts in

outside lighting can limit sensor
performance.

WARNING:

The system only warns

of vehicles detected by the radar sensor.
In some cases there may be no warning
or a delayed warning. Apply the brakes
when necessary. Failure to follow this
instruction could result in personal injury
or death.

WARNING:

The system may not

detect stationary or slow moving
vehicles below 6 mph (10 km/h).

WARNING:

The system does not

detect pedestrians or objects in the road.

WARNING:

The system does not

detect oncoming vehicles in the same
lane.

WARNING:

The system may not

operate properly if the sensor is blocked.
Keep the windshield free from
obstruction.

WARNING:

The sensor may

incorrectly track lane markings as other
structures or objects. This can result in
a false or missed warning.

264

Adaptive Cruise Control

(If Equipped)

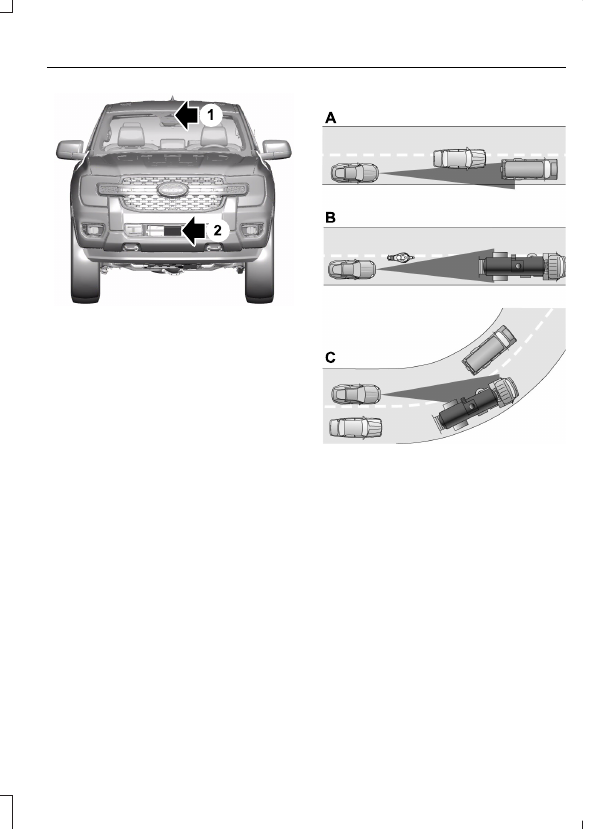

E387108

Camera.

Radar sensor.

The camera is mounted on the windshield
behind the interior mirror.

The radar sensor is in the lower grille.

Note:

You cannot see the sensor. It is

behind a fascia panel.

Note:

Keep the front of your vehicle free of

dirt, metal badges or objects. Vehicle front
protectors, aftermarket lights, additional
paint or plastic coatings could also degrade
sensor performance.

A message displays if something obstructs
the camera or the sensor. When something
blocks the sensor, the system cannot
detect a vehicle ahead and does not
function. See

Adaptive Cruise Control

– Information Messages

(page 276).

The radar sensor has a limited field of view.
It may not detect vehicles at all or detect
a vehicle later than expected in some
situations. The lead vehicle image does
not illuminate if the system does not
detect a vehicle in front of you.

Detection issues can occur:

E71621

When driving on a different line
than the vehicle in front.

With vehicles that edge into your
lane. The system can only detect
these vehicles once they move
fully into your lane.

There may be issues with the
detection of vehicles in front
when driving into and coming out
of a bend or curve in the road.

In these cases, the system may brake late
or unexpectedly.

If something hits the front end of your
vehicle or damage occurs, the
radar-sensing zone may change. This could
cause missed or false vehicle detection.

265

Adaptive Cruise Control

(If Equipped)

Optimal system performance requires a
clear view of the road by the
windshield-mounted camera.

Optimal performance may not occur if:

•

The camera is blocked.

•

There is poor visibility or lighting
conditions.

•

There are bad weather conditions.

SWITCHING ADAPTIVE
CRUISE CONTROL ON AND OFF

The cruise controls are on the steering
wheel. See

Cruise Control

(page 261).

Switching Adaptive Cruise Control
On

E144529

Press the button to activate the
system. When the system
activates, the set speed is equal

to the current vehicle speed. If the speed
is too low, or other conditions are not
correct for adaptive cruise control
activation, the system enters standby
mode.

Note:

The minimum set speed is 15 mph or

20 km/h.

The indicator, current gap setting and set
speed appear in the instrument cluster
display.

Switching Adaptive Cruise Control
Off

E144529

Press the button when the
system is in standby mode or
switch the ignition off.

Note:

When you switch the system off, the

set speed clears.

Automatic Cancellation or
Deactivation

The system may cancel if:
•

The tires lose traction.

•

You apply the parking brake.

•

Your vehicle speed falls significantly
below 15 mph or 20 km/h.

The system may turn off or prevent
activating when requested if:
•

The vehicle has a blocked sensor.

•

The brake temperature is too high.

•

There is a failure in the system or a
related system.

ADAPTIVE CRUISE CONTROL
AUTOMATIC CANCELLATION

The system may cancel if:
•

The tires lose traction.

•

You apply the parking brake.

The system may cancel and set the parking
brake if:
•

You unbuckle the seatbelt and open
the driver door after adaptive cruise
control stops your vehicle.

•

Adaptive cruise control holds your
vehicle at a stop continuously for more
than three minutes.

The system may deactivate or prevent
activating when requested if:
•

The vehicle has a blocked sensor.

•

The brake temperature is too high.

•

There is a failure in the system or a
related system.

SETTING THE ADAPTIVE
CRUISE CONTROL SPEED

Drive to the speed you prefer.

266

Adaptive Cruise Control

(If Equipped)

E246884

E246885

Press the toggle button up or
down to set the current speed.

Take your foot off the accelerator pedal.

The indicator, current gap setting and set
speed appear in the instrument cluster
display.

E337576

A vehicle image illuminates if there is a
vehicle detected in front of you.

Note:

When adaptive cruise control is

active, the speedometer may vary slightly
from the set speed displayed in the
instrument cluster display.

Setting the Adaptive Cruise Speed
from a Complete Stop

E246884

E246885

Press the toggle button up or
down while keeping the brake
pedal fully pressed.

The set speed adjusts to 15 mph when in
imperial units or 20 km/h when in metric
units.

The indicator, current gap setting and set
speed appear in the instrument cluster
display.

Note:

The system activates from a

complete stop only when it detects a lead
vehicle in close proximity.

Manually Changing the Set Speed

E246884

Press and release the toggle
button up to increase the set
speed in small increments. Press

and hold the toggle button up to increase
the set speed in large increments. Release
the button when the set speed is equal to
the preferred speed.

E246885

Press and release the toggle
button down to decrease the set
speed in small increments. Press

and hold the toggle button down to
decrease the set speed in large increments.
Release the button when the set speed is
equal to the preferred speed.

You can also press the accelerator or brake
pedal until you reach the speed you prefer.
Press the toggle button up or down to
select the current speed as the set speed.

The system may apply the brakes to slow
the vehicle to the new set speed. The set
speed continuously displays in the
instrument cluster display when the
system is active.

SETTING THE ADAPTIVE
CRUISE CONTROL GAP

Press the button to cycle
through the four gap settings.

267

Adaptive Cruise Control

(If Equipped)

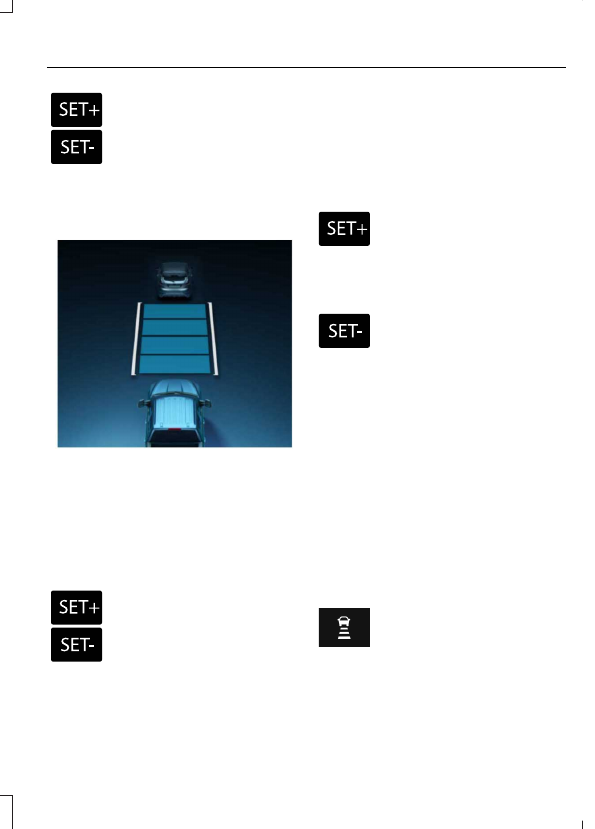

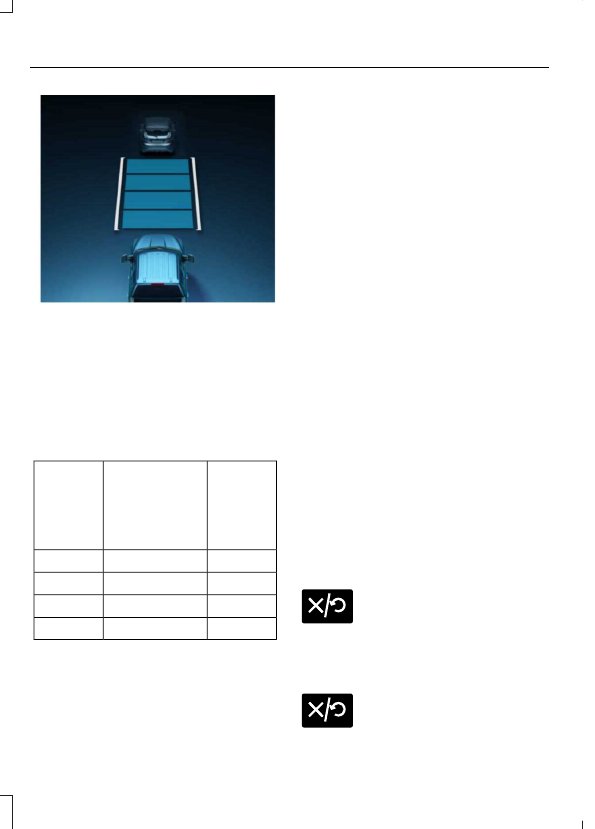

E337576

The selected gap appears in the
instrument cluster display as shown by the
bars in the image.

Note:

The gap setting is time dependent

and therefore, the distance adjusts with your
vehicle speed.

Note:

It is your responsibility to select a gap

appropriate to the driving conditions.

Adaptive Cruise Control Gap Settings

Dynamic

Behavior

Gap Distance

Graphic

Display,

Bars Indic-

ated

Between

Vehicles

Sport.

Closest.

Normal.

Close.

Normal.

Medium.

Comfort.

Far.

Each time you switch the system on, it
selects the last chosen gap setting.

Following a Vehicle

When a vehicle ahead of you enters the
same lane or a slower vehicle is ahead in
the same lane, the vehicle speed adjusts
to maintain the gap setting.

Note:

When you are following a vehicle and

you switch on a turn signal lamp, adaptive
cruise control may provide a small,
temporary acceleration to help you pass.

Your vehicle maintains a consistent gap
from the vehicle ahead until:
•

The vehicle in front of you accelerates
to a speed above the set speed.

•

The vehicle in front of you moves out
of the lane you are in.

•

You set a new gap distance.

The system applies the brakes to slow
down your vehicle to maintain a safe gap
distance from the vehicle in front of you.
The system only applies limited braking.
You can override the system by applying
the brakes.

Note:

The brakes may emit noise when

applied by the system.

If the system determines that its maximum
braking level is not sufficient, an audible
warning sounds, a message appears in the
instrument cluster display and an indicator
flashes when the system continues to
brake. Take immediate action.

CANCELING THE SET SPEED

E308130

Press the button or tap the brake
pedal.

The set speed does not erase.

RESUMING THE SET SPEED

E308130

Press the button.

268

Adaptive Cruise Control

(If Equipped)

Your vehicle speed returns to the
previously set speed and gap setting. The
set speed displays continuously in the
instrument cluster display when the
system is active.

Note:

Only use resume if you are aware of

the set speed and intend to return to it.

Resuming the Set Speed from a
Complete Stop

(If Equipped)

If your vehicle follows a vehicle to a
complete stop and remains stationary for
less than a few seconds, your vehicle
accelerates from a stationary position to
follow the vehicle ahead.

If your vehicle follows a vehicle to a
complete stop and remains stationary for
more than a few seconds, an indicator and
message displays.

E362987

Action

Message

Cruise control does not resume automatic-

ally when this display is active.

Stopped

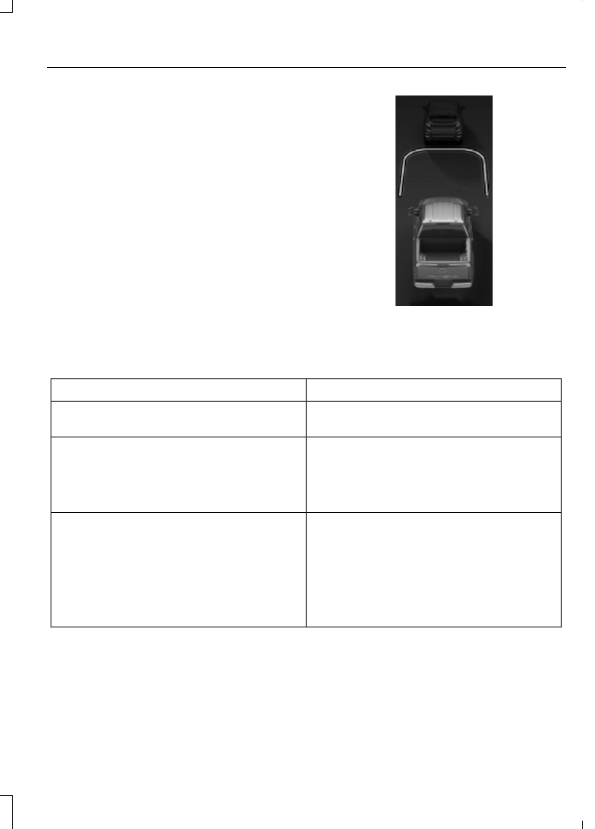

If the lead vehicle begins to move, you are

prompted to press the resume button.

Press button to resume

Press and release the button or use the

accelerator pedal to resume following the

lead vehicle.

Displays when on a limited access highway
after following a vehicle to a complete stop.

In this situation, the vehicle resumes

following the lead vehicle without a button
press or pressing the accelerator pedal. The

system can remain in auto-resume state

for approximately 30 seconds, after which

it no longer automatically resumes.

Auto-Resume

269

Adaptive Cruise Control

(If Equipped)

OVERRIDING THE SET SPEED

WARNING:

If you override the

system by pressing the accelerator
pedal, it does not automatically apply
the brakes to maintain a gap from any
vehicle ahead.

When you press the accelerator pedal, you
override the set speed and gap distance.

Use the accelerator pedal to intentionally
exceed the set speed limit.

When you override the system, the green
indicator illuminates and the vehicle icon
does not appear in the instrument cluster
display.

The system resumes operation when you
release the accelerator pedal. The vehicle
speed decreases to the set speed, or a
lower speed if following a slower vehicle.

ADAPTIVE CRUISE CONTROL
INDICATORS

E144529

Illuminates when you switch
adaptive cruise control on. The
color of the indicator changes to

indicate the system status.

White indicates the system is on but
inactive.

Green indicates that you set the speed and
the system is active.

SWITCHING FROM ADAPTIVE
CRUISE CONTROL TO CRUISE
CONTROL

WARNING:

Normal cruise control

will not brake when your vehicle is
approaching slower vehicles. Always be
aware of which mode you have selected
and apply the brakes when necessary.

E386797

Press the button on the

touchscreen.

2. Press

Driver Assistance

3. Press

Cruise Control

4. Press

Normal Cruise Control

E332905

The cruise control indicator
replaces the adaptive cruise
control indicator if you select

normal cruise control. The gap setting
does not display, and the system does not
respond to lead vehicles. Automatic
emergency braking remains active to
maintain set speed. The system
remembers the last setting when you start
your vehicle.

LANE CENTERING

HOW DOES LANE CENTERING
WORK

Adaptive cruise control with lane centering
uses the vehicle's front radar sensor and
front windshield camera sensor, together
with the steering sensor to operate.

Using these sensors, the system applies
continuous steering assistance towards
driving in the middle of the lane you choose
on highway roads.

270

Adaptive Cruise Control

(If Equipped)

Note:

The gap setting for adaptive cruise

control with lane centering, operates in the
same way as normal adaptive cruise control.

LANE CENTERING PRECAUTIONS

WARNING:

Do not use the system

when towing a trailer. Failure to follow
this instruction could result in the loss of
control of your vehicle, personal injury or
death.

WARNING:

Do not use the system

if any changes or modifications to the
steering wheel have been made. Any
changes or modifications to the steering
wheel could affect the functionality or
performance of the system. Failure to
follow this instruction could result in the
loss of control of your vehicle, personal
injury or death.

Adaptive cruise control precautions apply
to lane centering unless stated otherwise
or contradicted by a lane centering
precaution. See

Adaptive Cruise Control

Precautions

(page 263).

LANE CENTERING
REQUIREMENTS

You must keep your hands on the steering
wheel at all times.

Lane centering only activates when all of
the following occur:
•

Adaptive cruise control with lane
centering is enabled in your information
and entertainment screen. See

Switching Lane Centering On and
Off

(page 272).

•

You have adaptive cruise control with
stop and go enabled and set.

•

The steering sensor detects your hands
on the steering wheel.

•

The system detects both lane markings
when driving on a straight road.

•

Your vehicle is initially centered in the
lane between two visible line markings.

Note:

If the system does not detect valid

lane line markings, the system will remain
in standby until valid line markings are
availables.

LANE CENTERING LIMITATIONS

Adaptive cruise control limitations apply
to lane centering unless stated otherwise
or contradicted by a lane centering
limitation. See

Adaptive Cruise Control

Limitations

(page 264).

Lane centering may not correctly operate
in any of the following conditions:
•

The lane width is too narrow or wide.

•

The curve in the road is too tight.

•

The system does not detect the
minimum required lane markings or
when lanes merge or split.

•

When the required steering effort to
maintain lane center exceeds the lane
centering system limit.

•

When driving in areas that are under
construction or when road work is in
progress.

•

If the front windshield camera and/or
the front radar are blocked.

•

When using a spare tire.

•

Inclement weather conditions
including, but not limited to, high wind,
heavy rain, and fog.

•

Driving into direct sunlight.

•

When modification to the steering
system has been made, including
alterations to the steering wheel.

•

When towing a trailer.

See

Lane Centering Precautions

(page

271).

271

Adaptive Cruise Control

(If Equipped)

Note:

The system steering assistance is

limited and may not have sufficient effort
for all driving situations and/or conditions,
such as driving through tight curves or
driving through curves at high speeds.

Note:

In exceptional conditions, the system

may deviate from the lane center.

SWITCHING LANE CENTERING ON
AND OFF

You must keep your hands on the steering
wheel at all times.

The controls are on the steering wheel.

E362891

Press the button.

The indicator appears in the instrument
cluster. When the lane centering system is
on, the color of the indicator changes to
indicate the system status.

You can override the system at any time
by steering your vehicle.

Note:

The lane centering requirements

must be met before you can enable the
feature. See

Lane Centering

Requirements

(page 271).

Enabling and Disabling Lane
Centering

E386797

Press the button on the

touchscreen.

2. Press

Driver Assistance

3. Press

Cruise Control

4. Press

Adaptive Cruise Control

5. Switch Lane Centering on or off.

LANE CENTERING ALERTS

You must keep your hands on the steering
wheel at all times.

When the system is active and detects no
steering activity for a period of time, the
system alerts you to put your hands on the
steering wheel. If you do not react
appropriately to the warnings the adaptive
cruise control with lane centering system
cancels and slows your vehicle down to
idle speeds while maintaining steering
control. See

Lane Centering Automatic

Cancellation

(page 272).

The system also alerts you if your vehicle
crosses lane line markings without
detected steering activity.

Note:

The system could detect a light grip

or light touch on the steering wheel as
hands-off driving.

LANE CENTERING AUTOMATIC
CANCELLATION

When an external condition cancels the
system, and your hands are on the steering
wheel, a tone sounds and a message
appears in the instrument cluster display.

When an external condition cancels the
system, and your hands are not on the
steering wheel, the system immediately
alerts you to take control of the vehicle. If
this alert is ignored, the system slows the
vehicle while maintaining steering
assistance when lane markings are
available. When no lane markings are
available, the vehicle comes to a stop.

E308130

If your vehicle starts to slow
down after system cancellation,
you must take full control of the

vehicle. To re-enable adaptive cruise
control with lane centering after
cancellation, press and release the resume
button.

Automatic cancellation can also occur if:
•

The lane becomes too wide or narrow.

•

The system cannot detect valid lane
markings.

272

Adaptive Cruise Control

(If Equipped)

•

Lane markings cross over one another.

•

The curve of the road is too sharp.

Note:

If your vehicle slows down due to your

inactivity twice within a key cycle, the
system disables. To reset the system, when
the vehicle is stationary, return the gear
selector to park (P) and turn the vehicle off.
Then, restart the vehicle with your foot on
the brake pedal.

LANE CENTERING MANUAL
CANCELLATION

When you perform the following actions,
adaptive cruise control with lane centering
will cancel:

•

The brake pedal is pressed.

•

Adaptive cruise control button on the
steering wheel is switched off.

The lane centering system is momentarily
suppressed when either of the following
actions are performed:

•

Turn signal indicator is latched or
tapped.

•

You steer the vehicle out of lane.

LANE CENTERING INDICATORS

E297977

Illuminates when you switch
lane centering on. The color of
the indicator changes to indicate

the system status.

Gray status indicates the system is on but
in standby mode.

Green status indicates the system is
enabled and applying steering assistance
to keep the vehicle in the center of the lane.

Amber status with an audible tone, that
then changes to gray status, indicates a
system automatic cancellation.

LANE CENTERING –
TROUBLESHOOTING

LANE CENTERING –
INFORMATION MESSAGES

Note:

Depending on your vehicle options

and instrument cluster type, not all
messages display or are available.

273

Adaptive Cruise Control

(If Equipped)

Action

Message

You must return your hands to the steering wheel and provide

steering input to cancel the message.

Keep Hands on Steering

Wheel

Lane centering is currently not available, due to conditions

that prevent the system from becoming active. To reset the

system, when the vehicle is stationary, return the gear selector

to park (P) and turn the vehicle off. Then, restart the vehicle

with your foot on the brake pedal.

Lane Centering Assist

Not Available

Adaptive cruise control with lane centering is about to cancel.

You must immediately take full control of the vehicle.

Resume Control

Adaptive cruise control with lane centering is in standby mode.

When safe to do so, you can resume adaptive cruise control

with lane centering by applying pressure on the accelerator
pedal. Alternatively, you can also re-enable adaptive cruise

control with lane centering by pressing the resume button on

the steering wheel.

Press Accelerator Pedal

to Resume

INTELLIGENT ADAPTIVE
CRUISE CONTROL

HOW DOES INTELLIGENT
ADAPTIVE CRUISE CONTROL
WORK

Intelligent adaptive cruise control
combines speed sign recognition and
navigation map data with adaptive cruise
control to adjust the cruise set speed to
the speed limit detected by the speed sign
recognition system. As the system detects
new speed signs, the set speed updates.

There are limitations that affect the
accuracy of the speed sign recognition
system and its ability to determine the
current speed limit. The intelligent
adaptive cruise control system and its
ability to determine the current speed limit
shares these limitations. See

Speed Sign

Recognition

(page 318).

Note:

The adaptive cruise control gap

setting operates normally when the feature
is enabled.

INTELLIGENT ADAPTIVE CRUISE
CONTROL PRECAUTIONS

WARNING:

You are responsible for

INTELLIGENT ADAPTIVE CRUISE
CONTROL LIMITATIONS

The speed limit information provided by
the navigation map data could be
inaccurate or out of date.

274

Adaptive Cruise Control

(If Equipped)

The system may not detect and read
speed limit signs with conditional
information, for example, when a sign is
flashing, during specific time ranges, or
when children are present.

Note:

The system does not set the vehicle

speed to speed limits shown with a
supplementary traffic sign.

Under certain conditions, the system may
not adjust the vehicle speed until after your
vehicle passes the speed limit.

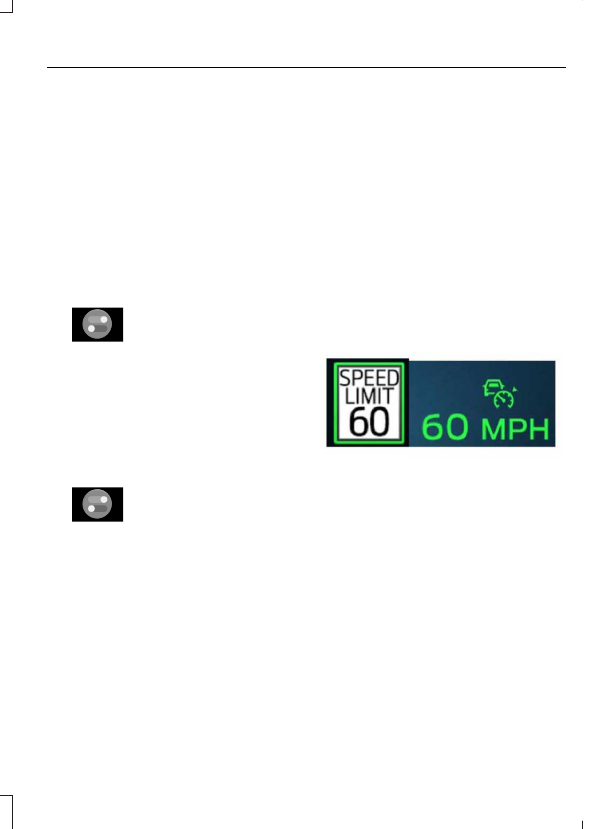

SWITCHING INTELLIGENT MODE
ON AND OFF

E386797

Press the button on the

touchscreen.

2. Press

Driver Assistance

3. Press

Cruise Control

4. Press

Adaptive Cruise Control

5. Press

Speed Sign Recognition

ADJUSTING THE SET SPEED
TOLERANCE

E386797

Press the button on the

touchscreen.

2. Press

Driver Assistance

3. Press

Cruise Control

4. Press

Adaptive Cruise Control

5. Press

Speed Sign Recognition

6. Press

Tolerance

Use the slider bar to adjust the
allowable tolerance for the system.

Note:

You cannot set the tolerance more

than 20 mph (30 km/h) above or below the
recognized speed.

INTELLIGENT ADAPTIVE CRUISE
CONTROL ALERTS

If you increase the set speed beyond the
speed limit or speed limit plus a positive
tolerance value, the set speed indicator
flashes.

The warning does not occur if:
•

You override the set speed using the
accelerator pedal.

•

The vehicle speed exceeds the set
speed due to being on a downhill slope.

INTELLIGENT ADAPTIVE CRUISE
CONTROL INDICATORS

E337564

The set speed limit displays next to the
detected speed limit in the instrument
cluster.

INTELLIGENT ADAPTIVE
CRUISE CONTROL –
TROUBLESHOOTING

INTELLIGENT ADAPTIVE CRUISE
CONTROL – INFORMATION
MESSAGES

Note:

Depending on your vehicle options

and instrument cluster type, not all
messages display or are available.

275

Adaptive Cruise Control

(If Equipped)

Note:

Certain messages may be

abbreviated or shortened depending upon
which cluster type you have.

Details

Message

Conditions exist preventing the system from being available.

Check that the front windshield camera is not blocked.

Navigation system information may not be available. If the

message continues to appear, have your vehicle checked as

soon as possible.

Intelligent Cruise Control

Speed Sign Recognition

Not Available

ADAPTIVE CRUISE CONTROL
– TROUBLESHOOTING

ADAPTIVE CRUISE CONTROL –
INFORMATION MESSAGES -
VEHICLES WITH: STOP AND GO

Note:

Depending on your vehicle options

and instrument cluster type, not all
messages display or are available.

Note:

The system could abbreviate or

shorten certain messages depending upon
which cluster type you have.

Action

Message

A malfunction is preventing the adaptive cruise from engaging.

Adaptive Cruise

Malfunction

Front Sensor Not Aligned

Contact an authorized dealer to have the radar checked for

proper coverage and operation.

Conditions exist preventing the system from being available.

Adaptive Cruise Not

Available

You have a blocked radar because of poor radar visibility due
to inclement weather or ice, mud, or water in front of the radar.

You can typically clean the sensor to resolve this.

Adaptive Cruise Not

Available Sensor

Blocked See Manual

Due to the nature of radar technology, it is possible to get a

blockage warning with no actual block. This happens, for

example, when driving in sparse rural or desert environments.
A false blocked condition either self clears, or clears after you

restart your vehicle.

276

Adaptive Cruise Control

(If Equipped)

Action

Message

You have selected normal cruise control. The system does

not brake or react to traffic.

Normal Cruise Active

Adaptive Braking Off

Displays when the adaptive cruise control is going to cancel

and you must take control.

Adaptive Cruise - Driver

Resume Control

Displays when the vehicle speed is too slow to activate the

adaptive cruise control and there is no lead vehicle in range.

Adaptive Cruise Speed

Too Low to Activate

277

Adaptive Cruise Control

(If Equipped)

WHAT IS DRIVE MODE
CONTROL

Your vehicle has various drive modes that
you can select for different driving
conditions. Depending on the drive mode
that you select, the system adjusts various
vehicle settings.

HOW DOES DRIVE MODE
CONTROL WORK

Drive mode control adjusts your vehicle
configuration for each mode you select.

Changing the drive mode adjusts the
steering effort and feel of the steering
system.

The stability and traction control assist
your vehicle control in adverse conditions
or high-performance driving.

Throttle control enhances the powertrain
response, transmission controls become
optimized with shift schedules, and
four-wheel drive settings are optimized
and tuned to each mode.

Changing the drive mode can engage or
disengage the electronic locking
differentials.

Changing the drive mode changes the
four-wheel drive mode to the default
setting for the selected drive mode.

Note:

The system has diagnostic checks

that continuously monitor the system for
proper operation. If a mode is unavailable
due to a system fault, the drive mode
system defaults to normal. When the
system defaults to normal, the driveline
settings remain the same as prior to the
system fault.

Note:

Your vehicle reverts to normal mode

each time it is started. If you shut your
vehicle off in a drive mode other than
normal mode, at startup the instrument
cluster screen displays a pop-up asking if
you would like to return to your last used
drive mode. If you select yes to the pop-up,
your vehicle returns to the last selected drive
mode and the default four-wheel driveline
setting associated with that drive mode. If
you select no, your vehicle remains in normal
mode and the default four-wheel driveline
setting associated with that drive mode. If
you do not select yes or no the pop up
message times out, your vehicle remains in
normal mode, and the four-wheel driveline
setting remains in its last used setting.

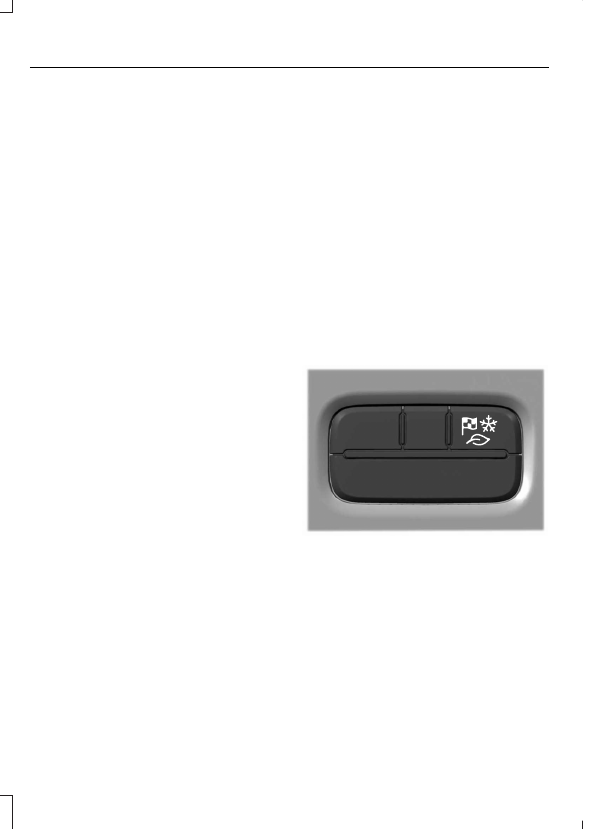

SELECTING A DRIVE MODE

E390970

Press the button on the center console.
The first press activates the drive mode
selection menu in the display. Subsequent
presses change the selected drive mode.

Note:

Button icons vary depending on the

vehicle.

Note:

Mode changes are not available when

your vehicle is off or when the transmission
is in reverse (R).

278

Drive Mode Control - Excluding: Raptor

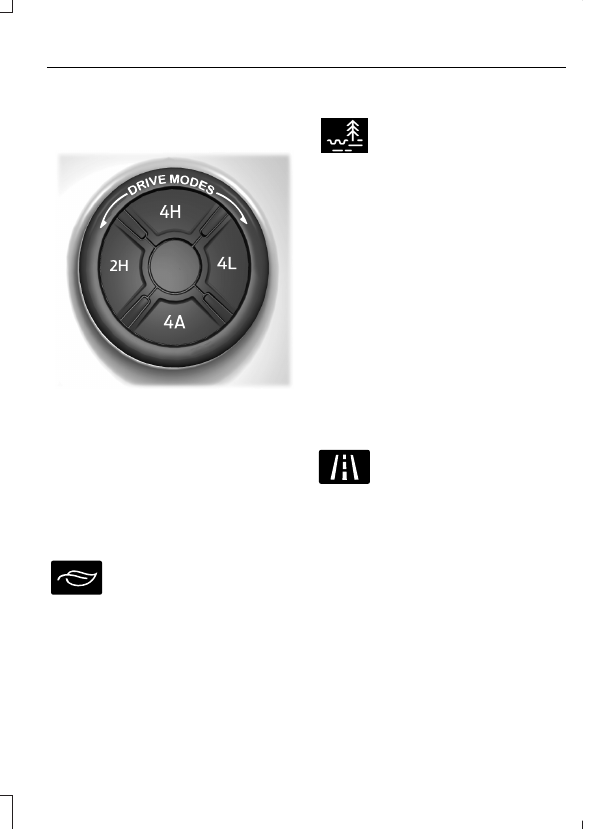

SELECTING A DRIVE MODE

(IF

EQUIPPED)

E359616

Rotate the drive mode control on the
center console to select or change a drive
mode.

Note:

Button icons vary depending on the

vehicle.

DRIVE MODES

ECO

E295413

For efficient driving. This mode
helps deliver maximum fuel
efficiency and helps to increase

driving range.

Depending on your vehicle options,
four-wheel drive auto (4A) or two-wheel
drive high (2H) is the default four-wheel
drive mode. Four-wheel drive low (4L) is
not selectable in eco mode.

The rear electronic locking differential is
available below 25 mph (40 km/h).

MUD/RUTS - FX4+

E296606

For off-road driving. This mode
enhances vehicle performance
to traverse muddy, rutted or

uneven terrains.

Four-wheel drive high (4H) is the default
four-wheel drive mode. Four-wheel drive
low (4L) is selectable in mud/ruts mode.
Depending on your vehicle options,
four-wheel drive auto (4A) or two-wheel
drive high (2H) is not selectable in
mud/ruts mode.

The rear electronic locking differential is
engaged when in mud/ruts mode and is
available at any speed in all selectable
four-wheel drive modes.

Note:

Do not use this mode on dry, hard

pavement. This could produce some
vibration, driveline bind up, and potential
excessive tire and vehicle wear depending
on the four-wheel drive mode selection.

NORMAL

E225310

For everyday driving. This mode
is the perfect balance of
excitement, comfort and

convenience. This is the default mode after
each ignition cycle, the driveline settings
remain the same prior to the ignition cycle.

Depending on your vehicle options,
four-wheel drive auto (4A) or two-wheel
drive high (2H) is the default four-wheel
drive mode. All four-wheel drive modes are
selectable when in normal mode.

The rear electronic locking differential is
available below 25 mph (40 km/h).

Note:

The rear electronic locking differential

is available at any speed when in four-wheel
drive low (4L).

279

Drive Mode Control - Excluding: Raptor

SAND

E332185

For off-road driving on soft, dry
sand or deep snow. This mode
may help get your vehicle

unstuck from deep snow or sand.

Four-wheel drive high (4H) is the default
four-wheel drive mode. Four-wheel drive
low (4L) is selectable in sand mode.
Depending on your vehicle options,
four-wheel drive auto (4A) or two-wheel
drive high (2H) is not selectable in sand
mode.

The rear electronic locking differential is
engaged when in sand mode and is
available at any speed in all selectable
four-wheel drive modes.

Note:

Do not use this mode on dry, hard

pavement. This could produce some
vibration, driveline bind up, and potential
excessive tire and vehicle wear depending
on the four-wheel drive mode selection.

Note:

Sand mode is not intended for use

on firm, slippery surfaces, such as paved
roads covered with snow or ice. For slippery,
firm surfaces use slippery mode.

SLIPPERY

E295414

For less than ideal conditions
such as snow or ice. This mode
can be used for crossing terrain

where a firm surface is covered with loose
or slippery material. Slippery mode lowers
throttle response and optimizes shifting
for slippery surfaces.

Depending on your vehicle options,
four-wheel drive auto (4A) or four-wheel
drive high (4H) is the default four-wheel
drive mode. When Four-wheel drive auto
(4A) is the default, two-wheel drive high
(2H) is not available.

The rear electronic locking differential is
available below 25 mph (40 km/h).

Note:

The rear electronic locking differential

is available at any speed when in four-wheel
drive low (4L).

Note:

Do not use this mode on hard

pavement while in four-wheel drive high
(4H) or four-wheel drive low (4L). This
could produce some vibration, driveline bind
up, and potential excessive tire and vehicle
wear depending on the four-wheel drive
mode selection.

TOW/HAUL

E246592

For improved transmission
operation when towing a trailer
or a heavy load. This mode

moves upshifts to higher engine speeds to
reduce the frequency of transmission
shifting. This mode also provides engine
braking in all forward gears, which slows
your vehicle and assists you in controlling
your vehicle when descending a slope. The
amount of downshift braking provided
varies based on the amount you press the
brake pedal.

Four-wheel drive auto (4A) is the default
four-wheel drive mode when four-wheel
drive auto (4A) is available, otherwise this
mode does not default to a certain
four-wheel drive mode and maintains the
previous selection. All four-wheel drive
modes are selectable when in tow/haul.

The system tunes the steering to enhance
driving comfort when towing or carrying
heavy loads.

The rear electronic locking differential is
available below 25 mph (40 km/h).

Note:

The rear electronic locking differential

is available at any speed when in four-wheel
drive low (4L).

280

Drive Mode Control - Excluding: Raptor

Ford Ranger (2024 year). Manual in english - page 8
