Ford F-150 (2024 year). Manual in english

TRAIL TURN ASSIST –
TROUBLESHOOTING

TRAIL TURN ASSIST –
INFORMATION MESSAGES

Details

Message

Switch to four-wheel

drive low (4L) or four-

wheel drive high (4H) to

activate trail turn assist.

Trail Turn

Assist Avail-
able in 4L or

Trail turn assist system

malfunction could be

present. If this condition

persists, have your

vehicle serviced.

Trail Turn

Assist Not

Available See

Manual

You have activated trail

turn assist.

Trail Turn

Assist ON

You have switched trail

turn assist off.

Trail Turn

Assist OFF

TRAIL TURN ASSIST –
FREQUENTLY ASKED QUESTIONS

Why does Trail Turn Assist not activate
after unlocking the rear differential?

The rear differential may not be fully
disengaged. When possible, turn off
the rear axle locker while driving
straight before using trail turn assist.
If you are already in a tight turn when
you encounter this situation, driving
the vehicle for a short distance in
reverse could allow the differential to
fully disengage.

317

Trail Turn Assist

(If Equipped)

WHAT IS HILL DESCENT
CONTROL

Hill descent control allows the driver to set
and maintain vehicle speed while
descending steep slopes in various surface
conditions.

HOW DOES HILL DESCENT
CONTROL WORK

Hill descent control can maintain vehicle
speeds on downhill slopes between
2–20 mph (3–32 km/h). Above 20 mph
(32 km/h), the system remains on but the
descent speed cannot be set or
maintained.

Note:

The system does not function below

2 mph (3 km/h).

The system requires a cool down interval
after a period of sustained use. Hill descent
control provides a warning in the message
center and a tone sounds when the system
is about to disengage for cooling. At this
time, manually apply the brakes as needed
to maintain descent speed.

Note:

The amount of time that the system

can remain active before cooling varies with
conditions.

HILL DESCENT CONTROL
PRECAUTIONS

WARNING:

The system does not

control speed in low traction conditions
or extremely steep slopes. The system
is designed to be an aid and does not
relieve you of your responsibility to drive
with due care and attention. Failure to
follow this instruction could result in
personal injury.

WARNING:

Hill descent control

cannot control descent in all surface
conditions and circumstances, such as
ice or extremely steep grades. Hill
descent control is a driver assist system
and cannot substitute for good judgment
by the driver. Failure to do so may result
in loss of vehicle control, crash or serious
injury.

WARNING:

The system does not

replace the parking brake. When you
leave your vehicle, always apply the
parking brake and shift the transmission
into park (P) for automatic transmission
or first gear for manual transmission.

SWITCHING HILL DESCENT
CONTROL ON AND OFF

E163171

Press the button on the
instrument panel. A light
illuminates and a tone sounds

when the system is active.

SETTING THE HILL DESCENT
SPEED

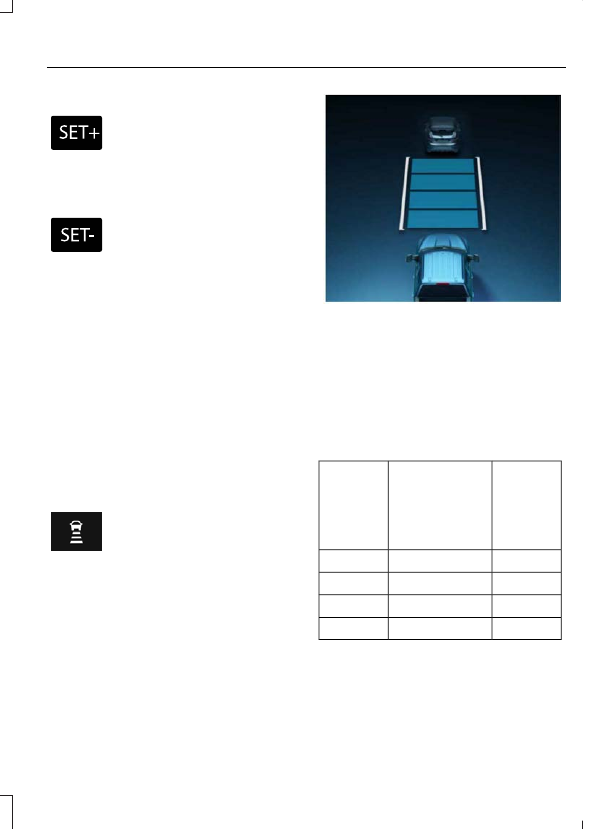

To increase or decrease the descent speed,
press the accelerator or brake pedal, or use
the SET

and SET

buttons on the

steering wheel. Once you reach the
preferred speed remove your feet from the
pedals.

HILL DESCENT CONTROL
INDICATOR

E371200

Illuminates when you switch hill
descent control on.

318

Hill Descent Control

(If Equipped)

HILL DESCENT CONTROL – TROUBLESHOOTING

HILL DESCENT CONTROL – INFORMATION MESSAGES

Action

Message

Your vehicle speed requirement for off-road mode

entry has not been met.

For Hill Descent Reduce Speed

XX MPH/km/h or Less

You need to select a transmission gear for hill descent

mode.

For Hill Descent Select Gear

Hill descent control mode is deactivated and you must

resume control.

Hill Descent Driver Resume

Control

A hill descent system fault is present.

Hill Descent Control Fault

The hill descent system is cooling due to overuse.

Hill Descent Control Off System

Cooling

The hill descent system cannot activate while Cruise

Control is actively controlling speed.

Hill Descent Control not avail-

able with Cruise Control Active

319

Hill Descent Control

(If Equipped)

ELECTRIC POWER STEERING

HOW DOES ELECTRIC POWER
STEERING WORK

The electric power steering system uses
an electric motor to provide assistance
when turning the steering wheel to steer
your vehicle. If your vehicle detects a
steering concern when you are driving, a
warning message appears and the system
reduces steering assistance. If your vehicle
loses electrical power, the steering system
still operates and you can manually steer
your vehicle. Manually steering your vehicle
requires more effort.

Note:

When the battery is disconnected or

a new battery is installed, you must drive
your vehicle a short distance before the
system relearns the strategy and reactivates
all systems.

Steering Tips

If the steering wanders or pulls, check for:
•

An improperly inflated tire.

•

Uneven tire wear.

•

Loose or worn suspension
components.

•

Improper vehicle alignment.

Note:

A high crown in the road or high

crosswinds could also make the steering
wander or pull.

ELECTRIC POWER STEERING
PRECAUTIONS

WARNING:

The electric power

steering system has diagnostic checks
that continuously monitor the system. If
a fault is detected, a message displays
in the information display. Stop your
vehicle as soon as it is safe to do so.

Switch the vehicle off. After at least 10
seconds, switch the vehicle on and
watch the information display for a
steering system warning message. If a
steering system warning message
returns, have the system checked as
soon as possible.

WARNING:

If the system detects

an error, you may not feel a difference in
the steering, however a serious condition
may exist. Have your vehicle checked as
soon as possible. Failure to do so may
result in loss of steering control.

Adapt your speed and driving behavior
according to reduced steering assist.

Extreme continuous steering may increase
the effort to steer. This occurs to prevent
internal overheating and damage to the
steering system. If this occurs, you will not
lose the ability to steer your vehicle
manually nor will it cause damage to the
system. Normal steering and driving allows
the system to cool down and steering
assist returns to normal.

Note:

There is no fluid reservoir to check or

fill.

STEERING –
TROUBLESHOOTING

STEERING – WARNING
INDICATORS

E223375

The electric power steering
system indicator illuminates if
the system detects a fault during

the continuous diagnostic checks.

Note:

If a red warning message displays,

stop your vehicle as soon as it is safe to do
so.

320

Steering

STEERING – INFORMATION MESSAGES

Action

Message

The power steering system has detected a

condition that requires service. Have your

vehicle checked as soon as possible.

Steering Fault Service Now

The power steering system is not working.
Stop your vehicle in a safe place. Have your

vehicle checked as soon as possible.

Steering Loss Stop Safely

The power steering system has detected a

condition that requires service. Have your

vehicle checked as soon as possible.

Steering Assist Fault Service Required

The steering system has detected a condi-
tion that requires service. Have your vehicle

checked as soon as possible.

Steering Lock Malfunction Service Now

STEERING VIDEOS

Electric Power-Assisted Steering (EPAS)

321

Steering

PARKING AID PRECAUTIONS

WARNING:

To help avoid personal

injury, always use caution when in
reverse (R) and when using the sensing
system.

WARNING:

The system may not

detect objects with surfaces that absorb
reflection. Always drive with due care
and attention. Failure to take care may
result in a crash.

WARNING:

Traffic control systems,

fluorescent lamps, inclement weather,
air brakes, external motors and fans may
affect the correct operation of the
sensing system. This may cause reduced
performance or false alerts.

WARNING:

The system may not

detect small or moving objects,
particularly those close to the ground.

WARNING:

The parking aid system

can only assist you to detect objects
when your vehicle is moving at parking
speeds. To help avoid personal injury you
must take care when using the parking
aid system.

WARNING:

The system may not

function if the sensor is blocked.

WARNING:

In cold and severe

weather conditions the system may not
function. Rain, snow and spray can all
limit sensor performance.

WARNING:

If damage occurs in the

immediate area surrounding the sensor,
have your vehicle checked as soon as
possible.

Note:

If your vehicle sustains damage

leaving the sensors misaligned, this will
cause inaccurate measurements or false
alerts.

When you connect a trailer to your vehicle,
the rear parking aid detects the trailer and
provides an alert. Disable the parking aid
when you connect a trailer to prevent the
alert.

Note:

Connected trailers might be detected

by the vehicle and parking aid turns off
automatically in those instances.

Note:

Certain add-on devices installed

around the bumper or fascia may create
false alerts. For example, large trailer
hitches, bike or surfboard racks, license plate
brackets, bumper covers or any other device
could block the normal detection zone of
the parking aid system. Aftermarket spare
tires or spare tire covers mounted to the rear
tailgate could cause false alerts from the
park aid system. Remove the add-on device
to prevent false alerts.

Note:

Keep the sensors free from snow, ice

and large accumulations of dirt. If the
sensors are covered, the system's accuracy
can be affected.

Do not clean the sensors with sharp
objects.

SWITCHING PARKING AID ON
AND OFF - VEHICLES
WITHOUT: ACTIVE PARK
ASSIST

E139213

Press the parking aid button to
switch the system on and off.

Switching Parking Aid On and Off
Long-Term

The system can be set to stay disabled in
between ignition cycles.

322

Parking Aids

Press Settings on the touchscreen.

2. Press Driver Assistance.

3. Press Park Aid Sensors.

4. Switch Front Sensors (Always) or Rear

Sensors (Always) on or off.

SWITCHING PARKING AID ON
AND OFF - VEHICLES WITH:
ACTIVE PARK ASSIST

E326188

Press the parking aid button and
use the menu to switch the
system on and off.

Switching Parking Aid On and Off
Long-Term

The system can be set to stay disabled in
between ignition cycles.

Press Settings on the touchscreen.

2. Press Driver Assistance.

3. Press Park Aid Sensors.

4. Switch Front Sensors (Always) or Rear

Sensors (Always) on or off.

REAR PARKING AID

WHAT IS THE REAR PARKING AID

Rear parking sensors detect objects behind
your vehicle when in reverse (R).

REAR PARKING AID LIMITATIONS

There is a decreased coverage area at the
outer corners.

The rear parking aid sensors are active
when your vehicle is in reverse (R) and the
vehicle speed is less than 5 mph (8 km/h).

The sensor coverage area is up to 71 in
(180 cm) from the rear bumper.

The rear parking aid detects large objects
when you shift into reverse (R) and any of
the following occur:
•

Your vehicle is moving backward at a
low speed.

•

Your vehicle is stationary but an object
is approaching the rear of your vehicle
at a low speed.

•

Your vehicle is moving backward at a
low speed and an object is moving
towards your vehicle, for example
another vehicle at a low speed.

The system shall provide no audible
warning for the object behind the vehicle
when in neutral (N) gear.

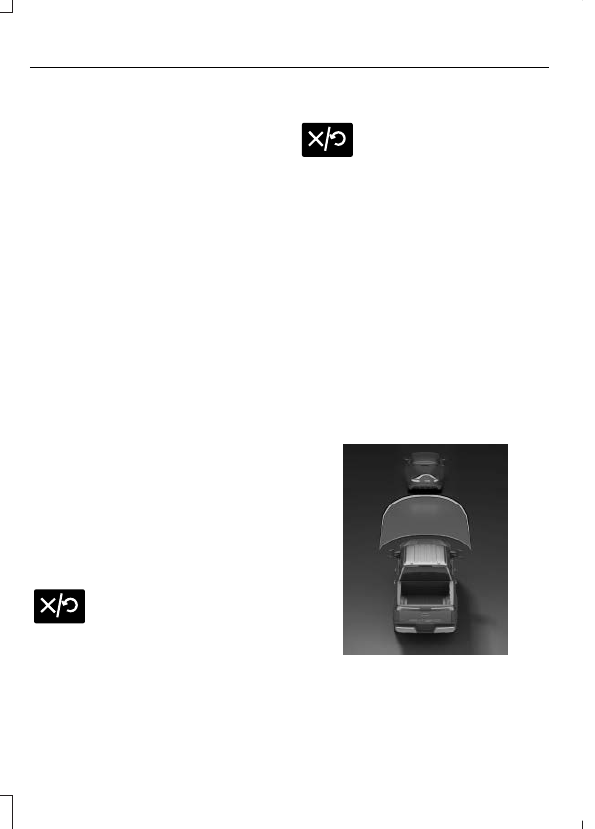

LOCATING THE REAR PARKING
AID SENSORS

E231381

The rear parking aid sensors are in the rear
bumper.

REAR PARKING AID AUDIBLE
WARNINGS

A warning tone sounds when your vehicle
approaches an object. As your vehicle
moves closer to an object, the rate of the
tone increases. The warning tone
continuously sounds when an object is 12 in
(30 cm) or less from the rear bumper.

323

Parking Aids

If your vehicle remains stationary for a few
seconds, the audible warning turns off. If
your vehicle moves backward the tone
sounds again.

Note:

When the parking aid system sounds

a tone, the audio system could reduce the
set volume.

FRONT PARKING AID

(IF EQUIPPED)

WHAT IS THE FRONT PARKING
AID

Front parking sensors detect objects in
front of your vehicle.

FRONT PARKING AID
LIMITATIONS

The front parking aid sensors are active
when your vehicle is in any position other
than park (P) and the vehicle speed is less
than 5 mph (8 km/h).

The sensor coverage area is up to 28 in
(70 cm) from the front bumper.

If your vehicle is in reverse (R), the front
parking aid detects objects and provides
an audible warning when your vehicle is
moving at a low speed and when an object
is moving toward your vehicle, for example,
another vehicle at a low speed. If your
vehicle remains stationary for a few
seconds, the audible warning turns off.
Visual indication is always active in reverse
(R).

If your vehicle is in any forward gear, the
front parking aid provides audible warnings
and a visual indication when your vehicle
is moving at a speed of 5 mph (8 km/h) or
below and the system detects an object
within the detection zone. If your vehicle
remains stationary for a few seconds, the
visual indication and audible warning turns
off.

If your vehicle is in neutral (N), the front
and rear sensors provide a visual indication
only when your vehicle is moving below a
speed of 5 mph (8 km/h) and the system
detects obstacles inside the detection
areas. Once your vehicle stops, the visual
indication and audible warning stops after
a few seconds.

LOCATING THE FRONT PARKING
AID SENSORS

E310332

The front parking aid sensors are in the
front bumper.

FRONT PARKING AID AUDIBLE
WARNINGS

A warning tone sounds when there is an
object within 28 in (70 cm) from the front
bumper. As your vehicle moves closer to
an object, the rate of the tone increases.

The warning tone continuously sounds
when an object is 12 in (30 cm) or less from
the front bumper.

Note:

If the detected object is 12 in (30 cm)

or less from your vehicle, visual indication
remains on.

324

Parking Aids

SIDE PARKING AID

(IF EQUIPPED)

WHAT IS THE SIDE PARKING AID

The front and rear outermost parking aid
sensors map objects that are near to the
sides of your vehicle.

SIDE PARKING AID LIMITATIONS

The sensor coverage is up to 24 in (60 cm)
from the sides of your vehicle.

The side parking aid may not function if:
•

Your vehicle remains stationary for over
two minutes.

•

The anti-lock brake system activates.

•

The traction control system activates.

•

Your vehicle is in park (P).

•

The steering wheel angle information
is not available. To reset the steering
wheel angle information, drive straight
for at least 492 ft (150 m) above
19 mph (30 km/h).

Note:

If you switch traction control off, the

side sensing system also turns off.

To reinitialize the system, drive the length
of your vehicle.

The side parking aid does not detect an
object that is moving toward the side of
your vehicle, for example another vehicle
moving at a low speed, if it does not pass
a front or rear parking aid sensor.

If the transmission is in reverse (R), the side
sensing system provides audible warnings.
When your vehicle is moving slowly, the
system detects obstacles within 24 in
(60 cm) and are inside the driving path of
your vehicle. If your vehicle remains
stationary for a few seconds, the audible
warning turns off. Visual indication is
always present in reverse (R).

If your vehicle is in neutral (N), the side
sensing system provides visual indication
only when your vehicle is moving slowly
and there is a front or rear parking aid
obstacle detected, and the side obstacle
is within 24 in (60 cm) from the side of
your vehicle. If your vehicle remains
stationary for a few seconds, the visual
indication turns off.

If the transmission is in drive (D) or any
other forward gear, the side sensing system
provides audible and visual warnings.
When your vehicle is moving slowly, the
system detects obstacles within 24 in
(60 cm) and are inside the driving path of
your vehicle. If your vehicle remains
stationary for a few seconds, the visual
indication and audible warning turns off.

LOCATING THE SIDE PARKING AID
SENSORS

E310321

The side parking sensors are in the front
and rear bumpers.

325

Parking Aids

SIDE PARKING AID AUDIBLE
WARNINGS

When the side parking aid detects an
object within the coverage area and the
driving path of your vehicle, an audible
warning sounds. As your vehicle moves
closer to the object, the rate of the tone
increases.

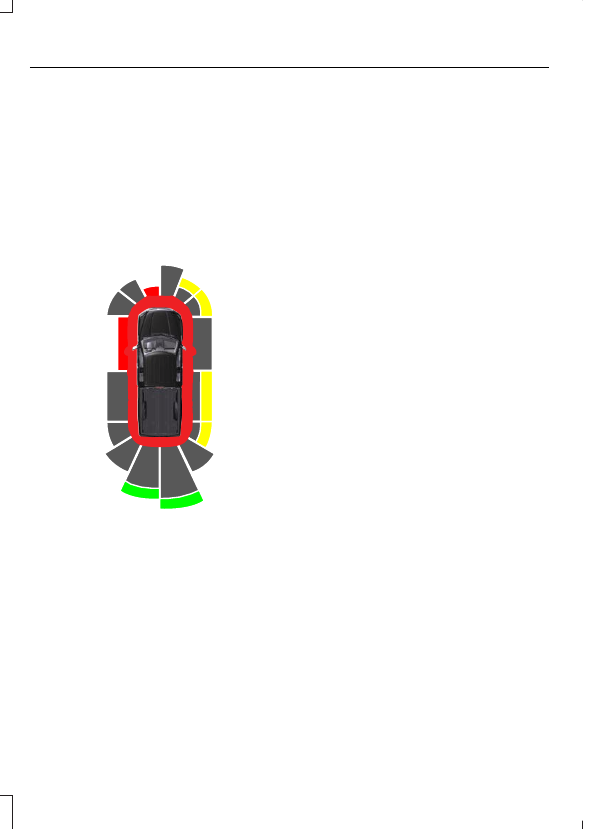

PARKING AID INDICATORS

E310320

The system provides object distance
indication through the information display.

•

As the distance to the object
decreases, the indicator blocks
illuminate and move toward the vehicle
icon.

•

If there is no object detected, the
distance indicator blocks are grey.

Visual indication remains on when the
transmission is in reverse (R). When you
stop your vehicle, visual indication turns
off after four seconds.

If the parking aids are not available, the
side distance indicator blocks do not
display.

PARKING AIDS –
TROUBLESHOOTING

PARKING AIDS – INFORMATION
MESSAGES

If a fault is present in the parking aids, a
warning message appears in the
instrument cluster or the touchscreen.

Note:

When the front or rear park aid

presents a fault message, the side parking
aid also disables.

Note:

Depending on your vehicle type, this

feature could include a light on the parking
aid button that momentarily flashes to
indicate a system fault. The light remains
on until you resolve the concern.

326

Parking Aids

Action

Message

The system detects a condition that

requires service. Have your vehicle checked

as soon as possible.

Park Aid Fault

Inclement weather, ice, mud, or water is

blocking the sensor, causing the system to

become unavailable. You can typically

clean the sensor to resolve.

Sensor Blocked

A correct trailer connection is sensed during

a given ignition cycle.

Trailer Connected

Displays the park aid status.

Front Park Aid On Off

Displays the park aid status.

Rear Park Aid On Off

PARKING AIDS VIDEOS

Reverse Sensing System Video Link

327

Parking Aids

WHAT IS THE REAR VIEW
CAMERA

The rear view camera provides a video
image of the area behind your vehicle when
the transmission is in reverse (R).

E332186

The rear view camera button is
on the instrument panel.

REAR VIEW CAMERA
PRECAUTIONS

WARNING:

The rear view camera

system is a reverse aid supplement
device that still requires the driver to use
it in conjunction with the interior and
exterior mirrors for maximum coverage.

WARNING:

Objects that are close

to either corner of the bumper or under
the bumper, might not be seen on the
screen due to the limited coverage of the
camera system.

WARNING:

Reverse your vehicle

slowly. Failure to follow this instruction
could result in the loss of control of your
vehicle, personal injury or death.

WARNING:

Use caution when the

tailgate is ajar. If the tailgate is ajar, the
camera is out of position and the video
image could be incorrect. All guide lines
disappear when the tailgate is ajar.
Failure to follow this instruction could
result in personal injury.

WARNING:

Use caution when

turning camera features on or off when
the transmission is not in park (P). Make
sure your vehicle is not moving.

Note:

When towing, the camera only sees

what you are towing. This might not provide
adequate coverage and you might not see
some objects. In some vehicles, the guide
lines may disappear when you connect the
trailer tow connector.

LOCATING THE REAR VIEW
CAMERA

The rear view camera is on the tailgate. It
provides a video image of the area behind
your vehicle.

328

Rear View Camera

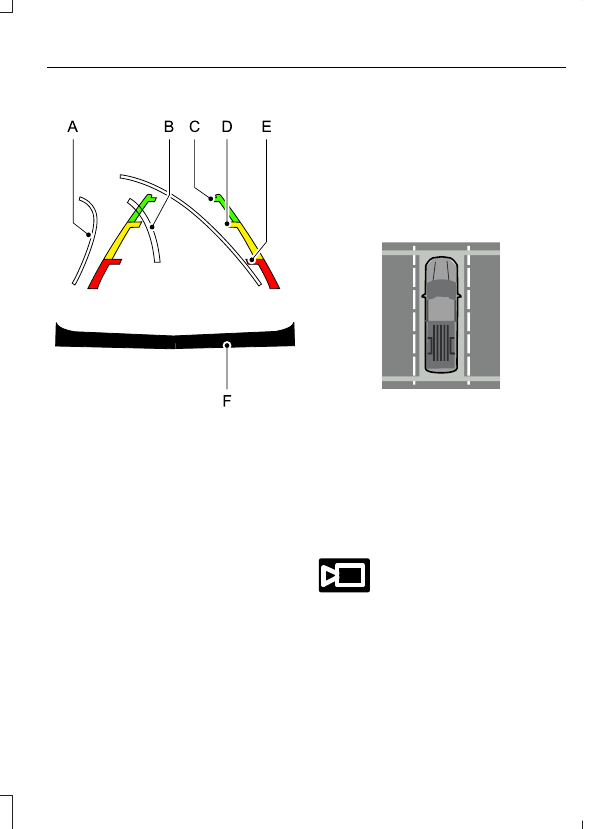

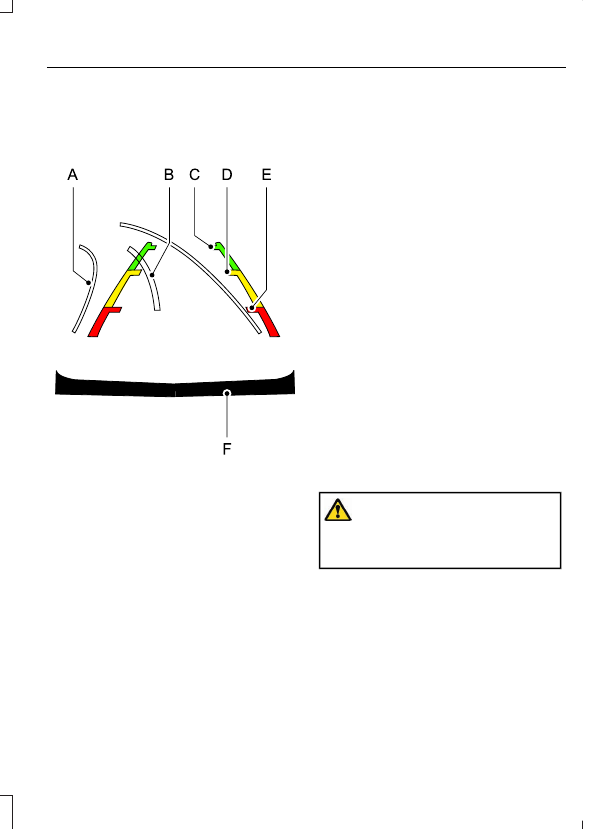

REAR VIEW CAMERA GUIDE
LINES

E306774

Active guide lines.

Centerline.

Fixed guide line: Green zone.

Fixed guide line: Yellow zone.

Fixed guide line: Red zone.

Rear bumper.

Active guide lines only show with fixed
guide lines. To use active guide lines, turn
the steering wheel to point the guide lines
toward an intended path. If the steering
wheel position changes while reversing,
your vehicle might deviate from the
intended path.

The fixed and active guide lines fade in and
out depending on the steering wheel
position. The active guide lines do not
display when the steering wheel position
is straight.

Use caution while reversing. Objects in the
red zone are closest to your vehicle and
objects in the green zone are farther away.
Objects get closer to your vehicle as they
move from the green zone to the yellow or
red zones. Use the side view mirrors and
rear view mirror to get better coverage on
both sides and rear of your vehicle.

Note:

Active guide lines and fixed guide

lines are only available when the
transmission is in reverse (R).

Note:

The centerline is only available if the

active or fixed guide lines are on.

Note:

Not all camera modes work properly

without an auxiliary camera.

REAR VIEW CAMERA
SETTINGS

ZOOMING THE REAR VIEW
CAMERA IN AND OUT

WARNING:

When manual zoom is

on, the full area behind your vehicle may
not show. Be aware of your surroundings
when using the manual zoom feature.

Selectable settings for this feature are
zoom in (+) and zoom out (-). Press the
symbol on the camera screen to change
the view. The default setting is zoom off.

This allows you to get a closer view of an
object behind your vehicle. The zoomed
image keeps the bumper in the image to
provide a reference. The zoom is only
active while the transmission is in reverse
(R).

329

Rear View Camera

Note:

Zooming in also engages park hold

which applies the electric park brake when
you shift to park (P). When you press the
zoom button, the electronic park hold
button illuminates on the touchscreen. See

Connecting a Trailer

(page 420).

Note:

Manual zoom is only available when

the transmission is in reverse (R).

Note:

Only the centerline shows when you

enable manual zoom.

SWITCHING REAR VIEW CAMERA
DELAY ON AND OFF

Press

Features

on the touchscreen.

2. Press

Driver Assistance

3. Switch

Rear View Camera Delay

on or

off.

When shifting the transmission out of
reverse (R) and into any gear other than
park (P), the camera image remains in the
display until:

•

Your vehicle speed reaches
approximately 5 mph (8 km/h).

•

You shift your vehicle into park (P).

SWITCHING THE REAR VIEW
CAMERA VIEW

E337002

Press to access the different
camera views.

E310967

Rear normal view provides an
image of what is directly behind
your vehicle.

E310974

Rear split view provides an
extended view of what is behind
your vehicle.

E350276

The hitch view provides an
image of the area around the
tow hitch.

Note:

The rear normal view and hitch view

are also available when your vehicle is in
drive (D).

330

Rear View Camera

WHAT IS THE 360 DEGREE
CAMERA

The 360 degree camera system consists
of front, side and rear cameras which
provide visibility around your vehicle.

HOW DOES THE 360 DEGREE
CAMERA WORK

The 360 degree camera system consists
of front, side and rear cameras.

The 360 Degree Camera system:

•

Allows you to see what is directly in
front of or behind your vehicle.

•

Provides a cross traffic view in front of
and behind your vehicle.

•

Allows you to see a top-down view of
the area outside your vehicle, including
the blind spots and obstacles near your
vehicle.

360 DEGREE CAMERA
PRECAUTIONS

WARNING:

The 360 degree

camera system still requires the driver
to use it in conjunction with looking out
of the windows, and checking the interior
and exterior mirrors for maximum
coverage.

WARNING:

Objects that are close

to either corner of the bumper or under
the bumper, might not be seen on the
screen due to the limited coverage of the
camera system.

WARNING:

Use caution when

turning camera features on or off when
the transmission is not in park (P). Make
sure your vehicle is not moving.

WARNING:

You are responsible for

controlling your vehicle at all times. The
system is designed to be an aid and does
not relieve you of your responsibility to
drive with due care and attention. Failure
to follow this instruction could result in
the loss of control of your vehicle,
personal injury or death.

WARNING:

Use caution when the

WARNING:

When manual zoom is

on, the full area behind your vehicle may
not show. Be aware of your surroundings
when using the manual zoom feature.

LOCATING THE 360 DEGREE
CAMERAS - EXCLUDING:
RAPTOR/TREMOR

Rear View Camera

The rear view camera is on the tailgate. It
provides a video image of the area behind
your vehicle.

Front View Camera

The front view camera is in the grille. It
provides a video image of the area in front
of your vehicle.

Side View Camera

The side view camera is on the outside
mirror. It provides a video image of the area
on the sides of your vehicle to aid you when
parking or when backing up a trailer.

331

360 Degree Camera

(If Equipped)

Bed Camera

The bed camera is mounted within the
high-mount stop lamp. It displays the
contents of your truck bed. The camera
contains a dynamic guideline to help locate
the center of your vehicle. This view can
be accessed while in drive (D) or reverse
(R).

Auxiliary Camera

The auxiliary camera is a variant of the rear
view camera and is accessed by pressing
the AUX button on the display screen when
moving in reverse (R) or in drive (D). It
displays a rear view image from the back
of a trailer while in reverse (R).

LOCATING THE 360 DEGREE
CAMERAS - RAPTOR/TREMOR

Rear View Camera

The rear view camera is on the tailgate. It
provides a video image of the area behind
your vehicle.

Front View Camera

The front view camera is in the grille. It
provides a video image of the area in front
of your vehicle.

Note:

The front camera switches on when

you are in off road, rock crawl, baja mode or
in four-wheel drive.

Side View Camera

The side view camera is on the outside
mirror. It provides a video image of the area
on the sides of your vehicle to aid you when
parking or when backing up a trailer.

Bed Camera

The bed camera is in the high-mount stop
lamp. It displays the contents of your truck
bed. The camera contains a dynamic
guideline to help locate the center of your
vehicle. You can access this view while in
drive (D) or reverse (R).

Auxiliary Camera

The auxiliary camera is a variant of the rear
view camera and you can access the
auxiliary view by pressing the AUX button
on the display screen when moving in
reverse (R) or in drive (D). It displays a rear
view image from the back of a trailer while
in reverse (R).

360 DEGREE CAMERA GUIDE
LINES

Note:

Active guide lines are only available

when the transmission is in reverse (R).

332

360 Degree Camera

(If Equipped)

E306774

Active guide lines.

Centerline.

Fixed guide line: Green zone.

Fixed guide line: Yellow zone.

Fixed guide line: Red zone.

Rear bumper.

Active guide lines only show with fixed
guide lines. Turn the steering wheel to
point the guide lines toward an intended
path. If the steering wheel position changes
when reversing, your vehicle could deviate
from the intended path.

The fixed and active guide lines fade in and
out depending on the steering wheel
position. The active guide lines do not
display when the steering wheel position
is straight.

Objects in the red zone are closest to your
vehicle and objects in the green zone are
farther away. Objects get closer to your
vehicle as they move from the green zone
to the yellow or red zones. Use the side
view mirrors and rear view mirror to get
better coverage on both sides and rear of
your vehicle.

Keep Out Zone

E310341

The keep out zone is represented by the
yellow dotted lines running parallel to your
vehicle.

360 DEGREE CAMERA
SETTINGS

SWITCHING THE 360 DEGREE
CAMERA ON AND OFF

E332186

The 360 degree camera system
button is on the instrument
panel. The front and rear

cameras have multiple screens which
consist of:

•

Normal view.

•

Normal view with 360.

•

Split view.

•

Bed camera.

333

360 Degree Camera

(If Equipped)

•

Auxiliary camera.

•

Hitch view.

Note:

The rear view camera activates when

you switch into reverse (R). Additional views
are then accessible on the touchscreen.

When in park (P), neutral (N) or drive (D),
the front images display when the button
is pressed. When in reverse (R), only the
rear images display when the button is
pressed.

Note:

Not all cameras are available.

Note:

The 360 degree camera system turns

off when your vehicle is in motion at low
speed, except when in reverse (R).

SWITCHING THE 360 DEGREE
CAMERA VIEW

E337002

Press to access the different
camera views.

E336516

Front normal view provides an
image of what is directly in front
of your vehicle.

E336517

Front split view provides an
extended view of what is in front
of your vehicle.

E420180

Normal + 360 degree view
contains the normal camera
view next to a 360 degree

camera view.

E420181

Rear normal view provides an
image of what is directly behind
your vehicle.

E420182

Rear split view provides an
extended view of what is behind
your vehicle.

E310995

Bed camera shows the truck
bed.

E311776

Trailer AUX camera shows a rear
view camera image of what is
behind your trailer. This camera

is purchased and installed separately.

E350276

The hitch view provides an
image of the area around the
tow hitch.

E310965

Trailer reverse guidance shows
the sides of your truck and trailer.
See

Trailer Reverse Guidance

(page 460).

E224485

Zooms in on the image and park
hold is activated. See

Connecting a Trailer

(page 420).

E337359

Zooms in on the 360 degree
image.

Note:

The rear normal view, bed camera

view, hitch view and trailer auxiliary view are
available when your vehicle speed is greater
than 6 mph (10 km/h).

334

360 Degree Camera

(If Equipped)

WHAT IS ACTIVE PARK
ASSIST

Assists you with parking in and out of
parking spaces.

HOW DOES ACTIVE PARK
ASSIST WORK

Active park assist uses sensors to detect
parking spaces. The system steers,
accelerates, brakes and shifts gears as
necessary to maneuver into or out of a
parking space.

ACTIVE PARK ASSIST
PRECAUTIONS

WARNING:

You must remain in

your vehicle when the system turns on.
The system is designed to be an aid and
does not relieve you of your responsibility
to drive with due care and attention. At
all times, you are responsible for
controlling your vehicle, supervising the
system and intervening if required.
Failure to follow this instruction could
result in the loss of control of your
vehicle, personal injury or death.

WARNING:

The sensors may not

detect objects in heavy rain or other
conditions that cause interference.

WARNING:

Do not use the system

with accessories that extend beyond the
front or rear of your vehicle, for example
a trailer hitch or bike rack. The system is
not able to make corrections for the
additional length of the accessories.

SWITCHING ACTIVE PARK
ASSIST ON AND OFF

E326188

Press the parking aid button,
then press the active park assist
icon on the touchscreen to bring

up full screen notifications.

Press the soft keys on the touchscreen to
switch between the parallel park in,
perpendicular park in, or parallel park out
parking modes.

Cancelling Active Park Assist

To cancel parking assistance at any time,
shift out of neutral (N).

Pausing Active Park Assist

To pause parking assistance at any time,
release the parking aid button.

If you open the passenger or rear doors,
active park assist pauses.

To resume parking, press and hold the
parking aid button again.

ENTERING A PARALLEL
PARKING SPACE

E402255

Press the parking button.

Note:

The system detects other vehicles

and curbs to find a parking space.

E402256

Press the active park assist

icon on the touchscreen.

3. Use the turn signal lever to search for

a parking space on the driver or
passenger side of your vehicle.

Note:

If you do not use the turn signal lever,

the system searches for a parking space on
the passenger side of your vehicle.

335

Active Park Assist

(If Equipped)

4. Drive your vehicle approximately 3 ft

(1 m) away from and parallel to the
other parked vehicles when searching
for a parking space.

Note:

A tone sounds and a message

appears in the information and
entertainment display when active park
assist finds a suitable parking space.

5. Press and hold the brake pedal.

6. Release the steering wheel and shift

into neutral (N).

E402255

Press and hold the parking

button.

8. Release the brake pedal to allow your

vehicle to park.

Note:

You can slow down your vehicle at

any time by pressing the brake pedal.

Note:

When parallel parking between

objects, the system parks closer to the
object in front of your vehicle to allow easier
access to the luggage compartment.

Note:

When parking is complete, your

vehicle shifts into park (P).

ENTERING A PERPENDICULAR
PARKING SPACE

E402255

Press the parking button.

Note:

Active park assist does not recognize

parking space lines and centers your vehicle
between objects.

E402256

Press the active park assist

icon on the touchscreen.

3. Select perpendicular parking.

4. Use the turn signal lever to search for

a parking space on the driver or
passenger side of your vehicle.

Note:

If you do not use the turn signal lever,

the system searches for a parking space on
the passenger side of your vehicle.

5. Drive your vehicle approximately 3 ft

(1 m) away from and perpendicular to
the other parked vehicles when
searching for a parking space.

Note:

A tone sounds and a message

appears in the information and
entertainment display when active park
assist finds a parking space.

6. Press and hold the brake pedal.

Release the steering wheel and shift
into neutral (N).

E402255

Press and hold the parking

button.

9. Release the brake pedal to allow the

vehicle to park.

Note:

Active park assist backs your vehicle

into parking spaces.

Note:

Active park assist aligns the front end

of your vehicle with the lane side of the
object next to it.

Note:

When the system detects only one

object, it allows enough distance to open
the door on either side.

Note:

You can slow down your vehicle at

any time by pressing the brake pedal.

Note:

When parking is complete, your

vehicle shifts into park (P).

EXITING A PARKING SPACE

E402255

Press the parking button.

E402256

Press the active park assist

icon on the touchscreen.

336

Active Park Assist

(If Equipped)

3. Select parallel park exit.

4. Use the turn signal to choose the

direction to exit the parking space.

5. Press and hold the brake pedal.

6. Release the parking brake.

Release the steering wheel and shift
into neutral (N).

E402255

Press and hold the parking

button.

9. Release the brake pedal to allow your

vehicle to move.

Note:

After active park assist drives your

vehicle to a position where you can exit the
parking space in a forward movement, a
message appears instructing you to take full
control of your vehicle.

10.

Take control of your vehicle.

Note:

You can slow down your vehicle at

any time by pressing the brake pedal.

ACTIVE PARK ASSIST –
TROUBLESHOOTING

ACTIVE PARK ASSIST –
INFORMATION MESSAGES

Details

Message

The system

requires service.

Have your vehicle

checked as soon as

possible.

Active Park Fault

ACTIVE PARK ASSIST –
FREQUENTLY ASKED QUESTIONS

Why does active park assist not
operate correctly?

•

The system is unable to detect a
vehicle, curb or object to park next to
or in between. The system needs
boundary objects to operate correctly.

Why does active park assist not
search for a parking space?

•

You have switched traction control off.

•

The transmission is in reverse (R). Your
vehicle must be moving forward to be
able to detect a parking space.

Why does active park assist not
offer a parking space?

•

The sensors could be blocked. For
example, snow, ice or large
accumulations of dirt. Blocked sensors
can affect how the system functions.

•

The sensors in the front or rear bumper
could be damaged.

•

There is not enough room in the parking
space for your vehicle to safely park.

337

Active Park Assist

(If Equipped)

•

There is not enough space for the
parking maneuver on the opposite side
of the parking space.

•

The parking space is more than 1.6 yd
(1.5 m) or less than 0.5 yd (0.5 m)
away from your vehicle.

•

Your vehicle's speed is greater than
21.7 mph (35 km/h) for parallel parking
or greater than 18.6 mph (30 km/h) for
perpendicular parking.

•

You recently disconnected or replaced
the battery. After you reconnect the
battery you must drive your vehicle on
a straight road for a short period of
time.

Why does active park assist not
correctly position the vehicle into
a parking space?

•

An irregular curb along the parking
space prevents the system from
correctly aligning your vehicle.

•

Vehicles or objects bordering the space
could not be correctly parked.

•

Your vehicle stopped too far past the
parking space.

•

The tires are not correctly installed or
maintained. For example, using a spare
tire, not inflated correctly, improper
size, or of different sizes.

•

A repair or alteration changed the
detection capabilities.

•

A parked vehicle has a high
attachment. For example, a salt
sprayer, snowplow or moving truck bed.

•

The parking space length or position of
parked objects changes after your
vehicle passes the space.

•

The temperature around your vehicle
quickly changes. For example, driving
from a heated garage into a cold
outside temperature, or after leaving a
car wash.

338

Active Park Assist

(If Equipped)

WHAT IS CRUISE CONTROL

Cruise control lets you maintain a set
speed without keeping your foot on the
accelerator pedal.

Requirements

Use cruise control when the vehicle speed
is greater than 20 km/h in metric units or
15 mph in imperial units.

SWITCHING CRUISE CONTROL
ON AND OFF

WARNING:

Do not use cruise

control on winding roads, in heavy traffic
or when the road surface is slippery. This
could result in loss of vehicle control,
serious injury or death.

The cruise controls are on the steering
wheel.

Switching Cruise Control On

E332905

Press the button to activate the
system. When the system
activates, the set speed is equal

to the current vehicle speed or 20 km/h (15
mph), whichever is greater. If the speed is
too low, or other conditions are not correct
for cruise control activation, the system
enters standby mode.

Switching Cruise Control Off

E332905

Press the button when the
system is active or switch the
ignition off.

Note:

When you switch cruise control off,

the set speed clears.

SETTING THE CRUISE
CONTROL SPEED

WARNING:

When you are going

downhill, your vehicle speed could
increase above the set speed. The
system does not apply the brakes.

Drive to the speed you prefer.

E246884

E246885

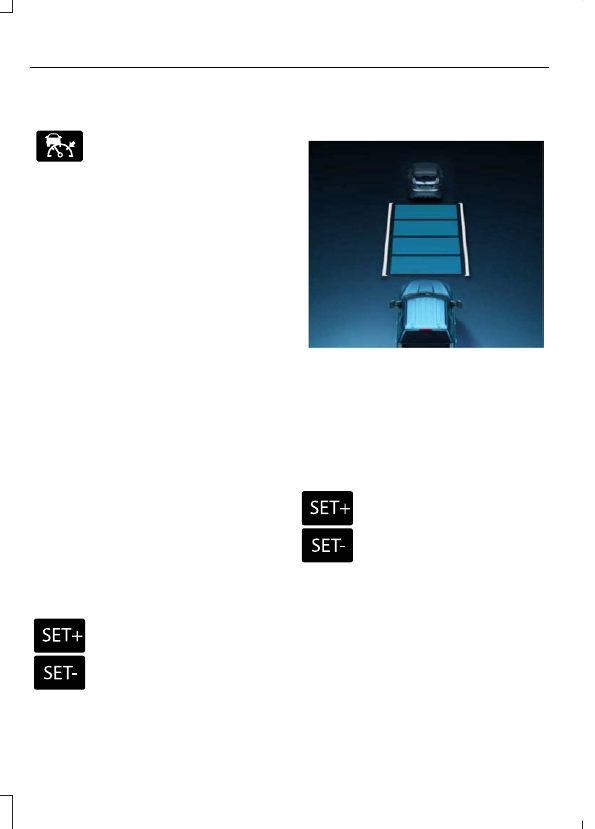

Press either the SET+ or SET-
buttons to set the current speed.

Take your foot off the accelerator pedal.

Note:

The indicator changes color in the

information display.

Changing the Set Speed

E246884

Press the SET+ button to
increase the set speed in small
increments. Press and hold the

SET+ button to accelerate. Release the
button when you have reached your
preferred speed.

E246885

Press the SET- button to
decrease the set speed in small
increments. Press and hold the

SET- button to decelerate. Release the
button when you have reached your
preferred speed.

Note:

If you accelerate by pressing the

accelerator pedal, the set speed does not
change. When you release the accelerator
pedal, your vehicle returns to the speed that
you previously set.

339

Cruise Control

HOW DOES ADAPTIVE CRUISE
CONTROL WITH STOP AND GO
WORK

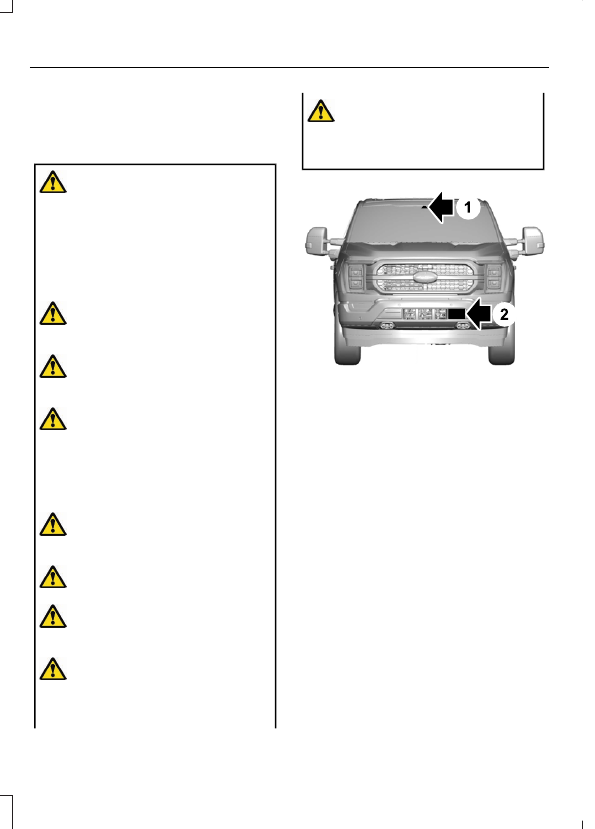

Adaptive cruise control with stop and go
uses radar and camera sensors to maintain
a set gap between your vehicle and the
vehicle in front of you while following it to
a complete stop. Stop and go can also be
set to follow a vehicle directly in front of
you and adjust the set speed, while you are
at a complete stop.

ADAPTIVE CRUISE CONTROL
PRECAUTIONS

WARNING:

You are responsible for

WARNING:

Do not use adaptive

cruise control on winding roads, in heavy
traffic or when the road surface is
slippery. This could result in loss of
vehicle control, serious injury or death.

WARNING:

Pay close attention to

changing road conditions such as
entering or leaving a highway, on roads
with intersections or roundabouts, roads
without visible lanes of travel, roads that
are unpaved, or steep slopes. Failure to
follow this instruction could result in the
loss of control of your vehicle, personal
injury or death.

WARNING:

The system is not a

crash warning or avoidance system.

WARNING:

Do not use the system

when towing a trailer that has
aftermarket electronic trailer brake
controls. Failure to follow this instruction
could result in the loss of control of your
vehicle, personal injury or death.

WARNING:

Do not use tire sizes

other than those recommended because
this can affect the normal operation of
the system. Failure to do so may result
in a loss of vehicle control, which could
result in serious injury.

WARNING:

Do not use the system

with a snow plow blade installed.

WARNING:

In situations with poor

visibility, such as fog, heavy rain or other
inclement weather, you may need to
override or completely switch off the
system.

When Following a Vehicle

WARNING:

When following a

vehicle that is braking, your vehicle does
not always decelerate quickly enough to
avoid a crash without driver intervention.
Apply the brakes when necessary. Failure
to follow this instruction could result in
personal injury or death.

Hilly Condition Usage

Select a lower gear when the system is
active in situations such as prolonged
downhill driving on steep slopes, for
example in mountainous areas.

341

Adaptive Cruise Control

(If Equipped)

ADAPTIVE CRUISE CONTROL
LIMITATIONS

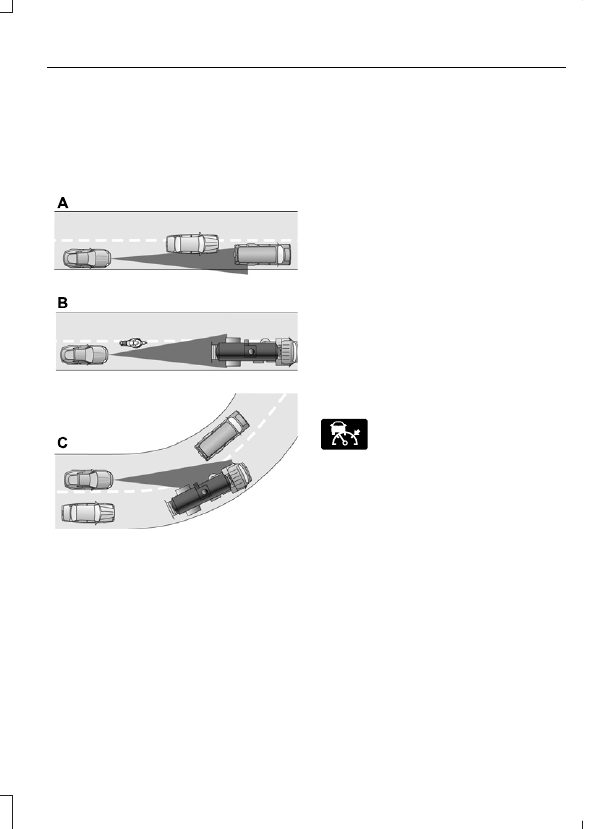

Sensor Limitations

WARNING:

On rare occasions,

detection issues can occur due to the
road infrastructures, for example bridges,
tunnels and safety barriers. In these
cases, the system may brake late or
unexpectedly. At all times, you are
responsible for controlling your vehicle,
supervising the system and intervening,
if required.

WARNING:

If the system

malfunctions, have your vehicle checked
as soon as possible.

WARNING:

Large contrasts in

outside lighting can limit sensor
performance.

WARNING:

The system only warns

of vehicles detected by the radar sensor.
In some cases there may be no warning
or a delayed warning. Apply the brakes
when necessary. Failure to follow this
instruction could result in personal injury
or death.

WARNING:

The system may not

detect stationary or slow moving
vehicles below 6 mph (10 km/h).

WARNING:

The system does not

detect pedestrians or objects in the road.

WARNING:

The system does not

detect oncoming vehicles in the same
lane.

WARNING:

The system may not

operate properly if the sensor is blocked.
Keep the windshield free from
obstruction.

WARNING:

The sensor may

incorrectly track lane markings as other
structures or objects. This can result in
a false or missed warning.

E328125

Camera.

Radar sensor.

The camera is on the windshield behind
the interior mirror.

The radar sensor is in the lower grille.

Note:

You cannot see the sensor. It is

behind a fascia panel.

Note:

Keep the front of your vehicle free of

dirt, metal badges or objects. Vehicle front
protectors, aftermarket lights, additional
paint or plastic coatings could also degrade
sensor performance.

A message displays if something obstructs
the camera or the sensor. When something
blocks the sensor, the system cannot
detect a vehicle ahead and does not
function. See

Adaptive Cruise Control

– Information Messages

(page 354).

342

Adaptive Cruise Control

(If Equipped)

The radar sensor has a limited field of view.
It may not detect vehicles at all or detect
a vehicle later than expected in some
situations. The lead vehicle image does
not illuminate if the system does not
detect a vehicle in front of you.

Detection Issues Can Occur:

E71621

When driving on a different line
than the vehicle in front.

With vehicles that edge into your
lane. The system can only detect
these vehicles once they move
fully into your lane.

There may be issues with the
detection of vehicles in front
when driving into and coming out
of a bend or curve in the road.

In these cases, the system may brake late
or unexpectedly.

If something hits the front end of your
vehicle or damage occurs, the
radar-sensing zone may change. This could
cause missed or false vehicle detection.

Optimal system performance requires a
clear view of the road by the windshield
camera.

Optimal performance may not occur if:

•

The camera is blocked.

•

There is poor visibility or lighting
conditions.

•

There are bad weather conditions.

SWITCHING ADAPTIVE
CRUISE CONTROL ON AND OFF

The cruise controls are on the steering
wheel.

Switching Adaptive Cruise Control
On

E144529

Press the button to activate the
system. When the system
activates, the set speed is equal

to whichever is greater, the current vehicle
speed, or 15 mph when in imperial units or
20 km/h when in metric units. If the speed
is too low, or other conditions are not
correct for adaptive cruise control
activation, the system enters standby
mode. When you are below 12 mph (20
km/h), adaptive cruise control does not
activate unless you are following another
vehicle. The system will activate at 12 mph
(20 km/h), but will automatically set to
the minimum set speed of 15 mph when in
imperial units.

The indicator, current gap setting and set
speed appear in the instrument cluster
display.

343

Adaptive Cruise Control

(If Equipped)

Switching Adaptive Cruise Control
Off

E144529

Press the button when the
system is in standby mode or
switch your vehicle off.

Note:

When you switch the system off, the

set speed clears.

ADAPTIVE CRUISE CONTROL
AUTOMATIC CANCELLATION

The system may cancel if:
•

The tires lose traction.

•

You apply the parking brake.

The system may cancel and set the parking
brake if:
•

You unbuckle the seatbelt and open
the driver door after adaptive cruise
control stops your vehicle.

•

Adaptive cruise control holds your
vehicle at a stop continuously for more
than three minutes.

The system may deactivate or prevent
activating when requested if:
•

The vehicle has a blocked sensor.

•

The brake temperature is too high.

•

There is a failure in the system or a
related system.

SETTING THE ADAPTIVE
CRUISE CONTROL SPEED

Drive to the speed you prefer.

E246884

E246885

Press the SET+ or SET- buttons
to set the current speed.

Take your foot off the accelerator pedal.

The indicator, current gap setting and set
speed appear in the instrument cluster
display.

E337576

A vehicle image illuminates if there is a
vehicle detected in front of you.

Note:

When adaptive cruise control is

active, the speedometer may vary slightly
from the set speed displayed in the
instrument cluster display.

Setting the Adaptive Cruise Speed
from a Complete Stop

E246884

E246885

Press the SET+ or SET- buttons
while keeping the brake pedal
fully depressed.

The set speed adjusts to 20 km/h when in
metric units or 15 mph when in imperial
units.

The indicator, current gap setting and set
speed appear in the instrument cluster
display.

Note:

The system activates from a

complete stop only when it detects a lead
vehicle in close proximity.

344

Adaptive Cruise Control

(If Equipped)

Manually Changing the Set Speed

E246884

Press the SET+ button to
increase the set speed in small
increments. Press and hold the

SET+ button to increase set speed in large
increments. Release the button when the
indicated set speed reaches the preferred
speed.

E246885

Press the SET- button to
decrease the set speed in small
increments. Press and hold the

SET- button to decrease the set speed in
large increments. Release the button when
the indicated set speed reaches the
preferred speed.

You can also press the accelerator or brake
pedal until you reach the speed you prefer.
Press the SET+ or SET- button to select
the current speed as the set speed.

The system may apply the brakes to slow
the vehicle to the new set speed. The set
speed continuously displays in the
instrument cluster display when the
system is active.

SETTING THE ADAPTIVE
CRUISE CONTROL GAP

Press the button to cycle
through the four gap settings.

E337576

The selected gap appears in the
instrument cluster display as shown by the
bars in the image.

Note:

The gap setting is time dependent

and therefore, the distance adjusts with your
vehicle speed.

Note:

It is your responsibility to select a gap

appropriate to the driving conditions.

Adaptive Cruise Control Gap Settings

Dynamic

Behavior

Gap Distance

Graphic

Display,

Bars Indic-

ated

Between

Vehicles

Sport.

Closest.

Normal.

Close.

Normal.

Medium.

Comfort.

Far.

Each time you switch the system on, it
selects the last chosen gap setting.

345

Adaptive Cruise Control

(If Equipped)

Following a Vehicle

When a vehicle ahead of you enters the
same lane or a slower vehicle is ahead in
the same lane, the vehicle speed adjusts
to maintain the gap setting.

Note:

When you are following a vehicle and

you switch on a turn signal lamp, adaptive
cruise control may provide a small,
temporary acceleration to help you pass.

Your vehicle maintains a consistent gap
from the vehicle ahead until:
•

The vehicle in front of you accelerates
to a speed above the set speed.

•

The vehicle in front of you moves out
of the lane you are in.

•

You set a new gap distance.

The system applies the brakes to slow
down your vehicle to maintain a safe gap
distance from the vehicle in front of you.
The system only applies limited braking.
You can override the system by applying
the brakes.

Note:

The brakes may emit noise when

applied by the system.

If the system determines that its maximum
braking level is not sufficient, an audible
warning sounds, a message appears in the
instrument cluster display and an indicator
flashes when the system continues to
brake. Take immediate action.

CANCELING THE SET SPEED

E308130

Press the button or tap the brake
pedal.

The set speed does not erase.

RESUMING THE SET SPEED

E308130

Press the button.

Your vehicle speed returns to the
previously set speed and gap setting. The
set speed displays continuously in the
information display when the system is
active.

Note:

Only use resume if you are aware of

the set speed and intend to return to it.

Resuming the Set Speed from a
Complete Stop

(If Equipped)

If your vehicle follows a vehicle to a
complete stop and remains stationary for
less than a few seconds, your vehicle
accelerates from a stationary position to
follow the vehicle ahead.

If your vehicle follows a vehicle to a
complete stop and remains stationary for
more than a few seconds, an indicator and
message displays.

E335548

346

Adaptive Cruise Control

(If Equipped)

Details

Message

Cruise control does not resume automatic-

ally when this display is active.

Stopped

If the lead vehicle begins to move, you are

prompted to press the resume button.

Press button to resume

Press and release the button or use the

accelerator pedal to resume following the

lead vehicle.

Displays when on a limited access highway
after following a vehicle to a complete stop.

In this situation, the vehicle resumes

following the lead vehicle without a button
press or pressing the accelerator pedal. The

system can remain in auto-resume state

for approximately 30 seconds, after which

it no longer automatically resumes.

Auto-Resume

OVERRIDING THE SET SPEED

WARNING:

If you override the

system by pressing the accelerator
pedal, it does not automatically apply
the brakes to maintain a gap from any
vehicle ahead.

When you press the accelerator pedal, you
override the set speed and gap distance.

Use the accelerator pedal to intentionally
exceed the set speed limit.

When you override the system, the
indicator remains blue, the set speed is
dimmed and the lead vehicle icon does not
appear in the instrument cluster display.

The system resumes operation when you
release the accelerator pedal. The vehicle
speed decreases to the set speed, or a
lower speed if following a slower vehicle.

ADAPTIVE CRUISE CONTROL
INDICATORS

E144529

Illuminates when you switch
adaptive cruise control on. The
color of the indicator changes to

indicate the system status.

White indicates the system is on but
inactive.

Blue indicates that you set the speed and
the system is active.

SWITCHING FROM ADAPTIVE
CRUISE CONTROL TO CRUISE
CONTROL

WARNING:

Normal cruise control

will not brake when your vehicle is
approaching slower vehicles. Always be
aware of which mode you have selected
and apply the brakes when necessary.

347

Adaptive Cruise Control

(If Equipped)

Press

Features

on the touchscreen.

2. Press

Driver Assistance

3. Press

Cruise Control

4. Press

Normal Cruise Control

E332905

The cruise control indicator
replaces the adaptive cruise
control indicator if you select

normal cruise control. The gap setting
does not display, and the system does not
respond to lead vehicles. Automatic
braking remains active to maintain set
speed. The system remembers the last
setting when you start your vehicle.

LANE CENTERING

HOW DOES LANE CENTERING
WORK

Adaptive cruise control with lane centering
uses the vehicle's front radar sensor and
front windshield camera sensor, together
with the steering sensor to operate.

Using these sensors, the system applies
continuous steering assistance towards
driving in the middle of the lane you choose
on highway roads.

Note:

The gap setting for adaptive cruise

control with lane centering, operates in the
same way as normal adaptive cruise control.

LANE CENTERING PRECAUTIONS

WARNING:

Do not use the system

when towing a trailer. Failure to follow
this instruction could result in the loss of
control of your vehicle, personal injury or
death.

WARNING:

Do not use the system

if any changes or modifications to the
steering wheel have been made. Any
changes or modifications to the steering
wheel could affect the functionality or
performance of the system. Failure to
follow this instruction could result in the
loss of control of your vehicle, personal
injury or death.

Adaptive cruise control precautions apply
to lane centering unless stated otherwise
or contradicted by a lane centering
precaution. See

Adaptive Cruise Control

Precautions

(page 341).

LANE CENTERING
REQUIREMENTS

You must keep your hands on the steering
wheel at all times.

Lane centering only activates when all of
the following occur:
•

Adaptive cruise control with lane
centering is enabled in the touchscreen.
See

Switching Lane Centering On

and Off

(page 349).

•
