Ford Expedition (2024 year). Manual in english

CHECKING THE TIRE
PRESSURES

Safe operation of your vehicle
requires that your tires are
properly inflated. Every day before
you drive, check your tires.

At least once a month and before
long trips, inspect each tire and
check the tire pressure with a tire
gauge. Inflate all tires to the
recommended inflation pressure.
See

Inflating the Tires

(page

442).

INFLATING THE TIRES

WARNING:

Under-inflation

is the most common cause of
tire failures and may result in
severe tire cracking, tread
separation or blowout, with
unexpected loss of vehicle
control and increased risk of
injury. Under-inflation increases
sidewall flexing and rolling
resistance, resulting in heat
buildup and internal damage to
the tire. It also may result in
unnecessary tire stress, irregular
wear, loss of vehicle control and
accidents. A tire can lose up to
half of its air pressure and not
appear to be flat!

WARNING:

Do not use the

tire pressure displayed in the
information display as a tire
pressure gauge. Failure to follow
this instruction could result in
personal injury or death.

Use the recommended cold
inflation pressure for optimum tire
performance and wear.
Under-inflation or over-inflation

may cause uneven treadwear
patterns.

Inflate your tires to the
recommended inflation pressure
even if it is less than the maximum
inflation pressure information
found on the tire. You can find the
tire label with the recommended

tire inflation pressure next to the
tire size on the B-Pillar or the edge
of the driver door.

The recommended tire inflation
pressure is also found on the
Safety Compliance Certification
Label, affixed to either the door
hinge pillar, door-latch post, or the
door edge that meets the
door-latch on the B-pillar, or on
the edge of the driver door.

Failure to follow the tire pressure
recommendations can cause
uneven treadwear patterns and
adversely affect the way your
vehicle handles.

442

Tire Care

Checking Pressure when tires
are hot:

If pressures are checked after tires
have been driven for more than
three minutes or more than 1 mile,
(2 km) the tires become hot and
the pressures will increase by
approximately 4 psi (27.6 kPa).
Therefore when the tire pressure
is adjusted under these conditions,
it should be increased to a gauge
reading of 4 psi (27.6 kPa) greater
than the recommended cold
inflation pressure.

After inflating the tires while hot,
make sure to recheck tire pressure
later once the tires are cold.

For Example Only

33 psi (230

kPa)

Gauge reading

of hot tire

32 psi (220

kPa)

If recom-

mended, cold

inflation pres-

sure is

The hot tire pressure is only 1 psi

(10 kPa) greater than the

recommended cold inflation

pressure. Therefore, add 3 psi

(20 kPa) more to increase the

hot pressure to 4 psi (30 kPa)

over the recommended cold

inflation pressure.

36 psi (250

kPa)

New hot pres-

sure

INSPECTING THE TIRE FOR
WEAR

E142546

When the tread is worn down to
2/32 inch (1.6 mm), tires must be
replaced to help prevent your
vehicle from skidding and
hydroplaning. Built-in treadwear
indicators, or wear bars, which
look like narrow strips of smooth
rubber across the tread will
appear on the tire when the tread
is worn down to 2/32 inch (1.6
mm).

When the tire tread wears down
to the same height as these wear
bars, the tire is worn out and must
be replaced.

The tires should also be balanced
periodically. An unbalanced tire
and wheel assembly may result in
irregular tire wear.

443

Tire Care

Periodically inspect the tire treads
for uneven or excessive wear and
remove objects such as stones,
nails or glass that may be wedged
in the tread grooves.

INSPECTING THE TIRE FOR
DAMAGE

Inspect the tire sidewalls for
cracking, cuts, bruises and other
signs of damage or excessive
wear. If internal damage to the tire
is suspected, have the tire
dismounted and inspected in case
it needs to be repaired or replaced.
For your safety, tires that are
damaged or show signs of
excessive wear should not be used
because they are more likely to
blow out or fail.
Periodically inspect the tire treads
and sidewalls for damage, such
as bulges in the tread or sidewalls,
cracks in the tread groove and
separation in the tread or sidewall.
If damage is observed or
suspected, have the tire inspected
by a tire professional.

Safety Practices

WARNING:

If your vehicle

is stuck in snow, mud or sand, do
not rapidly spin the tires;
spinning the tires can tear the
tire and cause an explosion. A
tire can explode in as little as
three to five seconds.

WARNING:

Do not spin the

wheels at over 34 mph
(55 km/h). The tires may fail and
injure a passenger or bystander.

HIGH SPEED DRIVING CAN BE
DANGEROUS

Correct inflation pressure is
especially important. However, at
high speeds, even with the correct
inflation pressure, a road hazard
for example is more difficult to
avoid and if contact is made, has
a greater chance of causing tire
damage than at a lower speed.
Moreover, driving at high speed
reduces the reaction time
available to avoid accidents and
bring your vehicle to a safe stop.

If you see any damage to a tire or
wheel, replace it with the spare at
once and visit a participating Tire
Retailer.

Exceeding the maximum speeds
shown on the following page for
each type of tire will cause the tire
to build up excessive heat which
can cause tire damage that could
result in sudden tire destruction
and rapid air loss. Failure to
control a vehicle when one or
more tires experience a sudden air
loss can lead to an accident.

In any case, you should not
exceed reasonable speeds as
indicated by the legal limits
and driving conditions.

444

Tire Care

DO NOT OVERLOAD: DRIVING
ON ANY OVERLOADED TIRE IS
DANGEROUS

The maximum load rating of your
tires is molded on the tire sidewall.
Do not exceed this rating. Follow
the loading instructions of the
manufacturer of your vehicle and
this will ensure that your tires are
not overloaded. Tires which are
loaded beyond their maximum
allowable loads for the particular
application will build up excessive
heat that may result in sudden tire
destruction. Do not exceed the
gross axle weight rating for any
axle on your vehicle.

TIRE ALTERATIONS

Do not make or allow to be made

any alterations on your tires.
Alterations may prevent proper
performance, leading to tire
damage which can result in an
accident. Tires which become
unserviceable due to alterations
such as truing, whitewall inlays,
addition of balancing or sealant
liquids, or the use of tire dressing
containing petroleum distillates
are excluded from warranty
coverage.

REPAIRS - WHEREVER
POSSIBLE, SEE YOUR TIRE
RETAILER AT ONCE

If any tire sustains a puncture,
have the tire demounted and
thoroughly inspected by a tire
retailer for possible damage that
may have occurred. A tread area
puncture in any passenger or light
truck tire can be repaired provided
that the puncture hole is not more
than 1/4” in diameter, not more
than one radial cable per casing
ply is damaged, and the tire has
not been damaged further by the
puncturing object or by running
underinflated. Tire punctures
consistent with these guidelines
should only be repaired by
following the US Tire

Manufacturers Association
(USTMA) recommended repair
procedures. Plug-only repairs
done on-the-wheel are considered
improper and therefore, not
recommended. Such repairs are
not reliable and may cause further
damage to the tire.

STORAGE

Tires contain waxes and
emollients to protect their outer
surfaces from ozone and weather
checking. As the tire rolls and
flexes, the waxes and emollients
continually migrate to the surface,
replenishing this protection
throughout the normal use of the
tire. Consequently, when tires sit
unused for long periods of time (a
month or more) their surfaces

445

Tire Care

become dry and more susceptible
to ozone and weather checking
and the casing becomes
susceptible to flat spotting.

For

this reason, tires should always
be stored in a cool, dry, clean,
indoor environment. If storage
is for one month or more,
eliminate the weight from the
tires by raising the vehicle or by
removing the tires from the
vehicle. Failure to store tires in
accordance with these
instructions could result in
damage to your tires or
premature aging of the tires
and sudden tire failure.

When tires are stored, be sure they
are placed away from sources of
heat and ozone such as direct

sunlight, hot pipes and electric
generators. Be sure that surfaces
on which tires are stored are clean
and free from grease, gasoline or
other substances, which could
deteriorate the rubber. Failure to
store tires in accordance with
these instructions could result in
damage to your tires or premature
aging of the tires and sudden tire
failure.

FOLLOW THESE MOUNTING
RECOMMENDATIONS

Tire changing can be dangerous
and must be done by
professionally trained persons
using proper tools and
procedures as specified by the
US Tire Manufacturers
Association (USTMA). Single
or dual assemblies must be
completely deflated before
demounting.

Your tires should be mounted on
wheels of correct size and type
and which are in good, clean
condition. Wheels that are bent,
chipped, rusted (steel wheels) or
corroded (alloy wheels) may
cause tire damage. The inside of
the tire must be free from foreign

material. Have your retailer check
the wheels before mounting new
tires. Mismatched tires and rims
can explode during mounting.
Also, mismatched tires and rims
can result in dangerous tire failure
on the road. If a tire is mounted by
error on the wrong-sized rim, do
not remount it on the proper rim -
scrap it. It may have been
damaged internally (which is not
externally visible) by having been
dangerously stretched and could
fail on the highway.

446

Tire Care

Old valves may leak. When new
tubeless tires are mounted,
have new valves of the correct
type installed. Tubeless tires
must only be mounted on
wheels designed for tubeless
tires i.e., wheels which have
safety humps or ledges.

It is recommended that you have
your tires and wheels balanced.
Tires and wheels, which are not
balanced, may cause steering
difficulties, a bumpy ride, and
irregular tire wear.

Be sure that all your valves
have suitable valve caps. The
valve cap is the primary seal
against air loss.

TEMPORARY SPARE TIRES

When using any temporary spare
tire, be sure to follow the vehicle
manufacturer’s instructions.

REMEMBER... TO AVOID
DAMAGE TO YOUR TIRES AND
POSSIBLE ACCIDENT:

•

CHECK TIRE PRESSURE AT
LEAST ONCE EACH MONTH
WHEN TIRES ARE COLD AND
BEFORE LONG TRIPS.

•

DO NOT
UNDERINFLATE/OVERINFLATE.

•

DO NOT OVERLOAD.

•

DRIVE AT MODERATE

SPEEDS, OBSERVE LEGAL
LIMITS.

•

AVOID DRIVING OVER
POTHOLES, OBSTACLES,
CURBS OR EDGES OF
PAVEMENT.

•

AVOID EXCESSIVE WHEEL
SPINNING.

•

IF YOU SEE ANY DAMAGE TO
A TIRE, REPLACE WITH THE
SPARE AND VISIT ANY
AUTHORIZED RETAILER AT
ONCE.

•

IF YOU HAVE ANY
QUESTIONS, CONTACT YOUR
AUTHORIZED RETAILER.

Highway Hazards

No matter how carefully you drive,
there is always the possibility that
you could eventually have a flat
tire on the highway. Drive slowly

to the closest safe area out of
traffic. This could further damage
the flat tire, but your safety is
more important.

If you feel a sudden vibration or
ride disturbance while driving, or
you suspect your tire or vehicle
has been damaged, immediately
reduce your speed. Drive with
caution until you can safely pull
off the road. Stop and inspect the
tires for damage. If a tire is
under-inflated or damaged,
deflate it, remove the wheel and
replace it with your spare tire and
wheel. If you cannot detect a
cause, have the vehicle towed to
the nearest repair facility or tire
dealer to have the vehicle
inspected.

447

Tire Care

Tire and Wheel Alignment

A bad jolt from hitting a curb or
pothole can cause the front end
of your vehicle to become
misaligned or cause damage to
your tires. If your vehicle seems to
pull to one side when you are
driving, the wheels could be out of
alignment. Have an authorized
dealer check the wheel alignment
periodically.

Wheel misalignment in the front
or the rear can cause uneven and
rapid treadwear of your tires and
should be corrected by an
authorized dealer.

INSPECTING THE WHEEL
VALVE STEMS

Check the valve stems for holes,
cracks, or cuts that could permit
air leakage.

TIRE ROTATION

WARNING:

If the tire label

shows different tire pressures for
the front and rear tires and the
vehicle has a tire pressure
monitoring system, then you
need to update the settings for
the system sensors. Always

perform the system reset
procedure after tire rotation. If
you do not reset the system, it
may not provide a low tire
pressure warning when
necessary.

Rotating your tires at the
recommended interval will help
your tires wear more evenly,
providing better tire performance
and longer tire life.

Note:

If your tires show any uneven

wear have the alignment checked
by an authorized dealer before
rotating tires.

Note:

If you have a dissimilar spare

wheel and tire assembly, it is
intended for temporary use only
and should not be used in a tire

rotation.

Note:

After having your tires

rotated, inflation pressure must be
checked and adjusted to the
vehicle requirements.

Tire Rotation Diagram

Follow the diagram indicating the
correct tire locations for rotating
the tires.

448

Tire Care

WHAT IS THE TIRE PRESSURE
MONITORING SYSTEM

E139232

The tire pressure monitoring
system measures the vehicle's
tire pressures. A warning lamp

illuminates if one or more tires are
significantly underinflated or if there is a
system malfunction.

TIRE PRESSURE MONITORING
SYSTEM OVERVIEW

WARNING:

Under-inflation is the

most common cause of tire failures and
may result in severe tire cracking, tread
separation or blowout, with unexpected
loss of vehicle control and increased risk
of injury. Under-inflation increases
sidewall flexing and rolling resistance,
resulting in heat buildup and internal
damage to the tire. It also may result in
unnecessary tire stress, irregular wear,
loss of vehicle control and accidents. A
tire can lose up to half of its air pressure
and not appear to be flat!

WARNING:

To determine the

required pressure(s) for your vehicle, see
the Safety Compliance Certification
Label (on the door hinge pillar,
door-latch post or the door edge that
meets the door-latch post, next to the
driver seat) or the Tire Label on the
B-Pillar or the edge of the driver door.

Each tire, including the spare (if provided),
should be checked monthly when cold and
inflated to the inflation pressure
recommended by the vehicle manufacturer
on the vehicle placard or tire inflation
pressure label. (If your vehicle has tires of
a different size than the size indicated on
the vehicle placard or tire inflation pressure
label, you should determine the proper tire
inflation pressure for those tires).

As an added safety feature, your vehicle
has been equipped with a Tire Pressure
Monitoring System (TPMS) that
illuminates a low tire pressure telltale
when one or more of your tires is
significantly under-inflated. Accordingly,
when the low tire pressure telltale
illuminates, you should stop and check
your tires as soon as possible, and inflate
them to the proper pressure. Driving on a
significantly under-inflated tire causes the
tire to overheat and can lead to tire failure.
Under-inflation also reduces fuel efficiency
and tire tread life, and may affect the
vehicle’s handling and stopping ability.

Please note that the TPMS is not a
substitute for proper tire maintenance, and
it is the driver’s responsibility to maintain
correct tire pressure, even if under-inflation
has not reached the level to trigger
illumination of the TPMS low tire pressure
telltale.

Your vehicle has also been equipped with
a TPMS malfunction indicator to indicate
when the system is not operating properly.
The TPMS malfunction indicator is
combined with the low tire pressure
telltale. When the system detects a
malfunction, the telltale will flash for
approximately one minute and then remain
continuously illuminated. This sequence
will continue upon subsequent vehicle
start-ups as long as the malfunction exists.

450

Tire Pressure Monitoring System

When the malfunction indicator is
illuminated, the system may not be able
to detect or signal low tire pressure as
intended. TPMS malfunctions may occur
for a variety of reasons, including the
installation of replacement or alternate
tires or wheels on the vehicle that prevent
the TPMS from functioning properly.
Always check the TPMS malfunction
telltale after replacing one or more tires or
wheels on your vehicle to ensure that the
replacement or alternate tires and wheels
allow the TPMS to continue to function
properly.

WARNING:

Changes or

modifications not expressively approved
by the party responsible for compliance
could void the user's authority to operate
the equipment. The term "IC:" before the
radio certification number only signifies
that Industry Canada technical
specifications were met.

This device complies with Part 15 of the
FCC Rules and with License exempt RSS
Standards of Industry Canada. Operation
is subject to the following two conditions:

This device may not cause harmful
interference, and

2. This device must accept any

interference received, including
interference that may cause undesired
operation.

TIRE PRESSURE MONITORING
SYSTEM PRECAUTIONS

WARNING:

The tire pressure

monitoring system is not a substitute for
manually checking tire pressures. You
should periodically check tire pressures
using a pressure gauge. Failure to
correctly maintain tire pressures could
increase the risk of tire failure, loss of
control, vehicle rollover and personal
injury.

WARNING:

Do not use the tire

pressure displayed in the information
display as a tire pressure gauge. Failure
to follow this instruction could result in
personal injury or death.

Note:

The use of tire sealants can damage

the tire pressure monitoring system.

Note:

If the tire pressure monitor sensor

becomes damaged it may not function.

TIRE PRESSURE MONITORING
SYSTEM LIMITATIONS

When the outside temperature drops
significantly, the tire pressure could
decrease and activate the low tire pressure
warning lamp.

The warning lamp could also illuminate
when you use a spare wheel, or tire sealant
from the inflator kit.

Note:

Regularly checking the vehicle tire

pressures can reduce the possibility for the
warning lamp to illuminate due to outside
air temperature changes.

Note:

After you inflate the tires to the

recommended pressure it could take up to
two minutes of driving over 20 mph
(32 km/h) for the warning indicator to turn
off.

451

Tire Pressure Monitoring System

VIEWING THE TIRE
PRESSURES

E224333

Using the instrument cluster
display arrow keys navigate to the
truck info section where you can
view the tire pressures.

TIRE PRESSURE MONITORING
SYSTEM –
TROUBLESHOOTING

TIRE PRESSURE MONITORING
SYSTEM – WARNING LAMPS

E139232

The low tire pressure warning
lamp has combined functions,
as it warns you when your tires

need air, and when the system is no longer
capable of functioning as intended.

Action Required

Possible Cause

Warning Lamp

After inflating your tires to the manufac-
turer’s recommended pressure as shown
on the tire label, on the edge of driver
door or the B-pillar, drive your vehicle for
at least two minutes over 20 mph
(32 km/h) before the light turns off.

One or more tires are

significantly under

inflated

Solid warning lamp

Repair the damaged road wheel and tire
and refit it to your vehicle to restore
operation of the system.

Temporary spare wheel

in use

Solid warning lamp
or flashing warning

lamp

If the tires are inflated to the recom-
mended tire pressures and the temporary
spare wheel is not in use, the system
detected a fault that requires service.
Have your vehicle checked as soon as
possible.

Tire pressure monitoring

system malfunction

452

Tire Pressure Monitoring System

TIRE PRESSURE MONITORING SYSTEM – INFORMATION MESSAGES

Action

Message

After inflating your tires to the manufacturer’s recommended
pressure as shown on the Tire Label, on the edge of the driver
door or the B-Pillar, drive your vehicle for at least two minutes

over 20 mph (32 km/h) before the light turns off.

Tire Pressure Low

The system has detected a fault that requires service. Have

your vehicle checked as soon as possible.

Tire Pressure Monitor

Fault

The system has detected a fault that requires service or a

spare tire is in use. Have your vehicle checked as soon as

possible.

Tire Pressure Sensor

Fault

453

Tire Pressure Monitoring System

CHANGING A FLAT TIRE

If you get a flat tire when driving, do not
apply the brake heavily. Instead, gradually
decrease your speed, hold the steering
wheel firmly and slowly move to a safe
place on the side of the road.

Have the flat serviced by an authorized
dealer to prevent damage to the system
sensors. See

Tire Pressure Monitoring

System

(page 450). Replace the spare tire

with a road tire as soon as possible. During
repairing or replacing of the flat tire, have
the authorized dealer inspect the system
sensor for damage.

Note:

Only use tire sealants in roadside

emergencies as they may cause damage to
the tire pressure monitoring system sensor.

Note:

The tire pressure monitoring system

indicator light illuminates when the spare
tire is in use. To restore the full function of
the monitoring system, all road wheels with
tire pressure monitoring sensors must be
mounted on this vehicle.

Dissimilar Spare Wheel and Tire
Assembly Information

WARNING:

Failure to follow these

guidelines could result in an increased
risk of loss of vehicle control, injury or
death.

If you have a dissimilar spare wheel and
tire, then it is intended for temporary use
only. This means that if you need to use it,
you should replace it as soon as possible
with a road wheel and tire assembly that
is the same size and type as the road tires
and wheels that were originally provided.
If the dissimilar spare tire or wheel is
damaged, it should be replaced rather than
repaired.

A dissimilar spare wheel and tire assembly
is defined as a spare wheel and tire
assembly that is different in brand, size or
appearance from the other road tires and
wheels on your vehicle.

Full-size dissimilar spare

When driving with the full-size dissimilar
spare wheel and tire assembly, do not:
•

Exceed 70 mph (113 km/h).

•

Use more than one dissimilar spare
wheel and tire assembly at a time.

•

Use snow chains on the end of the
vehicle with the dissimilar spare wheel
and tire assembly.

When driving with the full-size dissimilar
spare wheel and tire assembly, it is
recommended that you do not:
•

Exceed 50 mph (80 km/h) in
four-wheel drive.

•

Engage four-wheel drive unless the
vehicle is stationary.

•

Use four-wheel drive on dry pavement.

Using a dissimilar spare wheel and tire
assembly can compromise the
effectiveness of the following:
•

Handling, stability and braking
performance.

•

Comfort and noise.

•

Ground clearance and parking at curbs.

•

Winter weather driving capability.

•

Wet weather driving capability.

•

Four-wheel driving capability.

When driving with the full-size dissimilar
spare wheel and tire assembly additional
caution should be given to:
•

Towing a trailer.

•

Driving vehicles equipped with a
camper body.

•

Driving vehicles with a load on the
cargo rack.

454

Changing a Road Wheel

Drive cautiously when using a full-size
dissimilar spare wheel and tire assembly
and seek service as soon as possible.

Location of the Spare Tire and
Tools

The spare tire is located under the vehicle,
just forward of the rear bumper. The jack,
swivel wrench and lug wrench are in the
following locations:

Location

Item

Under the vehicle, just forward of the rear

bumper

Spare tire

Under the access panel located in the floor

compartment behind the rear seat

Jack and tool kit bag

Tire Change Procedure

WARNING:

Only use replacement

tires and wheels that are the same size,
load index, speed rating, and type as
those originally provided for your vehicle.
The recommended tire and wheel sizes
can be found on the Tire Label on the
driver side door frame or the edge of the
driver door. If this information is not
found in those locations, or for additional
options, contact your authorized dealer.
Use of any tire or wheel not
recommended, could affect the safety
and performance of your vehicle, which
could result in an increased risk of loss
of vehicle control, vehicle rollover,
personal injury and death.

WARNING:

To help prevent your

vehicle from moving when changing a
wheel, shift the transmission into park
(P), set the parking brake and use an
appropriate block or wheel chock to
secure the wheel diagonally opposite to
the wheel being changed. For example,
when changing the front left wheel,
place an appropriate block or wheel
chock on the right rear wheel.

WARNING:

Only use the jack

provided as original equipment with your
vehicle.

WARNING:

Switch off the running

boards before jacking or placing any
object under your vehicle. Never place
your hand between the extended running
board and your vehicle. A moving running
board may cause injury.

WARNING:

Only use the spare

wheel carrier to stow wheels provided
with your vehicle.

WARNING:

Ensure screwthread is

adequately lubricated before use.

WARNING:

Apply the parking

brake, shift into park (P), switch the
ignition off and remove the key before
you leave your vehicle. Failure to follow
this instruction could result in personal
injury or death.

WARNING:

Only use the specified

jacking points. If you use any other
locations you could damage vehicle
components, such as brake lines.

455

Changing a Road Wheel

WARNING:

Do not attempt to

change a tire on the side of the vehicle
close to moving traffic. Pull far enough
off the road to not obstruct the flow of
traffic and avoid the danger of being hit
when operating the jack or changing the
wheel.

Park the vehicle on firm, level ground
and activate the hazard flashers.

2. Apply the parking brake, place the

transmission in park (P) and switch the
ignition off.

3. Block the wheels diagonally opposite

the flat tire, for example, if the left front
tire is flat, block the right rear wheel.

E175447

Removing the Jack and Tools

Note:

Pay close attention to the orientation

of the jack and tool kit bag, because it needs
to be reinstalled after changing the tire.

Open the liftgate and lift the load floor
behind the third row seat. If your
vehicle has an access panel, unlatch
and remove this panel.

2. Remove the wing nut by turning it

counterclockwise.

3. Remove the jack and tool kit bag from

the bracket, loosen the straps and
remove the tool bag from the jack.

E252435

Removing the Spare Tire

Remove the swivel wrench from the
tool kit bag, open the spare tire winch
access plug at the bottom of the
compartment for the jack and tools
tray.

2. Insert the swivel wrench through the

access hole in the floor to engage the
winch. Turn the handle
counterclockwise until the tire lowers
to the ground and the cable is slightly
slack.

456

Changing a Road Wheel

E273399

3. Slide the retainer through the center of

the spare tire wheel and remove the
spare tire.

Note:

If your wheel nuts are hidden, use the

lug wrench tip to remove the wheel
ornament to access the wheel nuts.

4. Loosen each wheel lug one-half turn

counterclockwise, but do not remove
them until the wheel is off the ground.

E358685

Jacking the Vehicle

WARNING:

No person should place

any portion of their body under a vehicle
that is supported by a jack.

WARNING:

The jack supplied with

this vehicle is only intended for changing
a flat tire in an emergency. Do not
attempt to do any other work on your
vehicle when it is supported by the jack,
as your vehicle could slip off the jack.
Failure to follow this instruction could
result in personal injury or death.

E166722

457

Changing a Road Wheel

WARNING:

The jack supplied with

WARNING:

The jack should be

used on level firm ground wherever
possible.

WARNING:

Never place anything

between the vehicle jack and the ground.

WARNING:

Never place anything

between the vehicle jack and your
vehicle.

WARNING:

It is recommended that

the wheels of the vehicle be chocked,
and that no person should remain in a
vehicle that is being jacked.

WARNING:

Failure to follow these

guidelines could result in an increased
risk of loss of vehicle control, injury or
death.

Note:

The jack does not require

maintenance or additional lubrication over
the service life of your vehicle.

Note:

Both the front and rear jacking points

are on the frame rails. The correct locations
on the frame rails are marked with an arrow
punched into the frame rail. Jack at the
specified locations to avoid damaging your
vehicle.

Front jacking point

E325274

Rear jacking point

E325281

458

Changing a Road Wheel

Position the jack at the jacking point
indicator arrow closest to the flat tire
location. Assemble the jack drive
extension to the lug wrench as shown
and use it to turn the jack drive
clockwise to raise the vehicle until the
flat tire is completely off the ground.

E325278

2. Remove the lug nuts with the lug

wrench. Replace the flat tire with the
spare tire, making sure the valve stem
is facing outward.

3. Reinstall the lug nuts until the wheel is

snug against the hub. Do not fully
tighten the lug nuts until the wheel has
been lowered.

4. Completely lower the vehicle by turning

the jack drive counterclockwise.

5. Remove the jack and fully tighten the

lug nuts in the order shown. See

Wheel

Nuts

(page 460).

E166719

Stowing the Flat or Spare Tire

Lay the tire on the ground, near the rear
of the vehicle, with the valve stem side
facing up.

2. Slide the wheel partially under the

vehicle and install the retainer through
the wheel center. You may have to
remove the wheel center cap prior to
pushing the retainer through the center
of the wheel. To remove the center cap,
press it off with the jack tool from the
inner side of the wheel. Pull on the
cable to align the components at the
end of the cable.

3. Using the swivel wrench, insert it

through the access hole behind the
third row seat and engage the winch.

4. Turn the swivel wrench clockwise until

the tire is raised to its stowed position
underneath the vehicle. The wrench
becomes harder to turn and the spare
tire winch ratchets or slips when the
tire is raised to maximum tightness. A
clicking sound can be heard from the
winch indicating that the tire is properly
stowed.

5. Carefully place all tools back into the

tool kit bag.

6. Reinstall the tool kit bag on the jack

and tighten the straps.

Reinstall the jack properly on the
bracket and secure with the wing nut.

8. Close the access hole with the rubber

plug.

9. If the vehicle has an access panel,

reinstall.

10.

Unblock the wheel.

459

Changing a Road Wheel

WHEEL NUTS

WARNING:

When you install a

wheel, always remove any corrosion, dirt
or foreign materials present on the
mounting surfaces of the wheel or the
surface of the wheel hub, brake drum or
brake disc that contacts the wheel. Make
sure to secure any fasteners that attach
the rotor to the hub so they do not
interfere with the mounting surfaces of
the wheel. Installing wheels without
correct metal-to-metal contact at the
wheel mounting surfaces can cause the
wheel nuts to loosen and the wheel to
come off while your vehicle is in motion,
resulting in loss of vehicle control,
personal injury or death.

lb.ft (Nm)

Bolt Size

150 lb.ft (204 Nm)

M14 x 1.5

Torque specifications are for nut and bolt

threads free of dirt and rust. Use only our
recommended replacement wheel nuts
and or wheel bolts.

Retighten the wheel nuts to the specified
torque within 100 mi (160 km) after any
wheel disturbance, such as tire rotation,
changing a flat tire or wheel removal.

E145950

Hub pilot bore.

Inspect the wheel pilot hole and
mounting surface prior to installation.
Remove any visible corrosion or loose
particles.

460

Changing a Road Wheel

MOTORCRAFT PARTS

Motorcraft Part Number

Component

FA-1883

Air filter element.

BAGM-48H6-760

Battery.

FP-92

Cabin air filter.

FL-500-S

Engine oil filter.

WW-1107-A

Rear window wiper blade.

SP-596

Spark plug.

WW-2248-A

Windshield wiper blade.

If a Motorcraft oil filter is not available, use an oil filter that aligns to SAE/USCAR – 36

Performance Specifications. Filter Type C.

We recommend Motorcraft parts that are available at your authorized dealer or at
www.parts.ford.com. We engineer these parts for your vehicle to meet or exceed our
specifications. Use of other parts could impact vehicle performance, emissions and
durability. Your warranty could be void for any damage related to use of other parts.

462

Capacities and Specifications

ENGINE OIL CAPACITY AND
SPECIFICATION

Use oil that meets the defined
specification and viscosity grade.

If you do not use oil that meets the defined
specification and viscosity grade, it could
result in:
•

Component damage that your vehicle
warranty does not cover.

•

Longer engine cranking periods.

•

Increased emission levels.

•

Reduced vehicle performance.

•

Reduced fuel economy.

E142732

An oil that displays this symbol conforms
to current engine, emission system and
fuel economy performance standards of
ILSAC.

We recommend Motorcraft® motor oil for
your vehicle. If Motorcraft® oil is not
available, use motor oils of the
recommended viscosity grade that display
the API Certification Mark for gasoline
engines.

Do not use supplemental engine oil
additives because they are unnecessary
and could lead to engine damage that your
vehicle warranty does not cover.

Capacities

Including the Oil Filter

Variant

6.0 qt (5.7 L)

All.

Materials

Specification

Name

WSS-M2C961-A1

Motorcraft® SAE 5W-30 Motor Oil(U.S.)
Motorcraft® SAE 5W-30 Motor Oil / Huile moteur
SAE 5W-30 Motorcraft®(Canada)
XO-5W30-Q1SP, XO-5W30-Q1FS(U.S.)
CXO-5W30-LSP6, CXO-5W30-LFS6(Canada)

463

Capacities and Specifications

Alternative Engine Oil for
Extremely Cold Climates

To improve engine cold start performance,

use the following engine oil in climates
where the ambient temperature reaches
-22.0°F (-30°C) or below.

Materials

Specification

Name

WSS-M2C963-A1

Engine Oil - SAE 0W-30

E240523

Note:

If you use your vehicle regularly above

the altitude of 5,000 ft (1,524 m) and under
the temperature of -4.0°F (-20°C), it is
recommended to use the alternative engine
oil.

COOLING SYSTEM CAPACITY
AND SPECIFICATION

Use coolant that meets the defined
specification.

If you do not use coolant that meets the
defined specification, it could result in:
•

Component damage that your vehicle
warranty does not cover.

•

Reduced vehicle performance.

Capacities

Quantity

Variant

15.4 qt (14.6 L)

Standard duty trailer tow.

15.96 qt (15.1 L)

Heavy duty trailer tow.

464

Capacities and Specifications

Materials

Specification

Name

WSS-M97B57-A2

Motorcraft® Yellow Prediluted Antifreeze/
Coolant(U.S.)
Motorcraft® Yellow Prediluted Antifreeze/Coolant
/ Antigel/liquide de refroidissement prédilué jaune
Motorcraft®(Canada)
VC-13DL-G(U.S.)
CVC-13DL-G(Canada)

FUEL TANK CAPACITY

Capacities

Quantity

Variant

23.6 gal (89.3 L)

Base.

27.8 gal (105.2 L)

Expedition MAX.

465

Capacities and Specifications

AIR CONDITIONING SYSTEM
CAPACITY AND
SPECIFICATION

WARNING:

The air conditioning

refrigerant system contains refrigerant
under high pressure. Only qualified
personnel should service the air
conditioning refrigerant system. Opening

the air conditioning refrigerant system
can cause personal injury.

Use refrigerant and oil that meets the
defined specifications.

If you do not use refrigerant and oil that
meets the defined specifications, it could
result in:
•

Component damage that your vehicle
warranty does not cover.

•

Reduced vehicle performance.

Capacities

Refrigerant Oil

Refrigerant

Variant

6.1 fl oz (180 ml)

37 oz (1.05 kg)

All.

Materials

Specification

Name

WSS-M17B21-A

R-1234yf Refrigerant(U.S.)
R-1234yf Refrigerant / Frigorigène R-1234yf(Canada)
YN-33-A(U.S.)
HS7Z-19B519-BA(Canada)

WSS-M2C300-A2

Motorcraft® R-1234yf Refrigerant PAG Oil(U.S.)
Motorcraft® R-1234yf Refrigerant PAG Oil / Huile
PAG pour frigorigène R-1234yf Motorcraft®(Canada)
YN-35(U.S. & Canada)

WASHER FLUID SPECIFICATION

Capacities

Quantity

Variant

Fill as required.

All.

466

Capacities and Specifications

Materials

Specification

Name

WSS-M14P19-A

Motorcraft® Premium Windshield Wash Concen-
trate with Bitterant(U.S.)
Motorcraft® Premium Quality Windshield Washer
Fluid / Liquide lave-glace de haute qualité Motor-
craft®(Canada)
ZC-32-B2(U.S.)
CXC-37-F/M(Canada)

BRAKE FLUID SPECIFICATION

Use fluid that meets the defined
specification and viscosity grade.

If you do not use fluid that meets the
defined specification and viscosity grade,
it could result in:
•

Component damage that your vehicle
warranty does not cover.

•

Reduced brake performance.

Note:

We recommend you use Dot 4 Low

Viscosity (LV) High Performance Brake Fluid
meeting WSS-M6C65-A2 specifications or
ISO 4925 Class 6 standards. If you use any
fluid other than the recommended fluid, it
could cause reduced brake performance
and not meet our performance standards.
Keep brake fluid clean and dry.
Contamination with dirt, water, petroleum
products or other materials could result in
brake system damage and possible failure.

Capacities

Quantity

Variant

Fill as required.

All.

Materials

Specification

Name

WSS-M6C65-A2

Motorcraft® DOT 4 LV High Performance Motor
Vehicle Brake Fluid(U.S.)
Motorcraft® DOT 4 LV High Performance Motor
Vehicle Brake Fluid / Liquide de frein automobile
haute performance DOT 4 LV Motorcraft®(Canada)
PM-20(U.S. & Canada)

467

Capacities and Specifications

TRANSFER CASE FLUID
CAPACITY AND
SPECIFICATION

Use fluid that meets the defined
specification and viscosity grade.

If you do not use fluid that meets the
defined specification and viscosity grade,
it could result in:
•

Component damage that your vehicle
warranty does not cover.

•

Reduced vehicle performance.

Capacities

Quantity

Variant

1.4–1.6 qt (1.3–1.5 L)

Four-wheel drive.

Materials

Specification

Name

WSS-M2C938-A

Motorcraft® MERCON® LV Automatic Transmission
Fluid(U.S.)
Motorcraft® MERCON® LV Automatic Transmission
Fluid / Huile pour boîte automatique MERCON® LV
Motorcraft®(Canada)
XT-10-QLVC(U.S.)
CXT-10-LV6(Canada)

FRONT AXLE FLUID CAPACITY
AND SPECIFICATION

Use fluid that meets the defined
specification and viscosity grade.

If you do not use fluid that meets the
defined specification and viscosity grade,
it could result in:
•

Component damage that your vehicle
warranty does not cover.

•

Reduced vehicle performance.

Capacities

Quantity

Variant

1.8 qt (1.7 L)

Four-wheel drive.

468

Capacities and Specifications

Materials

Specification

Name

WSS-M2C942-A

Motorcraft® SAE 75W-85 Premium Synthetic
Hypoid Gear Lubricant(U.S.)
Motorcraft® SAE 75W-85 Premium Synthetic
Hypoid Gear Lubricant / Huile synthétique de haute
qualité pour engrenages hypoïdes SAE 75W-85
Motorcraft®(Canada)
XY-75W85-QL(U.S. & Canada)

REAR AXLE FLUID CAPACITY
AND SPECIFICATION

Use fluid that meets the defined
specification and viscosity grade.

If you do not use fluid that meets the
defined specification and viscosity grade,
it could result in:
•

Component damage that your vehicle
warranty does not cover.

•

Reduced vehicle performance.

Rear Axle - 8.8

Capacities

Quantity

Variant

2.5 qt (2.4 L)

All.

Materials

Specification

Name

WSS-M2C942-A

469

Capacities and Specifications

Rear Axle - 9.75 without Limited-Slip

Capacities

Quantity

Variant

2.5 qt (2.4 L)

All.

Materials

Specification

Name

WSS-M2C942-A

Rear Axle - 9.75 with Limited-Slip

Capacities

Quantity

Variant

2.4 qt (2.3 L)

All.

For complete refill of limited slip axles, add 4 fl oz. (118 ml) of Additive Friction Modifier

XL-3 or equivalent, meeting specification EST-M2C118-A. Include this friction modifier in
the total lube volume of 2.4 qt (2.3 L).

470

Capacities and Specifications

VEHICLE IDENTIFICATION
NUMBER

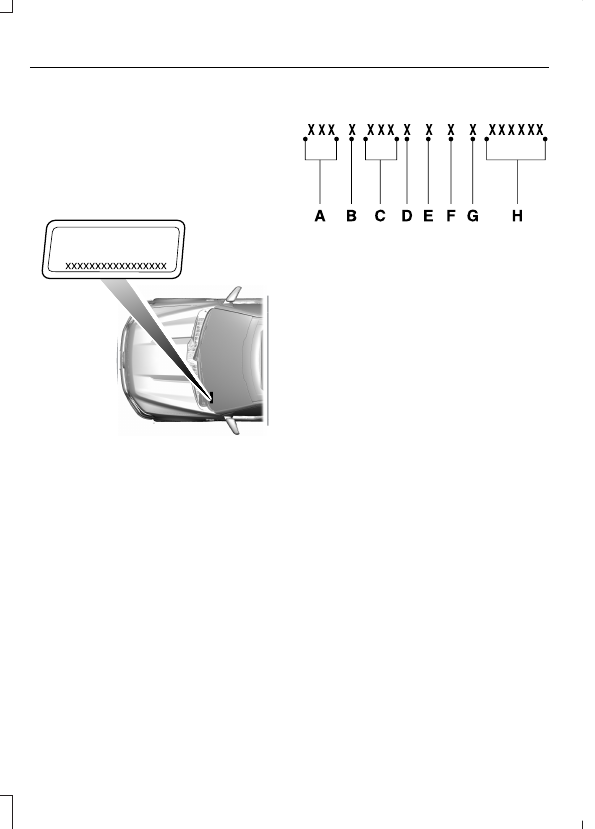

LOCATING THE VEHICLE
IDENTIFICATION NUMBER

The vehicle identification number is on the
left-hand side of the instrument panel.

E311767

Note:

In the illustration, XXXX is

representative of your vehicle identification
number.

VEHICLE IDENTIFICATION
NUMBER OVERVIEW

The vehicle identification number contains
the following information:

E142477

World manufacturer identifier.

Brake system, gross vehicle
weight rating, restraint devices
and their locations.

Make, vehicle line, series, body
type.

Engine or motor type.

Check digit.

Model year.

Assembly plant.

Production sequence number.

472

Vehicle Identification

WHAT IS A CONNECTED
VEHICLE

A connected vehicle has technology that
allows your vehicle to connect to a mobile
network and for you to access a range of
features. When used in conjunction with
the FordPass app, it could allow you to
monitor and control your vehicle further,
for example checking the tire pressures,
the fuel level and the vehicle location. For
additional information, refer to the local
Ford website.

CONNECTED VEHICLE
REQUIREMENTS

Connected service and related feature
functionality requires a compatible vehicle
network.

Some remote features require additional
service activation. Log in to your Ford
account for details. Some restrictions, third
party terms and message or data rates
may apply.

CONNECTED VEHICLE
LIMITATIONS

Evolving technology, cellular networks, or
regulations could affect functionality and
availability, or continued provision of some
features. These changes could even stop
some features from functioning.

CONNECTING THE VEHICLE TO
A MOBILE NETWORK

WHAT IS THE MODEM

The modem allows access to a
range of features built into your
vehicle.

ENABLING AND DISABLING THE
MODEM - VEHICLES WITH: 12 INCH
SCREEN

Press

Settings

on the touchscreen.

2. Press

Connectivity

3. Press

Connected Vehicle Features

4. Switch vehicle connectivity on or off.

ENABLING AND DISABLING THE
MODEM - VEHICLES WITH: 15 INCH
SCREEN

From the settings menu, press
Connectivity. See

Center Display

(page 499).

2. Press Connected Vehicle Features.

3. Switch vehicle connectivity on or off.

CONNECTING FORDPASS TO THE
MODEM

Make sure that the modem is enabled
using the vehicle settings menu.

2. Open the FordPass app on your device

and log in.

3. Add your vehicle or select your vehicle

if already added.

4. Select the option to activate your

vehicle.

5. Make sure that the name on the screen

matches the name shown in your
FordPass account.

6. Confirm that FordPass account is

connected to the modem.

473

Connected Vehicle

Ford Expedition (2024 year). Manual in english - page 14
